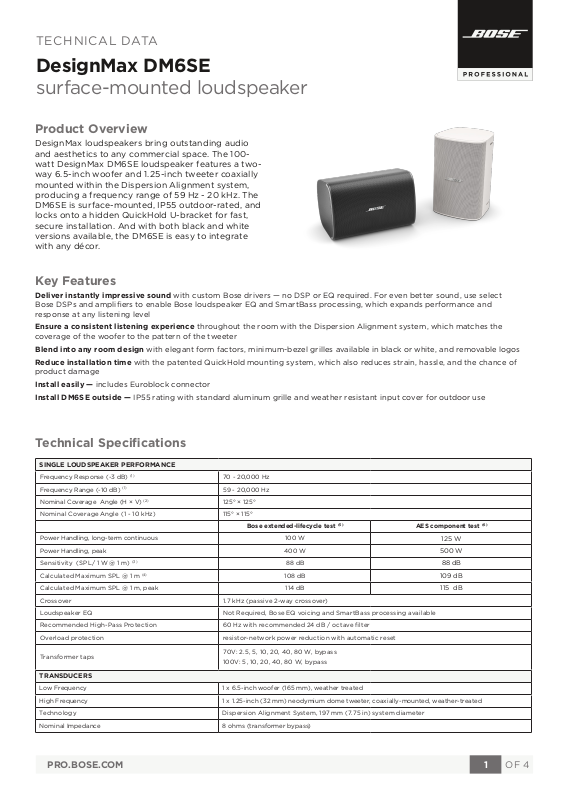

Bose DM6SE Data Sheet
TECHNICAL DATA
DesignMax DM6SE
surface-mounted loudspeaker
Product Overview
DesignMax loudspeakers bring outstanding audio
and aesthetics to any commercial space. The 100watt DesignMax DM6SE loudspeaker features a twoway 6.5-inch woofer and 1.25-inch tweeter coaxially
mounted within the Dispersion Alignment system,
producing a frequency range of 59 Hz - 20 kHz. The
DM6SE is surface-mounted, IP55 outdoor-rated, and
locks onto a hidden QuickHold U-bracket for fast,
secure installation. And with both black and white
versions available, the DM6SE is easy to integrate
with any décor.
Key Features
Deliver instantly impressive sound with custom Bose drivers — no DSP or EQ required. For even better sound, use select
Bose DSPs and amplifiers to enable Bose loudspeaker EQ and SmartBass processing, which expands performance and
response at any listening level
Ensure a consistent listening experience throughout the room with the Dispersion Alignment system, which matches the
coverage of the woofer to the pattern of the tweeter
Blend into any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos
Reduce installation time with the patented QuickHold mounting system, which also reduces strain, hassle, and the chance of
product damage
Install easily — includes Euroblock connector
Install DM6SE outside — IP55 rating with standard aluminum grille and weather resistant input cover for outdoor use
Technical Specifications

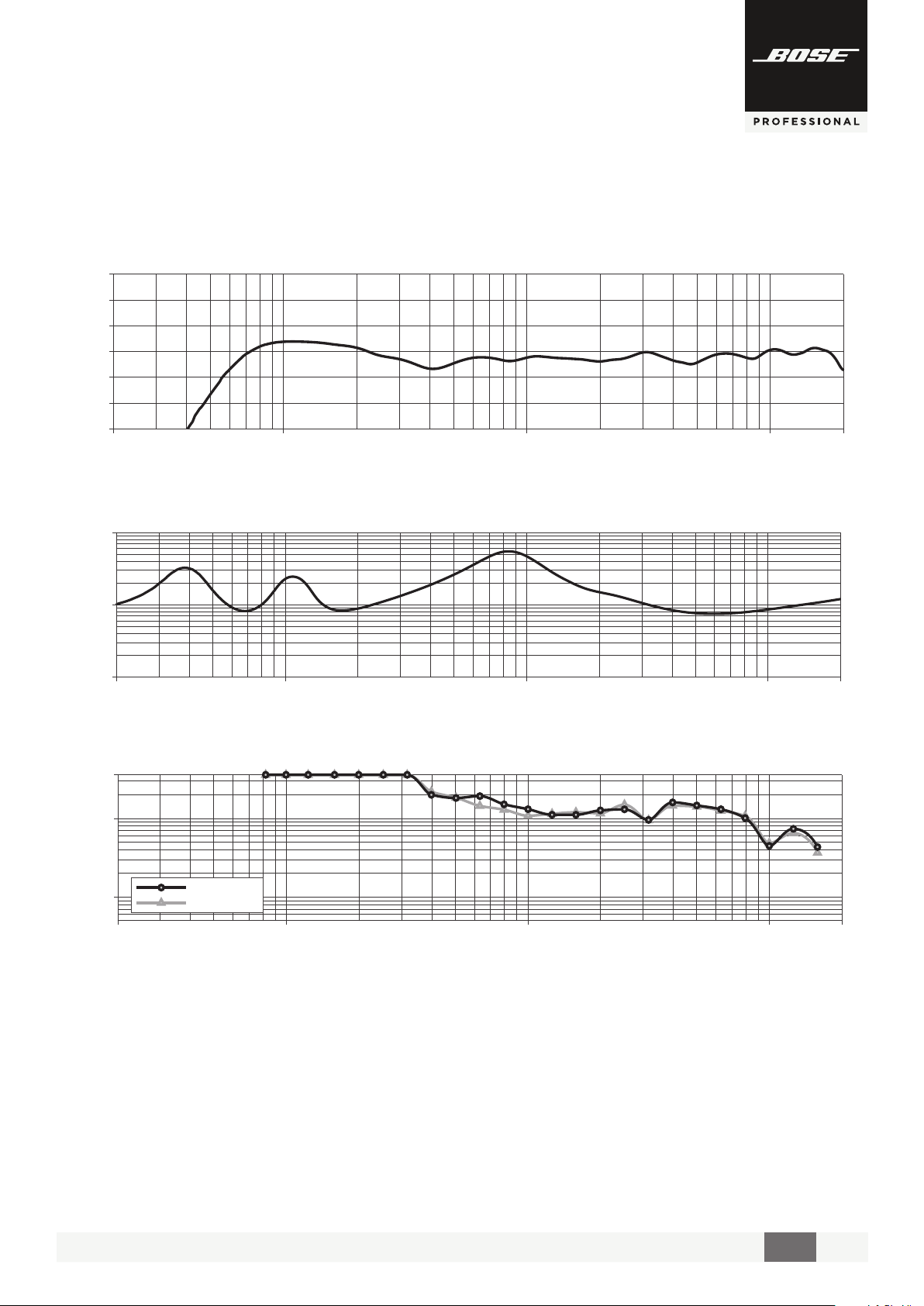

SINGLE LOUDSPEAKER PERFORMANCE
Frequency Response (-3 dB)
Frequency Range (-10 dB)
Nominal Coverage Angle (H × V)
Nominal Coverage Angle (1 - 10 kHz) 115° × 115°
Power Handling, long-term continuous 100 W
Power Handling, peak 400 W
Sensitivity (SPL/ 1 W @ 1 m)
Calculated Maximum SPL @ 1 m
Calculated Maximum SPL @ 1 m, peak 114 dB
Crossove r 1.7 kHz (passive 2-way crossover)
Loudspeaker EQ Not Required, Bose EQ voicing and SmartB ass processing available
Recommended High-Pass Protection 60 Hz with recommended 24 dB / octave filter
Overload protection resistor-network power reduction with automatic reset
Transformer taps
TRANSDUCERS
Low Frequency 1 x 6.5-inch woofer (165 mm), weather treated
High Frequency 1 x 1.25-inch (32 mm) neodymium dome tweeter, coaxially-mounted, weather-treated
Technology Dispersion Alignment System, 1 97 mm (7.75 in) system diamete r
Nominal Impedance 8 ohms (transformer bypass)
(1)
(1)
(2)
(3)
(4)
70 - 20,000 Hz
59 - 20,000 Hz
125° × 125°
Bose extended-lifecycle test
88 dB
108 dB
70V: 2.5 , 5, 10, 20, 40, 8 0 W, bypass
100V: 5, 10, 20, 40, 80 W, bypass
(5)
AES component test
125 W
500 W
88 dB
109 dB
115 dB
(6)
PRO.BOSE.COM 1 OF 4
DesignMax DM6SE
surface-mounted loudspeaker
PHYSICAL
Enclosure Material Engineered-plastics front bae with integrated steel formed back can
Bracket Material Powder-coated steel
Grille Perforated aluminum with powder-coat finish, tamper-resistant design, paintable
Logo Rotatable, removable
Color Black: RAL 9005, White: Bose Arctic White, similar to RAL 9003, Paintable
Environmental / Ingress-Protection Outdoor per IEC 529 IP55 (suitable for use outdoors in wet locations), includes aluminum grille to
Safety Agency UL-1480A, S5591/ UL Listed, NFPA70, in accordance with IEC60268-5, ROHS, CE compliant
Operating Temperature Range -25 °C to 70 °C (-13 °F to 158 °F)
Connectors Euroblock 6-pin connector with loop-through, mounted on rear. Accepts 18 AWG (0.8 mm2) to 14
Suspension / Mounting QuickHold Mounting System with included U-Bracket

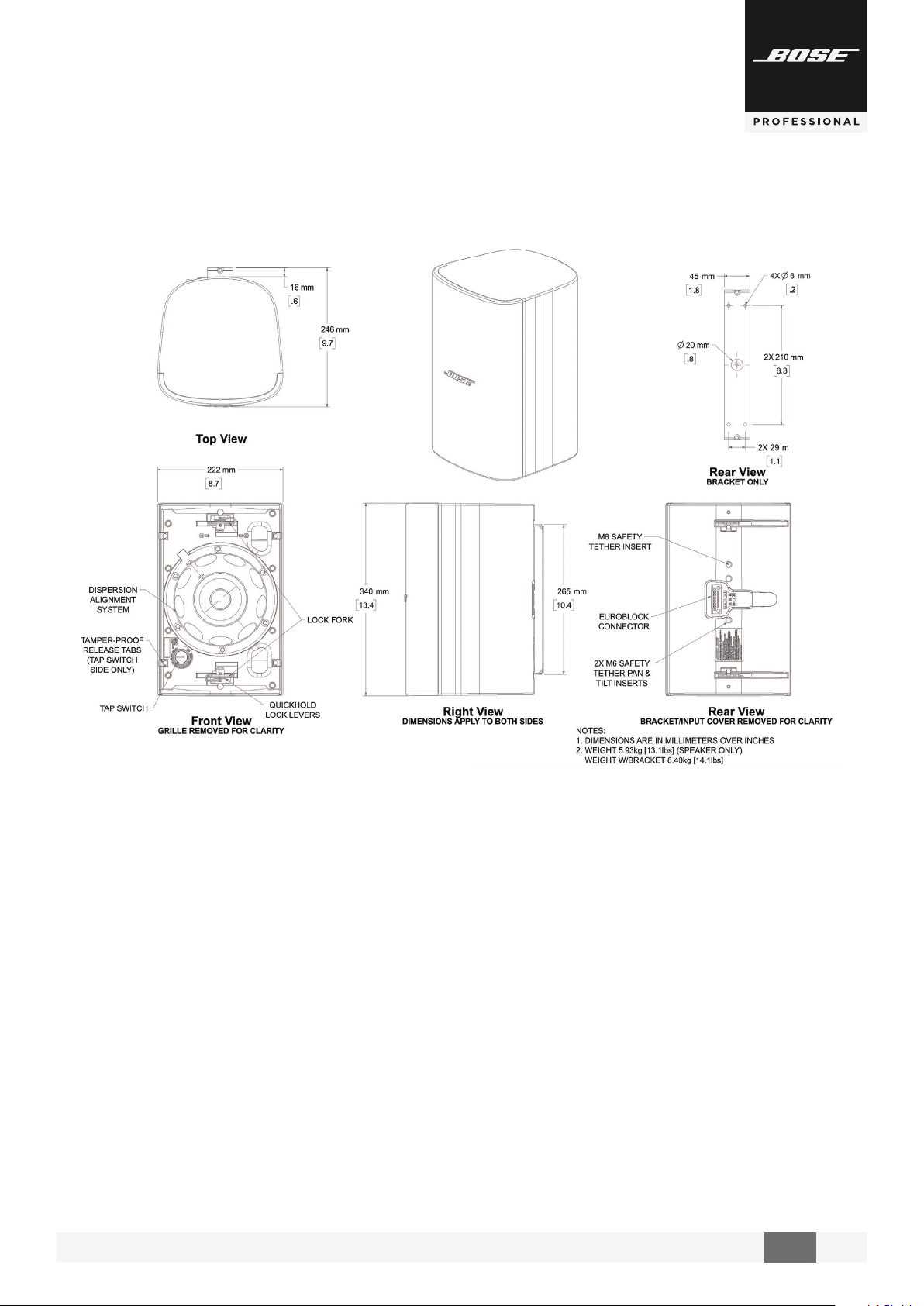

Dimensions (H x W x D) 340 × 222 × 229 mm (13.4 × 8.7 × 9 in)
Dimensions (H x W x D) with bracket 340 × 222 × 245 mm (13 .4 × 8.7 × 9.8 in)
Net Weight, Loudspeaker with grille (single)
Shipping Weight (pair) 14.7 kg (32.5 lb)
Included Accessories U-Bracket, powder-coated steel
Optional Accessories Pan & Tilt B racket
PRODUCT CODES
829682-0110 DESIGNMAX DM6SE PAIR BLK
829682-0210 DESI GNMAX DM6SE PAIR WHT
prevent red corrosion and weather resistant input cover
AWG (2.5 mm2) size wire
4 preset mounting angles: 0°, 15°, 30°, 45° for wall or ceiling placement
Two (2) rear M8 screw inserts for use with option al pan & tilt bracket and one (1) rear M8 screw
insert for safety-tether attachment
6.4 kg (14.1 lb)
Footnotes
(1) Frequency response and range measured on-axis in half-space environment with Bose EQ voicing
(2) 1 kHz to 4 kHz average
(3) Sensitivity measured on-axis in half-space environment with Bose EQ voicing
(4) Maximum SPL calculated from sensitivity and power handling specifications, exclusive of power compression.
(5) Bose extended-lifecycle test using pink noise filtered to meet IEC268-5, 6-dB crest factor, 500-hour duration.
(6) AES standard 2-hour duration with IEC system noise
For additional specifications and application information, please visit PRO.BOSE.COM.
Specifications subject to change without notice. 11/2019
PRO.BOSE.COM 2 OF 4
