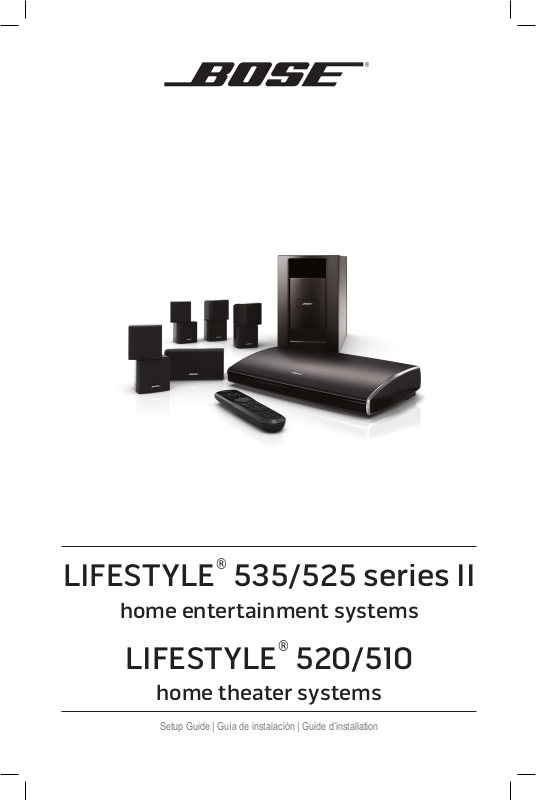

LIFESTYLE® 535/525 series II
home entertainment systems
LIFESTYLE® 520/510
home theater systems
Setup Guide | Guía de instalación | Guide d’installation
Safety Information
Please read this guide
Please take the time to follow the instructions in this owner’s guide carefully. It will help you set up and operate your
system properly and enjoy its advanced features. Please save this guide for future reference.
All Bose® products must be used in accordance with local, state, federal, and industry regulations.
The lightning ash with arrowhead symbol within an equilateral triangle alerts the user to the presence of
uninsulated, dangerous voltage within the system enclosure that may be of sufcient magnitude to
constitute a risk of electric shock.
The exclamation point within an equilateral triangle, as marked on the system, is intended to alert the user
to the presence of important operating and maintenance instructions in this owner’s guide.
WARNING: Contains small parts which may be a choking hazard. Not suitable for children under age 3.
WARNINGS:
• To reduce the risk of re or electrical shock, do not expose the product to rain or moisture.
• Do not expose this apparatus to dripping or splashing, and do not place objects lled with liquids, such
as vases, on or near the apparatus. As with any electronic products, use care not to spill liquids into
any part of the system. Liquids can cause a failure and/or a re hazard.
• To prevent electric shock, match the wide blade of the line cord plug to the wide slot of the AC (mains)
receptacle. Insert fully.
• Do not place any naked ame sources, such as lighted candles, on or near the apparatus.
CAUTIONS:
• Make no modications to the system or accessories. Unauthorized alterations may compromise safety,
regulatory compliance, and system performance.
• Long-term exposure to loud music may cause hearing damage. It is best to avoid extreme volume
when using headphones, especially for extended periods.
The terms HDMI and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United
States and other countries.
©2013 Bose Corporation. No part of this work may be reproduced, modied, distributed, or otherwise used without
written permission.
2 - English
Safety Information
NOTES:
• The product label is located on the bottom or the back of the product.
• Where the mains plug or appliance coupler is used as the disconnect device, such disconnect device shall
remain readily operable.
• The product must be used indoors. It is neither designed nor tested for use outdoors, in recreation vehicles, or
on boats.
• This product is intended to be used only with the power supply provided.
• The speaker wire and interconnect cables included with the system are not approved for in-wall installation.
Please check your local building codes for the correct type of wire and cable required for in-wall installation.
Please dispose of used batteries properly
, following any local regulations.
Do not incinerate.
Bose® Corporation hereby declares that this product is in compliance with the essential requirements
and other relevant provisions of Directive 1999/5/EC and all other applicable EU directive requirements. The complete declaration of conformity can be found at: www.Bose.com/compliance.
Names and Contents of Toxic or Hazardous Substances or Elements
Part Name
Lead
Mercury
(Pb)
(Hg)
PCBs X 0 0 0 0 0
Metal parts X 0 0 0 0 0
Plastic parts 0 0 0 0 0 0
Speakers X 0 0 0 0 0
Cables X 0 0 0 0 0
0: Indicates that this toxic or hazardous substance contained in all of the homogeneous materials for this part is below the limit
requirement in SJ/T 11363-2006.
X: Indicates that this toxic or hazardous substance contained in at least one of the homogeneous materials used for this part is
above the limit requirement in SJ/T 11363-2006.
Toxic or Hazardous Substances and Elements
Cadmium
(Cd)
Hexavalent
(CR(VI))
Polybrominated
Biphenyl (PBB)
Polybrominated
diphenylether (PBDE)
Please complete and retain for your records.
The serial and model numbers can be found on the bottom panel of the product.
Lifestyle® model: __________________________________________________________________
Control console serial number: _____________________________________________________
Acoustimass® serial number: _______________________________________________________
Speaker array serial number: _______________________________________________________
Purchase date: ___________________________________________________________________
Please keep your receipt together with this Setup Guide and the Operating Guide.
English - 3
Safety Information
Important Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including
ampliers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide
blade or the third prong are provided for your safety. If the provided plug does not t into your outlet, consult
an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and
the point where they exit from the apparatus.
11. Only use attachments/accessories specied by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specied by the manufacturer, or sold with the
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualied personnel. Servicing is required when the apparatus has been damaged in a
Additional safety information
See the additional instructions on the Important Safety Instructions sheet (North America only) enclosed in the
shipping carton.
apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid
injury from tip-over
way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been
dropped.
4 - English
Contents
Welcome
ank You ............................................................................................................ 6
Unpacking ........................................................................................................... 6
System Setup
Control console box ........................................................................................... 7
Acoustimass® module box ............................................................................... 10
Speaker box ........................................................................................................ 12
Interactive box ................................................................................................... 17
Other Box 4 items .............................................................................................. 19
Applying rubber feet ......................................................................................... 20
If you have setup problems ............................................................................. 21
Contacting customer service .......................................................................... 21
English - 5
Welcome
ank You
Thank you for choosing a Bose® LIFESTYLE® system for your home. This guide
provides step-by-step instructions for setting up your new system. There are two
phases to the setup process:
Physical setup phase: Placing the system components and connecting them
together.
Interactive setup phase: Completing your setup following the interactive steps on
your TV screen provided by the UNIFY
®
intelligent integration system.
Unpacking
The parts of your new system are packaged in four numbered boxes plus a small
box containing the appropriate power cords:
1
1
•
Control console box
2
•
Acoustimass® module box
3
•
Speaker box
4
•
Interactive box
•
Power cord box (used with boxes 1 and 2)
Starting with Box 1, unpack each box and set up its contents before unpacking the
next one.
Be sure to save all of the packing materials. These provide the safest means for
any necessary shipping or transporting.
If any part appears damaged, do not attempt to use it. Notify Bose or your
authorized Bose dealer immediately. For Bose contact information, refer to
the address sheet included in Box 4.
6 - English
1
1
Control console box
What you need from box 1:
From box 1:
Control console
What you need from the power cord box:
From the power cord box:
Power supply Audio input cable HDMI
Power cord
System Setup
®
cable
A. Place the control console on a flat, stable surface near your TV.
Control console
Note: Until your system is completely installed, it may be helpful to keep the control
console positioned for easy access to its rear connection panel.
English - 7
