Bose A20 aviation Quick Start Manual

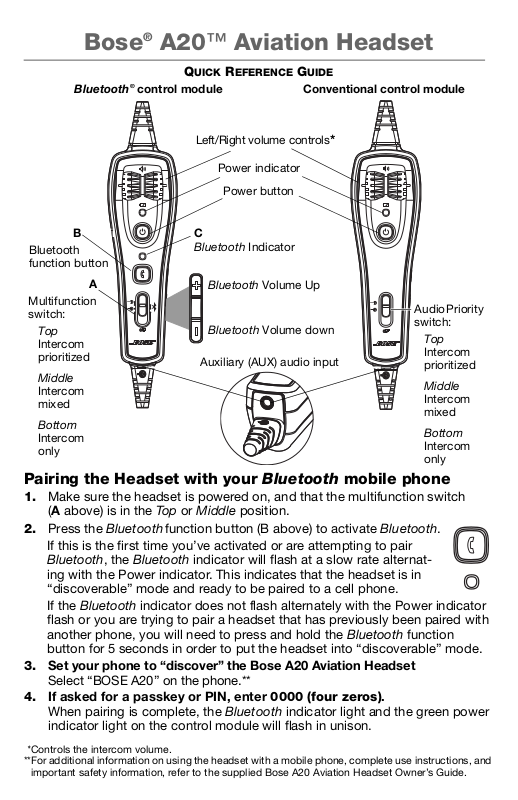

Bose® A20™ Aviation Headset

Bluetooth® control module Conventional control module

Left/Right volume controls*

Power button

Power indicator

Multifunction switch:

Top

Intercom prioritized

Middle

Intercom mixed

Bottom

Intercom only

Audio Priority switch:

Top

Intercom prioritized

Middle

Intercom mixed

Bottom

Intercom only

Bluetooth Volume Up

Bluetooth Volume down

Bluetooth Indicator

Bii iiiiiiii

Bluetooth function button

Auxiliary (AUX) audio input

QUICK REFERENCE GUIDE

Pairing the Headset with your Bluetooth mobile phone

1. Make sure the headset is powered on, and that the multifunction switch

(A above) is in the To p or Middle position.

2. Press the Bluetooth

function button (B above) to activate Bluetooth.

If this is the first time you’ve activated or are attempting to pair Bluetooth,the Bluetooth indicator will flash at a slow rate alternat- ing with the Power indicator. This indicates that the headset is in “discoverable” mode and ready to be paired to a cell phone.

If the Bluetooth indicator does not flash alternately with the Power indicator flash or you are trying to pair a headset that has previously been paired with another phone, you will need to press and hold the Bluetooth function button for 5 seconds in order to put the headset into “discoverable” mode.

3. Set your phone to “discover” the Bose A20 Aviation Headset

Select “BOSE A20” on the phone.**

4. If asked for a passkey or PIN, enter 0000 (four zeros).

When pairing is complete, the Bluetooth indicator light and the green power indicator light on the control module will flash in unison.

**Controls the intercom volume.

**For additional information on using the headset with a mobile phone, complete use instructions, and

important safety information, refer to the supplied Bose A20 Aviation Headset Owner’s Guide.

Basic operating information

The battery compartment

Press down firmly on the battery compartment cover and slide the cover down to release.

Note: The battery compartment cover is designed to stay securely closed during operation. You may need to use additional force when pressing down and releasing cover.

The operation switches — located in battery compartment

Switch Options Purpose

1. Auto Off function

2. Mono/Stereo selection

ON, OFF

Default: ON (Auto Off enabled)

MONO, STEREO

Default: MONO

Set at the factory to enable the Auto Off function. The headset will turn off after 3 to 9 minutes of inactivity. To disable Auto Off, set the switch to OFF. With the switch in OFF position, the Acoustic Noise Cancelling will not turn off until you press and hold the power button for at least one second.

Set it for stereo if your aircraft has a stereo intercom.

system

Power indicator

The power indicator changes color to indicate the power status, as follows:

Indicator color Power source Type of light Indicates

Green Aircraft Slow flashing Power ON

Green Battery Flashing Power ON and batteries good

Amber Battery Fast flashing Power ON, but batteries low

Red Battery Faster flashing Power ON, but batteries very low

Off None None Power OFF or batteries depleted

*Bluetooth® wireless technology is disabled to conserve the remaining power once the battery

reaches this level.

The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc., and any such use by Bose Corporation is under license. All other marks are property of Bose Corporation.

(8 hours or less remaining)

(2 hours or less remaining)
