Bosch X10 SN User Manual

VideoJet X10 SN
Network Video Server
en Installation and Operating Manual
VideoJet X10 SN
VideoJet X10 SN Table of Contents | en 3

Table of Contents

1Preface 7
1.1 About this Manual 7
1.2 Conventions in this Manual 7
1.3 Intended Use 7
1.4 EU Directives 8
1.5 Rating Plate 8
2 Safety Information 9
2.1 Electric Shock Hazard 9
2.2 Installation and Operation 9
2.3 Maintenance and Repair 9
4.5 Setup Using the Configuration Manager 24
5 Configuration Using a Web Browser 27
5.13 Advanced Mode: Display Stamping 40
5.15 Advanced Mode: LIVEPAGE Functions 42
Bosch Security Systems Installation and Operating Manual DOC | V4.0 | 2009.06
4 en | Table of Contents VideoJet X10 SN
5.19 Advanced Mode: Encoder Profile 46
5.20 Advanced Mode: Audio 49
5.21 Advanced Mode: Storage Management 50
5.22 Advanced Mode: Remote Video Device 52
5.23 Advanced Mode: Recording Profiles 53
5.24 Advanced Mode: Retention Time 55
5.25 Advanced Mode: Recording Scheduler 56
5.26 Advanced Mode: Recording Status 58
5.27 Advanced Mode: Alarm Connections 58

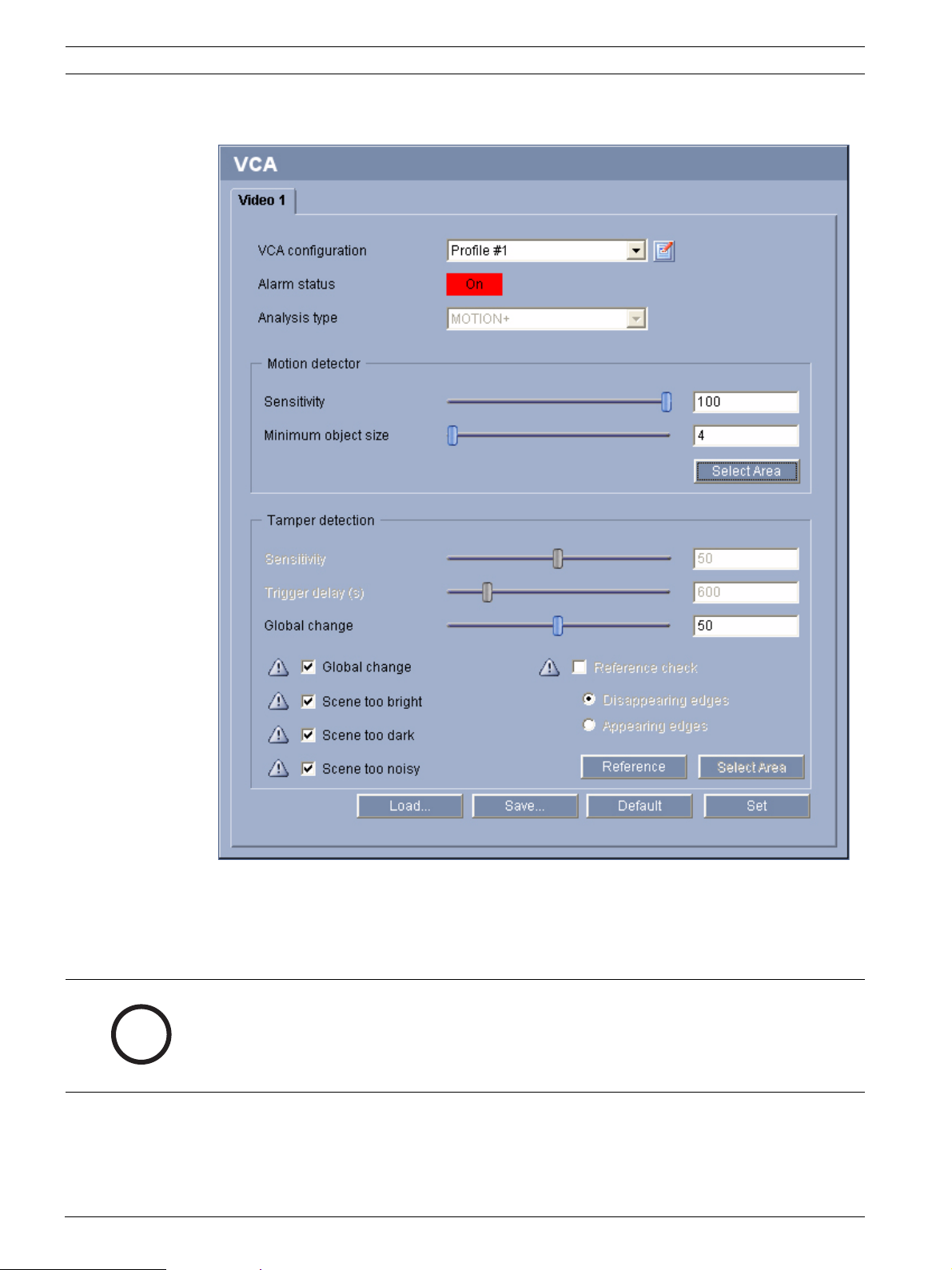

5.28 Advanced Mode: VCA 61
5.29 Advanced Mode: VCA Profiles 62
5.30 Advanced Mode: VCA Scheduled 66
5.31 Advanced Mode: VCA Event Triggered 68
5.32 Advanced Mode: Audio Alarm 69
5.33 Advanced Mode: Alarm E-Mail 70
5.34 Advanced Mode: Alarm Task Editor 72
5.35 Advanced Mode: Alarm Inputs 73
5.36 Advanced Mode: Relay 73
5.37 Advanced Mode: COM1 75
5.38 Advanced Mode: Network 76
5.39 Advanced Mode: Advanced 79
5.40 Advanced Mode: Multicasting 81
5.41 Advanced Mode: JPEG Posting 82
5.42 Advanced Mode: Encryption 83
5.43 Advanced Mode: Maintenance 84
5.44 Advanced Mode: Licenses 86
5.45 Advanced Mode: System Overview 86
5.46 Function Test 87
6Operation 89
6.1 Operation with Microsoft Internet Explorer 89
6.2 The LIVEPAGE 91
6.3 Saving Snapshots 94
6.4 Recording Video Sequences 94
6.5 Running Recording Program 94
6.6 The RECORDINGS Page 95
6.7 Installing the Player 97
6.8 Hardware Connections Between Video Servers 98
6.9 Operation Using Software Decoders 100
7 Maintenance and Upgrades 101
7.1 Testing the Network Connection 101
7.2 Unit Reset 101
7.3 Repairs 102
7.4 Transfer and Disposal 102
8 Appendix 103
8.1 Troubleshooting 103
8.2 General Malfunctions 104
DOC | V4.0 | 2009.06 Installation and Operating Manual Bosch Security Systems
VideoJet X10 SN Table of Contents | en 5
8.3 Malfunctions with iSCSI Connections 106
8.9 Communication with Terminal Program 110
Bosch Security Systems Installation and Operating Manual DOC | V4.0 | 2009.06
6 en | Table of Contents VideoJet X10 SN
DOC | V4.0 | 2009.06 Installation and Operating Manual Bosch Security Systems
VideoJet X10 SN Preface | en 7
!
i

1Preface

1.1 About this Manual

This manual is intended for persons responsible for the installation and operation of the VideoJet X10 SN. International, national and any regional electrical engineering regulations must be followed at all times. Relevant knowledge of network technology is required. The manual describes the installation and operation of the unit.

1.2 Conventions in this Manual

In this manual, the following symbols and notations are used to draw attention to special situations:
CAUTION!
This symbol indicates that failure to follow the safety instructions described may endanger persons and cause damage to the unit or other equipment. It is associated with immediate, direct hazards.
NOTICE!
This symbol refers to features and indicates tips and information for easier, more convenient use of the unit.

1.3 Intended Use

The VideoJet X10 SN network video server transfers video, audio and control signals over data networks (Ethernet LAN, Internet). There are various memory options for recording the images captured by the connected camera. The unit is intended for use with CCTV systems. Various functions can be triggered automatically by incorporating external alarm sensors. Other applications are not permitted. In the event of questions concerning the use of the unit which are not answered in this manual, please contact your sales partner or: Bosch Security Systems Robert-Koch-Straße 100 85521 Ottobrunn Germany www.boschsecurity.com
Bosch Security Systems Installation and Operating Manual DOC | V4.0 | 2009.06
8 en | Preface VideoJet X10 SN

1.4 EU Directives

The VideoJet X10 SN network video server complies with the requirements of EU Directives 89/336 (Electromagnetic Compatibility) and 73/23, amended by 93/68 (Low Voltage Directive).

1.5 Rating Plate

For exact identification, the model name and serial number are inscribed on the bottom of the housing. Please make a note of this information before installation, if necessary, so as to have it to hand in case of questions or when ordering spare parts.
DOC | V4.0 | 2009.06 Installation and Operating Manual Bosch Security Systems
VideoJet X10 SN Safety Information | en 9

2 Safety Information

2.1 Electric Shock Hazard

– Never attempt to connect the unit to any power network other than the type for which it
is intended.
– Use only power supply units with UL approval and a power output according to LPS or
NEC Class 2. – Never open the housing. – Never open the housing of the power supply unit. – If a fault occurs, disconnect the power supply unit from the power supply and from all
other units. – Install the power supply and the unit only in a dry, weather-protected location. – If safe operation of the unit cannot be ensured, remove it from service and secure it to
prevent unauthorized operation. In such cases, have the unit checked by Bosch Security
Systems.
Safe operation is no longer possible in the following cases:
– if there is visible damage to the unit or power cables,
– if the unit no longer operates correctly,
– if the unit has been exposed to rain or moisture,
– if foreign bodies have penetrated the unit,
– after long storage under adverse conditions, or
– after exposure to extreme stress in transit.

2.2 Installation and Operation

– The relevant electrical engineering regulations and guidelines must be complied with at
all times during installation. – Relevant knowledge of network technology is required to install the unit. – Before installing or operating the unit, make sure you have read and understood the
documentation for the other equipment connected to it, such as cameras. The
documentation contains important safety instructions and information about permitted
uses. – Perform only the installation and operation steps described in this manual. Any other
actions may lead to personal injury, damage to property or damage to the equipment.

2.3 Maintenance and Repair

– Never open the housing of the VideoJet X10 SN. The unit does not contain any user-
serviceable parts. – Never open the housing of the power supply unit. The power supply unit does not contain
any user-serviceable parts. – Ensure that all maintenance or repair work is carried out only by qualified personnel
(electrical engineers or network technology specialists).
Bosch Security Systems Installation and Operating Manual DOC | V4.0 | 2009.06
10 en | Safety Information VideoJet X10 SN
DOC | V4.0 | 2009.06 Installation and Operating Manual Bosch Security Systems
VideoJet X10 SN Product Description | en 11
i

3 Product Description

3.1 Scope of Delivery

– VideoJet X10 SN network video server – 4 terminal blocks – Quick Installation Guide – Product CD with the following content:
– Quick Installation Guide
–Manual
– System Requirements document
– Further documentation on Bosch Security Systems products
– Configuration Manager
–MPEG ActiveX control
– Player and Archive Player
– DirectX control
– Microsoft Internet Explorer
– Sun JVM
– Adobe Acrobat Reader
NOTICE!
Check that the delivery is complete and in perfect condition. Arrange for the unit to be checked by Bosch Security Systems if you find any damage.
Bosch Security Systems Installation and Operating Manual DOC | V4.0 | 2009.06
12 en | Product Description VideoJet X10 SN
i

3.2 System Requirements

General Requirements
– Computer with Windows XP or Windows Vista operating system – Network access (Intranet or Internet) – Screen resolution 1,024 × 768 pixels – 16- or 32-bit color depth – Installed Sun JVM
NOTICE!
Also note the information in the System Requirements document on the product CD supplied. If necessary, you can install the required programs and controls from the product CD supplied (see Section 3.1 Scope of Delivery, page 11). The Web browser must be configured to enable Cookies to be set from the IP address of the unit. In Windows Vista, deactivate protected mode on the Security tab under Internet Options. You can find notes on using Microsoft Internet Explorer in the online Help in Internet Explorer.
Additional Configuration Requirements
– Microsoft Internet Explorer (version 6.0 or higher)
or
– Installed Configuration Manager program (version 2.0 or higher)
Additional Operational Requirements
– Microsoft Internet Explorer (version 6.0 or higher)
or
– Receiver software, for example VIDOS (version 3.11 or higher) or Bosch Video
Management System (version 2.02 or higher) or
– MPEG-4 compatible hardware decoder from Bosch Security Systems (for example
VIP XD) as a receiver and connected video monitor
– For playing back recordings: connection to storage medium
DOC | V4.0 | 2009.06 Installation and Operating Manual Bosch Security Systems
VideoJet X10 SN Product Description | en 13

3.3 Overview of Functions

Network Video Server
The VideoJet X10 SN is a compact network video server for a connected video source. It is primarily designed for encoding video, audio and control data for transfer over an IP network. With its encoding in the MPEG-4 format, the VideoJet X10 SN is ideally suited for making existing analog CCTV cameras IP-compatible and for remote access to digital VCRs and multiplexers. The use of existing networks means that integration with CCTV systems or local networks can be achieved quickly and easily. Two units, for example a VideoJet X10 SN as a sender and a VIP XD as a receiver, can create a standalone system for data transfer without a PC. Video images from a single sender can be received simultaneously on multiple receivers. Audio signals can also be transmitted from and to compatible units.
Receiver
Compatible MPEG-4 enabled hardware decoders (for example the VIP XD) can be used as receivers. Computers with decoding software such as VIDOS or computers with the Microsoft Internet Explorer Web browser can also be used as receivers.
Video Encoding
The VideoJet X10 SN uses the MPEG-4 and H.264 video compression standards. Thanks to efficient encoding, the data rate remains low even with high image quality and can also be adapted to local conditions within wide limits.
Dual Streaming
Dual Streaming allows the incoming data stream to be encoded simultaneously according to two different, individually customized profiles. This feature creates two data streams that can serve different purposes, for example one for recording and one optimized for live transmission over the LAN.
Multicast
In suitably configured networks, the multicast function enables simultaneous real-time video transmission to multiple receivers. The UDP and IGMP V2 protocols must be implemented on the network for this function.
Encryption
The VideoJet X10 SN offers a variety of options for protection against unauthorized reading. Web browser connections can be protected using HTTPS. You can protect the control channels via the SSL encryption protocol. With an additional license, the user data itself can be encrypted.
Bosch Security Systems Installation and Operating Manual DOC | V4.0 | 2009.06
14 en | Product Description VideoJet X10 SN
Remote Control
For remote control of external units such as pan or tilt heads for cameras or motorized zoom lenses, control data is transmitted via the VideoJet X10 SN's bidirectional serial interface. This interface can also be used to transmit transparent data.
Tamper Detection and Motion Detectors
The VideoJet X10 SN offers a wide range of configuration options for alarm signaling in the event of tampering with the connected camera. An algorithm for detecting movement in the video image is also part of the scope of delivery and can optionally be extended to include special video analysis algorithms.
Snapshots
Individual video frames (snapshots) can be called up as JPEG images by the VideoJet X10 SN, stored on the computer's hard drive or displayed in a separate browser window.
Recordings
Various local memory options enable the VideoJet X10 SN to be used as a digital VCR. The VideoJet X10 SN supports ANR technology, which guarantees seamless recording without gaps via VIDOS-NVR, even during network failures. A connection to an appropriately configured iSCSI system enables long-term recordings with high image quality over the network.
Backup
A function for storing the video images displayed on the hard drive of your computer is available on the LIVEPAGE as well as on the RECORDINGS page. Video sequences can be stored by means of a mouse click and can be redisplayed using the Player supplied as part of the scope of delivery.
DOC | V4.0 | 2009.06 Installation and Operating Manual Bosch Security Systems
VideoJet X10 SN Product Description | en 15
Summary
The VideoJet X10 SN provides the following main functions: – Video and data transmission over IP data networks – Dual Streaming function for the encoder for simultaneous encoding with two individually
definable profiles – Multicast function for simultaneous image transmission to multiple receivers – One analog BNC composite video input (PAL/NTSC) – Video encoding to international standard MPEG-4 – Integrated Ethernet port (10/100 Base-T) – CF slot for CompactFlash cards for local storage – USB interfaces for future WAN or WLAN connections – Transparent, bidirectional data channel via RS-232/RS-422/RS-485 serial interface – Configuration and remote control of all internal functions via TCP/IP, also secured via
HTTPS – Password protection to prevent unauthorized connection or configuration changes – Extensive, flexible storage options – Four alarm inputs and four relay outputs – Built-in video sensor for motion and tamper alarms – Event-controlled automatic connection – Convenient maintenance via uploads – Flexible encryption of control and data channels – Authentication according to international standard 802.1x – Transmission and receipt of audio signals – Bidirectional audio (mono) for line connections – Audio encoding to international standard G.711
Bosch Security Systems Installation and Operating Manual DOC | V4.0 | 2009.06
16 en | Product Description VideoJet X10 SN

3.4 Connections on the Front Panel

1USB interface
for future expansion of functions
2VideoIn video input
BNC socket for connecting the video source
3 Audio In audio line input
3.5 mm stereo socket for connecting an audio line input signal
4 Audio Out audio line output
3.5 mm stereo socket for connecting an audio line output signal
5 Connect LED
flashes green when the unit is connected to a video
6CF LED
flashes orange when activity is detected on the CF card
DOC | V4.0 | 2009.06 Installation and Operating Manual Bosch Security Systems
VideoJet X10 SN Product Description | en 17
i

3.5 Connections on the Rear Panel

7ETH RJ45 socket
for connecting to an Ethernet LAN (local network), 10/100 MBit Base-T
8ETH LED
lights up yellow when the unit is connected to the network via ETH
9 Terminal block
for alarm inputs, relay outputs, serial interface and power supply
10 Factory reset button
to restore factory default settings
11 Compact Flash slot
for a CF card type I or type II
NOTICE!
For more information about the LEDs, see Section 8.4 LEDs, page 107. For terminal block assignment, see Section 8.8 Terminal Block, page 109.
Bosch Security Systems Installation and Operating Manual DOC | V4.0 | 2009.06
18 en | Product Description VideoJet X10 SN
DOC | V4.0 | 2009.06 Installation and Operating Manual Bosch Security Systems
VideoJet X10 SN Installation | en 19
!

4 Installation

4.1 Preparations

CAUTION!
The unit is intended for use indoors or in housings. Select a suitable location for installation that guarantees to meet the environmental conditions. The ambient temperature must be between 0 and +50 °C (+32 and +122 °F). The relative humidity must not exceed 95%. The VideoJet X10 SN generates heat during operation, so you should ensure that there is adequate ventilation and enough clearance between the unit and heat-sensitive objects or equipment.
Please ensure the following installation conditions: – Do not install the unit close to heaters or other heat sources. Avoid locations exposed to
direct sunlight. – Allow sufficient space for running cables. – Ensure that the unit has adequate ventilation. – When making connections, use only the cables supplied or use appropriate cables
immune to electromagnetic interference. – Position and run all cables so that they are protected from damage, and provide
adequate cable strain relief where needed. – Avoid impacts, blows and severe vibrations that exceed the specification limits (see
Section 9 Specifications, page 113), as these can irreparably damage the unit.

4.2 Mounting

You can purchase a rack-mount kit from Bosch Security Systems, which is designed to accommodate three VideoJet X10 SN.
Bosch Security Systems Installation and Operating Manual DOC | V4.0 | 2009.06
20 en | Installation VideoJet X10 SN
i

4.3 Connections

Camera
You can connect a video source to the VideoJet X10 SN. Any cameras and other video sources that produce a standard PAL or NTSC signal are suitable.
1. Connect the camera or another video source to the BNC Video In socket using a video cable (75 Ohm, BNC plug).
2. If the video signal is not looped through, termination is performed by a software setting if necessary (see Section 5.17 Advanced Mode: Video Input, page 44).
Audio Connections
The VideoJet X10 SN has two audio ports for audio line signals. The audio signals are transmitted two-way and in sync with the video signals. As a result, you can connect a speaker or door intercom system at the destination point, for example. The following specifications should be complied with in all cases.
1 × Line In: Impedance 9 kOhm typ., 5.5 V
1 × Line Out: Impedance 10 kOhm typ., 3.0 V
impedance 16 Ohm min., 1.7 V
The stereo plugs must be connected as follows:
Contact Line In function Line Out function
Tip Channel 1 Channel 1
Middle ring – –
Lower ring Ground Ground
1. Connect an audio source with line level to the Audio In socket of the VideoJet X10 SN with a 3.5 mm stereo plug.
2. Connect a unit with line-in connection to the Audio Out socket of the VideoJet X10 SN with a 3.5 mm stereo plug.
Network
You can connect the VideoJet X10 SN to a 10/100 Base-T network using a standard UTP category 5 cable with RJ45 plugs.
X Connect the VideoJet X10 SN to the network via the ETH socket.
CF Slot
You can insert a type I or II CompactFlash card into the Compact Flash slot to enable recordings to be saved locally. CF cards are the ideal solution for shorter storage times and temporary recordings, for example alarm recordings or local buffering in the event of network interruptions.
NOTICE!
You can obtain a list of compatible CF cards from your supplier or directly from Bosch Security Systems. This list is constantly being updated and extended.
max. input voltage
p-p
max. output voltage,
p-p
max. output voltage
p-p
Playing back recordings is also possible using a different VideoJet X10, a VideoJet X20 or a VideoJet X40.
DOC | V4.0 | 2009.06 Installation and Operating Manual Bosch Security Systems
VideoJet X10 SN Installation | en 21
!
!
i
i
CAUTION!
If the card is formatted, all existing data is deleted from the card. You should therefore check whether the CF card contains any data that needs to be backed up before it is inserted.
1. Carefully slide the CF card, top side down, into the slot as far as it will go.
2. To remove the CF card, simply pull it out.
Data Interface
The bidirectional data interface is used to control units connected to the VideoJet X10 SN, such as a dome camera with a motorized lens. The connection supports the RS-232, RS-422 and RS-485 transmission standards. The VideoJet X10 SN offers the serial interface via the orange terminal block (see Section 8.8 Terminal Block, page 109). The range of controllable equipment is expanding constantly. The manufacturers of the relevant equipment provide specific information on installation and control.
CAUTION!
Please take note of the appropriate documentation when installing and operating the unit to be controlled. The documentation contains important safety instructions and information about permitted uses.
NOTICE!
A video connection is necessary to transmit transparent data.
Alarm Inputs
The VideoJet X10 SN has four alarm inputs on the orange terminal block (see Section 8.8 Terminal Block, page 109). The alarm inputs are used to connect to external alarm devices such as door contacts or sensors. With the appropriate configuration, an alarm sensor can automatically connect the VideoJet X10 SN to a remote location, for example. A zero potential closing contact or switch can be used as the actuator.
NOTICE!
If possible, use a bounce-free contact system as the actuator.
X Connect the lines to the appropriate terminals on the orange terminal block (IN1 to IN4)
and check that the connection is secure.
Bosch Security Systems Installation and Operating Manual DOC | V4.0 | 2009.06
22 en | Installation VideoJet X10 SN
!
Relay Outputs
The VideoJet X10 SN has four relay outputs for switching external units such as lamps or alarm sirens. You can operate these relay outputs manually while there is an active connection to the VideoJet X10 SN. The outputs can also be configured to automatically activate sirens or other alarm units in response to an alarm signal. The relay outputs are also located on the orange terminal block (see Section 8.8 Terminal Block, page 109).
CAUTION!
A maximum load of 30 V and 2 A (SELV) may be applied to the relay contacts.
X Connect the lines to the appropriate terminals on the orange terminal block (R1 to R4)
and check that the connection is secure.
Remote Indication of the Connection Status
When the VideoJet X10 SN is connected to a video, the Connect LED on the front panel of the unit flashes. The LED also provides information on the operational state of the unit and signals a unit defect (see Section 8.4 LEDs, page 107). You can connect an additional two-color LED to the VideoJet X10 SN as a remote indicator. This provides the same information as the integrated Connect LED. A remote indicator can be useful if the VideoJet X10 SN is installed at a location that is difficult to access or see, for example in a cable duct or on top of a mast. Just like the integrated LED, the remote indicator LED should also light up red and green in order to avoid confusion. Please comply with the following specifications and the connection diagram:
Voltage between RM1 and RM2 3.3 V DC max.
Current between RM1 and RM2 25 mA max.
Source resistance 140 Ohm typ.
1. Connect the LED lines to the appropriate terminals on the orange terminal block (RM1 and RM2) and check that the connection is secure.
2. Check that the signals on the Connect LED on the VideoJet X10 SN and the remote indicator LED correspond.
DOC | V4.0 | 2009.06 Installation and Operating Manual Bosch Security Systems
VideoJet X10 SN Installation | en 23
!
i
Backup Power Supply
If the VideoJet X10 SN does not have a permanent power supply, it may be necessary to supply the internal clock separately. To do this, you can connect the VideoJet X10 SN directly to a battery via the BP and GND contacts. The correct time is crucial for evaluating local recordings.
CAUTION!
Connect only batteries with the following specification: 10 to 30 V DC, 50 Ah max., 12/24 V continuous flow.
1. Connect the + (plus) line on the battery to the BP terminal on the orange terminal block.
2. Connect the – (minus) line on the battery to the GND terminal on the orange terminal block.
3. Now check that the connections are secure.
NOTICE!
If you do not connect a battery to the unit, you should specify a time server to ensure correct system time.
Bosch Security Systems Installation and Operating Manual DOC | V4.0 | 2009.06
24 en | Installation VideoJet X10 SN
!
i

4.4 Power On/Power Off

Power Supply
The VideoJet X10 SN does not have a power switch. Power is supplied via a separate unit. Connect the VideoJet X10 SN to the power supply unit and plug this into the mains. The unit is now ready for use. The VideoJet X10 SN does not come supplied with a power supply unit.
CAUTION!
Use only power supply units with UL approval and a power output according to LPS or NEC Class 2. Where necessary, use suitable equipment to ensure that the power supply is free from interference such as voltage surges, spikes or voltage drops. Do not connect the VideoJet X10 SN to the power supply until all other connections have been made.
1. Plug the terminal block with the PSU cable connected to it into the orange socket on the VideoJet X10 SN.
2. Connect the power supply unit to the mains. The VideoJet X10 SN is ready for use as soon as the Connect LED changes from a red light, indicating the start-up procedure, to a green light.
Provided the network connection has been correctly made, the yellow ETH LED also lights up. A flashing ETH LED signals that data packets are being transmitted via the network.

4.5 Setup Using the Configuration Manager

The Configuration Manager program can be found on the product CD contained in the scope of delivery. This program allows you to implement and set up new video servers in the network quickly and conveniently.
NOTICE!
Using the Configuration Manager to set all parameters in the VideoJet X10 SN is an alternative to configuration by means of a Web browser, as described in chapter 5 of this manual.
Installing the Program
1. Insert the CD into the computer's CD-ROM drive.
2. If the CD does not start automatically, open the Configuration Manager directory using Windows Explorer and double-click Setup.exe.
3. Follow the on-screen instructions.
DOC | V4.0 | 2009.06 Installation and Operating Manual Bosch Security Systems
VideoJet X10 SN Installation | en 25
i
Configuring the VideoJet X10 SN
You can start the Configuration Manager immediately after installation.
1. Double-click the icon on the desktop or start the program via the Start menu. After the program has started, the network is immediately searched for compatible video servers.
2. You can start the configuration if a VideoJet X10 SN is shown in the list in the left section of the window. To do this, right-click the entry for the unit.
3. Click Unit network settings... in the popup menu.
4. In the Unit IP address field, enter a valid IP address for your network (for example
192.168.0.110) and click OK. The unit reboots and the IP address is valid.
5. If required, enter an appropriate subnet mask for the IP address, and additional network data.
NOTICE!
You must reboot to activate the new IP address, a new subnet mask or a gateway IP address.
Reboot
You can trigger the reboot directly with the assistance of the Configuration Manager. X Right-click the entry for the unit in the list in the left section of the window and select the
Reset command from the context menu.
Additional Parameters
You can check and set additional parameters with the assistance of the Configuration Manager. You can find detailed information on this in the documentation for this program.
Bosch Security Systems Installation and Operating Manual DOC | V4.0 | 2009.06
26 en | Installation VideoJet X10 SN
DOC | V4.0 | 2009.06 Installation and Operating Manual Bosch Security Systems
VideoJet X10 SN Configuration Using a Web Browser | en 27
i

5 Configuration Using a Web Browser

5.1 Connecting

The integrated HTTP server in the VideoJet X10 SN provides you with the option to configure the unit over the network with a Web browser. This option is an alternative to configuration using the Configuration Manager program and is considerably richer in function and more convenient than configuration using the terminal program.
System Requirements
– Computer with Windows XP or Windows Vista operating system – Network access (Intranet or Internet) – Microsoft Internet Explorer (version 6.0 or higher) – Screen resolution 1,024 × 768 pixels – 16- or 32-bit color depth – Installed Sun JVM
NOTICE!
Also note the information in the System Requirements document on the product CD supplied. If necessary, you can install the required programs and controls from the product CD supplied (see Section 3.1 Scope of Delivery, page 11). The Web browser must be configured to enable Cookies to be set from the IP address of the unit. In Windows Vista, deactivate protected mode on the Security tab under Internet Options. You can find notes on using Microsoft Internet Explorer in the online Help in Internet Explorer.
Installing MPEG ActiveX
Suitable MPEG ActiveX software must be installed on the computer to allow the live video images to be played back. If necessary, you can install the program from the product CD supplied.
1. Insert the product CD into the computer's CD-ROM drive. If the CD does not start automatically, open the root directory of the CD in Windows Explorer and double-click MPEGAx.exe.
2. Follow the on-screen instructions.
Bosch Security Systems Installation and Operating Manual DOC | V4.0 | 2009.06
28 en | Configuration Using a Web Browser VideoJet X10 SN
Establishing the Connection
Before you can operate the VideoJet X10 SN within your network, it must have a valid IP address for your network and a compatible subnet mask. The following default address is preset at the factory: 192.168.0.1
1. Start the Web browser.
2. Enter the IP address of the VideoJet X10 SN as the URL. The connection is established and after a short time you will see the LIVEPAGE with the video image.
Maximum Number of Connections
If you do not connect, the unit may have reached its maximum number of connections. Depending on the unit and network configuration, each VideoJet X10 SN can have up to 25 Web browser connections or up to 50 connections via VIDOS or Bosch Video Management System.
DOC | V4.0 | 2009.06 Installation and Operating Manual Bosch Security Systems
VideoJet X10 SN Configuration Using a Web Browser | en 29
i
!
Protected VideoJet X10 SN
If the VideoJet X10 SN is password protected against unauthorized access, the Web browser displays a corresponding message and prompts you to enter the password when you attempt to access protected areas.
NOTICE!
The VideoJet X10 SN offers the option to limit the extent of access using various authorization levels (see Section 5.11 Advanced Mode: Password, page 38).
1. Enter the user name and associated password in the corresponding text fields.
2. Click OK. If the password is entered correctly, the Web browser displays the page that was called up.
Protected Network
If a RADIUS server is employed in the network for managing access rights (802.1x authentication), the VideoJet X10 SN must be configured accordingly, otherwise no communication is possible. To configure the unit, you must connect the VideoJet X10 SN directly to a computer using a network cable. This is because communication via the network is not enabled until the Identity and Password parameters have been set and successfully authenticated (see Section Authentication, page 80).

5.2 Configuration Menu

The SETTINGS page provides access to the configuration menu, which contains all the unit's parameters arranged in groups. You can view the current settings by opening one of the configuration screens. You can change the settings by entering new values or by selecting a predefined value from a list field. There are two options for configuring the unit or checking the current settings: – Basic mode – Advanced mode In Basic Mode the most important parameters are arranged in seven groups. This allows you to change the basic settings with just a few entries and then put the device into operation. Advanced Mode is recommended for expert users or system support personnel. You can access all unit parameters in this mode. Settings that affect the fundamental functionality of the unit (such as firmware updates) can only be altered in the advanced mode. All parameter groups are described in this chapter in the order in which they are listed in the configuration menu, from the top of the screen to the bottom.
CAUTION!
The settings in the advanced mode should only be processed or modified by expert users or system support personnel.
All settings are backed up in the VideoJet X10 SN memory so they are not lost even if the power fails.
Bosch Security Systems Installation and Operating Manual DOC | V4.0 | 2009.06
30 en | Configuration Using a Web Browser VideoJet X10 SN
!
Starting Configuration
X Click the SETTINGS link in the upper section of the window. The Web browser opens a
new page with the configuration menu.
Navigation
1. Click one of the menu items in the left window margin. The corresponding submenu is displayed.
2. Click one of the entries in the submenu. The Web browser opens the corresponding page.
Making Changes
Each configuration screen shows the current settings. You can change the settings by entering new values or by selecting a predefined value from a list field.
X After each change, click Set to save the change.
CAUTION!
Save each change with the associated Set button. Clicking the Set button saves the settings only in the current field. Changes in any other fields are ignored.
DOC | V4.0 | 2009.06 Installation and Operating Manual Bosch Security Systems
Loading...
+ 94 hidden pages
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
