Bosch XF User Manual

Divar XF

Digital Hybrid Recorder

en Installation manual

Divar XF	Table of Contents | en	3

Table of Contents

1	Safety	7
1.1	Important safety instructions	7
1.2	Safety precautions	8
1.3	Important Notices	8
1.4	FCC and UL	10
1.5	Bosch notices	12

2	Introduction	13
2.1	Digital video recorder for security applications	13
2.1.1	Versions	13
2.1.2	Manuals	13
2.1.3	Features	13
2.1.4	On-screen help	14
2.2	Unpacking	14
2.2.1	Package contents	14
2.3	Installation environment	15
2.3.1	Mounting	15
2.3.2	Ventilation	15
2.3.3	Temperature	15
2.3.4	Power Supply	15
2.4	Associated equipment	15

3	Quick install	17
3.1	Connections	17
3.1.1	Primary connections	17
3.1.2	Optional connections	17
3.1.3	Powering up	17
3.2	First-time use	18
3.3	Quick install menu	18
3.3.1	International	18
3.3.2	Schedule	19
3.3.3	Recording	20
3.3.4	Network	21

4	Hardware setup	23
4.1	Desktop installation	23
4.2	Rack mounting	23
4.3	Hard disk installation	24
4.3.1	Mounting instructions	24
4.4	Camera connections	25
4.5	Audio connections	26
4.6	Monitor connections	26
4.6.1	VGA	26
4.6.2	CVBS	27
4.6.3	Y/C	27
4.7	Monitor streaming connection	27

Bosch Security Systems

Installation manual

F.01U.135.429 | 2.5 | 2009.08

4 en | Table of Contents Divar XF

4.8	RS232 COM port connections	28
4.9	Keyboard connections	28
4.10	Ethernet connection	29
4.11	RS485 port	30
4.12	Biphase port	30
4.13	USB connectors	32
4.14	External alarm I/O connection	32
4.15	Malfunction relay	34
4.16	Power supply	34
4.17	Maintenance	34
5	Operating instructions	35
5.1	Front panel controls	35
5.1.1	Keys	35
5.1.2	Indicators	37
5.2	Mouse Controls	37
5.3	Viewing pictures	38
5.3.1	Monitor A	38
5.3.2	Monitor B	38
5.3.3	Viewing	38
5.4	Live and playback	40
5.4.1	Live mode	40
5.4.2	Accessing playback functions	40
5.4.3	Playback mode	40
5.5	Overview of the menu system	41
5.5.1	Access using the front panel keys	42
5.5.2	Access using the mouse	42
5.5.3	Access using the Intuikey keyboard	42
5.6	Search	42
5.6.1	Date/time search	43

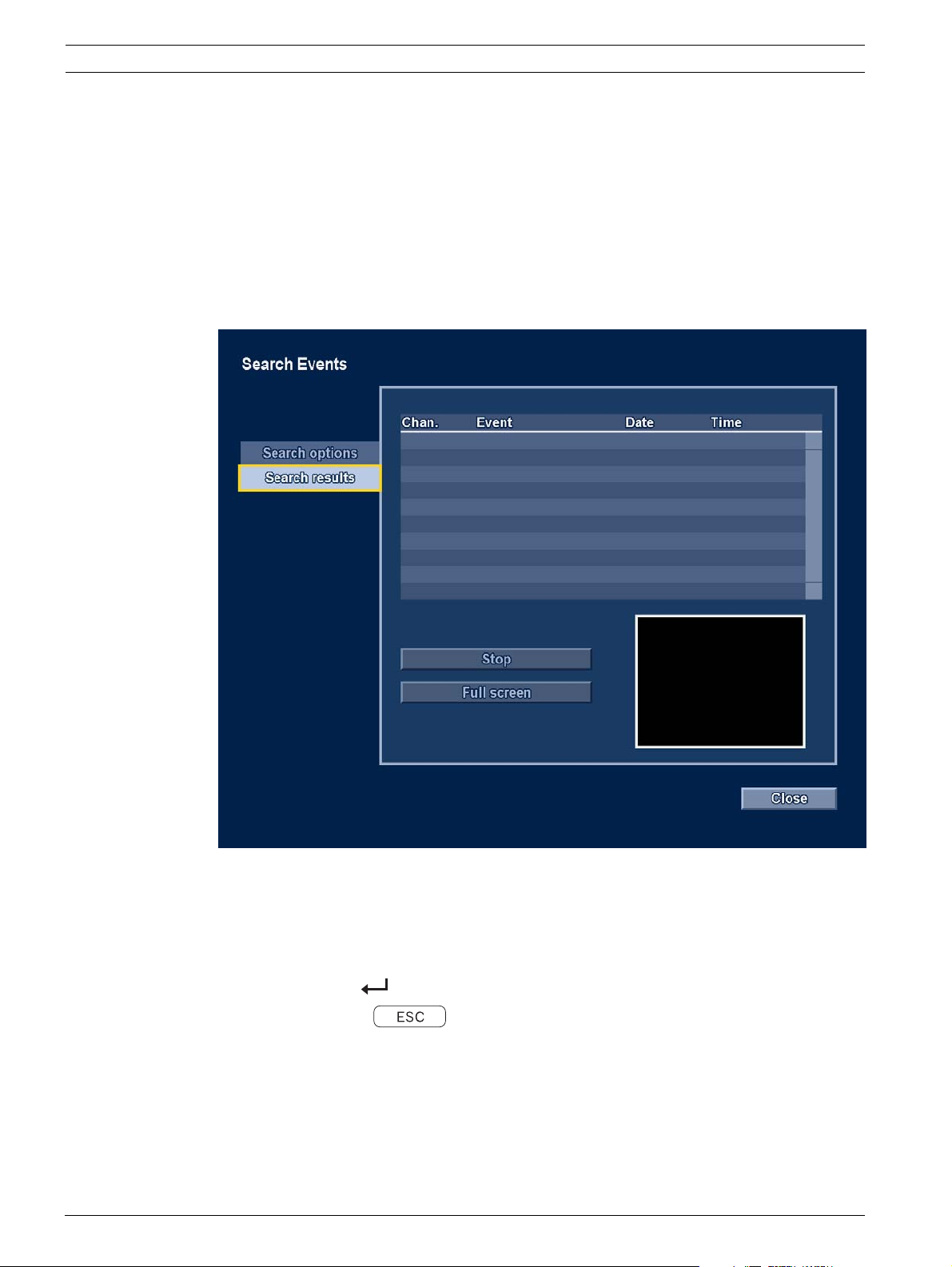

5.6.2	Event search	43
5.7	Export	45
5.8	Configuration	46
5.8.1	Monitor settings	46
5.9	System information	47
5.9.1	Status	48
5.9.2	Logbook	49
5.10	Event handling	50
5.10.1	Alarms	51
5.10.2	Contact inputs	52
5.10.3	Motion events	52
5.10.4	Video loss alarm	52
6	Advanced configuration menu	53
6.1	International	54
6.1.1	Language	54
6.1.2	Time/date	55
6.1.3	Time Server	55
6.2	Video & Audio	56

F.01U.135.429 | 2.5 | 2009.08

Installation manual

Bosch Security Systems

Divar XF Table of Contents | en 5

6.2.1	Channels 1 to 8 (or 1 to 16)	56
6.2.2	Channels 9 to 16 (or 17 to 24)	57
6.3	Schedule	58
6.3.1	Setting the dynamic characteristics	58
6.3.2	Schedule	58
6.3.3	Exceptions	59
6.4	Recording	59
6.4.1	Normal	60
6.4.2	Contact	60
6.4.3	Motion	60
6.4.4	Copy	60
6.5	Contacts	61
6.5.1	Contact inputs	61
6.5.2	Relay outputs	61
6.5.3	Contact input properties	61
6.6	Motion	62
6.7	Event	63
6.7.1	General	63
6.7.2	Contact	64
6.7.3	Motion	64
6.7.4	Video loss	64
6.7.5	Copy	65
6.8	Network	65
6.8.1	Setup	65
6.8.2	IP Range	66
6.8.3	Monitor Streaming	66
6.9	Storage	67
6.9.1	Status	67
6.9.2	Settings	67
6.9.3	Service	67
6.10	Users	67
6.10.1	General	67
6.10.2	Administrator	67
6.10.3	User 1 - 7	68
6.11	System	68
6.11.1	Service	68
6.11.2	Serial ports	68
6.11.3	Licenses	68
6.11.4	Logging	69
7	Using the Configuration Tool	71
7.1	Getting started	71
7.1.1	System requirements	71
7.1.2	Installing the Configuration Tool	71
7.1.3	Starting the Configuration Tool	71
7.2	How to log on	71
7.2.1	Menu structure differences	73
7.3	Introducing the main window	73
7.3.1	Overview button	74

Bosch Security Systems

Installation manual

F.01U.135.429 | 2.5 | 2009.08

6 en | Table of Contents Divar XF

7.3.2	Logbook button	74
7.3.3	Settings button	74
7.3.4	Service button	75
7.3.5	Help button	75
7.3.6	Logout button	75
7.4	Using the control buttons	75
8	Menu default values	77
8.1	Quick install menu defaults	77
8.2	Monitor view settings defaults	78
8.3	Configuration menu defaults	78
9	Technical specifications	83
9.1	Electrical	83
9.1.1	Mechanical	85
9.1.2	Environmental	85
9.1.3	Electromagnetic and Safety	85
9.1.4	Accessories (Optional)	85
9.1.5	Video bitrates (bps)	86

F.01U.135.429 | 2.5 | 2009.08

Installation manual

Bosch Security Systems

Divar XF Safety | en 7

1	Safety
1.1	Important safety instructions

Read, follow, and retain for future reference all of the following safety instructions. Heed all warnings on the unit and in the operating instructions before operating the unit.

1.Cleaning - Unplug the unit from the outlet before cleaning. Follow any instructions provided with the unit. Generally, using a dry cloth for cleaning is sufficient but a moist, fluff-free cloth or leather shammy may also be used. Do not use liquid cleaners or aerosol cleaners.

2.Heat Sources - Do not install the unit near any heat sources such as radiators, heaters, stoves, or other equipment (including amplifiers) that produce heat.

3.Ventilation - Any openings in the unit enclosure are provided for ventilation to prevent overheating and ensure reliable operation. Do not block or cover these openings. Do not place the unit in an enclosure unless proper ventilation is provided, or the manufacturer's instructions have been adhered to.

4.Water - Do not use this unit near water, for example near a bathtub, washbowl, sink, laundry basket, in a damp or wet basement, near a swimming pool, in an outdoor installation, or in any area classified as a wet location. To reduce the risk of fire or electrical shock, do not expose this unit to rain or moisture.

5.Object and liquid entry - Never push objects of any kind into this unit through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electrical shock. Never spill liquid of any kind on the unit. Do not place objects filled with liquids, such as vases or cups, on the unit.

6.Lightning - For added protection during a lightning storm, or when leaving this unit unattended and unused for long periods, unplug the unit from the wall outlet and disconnect the cable system. This will prevent damage to the unit from lightning and power line surges.

7.Controls adjustment - Adjust only those controls specified in the operating instructions. Improper adjustment of other controls may cause damage to the unit. Use of controls or adjustments, or performance of procedures other than those specified, may result in hazardous radiation exposure.

8.Overloading - Do not overload outlets and extension cords. This can cause fire or electrical shock.

9.Power supply cord and plug protection - Protect the power supply cord and plug from foot traffic, being pinched by items placed upon or against them at electrical outlets, and its exit from the unit. For units intended to operate with 230 VAC, 50 Hz, the power supply cord must comply with the latest versions of IEC 60227. For units intended to operate with 120 VAC, 60 Hz, the power supply cord must comply with the latest versions of UL 62 and CSA 22.2 No.49.

10.Power disconnect - Units have power supplied to the unit whenever the power cord is inserted into the power source. The power cord plug is the main power disconnect device for switching off the voltage for the unit.

11.Power sources - Operate the unit only from the type of power source indicated on the label. Before proceeding, be sure to disconnect the power from the cable to be installed into the unit.

12.Servicing - Do not attempt to service this unit yourself. Opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

Bosch Security Systems

Installation manual

F.01U.135.429 | 2.5 | 2009.08

8 en | Safety Divar XF

13. Damage requiring service - Unplug the unit from the main AC power source and refer servicing to qualified service personnel when any damage to the equipment has occurred, such as:

– the power supply cord or plug is damaged;

– exposure to moisture, water, and/or inclement weather (rain, snow, etc.);

– liquid has been spilled in or on the equipment;

– an object has fallen into the unit;

– unit has been dropped or the unit cabinet is damaged;

– unit exhibits a distinct change in performance;

– unit does not operate normally when the user correctly follows the operating instructions.

14. Replacement parts - Be sure the service technician uses replacement parts specified by the manufacturer, or that have the same characteristics as the original parts. Unauthorized substitutions could void the warranty and cause fire, electrical shock, or other hazards.

15. Safety check - Safety checks should be performed upon completion of service or repairs to the unit to ensure proper operating condition.

16. Installation - Install in accordance with the manufacturer's instructions and in

	accordance with applicable local codes.
	17. Attachments, changes or modifications - Only use attachments/accessories specified by
	the manufacturer. Any change or modification of the equipment, not expressly approved
	by Bosch, could void the warrantee or, in the case of an authorization agreement,
	authority to operate the equipment.
1.2	Safety precautions
	DANGER!
	High risk: This symbol indicates an imminently hazardous situation such as "Dangerous
	Voltage" inside the product.
	If not avoided, this will result in an electrical shock, serious bodily injury, or death.
	WARNING!
	Medium risk: Indicates a potentially hazardous situation.
	If not avoided, this could result in minor or moderate bodily injury.
	CAUTION!
	Low risk: Indicates a potentially hazardous situation.
	if not avoided, this could result in property damage or risk of damage to the unit.
1.3	Important Notices

Accessories - Do not place this unit on an unstable stand, tripod, bracket, or mount. The unit may fall, causing serious injury and/or serious damage to the unit. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer. When a cart is used, use caution and care when moving the cart/apparatus combination to avoid injury from tip-over. Quick stops, excessive force, or uneven surfaces may cause the cart/unit combination to overturn. Mount the unit per the manufacturer's instructions.

All-pole power switch - Incorporate an all-pole power switch, with a contact separation of at least 3 mm in each pole, into the electrical installation of the building.If it is needed to open the housing for servicing and/or other activities, use this all-pole switch as the main

F.01U.135.429 | 2.5 | 2009.08

Installation manual

Bosch Security Systems

Divar XF	Safety | en	9

disconnect device for switching off the voltage to the unit.

Battery replacement - For qualified service personnel only - A lithium battery is located inside the unit enclosure. To avoid danger of explosion, replace the battery as per instructions. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of the replaced battery in an environmentally friendly way and not with other solid waste. Refer all servicing to qualified service personnel.

CAUTION!

Class I Laser Product

Invisible laser radiation when open. Avoid exposure to beam.

Coax grounding:

–Ground the cable system if connecting an outside cable system to the unit.

–Connect outdoor equipment to the unit's inputs only after this unit has had its grounding plug connected to a grounded outlet or its ground terminal is properly connected to a ground source.

–Disconnect the unit's input connectors from outdoor equipment before disconnecting the grounding plug or grounding terminal.

–Follow proper safety precautions such as grounding for any outdoor device connected to

this unit.

U.S.A. models only - Section 810 of the National Electrical Code, ANSI/NFPA No.70, provides information regarding proper grounding of the mount and supporting structure, grounding of the coax to a discharge unit, size of grounding conductors, location of discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

CAUTION!

This device is intended for the use in public areas only.

U.S. federal law strictly prohibits surreptitious recording of oral communications.

Disposal - Your Bosch product was developed and manufactured with high-quality material and components that can be recycled and reused. This symbol means that electronic and electrical appliances, which have reached the end of their working life, must be collected and disposed of separately from household waste material. Separate collecting systems are usually in place for disused electronic and electrical products. Please dispose of these units at an environmentally compatible recycling facility, per European Directive 2002/66/EC.

Environmental statement - Bosch has a strong commitment towards the environment. This unit has been designed to respect the environment as much as possible. Electrostatic-sensitive device - Use proper CMOS/MOS-FET handling precautions to avoid electrostatic discharge.

NOTE: Wear required grounded wrist straps and observe proper ESD safety precautions when handling the electrostatic-sensitive printed circuit boards.

Fuse rating - For security protection of the device, the branch circuit protection must be secured with a maximum fuse rating of 16A. This must be in accordance with NEC800 (CEC Section 60).

Grounding and polarization - This unit may be equipped with a polarized alternating current line plug (a plug with one blade wider than the other blade). This safety feature allows the plug to fit into the power outlet in only one way. If unable to insert the plug fully into the outlet, contact a locally certified electrician to replace the obsolete outlet. Do not defeat the safety purpose of the polarized plug.

Bosch Security Systems

Installation manual

F.01U.135.429 | 2.5 | 2009.08

10 en | Safety	Divar XF

Alternately, this unit may be equipped with a 3-pole grounding plug (a plug with a third pin for earth grounding). This safety feature allows the plug to fit into a grounded power outlet only. If unable to insert the plug into the outlet, contact a locally certified electrician to replace the obsolete outlet. Do not defeat the safety purpose of the grounding plug.

Moving - Disconnect the power before moving the unit. Move the unit with care. Excessive force or shock may damage the unit and the hard disk drives.

Outdoor signals - The installation for outdoor signals, especially regarding clearance from power and lightning conductors and transient protection, must be in accordance with NEC725 and NEC800 (CEC Rule 16-224 and CEC Section 60).

Permanently connected equipment - Incorporate a readily accessible disconnect device external to the equipment.

Pluggable equipment - Install the socket outlet near the equipment so it is easily accessible. Power resupply - If the unit is forced to power down due to exceeding the specified operating temperatures, disconnect the power cord, wait for at least 30 seconds, and then reconnect the power cord.

Rack-mount

–Elevated Operating Ambient - If installed in a closed or multi-unit rack assembly, the operating ambient temperature of the rack environment may be greater than room ambient. Therefore, consideration should be given to installing the equipment in an environment compatible with the maximum ambient temperature (Tma) specified by the manufacturer.

–Reduced Air Flow - Installation of the equipment in a rack should be such that the amount of air flow required for safe operation of the equipment is not compromised.

–Mechanical loading - Mounting of the equipment in the rack should be such that a hazardous condition is not achieved due to uneven mechanical loading.

–Circuit Overloading - Consideration should be given to the connection of the equipment to the supply circuit and the effect that overloading of the circuits might have on overcurrent protection and supply wiring. Appropriate consideration of equipment nameplate ratings should be used when addressing this concern.

–Reliable Earthing - Reliable earthing of rack-mounted equipment should be maintained. Particular attention should be given to supply connections other than direct connections to the branch circuit (e.g. use of power strips).

For detailed instructions, please refer to Section 4.2 Rack mounting.

SELV - All the input/output ports are Safety Extra Low Voltage (SELV) circuits. SELV circuits should only be

connected to other SELV circuits.

Video loss - Video loss is inherent to digital video recording; therefore, Bosch Security Systems cannot be held liable for any damage that results from missing video information. To minimize the risk of lost digital information, Bosch Security Systems recommends multiple, redundant recording systems, and a procedure to back up all analog and digital information.

1.4	FCC and UL

FCC & ICES Information

(U.S.A. and Canadian Models Only)

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If

F.01U.135.429 | 2.5 | 2009.08

Installation manual

Bosch Security Systems

Divar XF	Safety | en 11

this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

–reorient or relocate the receiving antenna;

–increase the separation between the equipment and receiver;

–connect the equipment into an outlet on a circuit different from that to which the receiver is connected;

–consult the dealer or an experienced radio/TV technician for help.

Intentional or unintentional modifications, not expressly approved by the party responsible for compliance, shall not be made. Any such modifications could void the user's authority to operate the equipment. If necessary, the user should consult the dealer or an experienced radio/television technician for corrective action.

The user may find the following booklet, prepared by the Federal Communications Commission, helpful: How to Identify and Resolve Radio-TV Interference Problems. This booklet is available from the U.S. Government Printing Office, Washington, DC 20402, Stock No. 004- 000-00345-4.

INFORMATIONS FCC ET ICES

(modèles utilisés aux États-Unis et au Canada uniquement)

Suite à différents tests, cet appareil s'est révélé conforme aux exigences imposées aux appareils numériques de classe B, en vertu de la section 15 du règlement de la Commission fédérale des communications des États-Unis (FCC), et en vertu de la norme ICES-003 d'Industrie Canada. Ces exigences visent à fournir une protection raisonnable contre les interférences nuisibles lorsque l'appareil est utilisé dans le cadre d'une installation résidentielle. Cet appareil génère, utilise et émet de l'énergie de radiofréquences et peut, en cas d'installation ou d'utilisation non conforme aux instructions, engendrer des interférences nuisibles au niveau des radiocommunications. Toutefois, rien ne garantit l'absence d'interférences dans une installation particulière. Il est possible de déterminer la production d'interférences en mettant l'appareil successivement hors et sous tension, tout en contrôlant la réception radio ou télévision. L'utilisateur peut parvenir à éliminer les interférences éventuelles en prenant une ou plusieurs des mesures suivantes:

–Modifier l'orientation ou l'emplacement de l'antenne réceptrice;

–Éloigner l'appareil du récepteur;

–Brancher l'appareil sur une prise située sur un circuit différent de celui du récepteur;

–Consulter le revendeur ou un technicien qualifié en radio/télévision pour obtenir de l'aide.

Toute modification apportée au produit, non expressément approuvée par la partie responsable de l'appareil, est strictement interdite. Une telle modification est susceptible d'entraîner la révocation du droit d'utilisation de l'appareil.

La brochure suivante, publiée par la Commission fédérale des communications (FCC), peut s'avérer utile : How to Identify and Resolve Radio-TV Interference Problems (Comment identifier et résoudre les problèmes d’interférences de radio et de télévision). Cette brochure est disponible auprès du U.S. Government Printing Office, Washington, DC 20402, États-Unis, sous la référence n° 004-000-00345-4.

Disclaimer

Underwriter Laboratories Inc. ("UL") has not tested the performance or reliability of the security or signaling aspects of this product. UL has only tested fire, shock and/or casualty hazards as outlined in UL's Standard(s) for Safety for Information Technology Equipment, UL 60950-1. UL Certification does not cover the performance or reliability of the security or signaling aspects of this product.

Bosch Security Systems

Installation manual

F.01U.135.429 | 2.5 | 2009.08

12 en | Safety Divar XF

	UL MAKES NO REPRESENTATIONS, WARRANTIES, OR CERTIFICATIONS WHATSOEVER
	REGARDING THE PERFORMANCE OR RELIABILITY OF ANY SECURITY OR SIGNALING-
	RELATED FUNCTIONS OF THIS PRODUCT.
1.5	Bosch notices
	Copyright

This manual is the intellectual property of Bosch Security Systems and is protected by copyright.

All rights reserved.

Trademarks

All hardware and software product names used in this document are likely to be registered trademarks and must be treated accordingly.

NOTE!

This manual has been compiled with great care and the information it contains has been thoroughly verified. The text was complete and correct at the time of printing. The ongoing development of the products may mean that the content of the user guide can change without notice. Bosch Security Systems accepts no liability for damage resulting directly or indirectly from faults, incompleteness or discrepancies between the user guide and the product described.

More information

For additional information, please contact the Bosch Security Systems location nearest you or visit our web site at: www.boschsecurity.com

F.01U.135.429 | 2.5 | 2009.08

Installation manual

Bosch Security Systems

Divar XF Introduction | en 13

2	Introduction
2.1	Digital video recorder for security applications
	The Divar XF is a video and audio recording system that records multiple camera and audio
	signals while simultaneously providing live multiscreen viewing and playback.
	The unit has comprehensive search and playback facilities for viewing stored video. Once
	configured, all recording takes place in the background without requiring operator
	intervention. Maximum recording rates of 30 (NTSC) and 25 (PAL) images per second, per
	channel, are guaranteed. The recording rate and quality are selectable per camera. Up to four
	internal hard disks can be used to provide various storage capacities for recording.
	All models have extensive alarm handling functions and telemetry control. Alarm functions
	include motion detection in user-definable areas of the image on any camera input.
	The unit can be easily operated and programmed via the front panel control keys, mouse, and
	the on-screen display menu system. Two monitor outputs provide full-screen, quad, and
	multiscreen viewing. Connect a KBD (Intuikey) keyboard for PTZ control and to improve the
	ease-of-use.
	Looping auto-terminating video inputs and outputs, audio inputs and outputs, alarm inputs
	and outputs, and remote control connectors are on the rear panel. Two VGA connectors
	provide outputs for an A and a B monitor. CVBS and Y/C video outputs in either NTSC or PAL
	are also provided. Monitor A displays full-screen or multiscreen digital pictures that can be
	frozen and zoomed. Monitor B displays live full-screen or multiscreen pictures.
	Use the Control Center PC-application via a network for live viewing, playback, and
	configuration. Five simultaneous users can control multiple Divar XFs. The Divar XF includes
	an authenticity check for both local and remote playback. A dedicated PC player is provided
	for playback of secure video files. The PC-based Configuration Tool facilitates the installation
	of the unit.
	An SDK (software development kit) is available to integrate the Divar XF into third party
	management software.
2.1.1	Versions
	There are various Divar XF models; 8-channel and 16-channel with DVD burner option, each
	with various storage capacities. Both 8-channel and 16-channel versions operate in exactly the
	same way except that fewer camera, audio, and alarm inputs are present, and the number of
	available multiscreen views differs.
	Optionally, up to 8 IP cameras can be connected (in addition to the 8 or 16 analog input
	channels).
2.1.2	Manuals
	Four manuals are supplied:
	– Installation manual - a detailed description for installers on how to install the product.
	– Quick Installation guide - gives a brief overview on how to set up and install the product.
	– Operation manual - a detailed description for end-users on how to operate the unit.
	– Control Center and Archive Player operation manual - a detailed description for end-users
	and administrators on how to set up and operate the Control Center and Archive Player
	software.
2.1.3	Features
	The Divar XF has the following features:

– 8 or 16 looped-through, auto-terminating camera inputs

– 8 or 16 audio inputs

Bosch Security Systems

Installation manual

F.01U.135.429 | 2.5 | 2009.08

14 en | Introduction	Divar XF

–Support for up to eight IP cameras (optional)

–Simultaneous recording and playback

–Internal hard disk video storage (front replaceable)

–On-board RAID4 (optional)

–10/100Base-T Ethernet port for Ethernet connection and networking

–Two RS232 serial ports for serial communication

–External KBD keyboard input

–Dual monitor outputs

–Full-screen and various multiscreen display capabilities in live and playback modes

–Spot monitor output with sequencing, multiscreen, and OSD

–Two audio outputs (dual mono)

–Motion detection

–8 or 16 switching (alarm) inputs and 4 alarm outputs

–Video loss detection

–Audible alarm

–Pan, tilt, and zoom camera control via RS485 and biphase

–Local archiving via USB

–Local archiving via built-in DVD burner (optional)

2.1.4	On-screen help
	On-screen context-sensitive help is available for some topics. Just press the help	button
	to see the help text associated with your current activity. Press the escape	button
	to exit help.

2.2	Unpacking
	Check the package for visible damage. If any items appear to have been damaged in shipment,
	notify the shipping company. Unpack carefully. This is electronic equipment and should be
	handled with care to prevent damage to the unit. Do not attempt to use the unit if any
	components are damaged. If any items are missing, notify your customer service
	representative or Bosch Security Systems sales representative. The shipping carton is the
	safest container in which to transport the unit. Save it and all packing materials for future use.
	If the unit must be returned, use the original packing materials.
2.2.1	Package contents
	Check for the following items:
	– Digital Video Recorder (Divar XF 16 or Divar XF 8 unit)
	–	USB mouse
	–	Quick installation guide
	– Divar XF operation manual
	– Divar XF Control Center and Archive Player operation manual
	– Installation manual (this manual)
	– A 25-pin D-type switching and alarm connector board
	– A 15-pin D-type connector board (used for Biphase PTZ connections)
	– A 3-pin screw terminal connector (used for RS485 PTZ connection)
	–	Power supply cord
	– Shielded network cross-over cable (for service and testing purposes)
	–	Rack mounting kit
	– A CD-ROM containing the software and manuals

F.01U.135.429 | 2.5 | 2009.08

Installation manual

Bosch Security Systems

Divar XF Introduction | en 15

2.3	Installation environment
2.3.1	Mounting
	The Divar XF is supplied as a desktop unit. If desired, the unit can be rack mounted using the
	rack mounting kit supplied with the unit.
2.3.2	Ventilation
	Ensure that the location planned for the installation of the unit is well ventilated. Take note of
	the locations of the cooling vents in the unit's enclosure and ensure that they are not
	obstructed.
2.3.3	Temperature
	Observe the unit's ambient temperature specifications when choosing an installation space.
	Extremes of heat or cold beyond the specified operating temperature limits may cause the
	unit to fail. Do not install the unit on top of hot equipment.
2.3.4	Power Supply
	Ensure that the site's AC power supply is stable and within the rated voltage of the unit. If the
	site's AC power is likely to have spikes or power dips, use power line conditioning or an
	uninterrupted power supply (UPS).

2.4	Associated equipment
	A typical system could contain the following components (not included with the unit):
	– A primary monitor for multiscreen monitoring (monitor A)
	– A second monitor for spot/alarm monitoring (monitor B)
	– Cameras with 1 Vpp composite video outputs
	– IP cameras (see datasheet for supported models)
	–	Amplified microphone(s)
	– Audio amplifier with speaker(s)
	– Video coaxial cable with BNC connectors for connecting the video signals
		Audio cable with RCA connectors for connecting audio signals.
	– AC power supply outlet for the unit that allows for secure isolation (the unit has no on/
		off switch for security reasons)
	–	A KBD keyboard
	– PC for Control Center and Configuration Tool applications
	–	Pan/tilt/zoom control units

Bosch Security Systems

Installation manual

F.01U.135.429 | 2.5 | 2009.08

16 en | Introduction	Divar XF

F.01U.135.429 | 2.5 | 2009.08

Installation manual

Bosch Security Systems

Divar XF Quick install | en 17

3 Quick install

To get the unit quickly operational, make the connections described below and then enter the relevant data in the Quick install menu. The Quick install menu appears the first time the unit is started. When the relevant information is entered, the unit will be operational.

3.1	Connections
												A
	PC					USB
					13						B			11			7	8		6
			LAN / WAN
														SHIELD			16	8
														CTRL5	-		IN15	7
															+		GND
														SHIELD			14	6
														CTRL4	-		IN13	5
								3			4	2			+		GND
														SHIELD			12	4
														CTRL3	-		IN11	3							x16*
															+		GND
														CTRL2	+		GND
														SHIELD			10	2
															-		IN9	1										5
														SHIELD			Y4B	2B
				10										CTRL1	-		LA4A	2A
															+		E3B	1B
														SHIELD			R3A	1A
		RS485				KBD in		Ethernet			B	B	B								1	3	5	7	9	11	13	15
			12		- | + | G
				RS							A	A	A		Com 1		Com 2		L
				485
				MAL															R
				OUT															A	B	2	4	6	8	10	12	14	16
	PTZ				N0 | C | NC	KBD out	USB	USB		IR ext	VGA	CVBS	Y/C		Biphase		Alarm I/O
											Monitor out								Audio out		Audio in
					AC		1	2	3	4	5	6	7	8		9	10	11	12		13	14	15	16
											Video in				Video in				Video in
							1	2	3	4	5	6	7	8		9	10	11	12		13	14	15	16
			9								Video out				Video out				Video out
						VIDEO IN																		VIDEO IN
															x16*
			14												1											AutoDome
			110 - 240 VAC
	Figure 3.1	Back panel connections

3.1.1

Primary connections

1.Connect the cameras to the BNC camera inputs (automatically terminated).

2.Connect monitor A to the BNC, Y/C, or VGA (supporting 1280x1024) output MON A.

3.Connect (supplied) USB mouse to a USB port.

3.1.2

Optional connections

4.Connect monitor B to the BNC, Y/C, or VGA (supporting 1024x768) output MON B.

5.Connect up to 16 audio signals to the RCA audio inputs.

6.Connect the RCA audio output(s) to the monitor or an audio amplifier.

7.Connect up to 16 (alarm) inputs (via the supplied 25-pin D-type connector board).

8.Connect up to 4 alarm outputs (via the supplied 25-pin D-type connector board).

9.Connect the malfunction output (via the supplied screw terminal adapter).

10.Connect an Intuikey keyboard to the KBD In socket and connect the terminator (supplied with the keyboard) to the KBD Out socket.

11.Connect a Bosch pan/tilt/zoom control unit to the Biphase port (via the supplied 15-pole D-type connector board).

12.Connect a third-party pan/tilt/zoom control unit to the RS485 port (via the supplied screw terminal adapter).

13.Connect to your network via the Ethernet port.

3.1.3

Powering up

Switch on all connected equipment.

14. Connect the power cord to the unit.

Bosch Security Systems

Installation manual

F.01U.135.429 | 2.5 | 2009.08

18 en | Quick install Divar XF

3.2 First-time use

The unit starts with a multiscreen display. The Quick install menu opens the first time the unit is used. Fill in the basic settings in the four tabs to get the unit operational. The unit begins recording automatically when the Quick install menu is closed.

To open the Quick install menu at any other time:

1.Press the menu button.

2.The main menu appears on monitor A.

3.Click Configuration and then Quick install.

Navigating

Use the supplied USB mouse. Alternatively, use the following front panel keys:

–Use the enter button to select a submenu or item.

– Use the arrow

buttons to move through a menu or list.

–Use the escape button to go back or to switch off the menu.

3.3	Quick install menu
	The Quick install menu contains four tabs: International, Schedule, Recording, and Network.
	Navigate through these tabs using Back and Next. Click Undo to cancel changes made in the
	active tab. Click Close to exit the Quick install menu. Changing Quick install settings
	overwrites customized settings.
3.3.1	International

Figure 3.2 Quick install menu - International

F.01U.135.429 | 2.5 | 2009.08

Installation manual

Bosch Security Systems

Divar XF Quick install | en 19

	Language	Select the language for the menu from the list.
	Time zone	Select a time zone from the list.
	Time format	Select either a 12 or a 24 hour clock format.
	Time	Fill in the current time.
	Date format	Select from three date formats which show either the month (MM),
		the day (DD), or the year (YYYY) first.
	Date	Fill in the current date.
	Click Next to move to the next tab.
3.3.2	Schedule

Figure 3.3 Quick install menu - Schedule

A graphical representation of the currently active weekly schedule is shown. Each color represents one of the available profiles:

–Yellow - Profile 1

–Dark blue - Profile 2

–Green - Profile 3

–Pink - Profile 4

–Light blueProfile 5

–Brown - Profile 6

Click Overwrite to start making changes.

–Select at which day the week should start and end.

Bosch Security Systems

Installation manual

F.01U.135.429 | 2.5 | 2009.08

20 en | Quick install	Divar XF

–Select at which time the day begins and ends on weekdays.

–Select at which time the day begins and ends on weekends.

The graphical representation is automatically updated when settings are changed.

Click Next to move to the next tab.

3.3.3

Recording

Figure 3.4 Quick install menu - Recording

Set the Normal recording Resolution, Quality, and Frame rate for each profile in the table. Set the Alarm and Motion recording Resolution, Quality, and Frame rate. These settings are set for all profiles. If advanced settings were previously made, click Overwrite to replace them with Quick install settings.

Click Next to move to the next tab.

F.01U.135.429 | 2.5 | 2009.08

Installation manual

Bosch Security Systems

Divar XF Quick install | en 21

3.3.4 Network

Figure 3.5 Quick install menu - Network

Fill in the settings that control the behavior of the unit with respect to a network.

DVR name	Enter a DVR name to be used in the network.
DHCP	Enable DHCP to have IP address, subnet mask, and default gateway
	assigned automatically by the network server. The actual values are
	displayed.
IP address	Fill in the IP, subnet mask, default gateway, and DNS server
Subnet mask	addresses when DHCP is disabled.
Default gateway
DNS server
Bandwidth limit	Restrict the network bandwidth by entering a value between 0.1 and
	100 Mbps for the bandwidth limit.
MAC address	The MAC address is read only.
Cable connected	Shows cable status.

Bosch Security Systems

Installation manual

F.01U.135.429 | 2.5 | 2009.08

22 en | Quick install	Divar XF

F.01U.135.429 | 2.5 | 2009.08

Installation manual

Bosch Security Systems

Divar XF Hardware setup | en 23

4 Hardware setup

This chapter contains detailed information about the hardware installation and connection of external equipment to the unit. The connector types and their pin signals are described. Most of the connectors are located at the rear panel of the unit. For convenience, one USB port is located on the front of the unit to connect a mouse or memory device.

All the input/output ports are Safety Extra Low Voltage (SELV) circuits. SELV circuits should only be connected to other SELV circuits.

4.1	Desktop installation

Place the unit on a stable, flat surface. Install the two supplied silver side covers by:

1.inserting them on each side,

2.sliding them towards the front of the unit.

	Figure 4.1 Side cover installation
4.2	Rack mounting
	The unit can be mounted in a 19-inch rack. A rack mounting kit is supplied with the unit that
	includes two rack mounting brackets.

Mounting

1.Remove the four cross head screws (two on each side) located near the front panel on the right and left side of the unit.

2.Secure the supplied brackets to each side using the same four cross head screws (two on each side) that were just removed.

3.To install several units directly on top of each other, remove the rubber feet from under the unit by prying them loose with a small screwdriver.

4.Install the unit into the rack using the hardware supplied with the rack and following the rack manufacturer’s instructions.

Figure 4.2 Securing the rack mounting bracket

Bosch Security Systems

Installation manual

F.01U.135.429 | 2.5 | 2009.08

24 en | Hardware setup Divar XF

CAUTION!

When installing the assembly into the rack, be careful not to restrict air flow around the vents located on the side panels or to exceed the recommended operating temperature.

Secure the connection cables to the rack to relieve excessive weight to the back of the unit.

4.3		Hard disk installation
		Up to four hard disks can be installed in the DVR. All hard disks are accessed from the front of
		the unit by removing the front panel. Do not open the top cover or attempt to service the unit.
		No user serviceable parts inside. Refer all servicing to qualified service personnel. Improper
		handling or installation could void the warranty of both the hard disk and the DVR.
		Note! Only genuine Bosch hard disks will work in the Divar XF. See the Bosch website or
		contact your local Bosch representative for available hard disks.
		CAUTION!
		Electrostatic discharges
		Any electrostatic energy coming in contact with the hard disk or other sensitive internal parts
		can damage them permanently. Improper handling could void the warranty of the hard disk.
		When working with electrostatic sensitive devices such as a hard disk or the Divar unit, make
		sure you use a static-free workstation.
4.3.1		Mounting instructions
		DANGER!
		Electrical voltage.
		Risk of electric shock.

Before installation of the hard disk, unplug the power cord of the DVR and wait for at least 30 seconds.

Removing the front panel

Divar

Figure 4.3 Front panel removal

1.Loosen the two captive cross head screws on the bottom front panel.

2.Slide the front panel to the right until it is free.

3.Place the front panel on top of the unit, taking care not to strain the flat cable. If there is no room on top of the unit, disconnect the flat cable and set the front panel aside.

F.01U.135.429 | 2.5 | 2009.08

Installation manual

Bosch Security Systems

Divar XF	Hardware setup | en 25

Placing a hard disk

Figure 4.4 Placing a hard disk

1.Locate the first empty hard disk bay. It is recommended that you install the disks in order from one to four, as labeled. (Note that disks 3 and 4 are mounted in a double bay.)

2.Unscrew the two torx T10 screws securing the selected bay. Slide the bay from the unit by pulling it forward.

3.To replace an installed hard disk, remove the four installation screws, two per side, from the sides of the bay. Remove the hard disk.

Mount the new hard disk into the bay with four screws, two per side (refer to the hard disk documentation).

4.Align and slide the bay back fully into its slot in the unit.

5.Secure the bay using the two torx T10 screws removed earlier (step 2).

6.Repeat steps 1-5 for any additional hard disks.

Remounting the front panel

1. When disk installation is complete, reconnect the flat cable to the front panel, if necessary.

2. Align and slide the front panel to the left until it is in place.

3. Refasten the two captive cross head screws to the front panel.

4.4 Camera connections

Connect cameras to the Video in connectors on the back of the unit using 75 ohm video coaxial cables with BNC connectors. Optionally, this signal can be looped through to other equipment via the corresponding Video out connector. The camera input connectors are auto-

Bosch Security Systems

Installation manual

F.01U.135.429 | 2.5 | 2009.08

26 en | Hardware setup	Divar XF

terminating. There is no need to add a terminator to the output connector if no additional equipment is connected.

If the camera signal is looped-through to additional equipment, make sure that the end of the video line is terminated with 75 ohm termination.

The DivarXF automatically configures itself as a PAL or NTSC unit. The unit determines the standard by detecting the signal format of the first connected camera (lowest camera input number).

Specifications

Input signal: Composite video 1 Vpp, 75 ohm

Color standard: PAL/NTSC, auto-detect

Gain control: Automatic or manual gain control for each video input

Connector type: BNC looped-through, automatic termination

1	2	3	4	5	6	7	8
				Video in
1	2	3	4	5	6	7	8
				Video out

Figure 4.5 Eight video inputs with loop-through outputs

4.5	Audio connections
		The DivarXF supports up to 16 audio inputs and 4 audio outputs. Connect using audio cable
		with RCA compatible connectors.
		Specifications
		Input signal: Mono RCA, 1 Vpp, 10k ohm
		Output signal: Dual mono RCA, 1 Vpp, 10k ohm
	1		3	5	7	9	11	13	15

2 4 6 8 10 12 14 16 Audio in

Figure 4.6 Audio input connectors

L
R
A	B
Audio out
Figure 4.7	Audio output connectors

4.6	Monitor connections
	Up to two monitors can be connected through the VGA, CVBS, or Y/C connections.
4.6.1	VGA
	Connect the unit to one or two VGA monitors using standard VGA cable. It is advised to use
	17” monitors or larger when using LCD(s).

F.01U.135.429 | 2.5 | 2009.08

Installation manual

Bosch Security Systems

Divar XF Hardware setup | en 27

	Specifications
	Output signal: VGA
	Resolution: 1280 x 1024 (monitor A), 1024 X 768 (monitor B)
	Color: True color (32 bit)
	Connector type: DE-15
			B
			A
			VGA
	Figure 4.8 VGA monitor connectors
4.6.2	CVBS
	Connect the unit to CCTV monitors using 75 ohm video coaxial cables with BNC connectors.
	The unit provides a 1 Vpp CVBS signal.
	If the monitor has a loop-through connection and you are not using the loop-through output,
	then select the 75 ohm impedance setting on the monitor. If the monitor's loop-through
	output is connected to an additional device, the device's termination is set to 75 ohm and the
	monitor's termination is set to high impedance. (Note that this is not necessary on devices
	with automatic termination.)
	Specifications
	Output signal: Composite video 1Vpp, 75 ohm, Sync. 0.3Vpp ±10%
	Resolution: 720 x 576 PAL, 720 X 484 NTSC
	Connector type: BNC
			B
			A
	CVBS
	Figure 4.9 CVBS monitor connectors
4.6.3	Y/C
	Connect the unit to a CCTV monitor with Y/C input, using a standard Y/C connection cable.
			B
			A
	Y/C
	Figure 4.10 Y/C monitor connectors
4.7	Monitor streaming connection
	To connect a monitor in a remote streaming configuration, connect the CVBS monitor output
	to a video input. Then connect the monitor to the corresponding loop-through connector.

Bosch Security Systems

Installation manual
