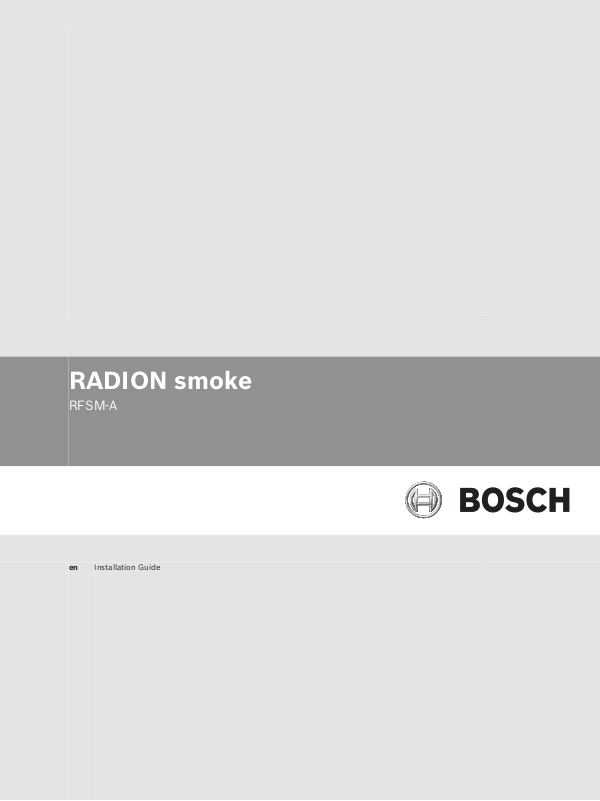

Bosch RFSM-A Installation Manual

RADION smoke

RFSM-A

en Installation Guide

RADION smoke Table of Contents | en 3

1.1 About documentation 4

1.2 Bosch Security Systems, Inc. product manufacturing dates 4

3.1 Installation guidelines 8

4.1 Smoke test 10

4.2 Sensitivity test 10

4.3 Test/silence 10

4.4 LED 11

5.1 Battery replacement 12

5.2 Cleaning 12

Introduction 4

System overview 5

Installation 7

Device testing 10

Maintenance 12

Limitations of smoke detectors 14

Planning for emergencies 15

Bosch Security Systems, Inc. Installation Guide 2013.09 | 02 | F.01U.280.752

4 en | Introduction RADION smoke

1.1

Introduction

This document contains information that a trained installer needs to install the RADION smoke detector. It supplements the B810 System Reference Guide (P/N: F.01U.261.834) contained inside the B810 wireless receiver packaging.

About documentation

Trademarks

All hardware and software product names used in this document are likely to be registered trademarks and must be treated accordingly.

Notifications

This document uses Notices, Cautions, and Warnings to draw your attention to important information.

Notice!

These include important notes for successful operation and programming of equipment, or

indicate a risk of damage to the equipment or environment.

1.2

Caution!

These indicate a hazardous situation which, if not avoided, could result in minor or moderate

injury.

Warning!

These indicate a hazardous situation which, if not avoided, could result in death or serious

injury.

Bosch Security Systems, Inc. product manufacturing dates

Use the serial number located on the product label and refer to the Bosch Security Systems, Inc. website at http://www.boschsecurity.com/datecodes/. The following image shows an example of a product label and highlights where to find the manufacturing date within the serial number.

2013.09 | 02 | F.01U.280.752 Installation Guide Bosch Security Systems, Inc.

RADION smoke System overview | en 5

System overview

The RFSM-A smoke detector is designed to be used as a standalone smoke detector. The RFSM-A includes a built-in sounder for alarm alerts and a visual status LED.

Figure 2.1: Detector features

Callout ￚ Description

1 ￚ Test/silence button

2 ￚ LED

3 ￚ Sounder vent

Under normal (non-alarm) conditions, the LED flashes once every 8 seconds while the sensor monitors the surrounding conditions. When the RFSM-A detects smoke, the LED changes from flashing to on and the built-in sounder produces a loud continuous tone. The RFSM-A uses two 3-volt lithium batteries, which are included with the sensor. The RFSM-A also provides the following features: – Self-diagnostic monitor sensor sensitivity and operational status. – A tamper switch triggers a tamper signal transmission when the detector is removed from

its mounting base.

– A replaceable optical chamber provides easy maintenance when required.

Internal signal outputs

When the smoke sensor is listed with a transmitter, it provides the following signals for interfacing: – Alarm – Alarm restore – Low battery – Maintenance alert – Tamper

Specifications

Detector dimensions

Base dimensions 13.7 cm x 1.17 cm (5.4 in. x 0.46 in.)

14.2 cm x 6.1 cm (5.6 in. x 2.4 in.)

Operating temperature 4 to 38°C (40 to 100°F)

Storage temperature -34 to 60°C (-30 to 140°F)

Maximum relative humidity 90% non-condensing

Voltage 3 VDC

Bosch Security Systems, Inc. Installation Guide 2013.09 | 02 | F.01U.280.752

6 en | System overview RADION smoke

Current draw Standby: 45 uA

Alarm: 70 mA

Power source Two 3-volt lithium batteries of the same type, Sanyo

CR123A, Panasonic CR123A, Duracell DL123A,

Battery life 1 year minimum

Sensitivity 0.14 +/- 0.04 dB/m (0.97 – 2.99%/ft obscuration)

Drift compensation adjustment 1.64%/m (0.5%/ft.) max.

Low battery chirp 1 every 45 +/- 2 seconds

Sounder 85 dBA at 3m continuous

RFI immunity 20 V/m minimum; 0-1000 MHz

Compatibility To be used with B810 wireless receiver for UL approved

applications
