Video | FLEXIDOME IP panoramic 5000 MP
FLEXIDOME IP panoramic 5000 MP
www.boschsecurity.com
u 5MP / 15 fps sensor for fine details with smooth
motion
u Discreet and aesthetic, compact design
The FLEXIDOME IP panoramic 5000 MP is a discreet,
aesthetic, panoramic camera in a compact design. The
5MP sensor operating at 15 fps provides full
panoramic surveillance with complete area coverage
and fine details. The camera offers full situational
awareness and simultaneous E-PTZ views in high
resolution.
When mounted centrally on a ceiling, the 360° camera
lens gives complete wall‑to‑wall coverage.
Dewarping
The lens captures a circular image. Our client-side
dewarping software transforms this circular image into
several different distortion-free rectangular views.
Versions
Two versions are available, an indoor version and an
IK10, IP66-rated outdoor version.
System overview
Advantages of panoramic surveillance
Panoramic surveillance offers full 360° coverage of the
designated area. Because our panoramic cameras
cover the full area, they provide complete situational
awareness and are ideally suited to following
movement in one continuous sweep.
u Simultaneous panoramic overview and detailed
object monitoring
u IK10 rated for better protection
u Intelligent noise reduction reduces bandwidth and
storage requirements by up to 50%
Functions
5MP sensor at 15 fps
The high 5MP sensor resolution together with a frame
rate of 15 fps makes this camera an ideal solution for
many applications in the field of panoramic image
capture. The high resolution provides a clear overview
and detailed images.
Client-side dewarping
With client-side dewarping, the camera streams a
single circular non-dewarped image at 15 fps.
Dewarping is performed with our dewarping software
that is installed on the PC where multiple view modes
are available or you can choose to use a third-party
client-side dewarping software solution.
1 m / 3 ft
4 m / 13 ft
7 m / 23 ft
19 m / 62 ft
| FLEXIDOME IP panoramic 5000 MP
2
View modes
The following view modes can be selected in our
client-side dewarping software.
Full image cut-out and displayed image
Double panoramic
view
Virtual E‑PTZ view
North, South, East,
West view
Quad view
Panorama view
DORI coverage
DORI (Detect, Observe, Recognize, Identify) is a
standard system (EN-50132-7) for defining the ability
of a camera to distinguish persons or objects within a
covered area. The maximum distance at which a
camera/lens combination can meet these criteria is
shown below:
When mounted at a height of 3 m (10 ft) the camera
has the following coverage radius for the four levels:
DORI DORI definition Coverage radius
Detect 25 px/m (8 px/ft) 19 m (62 ft)
Observe 63 px/m (19 px/ft) 7 m (23 ft)
Recognize 125 px/m (38 px/ft) 4 m (13 ft)
Identify 250 px/m (76 px/ft) 1 m (3 ft)
E-PTZ and regions of interest
The remote E-PTZ (Electronic Pan, Tilt and Zoom)
controls allow you to select specific areas of the full
image circle. These Regions of Interest (ROI) can be
easily defined, allowing the most interesting part of a
scene to be monitored separately. The high resolution
ensures that details are not lost even when using the
electronic zoom.
The E-PTZ feature of a panoramic camera has some
advantages over normal PTZ cameras. There is no
camera movement so the camera does not draw
attention to itself or appear intrusive. Situational
awareness is still retained even when zooming in on a
particular object of interest. The smooth E- PTZ
function helps navigation, and presets are available as
they are with regular PTZ cameras.
Full image recording
The camera provides the full resolution circular image
for recording even if you are viewing only a portion of
the scene. This means that you can always perform
retrospective dewarping and analyses on the complete
area covered and then zoom in on the region or object
of interest.
Content Based Imaging Technology
Content Based Imaging Technology (CBIT) is used to
radically improve image quality in all lighting
conditions and to identify areas for enhanced
processing. The camera examines the scene using
intelligent video analytics and provides feedback to retune the image processing. This provides better detail
in the areas that matter and better all-round
performance.
Intelligent Dynamic Noise Reduction
Quiet scenes with little or no movement require a
lower bitrate. By intelligently distinguishing between
noise and relevant information, Intelligent Dynamic
Noise Reduction reduces bitrate by up to 50%.
Because noise is reduced at the source during image
capture, the lower bitrate does not compromise on
video quality.
| FLEXIDOME IP panoramic 5000 MP
3
Area-based encoding
Area-based encoding is another feature which reduces
bandwidth. Compression parameters for up to eight
user-definable regions can be set. This allows
uninteresting regions to be highly compressed, leaving
more bandwidth for important parts of the scene.
Bitrate optimized profile
The average typical optimized bandwidth in kbits/s for
various image rates is shown in the table:
fps 5MP (full image circle)
15 1250
7.5 950
3.75 550
MOTION+
The MOTION+ video motion analysis system that is
built into all camera versions is the perfect solution for
applications where basic video content analysis
features are required. MOTION+ shows motion
metadata in an overlay display. By using MOTION+
data as input, smarter imaging algorithms bring
improved image quality and more efficient bitrates. It
also enables extended tamper detection capabilities.
Multiple streams
The innovative multi-streaming feature delivers various
H.264 streams together with an M‑JPEG stream. These
streams facilitate bandwidth-efficient viewing and
recording, plus easy integration with third-party video
management systems.
Built-in microphone and audio alarm
The indoor version of the camera has a built-in
microphone to allow operators to listen in on the
monitored area. Audio detection can be used to
generate an alarm if needed.
If required by local laws, the microphone can be
permanently blocked via a secure license key.
Easy installation
Power for the camera can be supplied via a Powerover-Ethernet compliant network cable connection.
With this configuration, only a single cable connection
is required to view, power, and control the camera.
Using PoE makes installation easier and more costeffective, as cameras do not require a local power
source. The camera can also be supplied with power
from +12 VDC power supplies.
For trouble-free network cabling, the camera supports
Auto-MDIX which allows the use of straight or crossover cables.
The camera is pre-assembled with an indoor surface
mount bracket which allows you to mount the camera
directly onto a ceiling, wall or single-gang box. The
rear connectors are orientated for easy accessibility. A
complete set of mounting accessories, such as a wall

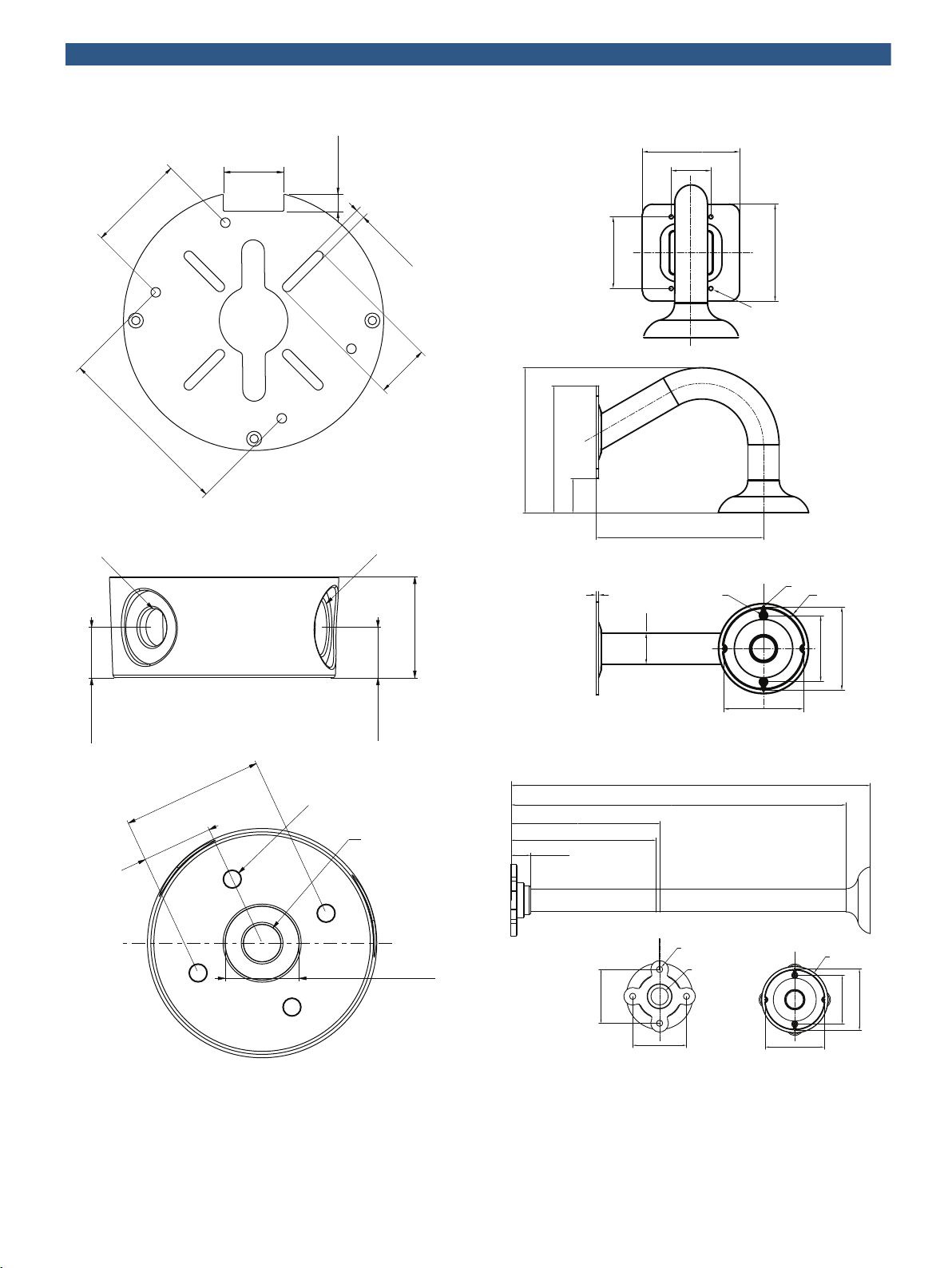

or pipe mount, are available.
No focus or pan/tilt adjustments are required as the
camera, with its 360° lens, provides complete
coverage of a small room. The high quality lens is
factory focused and so installation is simplified and
sharpness is assured.
Suitable for diverse environments
The indoor version is designed to resemble a smokedetector. This compact design offers discreet and
unobtrusive placement in any indoor environment.
The outdoor version with cast-aluminum housing and
transparent bubble is designed to withstand the
equivalent of 20 joule of impact force (IK10), which is
equivalent to a 5 kg (12 lbs) steel ball dropped from
40cm.
Together with the outdoor surface mount box provided
in the package, the outdoor version is protected
against water and dust ingress according to IP66. This
makes it ideal for outdoor use in demanding
environments.
Simple set-up
The camera has a very intuitive user interface that
allows fast and easy configuration. Configurable scene
modes are provided with the best settings for a variety
of applications.
Storage management
Recording management can be controlled by the
Bosch Video Recording Manager (VRM) or the camera
can use iSCSI targets directly without any recording
software.
Edge recording
Insert a memory card into the card slot to store up to
2 TB of local alarm recording. Pre-alarm recording in
RAM reduces recording bandwidth on the network,
and extends the effective life of the memory card.
Cloud-based services
The camera supports time-based or alarm-based JPEG
posting to four different accounts. These accounts can
address FTP servers or cloud-based storage facilities
(for example, Dropbox). Video clips or JPEG images
can also be exported to these accounts.
Alarms can be set up to trigger an e-mail or SMS
notification so you are always aware of abnormal
events.
Access Security
Password protection with three levels and 802.1x
authentication is supported. To secure Web browser
access, use HTTPS with a SSL certificate stored in the
camera.
Complete viewing software
There are many ways to access the camera’s features:
using a web browser, with the Bosch Video
Management System, with the free-of-charge
Bosch Video Client or Video Security Client, with the
video security mobile app, or via third-party software.
15 (0.59)
19 (0.75)
31 (1.22)
50 (1.97)
105 (4.13)
mm (in)
126 (4.97)
28 (1.09)
14 (0.55)
19 (0.75)
69 (2.72)
mm (in)
15 (0.59)
20 (0.77)
37 (1.47)
57 (2.24)
110 (4.33)
mm (in)
126 (4.97)
mm (in)
28 (1.09)
14 (0.55)
19 (0.74)
76 (2.99)
| FLEXIDOME IP panoramic 5000 MP
4
The Video Security Client has extensive dewarping
capabilities and can be used for client-side dewarping
as well as for viewing the available modes.
System integration
The camera conforms to the ONVIF Profile S
specification. Compliance with this standard
guarantees interoperability between network video
products regardless of manufacturer.
Third-party integrators can easily access the internal
feature set of the camera for integration into large
projects. Visit the Bosch Integration Partner Program
(IPP) website (ipp.boschsecurity.com) for more
information.
Because the camera supplies a full circle image
stream, it can easily integrate with third-party clientside dewarping software solutions.
Certifications and approvals
Standards
Conformity 2004/108/EC (EMC) ;
2006/95/EC (LVD) ;
2011/65/EU
Emission EN 55022: 2010, +AC (2011);
CFR 47 FCC part 15:2012-10-1, Class B;
AS/NZS CISPR 22:2009 + A1 (2010)
Installation/configuration notes

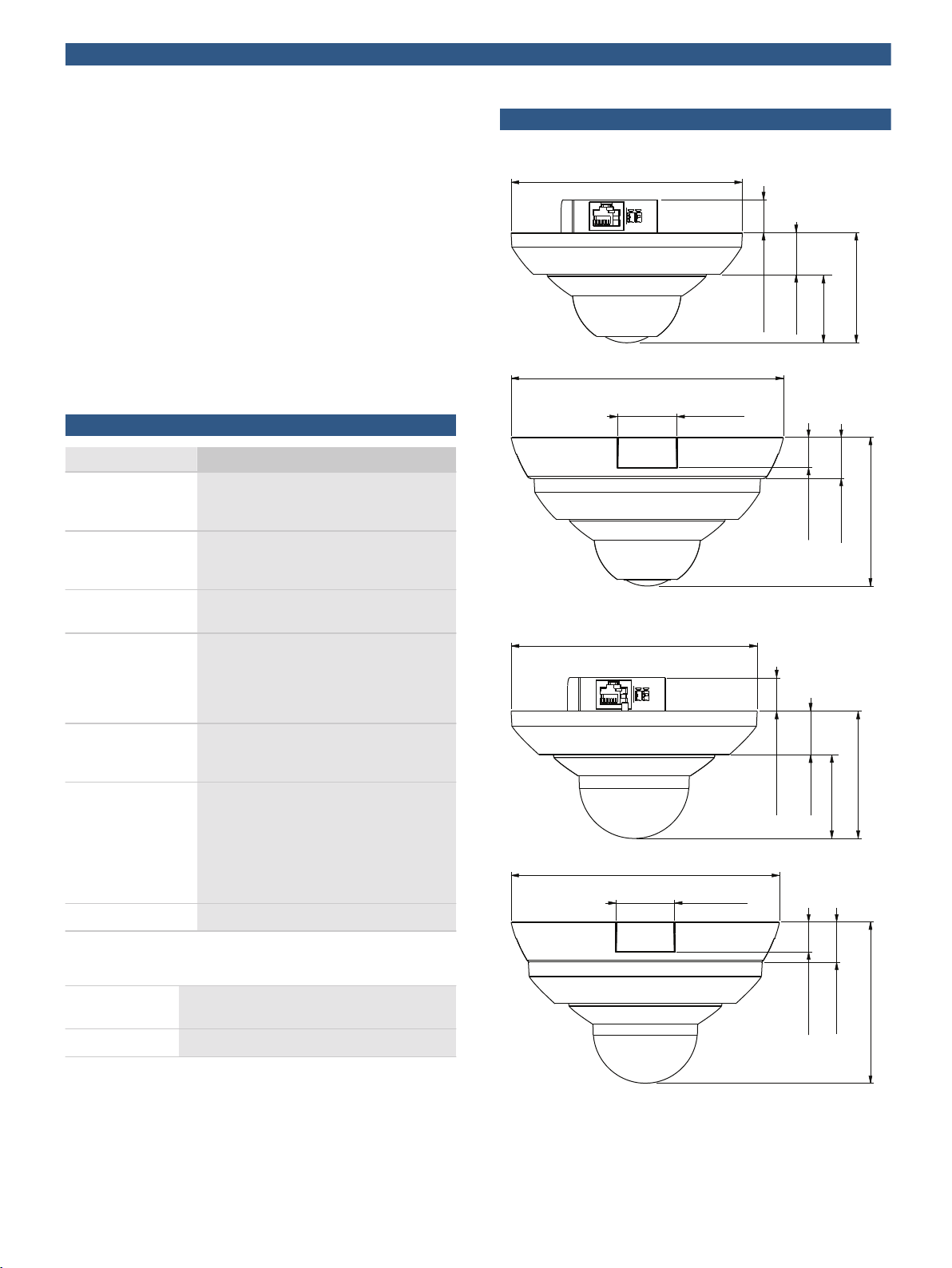

Dimensions – indoor version
Immunity EN 50121-4:2006, +AC:2008;
EN 50130-4:2011*
Safety EN 60950-1:2006, +A11:2009, +A1:2010,
+A12:2011, AC:2011;
UL 60950-1, 2nd edition:2011;
CAN/CSA-C 22.2 No. 60950-1-07, 2nd
edition
Environmental tests EN 50130-5:2011, Class II (Indoor in general,
fixed equipment), Alarm systems - Part 5:
Environmental test methods
Environmental EN 60950-22 outdoor UL;
EN 55024;
VCCI J 55022 V2/V3;
ICES-003 Class B;
EN 50132-5-2;
IEC 62676-2-3;
EN 50581 (2012)
Marks CE, cULus, WEEE, RCM and China RoHS
* All systems where this camera is used must comply with this standard as well.
Outdoor version (with surface mount box)
Ingress
IP66
protection
Impact protection IK10
Dimensions – outdoor version
28 (1.10)
46 (1.81)
83 (3.28)
25 (0.98)
4.5 (0.18)
8 (0.32)
mm(in)
Ø9 (0.34)
70 (2.75)
37 (1.44)
35 (1.38)
mm(in)
M20
50(1.97)
25 (0.98)
25 (0.98)
M20
NPT 3/4
113 (4.45)
113 (4.45)
46 (1.18)
83 (3.27)
4-Ø4.8 (Ø0.19)
mm (in.)
204 (8.03)
42 (1.65)
154.5 (6.08)
176.8 (6.96)
102 (4.02)
80 (3.12)
97 (3.82)
Ø110 (Ø4.33)
Ø38 (Ø1.5)
3 (0.12)
4-M3
2-M4
mm (in.)
89 (3.50)
89 (3.50)
4-Ø10 (4-Ø0.39)
Ø29 (Ø1.14)
32 (1.26)
239 (9.41)
246 (9.69)
553 (21.77)
593 (23.35)
Ø110 (Ø4.33)
97 (3.82)
80 (3.15)
102 (4.02)
mm (in.)
| FLEXIDOME IP panoramic 5000 MP
5
Dimensions – mounting plate
Dimensions – surface mount box
Optional pendant wall mount
Optional pendant pipe mount
6 | FLEXIDOME IP panoramic 5000 MP
Technical specifications
Power
Power Supply 12 VDC
Current
Consumption
Power Consumption 3.6 W
PoE IEEE 802.3af (802.3at Type 1)
Sensor
Type 1/3‑inch CMOS
Total sensor pixels 5MP
Used pixels (optical
circle)
Video performance - Sensitivity
(3200K, reflectivity 89%, F2.0, 30IRE)
Color 0.36 lx
Mono 0.12 lx
Video performance – Dynamic range
Dynamic range 81 dB Wide Dynamic Range (WDR)
Video streaming
Video compression H.264 (MP); M- JPEG
Streaming Multiple configurable streams in H.264 and M-
Overall IP Delay Min. 240 ms, Max. 680 ms
GOP structure IP, IBP, IBBP
Encoding interval 1 to 15 fps
Video resolution (H x V)
3.2 MP 1792 x 1792 Full image circle
2.4 MP 1536 x 1536
1 MP 1024 x 1024
0.64 MP 800 x 800
0.23 MP 480 x 480
0.06 MP 240 x 240
Power-over-Ethernet 48 VDC nominal
300 mA (12 VDC)
75 mA (PoE 48 VDC)
Power level: Class 1
1792 x 1792 (3.2MP)
JPEG, configurable frame rate and bandwidth.
Video functions
Fixed shutter;
Default shutter
Sharpness Sharpness enhancement level selectable
Backlight
compensation
Contrast
enhancement
Noise reduction Intelligent Dynamic Noise Reduction with
Intelligent defog Intelligent Defog automatically adjusts
Privacy Masking Eight independent areas, fully programmable
Video Analysis MOTION+
Other functions Pixel counter, Video watermarking, Display
Audio streaming
Standard G.711, 8 kHz sampling rate
Signal-to-Noise Ratio >50 dB
Audio Streaming Full-duplex / half duplex
Audio (indoor model only)
Audio input Integrated microphone (can be permanently
Local storage
Internal RAM 10 s pre-alarm recording
Memory card slot Supports up to 32 GB microSDHC / 2 TB
Recording Continuous recording, ring recording. alarm/
Software
Unit Configuration Via web browser or Configuration Manager
Firmware update Remotely programmable
Software viewer Web browser, Video Security Client,
On/off
On/off
separate temporal and spatial adjustments
parameters for best picture in foggy or misty
scenes (switchable)
stamping, Scene modes
L16, 16 kHz sampling rate
AAC-LC, 48 kbps at 16 kHz sampling rate
AAC-LC, 80 kbps at 16 kHz sampling rate
disabled)
microSDXC card. (An SD card of Class 6 or
higher is recommended for HD recording)
events/schedule recording
Bosch Video Client, or third party software
Video functions
Adjustable picture
settings
White Balance Four automatic modes, manual mode and
Shutter Automatic Electronic Shutter;
Contrast, Saturation, Brightness
measure
7 | FLEXIDOME IP panoramic 5000 MP
Network
Protocols IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/
Encryption TLS 1.0, SSL, DES, 3DES, AES (optional)
Ethernet 10/100 Base-T, auto-sensing, half/full duplex
Connectivity Auto-MDIX
Interoperability ONVIF Profile S;
Mechanical (indoor version)
Dimensions (H x Ø) 50 x 105 mm (1.96 x 4.13 in)
Dimensions (H x Ø)
with SMB
Weight 270 g (9.52 oz) approx.
Color RAL 9003
Material Plastic
RTCP, IGMP V2/V3, ICMP, ICMPv6, RTSP,
FTP, Telnet, ARP, DHCP, NTP (SNTP),
SNMP (V1, MIB-II), 802.1x, DNS, DNSv6,
DDNS (DynDNS.org, selfHOST.de, noip.com), SMTP, iSCSI, UPnP (SSDP),
DiffServ (QoS), LLDP, SOAP, Dropbox, CHAP,
digest authentication
GB/T 28181
69 x 126 mm (2.72 x 4.94 in)
Environmental (outdoor version)
Weatherproofing IP66
Vandal resistance IK10
Ordering information
FLEXIDOME IP panoramic 5000 MP
Compact indoor IP panoramic camera for all-round MP
surveillance. 5MP sensor; PoE/12 VDC; IDNR; H.264
multiple streams; cloud services; client-side
dewarping, 360° lens; indoor surface mount box
included.
Order number NUC-52051-F0
FLEXIDOME IP panoramic 5000 MP
Compact outdoor IP panoramic camera for all-round
MP surveillance. 5MP sensor; PoE/12 VDC; IDNR; H.
264 multiple streams; cloud services; client-side
dewarping, 360° lens; IK10; IP66 outdoor surface
mount box included.
Order number NUC-52051-F0E
Accessories
NDA-WMT-MICDOME Microdome Pendant Wall Mount
Wall mount bracket for Microdome cameras
Order number NDA-WMT-MICDOME
Mounting options Wall / Floor / Ceiling / Custom
Mechanical (outdoor version)
Dimensions (H x Ø) 57 x 110 mm (2.24 x 4.33 in)
Dimensions (H x Ø)
with indoor SMB
Dimensions (H x Ø)
with outdoor SMB
Weight 340 g (11.98 oz) approx.
Color RAL 9003
Material Metal
Mounting options Wall / Floor / Ceiling / Custom
Environmental (indoor version)
Operating
Temperature
Storage Temperature –30°C to +70°C (–22°F to 158°F)
Operating Humidity 0% to 95% (non-condensing)
Vandal proof IK4
Environmental (outdoor version)
Operating
Temperature
76 x 114 mm (2.99 x 4.47 in)
107 x 114 mm (4.21 x 4.47 in)
–20°C to +50°C (–4°F to 122°F)
–30°C to +50°C (–22°F to 122°F)
NDA-PMT-MICDOME Pendant Pipe Mount Bracket
Pendant pipe mount bracket for Microdome cameras
Order number NDA-PMT-MICDOME
LTC 9213/01 Pole Mount Adapter
Flexible pole mount adapter for camera mounts (use
together with the appropriate wall mount adapter).
Max. 9 kg (20 lb); 3 to 15 inch diameter pole; stainless
steel straps
Order number LTC 9213/01
VDA-CMT-PTZDOME Corner Mount Adapter
Corner mount adapter (use together with the
appropriate wall mount adapter).
Order number VDA-CMT-PTZDOME
Storage Temperature –40°C to +70°C (–40°F to 158°F)
Operating Humidity 0% to 95% (non-condensing)
8 | FLEXIDOME IP panoramic 5000 MP
Represented by:
Americas: Europe, Middle East, Africa: Asia-Pacific: China: America Latina:
Bosch Security Systems, Inc.
130 Perinton Parkway
Fairport, New York, 14450, USA
Phone: +1 800 289 0096
Fax: +1 585 223 9180
security.sales@us.bosch.com
www.boschsecurity.us
Bosch Security Systems B.V.
P.O. Box 80002
5617 BA Eindhoven, The Netherlands
Phone: + 31 40 2577 284
Fax: +31 40 2577 330
emea.securitysystems@bosch.com
www.boschsecurity.com
Robert Bosch (SEA) Pte Ltd, Security
Systems
11 Bishan Street 21
Singapore 573943
Phone: +65 6571 2808
Fax: +65 6571 2699
apr.securitysystems@bosch.com
www.boschsecurity.asia
Bosch (Shanghai) Security Systems Ltd.
203 Building, No. 333 Fuquan Road
North IBP
Changning District, Shanghai
200335 China
Phone +86 21 22181111
Fax: +86 21 22182398
www.boschsecurity.com.cn
Robert Bosch Ltda Security Systems Division
Via Anhanguera, Km 98
CEP 13065-900
Campinas, Sao Paulo, Brazil
Phone: +55 19 2103 2860
Fax: +55 19 2103 2862
latam.boschsecurity@bosch.com
www.boschsecurity.com
© Bosch Security Systems 2015 | Data subject to change without notice
17583892619 | en, V1, 03. Mar 2015
Loading...
