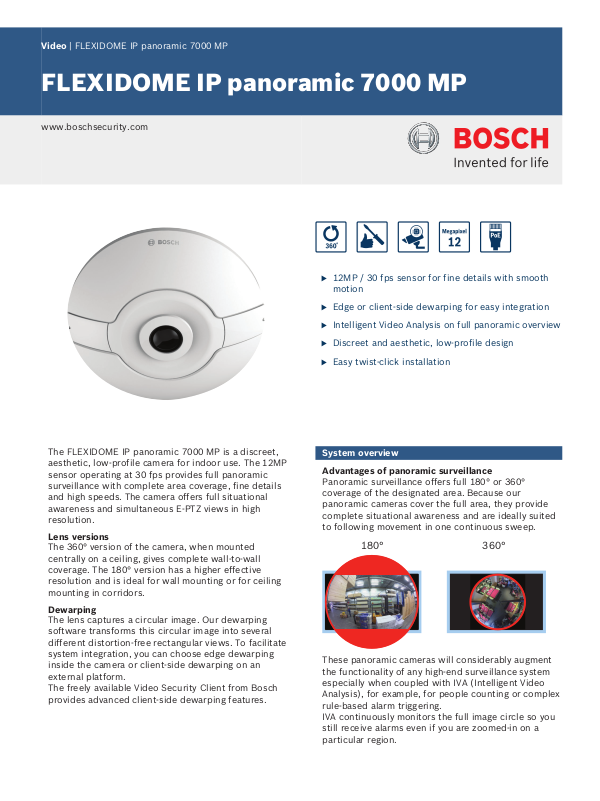

Video | FLEXIDOME IP panoramic 7000 MP
FLEXIDOME IP panoramic 7000 MP
www.boschsecurity.com
u 12MP / 30 fps sensor for fine details with smooth
motion
u Edge or client-side dewarping for easy integration
u Intelligent Video Analysis on full panoramic overview
u Discreet and aesthetic, low-profile design
u Easy twist-click installation
The FLEXIDOME IP panoramic 7000 MP is a discreet,
aesthetic, low-profile camera for indoor use. The 12MP
sensor operating at 30 fps provides full panoramic
surveillance with complete area coverage, fine details
and high speeds. The camera offers full situational
awareness and simultaneous E-PTZ views in high
resolution.
Lens versions
The 360° version of the camera, when mounted
centrally on a ceiling, gives complete wall‑to‑wall
coverage. The 180° version has a higher effective
resolution and is ideal for wall mounting or for ceiling
mounting in corridors.
Dewarping
The lens captures a circular image. Our dewarping
software transforms this circular image into several
different distortion-free rectangular views. To facilitate
system integration, you can choose edge dewarping
inside the camera or client-side dewarping on an
external platform.
The freely available Video Security Client from Bosch
provides advanced client-side dewarping features.
System overview
Advantages of panoramic surveillance
Panoramic surveillance offers full 180° or 360°
coverage of the designated area. Because our
panoramic cameras cover the full area, they provide
complete situational awareness and are ideally suited
to following movement in one continuous sweep.
180° 360°
These panoramic cameras will considerably augment
the functionality of any high-end surveillance system
especially when coupled with IVA (Intelligent Video
Analysis), for example, for people counting or complex
rule-based alarm triggering.
IVA continuously monitors the full image circle so you
still receive alarms even if you are zoomed-in on a
particular region.
Functions
12MP sensor at 30 fps
The ultra high 12MP sensor resolution together with
the exceptionally high frame rate of 30 fps makes this
camera unique in the field of panoramic image
capture. Motion is smoother and the E‑PTZ feature
provides more detailed images.
The effective resolution for the 180° version is 8MP
and for the 360° version 7MP.
Panoramic vision and Intelligent Video Analysis
The IVA version of the camera uses the latest
generation of the Bosch Intelligent Video Analysis (IVA)
software. IVA combined with full panoramic vision
produces an extremely powerful surveillance tool
which enriches full situational awareness. With
intelligent tracking, movement can be followed
continuously throughout the full image circle. There is
no need to hand off tracking from one camera to
another, greatly simplifying movement analysis.
The system reliably detects, tracks, and analyzes
objects, and alerts you when predefined alarms are
triggered. A smart set of IVA rules makes complex
tasks easy and reduces false alarms to a minimum.
IVA also adds sense and structure to your video by
adding metadata. Metadata is generated from the full
image circle and also separately on the E-PTZ channel.
This enables you to quickly retrieve the relevant
images from hours of stored video. Metadata can also
be used to deliver irrefutable forensic evidence or to
optimize business processes based on people
counting or crowd density information.
MOTION+
The MOTION+ video motion analysis system that is
built into all camera versions is the perfect solution for
applications where basic video content analysis
features are required. MOTION+ shows motion
metadata in an overlay display. By using MOTION+
data as input, smarter imaging algorithms bring
improved image quality and more efficient bitrates. It
also enables extended tamper detection capabilities.
Client-side dewarping
With client-side dewarping, the camera streams a
single circular non-dewarped image at 30 fps.
Dewarping is performed with our dewarping software
that is installed on the PC where multiple view modes
are available or you can choose to use a third-party
client-side dewarping software solution.
Edge dewarping
The edge dewarping in the camera provides three
separate video channels simultaneously at 12.5 fps:
• Full image circle (Video 1 channel)
• Dewarped view mode (Video 2 channel)
• E-PTZ (Video 3 channel)
Different view modes can be selected for the video 2
channel. Your selection depends on the resolution you
require and how you wish to view the dewarped
image.
View modes
The following view modes can be selected at 12.5 fps
with edge dewarping or 30 fps with our client side
dewarping.
With the 180° lens version, you can select one of the
following view modes for the second channel:
180° lens version Full image cut-out and displayed image
Panoramic view
3648 x 1080
E‑PTZ view
1920 x 1080
Corridor view
1600 x 1400
With the 360° lens version, select one of the following
view modes for the second channel:
360° lens version Full image cut-out and displayed image
Double panoramic
view
2560 x 1440
E-PTZ view
1280 x 720
North, South, East,
West view (client-
side only)
5120 x 720
Quad view
2560 x 1440
Panorama view
2640 x 960
2 | FLEXIDOME IP panoramic 7000 MP
DORI coverage
DORI (Detect, Observe, Recognize, Identify) is a
standard system (EN-62676-4) for defining the ability
of a camera to distinguish persons or objects within a
covered area. The maximum distance at which a
camera/lens combination can meet these criteria is
shown below:
For high mounting applications, the center image DORI
values are:
DORI Object distance – 180° Object distance - 360°
Detect 55 m (181 ft) 42 m (138 ft)
Observe 22 m (72 ft) 16.5 m (54 ft)
Recognize 10.5 m (35 ft) 8.5 m (28 ft)
Identify 5.5 m (18 ft) 4 m (13 ft)
When mounted at a height of 3 m (10 ft) the 360°
version of the camera has the following coverage
radius for the four levels:
DORI DORI definition Coverage radius
Detect 25 px/m (8 px/ft) 19 m (62 ft)
Observe 63 px/m (19 px/ft) 8.5 m (28 ft)
Recognize 125 px/m (38 px/ft) 4.5 m (15 ft)
Identify 250 px/m (76 px/ft) 2 m (7 ft)
2 m / 7 ft
4.5 m / 15 ft
8.5 m / 28 ft
19 m / 62 ft
When mounted at a height of 3 m (10 ft) the 180°
version of the camera has the following coverage
radius for the four levels:
DORI DORI definition Coverage radius
Detect 25 px/m (8 px/ft) 28 m (92 ft)
Observe 63 px/m (19 px/ft) 12 m (40 ft)
Recognize 125 px/m (38 px/ft) 6.5 m (22 ft)
Identify 250 px/m (76 px/ft) 3.5 m (12 ft)
3.5 m / 12 ft
6.5 m / 22 ft
12 m / 40 ft
28 m / 92 ft
E-PTZ and regions of interest
The remote E-PTZ (Electronic Pan, Tilt and Zoom)
controls allow you to select specific areas of the full
image circle. These Regions of Interest (ROI) can be
easily defined, allowing the most interesting part of a
scene to be monitored separately. The high resolution
ensures that details are not lost even when using the
electronic zoom.
The E-PTZ feature of a panoramic camera has some
advantages over normal PTZ cameras. There is no
camera movement so the camera does not draw
attention to itself or appear intrusive. Situational
awareness is still retained even when zooming in on a
particular object of interest. The smooth E- PTZ
function helps navigation, and presets are available as
they are with regular PTZ cameras.
Record exactly what you want
The camera provides the full resolution circular image
for recording even if you are viewing only a portion of
the scene. This means that you can always perform
retrospective dewarping and analyses on the complete
area covered and then zoom in on the region or object
of interest.
With edge-dewarping you can also choose to only
record the relevant parts of the scene which helps
reduce bitrates significantly.
Intelligent Dynamic Noise Reduction
Quiet scenes with little or no movement require a
lower bitrate. By intelligently distinguishing between
noise and relevant information, Intelligent Dynamic
Noise Reduction reduces bitrate by up to 50%.
Because noise is reduced at the source during image
capture, the lower bitrate does not compromise on
video quality.
Intelligent Dynamic Noise Reduction adjusts spatial
and temporal filtering (3DNR) based on intelligent
analysis of the scene content. Motion compensated
temporal filtering (MCTF) reduces motion blur
normally associated with standard temporal filtering.
This maintains image quality of fast moving objects
while still optimizing bitrate.
3
| FLEXIDOME IP panoramic 7000 MP
