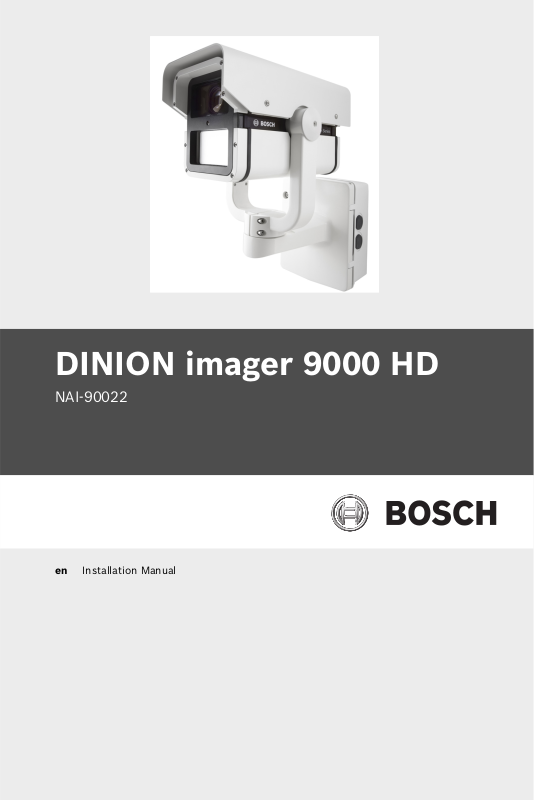

Bosch NAI-90022-AAA User Manual

DINION imager 9000 HD

NAI-90022

en Installation Manual

DINION imager 9000 HD		Table of Contents | en	3
Table of Contents
1	Safety		4
1.1	Safety precautions		4
1.2	Important safety instructions		4
1.3	Important notices		5
1.4	FCC & ICES compliance		8
1.5	FCC Information		9
1.6	CSA certification - Disclaimer		10
2	Planning		12
2.1	Pre-installation Checklist		14
3	Installation		16
3.1	Overview of Installation Steps		16
3.2	Select Tilt and Width of Illumination Beam		17
3.2.1	Changing the angle of IR LED tilt		18
3.2.2	Inserting the 3D diffuser		19
3.3	Unattach Junction Box		20
3.4	Mount the Junction Box		21
3.5	Route Wires and Attach Connectors		22
3.5.1	Input/Output Connections		23
3.6	Attach Camera to Junction Box		24
4	Camera Set-up		26
4.1	Rear controls		26
4.1.1	Accessing the control panel		26
4.1.2	Control panel		27
4.2	Camera positioning and field-of-view		28
4.2.1	Making Pan Adjustments		28
4.2.2	Making Tilt Adjustments		28
4.3	Using the install wizard		30
4.3.1	Adjustment procedure		30

Bosch Security Systems

Installation manual

AM18-Q0663 | 1.0 | 2013.09

4 en | Safety	DINION imager 9000 HD

1Safety

1.1Safety precautions

DANGER!

High risk: This symbol indicates an imminently hazardous situation such as “Dangerous Voltage” inside the product. If not avoided, this will result in an electrical shock, serious bodily injury, or death.

WARNING!

Medium risk: Indicates a potentially hazardous situation.

If not avoided, this could result in minor or moderate bodily injury.

CAUTION!

Low risk: Indicates a potentially hazardous situation.

If not avoided, this could result in property damage or risk of damage to the unit.

NOTICE!

This symbol indicates information or a company policy that relates directly or indirectly to the safety of personnel or protection of property.

1.2Important safety instructions

Read, follow, and retain all of the following safety instructions. Heed all warnings on the unit and in the operating instructions before operating the unit.

1.Clean only with dry cloth.

2.Do not block any ventilation openings. Install in accordance with manufacturer’s instructions.

3.Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus (including amplifiers) that produce heat.

AM18-Q0663 | 1.0 | 2013.09

Installation manual

Bosch Security Systems

DINION imager 9000 HD	Safety | en	5

4.Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the power where they exit from the apparatus.

5.Use only attachments/accessories specified by the manufacturer.

6.Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in a way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, does not operate normally, or has dropped. When servicing, power shall be disconnected.

1.3Important notices

Accessories - Do not place this unit on an unstable stand, tripod, bracket, or mount. The unit may fall, causing serious injury and/or serious damage to the unit. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer. When a cart is used, use caution and care when moving the cart/ apparatus combination to avoid injury from tipover. Quick stops, excessive force, or uneven surfaces may cause the cart/unit combination to overturn. Mount the unit per the manufacturer's instructions.

All-pole power switch - Incorporate an all-pole power switch, with a contact separation of at least 3 mm in each pole, into the electrical installation of the building. If it is needed to open the housing for servicing and/or other activities, use this all-pole switch as the main disconnect device for switching off the voltage to the unit.

Camera signal - Protect the cable with a primary protector if the camera signal is beyond 140 feet, in accordance with

NEC800 (CEC Section 60).

Bosch Security Systems

Installation manual

AM18-Q0663 | 1.0 | 2013.09

6 en | Safety	DINION imager 9000 HD

CAUTION!

This product has been tested according to standard CIE/IEC 62471:2006 “Photobiological safety of lamps and lamp systems” and found to meet Risk Group 2 for exposure limit 4.3.7 “Infrared radiation hazard exposure limits for the eye.” For other hazard exposure limits, the product was found to be exempt. Risk Group 2 is characterized in the standard as “products generally do not pose a realistic optical hazard if aversion responses limit the exposure duration or where lengthy exposures are unrealistic.” Since there is no aversion response for IR, avoid eye exposure. Risk Group 2 sources do not pose an infrared radiation hazard for the eye within 10 s at distances beyond 200 mm or 8 inches.

The Exposure Hazard Value for the product (ratio of the Exposure level to the Exposure limit) is up to 10 at a test distance of 200 mm (8 inches). The Hazard Distance (distance beyond which the product falls into the exempt/ safe group) is at most 640 mm (25 inches). Note that typical use cases are well beyond the Hazard Distance.

When servicing the unit, physically disconnect the power supply to avoid possible IR exposure to the eyes. If physical disconnection is not possible, use appropriate shielding to block the LED panel or use eye protection with a transmission of 10% or less at a wavelength of 850 nm.

Coax grounding:

–Ground the cable system if connecting an outside cable system to the unit.

–Connect outdoor equipment to the unit's inputs only after this unit has had its grounding plug connected to a grounded outlet or its ground terminal is properly connected to a ground source.

–Disconnect the unit's input connectors from outdoor equipment before disconnecting the grounding plug or grounding terminal.

AM18-Q0663 | 1.0 | 2013.09

Installation manual

Bosch Security Systems

DINION imager 9000 HD	Safety | en	7

–Follow proper safety precautions such as grounding for

any outdoor device connected to this unit.

U.S.A. models only - Section 810 of the National Electrical Code, ANSI/NFPA No.70, provides information regarding proper grounding of the mount and supporting structure, grounding of the coax to a discharge unit, size of grounding conductors, location of discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

Disposal - Your Bosch product was developed and manufactured with high-quality material and components that can be recycled and reused. This symbol means that electronic and electrical appliances, which have reached the end of their working life, must be collected and disposed of separately from household waste material. Separate collecting systems are usually in place for disused electronic and electrical products. Please dispose of these units at an environmentally compatible recycling facility, per European Directive 2002/96/EC.

Electronic Surveillance - This device is intended for use in public areas only. U.S. federal law strictly prohibits surreptitious recording of oral communications. Environmental statement - Bosch has a strong commitment towards the environment. This unit has been designed to respect the environment as much as possible.

Fuse rating - For protection of the device, the branch circuit protection must be secured with a maximum fuse rating of 16A. This must be in accordance with NEC800 (CEC Section 60). Moving - Disconnect the power before moving the unit. Move the unit with care. Excessive force or shock may damage the unit and the hard disk drives.

Outdoor signals - The installation for outdoor signals, especially regarding clearance from power and lightning conductors and transient protection, must be in accordance with NEC725 and

NEC800 (CEC Rule 16-224 and CEC Section 60).

Bosch Security Systems

Installation manual

AM18-Q0663 | 1.0 | 2013.09

8 en | Safety	DINION imager 9000 HD

Permanently connected equipment - Incorporate a readily accessible disconnect device external to the equipment. Pluggable equipment - Install the socket outlet near the equipment so it is easily accessible.

Power resupply - If the unit is forced to power down due to exceeding the specified operating temperatures, disconnect the power cord, wait for at least 30 seconds, and then reconnect the power cord.

Power lines - Do not locate the camera near overhead power lines, power circuits, or electrical lights, nor where it may contact such power lines, circuits, or lights.

SELV - All the input/output ports are Safety Extra Low Voltage (SELV) circuits. SELV circuits should only be connected to other SELV circuits.

Because the ISDN circuits are treated like telephone-network voltage, avoid connecting the SELV circuit to the Telephone Network Voltage (TNV) circuits.

Video loss - Video loss is inherent to digital video recording; therefore, Bosch Security Systems cannot be held liable for any damage that results from missing video information. To minimize the risk of lost digital information, Bosch Security Systems recommends multiple, redundant recording systems, and a procedure to back up all analog and digital information.

1.4FCC & ICES compliance

FCC Information (U.S.A. and Canada)

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference

AM18-Q0663 | 1.0 | 2013.09

Installation manual

Bosch Security Systems

DINION imager 9000 HD	Safety | en	9

to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

–reorient or relocate the receiving antenna;

–increase the separation between the equipment and receiver;

–connect the equipment into an outlet on a circuit different from that to which the receiver is connected;

–consult the dealer or an experienced radio/TV technician

for help.

Intentional or unintentional modifications, not expressly approved by the party responsible for compliance, shall not be made. Any such modifications could void the user's authority to operate the equipment. If necessary, the user should consult the dealer or an experienced radio/television technician for corrective action.

The user may find the following booklet, prepared by the Federal Communications Commission, helpful: How to Identify and Resolve Radio-TV Interference Problems. This booklet is available from the U.S. Government Printing Office, Washington, DC 20402, Stock No. 004-000-00345-4.

1.5FCC Information

Informations FCC et ICES (modèles utilisés aux États-Unis et au Canada uniquement)

Suite à différents tests, cet appareil s'est révélé conforme aux exigences imposées aux appareils numériques de classe B, en vertu de la section 15 du règlement de la Commission fédérale des communications des États-Unis (FCC), et en vertu de la norme ICES-003 d'Industrie Canada. Ces exigences visent à fournir une protection raisonnable contre les interférences nuisibles lorsque l'appareil est utilisé dans le cadre d'une installation résidentielle. Cet appareil génère, utilise et émet de l'énergie de radiofréquences et peut, en cas d'installation ou d'utilisation non conforme aux instructions, engendrer des

Bosch Security Systems

Installation manual

AM18-Q0663 | 1.0 | 2013.09

10 en | Safety	DINION imager 9000 HD

interférences nuisibles au niveau des radiocommunications. Toutefois, rien ne garantit l'absence d'interférences dans une installation particulière. Il est possible de déterminer la production d'interférences en mettant l'appareil successivement hors et sous tension, tout en contrôlant la réception radio ou télévision. L'utilisateur peut parvenir à éliminer les interférences éventuelles en prenant une ou plusieurs des mesures suivantes:

–Modifier l'orientation ou l'emplacement de l'antenne réceptrice;

–Éloigner l'appareil du récepteur;

–Brancher l'appareil sur une prise située sur un circuit différent de celui du récepteur;

–Consulter le revendeur ou un technicien qualifié en radio/

télévision pour obtenir de l'aide.

Toute modification apportée au produit, non expressément approuvée par la partie responsable de l'appareil, est strictement interdite. Une telle modification est susceptible d'entraîner la révocation du droit d'utilisation de l'appareil. Au besoin, l’utilisateur consultera son revendeur ou un technicien qualifié en radio/télévision, qui procédera à une opération corrective.

La brochure suivante, publiée par la Commission fédérale des communications (FCC), peut s'avérer utile : How to Identify and Resolve Radio-TV Interference Problems (Comment identifier et résoudre les problèmes d’interférences de radio et de télévision). Cette brochure est disponible auprès du U.S. Government Printing Office, Washington, DC 20402, États-Unis, sous la référence n° 004-000-00345-4.

1.6CSA certification - Disclaimer

CSA has not tested the performance or reliability of the security or signaling aspects of this product. CSA has only tested fire, shock and/or casualty hazards as outlined in CSA's Standard(s) for Safety for Closed Circuit Television Equipment, UL 2044. CSA Certification does not cover the performance or reliability of
