KDN..

de Gebrauchsanleitung en Instruction for Use fr Mode d’emploi

nl Gebruiksaanwijzing it Istruzioni per I´uso

de Inhaltsverzeichnis

Sicherheits- und Warnhinweise ............ 5

Hinweise zur Entsorgung ....................... 7

Lieferumfang ............................................ 7

Raumtemperatur und Belüftung

beachten ................................................... 8

Gerät anschließen ................................... 8

Aufstellort .................................................. 9

Türanschlag wechseln ........................... 9

Gerät ausrichten ...................................... 9

Gerät kennenlernen ............................. 10

Gerät einschalten ................................. 11

Temperatur einstellen .......................... 11

Nutzinhalt ............................................... 12

Der Kühlraum ........................................ 12

en Table of Contents

Safety and warning information ......... 20

Information concerning disposal ....... 22

Scope of delivery ................................. 22

Observe ambient temperature

and ventilation ...................................... 23

Connecting the appliance .................. 23

Installation location .............................. 24

Changing over the door hinges ........ 24

Aligning the appliance ........................ 24

Getting to know your appliance ........ 25

Switching on the appliance ................ 26

Setting the temperature ...................... 26

Usable capacity .................................... 27

Refrigerator compartment .................. 27

Freezer compartment .......................... 27

Gefrierraum ........................................... 12

Max. Gefriervermögen ........................ 12

Gefrieren und Lagern .......................... 13

Frische Lebensmittel einfrieren ......... 13

Super-Gefrieren .................................... 14

Gefriergut auftauen .............................. 14

Ausstattung ........................................... 15

Aufkleber “OK” ..................................... 15

Gerät ausschalten und stilllegen ...... 15

Gerät reinigen ....................................... 16

Energie sparen ..................................... 16

Betriebsgeräusche .............................. 17

Kleine Störungen selbst beheben .... 17

Kundendienst ........................................ 19

Max. freezing capacity ........................ 27

Freezing and storing food .................. 27

Freezing fresh food ............................. 28

Super freezing ...................................... 29

Thawing frozen food ............................ 29

Interior fittings ....................................... 29

Sticker “OK” .......................................... 30

Switching off and disconnecting

the appliance ........................................ 30

Cleaning the appliance ....................... 30

Tips for saving energy ........................ 31

Operating noises ................................. 32

Eliminating minor faults yourself ....... 32

Customer service ................................. 34

enTable of Content s

enInstruction for Use

Safety and warning information

Before you switch ON the appliance

Please read the operating and installation instructions carefully! They contain important information on how to install, use and maintain the appliance.

The manufacturer is not liable if you fail to comply with the instructions and warnings. Retain all documents for subsequent use or for the next owner.

If the power cord of this appliance is damaged, it must be replaced by the manufacturer, customer service or a similarly qualified person. Improper installations and repairs may put the user at considerable risk.

Repairs may be performed by the manufacturer, customer service or a similarly qualified person only.

Only original parts supplied by the manufacturer may be used. The manufacturer guarantees that only these parts satisfy the safety requirements.

A power cable extension may be purchased from customer service only.

Technical safety

This appliance contains a small quantity of environmentally-friendly but flammable R600a refrigerant. Ensure that the tubing of the refrigerant circuit is not damaged during transportation and installation. Leaking refrigerant may cause eye injuries or ignite.

If damage has occurred

■ Keep naked flames and/or ignition

sources away from the appliance,

■ thoroughly ventilate the room for

several minutes,

■ switch off the appliance and pull out

the mains plug,

■ inform customer service.

The more refrigerant an appliance contains, the larger the room must be in which the appliance is situated. Leaking refrigerant can form a flammable gas-air mixture in rooms which are too small. The room must be at least 1 m³ per 8 g of refrigerant. The amount of refrigerant in your appliance is indicated on the rating plate inside the appliance.

Important information when using the appliance

■ Never use electrical appliances inside

the appliance (e.g. heater, electric ice maker, etc.). Risk of explosion!

■ Never use a steam cleaner to defrost

or clean the appliance! The steam may penetrate electrical parts and cause a short-circuit. Risk of electric shock!

■ Do not use pointed or sharp-edged

implements to remove frost or layers of ice. You could damage the refrigerant tubing. Leaking refrigerant may ignite or cause eye injuries.

■ Do not store products which contain

flammable propellants (e.g. spray cans) or explosive substances in the appliance. Risk of explosion!

■ Do not stand or support

yourself on the base, drawers or doors, etc.

■ Before defrosting and cleaning

the appliance, pull out the mains plug or switch off the fuse. Do not pull out the mains plug by tugging the cable.

■ Bottles which contain a high

percentage of alcohol must be sealed and stored in an upright position.

■ Keep plastic parts and the door seal

free of oil and grease. Otherwise, parts and door seal will become porous.

■ Never cover or block the ventilation

openings for the appliance.

■ People (childern incl.) who have

limited physical, sensory or mental abilities or inadequate knowledge must not use this appliance unless they are supervised or given meticulous instructions.

■ Do not store bottled or canned drinks

(especially carbonated drinks) in the freezer compartment. Bottles and cans may explode!

■ Never put frozen food straight

from the freezer compartment into your mouth. Risk of low-temperature burns!

■ Avoid prolonged touching of frozen

food, ice or the evaporator pipes, etc. Risk of low-temperature burns!

Children in the household

■ Keep children away from packaging

and its parts. Danger of suffocation from folding cartons and plastic film!

■ Do not allow children to play with the

appliance!

■ If the appliance features a lock:

keep the key out of the reach of children!

General regulations

The appliance is suitable

■ for refrigerating and freezing food,

■ for making ice.

This appliance is intended for use in the home and the home environment.

The appliance is suppressed according to EU Directive 2004/108/EC.

The refrigeration circuit has been checked for leaks.

This product complies with the relevant safety regulations for electrical appliances (EN 60335-2-24).



Information concerning disposal

* Disposal of packaging

The packaging protects your appliance from damage during transit. All utilised materials are environmentally safe and recyclable. Please help us by disposing of the packaging in an environmentally friendly manner.

Please ask your dealer or inquire at your local authority about current means of disposal.

3. Do not take out the trays and receptacles: children are therefore prevented from climbing in!

4. Do not allow children to play with the appliance once it has spent ist useful life. Danger of suffocation!

Refrigerators contain refrigerant and gases in the insulation. Refrigerant and gases must be disposed of professionally. Ensure that tubing of the refrigerant circuit is not damaged prior to proper disposal.

* Disposal of your old appliance

Old appliances are not worthless rubbish! Valuable raw materials can be reclaimed by recycling old appliances.

This appliance is identified according to the European guideline 2002/96/EC on waste electrical and electronic equipment – WEEE. The directive specifies the framework for an EU-wide valid return and re-use of old appliances.

ã=Warning

Redundant appliances

1. Pull out the mains plug.

2. Cut off the power cord and discard with the mains plug.

Scope of delivery

After unpacking all parts, check for any damage in transit.

If you have any complaints, please contact the dealer from whom you purchased the appliance or our customer service.

The delivery consists of the following parts:

■ Free-standing appliance

■ Interior fittings (depending on model)

■ Operating instructions

■ Installation manual

■ Customer service booklet

■ Warranty enclosure

■ Information on the energy

consumption and noises

■ Bag containing installation materials

Observe ambient temperature and ventilation

Ambient temperature

The appliance is designed for a specific climatic class. Depending on the climatic class, the appliance can be operated at the following room temperatures.

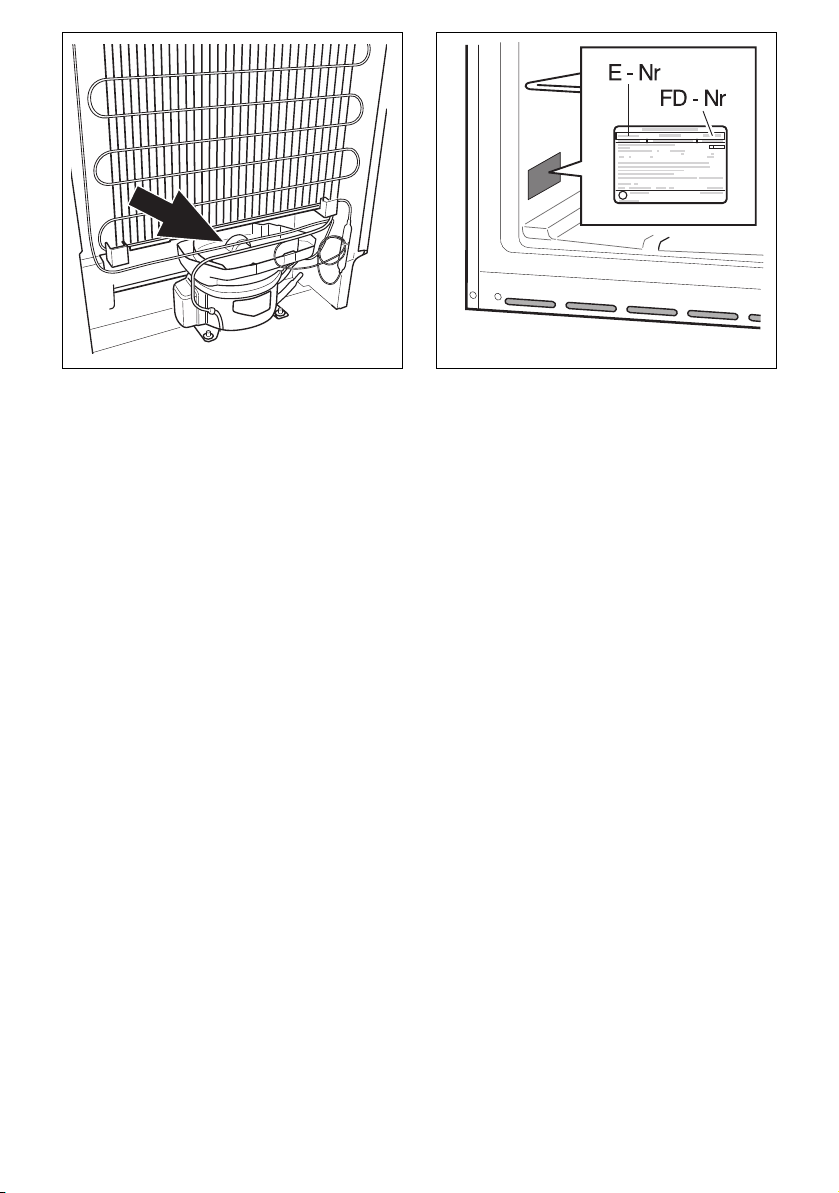

The climatic class can be found on the rating plate, Fig. 9.

Climatic class Permitted ambient

temperature SN +10 °C to 32 °C N +16 °C to 32 °C ST +16 °C to 38 °C T +16 °C to 43 °C

Ventilation

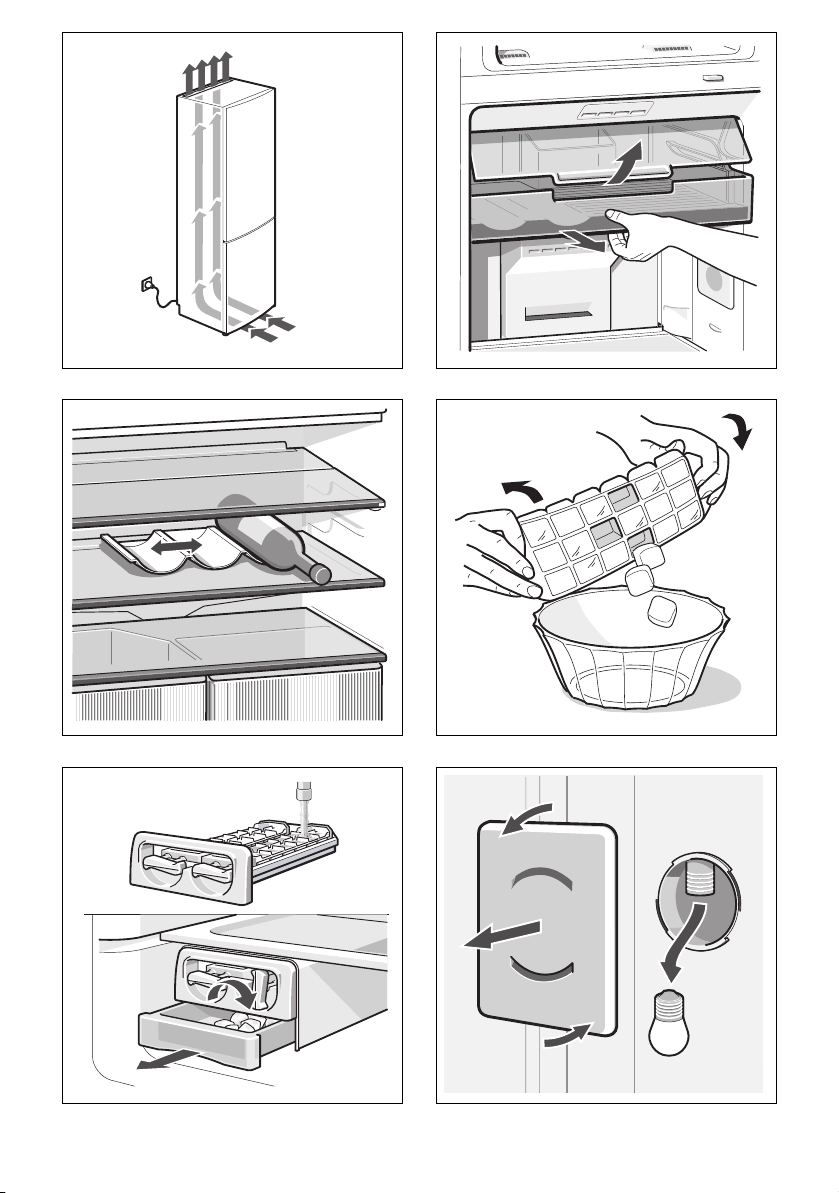

Fig. 2 The air on the rear panel and on the side

panels of the appliance heats up. Conduction of the heated air must not be obstructed. Otherwise, the refrigerating unit must work harder. This increases power consumption. Therefore: Never cover or block the ventilation openings!

Connecting the appliance

Before switching on the appliance for the first time, clean the interior of the appliance (see chapter “Cleaning the appliance”).

Electrical connection

The socket must be near the appliance and also freely accessible following installation of the appliance.

The appliance complies with the protection class I. Connect the appliance to 220–240 V/50 Hz alternating current via a correctly installed socket with protective conductor. The socket must be fused with a 10 to 16 A fuse.

For appliances operated in nonEuropean countries, check whether the stated voltage and current type match the values of your mains supply match the values of the mains supply. This information can be found on the rating plate. Fig. 9

ã=Warning

Never connect the appliance to electronic energy saver plugs.

Our appliances can be used with mains and sine-controlled inverters. Mainscontrolled inverters are used for photovoltaic systems which are connected directly to the national grid. Sine-controlled inverters must be used for isolated applications (e.g. on ships or in mountain lodges) which are not connected directly to the national grid.

After installing the appliance, wait at least 1 hour until the appliance is switched on. During transportation the oil in the compressor may have flowed into the refrigeration system.

Installation location

Install the appliance in a dry, well ventilated room. The installation location should neither be exposed to direct sunlight nor near a heat source, e. g. a cooker, radiator, etc. If installation next to a heat source is unavoidable, use a suitable insulating plate or observe the following minimum distances to a heat source:

■ 3 cm to electric or gas cookers.

■ 30 cm to an oil or coal-fired cooker.

Appliances with fitted handles must be situated at least 55 mm from the wall on the hinge side so that the door can be opened by 90°.

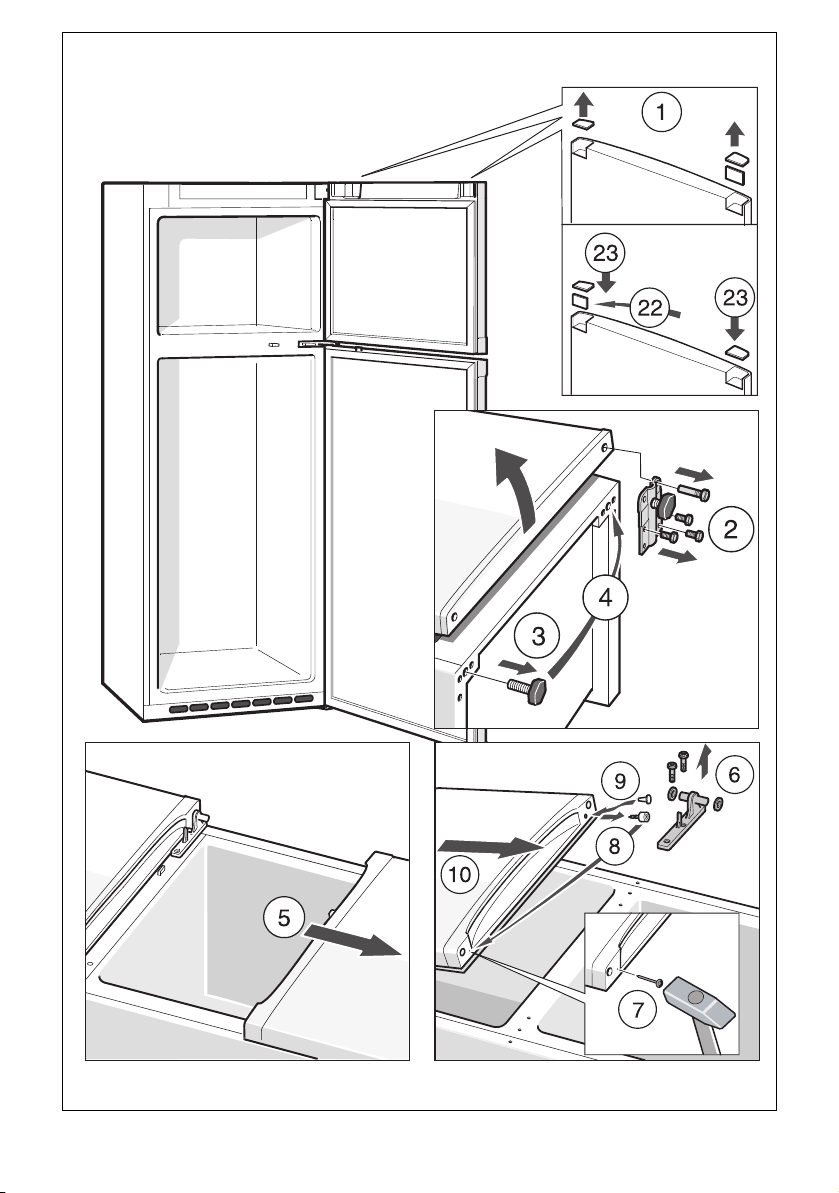

Changing over the door hinges

We recommend that you have the door hinges changed over by our customer service.

Before changing over the hinges, pull out the mains plug or disconnect the fuse.

Aligning the appliance

Place the appliance in the designated location and align. The appliance must be level. If the floor is uneven, use the front height-adjustable feet. Adjust the height-adjustable feet with a wrench.

ã=Caution

Carefully place the appliance on its back. Installation in numerical sequence.

1. Changing the door handle. Fig. */B

2. Changing over the door hinges. Fig. */A

Getting to know your appliance

Please fold out the illustrated last page. These operating instructions refer to several models.

The features of the models may vary. The diagrams may differ. Fig. 1 * Not all models.

1-4 Controls 5 Temperature controller 6Ice maker * 7Dispenser forice cubes* 8 Light switch 9 Chiller compartment 10 Air outlet opening 11 Light 12 Shelf in the refrigerator

compartment 13 Fruit and vegetable container 14 Height-adjustable feet 15 Egg rack 16 Shelf for tubes and small tins 17 Shelf for large bottles

Controls

Fig. 1

1 On/Off button

Serves to switch the whole appliance on and off.

2 Selection button for freezer

compartment

The freezer compartment temperature can be selected from –24 °C to –16 °C.

The set temperature is indicated on display 3.

3 Temperature display freezer

compartment

The numbers next to the temperature display lights correspond to freezer compartment temperatures in °C. The lit lamp indicates the selected temperature.

4 “Super” button (freezer

compartment)

Switches super freezing on and off.

Switching on the appliance

Switch on the appliance with the On/Off button. Fig. 1/1

The appliance begins to cool. Light is switched on when the door is open.

The factory has recommended the following temperatures:

■ Refrigerator compartment: +4 °C

■ Freezer compartment: –18 °C

Operating tips

■ When the appliance has been

switched on, it may take several hours until the set temperatures have been reached.

■ The fully automatic No Frost system

ensures that the freezer compartment remains free of ice. Defrosting is no longer required.

■ The sides of the housing are

sometimes heated slightly. This prevents condensation in the area of the door seal.

■ If the freezer compartment door

cannot be immediately re-opened after it has been closed, wait until the resulting low pressure has equalised.

Setting the temperature

Turn temperature controller, Fig. 1/5, to the required setting.

When the controller is at a medium setting, the temperature drops to approx. +4 °C in the coldest zone. Fig. 1/5

Higher settings lower the temperature in the refrigerator compartment.

We recommend:

■ Perishable food should not be stored

above +4 °C.

■ Low setting for short-term

storage of food (energy-saving mode).

■ Medium setting for long-term storage

of food.

■ Select a higher setting only

temporarily, when the door is frequently opened or large quantities are placed in the refrigerator compartment.

Freezer compartment

The temperature can be set from –16 °C to –24 °C.

Keep pressing temperature selection button 2 until the required freezer compartment temperature is set. The value last selected is stored.

The set temperature is indicated on display 3.

We recommend a factory setting of –18 °C in the freezer compartment.

Usable capacity

Informationontheusable capacity can be found inside your appliance on the rating plate.

Refrigerator compartment

The refrigerator compartment is the ideal storage location for ready meals, cakes and pastries, preserved food, condensed milk, hard cheese, fruit and vegetables sensitive to cold as well as tropical fruit.

Note when loading products

When storing food, comply with the following:

■ Wrap or cover food before placing in

the appliance. This will retain the aroma, colour and freshness of the food. In addition, flavours will not be transferred between foods and the plastic parts will not become discoloured.

■ Allow warm food and drinks to cool

down before placing in the appliance.

■ Do not block air outlet openings with

food in the refrigerator compartment, otherwise the air circulation will be impaired.

Food which is stored directly in front of the air outlet openings may be frozen by the cold air flowing out.

Freezer compartment

Use the freezer compartment

■ To store deep-frozen food.

■ To make ice cubes.

■ To freeze food.

Note

Ensure that the freezer compartment door has been closed properly. If the door is open, the frozen food will thaw. The freezer compartment will become covered in thick ice. Also: waste of energy due to high power consumption!

Max. freezing capacity

Information about the max. freezing capacity within 24 hours can be found on the rating plate (see chapter “Customer service”).

Freezing and storing food

Purchasing frozen food

■ Packaging must not be damaged.

■ Use by the “use by” date.

■ Temperature in the supermarket

freezer must be –18 °C or lower.

■ If possible, transport deep-frozen food

in an insulated bag and place quickly in the freezer compartment.

en Storing frozen food

If a lot of food is to be placed in the freezer compartment, you can remove the flap from the upper area of the freezer compartment and the intermediate shelf.

To prevent poor air circulation in the appliance, do not stack food above the stacking limit.

Freezing fresh food

Freeze fresh and undamaged food only. To retain the best possible nutritional

value, flavour and colour, vegetables should be blanched before freezing. Aubergines, peppers, zucchini and asparagus do not require blanching.

Literature on freezing and blanching can be found in bookshops.

Note

Keep food which is to be frozen away from food which is already frozen.

■ The following foods are suitable for

freezing: Cakes and pastries, fish and seafood, meat, game, poultry, vegetables, fruit, herbs, eggs without shells, dairy products such as cheese, butter and quark, ready meals and leftovers such as soups, stews, cooked meat and fish, potato dishes, soufflés and desserts.

■ The following foods are not suitable

for freezing: Types of vegetables, which are usually consumed raw, such as lettuce or radishes, eggs in shells, grapes, whole apples, pears and peaches, hard-boiled eggs, yoghurt, soured milk, sour cream, crème fraîche and mayonnaise.

Packing frozen food

To prevent food from losing its flavour or drying out, place in airtight containers.

1. Place food in packaging.

2. Remove air.

3. Seal the wrapping.

4. Label packaging with contents and date of freezing.

Suitable packaging:

Plastic film, tubular film made of polyethylene, aluminium foil, freezer containers. These products are available from specialist outlets.

Unsuitable packaging:

Wrapping paper, greaseproof paper, cellophane, bin liners and used shopping bags.

Items suitable for sealing packaged food:

Rubber bands, plastic clips, string, coldresistant adhesive tape, etc.

Bags and tubular film made of polyethylene can be sealed with a film heat sealer.

Super freezing

Food should be frozen solid as quickly as possible in order to retain vitamins, nutritional value, appearance and flavour.

To prevent an undesirable temperature rise when placing fresh food in the freezer compartment, switch on super freezing several hours beforehand. As a rule, 4–6 hours is adequate.

If the max. freezing capacity is to be used, super freezing must be switched on for 24 hours before the fresh produce is placed in the freezer compartment.

Smaller quantities of food (up to 2 kg) can be frozen without “super freezing”.

Note

When super freezing is switched on, increased operating noises may occur.

Switching on and off

Fig. 1 Press “super” button 4. If the super freezing has been switched

on the button is lit. Super freezing automatically switches off

after approx. 2½ days.

Thawing frozen food

Depending on the type and appliacation, select one of the following options:

■ at room temperature

■ in the refrigerator

■ in an electric oven, with/without fan

assisted hot-air

■ in the microwave

ã=Caution

Do not refreeze food which is beginning to thaw or which has already thawed. It can only be refrozen when it has been used to prepare a ready meal (boiled or fried).

No longer store the frozen produce for the max. storage period.

Interior fittings

Chiller compartment

Fig. 1/9 The chiller compartment has lower temperatures than the refrigerator compartment. Even temperatures below 0°C may occur.

Ideal for storing fish, meat and sausage. Not suitable for lettuce and vegetables and produce sensitive to cold.

Bottle shelf

Fig. 4 Bottles can be stored securely on the bottle shelf. The holder can be adjusted.

en Ice cube tray

Fig. 5 Fill the ice cube tray ¾ full of water and place in the freezer compartment.

If the ice tray is stuck to the freezer compartment, loosen with a blunt implement only (spoon-handle).

To loosen the ice cubes, twist the ice tray slightly or hold briefly under flowing water.

Ice maker

Fig. 6

1. Remove the ice cube tray, fill ¾ full of water and re-insert.

2. When the ice cubes are frozen, rotate the knobs on the ice cube trays several times to the right and release. The ice cubes loosen and fall into the storage container.

3. Remove ice cubes from the storage container.

Switching off and disconnecting the appliance

Switching off the appliance

Fig. 1 Press the On/Off button 1.

Temperature display goes out, refrigerating unit switches off.

Disconnecting the appliance

If you do not use the appliance for a prolonged period:

1. Switch off the appliance.

2. Pull out mains plug or switch off fuse.

3. Clean the appliance.

4. Leave the appliance door open.

Cleaning the appliance

Sticker “OK”

(not all models) The “OK” temperature monitor

can be used to determine temperatures below +4 °C. Gradually reduce the temperature if the sticker does not indicate “OK”.

Note

When the appliance is switched on, it may take 12 hours until the temperature is reached.

Correct setting

ã=Caution

■ Do not use abrasive or acidic cleaning

agents and solvents.

■ Do not use scouring or abrasive

sponges. The metallic surfaces could corrode.

■ Never clean shelves and containers in

the dishwasher. The parts may warp!

Water used for cleaning must not drip into the

■ slots in the front base area in

the freezer compartment,

■ controls,

■ and light.

Proceed as follows:

1. Before cleaning: Switch the appliance off.

2. Pull out the mains plug or switch off the fuse.

3. Take out the frozen food and store in a cool location. Place the ice pack (if enclosed) on the food.

4. Clean the appliance with a soft cloth, lukewarm water and a little pH neutral washing-up liquid. The rinsing water must not run into the light.

5. Wipe the door seal with clear water only and then wipe dry thoroughly.

6. After cleaning reconnect and switch the appliance back on.

7. Put the frozen food back in the freezer compartment.

Interior fittings

All variable parts of the appliance can be taken out for cleaning.

Tips for saving energy

■ Install the appliance in a dry, well

ventilated room! The appliance should not be installed in direct sunlight or near a heat source (e.g. radiator, cooker).

If required, use an insulating plate.

■ Allow warm food and drinks to cool

down before placing in the appliance!

■ When thawing frozen products, place

them in the refrigerator. Use the coldness of the frozen food to cool food.

■ Open the appliance as briefly

as possible.

■ Occasionally clean

the rear of the appliance with a vacuum cleaner or paint brush to prevent an increased power consumption.

Take out glass shelves

Pull the glass shelves forwards and take out.

Preventing noises

Operating noises

Quite normal noises

Droning

Motors are running (e.g. refrigerating units, fan).

Bubbling, humming or gurgling noises

Refrigerant is flowing through the tubing.

Clicking

Motor, switches or solenoid valves are switching on/off.

Cracking

Automatic defrosting is running.

The appliance is not level

Please align the appliance with a spirit level. Use the height-adjustable feet or place packing underneath them.

The appliance is not free-standing

Please move the appliance away from adjacent units or appliances.

Containers or storage areas wobble or stick

Please check the removable parts and re-insert them correctly if required.

Bottles or receptacles are touching each other

Move the bottles or receptacles slightly away from each other.

Eliminating minor faults yourself

Before you call customer service: Please check whether you can eliminate the fault yourself based on the following

information. Customer service will charge you for advice – even if the appliance is still under

guarantee!

Fault Possible cause Remedial action

The light does not function.

The bulb is defective. Replace bulb. Fig. 7

1. Pull out mains plug or switch off fuse.

2. Change the bulb. (Replacement bulb, 220–240 V

a.c., E14 bulb holder, see defective bulb for wattage.)

Light switch is sticking. Check whether it can be moved.

Fig. 1/8

Fault Possible cause Remedial action

The temperature in the refrigerator compartment is too cold.

Displays do not illuminate.

The temperature in the freezer compartment is too warm.

Freezer compartment door was open for a long time; temperature is no longer reached.

A colder temperature in the freezer compartment can also lower the temperature in the refrigerator compartment. This is quite normal.

Power failure; the fuse has been switched off; the mains plug has not been inserted properly.

Appliance opened frequently.

The ventilation openings have been covered.

Large quantities of fresh food are being frozen.

The evaporator (refrigeration generator) in the No Frost system is covered in thick ice and can no longer be defrosted fully automatically.

Set the temperature in the refrigerator compartment slightly warmer.

Should this not be enough, e.g. if the room temperature is too low, set the freezer temperature warmer.

Connect mains plug. Check whether the power is on, check the fuses.

Do not open the appliance unnecessarily.

Remove obstacles.

Do not exceed max. freezing capacity.

To defrost the evaporator, remove the frozen food with the compartments, insulate well and store in a cool location.

Switch off the appliance and move it away from the wall. Leave the appliance door open.

After approx. 20 min. the condensation begins to run into the evaporation pan, at the rear of the appliance. Fig. 8

To prevent the evaporation pan from overflowing in this case, mopupthecondensation with a sponge.

The evaporator is defrosted when the water stops running into the evaporation pan. Clean the interior. Switch the appliance back on again.

Customer service

Your local customer service canbefound inthetelephone directory or in the customer-service index. Please provide customer service with the appliance product number (E-Nr.) and production number (FD).

These specifications can be found on the rating plate. Fig. 9

To prevent unnecessary call-outs, please assist customer service by quoting the product and production numbers. This will save you additional costs.

Repair order and advice on faults

Contact information for all countries can be found on the enclosed customer service list.

GB 0844 8928979 Calls from a BT

landline will be charged at up to 3 pence per minute. A call set-up fee of up to 6 pence may

apply. IE 01450 2655 US 800 944 2904 toll-free
