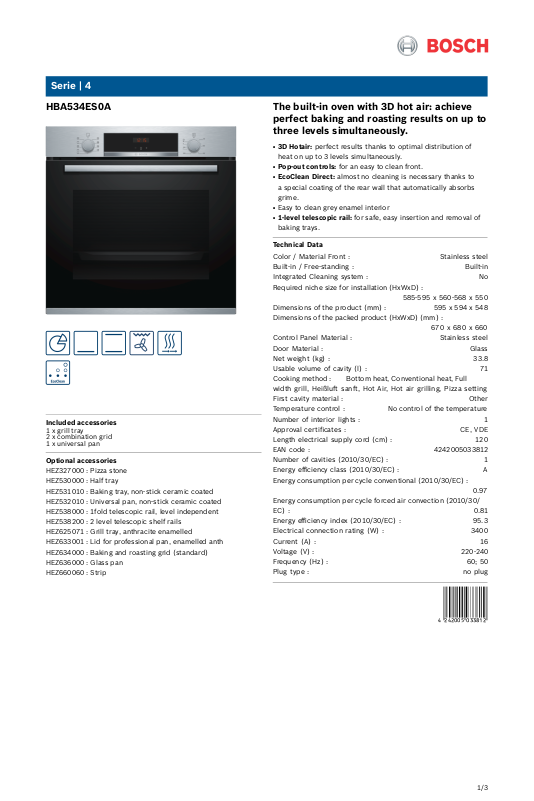

Bosch HBA534ES0A Specifications Sheet
Serie | 4
The built-in oven with 3D hot air: achieve
perfect baking and roasting results on up to
three levels simultaneously.
●
3D Hotair: perfect results thanks to optimal distribution of
heat on up to 3 levels simultaneously.
●
Pop-out controls: for an easy to clean front.
●
EcoClean Direct: almost no cleaning is necessary thanks to
a special coating of the rear wall that automatically absorbs
grime.
●
Easy to clean grey enamel interior
●
1-level telescopic rail: for safe, easy insertion and removal of
baking trays.
Technical Data
Color / Material Front : Stainless steel
Built-in / Free-standing : Built-in
Integrated Cleaning system : No
Required niche size for installation (HxWxD) :
585-595 x 560-568 x 550
Dimensions of the product (mm) : 595 x 594 x 548
Dimensions of the packed product (HxWxD) (mm) :
670 x 680 x 660
Control Panel Material : Stainless steel
Door Material : Glass
Net weight (kg) : 33.8
Usable volume of cavity (l) : 71
Cooking method : Bottom heat, Conventional heat, Full
width grill, Heißluft sanft, Hot Air, Hot air grilling, Pizza setting
First cavity material : Other
Temperature control : No control of the temperature
Number of interior lights : 1
Approval certificates : CE, VDE
Length electrical supply cord (cm) : 120
EAN code : 4242005033812
Number of cavities (2010/30/EC) : 1
Energy efficiency class (2010/30/EC) : A
Energy consumption per cycle conventional (2010/30/EC) :
0.97
Energy consumption per cycle forced air convection (2010/30/
EC) : 0.81
Energy efficiency index (2010/30/EC) : 95.3
Electrical connection rating (W) : 3400
Current (A) : 16
Voltage (V) : 220-240
Frequency (Hz) : 60; 50
Plug type : no plug
'!2E20AF-addibc!
HBA534ES0A
Included accessories
1 x grill tray
2 x combination grid
1 x universal pan
Optional accessories
HEZ327000 : Pizza stone
HEZ530000 : Half tray
HEZ531010 : Baking tray, non-stick ceramic coated
HEZ532010 : Universal pan, non-stick ceramic coated
HEZ538000 : 1fold telescopic rail, level independent
HEZ538200 : 2 level telescopic shelf rails
HEZ625071 : Grill tray, anthracite enamelled
HEZ633001 : Lid for professional pan, enamelled anth
HEZ634000 : Baking and roasting grid (standard)
HEZ636000 : Glass pan
HEZ660060 : Strip
1/3
Serie | 4 Ovens
HBA534ES0A
The built-in oven with 3D hot air: achieve
perfect baking and roasting results on up to
three levels simultaneously.
Heating Functions
Oven with 7 heating methods:
-
3D Hotair
Top/bottom heating
Hot air grilling
Full width grill
Pizza setting
Bottom heating
Hotair gentle
Temperature range 50 °C - 275 °C
-
Rapid heating-up
-
1 level telescopic rail, safety stop function
-
Design
Rotary control knobs, Retractable control knobs
-
Extra large capacity oven with grey enamel
-
Enamel grey with 5 shelf positions
-
Cavity volume: 71 net usable litres
-
Cleaning
EcoClean Direct : back panel
-
Full glass inner door
-
Convenience
LED-display control (red)
-
Electronic clock/timer with end time programming
-
Drop down door
-
Halogen lighting
-
Cooling fan
-
Bar handle
-
Accessories
2 x combination grid, 1 x universal pan
-
Child lock function
-
2 year warranty
Technical Info
Length of mains cable: 120 cm
-
Nominal voltage: 220 - 240 V
-
Total connected load electric: 3.4 KW
-
Dimensions
Appliance dimensions (HxWxD): 595 mm x 594 mm x 548 mm
-
Installation dimensions (HxWxD): 585 mm - 595 mm x 560
-
mm - 568 mm x 550 mm

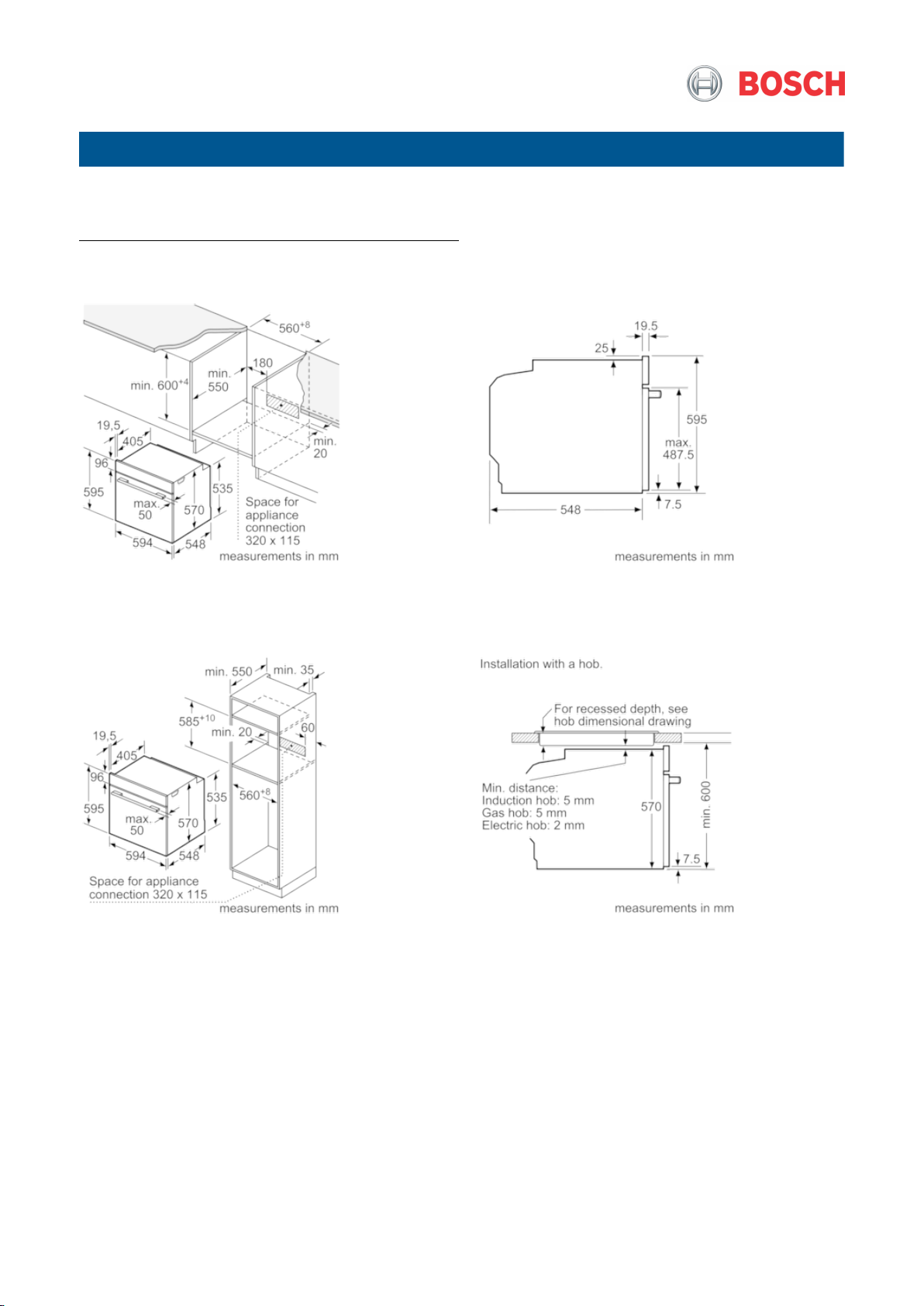

Please reference the built-in dimensions provided in the
-
installation drawing
2/3
