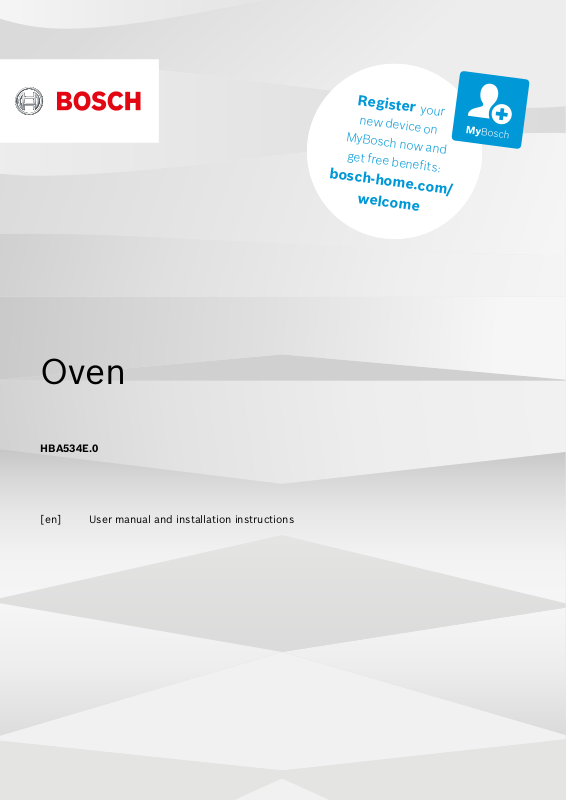

Bosch HBA534EB0, HBA534ER0, HBA534ES0 User manual and assembly instructions
Register your
new device on
MyBosch now and
get free benefits:
bosch-home.com/
welcome
Oven
HBA534E.0
[en] User manual and installation instructions
en Safety
Table of contents
USER MANUAL
1 Safety......................................................................2
2 Preventing material damage .................................4
3 Environmental protection and saving energy......5
4 Familiarising yourself with your appliance ..........6
5 Accessories............................................................8
6 Before using for the first time .............................10
7 Basic operation ....................................................10
8 Rapid heating .......................................................10
9 Time-setting options............................................11
10 Childproof lock.....................................................12
11 Cleaning and servicing........................................13
12 Cleaning aid..........................................................15
¡ Check the appliance after unpacking it. Do
not connect the appliance if it has been
damaged in transit.
1.2 Intended use
Read the information on intended use to ensure that you use the appliance correctly and
safely.
Only a licensed professional may connect appliances without plugs. Damage caused by incorrect connection is not covered under the
warranty.
Only use this appliance:
¡ In accordance with these instructions for in-
stallation and use.
¡ To prepare meals and drinks.
¡ In private households and in enclosed
spaces in a domestic environment.
¡ Up to an altitude of max. 4000m above
sea level.
1.3 Restriction on user group
13 Shelf supports......................................................15
14 Appliance door.....................................................16
15 Troubleshooting...................................................19
16 Disposal................................................................20
17 Customer Service.................................................20
18 How it works.........................................................21
19 INSTALLATION INSTRUCTIONS .........................24
19.1 General installation instructions....................
...24
1 Safety
Please read the safety information to ensure
that you use the appliance safely.
1.1 General information
You can find general information for this instruction manual here.
¡ Read this instruction manual carefully. Only
this will ensure you use the appliance
safely and efficiently.
¡ This manual is intended for the installer and
the user of the appliance.
¡ Follow the safety instructions and warnings.
¡ Keep the instruction manual and the
product information safe for future reference or for the next owner.
Avoid risks to children and vulnerable persons.
This appliance may be used by children aged
8 or over and by people who have reduced
physical, sensory or mental abilities or inadequate experience and/or knowledge,
provided that they are supervised or have
been instructed on how to use the appliance
safely and have understood the resulting
dangers.
Children must not play with the appliance.
Children must not perform cleaning or user
maintenance unless they are at least 15 years
old and are being supervised.
Keep children under the age of 8 years away
from the appliance and power cable.
1.4 Safe use
Follow these safety instructions when using
the appliance.
Always place accessories in the cooking compartment the right way round.
→"Accessories", Page8
WARNING‒Risk of fire!
Combustible objects that are left in the cooking compartment may catch fire.
▶
Never store combustible objects in the
cooking compartment.
▶
Never open the appliance door if there is
smoke inside.
2
Safety en
▶
Switch off the appliance and unplug it from
the mains or switch off the circuit breaker
in the fuse box.
Loose food remnants, fat and meat juices
may catch fire.
▶
Before using the appliance, remove the
worst of the food residues and remnants
from the cooking compartment, heating ele-
ments and accessories.
Opening the appliance door creates a
draught. Greaseproof paper may come into
contact with the heating element and catch
fire.
▶
Do not place greaseproof paper loosely
over accessories when preheating the ap-
pliance.
▶
Always use a plate or baking tin to hold
greaseproof paper down.
▶
Do not use more greaseproof paper than is
necessary.
▶
Greaseproof paper must not extend over
the edge of accessories.
WARNING‒Risk of burns!
The appliance gets very hot.
▶
Never touch the inside surfaces of the
cooking compartment or the heating ele-
ments while they are hot.
▶
Always allow the appliance to cool down.
▶
Keep children at a safe distance.
Accessories and cookware get very hot.
▶
Always use oven gloves to remove ac-
cessories or cookware from the cooking
compartment.
When the cooking compartment is hot, any alcoholic vapours inside may catch fire.
▶
Never prepare food containing large quant-
ities of liquid with a high alcohol content.
▶
Only use liquid with a high alcohol content
in small quantities.
▶
Open the appliance door carefully.
WARNING‒Risk of scalding!
The accessible parts of the appliance become
hot during operation.
▶
Never touch these hot parts.
▶
Keep children at a safe distance.
Hot steam may escape when you open the
appliance door. Whether or not you can see
steam depends on its temperature.
▶
Do not stand too close to the appliance
when opening the door.
▶
Open the appliance door carefully.
▶
Keep children at a safe distance.
If there is water in the cooking compartment
when it is hot, this may create hot steam.
▶
Never pour water into the cooking compart-
ment when the cooking compartment is
hot.
WARNING‒Risk of injury!
Scratched glass in the appliance door may
develop into a crack.
▶
Do not use glass scrapers, sharp or abras-
ive cleaning aids, or harsh cleaning
products.
The hinges on the appliance door move when
the door is opened and closed, which could
trap your fingers.
▶
Keep your hands away from the hinges.
Components inside the appliance door may
have sharp edges.
▶
Wear protective gloves.
WARNING‒Risk of electric shock!
Incorrect repairs are dangerous.
▶
Repairs to the appliance should only be
carried out by trained specialist staff.
▶
Only use genuine spare parts when repair-
ing the appliance.
▶
If the power cord of this appliance is dam-
aged, it must be replaced by trained spe-
cialist staff.
If the insulation of the power cord is damaged, this is dangerous.
▶
Never let the power cord come into contact
with hot appliance parts or heat sources.
▶
Never let the power cord come into contact
with sharp points or edges.
▶
Never kink, crush or modify the power
cord.
An ingress of moisture can cause an electric
shock.
▶
Do not use steam- or high-pressure clean-
ers to clean the appliance.
If the appliance or the power cord is damaged, this is dangerous.
▶
Never operate a damaged appliance.
▶
Never operate an appliance with a cracked
or fractured surface.
▶
Never pull on the power cord to unplug the
appliance. Always unplug the appliance at
the mains.
▶
If the appliance or the power cord is dam-
aged, immediately unplug the power cord
or switch off the fuse in the fuse box.
3
en Preventing material damage
▶
"Call Customer Service." →Page20
▶
Repairs to the appliance should only be
carried out by trained specialist staff.
1.5 Halogen bulb
Follow these instructions for appliances with
halogen lamps.
WARNING‒Danger: Magnetism!
Permanent magnets are used in the control
panel or in the controls. These may affect
electronic implants, e.g. heart pacemakers or
insulin pumps.
▶
Wearers of electronic implants must stay at
least 10 cm away from the control panel.
2 Preventing material damage
Follow these instructions to prevent material damage to
your appliance, accessories or other objects in your kitchen.
2.1 General
Follow these instructions when using the appliance.
ATTENTION!
The presence of objects on the cooking compartment
floor at over 50 °C will cause heat to build up. The
baking and roasting times will no longer be correct and
the enamel will be damaged.
▶
Do not cover the cooking compartment floor with
any sort of foil or greaseproof paper.
▶
Do not place accessories on the cooking compartment floor.
▶
Do not place cookware on the cooking compartment floor if a temperature above 50 °C has been
set.
If aluminium foil comes into contact with the door pane,
it could cause permanent discolouration.
▶
Do not allow aluminium foil in the cooking compartment to come into contact with the door pane.
When the cooking compartment is hot, any water inside it will create steam. The change in temperature
may cause damage.
▶
Never pour water into the cooking compartment
when it is still hot.
▶
Never place cookware containing water on the
cooking compartment floor.
The prolonged presence of moisture in the cooking
compartment leads to corrosion.
▶
Allow the cooking compartment to dry after use.
▶
Do not keep moist food in the cooking compartment
for a long time with the door closed.
▶
Do not store food in the cooking compartment.
WARNING‒Risk of burns!
The bulbs in the cooking compartment get
very hot. There is still a risk of burning for
some time after they have been switched off.
▶
Do not touch the glass cover.
▶
Avoid contact with your skin when cleaning.
WARNING‒Risk of electric shock!
When replacing the cooking compartment
bulb, be aware that the bulb socket contacts
are live.
▶
Before replacing the bulb, unplug the appliance from the mains or switch off the circuit breaker in the fuse box.
Leaving the appliance to cool down with the door open
will damage the front of neighbouring kitchen units over
time.
▶
Always allow the cooking compartment to cool
down with the door closed after cooking at high
temperatures.
▶
Take care not to trap anything in the appliance
door.
▶
Only leave the cooking compartment to dry with the
door open if a lot of moisture was produced during
operation.
Fruit juice dripping from the baking tray leaves stains
that cannot be removed.
▶
When baking very juicy fruit flans, do not pack too
much on the baking tray.
▶
If possible, use the deeper universal pan.
If the seal is very dirty, the appliance door will no
longer close properly during operation. This may damage the front of adjacent kitchen units.
▶
Keep the seal clean at all times.
▶
Never operate the appliance if the seal is damaged
or missing.
Sitting or placing objects on the appliance door may
damage it.
▶
Do not place or hang objects on the appliance door.
▶
Do not place cookware or accessories on the appliance door.
With certain models, accessories may scratch the door
pane when closing the appliance door.
▶
Always push accessories fully into the cooking compartment.
Carrying the appliance by the door handle could break
it. The door handle cannot support the weight of the
appliance.
▶
Do not carry or hold the appliance by the door
handle.
4
Environmental protection and saving energy en
3 Environmental protection and saving energy
Help protect the environment by using your appliance
in a way that conserves resources and by disposing of
reusable materials properly.
3.1 Disposing of packaging
The packaging materials are environmentally compatible and can be recycled.
▶
Sort the individual components by type and dispose
of them separately.
Information about current disposal methods are
available from your specialist dealer or local authority.
3.2 Saving energy
If you follow these instructions, your appliance will use
less power.
Only preheat the appliance if the recipe or the recommended settings tell you to do so.
Not preheating the appliance can reduce the en-
¡
ergy used by up to 20%.
Use dark-coloured, black-coated or enamelled baking
tins.
These types of baking tin absorb the heat particu-
¡
larly well.
Open the appliance door as little as possible during
operation.
This will maintain the temperature in the cooking
¡
compartment and eliminate the need for the appliance to reheat.
When baking multiple dishes, do so in succession or
in parallel.
The cooking compartment is heated after baking
¡
the first dish. This reduces the baking time for the
second cake.
If the cooking time is relatively long, you can switch
the appliance off 10minutes before the cooking time
ends.
There will be enough residual heat to finish cooking
¡
the dish.
Remove any accessories that are not being used from
the cooking compartment.
Accessories that are not being used do not need to
¡
be heated.
Allow frozen food to defrost before cooking.
This will save the energy that would otherwise be
¡
required to defrost it.
5
en Familiarising yourself with your appliance
1
2 3
1
2
3
4 Familiarising yourself with your appliance
Familiarise yourself with the parts of your appliance.
4.1 Controls
You can use the control panel to configure all functions
of your appliance and to obtain information about the
operating status.
Note:On certain models, specific details such as colour and shape may differ from those pictured.
Buttons and display
The buttons are touch-sensitive surfaces. To select a function, simply press lightly on the relevant field.
The display shows symbols for active functions
and the time-setting options.
→"Buttons and display", Page6
Function selector
Use the function selector to set the types of
heating and other functions.
You can turn the function selector clockwise or
anti-clockwise from the zero setting .
Depending on the appliance, the function selector can be pushed in. Press on the function
selector to click it into or out of the zero setting .
→"Types of heating and functions", Page6
Temperature selector
Use the temperature selector to set the temperature for the type of heating and select settings
for other functions.
You can only turn the temperature selector
clockwise from the zero setting until it offers
resistance. You cannot turn it any further than
this.
Depending on the appliance, the temperature
selector can be pushed in. Press on the temperature selector to click it into or out of the
zero setting .
→"Temperature and setting levels", Page7
4.2 Buttons and display
You can use the buttons to set various functions for your appliance. The display shows the settings.
If a function is active, the corresponding symbol lights up in the display. The clock symbol only lights up when you
change the time.
Symbol Function Use
Time-setting options Select the time , timer , cooking time and the end time .
To select the individual time-setting options, press the button several times.
Minus
Plus
Childproof lock Activate or deactivate the childproof lock.
Decrease the setting values.
Increase the setting values.
4.3 Types of heating and functions
To ensure that you always use the right type of heating to cook your food, we have explained the differences and applications below.
Symbol Type of heating What it's used for/how it works
3Dhot air Bake and roast on one or more levels.
The fan distributes the heat from the ring-shaped heating element in the back
wall evenly around the cooking compartment.
6
Symbol Type of heating What it's used for/how it works
Gentle hot air Cook selected dishes gently on one level without preheating.
The fan distributes the heat from the ring-shaped heating element in the back
wall evenly around the cooking compartment. The food is cooked in phases using residual heat.
Select a temperature of between 120°C and 230°C.
Always keep the appliance door closed when cooking.
This type of heating is used to determine the energy consumption in air recirculation mode and the energy efficiency class.
Pizza setting Cook pizza or dishes that require a lot of heat from below.
The bottom heating element and the ring-shaped heating element in the back
wall heat the cooking compartment.
Bottom heating Final baking or cooking food in a bain marie.
Heat is emitted from below.
Full-surface grill Grill flat items such as steak and sausages, or make toast. Gratinate food.
The entire area underneath the grill element becomes hot.
Hot air grilling Roast poultry, whole fish and larger pieces of meat.
The grill element and the fan switch on and off alternately. The fan circulates the
hot air around the food.
Top/bottom heating Traditionally bake or roast on one level. This type of heating is ideal for cakes
with moist toppings.
The heat is emitted evenly from above and below.
This type of heating is used to measure the energy consumption in the conventional mode.
Familiarising yourself with your appliance en
Other functions
Here, you can find an overview of other functions of your appliance.
Symbol Function Use
Rapid heating Rapidly preheat the cooking compartment without accessories.
→"Rapid heating", Page10
Oven light Illuminate the cooking compartment without heating.
→"Lighting", Page8
4.4 Temperature and setting levels
There are different settings for the types of heating and functions.
Note:For temperature settings above 250°C, the appliance reduces the temperature to approx. 240°C after approx. 10minutes. If your appliance has the top/bottom heating or bottom heating types, this temperature reduction
does not take place.
Symbol Function Use
Zero setting The appliance does not heat up.
50–275 Temperature range Set the temperature in the cooking compartment in°C.
1, 2, 3
or
I, II, III
Grill settings Set the grill settings for Full-surface grill and Grill, small area (depending on
the appliance model).
1 = low
2 = medium
3 = high
Heat-up indicator
The appliance indicates when it is heating up.
When the appliance is heating, the symbol lights up
on the display. This symbol goes out when heating is
paused.
When you are preheating the appliance, the optimal
time to place your food in the cooking compartment is
when the symbol first goes out.
Note:Due to thermal inertia, the temperature displayed
may differ slightly from the actual temperature inside
the cooking compartment.
7
en Accessories
4.5 Cooking compartment
The functions in the cooking compartment make your
appliance easier to use.
Shelf supports
The shelf supports in the cooking compartment enable
you to place accessories at different heights.
→"Accessories", Page8
Your appliance has five shelf positions. The shelf positions are numbered from bottom to top.
Depending on the appliance, the shelf supports are fitted with pull-out rails or clip-on pull-out rails. The pullout rails are fixed in place and cannot be removed. The
clip-on pull-out rails allow you to use them as you wish
at all free shelf positions.
You can remove the shelf supports, e. g. for cleaning.
→"Shelf supports", Page15
Self-cleaning surfaces
The back wall in the cooking compartment is self-cleaning. The self-cleaning surfaces are coated with a porous, matt ceramic layer and have a rough surface.
When the appliance is in operation, the self-cleaning
surfaces absorb splashes from roasting or grilling and
break them down.
If the self-cleaning surfaces no longer clean themselves
adequately during operation, heat up the cooking compartment specifically to the right temperature.
→"Cleaning self-cleaning surfaces in the cooking compartment", Page14
Lighting
The oven light lights up the cooking compartment.
With most types of heating and functions, the lighting
lights up during operation. When the function selector
is turned to bring operation to an end, the lighting goes
out.
The Oven light setting on the function selector can be
used to switch on the light without heating.
Cooling fan
The cooling fan switches on and off depending on the
appliance's temperature. The hot air escapes above
the door.
ATTENTION!
Do not cover the ventilation slot above the appliance
door. The appliance overheats.
▶
Ensure that the ventilation slots are unobstructed.
To ensure that the appliance cools down more quickly
after operation, the cooling fan continues to run for a
certain period afterwards.
Appliance door
If you open the appliance door during operation, the
operation continues.
5 Accessories
Only use original accessories. These have been made
especially for your appliance. Here you can find an
overview of your appliance's accessories and how to
use them.
Note:Accessories may become deformed if they get
hot. Deformation has no effect on function. As the accessory cools down, it will regain its original shape.
Accessories Use
Wire rack ¡ Cake tins
Universal pan ¡ Moist cakes
The accessories supplied may differ depending on the
appliance model.
¡ Ovenproof dishes
¡ Cookware
¡ Meat, e.g. roasting joints or steak
¡ Frozen meals
¡ Baked items
¡ Bread
¡ Large roasts
¡ Frozen meals
¡ Catching dripping liquids, e.g. fat when
grilling food on the wire rack.
8
Accessories en
5.1 Locking function
The locking function prevents the accessories from tilting when they are pulled out.
You can pull out the accessories approximately halfway
without them tipping. The accessories must be inserted
into the cooking compartment correctly for the tilt protection to work properly.
5.2 Sliding accessories into the cooking compartment
Always slide accessories into the cooking compartment
correctly. This is the only way to ensure that accessories can be pulled out approximately halfway without tipping.
1.
Turn the accessories so that the notch is at the
rear and is facing downwards.
2.
Insert accessories between the two guide rods for
the shelf position.
Wire rack Insert the wire rack with the open
side facing the appliance door and
the curved lip facing downwards.
Wire rack
or baking
tray
Note:The pull-out rails lock in place when they are
fully pulled out. Gently push the pull-out rails back
into the cooking compartment.
4.
Push the accessory all the way in, making sure that
it does not touch the appliance door.
Note:Take any accessories that you will not be using
out of the cooking compartment while the appliance is
in operation.
Combining accessories
You can combine the wire rack with the universal pan
to catch any liquid that drips down.
1.
Place the wire rack on the universal pan so that
both spacers are on the rear edge of the universal pan.
2.
Insert the universal pan between the two guide rods
for a shelf position. In so doing, the wire rack is on
top of the upper guide rod.
Position the accessory so that its
edge is behind the lug on the pullout rail.
Baking tray
E.g. universal pan or
baking tray
3.
Place the accessory at the shelf positions with the
pull-out rails and pull out the pull-out rails.
Slide the tray, e.g. the universal pan,
in with the sloping edge facing the
appliance door.
Wire rack
on universal pan
5.3 Other accessories
You can purchase other accessories from our aftersales service, specialist retailers or online.
You will find a comprehensive range of products for
your appliance in our brochures and online:
www.bosch-home.com
Accessories vary from one appliance to another. When
purchasing accessories, always quote the exact
product number (E no.) of your appliance.
You can find out which accessories are available for
your appliance in our online shop or from our aftersales service.
9
Loading...
