Built-in oven
HB..12...
[en] Instruction manual Built-in oven
Table of contents
[en]I n st r u ct i on manual Bui l t - i n oven
8 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
( Important safety information . . . . . . . . . . . . . . . 5
General information . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Halogen lamp. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
] Causes of damage . . . . . . . . . . . . . . . . . . . . . . . . 6
General information . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
7 Environmental protection . . . . . . . . . . . . . . . . . . 7
Saving energy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Environmentally-friendly disposal . . . . . . . . . . . . . . . . . 7
* Getting to know your appliance . . . . . . . . . . . . . 8
Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Buttons and display . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Types of heating and functions . . . . . . . . . . . . . . . . . . 9
Temperature. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Cooking compartment . . . . . . . . . . . . . . . . . . . . . . . . 10
_ Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Control accessories . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Inserting accessories . . . . . . . . . . . . . . . . . . . . . . . . . 11
Optional accessories . . . . . . . . . . . . . . . . . . . . . . . . . 12
en
3 Trouble shooting . . . . . . . . . . . . . . . . . . . . . . . . 20
Rectifying faults yourself . . . . . . . . . . . . . . . . . . . . . . .20
Replacing the bulb in the top of the cooking
compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
4 Customer service . . . . . . . . . . . . . . . . . . . . . . . . 21
E number and FD number . . . . . . . . . . . . . . . . . . . . .21
J Tested for you in our cooking studio. . . . . . . . 21
General information . . . . . . . . . . . . . . . . . . . . . . . . . .21
Cakes and pastries. . . . . . . . . . . . . . . . . . . . . . . . . . .22
Bakes and gratins . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Poultry, meat and fish . . . . . . . . . . . . . . . . . . . . . . . . .26
Vegetables and side dishes . . . . . . . . . . . . . . . . . . . .29
Desserts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Acrylamide in foodstuffs . . . . . . . . . . . . . . . . . . . . . . .29
Drying . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
Preserving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
Prove dough . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
Defrosting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
Keeping warm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
Test dishes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
K Before using for the first time. . . . . . . . . . . . . . 13
Cleaning the cooking compartment and accessories 13
1 Operating the appliance . . . . . . . . . . . . . . . . . . 13
Switching the appliance on and off . . . . . . . . . . . . . . 13
Setting the heating function and temperature . . . . . . 13
Rapid heating. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
O Time-setting options . . . . . . . . . . . . . . . . . . . . . 14
Setting the cooking time . . . . . . . . . . . . . . . . . . . . . . 14
Setting the timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
A Childproof lock. . . . . . . . . . . . . . . . . . . . . . . . . . 16
Activating and deactivating . . . . . . . . . . . . . . . . . . . . 16
D Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Suitable cleaning agents . . . . . . . . . . . . . . . . . . . . . . 16
Keeping the appliance clean . . . . . . . . . . . . . . . . . . . 17
p Rails. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Detaching and refitting the rails . . . . . . . . . . . . . . . . .18
q Appliance door . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Removing and installing the door panels . . . . . . . . . . 18
Produktinfo
Additional information on products, accessories,
replacement parts and services can be found at
www.bosch-home.com and in the online shop
www.bosch-eshop.com
3
en Intended use
8Intended use
Intended use
Read these instructions carefully. Only then
will you be able to operate your appliance
safely and correctly. Retain the instruction
manual and installation instructions for future
use or for subsequent owners.
This appliance is only intended to be fully fitted
in a kitchen. Observe the special installation
instructions.
Check the appliance for damage after
unpacking it. Do not connect the appliance if it
has been damaged in transport.
Only a licensed professional may connect
appliances without plugs. Damage caused by
incorrect connection is not covered under
warranty.
This appliance is intended for domestic use
only. The appliance must only be used for the
preparation of food and drink. The appliance
must be supervised during operation. Only
use this appliance indoors.
This appliance is intended for use up to a
maximum height of 4000 metres above sea
level.
This appliance may be used by children over
the age of 8 years old and by persons with
reduced physical, sensory or mental
capabilities or by persons with a lack of
experience or knowledge if they are
supervised or are instructed by a person
responsible for their safety how to use the
appliance safely and have understood the
associated hazards.
Children must not play with, on, or around the
appliance. Children must not clean the
appliance or carry out general maintenance
unless they are at least 15 years old and are
being supervised.
Keep children below the age of 8 years old at
a safe distance from the appliance and power
cable.
Always slide accessories into the cooking
compartment the right way round.
~ "Accessories" on page 11
4
Important safety information en
(Important safety
information
Impor t ant safety informat i on
General information
:Warning – Risk of fire!
■ Combustible items stored in the cooking
compartment may catch fire. Never store
combustible items in the cooking
compartment. Never open the appliance
door if there is smoke inside. Switch off the
appliance and unplug it from the mains or
switch off the circuit breaker in the fuse box.
Risk of fire!
■ Loose food remnants, fat and meat juices
may catch fire. Before using the appliance,
remove the worst of the food remnants from
the cooking compartment, heating elements
and accessories.
Risk of fire!
■ A draught is created when the appliance
door is opened. Greaseproof paper may
come into contact with the heating element
and catch fire. Do not place greaseproof
paper loosely over accessories during
preheating. Always weight down the
greaseproof paper with a dish or a baking
tin. Only cover the surface required with
greaseproof paper. Greaseproof paper
must not protrude over the accessories.
:Warning – Risk of burns!
■ The appliance becomes very hot. Never
touch the interior surfaces of the cooking
compartment or the heating elements.
Always allow the appliance to cool down.
Keep children at a safe distance.
Risk of serious burns!
■ Accessories and ovenware become very
hot. Always use oven gloves to remove
accessories or ovenware from the cooking
compartment.
Risk of burns!
■ Alcoholic vapours may catch fire in the hot
cooking compartment. Never prepare food
containing large quantities of drinks with a
high alcohol content. Only use small
quantities of drinks with a high alcohol
content. Open the appliance door with care.
:Warning – Risk of scalding!
■ The accessible parts become hot during
operation. Never touch the hot parts. Keep
children at a safe distance.
Risk of scalding!
■ When you open the appliance door, hot
steam can escape. Steam may not be
visible, depending on its temperature. When
opening, do not stand too close to the
appliance. Open the appliance door
carefully. Keep children away.
Risk of scalding!
■ Water in a hot cooking compartment may
create hot steam. Never pour water into the
hot cooking compartment.
:Warning – Risk of injury!
■ Scratched glass in the appliance door may
develop into a crack. Do not use a glass
scraper, sharp or abrasive cleaning aids or
detergents.
Risk of injury!
■ The hinges on the appliance door move
when opening and closing the door, and
you may be trapped. Keep your hands away
from the hinges.
:Warning – Risk of electric shock!
■ Incorrect repairs are dangerous. Repairs
may only be carried out and damaged
power cables replaced by one of our
trained after-sales technicians. If the
appliance is defective, unplug the appliance
from the mains or switch off the circuit
breaker in the fuse box. Contact the aftersales service.
Risk of electric shock and serious injury!
■ The cable insulation on electrical
appliances may melt when touching hot
parts of the appliance. Never bring
electrical appliance cables into contact with
hot parts of the appliance.
Risk of electric shock!
■ Do not use any high-pressure cleaners or
steam cleaners, which can result in an
electric shock.
Risk of electric shock!
■ A defective appliance may cause electric
shock. Never switch on a defective
appliance. Unplug the appliance from the
mains or switch off the circuit breaker in the
fuse box. Contact the after-sales service.
:Warning – Hazard due to magnetism!
Permanent magnets are used in the control
panel or in the control elements. They may
affect electronic implants, e.g. heart
pacemakers or insulin pumps. Wearers of
electronic implants must stay at least 10 cm
away from the control panel.
5
en Causes of damage
Halogen lamp
:Warning – Risk of burns!
The bulbs in the cooking compartment
become very hot. There is still a risk of burning
your skin for some time after they have been
switched off. Do not touch the glass cover.
Avoid contact with your skin when cleaning.
:Warning – Risk of electric shock!
When replacing the cooking compartment
bulb, the bulb socket contacts are live. Before
replacing the bulb, unplug the appliance from
the mains or switch off the circuit breaker in
the fuse box.
]Causes of damage
Cau s e s of damage
General information
Caution!
■ Accessories, foil, greaseproof paper or ovenware on
the cooking compartment floor: do not place
accessories on the cooking compartment floor. Do
not cover the cooking compartment floor with any
sort of foil or greaseproof paper. Do not place
ovenware on the cooking compartment floor if a
temperature of over 50 ºC has been set. This will
cause heat to accumulate. The baking and roasting
times will no longer be correct and the enamel will
be damaged.
■ Aluminium foil: Aluminium foil in the cooking
compartment must not come into contact with the
door glass. This could cause permanent
discolouration of the door glass.
■ Water in a hot cooking compartment: do not pour
water into the cooking compartment when it is hot.
This will cause steam. The temperature change can
cause damage to the enamel.
■ Moisture in the cooking compartment: Over an
extended period of time, moisture in the cooking
compartment may lead to corrosion. Allow the
cooking compartment to dry after use. Do not keep
moist food in the closed cooking compartment for
extended periods of time. Do not store food in the
cooking compartment.
■ Cooling with the appliance door open: Following
operation at high temperatures, only allow the
cooking compartment to cool down with the door
closed. Do not trap anything in the appliance door.
Even if the door is only left open a crack, the front of
nearby furniture may become damaged over time.
Only leave the cooking compartment to dry with the
door open if a lot of moisture was produced whilst
the oven was operating.
■ Fruit juice: when baking particularly juicy fruit pies,
do not pack the baking tray too generously. Fruit
juice dripping from the baking tray leaves stains that
cannot be removed. If possible, use the deeper
universal pan.
■ Extremely dirty seal: If the seal is very dirty, the
appliance door will no longer close properly during
operation. The fronts of adjacent units could be
damaged. Always keep the seal clean.
~ "Cleaning" on page 16
■ Appliance door as a seat, shelf or worktop: Do not
sit on the appliance door, or place or hang anything
on it. Do not place any cookware or accessories on
the appliance door.
■ Inserting accessories: depending on the appliance
model, accessories can scratch the door panel
when closing the appliance door. Always insert the
accessories into the cooking compartment as far as
they will go.
■ Carrying the appliance: do not carry or hold the
appliance by the door handle. The door handle
cannot support the weight of the appliance and
could break.
6
Environmental protection en
7Environmental protection
Env i r on mental pr ot ect i on
Your new appliance is particularly energy-efficient.
Here you can find tips on how to save even more
energy when using the appliance, and how to dispose
of your appliance properly.
Saving energy
■ Only preheat the appliance if this is specified in the
recipe or in the tables in the operating instructions.
■ Leave frozen food to defrost before placing it in the
cooking compartment.
■ Open the appliance door as infrequently as possible
when the appliance is in use.
■ It is best to bake several cakes one after the other.
The cooking compartment stays warm. This reduces
the baking time for the second cake. You can place
two cake tins next to each other in the cooking
compartment.
■ Use baking tins that are dark-coloured, painted black
or have an enamel coating. These absorb the heat
particularly well.
■ Remove any unnecessary accessories from the
cooking compartment.
■ For longer cooking times, you can switch the
appliance off 10 minutes before the end of the
cooking time and use the residual heat to finish
cooking.
Environmentally-friendly disposal
Dispose of packaging in an environmentally-friendly
manner.
This appliance is labelled in accordance with
European Directive 2012/19/EU concerning
used electrical and electronic appliances
(waste electrical and electronic equipment WEEE). The guideline determines the
framework for the return and recycling of used
appliances as applicable throughout the EU.
7
en Getting to know your appliance
*Getting to know your
appliance
Gett i ng to know your appl i ance
In this chapter, we will explain the indicators and
controls. You will also find out about the various
functions of your appliance.
Note: . Depending on the appliance model, individual
details and colours may differ.
Control panel
You can set your appliance's various functions on the
control panel. Below, you will see an overview of the
control panel and the layout of the controls.
( Buttons and display
The buttons are touch keys with sensors
underneath. Simply touch a symbol to select the
function.
The display shows symbols for active functions
and the time-setting options.
0 Function selector
Use the function selector to set the heating
function or other functions.
You can turn the function selector clockwise or
anti-clockwise from the "Off" position.
8 Temperature selector
Use the temperature selector to set the
temperature for the heating function or select the
setting for other functions.
You can only turn the temperature selector
clockwise from the "Off" position, until it offers
resistance. Do not turn the selector beyond this
point.
Note: . On some appliances, the control knobs can be
pushed in. To push the control knob in and engage it or
to release it again, turn it to the "Off" position.
Buttons and display
You can use the buttons to set various additional
functions on your appliance. You will be able to see the
values for these on the display.
Symbol Meaning
\ Time-setting options Tap the symbol repeatedly to select
the timer Q and duration x.
Childproof lock Lock and unlock the oven functions
on the control panel by pressing and
holding the button for approx. 4 seconds.
A
Minus
@
--------
Plus
Display
The value that can be set at the present time or that is
elapsing will be shown in large digits on the display.
To use the individual time-setting options, tap the
v button several times. The symbol that lights up
corresponds to the value currently shown in large digits
on the display.
Reduce setting values.
Increase setting values.
8
Types of heating and functions
Use the function selector to set the types of heating and
other functions.
To make sure you always use the right type of heating
to cook your food, we have explained the differences
and applications below.
Type of heating Use
<
6
$
$
(
7
%
--------
3D hot air For baking and roasting on one or more levels.
The fan distributes the heat from the ring heating element in the back panel evenly around
the cooking compartment.
Gentle hot air For gently cooking selected types of food on one level without preheating.
The fan distributes the heat from the ring-shaped heating element in the back panel
around the cooking compartment.
This heating function is used to measure both the energy consumption in air recirculation
mode and the energy efficiency class.
Pizza setting For cooking pizza and dishes that require a lot of heat from underneath.
The bottom heating element and the ring heating element in the back panel heat up.
Bottom heating For cooking in a bain marie and for baking food for extra time.
Heat is emitted from below.
Grill, large area For grilling flat items, such as steaks or sausages, for making toast, and for browning
food.
The whole area below the grill element becomes hot.
Circulated air grilling For roasting poultry, whole fish and larger pieces of meat.
The grill element and the fan switch on and off alternately. The fan circulates the hot air
around the food.
Top/bottom heating For traditional baking and roasting on one level. Especially suitable for cakes with moist
toppings.
Heat is emitted evenly from above and below.
This heating function is used to measure the energy consumption in the conventional
mode.
Getting to know your appliance en
Other functions
Your new oven has yet more functions; see below for a
brief description of these.
Function Use
Rapid heating Preheats the cooking compartment rapidly without accessories.
F
^
--------
Interior lighting Switches on the interior lighting; all other functions remain off.
Makes it easier to clean the cooking compartment, for example.
9
en Getting to know your appliance
Temperature
Use the temperature selector to set the temperature in
the cooking compartment. You can also use it to select
the settings for other functions.
When cooking at very high temperatures, the appliance
lowers the temperature slightly after an extended
period.
Position Meaning
Ú "Off" position The appliance is not heating.
50-275 Temperature
range
1, 2, 3
Grill settings The configurable settings for the grill,
or
I, II, III
--------
Temperature display
When the appliance is heating, the p symbol will be lit
on the display. It goes out during pauses in the heating.
When you are preheating the appliance, the optimal
time to place your food in the cooking compartment is
when the symbol first goes out.
The temperature that can be set in the
cooking compartment in °C.
large area ( and small area *
(depending on the appliance model).
Setting 1 = low
Setting 2 = medium
Setting 3 = high
Cooling fan
The cooling fan switches on and off as required. The
hot air escapes above the door.
Caution!
Do not cover the ventilation slots. Otherwise, the
appliance may overheat.
So that the cooking compartment cools down more
quickly after operation, the cooling fan continues to run
for a certain period afterwards.
Note: Due to thermal inertia, the temperature displayed
may be slightly different to the actual temperature inside
the oven.
Cooking compartment
Various functions in the cooking compartment make
your appliance easier to use. For example, the cooking
compartment is well lit and a cooling fan prevents the
appliance from overheating.
Opening the appliance door
If you open the appliance door when the appliance is in
operation, the appliance will continue to operate as
before.
Interior lighting
With most heating functions and other functions, the
interior lighting in the cooking compartment will remain
lit while the oven is in operation. When the function
selector is turned to bring operation to an end, the
lighting will go out.
By turning the function selector to the interior lighting
setting, you can switch on the lighting without heating
the oven. This makes it easier to clean your appliance,
for example.
10
Accessories en
_Accessories
Accessori es
Your appliance is accompanied by a range of
accessories. Here, you can find an overview of the
accessories included and information on how to use
them correctly.
Control accessories
The accessories supplied may differ depending on the
appliance model.
Wire rack
For ovenware, cake tins and ovenproof
dishes.
For roasts, grilled items and frozen
meals.
Universal pan
For moist cakes, pastries, frozen meals
and large roasts.
It can be used to catch dripping fat when
you are grilling directly on the wire rack.
Baking tray
For tray bakes and small baked products.
--------
Only use original accessories. They are specially
adapted for your appliance.
You can buy accessories from the after-sales service,
from specialist retailers or online.
Note: The accessories may deform when they become
hot. This does not affect their function. Once they have
cooled down again, they regain their original shape.
Inserting accessories

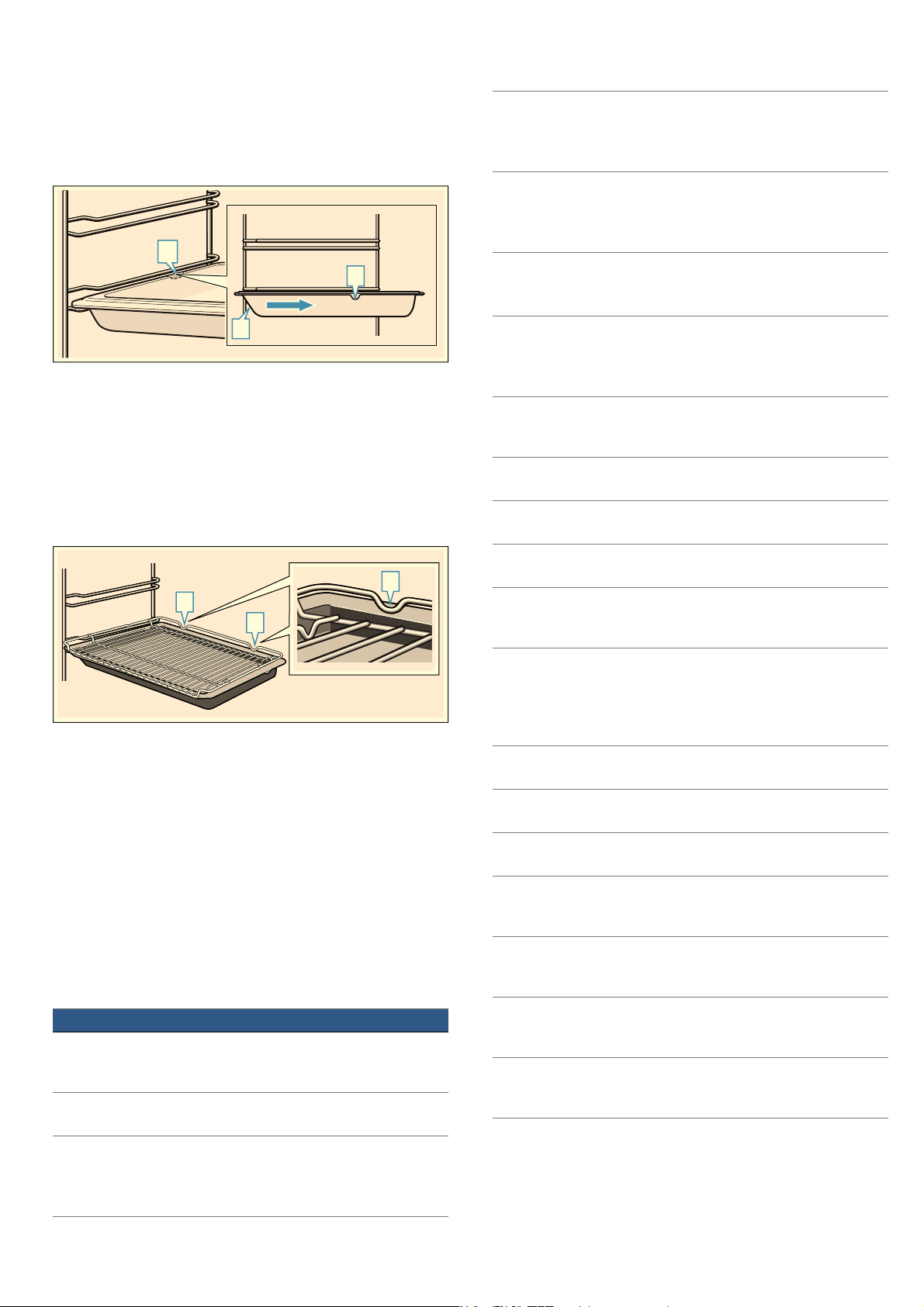

The cooking compartment has five shelf positions. The
shelf positions are counted from the bottom up.
In some appliances, the highest shelf position is
marked on the cooking compartment by the grill
symbol.
Depending on the appliance model, your cooking
compartment will have one or more pull-out rails or one
or two clip-on pull-out rails. The pull-out rails are fixed in
place and cannot be removed. The clip-on pull-out rails
can be fitted as required to levels that are not currently
being used.
Always insert accessories between the two guide rods
for the shelf position.
Accessories can be pulled out approximately halfway
without tipping. You can use the pull-out rails to pull the
accessories out further.
Make sure that the accessory is placed behind the lug
‚ on the pull-out rail.
Example in the picture: Universal pan
D
The pull-out rails lock in place when they are fully pulled
out. This makes it easy to place the accessories in
position. To unlock the pull-out rails, use a little force to
push them back into the cooking compartment.
Notes
■ Make sure that you always insert the accessories
into the cooking compartment the right way round.
■ Always insert the accessories fully into the cooking
compartment so that they do not touch the appliance
door.
■ Take any accessories that you will not be using out
of the cooking compartment.
■ The shelves can be taken out of the cooking
compartment for cleaning. ~ Page 18
Locking function
The accessories can be pulled out approximately
halfway until they lock in place. The locking function
prevents the accessories from tilting when they are
pulled out. The accessories must be inserted into the
cooking compartment correctly for the tilt protection to
work properly.
When inserting the wire rack, ensure that lug ‚ is at the
rear and is facing downwards. The open side must be
facing the appliance door and the outer rail must be
facing downwards ¾.
D
D
11
Loading...
