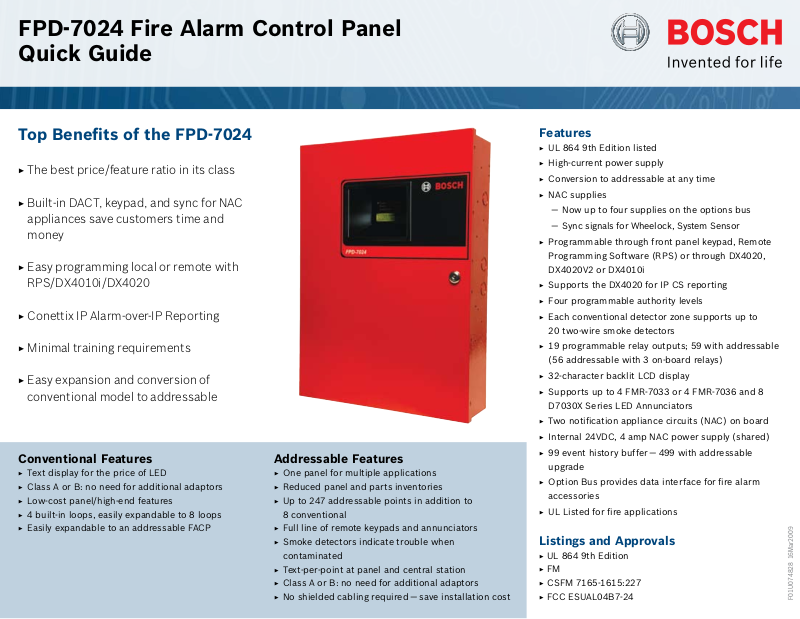

Bosch FPD-7024 Quick Selection Guide

FPD-7024 Fire Alarm Control Panel
Quick Guide

Top Benefits of the FPD-7024

e The best price/feature ratio in its class

e Built-in DACT, keypad, and sync for NAC

appliances save customers time and
money

e Easy programming local or remote with

RPS/DX4010i/DX4020

e Conettix IP Alarm-over-IP Reporting

e Minimal training requirements

e Easy expansion and conversion of

conventional model to addressable

Conventional Features

e Text display for the price of LED
e Class A or B: no need for additional adaptors
e Low-cost panel/high-end features
e 4 built-in loops, easily expandable to 8 loops
e Easily expandable to an addressable FACP

Addressable Features

e One panel for multiple applications
e Reduced panel and parts inventories
e Up to 247 addressable points in addition to

8 conventional

e Full line of remote keypads and annunciators
e Smoke detectors indicate trouble when

contaminated

e Text-per-point at panel and central station
e Class A or B: no need for additional adaptors
e No shielded cabling required — save installation cost

Features

e UL 864 9th Edition listed

e High-current power supply

e Conversion to addressable at any time

e NAC supplies

— Now up to four supplies on the options bus

— Sync signals for Wheelock, System Sensor

e Programmable through front panel keypad, Remote

Programming Software (RPS) or through DX4020,
DX4020V2 or DX4010i

e Supports the DX4020 for IP CS reporting

e Four programmable authority levels

e Each conventional detector zone supports up to

20 two-wire smoke detectors

e 19 programmable relay outputs; 59 with addressable

(56 addressable with 3 on-board relays)

e 32-character backlit LCD display

e Supports up to 4 FMR-7033 or 4 FMR-7036 and 8

D7030X Series LED Annunciators

e Two notification appliance circuits (NAC) on board

e Internal 24VDC, 4 amp NAC power supply (shared)

e 99 event history buffer — 499 with addressable

upgrade

e Option Bus provides data interface for fire alarm

accessories

e UL Listed for fire applications

Listings and Approvals

e UL 864 9th Edition
e FM
e CSFM 7165-1615:227
e FCC ESUAL04B7-24

F01U074828 16Mar2009

FPD-7024 Fire Alarm Control Panel
Quick Guide

FPD-7024 System Accessories

FPP-RNAC-8A-4CRemote Notification Appliance
Circuit (RNAC) Power Supply* — This regulated power

supply provides up to six amps of power

FMR-7033 LCD Keypad — Combines fire system
annunciator and controller functions

FMR-7036 Four-wire LCD Annunciator Keypad — May
be surface mounted to a standard 3 gang box, or with the
provided mounting backplate

D7032 8 Zone LED Annunciator — An expansion module
for use with the D7030X Series LED Annunciators

D7030X Series of LED Annunciators — Identifies the
location of a fire alarm or supervisory condition for up to
eight zones

D275 End-of-Line Module — Intended for use as a line
supervision device in 4-wire fire detection circuits

D7050 — A low profile, multiplexing, photoelectric system
type smoke detector

D7050TH — A low profile, multiplexing, photoelectric system
type smoke detector with 135°F (57°C) heat sensor

D7050-B6 Smoke Detector Base — Designed for use with
the D7050 and D7050TH Multiplex Photoelectric Smoke
Detectors

D7042/D7042B Multiplex Eight-Input Remote
Modules — Eight input loops that can monitor smoke

detectors, waterflow contacts, etc.

D7052 Multiplex Dual-input Module — An on-board
status LED indicates normal, alarm, and trouble conditions
and is visible on the module

D7053 Multiplex Input/Output Module — General
purpose device that monitors contact devices and provides
a separately controlled Form C relay output

FPC-7034 4-Zone Expander — Doubles the number of
Initiating Device Circuits (IDC) on the control panel

D7039 Multiplex Expansion Module — Designed to
enhance the conventional features of the D7024 FACP.
Adds two Class B or one Class A SLC

DX4020 Network Interface Module — Creates two-way
communications over Ethernet networks for specific Bosch
control panels

*Pending Release

DX4010i RS-232 Serial Interface Module — Creates a
local connection between compatible control panels and
approved applications

D7035/D7035B Remote Octal Relay — Board Octal
Relay Modules that provide eight Form C relay outputs

FMM-7045/FMM-7045D Multiplex Fire Alarm Pull
Station — A single or dual action, UL listed fire alarm

initiating device

D7044/D7044M Multiplex Mini Single-input Module —
Connects a normally-open (NO) contact to the multiplex
bus of a D7024 Addressable FACP

D7048/D7048B Octal Driver Modules — Provide eight
open-collector transistor outputs to the D7024 FACP via
the panel’s option bus

D185 Reverse Polarity Module — Sends a steady signal
over one or two pairs of leased telephone company lines to
a monitoring station
