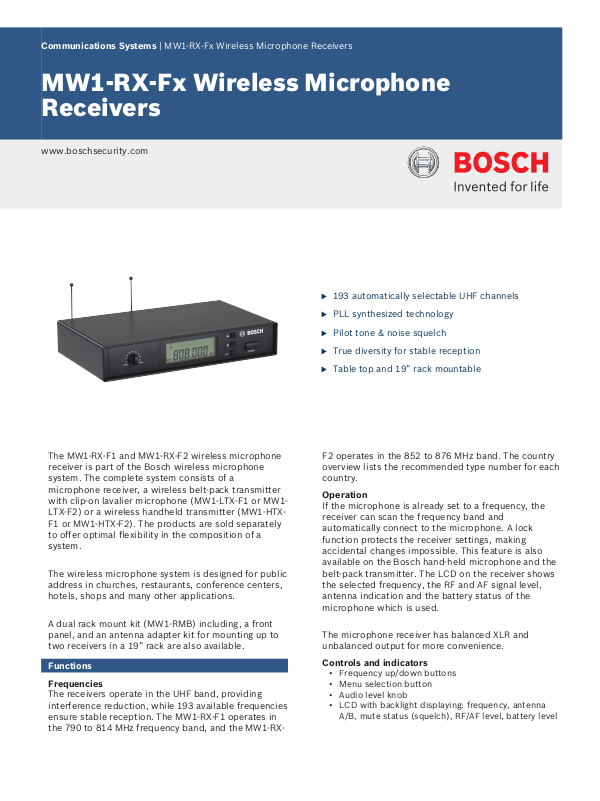

Communications Systems | MW1 RX Fx Wireless Microphone Receivers
MW1 RX Fx Wireless Microphone
Receivers
www.boschsecurity.com
u 193 automatically selectable UHF channels
u PLL synthesized technology
u Pilot tone & noise squelch
u True diversity for stable reception
u Table top and 19” rack mountable
The MW1-RX-F1 and MW1-RX-F2 wireless microphone receiver is part of the Bosch wireless microphone system. The complete system consists of a microphone receiver, a wireless belt-pack transmitter with clip-on lavalier microphone (MW1-LTX-F1 or MW1- LTX-F2) or a wireless handheld transmitter (MW1-HTX- F1 or MW1-HTX-F2). The products are sold separately to offer optimal flexibility in the composition of a system.
The wireless microphone system is designed for public address in churches, restaurants, conference centers, hotels, shops and many other applications.
A dual rack mount kit (MW1-RMB) including, a front panel, and an antenna adapter kit for mounting up to two receivers in a 19” rack are also available.
Functions
Frequencies
The receivers operate in the UHF band, providing interference reduction, while 193 available frequencies ensure stable reception. The MW1-RX-F1 operates in the 790 to 814 MHz frequency band, and the MW1-RX-
F2 operates in the 852 to 876 MHz band. The country overview lists the recommended type number for each country.
Operation
If the microphone is already set to a frequency, the receiver can scan the frequency band and automatically connect to the microphone. A lock function protects the receiver settings, making accidental changes impossible. This feature is also available on the Bosch hand-held microphone and the belt-pack transmitter. The LCD on the receiver shows the selected frequency, the RF and AF signal level, antenna indication and the battery status of the microphone which is used.
The microphone receiver has balanced XLR and unbalanced output for more convenience.
Controls and indicators
•Frequency up/down buttons
•Menu selection button
•Audio level knob
•LCD with backlight displaying: frequency, antenna A/B, mute status (squelch), RF/AF level, battery level
2 | MW1 RX Fx Wireless Microphone Receivers
Interconnections
•3 pin XLR male, balanced
•6.3 mm jack, unbalanced
Certifications and approvals
CE Marking |
|
acc. to R & TTE directive 1999/5/EC |
|
|
|
EMC |
|
acc. to ETSI EN 301489-1 |
|
|
acc. to ETSI EN 301489-9 |
|
|
acc. to ETSI EN 300422-2 |
|
|
|
|
|
|
Region |
Certification |
|
|
|
|
Europe |
CE |
|
|
|
|
Installation/configuration notes
Country Overview
Austria |
MW1-RX-F1 / MW1-RX-F2 |
|
|
Belgium |
MW1-RX-F1 / MW1-RX-F2 |
|
|
Czech republic |
MW1-RX-F1 |
|
|
Denmark |
MW1-RX-F1 |
|
|
Estonia |
MW1-RX-F1 / MW1-RX-F2 |
|
|
Finland |
MW1-RX-F2 |
|
|
France |
MW1-RX-F1 |
|
|
Germany |
MW1-RX-F1 / MW1-RX-F2 |
|
|
Hungary |
MW1-RX-F1 / MW1-RX-F2 |
|
|
Ireland |
MW1-RX-F2 |
|
|
Italy |
MW1-RX-F1 / MW1-RX-F2 |
|
|
Liechtenstein |
MW1-RX-F1 / MW1-RX-F2 |
|
|
Lithuania |
MW1-RX-F1 |
|
|
Luxembourg |
MW1-RX-F1 / MW1-RX-F2 |
|
|
Netherlands |
MW1-RX-F2 |
|
|
Norway |
MW1-RX-F1 / MW1-RX-F2 |
|
|
Poland |
MW1-RX-F1 / MW1-RX-F2 |
|
|
Portugal |
MW1-RX-F1 |
|
|
Slovakia |
MW1-RX-F2 |
|
|
Switzerland |
MW1-RX-F1 |
|
|
Spain |
MW1-RX-F2 |
|
|
Sweden |
MW1-RX-F2 |
|
|
United Kingdom |
MW1-RX-F2 |
|
|
Australia |
MW1-RX-F1 |
|
|
China |
MW1-RX-F1 |
|
|
Indonesia |
MW1-RX-F1 / MW1-RX-F2 |
|
|
Japan |
MW1-RX-F1 |
|
|
Korea |
MW1-RX-F1 |
|
|
Philippines |
MW1-RX-F1 / MW1-RX-F2 |
|
|
Taiwan |
MW1-RX-F1 |
|
|
Thailand |
MW1-RX-F1 / MW1-RX-F2 |
|
|
Vietnam |
MW1-RX-F1 / MW1-RX-F2 |
|
|
|
|
MW1-RX-F1 |
790 to 814 MHz |
|
|
MW1-RX-F2 |
852 to 876 MHz |
|
|
Parts included
Quantity Components
1MW1-RX-F1 Wireless Microphone Receiver or
MW1-RX-F2 Wireless Microphone Receiver
1User manual
11.5 m 3-pin XLR male/female cable
1AC/DC adapter with power cord
Technical specifications
Electrical
Power source |
12 V to 18 V, 500 mA |
|
|
Performance |
|
|
|
Modulation |
FM |
|
|
Frequency selection |
PLL synthesized control |
|
|
Frequency range |
MW1-RX-F1: 790 to 814 MHz |
|
MW1-RX-F2: 852 to 876 MHz |
|
|
Channels |
193 channels in steps of 125 kHz |
|
|
Frequency stability |
±0.005% |
|
|
Technology |
True diversity system |
|
|
S/N ratio |
>100 dB |
|
|
Antenna |
2 x |
|
|
Connector |
BNC |
|
|
HF impedance |
50 ohm |
|
|
Output |
2 x |
|
|
Connector |
XLR-3 male, balanced |
|
|
Output level |
12 dBV (max) |
|
|
Output impedance |
600 ohm |
|
|
Connector |
6.3 mm jack, unbalanced |
|
|
Output level |
0 dBV (max) |
|
|
Output impedance |
2.2 kohm |
|
|
Squelch |
Pilot tone and noise mute |
|
|
