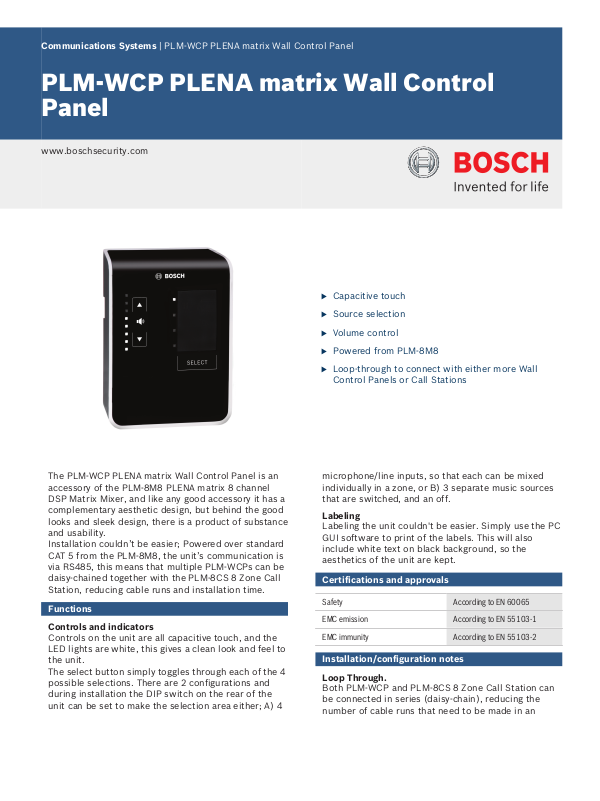

Communications Systems | PLM-WCP PLENA matrix Wall Control Panel

PLM-WCP PLENA matrix Wall Control
Panel

www.boschsecurity.com

u Capacitive touch

u Source selection

u Volume control

u Powered from PLM‑8M8

u Loop‑through to connect with either more Wall

Control Panels or Call Stations

The PLM‑WCP PLENA matrix Wall Control Panel is an
accessory of the PLM‑8M8 PLENA matrix 8 channel
DSP Matrix Mixer, and like any good accessory it has a
complementary aesthetic design, but behind the good
looks and sleek design, there is a product of substance
and usability.
Installation couldn’t be easier; Powered over standard
CAT 5 from the PLM‑8M8, the unit’s communication is
via RS485, this means that multiple PLM‑WCPs can be
daisy‑chained together with the PLM‑8CS 8 Zone Call
Station, reducing cable runs and installation time.

Functions

Controls and indicators

Controls on the unit are all capacitive touch, and the
LED lights are white, this gives a clean look and feel to
the unit.
The select button simply toggles through each of the 4
possible selections. There are 2 configurations and
during installation the DIP switch on the rear of the
unit can be set to make the selection area either; A) 4

microphone/line inputs, so that each can be mixed
individually in a zone, or B) 3 separate music sources
that are switched, and an off.

Labeling

Labeling the unit couldn't be easier. Simply use the PC
GUI software to print of the labels. This will also
include white text on black background, so the
aesthetics of the unit are kept.

Certifications and approvals

Safety According to EN 60065

EMC emission According to EN 55103‑1

EMC immunity According to EN 55103‑2

Installation/configuration notes

Loop Through.

Both PLM‑WCP and PLM‑8CS 8 Zone Call Station can
be connected in series (daisy‑chain), reducing the
number of cable runs that need to be made in an

2 | PLM-WCP PLENA matrix Wall Control Panel

installation. Both these units are powered from the
PLM‑8M8 8‑channel DSP Matrix Mixer via the same
CAT 5 cable.

Installation bracket

The unit is designed for surface mounting and comes
complete with a bracket that fixes to the wall and the
unit clips into the bracket. There are 3 cable entry
options on the unit to make installation as easy as
possible.

Parts included

Quantity Components

1 PLM‑WCP Wall Control Panel

1 Installation bracket

1 Safety documentation

Technical specifications

Electrical

Power supply (supplied by PLM‑8M8)

Voltage range 30 ‑ 50 VDC

Power consumption 0.5 W

Connectors 2x

RS485 loop‑through RJ45

Mechanical

Base dimensions (H x W x D) 130 x 100 x 30 mm

Mounting Surface mount bracket

Color Trafic black (RAL 9017)

Weight Approx. 0.13 kg

5.1 x 3.9 x 1.2 in

Silver (RAL 9006)

Approx. 0.29 lb

Environmental

Operating temperature -10 ºC to +45 ºC

Storage temperature -40 ºC to +70 ºC

Relative humidity <95%

Ordering information

PLM-WCP PLENA matrix Wall Control Panel

8 zones.

Order number PLM-WCP
