Communications Systems | LBC 3080/01 Fire Dome

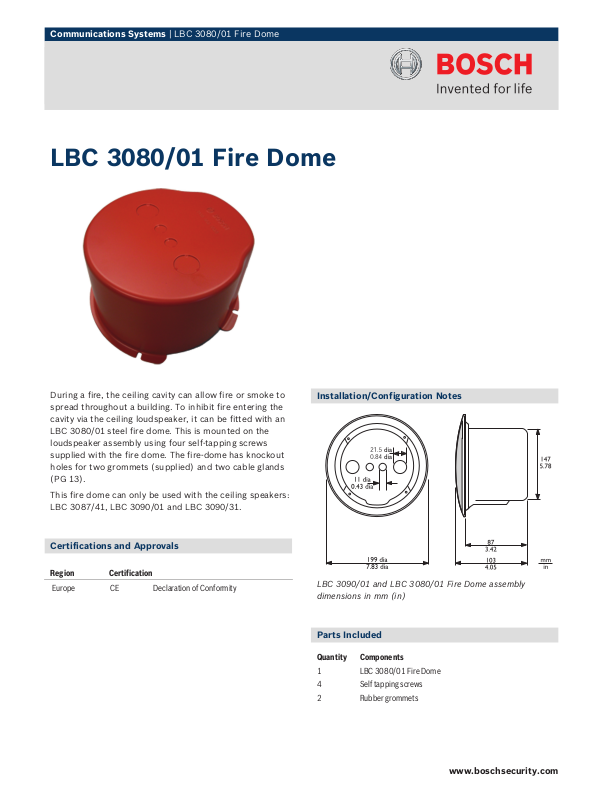

LBC 3080/01 Fire Dome

During a fire, the ceiling cavity can allow fire or smoke to
spread throughout a building. To inhibit fire entering the
cavity via the ceiling loudspeaker, it can be fitted with an
LBC 3080/01 steel fire dome. This is mounted on the
loudspeaker assembly using four self-tapping screws
supplied with the fire dome. The fire-dome has knockout
holes for two grommets (supplied) and two cable glands
(PG 13).

This fire dome can only be used with the ceiling speakers:
LBC 3087/41, LBC 3090/01 and LBC 3090/31.

Certifications and Approvals

Region Certification

Europe CE Declaration of Conformity

Installation/Configuration Notes

LBC 3090/01 and LBC 3080/01 Fire Dome assembly
dimensions in mm (in)

Parts Included

Quantity Components

1 LBC 3080/01 Fire Dome

4 Self tapping screws

2 Rubber grommets

www.boschsecurity.com

2 | LBC 3080/01 Fire Dome

Technical Specifications

Mechanical

Dimensions (dia. x max depth) 147 x 87 mm (5.8 x 3.4 in)

Weight 360 g (0.8 lb)

Color White (RAL 9010)

Certified B15 Acc. to DIN 4102

Ordering Information

LBC 3080/01 Fire Dome

LBC 3080/01

metal fire dome for the LBC 3087/41,
LBC 3090/xx and LHM 0606/xx ceiling loud­speakers
