Bosch EYE CARE Quick Start Quide

Quick Start / Setup Guide

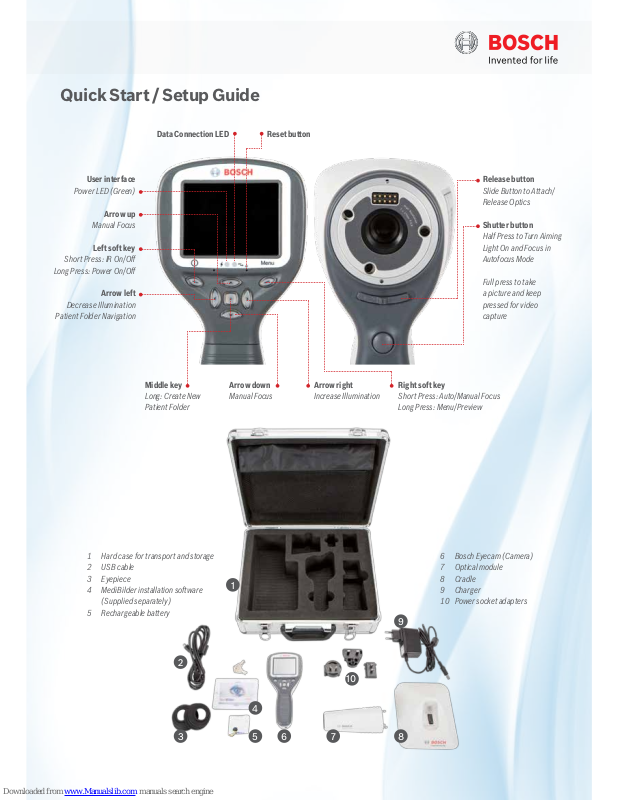

User interface

Power LED (Green)

Arrow up

Manual Focus

Left soft key

Short Press: IR On/O

Long Press: Power On/O

Arrow left

Decrease Illumination

Patient Folder Navigation

Middle key

Long: Create New
Patient Folder

Arrow down

Manual Focus

Arrow right

Increase Illumination

Data Connection LED Reset button

Right soft key

Short Press: Auto/Manual Focus
Long Press: Menu/Preview

Release button

Slide Button to Attach/
Release Optics

Shutter button

Half Press to Turn Aiming
Light On and Focus in
Autofocus Mode

Full press to take
a picture and keep
pressed for video
capture

1 Hard case for transport and storage
2 USB cable
3 Eyepiece
4 MediBilder installation software

(Supplied separately)

5 Rechargeable battery

1

2

3

4

5 6 7 8

9

10

6 Bosch Eyecam (Camera)
7 Optical module
8 Cradle
9 Charger
10 Power socket adapters

Step 1: Battery Insertion

Open the battery compartment cover by
pushing and tilting the rectangular snap
upwards at the bottom of the device.
Put the battery in the compartment with
connecting cables towards the display and
carefully attach the connector to its socket.

Note:

1 While detaching the battery, pull out

the connector rst using the grooves

on the body of the connector and
then remove the battery from the
compartment. Pulling the connector or
battery by pulling the cables will cause
damage that will void warranty.

2 Always store the device with the

battery fully charged. If device is
not used for more than a month, it is
recommended to store with battery
detached.

Step 2: Before the First Use

After inserting the battery, place Bosch
Eyecam on the cradle. Connect the charger
to the cradle and to a power socket. Charge

for 1-2 hours before first use.

Step 3: Attach / Detach

Optics

Attach optics module by pulling the release

button to the right and pressing firmly on

the bayonet legs of the optics module on
the matching bayonet holes of the camera.
Attach the extension piece (3) to the end
of the optics module. Detach module by
similarly sliding the release button and pull
out the module straight and slow.

Step 4: Power On /

Power Off

The camera is powered ON by pressing
the left soft key and turned OFF by long
pressing the same key again.

Step 5: Preparing for

Imaging

There are two focus modes: Autofocus and
Manual focus. Focus mode can be chosen
by short pressing right soft key or from the
menu. (Refer illustration)

In autofocus mode, diopter correction is
not required as the camera will focus
automatically according to patient’s
refractive error. (For details, refer user
manual)
In manual focus mode, refractive error can
be adjusted on the diopter scale at the right
side of the screen using UP and DOWN
arrow keys.

Step 6: Focusing &

Imaging

Icon above left soft key states if IR aiming
light is ON or OFF (IR ON/ IR OFF). If the

aiming light is o, turn on by pressing the

left soft key once.
Focus on the eye pupil by placing the
optics on the eye of the patient. Centre
the pupil on the red focus enabler circle on
the screen (in the case of IR illumination
mode). Start approaching pupil until you

spot the reflection from the eye fundus.
Reflection with infrared light is gray

colored. Use both hands to stabilize the
patient and the camera while imaging.
Close in until the retina appears fully on the

display and there are no corneal reflections

in the image. In case of IR illlumination
mode, wait for the red focus enabler to
turn green.
Press the shutter button to capture images.
White or infrared light is used during the
image capture. Illumination levels can be
adjusted using left and right arrow keys.

Step 7: Transfer Images

To transfer images, place the Bosch
Eyecam on the cradle and connect to
computer using the USB cable provided.
Transfer images using software installed
on your computer or by using Windows
Explorer. The blue LED indicates the USB
connection.

Step 8: Packing and

Carrying the Device

When travelling or carrying the Bosch
Eyecam, arrange the components in the
designated slots inside the case.
