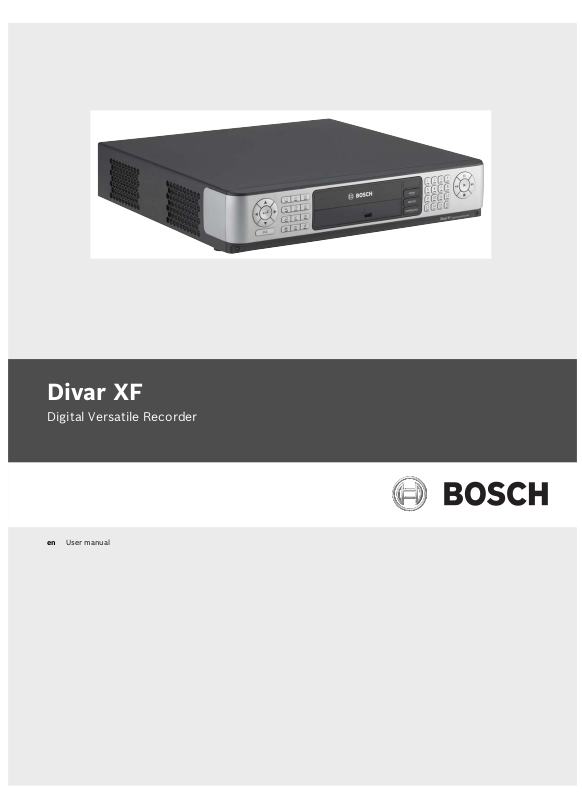

en User manual
Divar XF Table of Contents | en 3
Table of Contents
1 Introduction 5
1.1 Digital video recorder for security applications 5
1.1.1 Versions 5
1.1.2 Manuals 5
1.1.3 Features 5
1.1.4 On-screen help 6
1.2 Unpacking 6
1.2.1 Package contents 6
1.3 Installation environment 6
1.3.1 Mounting 6
1.3.2 Ventilation 7
1.3.3 Temperature 7
1.3.4 Power Supply 7
1.4 Associated equipment 7
2 Quick install 9
2.1 Connections 9
2.1.1 Primary connections 9
2.1.2 Optional connections 9
2.1.3 Powering up 9
Bosch Security Systems User manual F.01U.074.599 | V 1.0 | 2008.03
4 en | Table of Contents Divar XF
F.01U.074.599 | V 1.0 | 2008.03 User manual Bosch Security Systems
Divar XF Introduction | en 5
1 Introduction
1.1 Digital video recorder for security applications
The Divar XF is a video and audio recording system that records multiple camera and audio signals while simultaneously providing live multiscreen viewing and playback. The unit has comprehensive search and playback facilities for viewing stored video. Once configured, all recording takes place in the background without requiring operator intervention. Maximum recording rates of 30 (NTSC) and 25 (PAL) images per second, per channel, are guaranteed. The recording rate and quality are selectable per camera. Up to four internal hard disks can be used to provide various storage capacities for recording. All models have extensive alarm handling functions and telemetry control. Alarm functions include motion detection in user-definable areas of the image on any camera input. The unit can be easily operated and programmed via the front panel control keys, mouse, and the on-screen display menu system. Two monitor outputs provide full-screen, quad, and multiscreen viewing. Connect a KBD (Intuikey) keyboard for PTZ control and to improve the ease-of-use. Looping auto-terminating video inputs and outputs, audio inputs and outputs, alarm inputs and outputs, and remote control connectors are on the rear panel. Two VGA connectors provide outputs for an A and a B monitor. CVBS and Y/C video outputs in either NTSC or PAL are also provided. Monitor A displays full-screen or multiscreen digital pictures that can be frozen and zoomed. Monitor B displays live full-screen or multiscreen pictures. Use the Control Center PC-application via a network for live viewing, playback, and configuration. Five simultaneous users can control multiple Divar XFs. The Divar XF includes an authenticity check for both local and remote playback. A dedicated PC player is provided for playback of secure video files. The PC-based Configuration Tool facilitates the installation of the unit. An SDK (software development kit) is available to integrate the Divar XF into third party management software.
1.1.1 Versions
There are various Divar XF models; 8-channel and 16-channel, each with various storage capacities. Both 8-channel and 16-channel versions operate in exactly the same way except that fewer camera, audio, and alarm inputs are present, and the number of available multiscreen views differs.
1.1.2 Manuals
Four manuals are supplied: – Installation manual - a detailed description for installers on how to install the product. – Quick Installation guide - gives a brief overview on how to set up and install the product. – Operation manual - a detailed description for end-users on how to operate the unit. – Control Center and Archive Player operation manual - a detailed description for end-users
and administrators on how to set up and operate the Control Center and Archive Player software.
1.1.3 Features
The Divar XF has the following features: – 8 or 16 looped-through, auto-terminating camera inputs – 8 or 16 audio inputs – Simultaneous recording and playback – Internal hard disk video storage (front replaceable)
Bosch Security Systems User manual F.01U.074.599 | V 1.0 | 2008.03
6 en | Introduction Divar XF
– 10/100Base-T Ethernet port for Ethernet connection and networking – Two RS232 serial ports for serial communication – External KBD keyboard input – Dual monitor outputs – Full-screen and various multiscreen display capabilities in live and playback modes – Spot monitor output with sequencing, multiscreen, and OSD – Two audio outputs (dual mono) – Motion detection – 8 or 16 switching (alarm) inputs and 4 alarm outputs – Video loss detection – Audible alarm – Pan, tilt, and zoom camera control via RS485 and biphase – Local archiving via USB
1.1.4 On-screen help
On-screen context-sensitive help is available for some topics. Just press the help button
to see the help text associated with your current activity. Press the escape button to exit help.
1.2 Unpacking
Check the package for visible damage. If any items appear to have been damaged in shipment, notify the shipping company. Unpack carefully. This is electronic equipment and should be handled with care to prevent damage to the unit. Do not attempt to use the unit if any components are damaged. If any items are missing, notify your customer service representative or Bosch Security Systems sales representative. The shipping carton is the safest container in which to transport the unit. Save it and all packing materials for future use. If the unit must be returned, use the original packing materials.
1.2.1 Package contents
Check for the following items: – Digital Video Recorder (Divar XF 16 or Divar XF 8 unit) –USB mouse – Quick installation guide – Divar XF operation manual – Divar XF Control Center and Archive Player operation manual – Installation manual (this manual) – A 25-pin D-type switching and alarm connector board – A 15-pin D-type connector board (used for PTZ connections) – Power supply cord – Shielded network cross-over cable (for service and testing purposes) – Rack mounting kit – A CD-ROM containing the software and manuals
1.3 Installation environment
1.3.1 Mounting
The Divar XF is supplied as a desktop unit. If desired, the unit can be rack mounted using the rack mounting kit supplied with the unit. Please refer to the Installation Manual, Section 4.2 Rack mounting, page 23.
F.01U.074.599 | V 1.0 | 2008.03 User manual Bosch Security Systems
Divar XF Introduction | en 7
1.3.2 Ventilation
Ensure that the location planned for the installation of the unit is well ventilated. Take note of the locations of the cooling vents in the unit's enclosure and ensure that they are not obstructed.
1.3.3 Temperature
Observe the unit's ambient temperature specifications when choosing an installation space. Extremes of heat or cold beyond the specified operating temperature limits may cause the unit to fail. Do not install the unit on top of hot equipment.
1.3.4 Power Supply
Ensure that the site's AC power supply is stable and within the rated voltage of the unit. If the site's AC power is likely to have spikes or power dips, use power line conditioning or an uninterrupted power supply (UPS).
1.4 Associated equipment
A typical system could contain the following components (not included with the unit): – A primary monitor for multiscreen monitoring (monitor A) – A second monitor for spot/alarm monitoring (monitor B) – Cameras with 1 Vpp composite video outputs – Amplified microphone(s) – Audio amplifier with speaker(s) – Video coaxial cable with BNC connectors for connecting the video signals – Audio cable with RCA connectors for connecting audio signals. – AC power supply outlet for the unit that allows for secure isolation (the unit has no on/off
switch for security reasons) – A KBD keyboard – PC for Control Center and Configuration Tool applications – Pan/tilt/zoom control units
Bosch Security Systems User manual F.01U.074.599 | V 1.0 | 2008.03
8 en | Introduction Divar XF
F.01U.074.599 | V 1.0 | 2008.03 User manual Bosch Security Systems
Divar XF Quick install | en 9
2 Quick install
To get the unit quickly operational, make the connections described below and then enter the relevant data in the Quick install menu. The Quick install menu appears the first time the unit is started. When the relevant information is entered, the unit will be operational.
2.1 Connections
A
PC
LAN / WAN
10
13
USB
B
7
8
6
11
8
SHIELD
-
CTRL 5
+
SHIELD
-
CTRL 4
+
SHIELD
-
CTRL 3
+
SHIELD
-
CTRL 2
+
2
4
3
SHIELD
-
CTRL 1
+
SHIELD
16
IN
7
15
GND
6
14
IN
5
13
GND
4
12
IN
3
11
GND
2
10
IN
1
9
GND
4B
Y
2B
A
4A
2A
L
3B
1B
E
3A
1A
R
x16*
5
RS485
12
PTZ
9
14
110 - 240 VAC
Figure 2.1 Back panel connections
2.1.1 Primary connections
1. Connect the cameras to the BNC camera inputs (automatically terminated).
2. Connect monitor A to the BNC, Y/C, or VGA (supporting 1280x1024)
3. Connect (supplied) USB mouse to a USB port.
2.1.2 Optional connections
4. Connect monitor B to the BNC, Y/C, or VGA (supporting 1024x768) output MON B.
5. Connect up to 16 audio signals to the RCA audio inputs.
6. Connect the RCA audio output(s) to the monitor or an audio amplifier.
7. Connect up to 16 (alarm) inputs (via the supplied 25-pin D-type connector board).
8. Connect up to 4 alarm outputs (via the supplied 25-pin D-type connector board).
9. Connect the malfunction output (via the supplied screw terminal adapter).
10. Connect an Intuikey keyboard to the KBD In socket and connect the terminator (supplied
with the keyboard) to the KBD Out socket.
11. Connect a Bosch pan/tilt/zoom control unit to the Biphase port (via the supplied 15-pole
D-type connector board).
12. Connect a third-party pan/tilt/zoom control unit to the RS485 port (via the supplied
screw terminal adapter).
13. Connect to your network via the Ethernet port.
- | + | G
RS
485
MAL OUT
N0 | C | NC
KBD in
KBD out
AC
1234
1234
VIDEO
IN
Ethernet
IR ext
USBUSB
ABAA
VGA
Monitor out
5678
Video in
5678
Video out
BB
CVBS Y/C
Com 1 Com 2
Biphase
Alarm I/O
9101112 13141516
Video in
9101112 13141516
Video out
13579111315
L
R
AB
2 4 6 8 10 12 14 16
Audio out Audio in
Video in
Video out
VIDEO
IN
x16*
1
AutoDome
output MON A.
2.1.3 Powering up
Switch on all connected equipment.
14. Connect the power cord to the unit.
Bosch Security Systems User manual F.01U.074.599 | V 1.0 | 2008.03
10 en | Quick install Divar XF
2.2 First-time use
The unit starts with a multiscreen display. The Quick install menu opens the first time the unit is used. Fill in the basic settings in the four tabs to get the unit operational. The unit begins recording automatically when the Quick install menu is closed. To open the Quick install menu at any other time:
1. Press the menu button.
2. The main menu appears on monitor A.
3. Click Configuration and then Quick install.
Navigating
Use the supplied USB mouse. Alternatively, use the following front panel keys:
– Use the enter button to select a submenu or item.
– Use the arrow buttons to move through a menu or list.
– Use the escape button to go back or to switch off the menu.
2.3 Quick install menu
The Quick install menu contains four tabs: International, Schedule, Recording, and Network. Navigate through these tabs using Back and Next. Click Undo to cancel changes made in the active tab. Click Close to exit the Quick install menu. Changing Quick installQuick install settings overwrites customized settings.
2.3.1 International
Figure 2.2 Quick install menu - International
F.01U.074.599 | V 1.0 | 2008.03 User manual Bosch Security Systems
Divar XF Quick install | en 11
Language Select the language for the menu from the list.
Time zone Select a time zone from the list.
Time format Select either a 12 or a 24 hour clock format.
Time Fill in the current time.
Date format Select from three date formats which show either the month (MM), the
day (DD), or the year (YYYY) first.
Date Fill in the current date.
Click Next to move to the next tab.
2.3.2 Schedule
Figure 2.3 Quick install menu - Schedule
A graphical representation of the currently active weekly schedule is shown. Each color represents one of the four available profiles: – Yellow - Profile 1 – Blue - Profile 2 – Green - Profile 3 – Pink - Profile 4
Click Overwrite to start making changes.
– Select at which day the week should start and end.
– Select at which time the day begins and ends on weekdays.
– Select at which time the day begins and ends on weekends.
Bosch Security Systems User manual F.01U.074.599 | V 1.0 | 2008.03
12 en | Quick install Divar XF
The graphical representation is automatically updated when settings are changed. Click Next to move to the next tab.
2.3.3 Recording
Figure 2.4 Quick install menu - Recording
Set the Normal recording Resolution, Quality, and Frame rate for each profile in the table. Set the Alarm and Motion recording Resolution, Quality, and Frame rate. These settings are generic for all four profiles. In case of previously made advanced settings, click Overwrite to replace them with Quick install settings. Click Next to move to the next tab.
F.01U.074.599 | V 1.0 | 2008.03 User manual Bosch Security Systems
Divar XF Quick install | en 13
2.3.4 Network
Figure 2.5 Quick install menu - Network
Fill in the settings that control the behavior of the unit with respect to a network.
DVR name Enter a DVR name to be used in the network.
DHCP Enable DHCP to have IP address, subnet mask, and default gateway
assigned automatically by the network server. The actual values are displayed.
IP address, Subnet mask, Default
Fill in the IP, subnet mask, default gateway, and DNS server addresses when DHCP is disabled.
gateway, and DNS server
Bandwidth limit Restrict the network bandwidth by entering a value between 0.1 and
100 Mbps for the bandwidth limit.
MAC address The MAC address is read only.
Bosch Security Systems User manual F.01U.074.599 | V 1.0 | 2008.03
14 en | Quick install Divar XF
F.01U.074.599 | V 1.0 | 2008.03 User manual Bosch Security Systems
Divar XF Operating instructions | en 15
3 Operating instructions
These instructions explain the purpose of the front panel keys. The functions available can be limited by setting passwords. Some functions may also require a software license. An administrator has access to many more functions in the menu. Refer to Section 6 Configuration menu for a full list of available menu items.
3.1 Front panel controls
Divar
Fig. 3.1 Front panel controls
3.1.1 Keys
The keys on the front panel control all functions. Symbols on the keys show the functions. Inactive keys emit an audible beep when pressed.
Arrow keys:
Up Down Left Right – move around through menu items or values when in menu mode – in PTZ mode, the arrow keys can be used to control the pan, tilt, or zoom functions
of the selected camera
– moves the visible area of the selected image in digital zoom mode
Enter key – selects a submenu or menu item, or confirms selections made in menus – the selected cameo is shown full screen when viewing video in multiscreen mode
ESC key
– press to return to previous level or to exit menu system without saving
Full screen key – press to go to full screen mode
Quad key – press to go to quad mode – in quad mode, press to toggle between the enabled quad screens
Multiscreen key – press to go to multiscreen mode – in multiscreen mode, press to toggle between enabled 3x3 and 4x4 screens
Digital zoom key – zooms in on the active full screen camera display
Bosch Security Systems User manual F.01U.074.599 | V 1.0 | 2008.03
16 en | Operating instructions Divar XF
Sequence key
– view cameras in sequence on full-screen or quad displays
OSD key
– press to view date/time and camera information, date/time only, or none
Search key
– press to open the date/time search menu to look for recorded images
PTZ key
– enables either pan/tilt or pan/zoom modes
Freeze key
– in live mode, press to freeze the selected image
Menu key
– opens the menu system
Help key
– press to view help
Mute key
– press to mute audio monitoring
Export key
– press to open the export menu; an indicator light is located on the key
Monitor key
– toggles control between monitor A or B
Acknowledge key
– press to acknowledge an alarm event; an indicator light is located on the key
Camera keys (1-16)
– press to see a full-screen display of the video input
Pause key
– in the playback mode, press to freeze the playback picture
Reverse key – in live mode, press to start reverse playback of recordings for the displayed cameras – in playback mode, press to start or speed up reverse playback – in pause mode, press to step back one frame
Play key – in live mode, press to resume playback from the last selected playback position – in pause or fast forward/reverse modes, press to resume playback
Fast forward key – in live mode, press to start playback from one minute earlier – in playback mode, press to speed up the forward playback rate – in pause mode, press to step forward one frame
F.01U.074.599 | V 1.0 | 2008.03 User manual Bosch Security Systems
Divar XF Operating instructions | en 17
Stop key
– while in playback mode, press to return to live mode
3.1.2 Indicators
The indicators on the front panel display light or flash to alert you of various operating conditions.
Power - lights when the unit is powered
USB - lights when a USB memory device is connected to the unit
Network - lights when a remote user is connected to the unit
Record - lights when the unit is recording video
Playback - lights when the unit is in playback mode
Monitor A - indicates monitor A is being controlled
Monitor B - indicates monitor B is being controlled
Temperature - flashes when internal temperature is outside operational range
Alarm - flashes when an alarm is detected
Motion - flashes when motion is detected in a video signal
Video loss - flashes when video loss is detected for a video input
System failure - flashes when a system failure is detected
3.2 Mouse Controls
All functions controlled by the front panel can, alternatively, be accessed using the supplied USB mouse. All main DVR functions are accessible via the on-screen button panel. To display the panel (monitor A only), move the mouse pointer to the bottom left of the screen.
Fig. 3.2 On-screen button panel
The buttons and indicators of the on-screen button panel work the same as the keys and indicators on the front panel.
3.3 Viewing pictures
The unit has two monitor outputs, A and B. The way in which these monitors display pictures depends on how the system is configured.
3.3.1 Monitor A
Monitor A is the main monitor. It shows full-screen, quad, or multiscreen live or playback camera pictures. Status messages, alarms, motion, and video loss warnings are also displayed on this monitor. When the menu system is activated it is displayed on this monitor.
Bosch Security Systems User manual F.01U.074.599 | V 1.0 | 2008.03
18 en | Operating instructions Divar XF
3.3.2 Monitor B
Monitor B displays full-screen, quad, or multiscreen live pictures. When an alarm or motion input is detected, the camera picture with the Alarm/Motion indicator can be displayed on monitor B. When multiple alarms or motion occur, camera pictures are sequenced on monitor B.
Selecting a monitor to control
To control the display on monitor A:
1. Check that the light on the front panel is lit.
2. If is not lit, press the monitor key.
To control the display on monitor B:
1. Check that the light on the front panel is lit.
2. If is not lit, press the monitor key
3.3.3 Viewing
The drawing shows all possible views for monitor A. Some multiscreen views may have been disabled during set up. The Divar model and the number of connected cameras also influence the available multiscreen views.
4x4Single
1 2 3 4
1
9
10 11 12
13 14
8765
1615
3x3Quad
1 2
3
Fig. 3.3 Divar XF supports single, quad, 3x3, and 4x4 screen viewing
4
1
4
7
The quad mode can have 4 different quad screens that can be shown in sequence to display 16 camera pictures.
Multiscreen
To view different multiscreen displays on monitor A or B:
1. Press the multiscreen key. – A multiscreen display of camera pictures appears on the active monitor. – The camera keys of the selected cameras will light (green).
2 3
5 6
8 9
2. Press the multiscreen key again to go to the next programmed multiscreen view.
– If you continue to press the multiscreen key, the unit cycles through all enabled
multiscreen views.
F.01U.074.599 | V 1.0 | 2008.03 User manual Bosch Security Systems
Divar XF Operating instructions | en 19
Full-screen
To view a full-screen shot of a camera:
1. Press a camera key. – A full-screen shot of the camera you selected appears. – The camera key of the selected camera lights (green).
2. While in multiscreen mode, press enter to view the active cameo in full-screen.
Sequence
To view a sequence of live camera pictures of several cameras:
1. Press the sequence key. – A sequence of camera pictures appears, each for a pre-programmed dwell time.
2. Press the sequence key to stop sequencing. – Zooming, pressing the multiscreen key, or selecting a single camera also stops
sequencing.
Cameo assignment
Assigning cameras to cameos in a multiscreen view:
1. Use the arrow keys to select a cameo.
2. Press and hold a camera key to display and assign that camera’s picture in the active cameo.
3. Alternatively, right click a cameo with the mouse and choose a video input from the context menu.
The cameo assignment that you make is used in playback mode as well as in live mode.
Freeze image
Freezing a camera shot on monitor A:
1. Press the freeze key to freeze the picture in the active cameo.
2. Press the freeze key again to return to live viewing.
3. Alternatively, right click and select Freeze or Unfreeze from the context menu using the mouse.
If you are viewing a camera picture in full-screen mode, then this picture is frozen. The zoom function can be used on a frozen picture. If you change viewing mode, any frozen pictures are released.
Zoom
To zoom in on a video image:
1. Press the zoom key. – The picture is enlarged by a factor of 2.
2. Use the arrow keys to select the area of the picture to be displayed.
3. Press the zoom key again to zoom in further. – The picture is enlarged by a factor of 4.
4. Use the arrow keys to select the area of the picture to be displayed.
5. Press the zoom key again to return to a full picture and leave the zoom mode. Alternatively, right click and select Zoom or Exit zoom to enable or disable zoom mode with the mouse. While in zoom mode, click on an area of the screen to zoom in on. Use the scroll wheel to zoom in and out.
Bosch Security Systems User manual F.01U.074.599 | V 1.0 | 2008.03
20 en | Operating instructions Divar XF
3.4 Live and playback
3.4.1 Live mode
The live mode is the normal operating mode of the unit where you watch live pictures from the cameras. From live mode you can switch to playback mode or to the system menu.
3.4.2 Accessing playback functions
Access to playback functions may require a password. Discuss this with your administrator.
1. To search, enter the main menu and click Search.
2. Choose Event search or Date/time search from the pull-down menu.
Alternatively, press the search key to switch to date/time search directly. To enter the playback mode, use one of the following keys:
– Press the rewind key to start reverse playback of recordings for the displayed
cameras.
– Press the fast forward key to start playback from one minute earlier.
– Press the play key to resume playback from the last selected playback position.
Press the stop key to switch back to live viewing. An alarm also switches the unit back to live viewing.
3.4.3 Playback mode
In playback mode, the video control keys operate as follows:
– Press the rewind key to start reverse playback of recordings. Pressing it again and
again increases the display rate to a maximum before returning it back to normal speed
again. Press the rewind key in the pause mode to step back one frame at a time.
– Press the pause key to freeze the picture.
– Press the fast forward key to start playback of recordings. Pressing it again and again
increases the display rate to a maximum before returning it back to normal speed again.
Press the forward key in the pause mode to step forward one frame at a time.
– Press the play key to resume playback.
Press the stop key to switch back to live viewing. An alarm also switches the unit back to live viewing.
3.5 Overview of the menu system
The menu gives access to several functions to help you use the unit. Access to some menu items is password protected. There are three ways of accessing the menu system: – via the front panel keys, –a USB mouse, or – a Intuikey keyboard. Slight differences in navigation and selection are only due to the differences between the keys on the unit, the keyboard and the mouse. The menu structure is the same in all cases. The top menu consists of four main menus with drop-down submenus, a help item and an exit item.
F.01U.074.599 | V 1.0 | 2008.03 User manual Bosch Security Systems
Divar XF Operating instructions | en 21
Fig. 3.4 Main menu
Search
The Search menu contains two submenus:
– Date/time - plays back video from a specific date and time. – Events search - searches for events in a specific time frame.
These submenus can only be accessed if you have playback rights.
Export
The Export menu is used to archive a video clip to a USB memory device. This submenu can only be accessed if you have playback rights.
Configuration
The Configuration menu contains three submenus: – Quick installation - opens a wizard to configure basic DVR settings. – Advanced installation - opens the installation menu to configure all DVR settings. – Monitor settings - opens a menu to configure the monitor output settings. These submenus can only be accessed if you have administrator rights.
System information
The System information menu contains two submenus: – Status - opens a menu to view status information. – Log Book - opens a menu to view the system log.
Help
The Help function displays a help text.
Exit
Exits the menu.
3.5.1 Access using the front panel keys
To open the menu, press the menu key.
– The main menu appears on monitor A.
To move through a menu or list, use the arrow keys on the front panel.
To select a submenu or item, use the enter key.
To go back, use the escape key
To open the help text, press the help key.
To exit the menu, press the escape key.
3.5.2 Access using the mouse
To open the menu, move the pointer to the top of the screen.
– The main menu appears on monitor A.
Bosch Security Systems User manual F.01U.074.599 | V 1.0 | 2008.03
22 en | Operating instructions Divar XF
To select a menu item, move the pointer over it and left click.
3.5.3 Access using the Intuikey keyboard
Press the Menu key to access the main menu. Use the keyboard joystick to navigate through the menu items.
To select a menu item use the enter key on the keyboard.
3.6 Search
Fig. 3.5 Main menu - Search
1. To search, enter the main menu and click Search.
2. Choose Date/time search or Event search from the pull-down menu.
Alternatively, press the search key to switch to Date/time search directly.
3.6.1 Date/time search
– Select start date and time and click Ok to start playback. Playback of the displayed cameos will start.
Fig. 3.6 Search by date and time
F.01U.074.599 | V 1.0 | 2008.03 User manual Bosch Security Systems
Divar XF Operating instructions | en 23
3.6.2 Event search
Fig. 3.7 Search alarm/motion menu - Search options
Search criteria
–Under Select Channels, specify the camera inputs to search for. The selected inputs will
be highlighted.
–Set Search for to search for alarm events, motion events, or both. Set to All events so
that the search is not restricted by an event type.
– To set the Search direction, select Forward to search from start time to end time or
Backward to search from end time to start time.
–Under Start time and End time, fill in date and time values to determine the time span of
the search.
–Select Search to start the search.
Bosch Security Systems User manual F.01U.074.599 | V 1.0 | 2008.03
24 en | Operating instructions Divar XF
Fig. 3.8 Search alarm/motion menu - Search results
Search results
– The recording fitting the filter and closest to the selected date and time is shown first. – Use the up/down arrow keys to move through the list. The selected recording is shown in
the preview window.
– Press the enter key for a full-screen playback of the selected recording.
– Press the escape key to return to the search results menu.
3.7 Export
Fig. 3.9 Main menu - Export video
The export menu is accessed from the top menu. It allows you to write segments of recorded video and audio to a USB storage device. The main export screen shows information about the connected media and a list of the video segments to be archived.
F.01U.074.599 | V 1.0 | 2008.03 User manual Bosch Security Systems
Divar XF Operating instructions | en 25
Fig. 3.10 Export video menu
1. Choose a memory device from the Destination selection box. Media status will display the status of the selected memory device, while Free space displays the available space for archiving. –Select Erase to empty the selected memory device.
2. A list of the video segments to be archived is displayed.
3. To add a video segment to the list, click Add. a. Fill in a Start time and End time for the video segments you wish to archive. b. Select the camera numbers you wish to archive. c. Click OK to place the segment in the list.
– To change a video segment in the list, select it and click Change.
– To remove a video segment from the list, select it and click Remove.
The archive list is saved until archiving is carried out. Video segments that have been partially overwritten or deleted from Divar’s internal hard drive(s) are removed from the list.
4. Place a check mark next to Authenticity check to authenticate the video segments before archiving.
5. Select Start export to write the video segments to the USB device. a. Select Stop export to cancel the archiving process. b. Select Details for an error report if the authenticity check or archiving is
unsuccessful. If the total size of the video segments is greater than the memory device’s free space, then only the first segments that fit are archived. Those segments that are not archived remain in the list so that they can be archived to a new device.
Bosch Security Systems User manual F.01U.074.599 | V 1.0 | 2008.03
26 en | Operating instructions Divar XF
3.8 System information
Fig. 3.11 Main menu - System information
The System information menu is accessed from the top menu. The System information menu contains two submenus: – Status - opens a menu to view status information. – Logbook - opens a menu to view the system log.
3.8.1 Status
The Status submenu contains five tabs displaying status information of the DVR and the internal hard disks.
Version Info
Displays the installed firmware version, serial number, and other version-related information for service purposes.
Storage status
Displays information on disk size and content.
Fig. 3.12 Status menu - Storage status
– Earliest recording - displays date and time of the earliest (oldest) recording on disk.
F.01U.074.599 | V 1.0 | 2008.03 User manual Bosch Security Systems
Divar XF Operating instructions | en 27
– Latest recording - displays date and time of the latest (newest) recording on disk. – Total Disk Size - displays the total installed disk space. – Time till overwrite - estimated time video is retained until overwriting. – Authenticity check - click to check authenticity of recorded audio and video. – Installed hard disks - gives a status overview of the installed harddisks.
Video signals
Displays the system video mode (PAL/NTSC) and video input status.
Recording status
– Currently recording active profile - displays current profile – Alarm recording at input - displays which inputs are in alarm recording mode – Motion recording at input - displays which inputs are in motion recording mode – Current recording status - displays video and audio recording status for each input
Sensors
Displays actual temperature and voltage sensor values. In case temperature levels are outside of the normal range, the displayed values will be yellow. If this occurs, check that the ambient temperature is within the recommended specifications Section 9.1.2 Environmental and that there is proper air ventilation. In case the temperature reaches a critical level, the unit will automatically shut down. To restart the unit, disconnect the power cord, wait for at least 30 seconds, and then reconnect the power cord.
Sensor name Lower limit Upper limit
Processor 5 °C / 41 °F 100 °C / 212 °F Air inlet 5 °C / 41 °F 45 °C / 113 °F Air outlet 5 °C / 41 °F 55 °C / 131 °F Hard disk #1 5 °C / 41 °F 55 °C / 131 °F Hard disk #2 5 °C / 41 °F 55 °C / 131 °F Hard disk #3 5 °C / 41 °F 55 °C / 131 °F Hard disk #4 5 °C / 41 °F 55 °C / 131 °F
Table 3.1 Temperature sensors
Voltage level Lower limit Upper limit
12 Volt 10.8 V 13.2 V 5 Volt 4.7 V 5.3 V
3.3 Volt 3.1 V 3.5 V
Table 3.2 Power supply levels
3.8.2 Logbook
Displays historic system events.
Logbook filter
Set various filter criteria to search in a specified time period for various system events.
Bosch Security Systems User manual F.01U.074.599 | V 1.0 | 2008.03
28 en | Operating instructions Divar XF
Fig. 3.13 Logbook menu - Logbook filter
1. Enter start and end times.
2. Make a selection of which system events to show. – Logbook contents - shows the earliest and latest available log contents. – Show - click to show the results.
Logbook results
Shows the Date, Time, and Event type of various system events. A video preview screen of the selected event is shown, if applicable.
3.9 Triggers and alarms
Various types of events change the way the unit works. These events are: – an alarm input signal applied to the unit; – motion detection in a camera signal; – a loss of video from one of the cameras; – an internal alert from the unit itself (i.e. disk failure, temperature alarm). The way the unit reacts to events depends on how it is programmed. An event can cause either a trigger or an alarm. A trigger changes the way the unit works but does not require a response from the user. An alarm also changes the way the unit works but, in addition, usually activates several indicators and requires the user to acknowledge the alarm situation. The unit reacts to an event in any one of the following ways:
Alarms
– A beeper sounds. – A status message is displayed.
F.01U.074.599 | V 1.0 | 2008.03 User manual Bosch Security Systems
Divar XF Operating instructions | en 29
– An alarm icon is displayed. – The border around a cameo changes color to red.
– An alarm or video loss indicator flashes.
– The indicator on the key flashes. – An output relay is activated.
Alarms and triggers
– A motion indicator flashes. – The view modes on the monitors change. – A controllable camera might be moved to a pre-defined position. – Recording behavior changes. – The unit changes the way it operates via pre-defined profiles.
Background events
Triggers and alarms can change background tasks that a user may not notice. Unit responses that are not visible to the user are, for example, a change in recording speed, the activation of the output relay, and event logging. The unit can also be configured to record upon the activation of an alarm input. A trigger may change the way the camera images are displayed on the monitors without requiring your intervention.
3.9.1 Alarm inputs
If an input causes an alarm
– Monitors A and B can switch to a pre-programmed view mode. – Monitor A: The border around the displayed cameos is red. The alarm icon is displayed in
the corresponding cameo. An alarm status message is displayed.
– Monitor B: Multiscreen or sequenced display of pre-programmed cameras.
– The alarm beeper sounds. The alarm and the indicators flash. – A controllable camera might be moved to a pre-defined position.
Acknowledging an input alarm
Press the acknowledge key to acknowledge the alarm.
– The beeper is silent.
– The alarm and indicators are no longer lit. – The alarm status message disappears.
– The last-used view mode is restored. The alarm icon remains visible as long as the input causing the alarm is active. If an alarm is not acknowledged, the beeper switches off after the dwell time but the alarm still needs to be acknowledged.
If auto-acknowledge is enabled the beeper, and the alarm and indicators, switch off after the dwell time.
3.9.2 Motion events
If a motion detection signal causes an event
– Monitors A and B can switch to display the motion events. – The motion icon is displayed in the corresponding cameo. An alarm status message is
displayed.
Bosch Security Systems User manual F.01U.074.599 | V 1.0 | 2008.03
30 en | Operating instructions Divar XF
– The motion indicator on the front panel flashes.
3.9.3 Video loss alarm
If the loss of a video signal causes an alarm:
Monitor A or B can be configured to show the video loss signal. – One or both monitors can switch to a multiscreen view. The lost camera signal is
displayed as a black cameo with the video loss message. On monitor A, the border around the camera with the video loss is red. An alarm status message is displayed.
– The alarm beeper sounds.
– The video loss and indicators flash.
Acknowledging a video loss alarm
Press the acknowledge key to acknowlede a video loss alarm.
– The beeper is silent.
– The video loss and indicators are no longer lit. – The alarm status message disappears.
– The last-used view mode is restored. If the camera with video loss is visible, the black cameo and the video loss message continue to be displayed as long as there is no video present. If an alarm is not acknowledged, the beeper switches off after the dwell time but the alarm still needs to be acknowledged.
If auto-acknowledge is enabled the beeper, and the video loss and indicators, switch off after the dwell time.
3.9.4 Multiple alarms
One or both monitors can switch to a multiscreen view if more than one alarm occurs. The
latest alarm status message is always shown. Press the acknowledge key to deactivate all alarms.
F.01U.074.599 | V 1.0 | 2008.03 User manual Bosch Security Systems
Bosch Security Systems
www.boschsecurity.com © Bosch Security Systems, 2008
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
