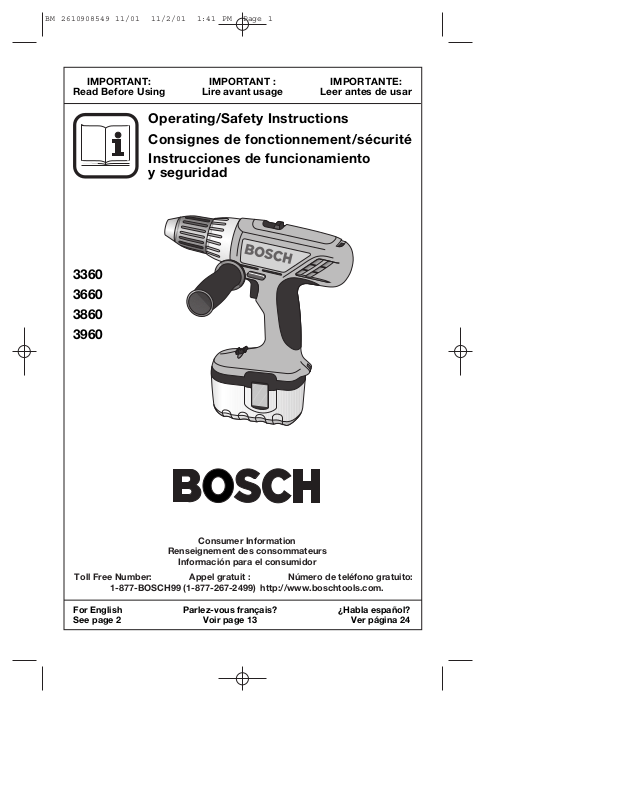

BOSCH 3360, 3660, 3860, 3960 User guide
Consumer Information
Renseignement des consommateurs
Información para el consumidor
Toll Free Number: Appel gratuit : Número de teléfono gratuito:
1-877-BOSCH99 (1-877-267-2499) http://www.boschtools.com.
Operating/Safety Instructions
Consignes de fonctionnement/sécurité
Instrucciones de funcionamiento
y seguridad
3360
3660
3860
3960
IMPORTANT: IMPORTANT : IMPORTANTE:
Read Before Using Lire avant usage Leer antes de usar
For English Parlez-vous français? ¿Habla español?
See page 2 Voir page 13 Ver página 24
BM 2610908549 11/01 11/2/01 1:41 PM Page 1
Read and understand all instructions. Failure to follow all instructions
listed below, may result in electric shock, fire and/or serious personal
injury.
SAVE THESE INSTRUCTIONS
-2-
Work Area
Keep your work area clean and well lit.
Cluttered benches and dark areas invite
accidents.
Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases, or dust. Power
tools create sparks which may ignite the dust
or fumes.
Keep by-standers, children, and visitors
away while operating a power tool.
Distractions can cause you to lose control.
Electrical Safety
Do not abuse the cord. Never use the cord
to carry the tool. Keep cord away from
heat, oil, sharp edges, or moving parts.
Replace damaged cords immediately.
Damaged cords may create a fire.
A battery operated tool with integral
batteries or a separate battery pack must
be recharged only with the specified
charger for the battery. A charger that may
be suitable for one type of battery may create
a risk of fire when used with another battery.
Use battery operated tool only with
specifically designated battery pack. Use
of any other batteries may create a risk of
fire.
Personal Safety
Stay alert, watch what you are doing, and
use common sense when operating a
power tool. Do not use tool while tired or
under the influence of drugs, alcohol, or
medication. A moment of inattention while
operating power tools may result in serious
personal injury.
Dress properly. Do not wear loose
clothing or jewelry. Contain long hair.
Keep your hair, clothing, and gloves away
from moving parts. Loose clothes, jewelry,
or long hair can be caught in moving parts.
Avoid accidental starting. Be sure switch
is in the locked or off position before
inserting battery pack. Carrying tools with
your finger on the switch or inserting the
battery pack into a tool with the switch on
invites accidents.
Remove adjusting keys or wrenches
before turning the tool on. A wrench or a
key that is left attached to a rotating part of
the tool may result in personal injury.
Do not overreach. Keep proper footing
and balance at all times. Proper footing and
balance enable better control of the tool in
unexpected situations.
Use safety equipment. Always wear eye
protection. Dust mask, non-skid safety
shoes, hard hat, or hearing protection must
be used for appropriate conditions.
Tool Use and Care
Use clamps or other practical way to
secure and support the workpiece to a
stable platform. Holding the work by hand
or against your body is unstable and may
lead to loss of control.
Do not force tool. Use the correct tool for
your application. The correct tool will do the
job better and safer at the rate for which it is
designed.
Do not use tool if switch does not turn it
on or off. A tool that cannot be controlled
with the switch is dangerous and must be
repaired.
Disconnect battery pack from tool or
place the switch in the locked or off
position before making any adjustments,
changing accessories, or storing the tool.
Such preventive safety measures reduce the
risk of starting the tool accidentally.
Store idle tools out of reach of children
and other untrained persons. Tools are
dangerous in the hands of untrained users.
!
WARNING
General Safety Rules -
For All Battery Operated Tools
BM 2610908549 11/01 11/2/01 1:41 PM Page 2
-3-
Safety Rules for Cordless Drill / Drivers
When battery pack is not in use, keep it
away from other metal objects like: paper
clips, coins, keys, nails, screws, or other
small metal objects that can make a
connection from one terminal to another.
Shorting the battery terminals together may
cause sparks, burns, or a fire.
Maintain tools with care. Keep cutting
tools sharp and clean. Properly maintained
tools with sharp cutting edge are less likely
to bind and are easier to control.
Check for misalignment or binding of
moving parts, breakage of parts, and any
other condition that may affect the tool's
operation. If damaged, have the tool
serviced before using. Many accidents are
caused by poorly maintained tools.
Use only accessories that are
recommended by the manufacturer for
your model. Accessories that may be
suitable for one tool may create a risk of
injury when used on another tool.
Service
Tool service must be performed only by
qualified repair personnel. Service or
maintenance performed by unqualified
personnel may result in a risk of injury.
When servicing a tool, use only identical
replacement parts. Follow instructions in
the Maintenance section of this manual.
Use of unauthorized parts or failure to follow
Maintenance Instructions may create a risk
of shock or injury.
Hold tool by insulated gripping surfaces
when performing an operation where the
cutting tools may contact hidden wiring
or its own cord. Contact with a “live” wire
will make exposed metal parts of the tool
“live” and shock the operator. Do not drill,
fasten or break into existing walls or other
blind areas where electrical wiring may exist.
If this situation is unavoidable, disconnect all
fuses or circuit breakers feeding this
worksite.
Always use auxiliary handle for maximum
control over torque reaction or kick-back.
High torque 3/8" and larger chuck capacity
drills are equipped with auxiliary handles.
Always wear safety goggles or eye
protection when using this tool. Use a
dust mask or respirator for applications
which generate dust.
Secure the material being drilled. Never
hold it in your hand or across legs.
Unstable support can cause the drill bit to
bind causing loss of control and injury.
Disconnect battery pack from tool or
place the switch in the locked or off
position before making any assembly,
adjustments or changing accessories.
Such preventive safety measures reduce the
risk of starting the tool accidentally.
Position yourself to avoid being caught
between the tool or side handle and walls
or posts. Should the bit become bound or
jammed in the work, the reaction torque of
the tool could crush your hand or leg.
If the bit becomes bound in the
workpiece, release the trigger
immediately, reverse the direction of
rotation and slowly squeeze the trigger to
back out the bit. Be ready for a strong
reaction torque. The drill body will tend to
twist in the opposite direction as the drill bit
is rotating.
Do not grasp the tool or place your hands
too close to the spinning chuck or drill bit.
Your hand may be lacerated.
When installing a drill bit, insert the shank
of the bit well within the jaws of the
chuck. If the bit is not inserted deep
enough, the grip of the jaws over the bit is
reduced and the loss of control is increased.
Do not use dull or damaged bits and
accessories. Dull or damaged bits have a
greater tendency to bind in the workpiece.
When removing the bit from the tool avoid
contact with skin and use proper
protective gloves when grasping the bit or
accessory. Accessories may be hot after
prolonged use.
Check to see that keys and adjusting
wrenches are removed from the drill
before switching the tool "ON". Keys or
BM 2610908549 11/01 11/2/01 1:41 PM Page 3
Battery/Charger
wrenches can fly away at high velocity
striking you or a bystander.
Do not run the drill while carrying it at
your side. A spinning drill bit could become
entangled with clothing and injury may
result.
This tool may be used with sanding and
polishing disks, grinding wheels, wire
wheel and wire cup brushes. These
accessories must be rated for at least the
speed recommended on the tool warning
label. Wheels and other accessories
running over rated speed can fly apart and
cause injury.
Avoid bouncing and snagging the wheels,
discs or brushes especially when working
corners, sharp edges, etc. This can cause
loss of control and kickback.
Some dust created by
power sanding, sawing,
grinding, drilling, and other construction
activities contains chemicals known to
cause cancer, birth defects or other
reproductive harm. Some examples of
these chemicals are:
• Lead from lead-based paints,
• Crystalline silica from bricks and cement
and other masonry products, and
• Arsenic and chromium from chemically-
treated lumber.
Your risk from these exposures varies,
depending on how often you do this type of
work. To reduce your exposure to these
chemicals: work in a well ventilated area,
and work with approved safety equipment,
such as those dust masks that are specially
designed to filter out microscopic particles.
-4-
Before using battery charger, read all
instructions and cautionary markings on
(1) battery charger, (2) battery pack, and
(3) product using battery.
Use only the charger which accompanied
your product or direct replacement as
listed in the catalog or this manual. Do not
substitute any other charger. Use only Bosch
approved chargers with your product. See
Functional Description and Specifications.
Do not disassemble charger or operate
the charger if it has received a sharp blow,
been dropped or otherwise damaged in
any way. Replace damaged cord or plugs
immediately. Incorrect reassembly or
damage may result in electric shock or fire.
Do not recharge battery in damp or wet
environment. Do not expose charger to
rain or snow. If battery case is cracked or
otherwise damaged, do not insert into
charger. Battery short or fire may result.
Charge only Bosch approved rechargeable
batteries. See Functional Description and
Specifications. Other types of batteries may
burst causing personal injury and damage.
Charge battery pack in temperatures
above +40 degrees F (4 degrees C) and
below +105 degrees F (41 degrees C).
Store tool and battery pack in locations
where temperatures will not exceed 120
degrees F (49 degrees C). This is important
to prevent serious damage to the battery
cells.
Battery leakage may occur under extreme
usage or temperature conditions. Avoid
contact with skin and eyes. The battery
liquid is caustic and could cause chemical
burns to tissues. If liquid comes in contact
with skin, wash quickly with soap and water,
then with lemon juice or vinegar. If the liquid
contacts your eyes, flush them with water for
a minimum of 10 minutes and seek medical
attention.
Place charger on flat non-flammable
surfaces and away from flammable
materials when re-charging battery pack.
The charger and battery pack heat during
charging. Carpeting and other heat
insulating surfaces block proper air
circulation which may cause overheating of
the charger and battery pack. If smoke or
melting of the case are observed unplug the
charger immediately and do not use the
battery pack or charger.
Use of an attachment not recommended or sold by Bosch may result in a
risk of fire, electric shock or injury to
persons.
!
WARNING
BM 2610908549 11/01 11/2/01 1:41 PM Page 4
-5-
When batteries are not in
tool or charger, keep them
away from metal objects. For example, to
protect terminals from shorting DO NOT
place batteries in a tool box or pocket with
nails, screws, keys, etc. Fire or injury may
result.
DO NOT PUT BATTERIES INTO FIRE OR
EXPOSE TO HIGH HEAT. They may
explode.
Do not attempt to disassemble the battery or
remove any component projecting from
the battery terminals. Fire or injury may
result. Prior to disposal, protect exposed
terminals with heavy insulating tape to
prevent shorting.
NICKEL-CADMIUM BATTERIES
If equipped with a nickel-cadmium battery,
the battery must be collected, recycled or
disposed of in an environmentally sound
manner.
“The EPA certified RBRC
Battery Recycling Seal on the
nickel-cadmium (Ni-Cd)
battery indicates S-B Power
Tool Company is voluntarily
participating in an industry
program to collect and recycle these
batteries at the end of their useful life, when
taken out of service in the United States or
Canada. The RBRC program provides a
convenient alterative to placing used Ni-Cd
batteries into the trash or the municipal
waste stream, which may be illegal in your
area.
Please call 1-800-8-BATTERY for information
on Ni-Cd battery recycling and disposal
bans/restrictions in your area, or return your
batteries to a Skil/Bosch/Dremel Service
Center for recycling. S-B Power Tool
Company’s involvement in this program is
part of our commitment to preserving our
environment and conserving our natural
resources.”
NICKEL-METAL HYDRIDE BATTERIES
If equipped with a nickel-metal hydride
battery, the battery can be disposed of in a
municipal solid waste stream.
!
WARNING
!
WARNING
Battery Care
Battery Disposal
BM 2610908549 11/01 11/2/01 1:41 PM Page 5
-6-
IMPORTANT: Some of the following symbols may be used on your tool. Please study them
and learn their meaning. Proper interpretation of these symbols will allow you to operate the
tool better and safer.
Symbol Name Designation/Explanation
V Volts Voltage (potential)
A Amperes Current
Hz Hertz Frequency (cycles per second)
W Watt Power
kg Kilograms Weight
min Minutes Time
s Seconds Time
Diameter Size of drill bits, grinding wheels, etc.
n
0
No load speed Rotational speed, at no load
.../min Revolutions or reciprocation per minute Revolutions, strokes, surface speed,
orbits etc. per minute
0 Off position Zero speed, zero torque...
1, 2, 3, ... Selector settings Speed, torque or position settings.
I, II, III, Higher number means greater speed
Infinitely variable selector with off Speed is increasing from 0 setting
Arrow Action in the direction of arrow
Alternating current Type or a characteristic of current
Direct current Type or a characteristic of current
Alternating or direct current Type or a characteristic of current
Class II construction Designates Double Insulated
Construction tools.
Earthing terminal Grounding terminal
Warning symbol Alerts user to warning messages
Ni-Cad RBRC seal Designates Ni-Cad battery recycling
program
Symbols
0
This symbol designates
that this tool is listed by
Underwriters Laboratories.
This symbol designates
that this tool is listed by
the Canadian Standards
Association.
This symbol designates
that this tool is listed to
Canadian Standards by
Underwriters Laboratories.
This symbol
designates
that
this tool
complies
to NOM
Mexican
Standards.
This symbol designates
that this tool is listed by
Underwriters Laboratories,
and listed to Canadian
Standards by Underwriters
Laboratories.
BM 2610908549 11/01 11/2/01 1:41 PM Page 6
Tool
Model number 3360 3660 3860 3960
Voltage rating 12 V 14.4 V 18 V 24 V
No load speed 1 n
0
0-450/min n0 0-450/min n0 0-400/min n0 0-400/min
No load speed 2 n
0
0-1500/min n0 0-1500/min n0 0-1400/min n0 0-1300/min
Charge time 1 hr. 1 hr. 1 hr. 1 hr.
Maximum Capacities
Chuck size 1/2" 1/2" 1/2" 1/2"
Screw sizes #16 x 3" #16 x 3" #14 x 4" #16 x 4"
Mild metal 1/2" 1/2" 5/8" 3/4"
Hard wood 1-1/4" 1-1/4" 1-5/8" 1-3/4"
Soft wood 1-3/4" 1-3/4" 2" 2-1/4"
Charger BC001-6 & BC016 BC001-6 & BC016 BC003, 4, 6, & BC016 BC004, 6, & BC016
Battery pack BAT045 BAT040 BAT025 BAT030
Amperage rating 1.9 A 1.9 A 2.5 A 2.5 A
Voltage rating 120 V 60 Hz 120 V 60 Hz 120 V 60 Hz 120 V 60 Hz
BC006 charger requires 12 V DC input
NOTE: ONLY USE CHARGERS LISTED ABOVE
-7-
Functional Description and Specifications
Disconnect battery pack from tool or place the switch in the locked or
off position before making any assembly, adjustments or changing
accessories. Such preventive safety measures reduce the risk of starting the tool
accidentally.
!
WARNING
Cordless Drills/Drivers
KEYLESS
CHUCK
GEAR
SHIFTER
ADJUSTABLE
CLUTCH
VENTILATION
OPENINGS
REVERSING
SWITCH LEVER
BATTERY PACK
BATTERY
RELEASE TABS
BIT AND BIT
STORAGE
VARIABLE
SPEED TRIGGER
SWITCH
FIG. 1
RUBBERIZED
GRIP
AUXILIARY
HANDLE
BM 2610908549 11/01 11/2/01 1:41 PM Page 7
INSERTING BITS
Move reverse switch lever to the center
“OFF” position. Remove battery pack and
rotate the clutch ring to the drill bit symbol
“ ”. Rotate the chuck sleeve counterclockwise viewing from chuck end, and open
chuck to approximate drill bit diameter.
Insert a clean bit up to the drill bit flutes for
small bits, or as far as it will go for large bits.
Close chuck by rotating the chuck sleeve
clockwise and securely tighten by hand.
Do not use the power of
the drill while grasping
chuck to loosen or tighten bit. Friction
burn or hand injury is possible if attempting
to grasp the spinning chuck.
REMOVING CHUCK
Rotate the clutch ring to the drill bit
symbol “ ”. Open the chuck all the way,
remove left-hand thread screw inside chuck
by turning it clockwise. Insert the short arm
of a 1/2" hex key wrench and close jaws on
flats of wrench. Strike long arm of wrench
sharply counterclockwise, remove wrench
and unthread chuck from spindle (Fig. 2).
-8-
Operating Instructions
VARIABLE SPEED CONTROLLED
TRIGGER SWITCH
Your tool is equipped with a variable speed
trigger switch. The tool speed can be
controlled from the minimum to the
maximum nameplate RPM by the pressure
you apply to the trigger. Apply more pressure
to increase the speed and release pressure
to decrease speed. This accurate speed
control enables you to drill without center
punching. It also permits you to use as a
power screwdriver. Bits are available for
driving screws as well as running bolts and
nuts.
FORWARD/REVERSING LEVER &
TRIGGER LOCK
Your tool is equipped with a forward/
reversing lever and trigger lock located
above the trigger (Fig. 1). This lever was
designed for changing rotation of the chuck,
and for locking the trigger in an “OFF”
position to help prevent accidental starts and
accidental battery discharge. For forward
rotation, (with chuck pointed away from you)
move the lever to the far left. For reverse
rotation move the lever to the far right. To
activate trigger lock move lever to the center
off position.
Do not change direction of
rotation until the tool
comes to a complete stop. Shifting during
rotation of the chuck can cause damage to
the tool.
GEAR SHIFTING
Your tool is equipped with two separate gear
ranges, low gear and high gear. Low gear
provides high-torque and slower drilling
speeds for heavy duty work or for driving
screws. High gear provides faster speeds for
drilling lighter work. To change speeds slide
switch, to the high or low position.
ATTENTION: If your tool appears to be
running, but the chuck will not turn, check to
make sure the gear shifting switch is pushed
fully into desired setting.
ADJUSTABLE CLUTCH
Your tool features 15 clutch settings. Output
torque will increase as the clutch ring, is
rotated from 1 to 15. The drill “ ” position
will lock up the clutch to permit drilling and
driving heavyduty work, and also enables bits
to be changed quickly and easily in the
keyless chuck.
AUXILIARY HANDLE
The auxiliary handle will provide additional
control, support and guidance for the tool. The
handle can be positioned on either side of the
tool. To mount, insert mounting bolt into
mounting hole, and simply thread handle onto
bolt until tight.
BRAKE
When the trigger switch is released it
activates the brake to stop the chuck quickly.
This is especially useful in the repetitive
driving and removal of screws.
!
WARNING
!
CAUTION
3
2
CLOCKWISE
COUNTER
CLOCKWISE
CHUCK
SLEEVE
FIG. 2
BM 2610908549 11/01 11/2/01 1:41 PM Page 8
-9-
Release battery pack from tool by pressing
on both sides of the battery release tabs and
pull downwards. To insert battery, align
battery and slide battery pack into tool until it
locks into position. Do not force.
Always keep the spindle threads, the threads
of the chuck and securing screw free of
debris. To install a chuck, reverse “removing
the chuck” procedure.
INSTALLING CHUCK
RELEASING AND INSERTING BATTERY PACK
CHARGING BATTERY PACK (1 HOUR CHARGER)
INDICATOR
LIGHT
CHARGER
BATTERY PACK
FIG. 3
Plug charger cord into your standard power
outlet, then insert battery pack into
charger.The charger’s green indicator will
begin to “BLINK”. This indicates that the
battery is receiving a fast charge. Fastcharging will automatically stop when the
battery pack is fully charged.
When the indicator light stops “BLINKING”
(and becomes a steady green light) fast
charging is complete.
When you begin the charging process of the
battery pack, a steady green light could also
mean the battery pack is too hot or too cold.
The purpose of the light is to indicate that the
battery pack is fast-charging. It does not
indicate the exact point of full charge. The
light will stop blinking in less time if the
battery pack was not completely
discharged.
When the battery pack is fully charged,
unplug the charger (unless you're charging
another battery pack) and slip the battery
pack back into the tool handle (Fig.3).
BM 2610908549 11/01 11/2/01 1:41 PM Page 9
Use carbide-tipped masonry bit for cinder
block, mortar, common brick, soft stone and
other materials. The amount of pressure to
be used is dependent upon the type of
material being drilled. Soft materials require
less pressure while the hard materials need
more pressure to prevent the drill bit from
spinning.
DRILLING MASONRY
DRILLING WOOD OR PLASTIC
If backing block is not used, ease up on the
pressure just before the bit breaks through
the wood to avoid splintering. Complete the
hole from the opposite side immediately after
the point breaks through. If bit binds, reverse
the drilling operation to help remove the bit
from the work.
DRILLING METAL
Make a center punch in the material for
easier starting. Use enough pressure to keep
the bit cutting. If the bit is allowed to merely
spin in the hole, it will become dull within a
short time. When drilling a larger hole, it is
faster and easier on your power pack to first
make a smaller hole and enlarge it to the
required size. Lubricate the tip of the bit
occasionally with CUTTING OIL for easier
metal drilling. If bit binds, reverse the drilling
to help remove the bit from the work.
It is not recommended to drill holes larger
than 1/2" diameter through soft steel thicker
than 1/8". Drilling through metal rapidly
drains energy from your power pack.
-10-
1. The battery pack accepts only about 80%
of its maximum capacity with its first few
charge cycles. However, after the first few
charge cycles, the battery will charge to full
capacity.
2. The charger was designed to fast charge
the battery only when the battery
temperature is between 40˚F (4˚C) and 105˚F
(41˚C).
3. A substantial drop in operating time per
charge may mean that the battery pack is
nearing the end of its life and should be
replaced.
4. If you anticipate long periods (i.e. a month
or more) of non-use of your tool, it is best to
run your tool down until it is fully discharged
before storing your battery pack. After a long
period of storage, the capacity at first
recharge will be lower. Normal capacity will be
restored in two or three charge/discharge
cycles. Remember to unplug charger during
storage period.
5. If battery does not charge properly:
a. Check for voltage at outlet by
plugging in some other electrical device.
b. Check to see if outlet is connected to
a light switch which turns power “off” when
lights are turned off.
c. Check battery pack terminals for dirt.
Clean with cotton swab and alcohol if
necessary.
d. If you still do not get proper charging,
take or send tool, battery pack and charger
to your local Bosch Service Center. See
“Tools, Electric” in the Yellow Pages for
names and addresses.
Note: Use of chargers or battery packs not
sold by Bosch may void the warranty.
IMPORTANT CHARGING NOTES
BM 2610908549 11/01 11/2/01 1:41 PM Page 10
This procedure shown in (Fig. 4) will enable
you to fasten materials together with your
Cordless Drill/Screwdriver without stripping,
splitting or separating the material.
First, clamp the pieces together and drill the
first hole 2/3 the diameter of the screw. If the
material is soft, drill only 2/3 the proper
length. If it is hard, drill the entire length.
Second, unclamp the pieces and drill the
second hole the same diameter as the screw
shank in the first or top piece of wood.
Third, if flat head screw is used, countersink
the hole to make the screw flush with the
surface. Then, simply apply even pressure
when driving the screw. The screw shank
clearance hole in the first piece allows the
screw head to pull the pieces tightly together.
The adjustable screw drill accessory will do
all of these operations quickly and easily.
Screw drills are available for screw sizes No.
6, 8, 10 and 12.
-11-
2. Drill same diameter as
screw shank.
3. Countersink
same diameter
as screw head.
1. Drill 2/3 diameter and
2/3 of screw length for
soft materials, full length
for hard materials.
Adjustable
Screw
Drill
Screw
Apply a slight
even pressure
when driving
screws.
FASTENING
WITH SCREWS
FIG. 4
FASTENING WITH SCREWS
BM 2610908549 11/01 11/2/01 1:41 PM Page 11
Loading...
