BMW F 650 GS (US) 2007 Owner's manual

Page 1
Rider's Manual (US Model)
F 650 GS
BMW Motorrad
The Ultimate Riding
Machine
Page 2
Motorcycle/Retailer Data
Motorcycle data
Vehicle Identification Number
Color number
First registration
Registration number
Retailer Data
Contact in Service
Ms./Mr.
Phone number
Retailer's address/phone number (compa­ny stamp)
Page 3

Welcome to BMW

We congratulate you on your choice of a motorcycle from BMW and welcome you to the community of BMW riders. Familiarize yourself with your new motorcycle so that you can ride it safely and confidently in all traffic situations. Please read this Rider's Manual carefully before starting to use your new BMW motorcycle. It contains important information on how to operate the controls and how to make the best possible use of all your BMW's technical features. In addition, it contains information on maintenance and care to help you maintain your motorcycle's reliability and safety, as well as its value. If you have any questions con­cerning your motorcycle, your au­thorized BMW Motorrad retailer
is always happy to provide advice and assistance.
We wish you many miles of safe and enjoyable riding
BMW Motorrad.
Page 4

Table of Contents

You can also use the index at the end of this Rider's Manual to find a specific topic.
1 General instructions . .. . . 5
Overview . . . . . . . . . . . . . . . . . . . . . . 6
Abbreviations and symbols . . . . 6
Equipment . . . . . . . . . . . . . . . . . . . . 7
Technical data . . . . . . . . . . . . . . . . 7
Currentness of this manual . . . . 7
2 Overviews . .. ... ... ... ... .. 9
General view, left side . . . . . . . . 11
General view, right side . . . . . . 13
Underneath seat . . . . . . . . . . . . . 14
Under fairing . . . . . . . . . . . . . . . . . 15
Left handlebar fitting . . . . . . . . . 16
Handlebar fitting, right . . . . . . . . 17
Instrument cluster . . . . . . . . . . . . 18
Headlight . . . . . . . . . . . . . . . . . . . . . 19
3 Status indicators . ... ... 21
Standard displays . . . . . . . . . . . . 22
Displays with onboard com-
OE
puter Displays with Tire Pressure Control TPC/RDC
...................... 23
OE
......... 24
Standard warning indica-
tors . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Warning indicators of on­board computer ABS warning indica-
OE
tors
........................ 30
TPC/RDC warning indica-
OE
tors
........................ 32
Anti-theft alarm warning indi-
OE
cators
OE
........... 29
..................... 37
4 Operation .. . .. ... .. . .. ... 39
Ignition switch and steering
lock . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Electronic immobilizer
(EWS) . . . . . . . . . . . . . . . . . . . . . . . . 41
Clock . . . . . . . . . . . . . . . . . . . . . . . . . 42
Odometer and tripmeters . . . . 42
Onboard computer
OE
........ 43

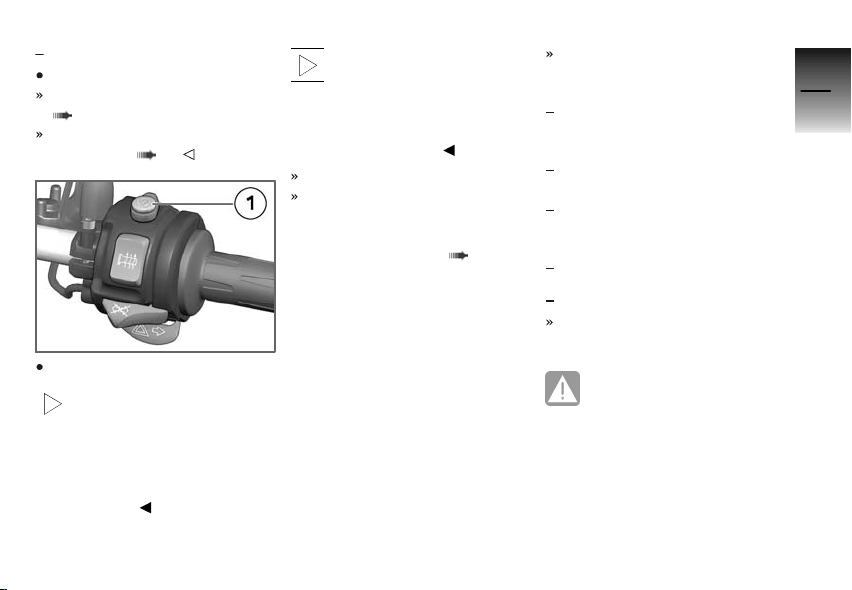

Tire Pressure Control
OE
RDC
....................... 48
Lights . . . . . . . . . . . . . . . . . . . . . . . . 49
Turn indicators . . . . . . . . . . . . . . . 50
Hazard warning flashers . . . . . . 51
Emergency ON/OFF
switch . . . . . . . . . . . . . . . . . . . . . . . . 52
Heated hand grips BMW Motorrad ABS
OE
......... 53
OE
...... 53
Clutch . . . . . . . . . . . . . . . . . . . . . . . . 54
Brakes . . . . . . . . . . . . . . . . . . . . . . . 54
Mirrors . . . . . . . . . . . . . . . . . . . . . . . 55
Spring preload . . . . . . . . . . . . . . . 56
Damping . . . . . . . . . . . . . . . . . . . . . 57
Tires . . . . . . . . . . . . . . . . . . . . . . . . . 57
Headlight . . . . . . . . . . . . . . . . . . . . . 58
Seat . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Helmet holder . . . . . . . . . . . . . . . . 60
5 Riding .. .. .. .. .. .. .. .. .. .. 61
Safety instructions . . . . . . . . . . . 62
Checklist . . . . . . . . . . . . . . . . . . . . . 64
Starting. . . . . . . . . . . . . . . . . . . . . . . 64
Running in . . . . . . . . . . . . . . . . . . . 66
Driving offroad . . . . . . . . . . . . . . . 67
Page 5
Brakes . . . . . . . . . . . . . . . . . . . . . . . 68
Parking your motorcycle . . . . . 69
Refueling . . . . . . . . . . . . . . . . . . . . . 71
6 Technology in detail . .. 73
Brake system with BMW Mo­torrad ABS Tire Pressure Control TPC/ RDC
OE
................ 74
OE
....................... 75
7 Accessories . .. .. .. .. .. .. 79
General instructions . . . . . . . . . . 80
Onboard socket . . . . . . . . . . . . . . 80
Luggage . . . . . . . . . . . . . . . . . . . . . 81
OA
Case Topcase
...................... 82
OA
................... 85
8 Maintenance . . .. ... .. . .. 89
General instructions . . . . . . . . . . 90
Onboard toolkit . . . . . . . . . . . . . . . 90
Engine oil . . . . . . . . . . . . . . . . . . . . 91
Brake system . . . . . . . . . . . . . . . . 92
Brake pads . . . . . . . . . . . . . . . . . . . 93
Brake fluid . . . . . . . . . . . . . . . . . . . . 94
Coolant . . . . . . . . . . . . . . . . . . . . . . . 95
Clutch . . . . . . . . . . . . . . . . . . . . . . . . 96
Tires . . . . . . . . . . . . . . . . . . . . . . . . . 96
Rims . . . . . . . . . . . . . . . . . . . . . . . . . 96
Chain . . . . . . . . . . . . . . . . . . . . . . . . . 97
Wheels . . . . . . . . . . . . . . . . . . . . . . . 98
Front wheel stand . . . . . . . . . . 104
Lamps . . . . . . . . . . . . . . . . . . . . . . 105
Air filter . . . . . . . . . . . . . . . . . . . . . 112
Jump-starting . . . . . . . . . . . . . . 112
Battery . . . . . . . . . . . . . . . . . . . . . 113
9 Care . .. ... .. . .. ... .. .. .. . 119
Care products . . . . . . . . . . . . . . 120
Washing your motorcy-
cle.......................... 120
Cleaning sensitive motorcy-
cle parts . . . . . . . . . . . . . . . . . . . . 120
Paint care . . . . . . . . . . . . . . . . . . 121
Protective wax coating . . . . . 122
Storing motorcycle . . . . . . . . . 122
Returning motorcycle to
use ......................... 122
10 Technical data . .. . .. . 123
Troubleshooting chart . . . . . . 124
Threaded fasteners . . . . . . . . 125
Engine . . . . . . . . . . . . . . . . . . . . . 127
Fuel . . . . . . . . . . . . . . . . . . . . . . . . 128
Engine oil . . . . . . . . . . . . . . . . . . 128
Clutch . . . . . . . . . . . . . . . . . . . . . . 129
Transmission . . . . . . . . . . . . . . . 129
Running gear . . . . . . . . . . . . . . . 130
Brakes . . . . . . . . . . . . . . . . . . . . . 130
Wheels and tires . . . . . . . . . . . 131
Electrical system . . . . . . . . . . . 133
Frame . . . . . . . . . . . . . . . . . . . . . . 135
Dimensions . . . . . . . . . . . . . . . . 135
Weights . . . . . . . . . . . . . . . . . . . . 136
Riding specifications . . . . . . . 137
11 Service . .. .. .. .. . . .. .. . 139
BMW Motorrad Service . . . . 140
BMW Motorrad Service
Quality . . . . . . . . . . . . . . . . . . . . . 140
BMW Motorrad Service Card - On-the-spot break-
down assistance . . . . . . . . . . . 140
BMW Motorrad Service
Network . . . . . . . . . . . . . . . . . . . . 141
Maintenance work . . . . . . . . . . 141
Confirmation of mainte-
nance work . . . . . . . . . . . . . . . . . 142
Confirmation of service . . . . . 147
Reporting
.
Safety Defects.........
154
Page 6
Page 7
General instructions
Overview ............................. 6
Abbreviations and symbols ........... 6
Equipment ............................ 7
Technical data ........................ 7
Currentness of this manual ........... 7
1
z
5
General instructions
Page 8

Overview

1
Chapter 2 of this Rider's Manu­al will provide you with an initial
6
overview of your motorcycle. All maintenance and repair work car­ried out on your motorcycle will be documented in Chapter 11. Proof of the maintenance work performed is a prerequisite for generous treatment of claims. When the time comes to sell your BMW, please remember to hand over this Rider's Manu­al; it is an important part of the motorcycle.
Abbreviations and
z
General instructions
symbols
Indicates warnings that you
must comply with for rea­sons of your safety and the safe­ty of others, and to protect your motorcycle against damage.
Special information on op-
erating and inspecting your motorcycle as well as mainte­nance and adjustment proce­dures.
Indicates the end of an item of information.
Instruction.
Result of an activity.
Reference to a page with more detailed informa­tion.
Indicates the end of ac­cessory or equipment­dependent information.
Tightening torque.
Technical data.
OE Optional equipment
The motorcycles are as­sembled complete with all the BMW optional ex­tras originally ordered.
OA Optional accessories
BMW optional acces­sories can be purchased and installed at your au­thorized BMW Motorrad retailer.
Electronic immobilizer.
EWS
DWA
Anti-theft alarm.
ABS Anti-Lock Brake System.
RDC Tire Pressure Control
(TPC).
Page 9

Equipment

When you ordered your BMW motorcycle, you chose various items of custom equipment. This Rider's Manual describes optional equipment (OE) offered by BMW and selected optional accessories (OA). This explains why the man­ual may also contain descriptions of equipment which you have not ordered. Please note, too, that your motorcycle might not be ex­actly as illustrated in this manual on account of country-specific differences. If your BMW is equipped with options or accessories not de­scribed in this Rider's Manual, then this equipment is described in a separate operating manual.

Technical data

All dimensions, weights and out­puts in the Rider's Manual refer to the Deutsche Institut für Nor­mung e. V. (DIN) and comply with its tolerance regulations. Ver­sions for individual countries may differ.

Currentness of this manual

The high safety and quality stan­dards of BMW motorcycles are maintained by constant devel­opment work on designs, equip­ment and accessories. Because of this, your motorcycle may dif­fer from the information supplied in the Rider's Manual. In addition, BMW Motorrad cannot guarantee the total absence of errors. We hope you will appreciate that no claims can be entertained on the basis of the data, illustrations or descriptions in this manual.
1
z
7
General instructions
Page 10
1
z
8
General instructions
Page 11
Overviews
General view, left side................ 11
General view, right side . . ............ 13
Underneath seat ..................... 14
Under fairing . . ....................... 15
Left handlebar fitting ................. 16
Handlebar fitting, right . . . ............ 17
Instrument cluster ................... 18
Headlight ............................ 19
2
9
z
Overviews
Page 12
2
10
z
Overviews
Page 13

General view, left side

1 Onboard socket ( 80) 2 Seat lock ( 59) 3 Engine oil fill location and oil
dipstick ( 91)
2
11
z
Overviews
Page 14
2
12
z
Overviews
Page 15

General view, right side

1 Fuel filler opening ( 71) 2 Brake-fluid reservoir, rear
( 95)
3 Vehicle Identification
Number (on steering-head bearing), Type plate (on steering-head bearing)
4 Brake-fluid reservoir, front
( 94)
5 Coolant level indicator (be-
hind side panel) ( 95), Coolant fill location (behind side panel) ( 96)
6 Adjuster for spring preload,
rear ( 56)
7 Adjustment of rear damping
( 57)
2
13
z
Overviews
Page 16

Underneath seat

2
1 Location of first-aid kit (OA) 2 Onboard toolkit
14
3 Payload table 4 Tire inflation pressure table 5 Helmet holder ( 60) 6 Rider's Manual (US Model) 7 Tools for adjusting spring
preload ( 56)
z
Overviews
Page 17

Under fairing

1 Battery ( 113) 2 Air filter housing ( 112)
2
15
z
Overviews
Page 18

Left handlebar fitting

2
1 Operating onboard comput-
OE
er
16
2 ABS operation 3 Horn 4 Flashing turn indicators,
5 High-beam headlight and
z
Overviews
( 43)
left ( 50), Hazard warn­ing flashers ( 51)
headlight flasher ( 49)
OE
( 53)
Page 19

Handlebar fitting, right

1 Emergency ON/OFF switch
( 52)
2 Starter button ( 64) 3 Heated hand grips
( 53)
4 Flashing turn indicators,
right ( 50), Hazard warn­ing flashers ( 51)
5 Turn indicators off ( 51),
Hazard warning flashers off ( 52)
OE
2
17
z
Overviews
Page 20

Instrument cluster

2
1 Indicator lights ( 22) 2 Speedometer
18
3 Operating clock ( 42),
Operation of stopwatch ( 46)
4 Multifunction display
( 22)
5 Operating odometer
( 42)
6 Anti-theft alarm indicator
z
light (OE), Sensor for instru-
Overviews
ment lighting, Engine speed warning light
7 Tachometer
The instrument-cluster lighting has automatic day
and night switchover.
OE
OE
( 47)
Page 21

Headlight

1 Low-beam headlight 2 High-beam headlight 3 Parking lights
2
19
z
Overviews
Page 22
2
20
z
Overviews
Page 23
Status indicators
Standard displays .................... 22
Displays with onboard comput-
erOE................................. 23
Displays with Tire Pressure Control TPC/RDC
Standard warning indicators ......... 24
Warning indicators of onboard com-
puterOE.............................. 29
ABS warning indicators
TPC/RDC warning indicatorsOE...... 32
Anti-theft alarm warning
indicatorsOE......................... 37
OE
......................... 24
OE
........... 30
3
21
z
Status indicators
Page 24

Standard displays

3
Multifunction display
22
Indicator lights
Service display
1 Clock ( 42) 2 Odometer and tripmeters
( 42)
z
Status indicators
1 High-beam headlight 2 Flashing turn indicators, left 3 Idling 4 Flashing turn indicators,
right
If the time remaining until the next service lies within a month, the service date is briefly dis­played following the pre-ride check. The month and year are shown with two and four dig­its respectively separated by a colon. In this example the display means "March 2007".
Page 25
If the motorcycle is driven long distances annually, it is possible that earlier service is required. If the odometer reading for the ear­lier service lies within 600 miles (1000 km), the remaining miles (kilometers) are counted down in 60-mile (100-km) steps and briefly displayed following the pre-ride check.
If the service interval has been exceeded, the general warning light also lights up yellow in ad­dition to the date or mileage dis­play. The Service lettering is dis­played continuously.
If the service display already
more than one month be­fore the service date, or if the Service lettering does not stop after the service date is exceed­ed, then the date stored in the instrument cluster must be set. This situation can occur if the battery has been disconnected for a longer time. Consult a certified workshop, preferably an authorized BMW Motorrad retailer, for setting of the date.

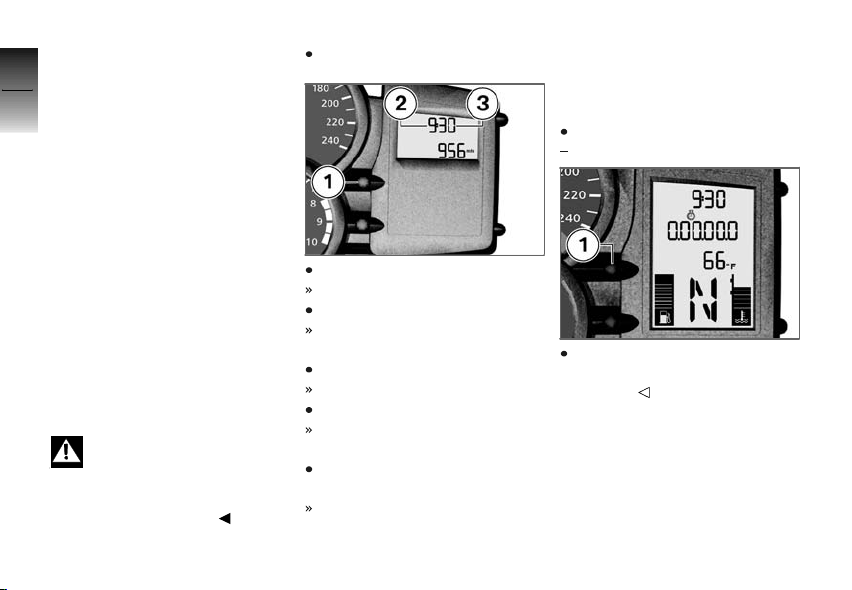

Displays with onboard computer
Multifunction display
1 Onboard computer display
area
2 Gear indicator ( 23) 3 Coolant temperature
( 24)
4 Fuel capacity ( 24)
Gear indicator
display.
OE
OE
( 43)
The gear engaged or N
for neutral appears on the
3
23
z
Status indicators
Page 26
If no gear is engaged, the
3
24
'neutral' indicator light also
lights up.
Coolant temperature
The horizontal bars over the temperature symbol show
the coolant temperature level.
Fuel capacity
The horizontal bars over
the filling station symbol indicate the remaining fuel quan­tity. The top cross bar is shown enlarged and is equal to a corre­spondingly higher fuel level than
z
Status indicators
the other cross bars. When the fuel in the tank is topped up the gauge briefly shows the original level, before the reading is updated.

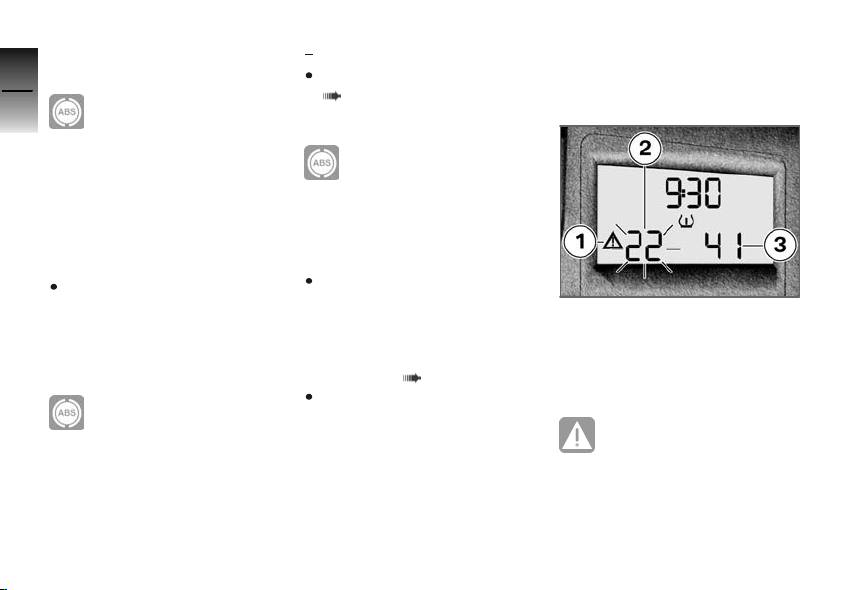

Displays with Tire Pressure Control TPC/
OE
RDC
1 Temperature-compensated
tire inflation pressures ( 48)
OE

Standard warning indicators

Display
Warnings are indicated by the warning lights 1 or by the gener­al warning light 2 in conjunction with a warning or a warning sym­bol in the multifunction display. The general warning light lights up red or yellow, depending on the urgency of the warnings.
Page 27
The warning symbols 1 and 2 can be shown in the multifunc­tion display. Warnings like 3 are shown in the display area of the odometer preceded by the warn­ing triangle 4.
If several warnings are active, all corresponding warning lights and symbols are displayed. Warnings can be displayed in alternation with the odometers ( 42). The general warning light is shown in accordance with the most urgent warning.
The possible warnings are listed on the next page.
3
25
z
Status indicators
Page 28
Overview of warning indicators
3
Indicator lights Displays Meaning
26
Lights up yellow Is indicated Electronic immobilizer is active ( 27)
EWS appears on
the display
Lights up Fuel down to reserve ( 27)
Lights up red Flashes
Lights up yellow Is indicated Engine in emergency-operation mode
z
Status indicators
Flashes
Lights up yellow Is indicated
Coolant temperature too high ( 27)
( 28)
Engine oil pressure insufficient ( 28)
Bulb defective ( 28)
LAMP appears on
the display
Page 29
Electronic immobilizer is active
General warning light shows yellow.
Warning triangle appears on the display.
EWS appears on the display.
Possible cause: The key being used is not autho-
rized for starting, or communica­tion between the key and engine electronics is disrupted.
Remove other motorcycle keys from the ignition key ring. Use the reserve key. Have the defective key re­placed, preferably by an autho­rized BMW Motorrad retailer.
Fuel down to reserve
Fuel-reserve warning light lights up.
A fuel shortage can lead to
misfiring and to the engine dying unexpectedly. Misfiring can damage the catalytic converter, and the engine dying unexpected can lead to accidents. Do not drive until the fuel tank is completely empty.
Possible cause: At the most, the fuel tank still
contains the reserve fuel quantity.
Reserve fuel quantity
≥1.1 gal (≥4l)
Refueling ( 71)

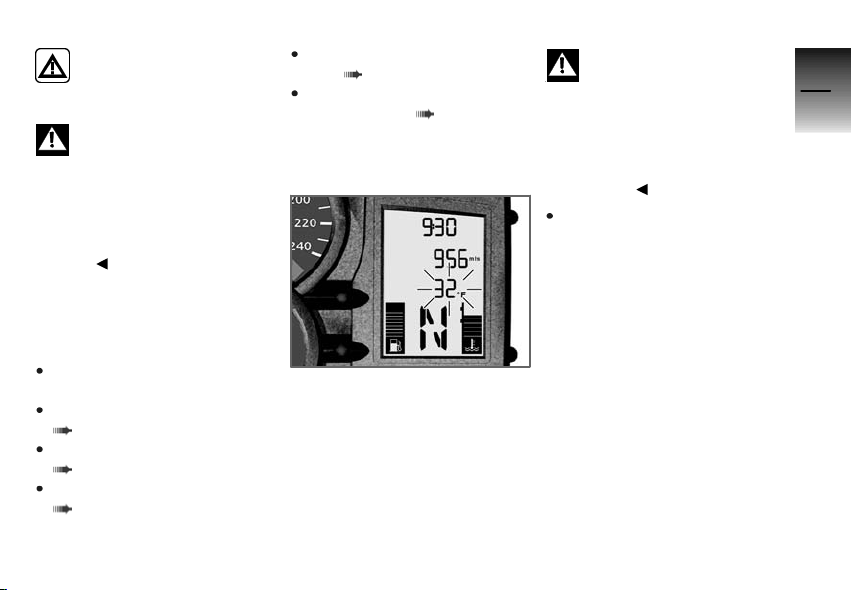

Coolant temperature too high
General warning light shows
red.
The temperature symbol
flashes.
Continued driving with an
overheated engine can re­sult in engine damage. Be sure to observe the measures listed below.
Possible cause: Coolant level is too low.
Checking coolant level ( 95)
If coolant level is too low:
Topping up coolant ( 96)
Possible cause: The coolant temperature is too
high.
If possible, continue driving in the part-load range to cool down the engine. In traffic jams, switch off the engine, but keep the ignition switched on so that the radia­tor fan continues to operate. Should the coolant temperature frequently be too high, have the fault rectified as quickly as possible by a specialized work-
3
27
z
Status indicators
Page 30
shop, preferably an authorized BMW Motorrad retailer.
3
28
Engine in emergency­operation mode
General warning light shows yellow.
Engine symbol appears on the display.
The engine is in the emer-
gency operating mode. On­ly reduced engine performance may be available, which can lead to danger driving situations, es­pecially during passing maneu-
z
Status indicators
vers. Adapt your driving style to the possibly reduced engine performance.
Possible cause: The engine control unit has di-
agnosed a fault. In exceptional cases, the engine stops and can no longer be started. Otherwise,
the engine runs in the emergen­cy operating mode.
Continued driving is possible, however the accustomed en­gine performance may not be available. Have the malfunction corrected as soon as possible by a spe­cialized workshop, preferably an authorized BMW Motorrad retailer.
Engine oil pressure insufficient
Engine oil-pressure warning
light flashes. The oil pressure in the lubricating oil circuit is too low. Stop imme­diately and switch off the engine.
The warning on insufficient
engine oil pressure is no substitute for the function of an oil-level indicator. The cor­rect engine oil level can only be checked on the oil dipstick.

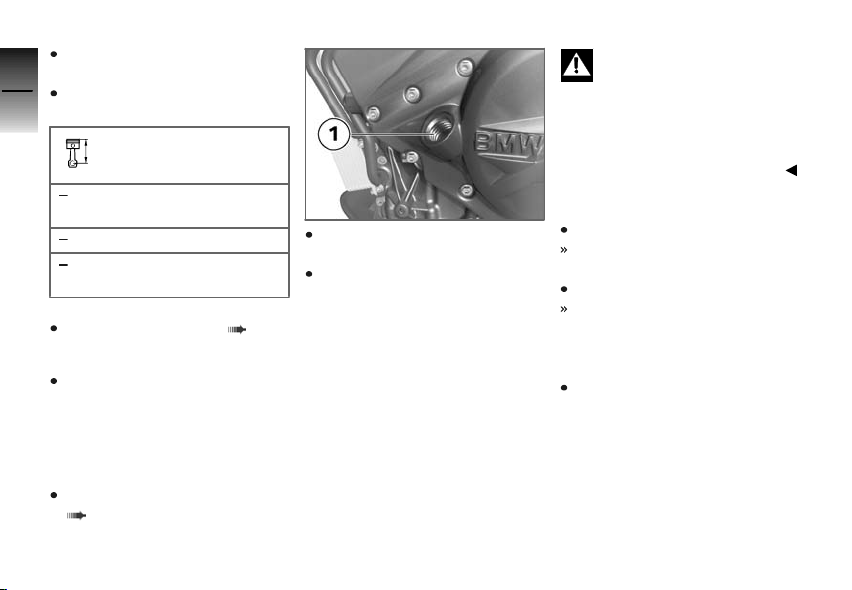

Possible cause: The engine oil level is too low.
Checking engine oil level ( 91)
If oil level is too low:
Topping up engine oil ( 92)
Possible cause: The engine oil pressure is insuffi-
cient.
Driving with insufficient en-
gine oil pressure can result in engine damage. Do not continue driving.
Have the malfunction corrected as soon as possible by a spe­cialized workshop, preferably an authorized BMW Motorrad retailer.
Bulb defective
General warning light shows
yellow.
Page 31
Warning triangle appears on the display.
LAMP appears on the display.
A defective bulb places
your safety at risk because it is easier for other users to oversee the motorcycle. Replace defective bulbs as soon as possible; always carry a complete set of spare bulbs if possible.
Possible cause: Low-beam headlight, parking
light, tail light, brake light or turn indicator bulb defective.
Locate defective bulb with vi­sual check. Replacing low-beam bulb ( 106) Replacing high-beam bulb ( 106) Replacing parking light bulb ( 108)
Replacing brake and tail light bulb ( 110) Replacing front and rear turn indicator bulbs ( 109)
Warning indicators of onboard computer
The ambient temperature display flashes.
Possible cause: The ambient temperature mea-
sured at the motorcycle is lower than 37 °F (3 °C).
OE
The ice warning does not
mean that there is no risk of black ice forming at measured temperatures above 37 °F (3 °C). Always think well ahead when temperatures are low, especially on bridges and where the road is in the shade.
Think well ahead when driving.
3
29
z
Status indicators
Page 32
ABS warning
3
indicators
30
Display

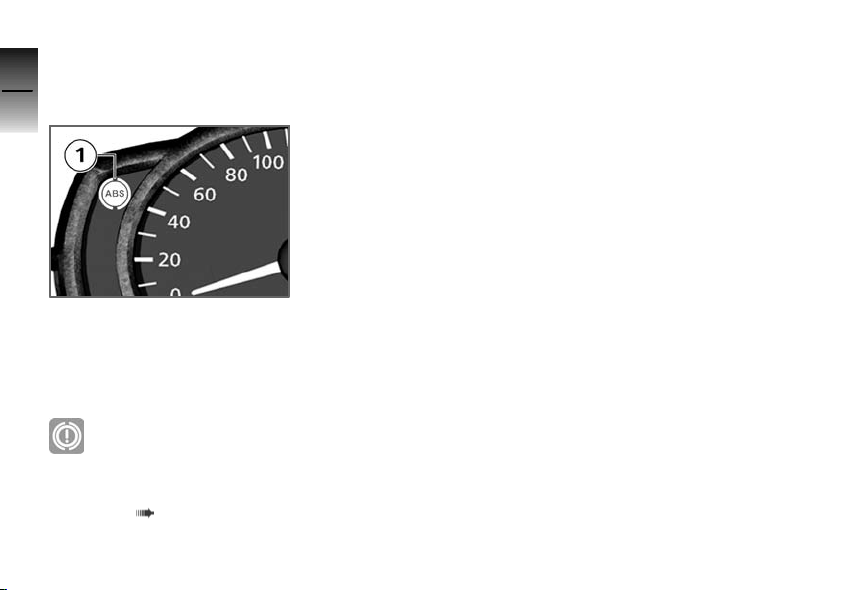

ABS warnings are indicated by the ABS warning light 1.
z
Status indicators
In some countries an alternative display of the ABS warning light is possible.
Possible country-dependent versions.
Additional information on the BMW Motorrad ABS is provided from page ( 74); an overview
OE
of the possible warnings is pro­vided on the following page.
Page 33
Overview of warning indicators Indicator lights Displays Meaning
Flashes
Self-diagnosis not completed ( 32)
3
31
Lights up
Lights up
ABS deactivated ( 32)
ABS error ( 32)
z
Status indicators
Page 34
Self-diagnosis not
3
completed
32
z
Status indicators
ABS warning light flashes.
Possible cause: The ABS function is not avail-
able, because the self-diagno­sis has not been completed. To check the wheel sensors, the motorcycle must be driven a few yards.
Ride off slowly. It must be not­ed that the ABS function is not available until the self-diagnosis has been completed.
ABS deactivated
ABS warning light lights up.
Possible cause: The ABS system has been deac-
tivated by the driver.
with BMW Motorrad ABS Switching on ABS function
( 54)
OE
ABS error
ABS warning light lights up.
Possible cause: The ABS control unit has detect-
ed an error. The ABS function is not available.
Continue driving is possible. It must be noted that the ABS function is not available. Ob­serve additional information on situations which can lead to an ABS error ( 75). Have the malfunction corrected as soon as possible by a spe­cialized workshop, preferably an authorized BMW Motorrad retailer.
TPC/RDC warning indicators
Display
The warning symbol 1 signals a critical tire pressure, and the corresponding air pressure of the front wheel 2 or the rear wheel 3 flashes.
If the critical value is at the
limit of the permissible tol­erance, the general warning light also lights up in yellow. If the de­termined tire pressure is outside the permissible tolerance, the
OE
Page 35
general warning light flashes in red.
Additional information on the BMW Motorrad TPC is provided from page ( 75); an overview of the possible warnings is pro­vided on the following page.
3
33
z
Status indicators
Page 36
Overview of warning indicators
3
Indicator lights Displays Meaning
34
z
Status indicators
Lights up yellow Is indicated
The critical air pres­sure flashes
Flashes red Is indicated Tire pressure outside permissible toler-
The critical air pres­sure flashes
--"or"-- --"
" is displayed
Lights up yellow Is indicated
--"or"-- --"
" is displayed
Lights up yellow Is indicated
RdC appears on
the display.
Tire pressure in limit area of permissible tolerance ( 35)
ance ( 35)
Transmission error ( 35)
Sensor defective or system fault ( 36)
Battery of tire pressure sensor weak ( 36)
Page 37
Tire pressure in limit area of permissible tolerance
General warning light shows yellow.
Warning triangle appears on the display.
Critical air pressure flashes. Possible cause:
The measured tire pressure is in the limit area of the permissible tolerance.
Correct tire pressure in accor­dance with instructions on back of cover of Rider's Manual.
Before adjusting the tire in-
flation pressure, observe the information on temperature compensation and on inflation pressure adjustment in the chap­ter "Technology in detail".
Tire pressure outside permissible tolerance
General warning light flash­es red.
Warning triangle appears on the display.
Critical air pressure flashes. Possible cause:
The measured tire pressure is outside the permissible tolerance.
Check tire for damage and drivability.
Is it still possible to drive with tire:
Incorrect tire inflation pres-
sure result in poorer han­dling of the motorcycle. Always adapt your driving style to the incorrect tire inflation pressure.
Correct tire pressure at next opportunity. Have the tire checked for dam­age by a specialized workshop,
preferably an authorized BMW
Motorrad retailer. If you are unsure about the driv­ability of the tire:
Do not continue driving.
Inform roadside service.
Have the tire checked for dam-
age by a specialized workshop,
preferably an authorized BMW
Motorrad retailer.
Transmission error
"--"or"-- --" is displayed.
Possible cause: The motorcycle's speed has not
exceeded the threshold of ap­prox. 20 mph (30 km/h). The TPC sensors do not transmit their signal until a speed above this threshold is reached ( 75).
Watch TPC display at higher
speed. A permanent fault has
not occurred until the general
warning light also lights up. In
this case:
3
35
z
Status indicators
Page 38
Have fault eliminated by a spe­cialized workshop, preferably
3
an authorized BMW Motorrad
36
retailer.
Possible cause: There is a fault in the radio con-
nection to the TPC sensors. Possible causes are radio sys­tems in the surrounding area, which interfere with the connec­tion between the TPC control unit and the sensors.
Watch the TPC display in an­other environment. A perma­nent fault has not occurred un-
z
Status indicators
til the general warning light also lights up. In this case: Have fault eliminated by a spe­cialized workshop, preferably an authorized BMW Motorrad retailer.
Sensor defective or system fault
General warning light shows yellow.
Warning triangle appears on the display.
--"or"-- --" is displayed.
" Possible cause:
Wheels without installed TPC sensors are mounted.
Retrofit wheel set with TPC sensors.
Possible cause: One or two TPC sensors have
failed.
Have fault eliminated by a spe­cialized workshop, preferably an authorized BMW Motorrad retailer.
Possible cause:
A system fault has occurred.
Have fault eliminated by a spe­cialized workshop, preferably an authorized BMW Motorrad retailer.
Battery of tire pressure
sensor weak
General warning light shows yellow.
Warning triangle appears on the display.
RdC appears on the display.
This error message is only displayed for a short time
following the pre-ride check.
Possible cause:
The battery of the tire pressure
sensor no longer has its full ca-
pacity. The operation of the tire
pressure control is only ensured
for a limited time.
Page 39
Contact a specialized work­shop, preferably an authorized BMW Motorrad retailer.

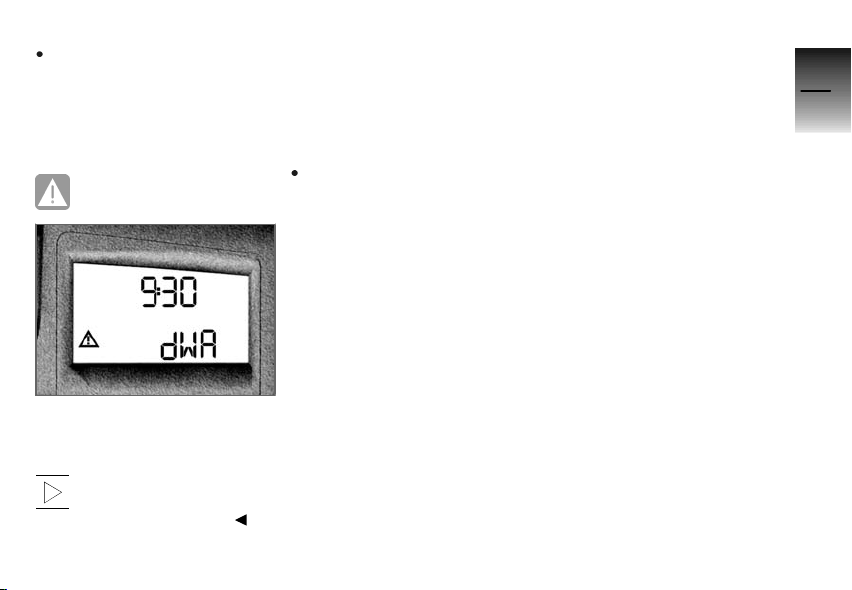

Anti-theft alarm warning indicators
General warning light shows yellow.
OE
Possible cause: The anti-theft alarm battery has
no capacity.The operation of the anti-theft alarm is no longer en­sured with the motorcycle battery disconnected.
Contact a specialized work­shop, preferably an authorized BMW Motorrad retailer.
3
37
z
Status indicators
The warning with the warning triangle in front of it.
following the pre-ride check.
dWA is displayed
This error message is only displayed for a short time
Page 40
3
38
z
Status indicators
Page 41
Operation
Ignition switch and steering lock ..... 40
Electronic immobilizer (EWS) ........ 41
Clock ................................ 42
Odometer and tripmeters ............ 42
Onboard computerOE................ 43
Tire Pressure Control RDC
Lights ................................ 49
Turn indicators ....................... 50
Hazard warning flashers . . ............ 51
Emergency ON/OFF switch.......... 52
Heated hand gripsOE................ 53
BMW Motorrad ABSOE.............. 53
Clutch ............................... 54
Brakes ............................... 54
Mirrors ............................... 55
OE
....... 48
Spring preload ....................... 56
Damping ............................. 57
Tires ................................. 57
Headlight ............................ 58
Seat ................................. 59
Helmet holder ....................... 60
4
39
z
Operation
Page 42
Ignition switch and
4
steering lock
40
Keys
You receive one master key and one spare key. If a key is lost, please note the information on the electronic immobilizer (EWS) ( 41). Ignition key and steering lock, tank filler cap lock and seat lock are all operated with the same
z
Operation
key.
with case
with Topcase The cases and the Topcase can also be ordered with locks for the same key on request. Please contact a specialized workshop
for this purpose, preferably an authorized BMW Motorrad retailer.
OA
OA

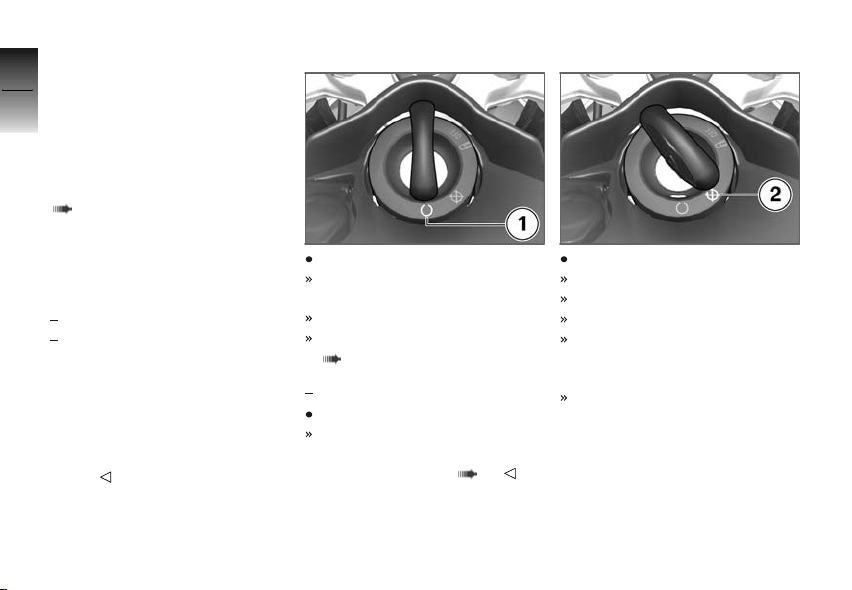

Switching on ignition
Turn key to position 1. Parking lights and all function circuits switched on. Engine can be started. Pre-ride check is performed. ( 65)
with BMW Motorrad ABS Turn key to position 1. In addition to the points named
above, the ABS self-diagnosis is also carried out. ( 66)
Switching off ignition
Turn key to position 2. Light switched off. Handlebars not locked. Key can be removed. Electrically powered acces­sories remain operational for
OE
a limited period of time. Battery can be recharged via onboard socket.
Page 43

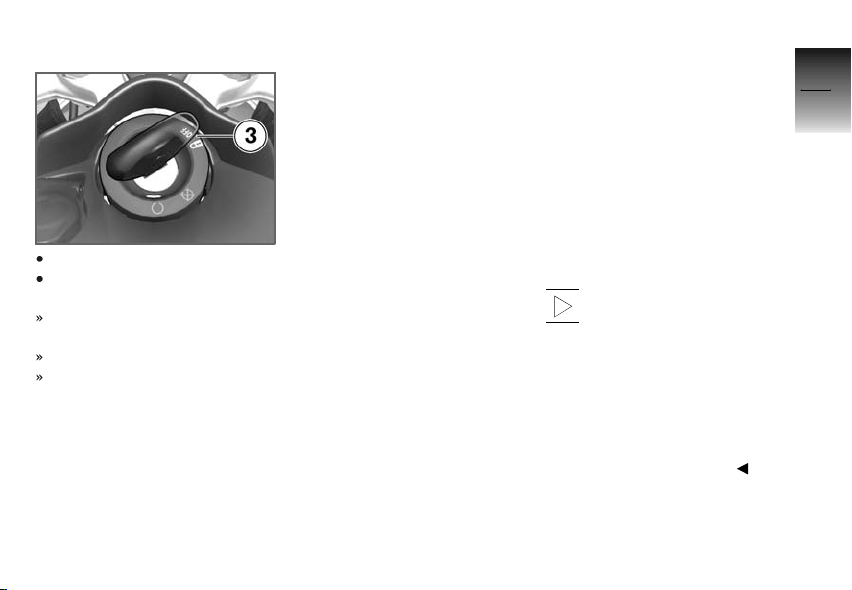

Locking handlebars
Turn handlebars to left. Turn key to position 3 while moving handlebars slightly. Ignition, lights and all function circuits switched off. Handlebars locked. Key can be removed.

Electronic immobilizer (EWS)

Theft protection
The electronic immobilizer EWS helps protect your BMW mo­torcycle from theft, and this en­hanced security is at your dis­posal without any need for you to set parameters or activate addi­tional systems. The engine of a motorcycle fitted with this elec­tronic immobilizer can be started only with the keys that belong to the motorcycle. You can also have your authorized BMW Mo­torrad retailer disable particular keys, for example in the event that you lose your keys. The en­gine cannot be started with a key that has been barred.
Electronics in key
The motorcycle's electronics exchange certain continuously changing signals with the elec­tronics in the key; these signals are specific to your motorcycle and they are transmitted via the ring antenna in the ignition lock. The ignition is not enabled for starting until the key has been recognized as "authorized" for your motorcycle.
A spare key attached to
the same ring as the igni­tion key used to start the engine could "irritate" the electronics, in which case the enabling sig­nal for starting is not issued. The warning multifunction display. Always store the spare key sepa­rately from the ignition key.
EWS is shown in the
4
41
z
Operation
Page 44
Replacement and extra
4
keys
Replacement and spare keys
42
are only available through an au­thorized BMW Motorrad retailer. The keys are part of an integrat­ed security system, so the retail­er is under an obligation to check the legitimacy of all applications for replacement/extra keys. If you want to have a lost key barred, you must bring along all other
z
Operation
keys that belong to the motorcy­cle. A key that has been barred can subsequently be cleared and reactivated for use.

Clock

Setting clock
Attempting to set the clock
while riding the motorcycle can lead to accidents. Adjust the clock only when the motorcycle is stationary.
Switch on ignition.
Hold down button 1. Hours 2 flash. Press button 1. Hours increase by one each time button is pressed. Hold down button 1. Minutes 3 flash. Press button 1. Minutes increase by one each time button is pressed. Press and hold button 1 or do not press any further button. End setting; set time is dis­played.

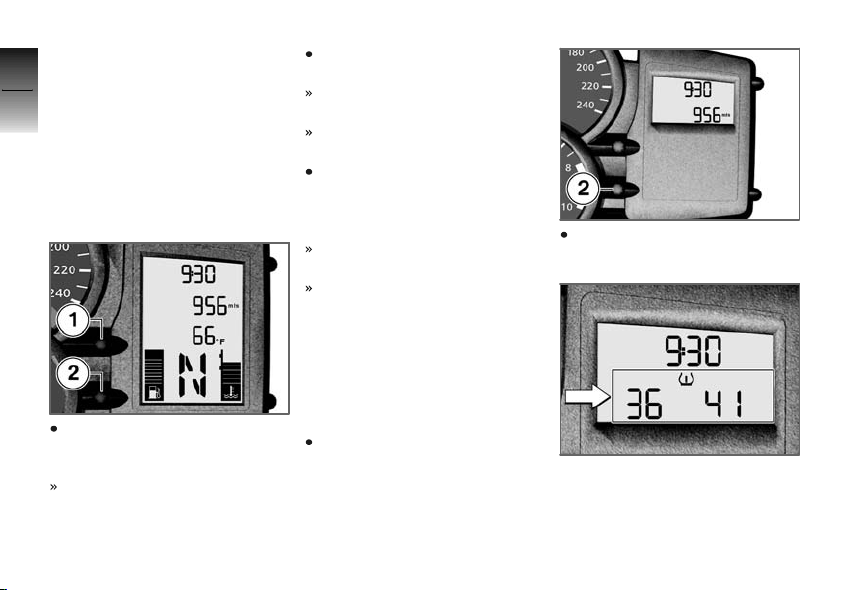

Odometer and tripmeters

Selecting readings

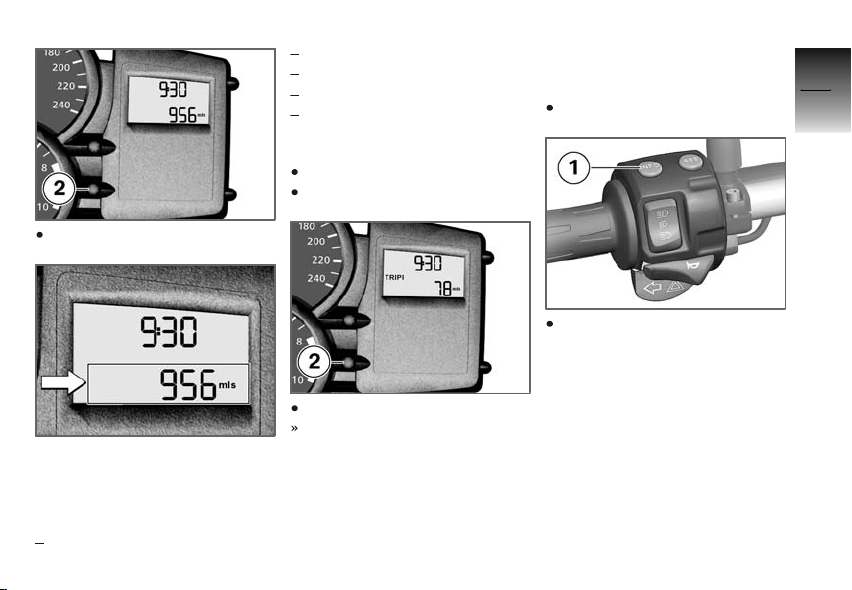

Switch on ignition. with onboard computer
If necessary, switch over from stopwatch to odometer with button 1.
OE
Page 45
Press button 2.

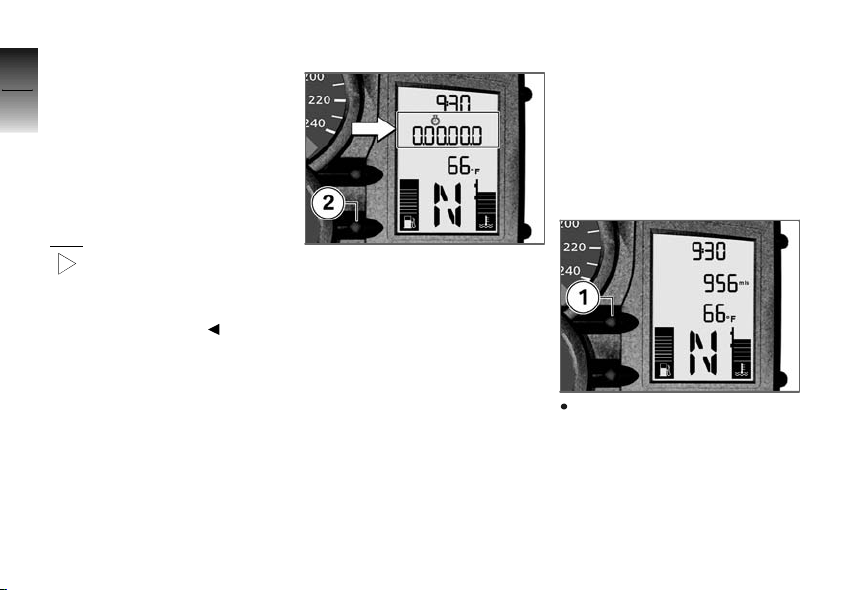

Each time the button is pressed, the display shows values start­ing with the current value in the following order:
Total distance covered
Tripmeter 1 ( Tripmeter 2 ( Tire pressures (OE) Warnings if necessary
Trip I) Trip II)
Resetting tripmeter
Switch on ignition. Select desired tripmeter.
Press and hold button 2. Tripmeter is reset.
Onboard computer
Selecting readings
Switch on ignition.
Press button 1.
OE
4
43
z
Operation
Page 46
4
44
Each time the button is pressed, the display shows values start­ing with the current value in the
z
Operation
following order:
Ambient temperature Average speed Average consumption Range

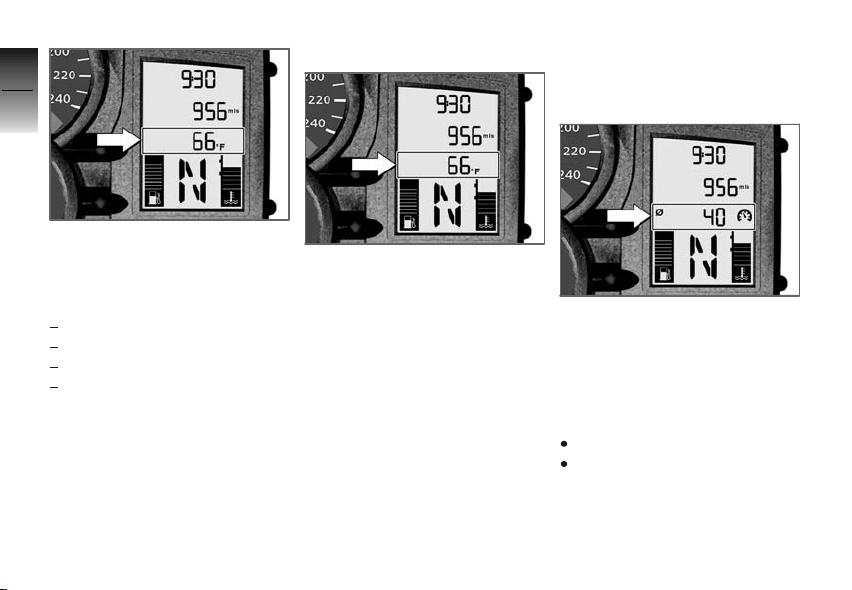

Ambient temperature
When the motorcycle is stopped, the engine heat can falsify the measurement of the ambient temperature. If the influence of the engine heat becomes too great,
-- is temporarily shown in
the display.
If the ambient temperature drops below 37 °F (3 °C), the tempera­ture display flashes as a warning of possible icing-up. The display automatically switches from any other mode to the temperature reading when the temperature
drops below this threshold for the first time.
Average speed
The average speed is calculated based on the elapsed time since the last reset. Times during which the engine was stopped are excluded from the calculation.
Resetting average speed
Switch on ignition. Select average speed.
Page 47
Hold down button 1. Average speed is reset.
Average consumption
The average consumption is cal­culated by dividing the distance covered since the last reset by
the corresponding amount of fuel used.
Resetting average consumption
Switch on ignition. Select average consumption.
Hold down button 1. Average consumption is reset.

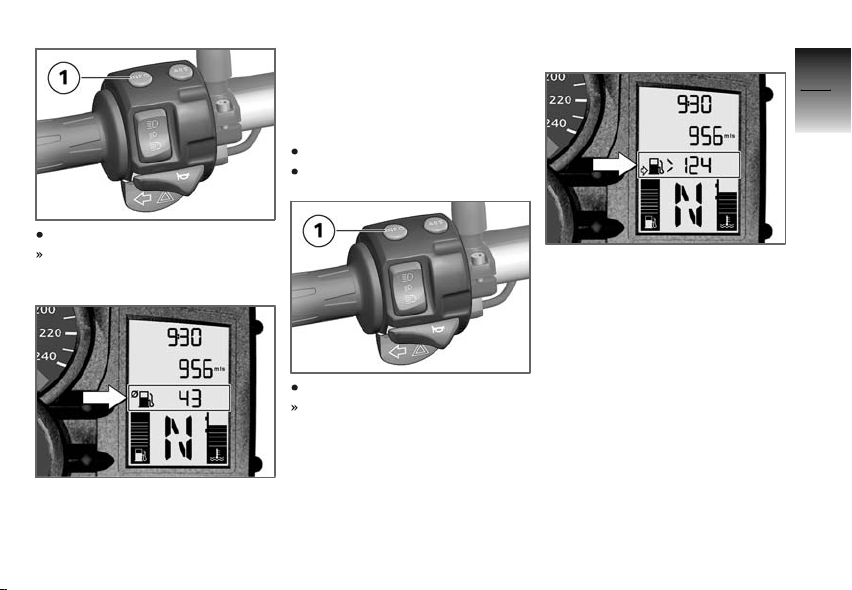

Range
The range indicates what dis­tance can still be driven with the remaining fuel. The calculation is made based on the fuel level and an average consumption stored for this purpose, however which need not always match the val­ue that can be called up in the display. With a completely filled fuel tank, the fuel volume cannot be deter­mined exactly. In this area a min­imum range is indicated, marked with a
> symbol. As soon as the
fuel level can be determined ex-
4
45
z
Operation
Page 48
actly, the range is shown more precisely.
4
When refueling after running on
46
reserve, make sure that you top up the tank to a level above re­serve, as otherwise the sensor will not be able to register the new level. Otherwise neither the fill level nor the range display can be updated.
The determined range is an
z
Operation
approximate reading. BMW Motorrad therefore recommends that you do not try to use the full range before refueling.

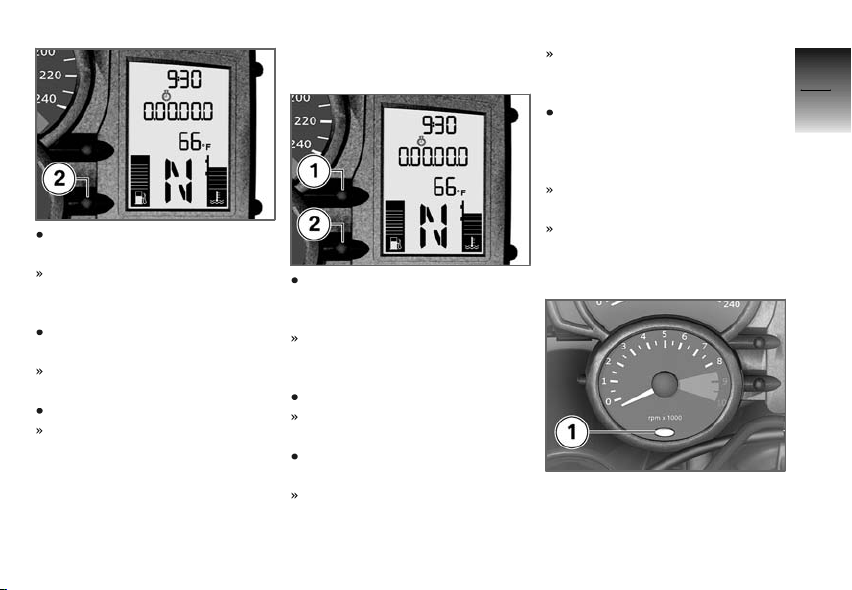

Stopwatch
As an alternative to the odome­ter, the stopwatch can be dis­played. The display consists of hours, minutes, seconds and tenths of a second separated by dots. To use the stopwatch as a lap timer, it can also be operated via the INFO button on the han­dlebar fitting instead of with the button 2. If the operation of the stopwatch is set to the INFO button, the onboard computer must be operated with the but­ton 2.
The stopwatch continues to run in the background when the dis­play is temporarily switched over to the odometer. The stopwatch also continues to run when the ignition is temporarily switched off.
Operating stopwatch
If necessary, switch over from odometer to stopwatch with button 1.
Page 49
Press stopped stopwatch but­ton 2. Stopwatch runs starting from indicated time in steps of one­tenth of a second. Press button 2 with stopwatch running. Stopwatch shows the time measured. Press and hold button 2. Stopwatch is reset and shows
0.00.00.0.
Using stopwatch as Lap­Timer
Press and hold button 1 and button 2 simultaneously until display changes.
FLASH (display of engine
speed warning) and
ON or
OFF are shown.
Press button 2.
LAP (Lap-Timer) and ON or OFF are shown.
Press button 1 repeatedly until desired state is shown.
ON: Operation of stopwatch
with INFO button on handlebar fitting.
OFF: operation of stopwatch
with button 2 in instrument cluster. To confirm setting, press and hold button 1 and button 2 simultaneously until display changes. The settings are applied and the last display is shown. If no confirmation is made, the last setting is retained.
Engine speed warning
The engine speed warning sig­nals to the driver that the red engine speed range has been reached. This signal is shown in
4
47
z
Operation
Page 50
red by the flashing of the anti­theft alarm indicator light 1.
4
The signal is maintained until the
48
transmission is upshifted or the engine speed is reduced. It can be activated or deactivated by the driver.
Activating engine speed warning
z
Operation
Press and hold button 1 and button 2 simultaneously until display changes.
FLASH (display of engine
speed warning) and
OFF are shown.
ON or
Press button 1 until desired state is shown.
ON: engine speed warning ac-
tivated.
OFF: engine speed warning
deactivated. To confirm setting, press and hold button 1 and button 2 simultaneously until display changes. The settings are applied and the last display is shown. If no confirmation is made, the last setting is retained.
Tire Pressure Control
OE
RDC
Selecting TPC/RDC display
Switch on ignition.
Press button 2 repeatedly until tire pressures are shown.
The tire pressures are shown alternately with the mileage dis­play. The left-hand value indi­cates the air pressure of the front wheel, and the right-hand val-

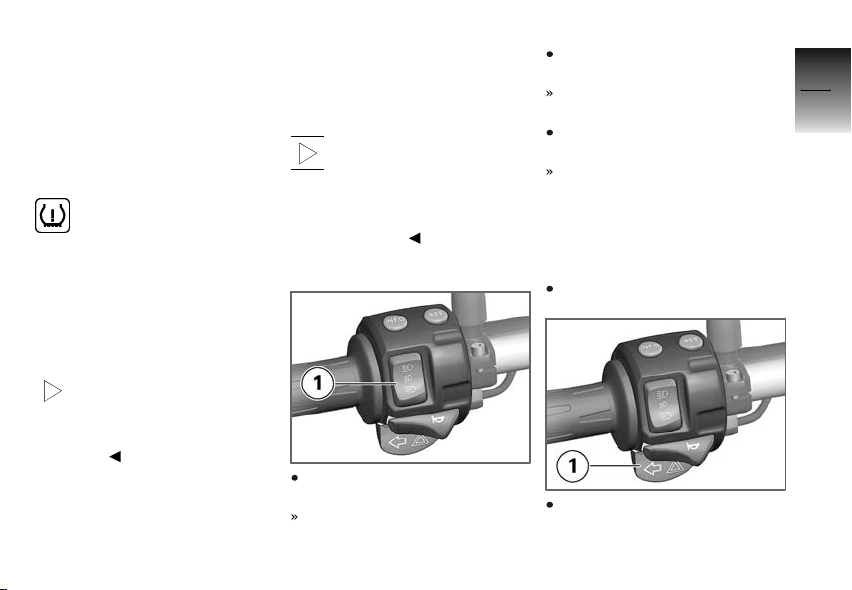

Page 51
ue the air pressure of the rear wheel. Immediately after switch­ing on the ignition, displayed, as the transfer of the air pressure values does not be­gin until a speed over 20 mph (30 km/h) is reached.
Indicates the display of the tire pressure.
-- -- is

Lights

Parking lights
The parking lights switch on au­tomatically when the ignition is switched on.
The parking lights are a
strain on the battery. Do not leave the ignition switched on longer than absolutely necessary.
Low-beam headlight
The low-beam headlight switches on automatically when you start the engine.
With the engine switched
off, you can switch on the lights by switching on the high­beam headlight with the ignition switched on or by operating the headlight flasher.
High-beam headlight
Press top section of full-beam headlight switch 1. High-beam headlight is switched on.
Move full-beam headlight switch 1 to center position. High-beam headlight is switched off. Press bottom section of full­beam headlight switch 1. High-beam headlight is switched on as long as switch is pressed (headlight flasher).
Switching on parking lights
Switch off ignition.
Immediately after switching off ignition, press and hold left­hand turn indicator button 1.
4
49
z
Operation
Page 52
Parking light switches on.
4
Switching off parking
50
lights
Switch ignition on and then off again. Parking light switched off.

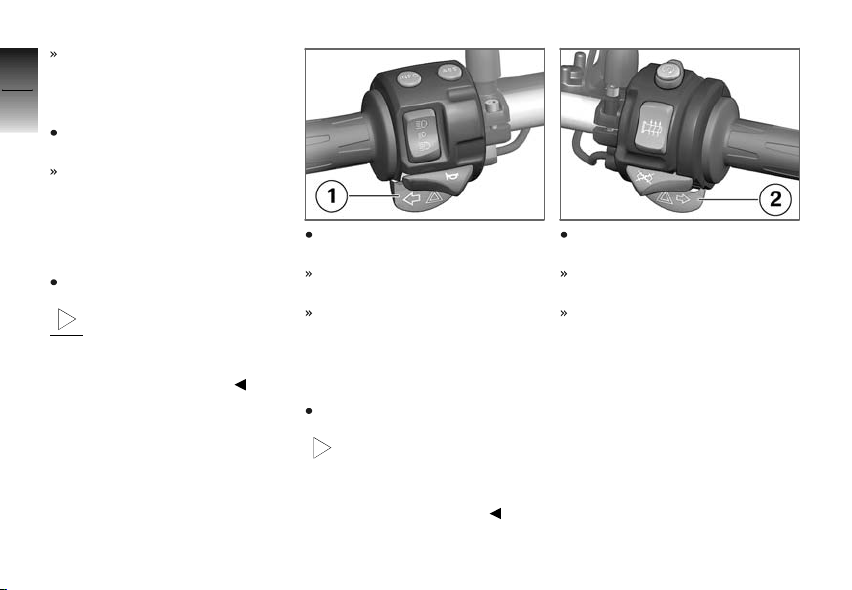

Turn indicators

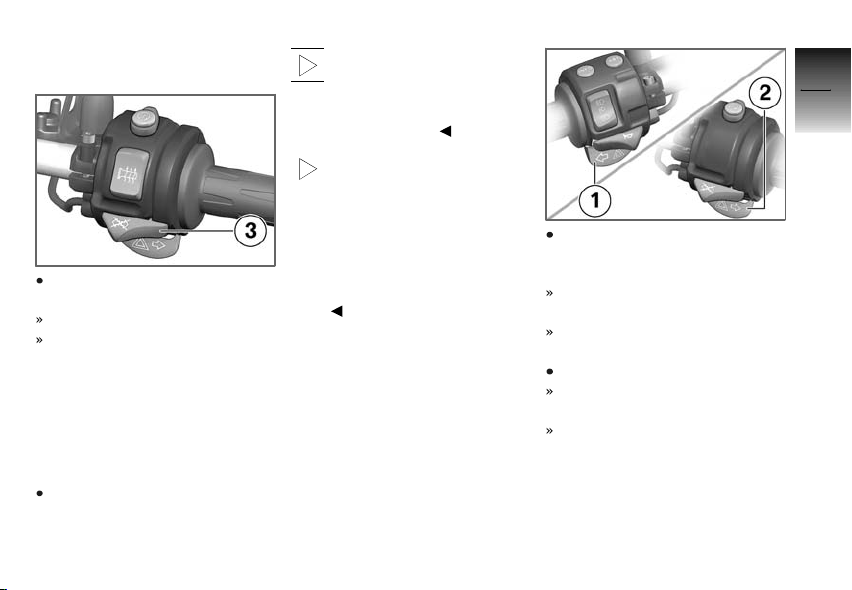

Switching on left-hand turn indicator
z
Operation
Switch on ignition.
After driving for approx.
ten seconds or after cov­ering a distance of approx. 650 ft (200 m), the turn indicators are automatically switched off.
Press left-hand turn indicator button 1. Left-hand turn indicator is switched on. Indicator light for left-hand turn indicators flashes.
Switching on right-hand turn indicator
Switch on ignition.
After driving for approx.
ten seconds or after cov­ering a distance of approx. 650 ft (200 m), the turn indicators are automatically switched off.
Press right-hand turn indicator button 2. Right-hand turn indicator is switched on. Indicator light for right-hand turn indicators flashes.
Page 53
Switching off turn indicator
Press turn-indicator cancel but­ton 3. Turn indicator is switched off. Indicator lights for turn indica­tors are off.

Hazard warning flashers

Switching on hazard warning flashers
Switch on ignition.
The hazard warning flash-
ers place a strain on the battery. Do not use the hazard warning flashers for longer than absolutely necessary.
If a turn indicator button is
pressed with the ignition switched on, the flashing function replaces the emergency flashing function as long as the button is pressed. If the turn indicator but­ton is released, the emergency flasher function becomes active again.
Press left 1 and right-hand 2 turn indicator buttons simulta­neously. Hazard warning flashers are switched on. Left/right turn indicator lights flash. Switch off ignition. Hazard warning flashers contin­ue to operate. Indicator lights of left and right turn indicator are off.
4
51
z
Operation
Page 54
Switching off hazard
4
warning flashers
52
z
Operation
Press turn-indicator cancel but­ton 3. Hazard warning flashers are switched off.

Emergency ON/OFF switch

1 Emergency ON/OFF switch

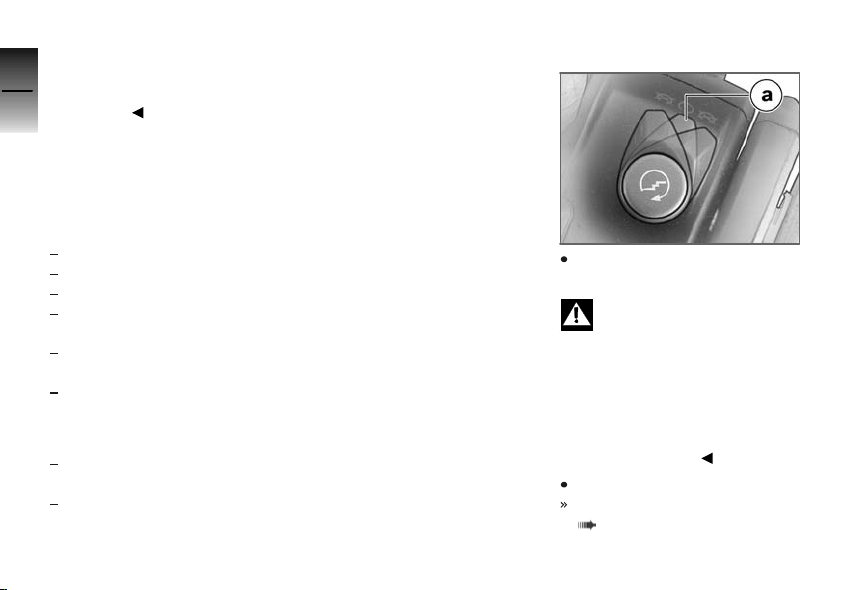

Operating the emergency
ON/OFF switch when riding can cause the rear wheel to lock and thus cause a fall. Do not operate the emergency ON/OFF switch when riding.
The engine can be switched off easily and quickly using the emergency ON/OFF switch.
a Operating position b Engine switched off.
The engine can only be started in the operating
position.
Page 55

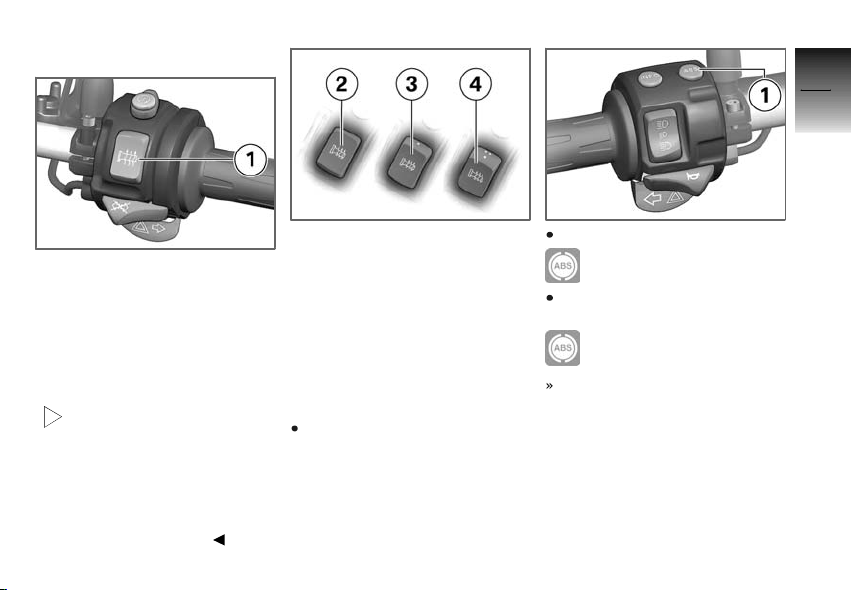

Heated hand grips
OE
4
53
1 Heated hand grip switch
The handlebar grips can be heat­ed at two different levels. The heated hand grips option can on­ly be activated when the engine is running.
The increase in power con-
sumption caused by the heated hand grips can drain the battery if you are riding at low engine speeds. If the battery is inadequately charged, the heat­ed hand grips are switched off to ensure starting capability.
2 Heating function off. 3 50 % heat output (one dot
visible).
4 100 % heat output (three
dots visible).
BMW Motorrad ABS
OE
Switching off ABS function
Switch on ignition or bring mo­torcycle to a stop.

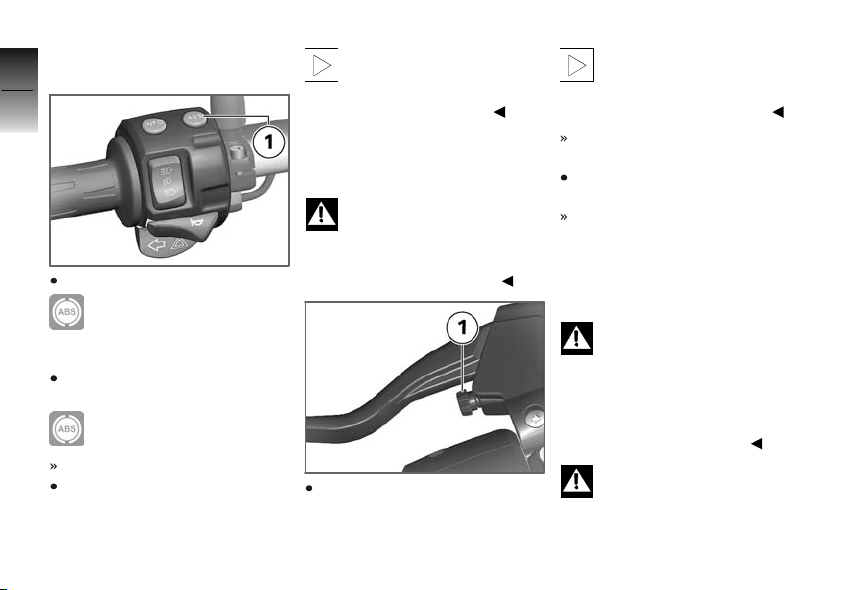

Hold down ABS button 1.
ABS warning light begins to light up.
Release ABS button within five seconds.
ABS warning light contin­ues to light up.
ABS function is switched off.
z
Operation
Page 56
Switching on ABS
4
function
54
z
Operation
Hold down ABS button 1.
ABS warning light goes
out; if self-diagnosis has not been completed, it begins to flash.
Release ABS button within five seconds.
ABS warning light remains
off or continues to flash.
ABS function is switched on. As an alternative to pressing the ABS button, the ignition can also be switched off and then on again.
If the ABS light continues
to light up after switching the ignition off and then on again, an ABS fault has occurred.

Clutch

Adjusting clutch lever
Adjusting the clutch lever
while driving can lead to accidents. Only adjust the clutch lever when the motorcycle is stationary.
Turn adjusting screw 1 clock­wise.
The adjusting screw has a
limit position and can be turned more easily when you press the clutch lever forward.
Distance between handlebar grip and clutch lever increases. Turn adjusting screw 1 coun­terclockwise. Distance between handlebar grip and clutch lever decreases.

Brakes

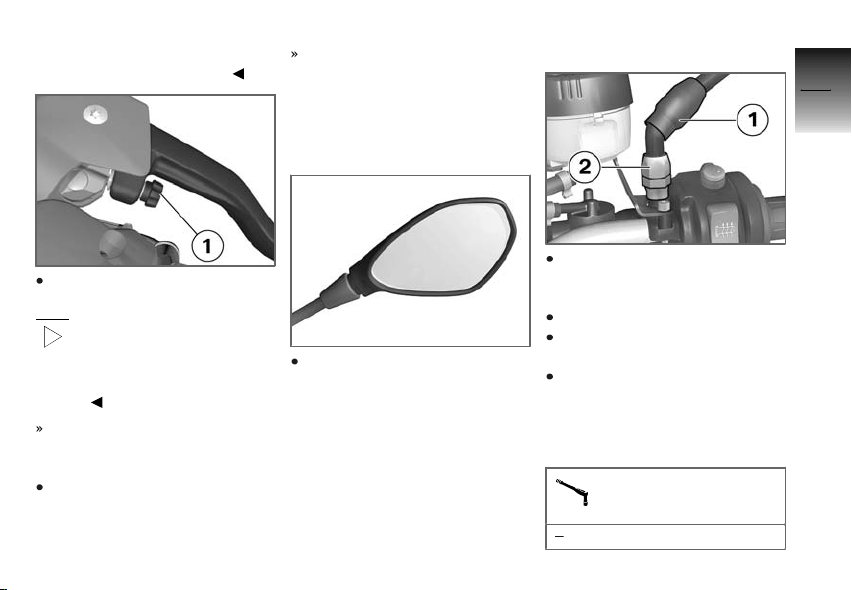

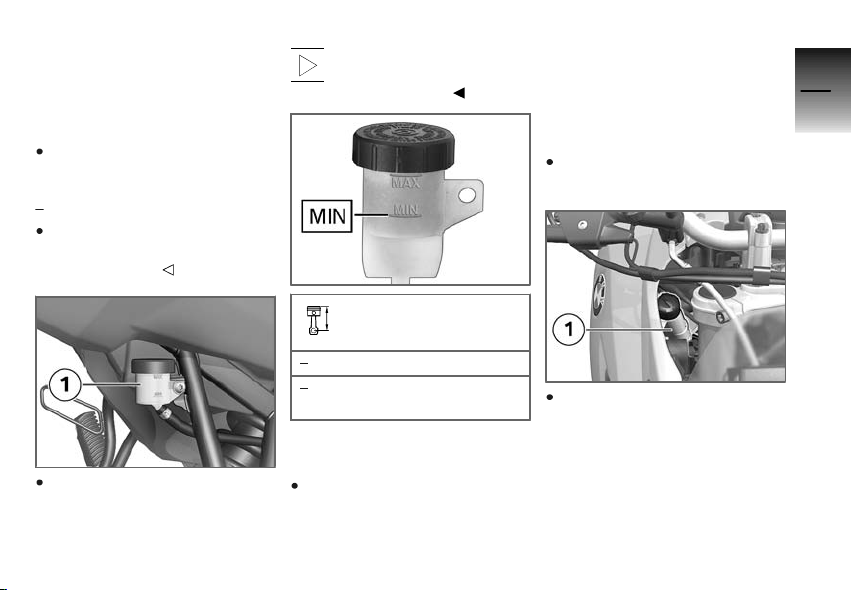

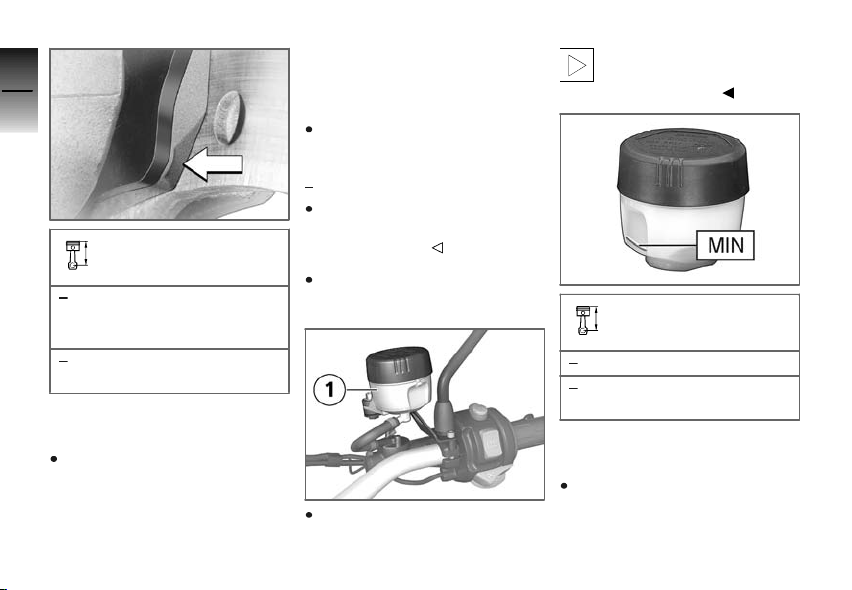

Adjusting handbrake lever
Changing the position of
the brake-fluid reservoir can allow air to penetrate the brake system. Do not reposition the handlebar controls on the handlebars or the handlebars in their mounts.
Adjusting the brake lever
while driving can lead to accidents.
Page 57
Only adjust the brake lever when the motorcycle is stationary.
Turn adjusting screw 1 clock­wise.
The adjusting screw has
a limit position and can be turned more easily when you press the handbrake lever forward.
Distance between handlebar grip and handbrake lever in­creases. Turn adjusting screw 1 coun­terclockwise.
Distance between handlebar grip and handbrake lever de­creases.

Mirrors

Adjusting mirrors
Move mirror into desired posi­tion by twisting.
Adjusting mirror arm
Slide protective cap 1 up over screw connection on mirror arm. Loosen the nut 2. Turn mirror arm into desired position. Tighten the nut to the spec­ified tightening torque, while holding the mirror arm to en­sure that it does not move out of position.
Mirror on clamping ele­ment
15 lb/ft (20 Nm)
4
55
z
Operation
Page 58
Slide protective cap over threaded fastener.
4
56

Spring preload

Setting
It is essential to set the spring preload of the rear suspension to suit the load carried by the mo­torcycle. Increase spring preload when the motorcycle is heavily loaded and reduce spring preload accordingly when the motorcycle
z
Operation
is lightly loaded.

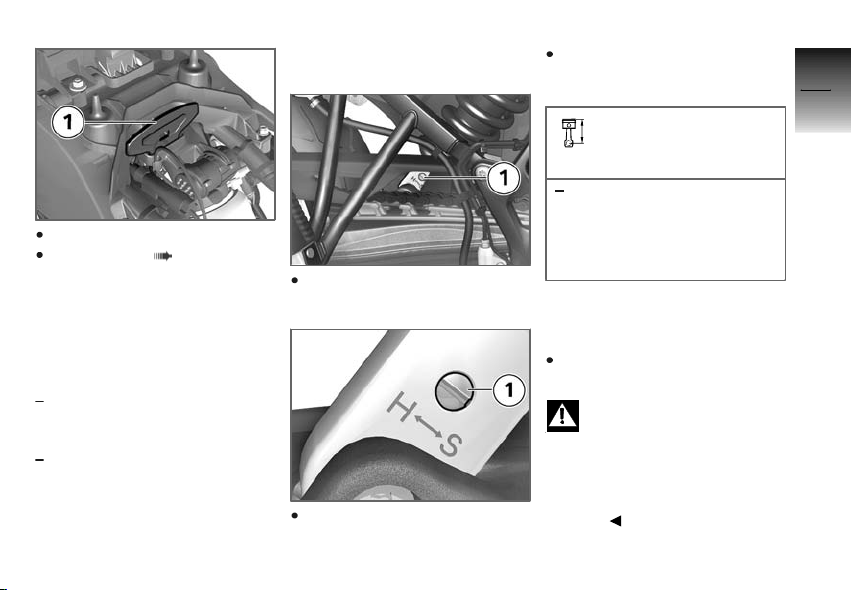

Adjusting spring preload for rear wheel
Removing seat ( 59)

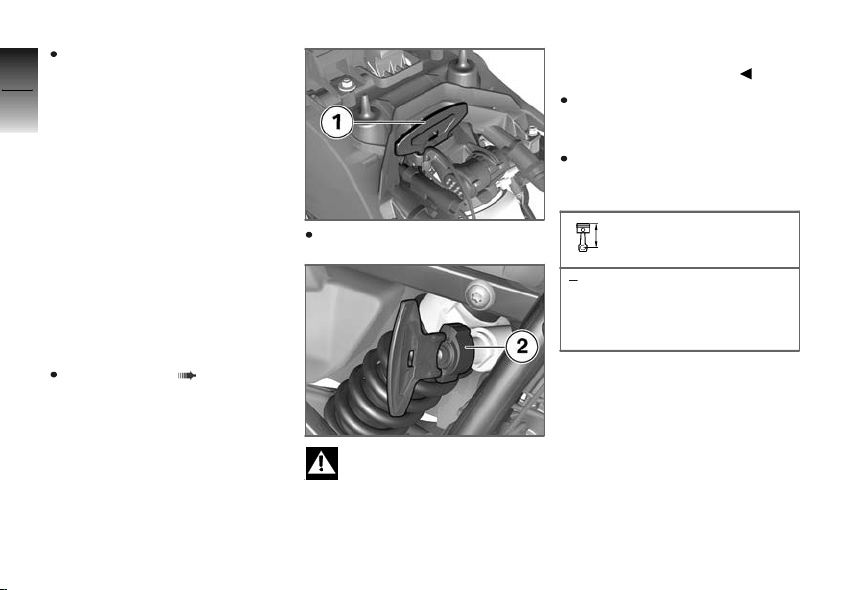

Remove toolkit 1.
Your motorcycle's han-
dling will suffer if you do not match the spring-preload and damping-characteristic settings.
Adjust the damping characteristic to suit the spring preload.
To increase spring preload, turn handwheel 2 clockwise using toolkit. To decrease spring preload, turn handwheel 2 counter­clockwise using toolkit.
Basic setting of spring preload, rear
Turn adjusting screw coun­terclockwise as far as pos­sible (Full tank of gas, with rider 187 lbs (85 kg))
Page 59
Insert toolkit 1. Installing seat ( 60)

Damping

Damping
The damping must be adjusted to the road conditions and the spring preload.
A rough road surface requires softer damping than a smooth road surface. An increase in spring preload requires firmer damping, a re­duction in spring preload re­quires softer damping.
Adjusting damping on rear wheel
Adjust damping via adjusting screw 1.
To increase damping, turn ad­justing screw 1 clockwise.
To decrease damping, turn ad­justing screw 1 counterclock­wise.
Basic setting of rear wheel rear-wheel damp-
ing
Turn adjusting screw clockwise as far as possible and then turn back 2 clicks (Full tank of gas, with rider 187 lbs (85 kg))

Tires

Checking tire pressure
Make sure ground is level and firm and park motorcycle.
Incorrect tire inflation pres-
sure results in poorer hand­ing characteristics of the motor­cycle and reduces the life of the tires. Ensure proper tire inflation pressure.
4
57
z
Operation
Page 60
At high road speeds, tire
4
58
z
Operation
valves have a tendency to open as a result of centrifugal force. Use valve caps with rubber seals and screw them on firmly to pre­vent sudden tire deflation.
Check tire pressures against data below.
Tire pressure, front
31.9 psi (2.2 bar) (One-up, at tire temperature 68 °F (20 °C))
31.9 psi (2.2 bar) (Driver with passenger and/or load, at tire temperature 68 °F (20 °C))
Tire pressure, rear
36.3 psi (2.5 bar) (One-up, at tire temperature 68 °F (20 °C))
Tire pressure, rear
42.1 psi (2.9 bar) (Driver with passenger and/or load, at tire temperature 68 °F (20 °C))
If tire pressure is too low:
Correct tire pressure.

Headlight

Adjusting headlight for RHD/LHD traffic
If the motorcycle is ridden in a country where the opposite rule of the road applies, its asymmet­ric low-beam headlight will tend to dazzle oncoming traffic. Have the headlight adjusted to the relevant conditions by a spe­cialized workshop, preferably an authorized BMW Motorrad retail­er.
Headlight range and spring preload
The headlight range generally remains constant due to the ad­justment of the spring preload to the loading state. Spring preload adjustment may only be insufficient when the mo­torcycle is very heavily loaded. In this case, the headlight range must be adjusted to the weight.
If you are unsure whether
the basic headlight setting is correct, consult a specialized workshop, preferably an autho­rized BMW Motorrad retailer.
Page 61

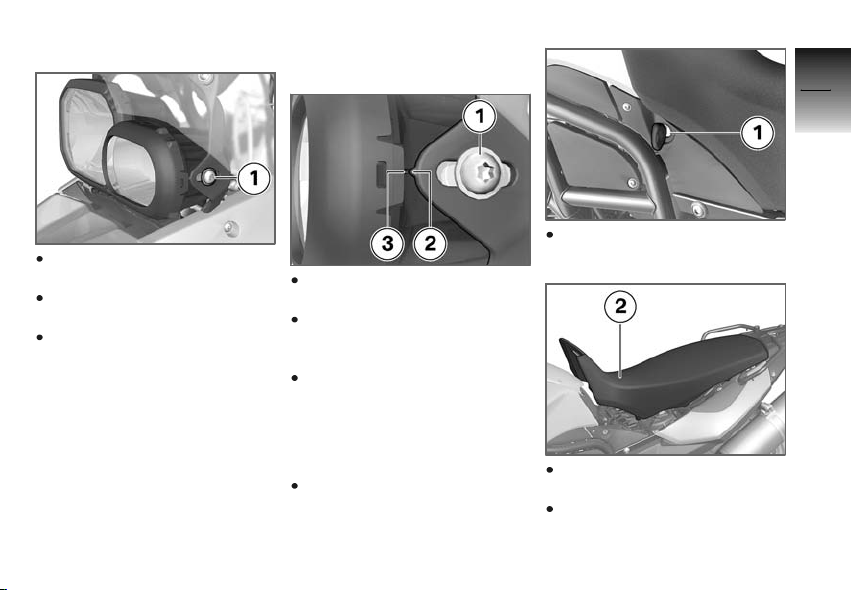

Adjusting headlight range
Loosen screws 1 on left and right. Adjust headlight by tilting slightly. Tighten screws 1 on left and right.
Basic headlight range adjustment
Loosen screws 1 on left and right. Adjust headlight by tilting slightly so that tip 2 points to marking 3. Tighten screws 1 on left and right.

Seat

Removing seat
Make sure ground is level and firm and park motorcycle.
Turn seat lock 1 counterclock­wise with ignition key and hold.
Raise seat 2 at front and re­lease key. Remove seat and set down on rubber buffers.
4
59
z
Operation
Page 62
Installing seat
4
60

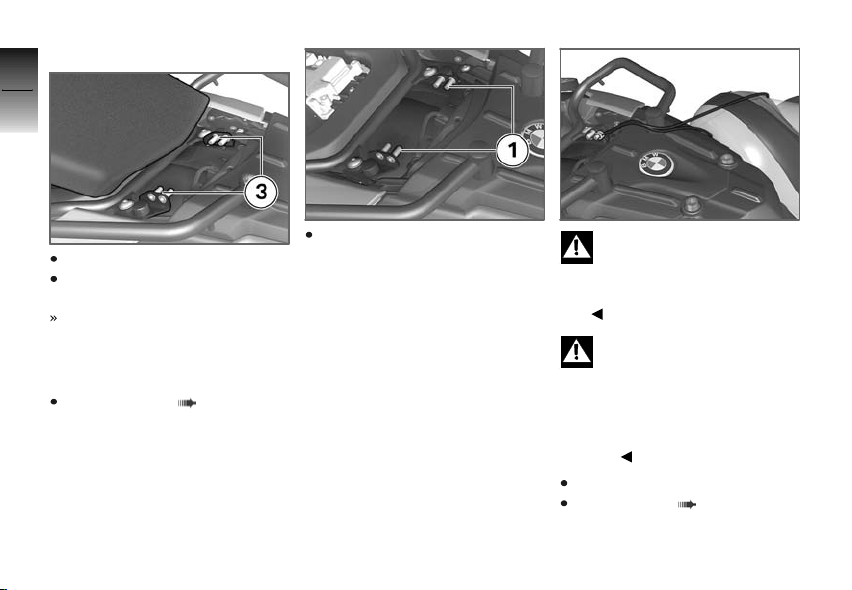

Insert seat in brackets 3. Firmly press down on seat at
z
Operation
front. The seat can be heard to lock into place.

Helmet holder

Removing seat ( 59)
Pull steel cable available as an optional accessory through hel­met and push onto two eyes on one of helmet holders 1.
The helmet catch can
scratch the paneling. When hooking on the helmet, watch the position of the helmet lock.
If the helmet is secured
on the left-hand side of the motorcycle, damage can be caused by the hot end muffler. Attach the helmet to the right­hand side of the motorcycle if possible.
Guide helmet and cable to rear. Installing seat ( 60)
Page 63
Riding
Safety instructions ................... 62
Checklist............................. 64
Starting .............................. 64
Running in ........................... 66
Driving offroad ....................... 67
Brakes ............................... 68
Parking your motorcycle . ............ 69
Refueling ............................ 71
5
61
z
Riding
Page 64

Safety instructions

5
Rider's equipment
62
Do not ride without the correct clothing. Always wear:
Helmet Rider's suit Gloves Boots
This applies even to short jour-
z
Riding
neys, and to every season of the year. Your authorized BMW Mo­torrad retailer will be happy to advise you and has the correct clothing for every purpose.
Reduced clearance in inclined position
with lowering With a lowered running gear the motorcycle does not have its full clearance in an inclined position.
When driving in curves with lowered motorcycles, mo-
torcycle parts can contact the
OE
road surface soon than accus­tomed, which can lead to acci­dents. Carefully try out the clearance of the motorcycle in an inclined position and adjust your driving style accordingly.
Speed
If you ride at high speed, always bear in mind that various bound­ary conditions can adversely af­fect the handling of your motor­cycle:
Settings of spring-strut and shock absorber system Imbalanced load Loose clothing Insufficient tire inflation pres­sure Poor tire tread Etc.
Correct loading
Overloading and imbal-
anced loads can adversely affect the motorcycle's handling. Do not exceed the gross weight limit and observe the loading information.
Alcohol and drugs
Even small amounts of al-
cohol or drugs will adverse­ly affect your perception and your ability to assess situations and make decisions, and slow down your reflexes. Medication can ex­acerbate these effects. Do not ride your motorcycle after consuming alcohol, drugs and/or medication.
Risk of poisoning
Exhaust fumes contain carbon monoxide, which is colorless and odorless but highly toxic.
Page 65
Inhaling exhaust fumes
therefore represents a health hazard and can even cause loss of consciousness with fatal consequences. Do not inhale exhaust fumes. Do not run the engine in closed rooms.
High voltage
Touching live parts of the
ignition system with the engine running can cause electric shock. Do not touch parts of the igni­tion system when the engine is running.
Catalytic converter
If misfiring causes unburned fuel to enter the catalytic converter, there is a danger of overheating and damage. For this reason, observe the fol­lowing points:
Do not run the fuel tank dry Do not run the engine with the spark-plug cap removed Stop the engine immediately if it misfires Use unleaded fuel only Comply with all specified main­tenance intervals.
Unburned fuel will destroy
the catalytic converter. Note the points listed for protec­tion of the catalytic converter.
Risk of fire
Temperatures at the exhaust are high.
Flammable materials (e.g.
hay, leaves, grass, clothing and luggage, etc.) could ignite if allowed to come into contact with the hot exhaust pipe. Make sure that no highly flammable materials can come in contact with the hot exhaust system.
Cooling would be inade-
quate if the engine were al­lowed to idle for a lengthy period with the motorcycle at a stand­still: overheating would result. In extreme cases, the motorcycle could catch fire. Do not allow the engine to idle unnecessarily. After starting, ride off immediately.
Tampering with control unit of electronic engine­management system
Tampering with the engine
control unit can damage the motorcycle and cause acci­dents. Do not tamper with the engine control unit.
Tampering with the engine
control unit can result in mechanical loads that the mo­torcycle's components are not designed to withstand. Damage
5
63
z
Riding
Page 66
caused in this way is not covered by the warranty.
5
Do not tamper with the engine
64
control unit.

Checklist

Use the following checklist to check important functions, set­tings and wear limits before you ride off:
z
Riding
Brakes Front and rear brake fluid levels Clutch Damping setting and spring preload Tread depth and tire inflation pressure Firm seating of cases and lug­gage
At regular intervals:
Engine oil level (every time you refuel) Brake pad wear (during every third stop for refueling)

Starting

Side stand
You cannot start the motorcy­cle with the side stand extended and a gear engaged. The engine will switch itself off if you start it with the transmission in neutral and then engage a gear before retracting the side stand.
Transmission
You can start the engine when the transmission is in neutral or if you pull the clutch with a gear engaged. Do not engage the clutch until after switching on the ignition, as otherwise the en­gine cannot be started. When the transmission is in neutral, the green neutral indicator light is on and the gear indicator in the mul­tifunction display shows
N.
Starting engine
Emergency ON/OFF switch in run position a.
Transmission lubrication
is only ensured when the engine is running.Insufficient lu­brication can lead to transmission damage. Do not allow the motorcycle to roll for longer periods or push it over longer distances with the engine switched off.
Switch on ignition. Pre-ride check is performed. ( 65)
Page 67
with BMW Motorrad ABS Switch on ignition. Pre-ride check is performed.
( 65) ABS self-diagnosis is performed. ( 66)
Press starter button 1.
At extremely low tempera-
tures it may be necessary to operate the throttle twist grip during starting. At ambient tem­peratures below 32 °F (0 °C), actuate the clutch after switching on the ignition.
OE
The start attempt is auto-
matically interrupted if bat­tery voltage is too low. Recharge the battery before you start the engine, or use jump leads and a donor battery to start.
Engine starts. If the engine fails to start, the troubleshooting table in the chapter "Technical Data" may provide assistance. ( 124)
Pre-ride check
After the ignition is switched on, the instrument cluster conducts a test of the pointer instruments and the warning and indicator lights. This so-called Pre-Ride­Check is canceled as soon as the engine is started.
Phase 1
The pointer of the tachometer and speedometer are run up to the end stop.
At the same time, the following warning and indicator lights are switched on consecutively: Indicator light for high-beam headlight and telltale light for left turn indicator General warning light in yellow and indicator light for idling Warning light for fuel reserve and indicator light for right turn indicator Warning light for oil pressure
with BMW Motorrad ABS ABS warning light
Phase 2
General warning light changes from yellow to red.
Phase 3
The pointers of the tachometer and speedometer are run back. At the same time, all switched-on warning and indicator lights are
OE
5
65
z
Riding
Page 68
switched off consecutively in the reverse order.
5
66
If a pointer has not been moved, or if one of the specified warning and indicator lights has not been switched on:
If it was not possible to switch on the warning
lights, possible malfunctions
z
Riding
cannot be indicated. Watch all warning and indicator lights on the display.
Have the malfunction corrected as soon as possible by a spe­cialized workshop, preferably an authorized BMW Motorrad retailer.
ABS self-diagnosis
The readiness for operation of the BMW Motorrad ABS is checked by the self-diagnosis. Self-diagnosis is performed automatically when you switch on the ignition. To check the wheel
OE
sensors, the motorcycle must be driven a few yards.
Phase 1
Checking the diagnosable system components while stopped.
ABS warning light flashes.
Possible country-specif­ic version of ABS warning
light.
Phase 2
Checking the wheel sensors while starting off.
ABS warning light flashes.
Possible country-specif­ic version of ABS warning
light.
ABS self-diagnosis completed
The ABS warning light goes out.
If an ABS fault is indicated after the ABS self-diagnosis is com­pleted:
Continued driving is possible. It must be noted that the ABS function is not available. Have the malfunction corrected as soon as possible by a spe­cialized workshop, preferably an authorized BMW Motorrad retailer.

Running in

The first 600 miles (1,000 km)
While running in the motorcy­cle, vary the throttle opening and engine-speed range fre­quently. Try to do most of your rid­ing during this initial period on
Page 69
twisting, fairly hilly roads, avoid­ing high-speed main roads and highways if possible.
Exceeding the specified en-
gine speeds while running in will lead to increased engine wear. Adhere to the specified engine run-in speeds.
Do not exceed the engine run­in speeds.
Engine break-in speed
<5000 min
Do not accelerate at full throt­tle. Avoid low engine speeds at full load. After 300 - 750 miles (500 ­1,200 km), have the first in­spection performed.
-1
Brake pads
New brake pads must "bed down" and therefore do not achieve their optimum friction levels during the first 300 miles (500 km). This initial reduction in braking efficiency can be compensated for by exerting greater pressure on the levers.
New brake pads can ex-
tend stopping distance by a significant margin. Brake early.
Tires
New tires have a smooth sur­face. This must be roughened by riding in a restrained manner at various heel angles until the tires are run in. This running in proce­dure is essential if the tires are to achieve maximum grip.
New tires have not
achieved their full adhesion yet. There is a danger of
accidents when driving at extreme angles. Avoid extreme angles.

Driving offroad

Tire inflation pressure
A tire inflation pressure re-
duced for offroad driving leads to poorer handling of the motorcycle on paved roads and can result in accidents. Ensure proper tire inflation pressure.
Rims offroad
BMW Motorrad recommends checking the rims for possible damage after riding offroad.
Dirt or mud on brakes
When the motorcycle is
ridden on loose surfaces or muddy roads, the brakes may fail to take effect immediately
5
67
z
Riding
Page 70
because of dirt or moisture on the disks or brake pads.
5
Brake early until the brakes are
68
braked clean.
Driving on unpaved or dirty
roads leads to increased brake pad wear. Check the brake pad thickness more often and replace the brake pads sooner.
z
Riding
Spring preload and damping
Spring preload and damp-
ing values that have been changed for offroad use reduce handling characteristics on paved surfaces. Before returning to on-road use, reset correct spring preload and correct damping.

Brakes

How is the shortest braking distance achieved?
The dynamic load distribution between the front and rear wheel changes during braking. The heavier you brake, the more the front wheel is loaded. The greater the wheel load, the more braking force can be transferred. To achieve the shortest possible braking distance, the front brake must be applied quickly and with increasing force. This optimal­ly utilizes the dynamic load in­crease on the front wheel. At the same time, the clutch should al­so be actuated. With the "forced braking" often practiced in which the brake pressure is generat­ed as quickly as possible and with great force, the dynamic load distribution cannot follow the increased deceleration and
the braking force cannot be com­pletely transferred to the road surface. The front wheel locks and the danger of falling increas­es.
with BMW Motorrad ABS To prevent the front wheel from locking, the ABS system must intervene and reduce the brake
pressure; the braking distance increases.
OE
Descending mountain passes
There is a danger of the
brakes fading if you use on­ly the rear brakes when descend­ing mountain passes. Under extreme conditions, the brakes could overheat and suffer severe damage. Use both front and rear brakes, and make use of the engine's braking effect as well.
Page 71
Wet brakes
After washing the motor-
cycle, after driving through water or in the rain, braking can be delayed due to damp brake disks and brake pads. Brake early until the brakes are dry or braked until dry.
Salt on brakes
The full braking effect can
be delayed if the motor­cycle is ridden on salt-covered roads and the brakes are not ap­plied for some time. Brake early until the salt layer of the brake disks and brake pads has been braked off.
Oil or grease on brakes
Oil and grease on the brake
disks and pads considerably diminish braking efficiency. Especially after repair and main­tenance tasks, make sure that
the brake disks and brake pads are free of oil and grease.
Dirt or mud on brakes
When the motorcycle is
ridden on loose surfaces or muddy roads, the brakes may fail to take effect immediately because of dirt or moisture on the disks or brake pads. Brake early until the brakes are braked clean.
Driving on unpaved or dirty
roads leads to increased brake pad wear. Check the brake pad thickness more often and replace the brake pads sooner.

Parking your motorcycle

Placing on side stand
If the ground is soft or un-
even, there is no guarantee that the motorcycle will rest firm­ly on the stand. Always check that the ground under the stand is level and firm.
Switch off the engine. Pull handbrake lever. Hold motorcycle upright and balanced. Use your left foot to extend side stand fully.
The side stand is designed
to support only the weight of the motorcycle. Do not lean or sit on the motorcycle with the side stand extended.
5
69
z
Riding
Page 72
Slowly lean motorcycle to side until its weight is taken by
5
stand and dismount to left.
70
z
Riding
If the motorcycle is on the
side stand, the surface of the ground will determine whether it is better to turn the handlebars to the left or right. However, the motorcycle is more stable on a level surface with the handlebars turned to the left than with the handlebars turned to the right. On level ground, always turn the handlebars to the left to set the steering lock.
Turn handlebars to full left or right lock position. Check that the motorcycle is standing firmly.
On a grade, the motorcycle
should always face uphill; select 1st gear.
Lock steering lock.
Remove from side stand
Unlock steering lock. From left, grip handlebars with both hands. Pull handbrake lever. Swing your right leg over the seat and lift motorcycle to up­right position. Hold motorcycle upright and balanced.
An extended side stand can
catch on the ground when the motorcycle is moving and lead to a fall. Retract the side stand before moving the vehicle.
Sit on motorcycle and use your left foot to retract side stand.
Placing on center stand
If the ground is soft or un-
even, there is no guarantee that the motorcycle will rest firm­ly on the stand. Always check that the ground
OE
under the stand is level and firm.
Switch off the engine. Dismount and keep your left hand on left handlebar grip. Grasp passenger seat handle or rear frame with your right hand. Using your right foot, press center stand toward rear until feet rest on ground. Place full weight of body on center stand while pulling mo­torcycle toward rear.
Excessive movements
could result in the center stand retracting, and the motorcycle would topple as a result. Do not sit on the motorcycle while it is resting on the center stand.
Check that the motorcycle is standing firmly. Lock steering lock.
Page 73
Pushing off center
OE
stand
Unlock steering lock. Place your left hand on left handlebar grip. With your right hand, grip rear grab handle or rear frame. Push motorcycle forward off center stand. Make sure that center stand is fully retracted.

Refueling

Fuel is highly flammable.
Fire at the fuel tank can result in fire and explosion. Do not smoke. Never bring a naked flame near the fuel tank.
Fuel expands when ex-
posed to heat. When the tank is overfilled, fuel can escape and get onto the rear wheel. This results in a danger of falling. Do not fill the tank past the bot­tom edge of the filler neck.
Fuel attacks plastic sur-
faces, making them cloudy or unattractive. Wipe off any fuel that gets onto plastic parts immediately.
Leaded fuel will destroy the
catalytic converter. Use only unleaded fuel.
Make sure ground is level and firm and place motorcycle on side stand.
The available fuel tank vol-
ume can only be optimally used with the vehicle standing on the side stand.

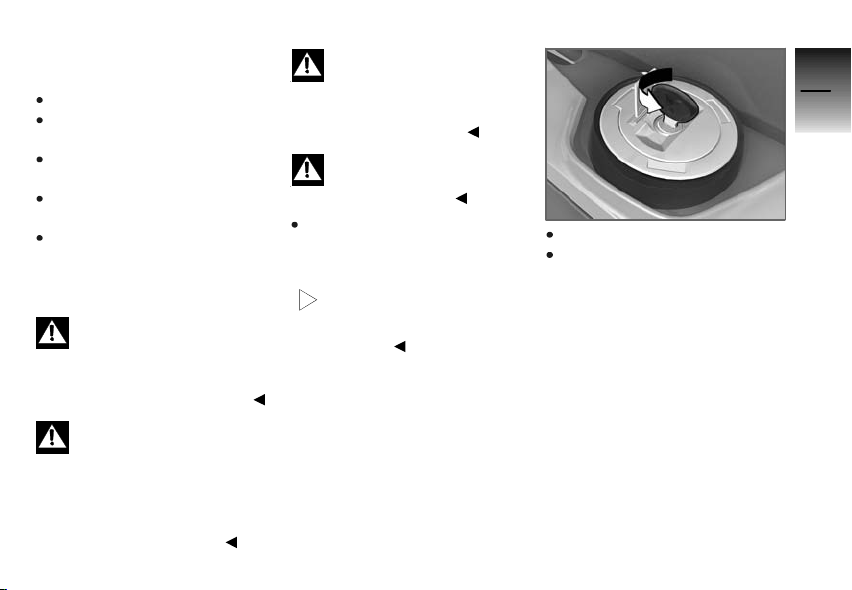

Open protective cap. Open fuel tank cap with igni­tion key by turning it counter­clockwise.
5
71
z
Riding
Page 74
5
72

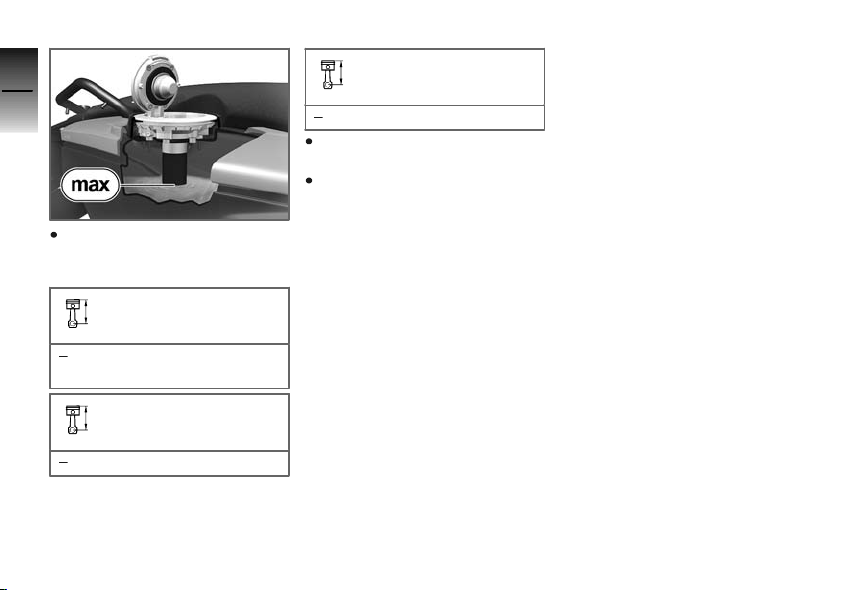

Refuel with quality listed below
z
Riding
at most until lower edge of filler neck is reached.
Recommended fuel qual­ity
91 ROZ/RON (Regular un­leaded gasoline)
Usable fuel quantity
approx. 4.2 gal (approx. 16 l)
Reserve fuel quantity
≥1.1 gal (≥4l)
Press the fuel tank cap down firmly to close. Remove key and close protec­tive cap.
Page 75
Technology in detail
Brake system with BMW Motorrad
ABSOE.............................. 74
Tire Pressure Control TPC/
OE
RDC
.............................. 75
6
73
z
Technology in detail
Page 76
Brake system with
6
BMW Motorrad ABS
74
How does ABS work?
The maximum braking force that can be transferred to the road surface is partially dependent on the friction coefficient of the road surface. Gravel, ice, snow and wet roads offer a considerably poorer friction coefficient than a dry, clean asphalt surface. The poorer the friction coefficient of the road surface is, the longer the braking distance will be. If the maximum transferrable braking force is exceeded when the driver increases the brake
z
Technology in detail
pressure, the wheels begin to block and driving stability is lost, and a fall can result. Before this situation occurs, ABS intervenes and adjusts the brake pressure to the maximum transferrable braking force. This enables the wheels to continue to turn and
maintains driving stability regard­less of the road surface condi-
OE
tion.
What happens when rough roads are encountered?
Bumpy or rough roads can briefly lead to a loss of contact between the tires and the road surface, until the transferrable braking force is reduced to zero. If brak­ing is carried out in this situa­tion, ABS must reduce the brake pressure to ensure driving sta­bility when restoring contact to the road. At this point in time, the BMW Motorrad ABS must assume extremely low friction co­efficients (gravel, ice, snow) so that the running wheels turn in every imaginable case and the driving stability is ensured. After detecting the actual conditions, the system adjusts the optimum brake pressure.
Lifting off rear wheel
However, during extremely heavy and rapid decelerations it is possible that the BMW Motorrad ABS cannot prevent the rear wheel from lifting off the ground.In these cases, the motorcycle can also flip end over end.
Heavy braking can lead to
the rear wheel lifting off the ground. When braking, bear in mind that the ABS control cannot be relied on in all circumstances to prevent the rear wheel from lifting off the ground.
What are the design characteristics of the BMW Motorrad ABS?
The BMW Motorrad ABS en­sures driving stability on any sur­face within the limits of driving physics. The system is not op-
Page 77
timized for special requirements resulting under extreme weath­er conditions offroad or on the racetrack.
Special situations
To detect the tendency of the wheels to lock up, the speeds of the front and rear wheel are compared. If implausible values are detected over a longer period of time, the ABS function is de­activated for safety reasons and an ABS fault is indicated. The condition for a fault message is the completed self-diagnosis. In addition to problems on the BMW Motorrad ABS, unusual driving conditions can also lead to a fault message.
Unusual driving conditions:
Driving on the rear wheel (wheely) for a longer period. Rear wheel spinning in place with front brake pulled (burn out).
Heating up on the main or aux­iliary stand at idle or with gear engaged. Locked-up rear wheel for a longer period of time, e.g. when riding downhill offroad.
Should a fault message result due to one of the driving condi­tions described above, the ABS function can be reactivated by switching the ignition off and then on again.
How important is regular maintenance?
Any technical system is al-
ways only as good as its maintenance condition. To ensure that the BMW Motor­rad ABS is in an optimally main­tained condition, it is vital that the specified inspection intervals be complied with.
Reserves for safety
But remember: the potentially shorter braking distances which BMW Motorrad ABS permits must not be used as an excuse for careless riding. ABS is pri­marily a means of ensuring a safety margin in genuine emer­gencies. Take care when cornering. When you apply the brakes on a cor­ner, the motorcycle's weight and momentum take over and even BMW Motorrad ABS is unable to counteract their effects.
Tire Pressure Control TPC/RDC
Function
A sensor is located in each tire, which measures the air temper­ature and the air pressure inside the tire and sends these values to the control unit.
OE
6
75
z
Technology in detail
Page 78
The sensors are equipped with a centrifugal controller, which
6
does not enable the transmis-
76
sion of the measured values un­til a speed of approx. 20 mph (30 km/h) is reached. Before ini­tial reception of the tire pressure,
-- is shown in the display for
each tire. The sensors continue to transmit the measured values for approx. 15 minutes after the motorcycle comes to a stop. The control unit can manage four sensors, and as a result two sets of wheels with TPC/RDC sen­sors can be driven. If a TPC/RDC control unit is installed without the wheels being equipped with
z
Technology in detail
sensors, an error message is out­put.
Temperature compensation
The tire inflation pressure is tem­perature dependent, i.e. it in­creases or decreases together with the tire temperature. The tire temperature is dependent on the ambient temperature and on the driving style and duration. The tire inflation pressures are shown temperature-compensat­ed in the multifunction display; they refer to a tire temperature of 68 °F (20 °C). No tempera­ture compensation takes place in the air pressure testers at filling stations, i.e. the measured tire in­flation pressure is dependent on the tire temperature. As a result, the values displayed there do not match the values shown in the multifunction display in most cas­es.
Air pressure ranges
The TPC/RDC control unit distin­guishes between three air pres­sure ranges matched to the mo­torcycle:
Air pressure within the permis­sible tolerance. Air pressure at the limits of the permissible tolerance. Air pressure outside the per­missible tolerance.
Adjusting inflation pressure
Compare the TPC/RDC value in the multifunction display with the value on the back cover of the Rider's Manual. The difference between the two values must be compensated with the air pres­sure tester at the filling station.
Example: According to the Rider's Manual, the tire inflation pressure is to be 36.3 psi (2.5 bar), however 33.4 psi
Page 79
(2.3 bar) is shown in the multifunction display. The tester at the filling station indicates 34.8 psi (2.4 bar). This value must be increased by 2.9 psi (0.2 bar) to
37.7 psi (2.6 bar) to produce the correct tire inflation pressure.
6
77
z
Technology in detail
Page 80
6
78
z
Technology in detail
Page 81
Accessories
General instructions .................. 80
Onboard socket ...................... 80
Luggage ............................. 81
CaseOA.............................. 82
TopcaseOA.......................... 85
7
79
z
Accessories
Page 82

General instructions

7
BMW Motorrad recommends the use of parts and accessories
80
for your motorcycle that are ap­proved by BMW for this purpose. Your authorized BMW Motorrad retailer is the right place to go for genuine BMW parts and ac­cessories,other BMW-approved products, and expert advice on their installation and use. These parts and products have been tested by BMW for safety,
z
Accessories
function and suitability. BMW accepts product liability for these products. Conversely, BMW is unable to accept any liability whatsoever for parts and accessories which it has not approved.
BMW Motorrad cannot ex-
amine or test each product of outside origin to ensure that it can be used on or in connection with BMW motorcycles without
constituting a safety hazard. Nor is this guarantee provided when the official approval of a specific country has been granted. Tests conducted by these instances cannot make provision for all op­erating conditions experienced by BMW motorcycles and, conse­quently, they are not sufficient in some circumstances. Use only parts and accessories approved by BMW for your motorcycle.
Whenever you are planning mod­ifications, comply with all the le­gal requirements. The motorcy­cle must not infringe on national road-vehicle construction and use regulations.

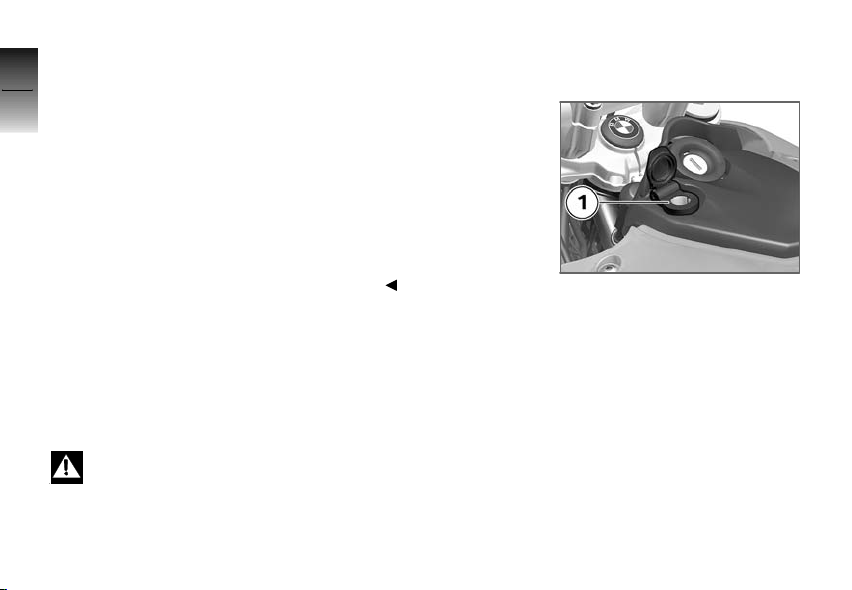

Onboard socket

Ratings
The supply to the socket 1 is cut off automatically if battery voltage is low or the load exceeds the maximum rating.
Operating electrical accessories
You can start using electrical ac­cessories only when the ignition is switched on. The accessory remains operational if the igni­tion is subsequently switched off. Approx. 15 minutes after switch­ing off the ignition and/or during
Page 83
starting, the onboard socket is switched off to take the load off the motorcycle electrical system.
Cable routing
The cables from the onboard socket to the auxiliary device must be routed in such a way that they:
Do not impede the rider Do not restrict or obstruct the steering angle and handling characteristics Cannot be trapped
Improperly routed cables
can impede the rider. Route the cables as described above.

Luggage

Correct loading
Overloading and imbal-
anced loads can adversely affect the motorcycle's handling. Do not exceed the gross weight
limit and observe the loading information.
Adjust setting of spring preload, damping characteristic and tire inflation pressures to suit total weight. with case
Ensure that case volumes on left and right are equal. Make sure that weight is uni­formly distributed between right and left. Pack heavy pieces of luggage to bottom and inside of cases. Observe maximum payload of case and corresponding top speed.
max 22 lbs (max 10 kg)
OA
Payload of case
Speed limit for driving with case
max 99 mph (max 160 km/ h)
with Topcase Observe maximum payload of
Topcase and corresponding top speed.
Payload of Topcase
max 11 lbs (max 5 kg)
Speed limit for driving with Topcase
max 99 mph (max 160 km/ h)
with tank rucksack Observe maximum payload of tank rucksack and correspond­ing top speed.
OA
OA
7
81
z
Accessories
Page 84
7
82
z
Accessories
Payload of tank rucksack
max 11 lbs (max 5 kg)
Speed limit for driving with tank rucksack
max 81 mph (max 130 km/ h)
with rear softbag Observe maximum payload of
rear bag and corresponding top speed.
Payload of rear bag
max 3 lbs (max 1.5 kg)
Speed limit for driving with rear bag
max 81 mph (max 130 km/ h)
OA

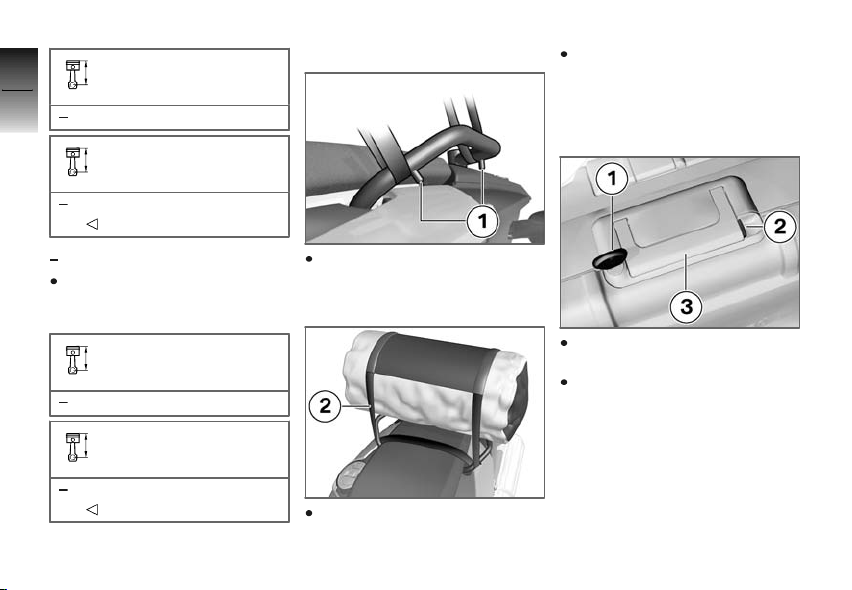

Lashing down luggage
Route luggage belts between motorcycle and along anti-slip locks 1.
Route luggage belt 2 as shown using example of a luggage roll.
Check piece of luggage for se­cure hold.
OA
Case
Opening case
Turn key 1 in case lock per­pendicular to direction of travel. Hold down locking device 2 and fold out carrying handle 3.
Page 85

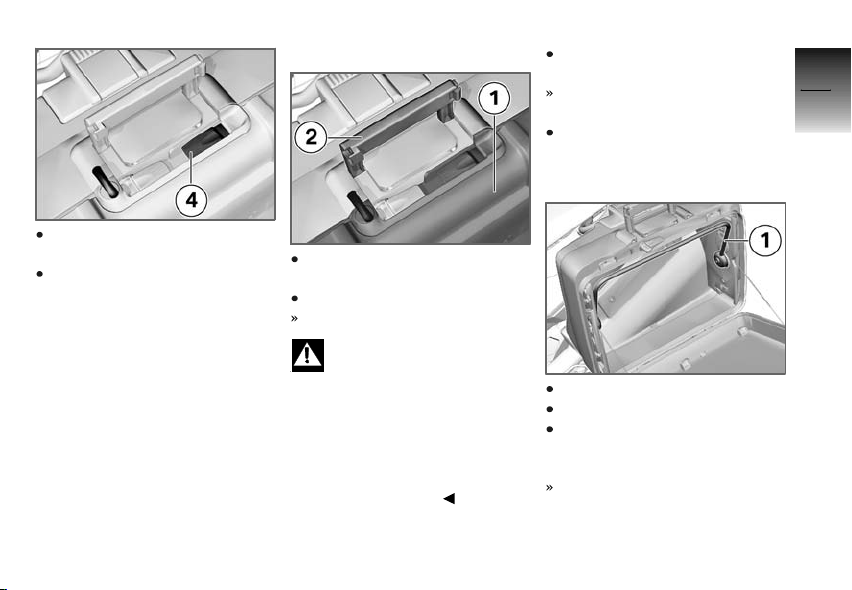

Press ribbing of rocker but­ton 4. With rocker button pressed, lift case lid.
Closing case
Turn key in case lock perpen­dicular to direction of travel. Close case lid 1. The lid clicks audibly into place.
If the carrying handle is
folded down when the slot of the case lock is oriented in the direction of travel, the lock tab can be damaged. Before folding down the carrying handle, make sure that the slot of the case lock is perpendicular to the direction of travel.
Fold carrying handle closed 2 downward. Carrying handle audibly en­gages. Turn key in case lock in the direction of travel and remove.
Adjusting case volume
Open case. Empty case completely. To adjust case volume, lock pivot lever 1 in upper or lower end position. Pivot lever in upper end posi­tion: small volume.
7
83
z
Accessories
Page 86
Pivot lever in lower end posi­tion: large volume.
7
84

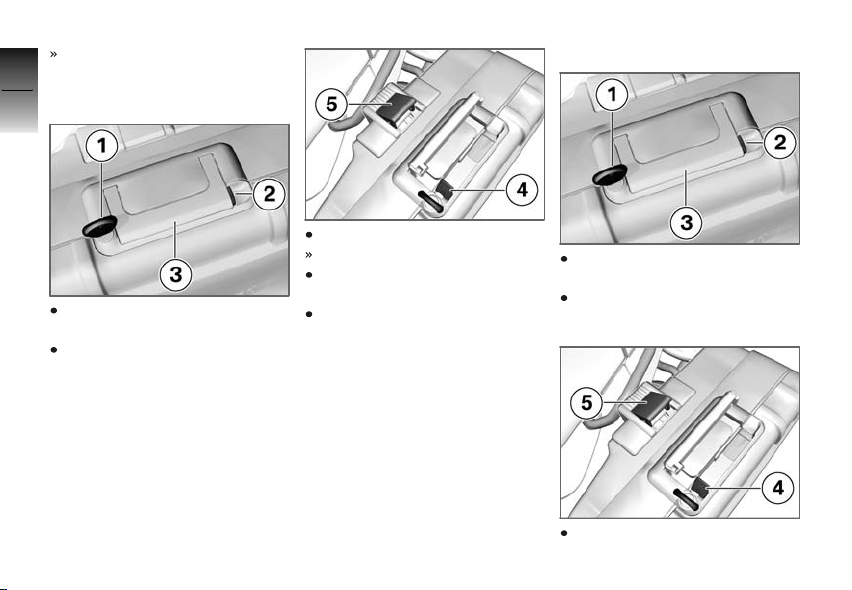

Removing case
z
Accessories
Turn key 1 in case lock per­pendicular to direction of travel. Hold down locking device 2 and fold out carrying handle 3.
Pull up red release lever 4. Locking flap 5 pops up. Fold locking flap 5 all the way open. Remove case from mushroom­headed fastener and pipe bar by carrying handle.
Mounting case
Turn key 1 in case lock per­pendicular to direction of travel. Hold down locking device 2 and fold out carrying handle 3.
Pull up red release lever 4.
Page 87
Locking flap 5 pops up. Fold locking flap 5 all the way open.

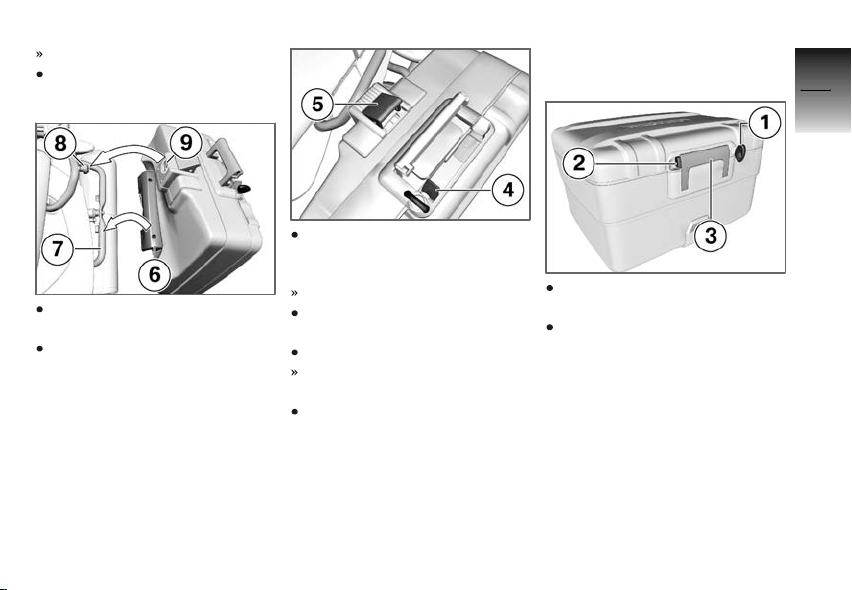

Hook in support 6 on pipe bar 7. Tilt case upward and position on mushroom-headed fasten­er 8 until mushroom-headed fastener 8 is located at rear end of mount 9.
Then press locking flap 5 downward while swiveling red release lever 4 downward. Locking flap clicks into place. Case must now be locked on mushroom-headed fastener. Fold down carrying handle. Carrying handle audibly en­gages. Turn key in case lock in the direction of travel and remove.
Topcase
OA
Opening Topcase
Turn key 1 in Topcase lock vertical to road surface. Hold down locking device 2 and fold out carrying handle 3.
7
85
z
Accessories
Page 88
7
86

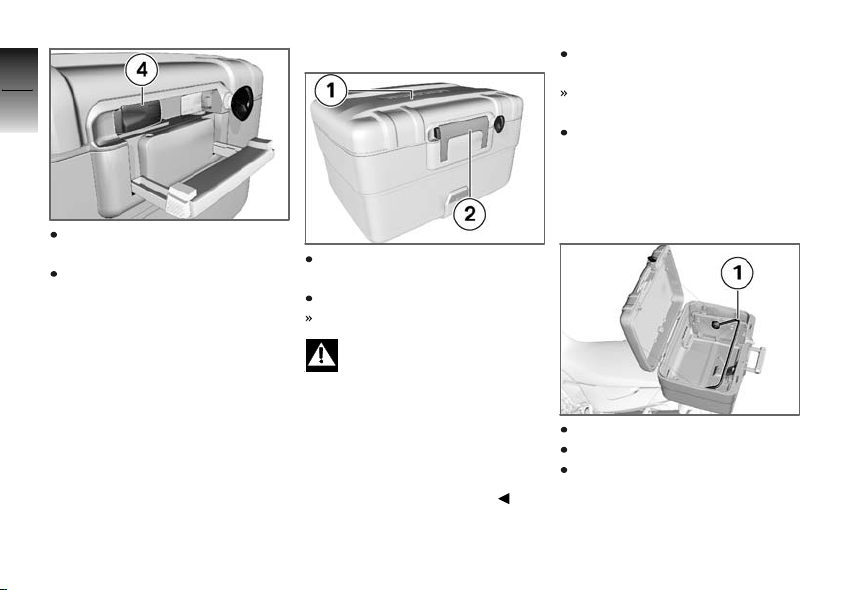

Press ribbing of rocker but­ton 4. With rocker button pressed, open Topcase lid.
z
Accessories
Closing Topcase
Turn key in Topcase lock verti­cal to road surface. Close Topcase lid 1. The lid clicks audibly into place.
If the carrying handle is
folded down when the slot of the Topcase lock is oriented in the direction of travel, the lock tab can be damaged. Before folding down the carrying handle, make sure that the slot of the Topcase lock is perpendicu­lar to the direction of travel.
Fold carrying handle closed 2 upward. Carrying handle audibly en­gages. Turn key in Topcase lock hor­izontal to road surface and re­move.
Adjusting Topcase volume
Open Topcase. Empty Topcase completely. To adjust Topcase volume, lock pivot lever 1 in front or rear end position.
Page 89
Pivot lever in rear end position (toward carrying handle): small volume. Pivot lever in front end position (toward Topcase bottom): large volume.

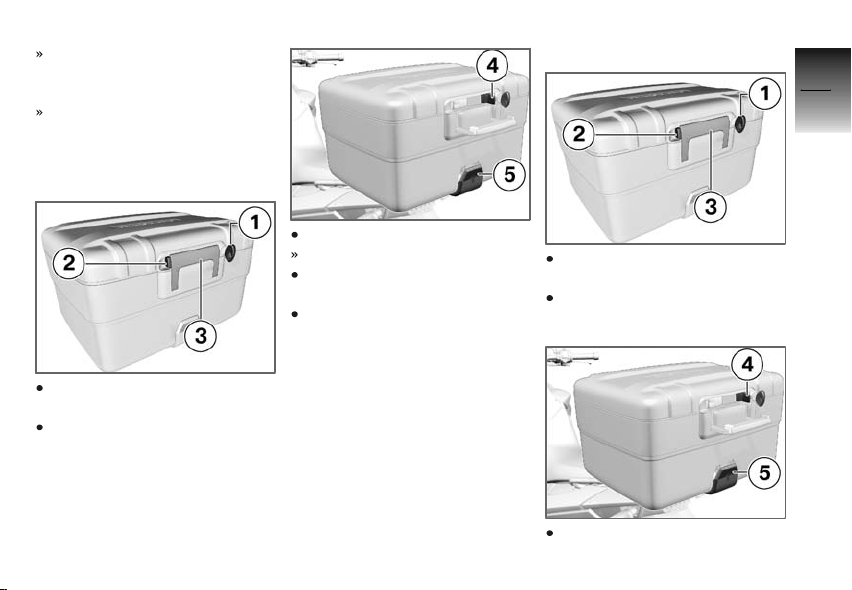

Removing Topcase
Turn key 1 in Topcase lock vertical to road surface. Hold down locking device 2 and fold out carrying handle 3.
Pull red lever 4 Locking flap 5 is unlocked. Fold open locking flap 5 all the way manually. Removing Topcase by grab handle
Mounting Topcase
Turn key 1 in Topcase lock vertical to road surface. Hold down locking device 2 and fold out carrying handle 3.
Pull red lever 4.
7
87
z
Accessories
Page 90

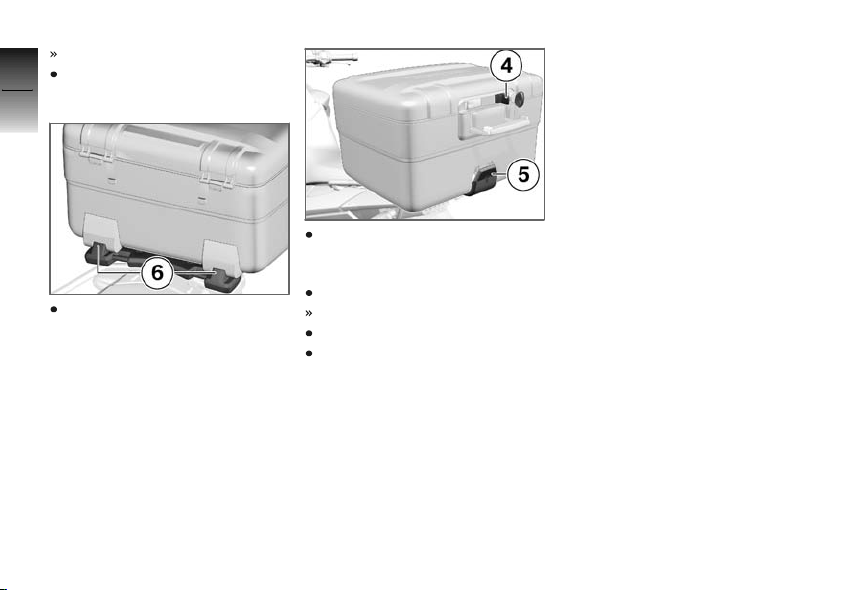

Locking flap 5 is unlocked. Fold open locking flap 5 all the
7
way manually.
88
z
Accessories
Hook Topcase into front hold­ers 6 of Topcase retaining plate.
Press Topcase onto Topcase retaining plate at rear and fold in locking flap 5. Fold in red lever 4. Locking flap 5 is blocked. Check firm seating of Topcase. Fold in carrying handle and lock Topcase.
Page 91
Maintenance
General instructions .................. 90
Onboard toolkit ...................... 90
Engine oil ............................ 91
Brake system . ....................... 92
Brake pads . . . ....................... 93
Brake fluid ........................... 94
Coolant .............................. 95
Clutch ............................... 96
Tires ................................. 96
Rims ................................. 96
Chain ................................ 97
Wheels .............................. 98
Front wheel stand ................. 104
Lamps ............................. 105
Air filter ............................ 112
Jump-starting...................... 112
Battery . . ........................... 113
8
89
z
Maintenance
Page 92

General instructions

8
The "Maintenance" chapter de­scribes work involving the check-
90
ing and replacement of wear parts that can be performed with a minimum of effort. If special tightening torques are to be taken into account for assembly, these are listed. An overview of all required tightening torques is contained in the chapter "Technical Data". Information on additional mainte-
z
Maintenance
nance and repair work is provid­ed in the Repair Manual for your motorcycle on DVD/CD-ROM (RepROM), which you can ob­tain from your authorized BMW Motorrad retailer.
Special tools and a thorough knowledge of motorcycles are required to carry out some of the work described here. If you are in doubt, consult a certified work-
shop, preferably your authorized BMW Motorrad retailer.

Onboard toolkit

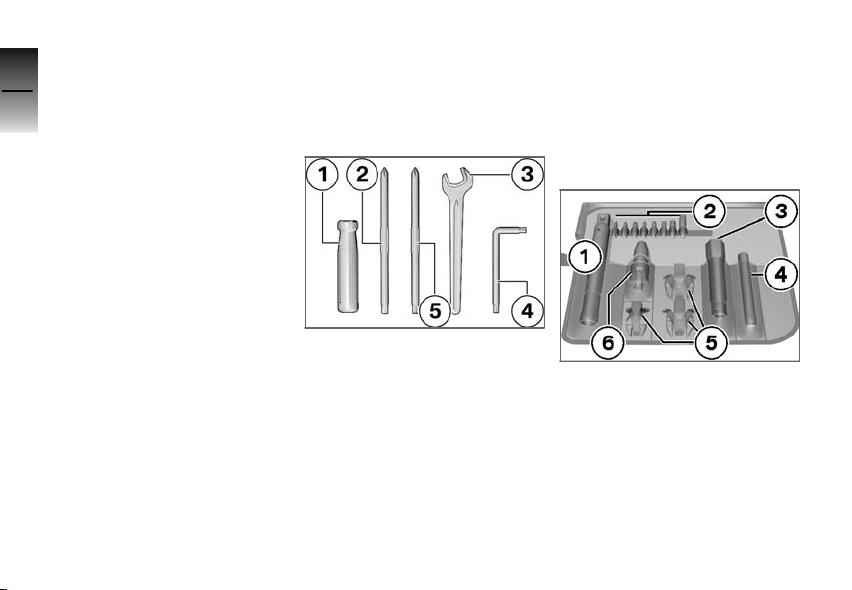

Onboard toolkit
1 Screwdriver handle 2 Reversible screwdriver in-
sert with Phillips and straight blade
3 Open-ended wrench
Wrench size: 17 mm
4 Torx wrench T40
5 Reversible screwdriver in-
sert with Phillips and Torx T25 blade
Onboard-toolkit service
OA
set
1 Pull-out tool holder
for holding all tools with adapter
2 1/4" bits
Bits of various sizes
3 3/8" Allen key, 22 mm 4 Flashlight
Page 93
5 Socket wrench
Open-ended wrenches of various sizes
6 Adapter
for holding 1/4" bits and 9x12 mm and 3/8" jointed adapter

Engine oil

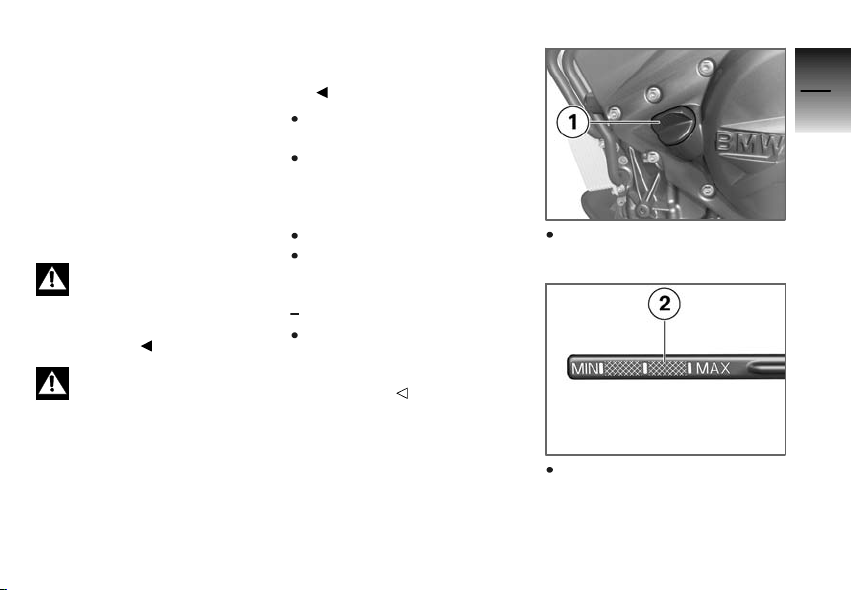

Checking engine oil level
The engine can seize if the
oil level is low, and this can lead to accidents. Always make sure that the oil level is correct.
The oil level varies with the
temperature of the oil. The higher the temperature, the high­er the level of oil in the sump. Checking the oil level with the engine cold or after a short trip leads to misinterpretations and therefore to incorrect oil fill quan­tities. To ensure that the display of the
engine oil level is correct, only check the oil level after a longer trip.
Wipe area around oil fill loca­tion clean. Allow engine to idle until fan starts up, then allow to con­tinue running for an additional minute. Switch off ignition. Make sure ground is level and firm and hold motorcycle at op­erating temperature vertically. with center stand Make sure ground is level and firm and place motorcycle at operating temperature on its center stand.
OE
Remove oil dipstick 1 by turn­ing counterclockwise.
Clean measuring area 2 with a dry cloth
8
91
z
Maintenance
Page 94
Place oil dipstick on oil fill loca­tion, but do not install.
8
Remove oil dipstick and read
92
off oil level.
Engine oil level
between MIN and MAX markings on oil dipstick
Engine oil 10W-40
0.4 quarts (0.4 l) (Difference between MIN and MAX)
If oil level is below MIN mark:
z
Maintenance
Topping up engine oil ( 92)
If oil level is above MAX mark:
Have oil level corrected by a specialized workshop, prefer­ably an authorized BMW Mo­torrad retailer.
Topping up engine oil
Checking engine oil level ( 91)
Top up engine oil up to speci­fied level via fill location 1. Install oil dipstick.

Brake system

Brake safety
A fully functional brake system is a basic requirement for the road safety of your motorcycle. Do not ride the motorcycle if you have any doubts about the de­pendability of the brake system. In this case, have the brake sys­tem checked by a specialized workshop, preferably by an au­thorized BMW Motorrad retailer.
Incorrect working practices
endanger the reliability of the brakes. Have all work on the brake sys­tem performed by a specialized workshop, preferably by an au­thorized BMW Motorrad retailer.
Checking brake operation
Pull handbrake lever. Pressure point must be clearly perceptible. Press footbrake lever. Pressure point must be clearly
perceptible. If no clear pressure points are perceptible:
Have the brakes checked by a
certified workshop, preferably
an authorized BMW Motorrad
retailer.
Page 95

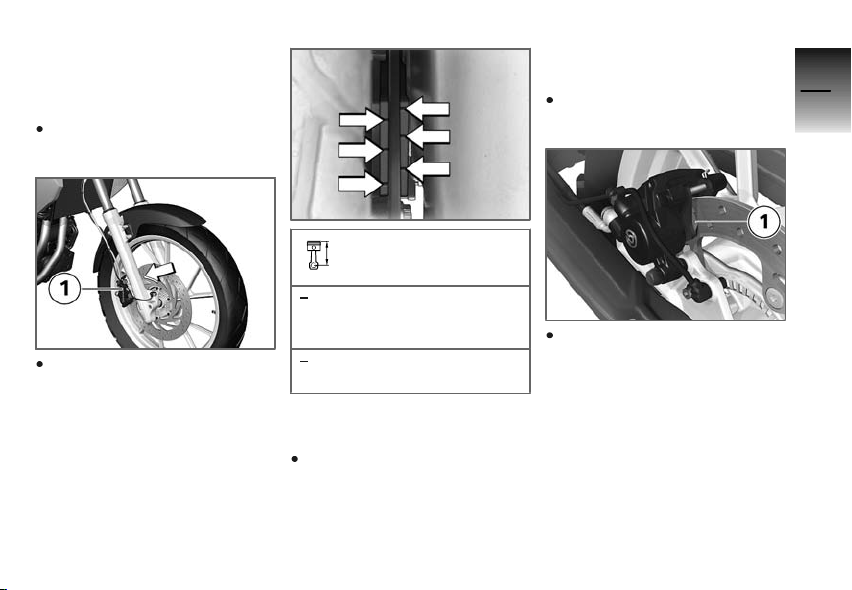

Brake pads

Checking front brake pad thickness
Make sure ground is level and firm and park motorcycle.
Front brake-pad wear limit
Checking brake pad thickness at rear
Make sure ground is level and firm and park motorcycle.
8
93
Visually inspect left and right brake pads to ascertain their thickness. Direction of view: between wheel and fork tube at brake caliper 1.
min 0.04 in (min 1 mm) (On­ly friction material without carrier plate)
Wear markings (grooves) must be clearly visible.
If the wear indicating marks are no longer clearly visible:
Have the brake pads replaced by a specialized workshop, preferably an authorized BMW Motorrad retailer.
Visually check brake pad thick­ness 1 from rear.
z
Maintenance
Page 96
8
94
Rear brake-pad wear limit
z
min 0.04 in (min 1 mm) (On-
Maintenance
ly friction material without carrier plate)
Wear indicators must be clearly visible.
If the wear indicating mark is no longer visible:
Have brake pads replaced by a specialized workshop, prefer­ably an authorized BMW Mo­torrad retailer.

Brake fluid

Checking front brake fluid level
Make sure ground is level and firm and hold motorcycle verti­cally. with center stand
Make sure ground is level and firm and place motorcycle on its center stand.
Move handlebars into straight­ahead position.
Read off brake fluid level at front brake-fluid reservoir 1.
OE
The brake fluid level in the brake-fluid reservoir drops
due to brake pad wear.
Front brake fluid level
Brake fluid DOT4
The brake fluid level must not fall below the MIN mark.
If brake fluid level drops below permissible level:
Have the defect corrected as
soon as possible by a special-
ized workshop, preferably an
Page 97
authorized BMW Motorrad re­tailer.
Checking rear brake fluid level
Make sure ground is level and firm and hold motorcycle verti­cally. with center stand
Make sure ground is level and firm and place motorcycle on its center stand.
Read off brake fluid level at rear brake-fluid reservoir 1.
OE
The brake fluid level in the brake-fluid reservoir drops
due to brake pad wear.
Rear brake fluid level
Brake fluid DOT4
The brake fluid level must not fall below the MIN mark.
If brake fluid level drops below permissible level:
Have the defect corrected as soon as possible by a special­ized workshop, preferably an
authorized BMW Motorrad re­tailer.

Coolant

Checking coolant level
Make sure ground is level and firm and park motorcycle.
Check coolant level on expan­sion tank 1. Viewing direction: through between windshield and right-hand side panel.
8
95
z
Maintenance
Page 98
8
96

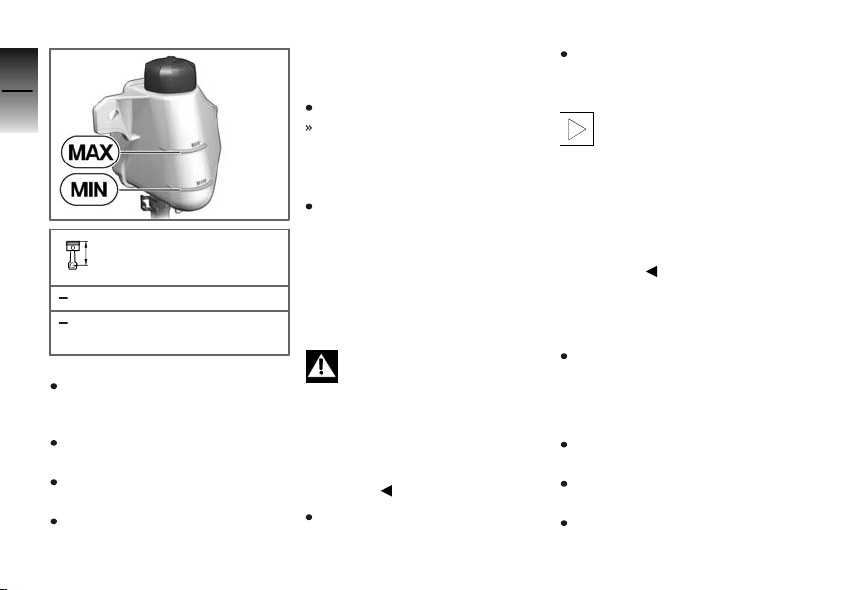

Coolant, specified level
z
Radiator antifreeze
Maintenance
between MIN and MAX marks on the expansion tank
If coolant level is too low:
Add coolant.
Topping up coolant
Open cap of coolant fill location by turning counterclockwise. Pour in coolant up to specified level using a suitable funnel. Close cap of fill location for coolant by turning clockwise.

Clutch

Checking clutch operation
Pull the clutch lever. Pressure point must be clearly
perceptible. If no clear pressure point can be felt:
Have the clutch checked by a
specialized workshop, prefer-
ably an authorized BMW Mo-
torrad retailer.

Tires

Checking tire tread depth
The handling of your mo-
torcycle can already change for the worse before the legally prescribed minimum tread depth is reached. Have tires replaced even be­fore the minimum tread depth is reached.
Make sure ground is level and firm and park motorcycle.
Measure tire tread depth in main tread grooves with wear indicating marks.
Tires have wear indicators
integrated into the main tread grooves. If the tire tread has worn down to the level of the marks, the tire is completely worn. The locations of the marks are indicated on the edge of the tire, e.g. by the letters TI, TWI or by an arrow.
If the tire tread depth no longer complies with the legally required minimum tread depth:
Replace tire.

Rims

Visual inspection
Make sure ground is level and firm and park motorcycle. Visually inspect rims for de­fects. Have damaged rims checked and, if necessary, replaced by
Page 99
a specialized workshop, prefer­ably an authorized BMW Mo­torrad retailer.
Checking spokes
Make sure ground is level and firm and park motorcycle. Sweep across spokes with a screwdriver handle or similar item, paying attention to result-
ing series of notes. If you hear an uneven series of notes:
Have spokes checked by a cer-
tified workshop, preferably an
authorized BMW Motorrad re-
tailer.

Chain

Lubricating chain
Dirt, dust and insufficient
lubrication will considerably shorten the service life of the drive chain.
Clean and lubricate the drive chain regularly.
Lubricate drive chain at least every 600 miles (1000 km). Af­ter driving though water or dust and dirt, carry out lubricate ear­lier accordingly. Switch off ignition and engage Neutral. Clean drive chain with suitable cleaning agent, dry and apply chain lubricant. Wipe off excess lubricant.

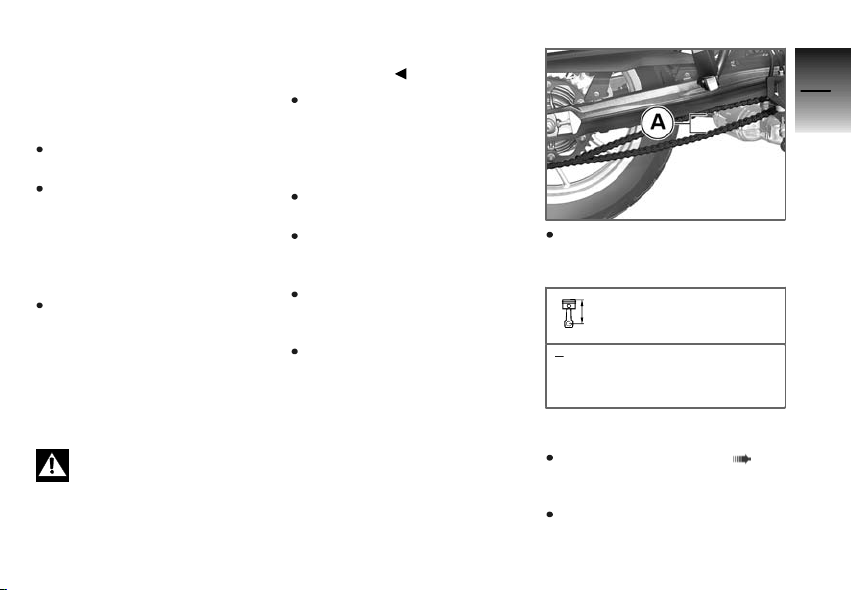

Checking chain tension
Make sure ground is level and firm and park motorcycle.
Press chain upward and down­ward using a screwdriver and measure difference A.
Chain sag
1.2...1.6 in (30...40 mm) (Mo­torcycle unloaded on side stand)
If the measured value is outside the permissible tolerance:
Adjusting chain tension ( 97)
Adjusting chain tension
Make sure ground is level and firm and park motorcycle.
8
97
z
Maintenance
Page 100
8
98

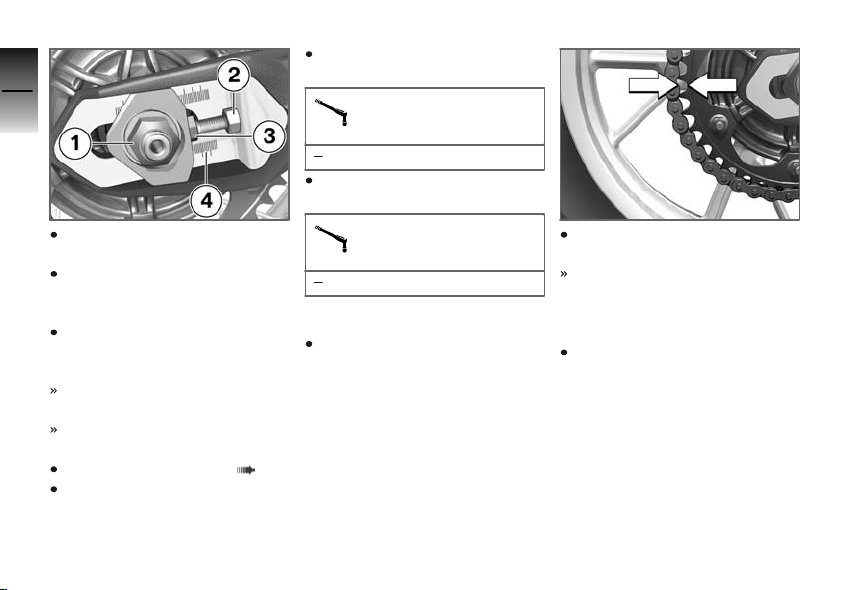

Loosen quick-release axle nut 1. Loosen lock nuts 2 on left and right by turning counterclock-
z
Maintenance
wise. Adjust chain tension with ad­justing screws 3 on left and right. Turning clockwise: chain ten­sion is reduced. Turning counterclockwise: chain tension is increased. Checking chain tension ( 97) Make sure that the same scale value 4 is set on the left and right.
Tighten lock nuts 2 on left and right by turning clockwise.
Locknut of drive-chain tensioning screw
14 lb/ft (19 Nm)
Tighten quick-release axle nut 1 with specified torque.
Rear-wheel quick-release axle in swinging arm
74 lb/ft (100 Nm)
Checking chain wear
Make sure ground is level and firm and park motorcycle.
Pull chain toward rear at rear­most point of chain sprocket. The tooth tips must still be
within the chain links. If the chain can be pulled off be­yond the tooth tips:
Please contact a specialized
workshop, preferably an autho-
rized BMW Motorrad retailer.

Wheels

Tire recommendation
For every size of tire, BMW Mo­torrad has tested certain makes and approved those it has found to be roadworthy. If you use
Loading...
