Blue Ox BRK2012 User Manual

. e c n e

d if

n o c

g n i k a r b

f o

l e v e l

w e n

A

Patriot®

Braking System

Owner’s Manual

Patent Pending

BRK2012

THANK YOU

for purchasing a Patriot® braking system from Blue Ox®. We’ve organized this manual to make your installation simple and as trouble-free as possible. Please read before operating the brake. Keep your sales receipt and this manual in a safe place so that both are available for future use if needed.

Read and understand fully these instructions prior to the use of this product.

405-0260

Page 1 of 15

3/28/12

Blue Ox®

Two-Year Limited

Automatic Equipment Manufacturing Company (“Automatic”) warrants to the original (first) retail purchaser this product manufactured by Automatic, shall be free from defect in material and workmanship under normal use and service for

a period of two (2) years from the date of delivery. During said period, Automatic will repair or replace any parts that have been returned by the original purchaser, to the factory, transportation prepaid, and in Automatics sole and absolute opinion found to be defective.

Limitations on Warranty Coverage:

Coverage under this warranty will be valid only if the customer warranty card is returned by the original purchaser within 30 days of purchase.

Coverage under this warranty will be effective only when a copy of the original invoice, showing date and place of purchase, accompanies any claim for warranty. This warranty is NON TRANSFERABLE.

This limited warranty will not cover, in any way or form, any alleged damages caused by incorrect or improper installation, improper use, modification or neglect of product, failure to properly service and maintain, misuse, act of God, accident or failure of the user to follow guidelines contained in the instructional material provided by Automatic.

This warranty does not cover normal wear and tear, paint or rust.

Warrantor assumes no responsibility to the owner for loss of use of product, loss of time, inconvenience or any other damage consequential or otherwise. Including, but not limited to mileage, expense of transporting of product, return shipping expense, mechanics travel time, telephone, road service, towing, and rental during repairs, travel, lodging, loss or damage to personal property or loss of earnings.

REPAIR OR REPLACEMENT AS SET FORTH IN THIS LIMITED WARRANTY IS THE SOLE EXCLUSIVE REMEDY OF THE PURCHASER. AUTOMATIC SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED IN LENGTH TO THE DURATION OF THIS WARRANTY.

Some states do NOT allow the exclusion of incidental of consequential damages, or allow limitations on how long an implied warranty lasts, so previous limitations or exclusions may NOT apply to you. This warranty gives you specific legal rights and you may also have other rights which vary from state to state.

Automatic reserves the right to make changes or add improvements to its product at any time without any obligation to make such changes to previously manufactured equipment.

No liability is assumed for bodily injury that may be inflicted on the purchaser, operator, spectator or general public who is in the general area while this equipment is in use.

WARRANTY REQUEST PROCEDURE:

If your Automatic product develops a defect during the warranty period, promptly notify Automatic Customer Care. Until such notice is received, Automatic will not be responsible for any repairs or replacement.

Upon receipt of notice from you, Automatic will have a choice of options in repairing or replacing any part it determines in its sole and absolute desecration to be defective. 1.) Customer Care may require you, at your own expense, to deliver or ship the part to the factory for evaluation. They will issue a “Return Merchandise Authorization” (RMA) number

if this is required. 2.) Any part that is, in Automatic’s sole and absolute judgment, found to be defective in material or workmanship, will be repaired or replaced, at Automatic’s option without charge for parts or labor. At Automatic’s option, new, refurbished or improved parts may be used in the repair or replacement of warranted items or replacement products.

Blue Ox® Division

Automatic Equipment Mfg. Co.

P.O. Box 430

Pender, Nebraska 68047

www.blueox.com - [phone]

405-0260

Page 2 of 15

3/28/12

Product Information & Table of Contents

Equipment Information Record

Customer Name: ______________________

Date Purchased: _______________________

Purchased From: _______________________

Address: ______________________________

City:__________State: ___ Zip Code: ______

Phone Number of Dealership: ____________

Installed By: __________________________

Service #: _____________________________

Model #: ______________________________

Serial #: ______________________________

Notes: __________________________________

________________________________________

________________________________________

________________________________________

________________________________________

__________________________

! WARNING

-FOR YOUR SAFETY-

Fully understand these instructions before installing. Improper installation and/or operation can create a hazard which can cause serious injury, property damage or death. Improper installation and/or

operation will void the warranty.

At Blue Ox® we pride ourselves in offering exceptional customer service to our valued customers.

If you have any questions, comments, or concerns please feel free to contact a member of our Customer Care Team by calling [phone].

Table of Contents

Page 2

Warranty Information

Page 3

Equipment Information Record Table of Contents Customer Care Information

Page 4

Welcome to the Blue Ox® Experience Care and Maintenance

Page 5

Unpacking Parts List Itemization

Page 6

The Patriot® Illustrated

Pages 7-8

Installation Set-Up

Page 9 & 10

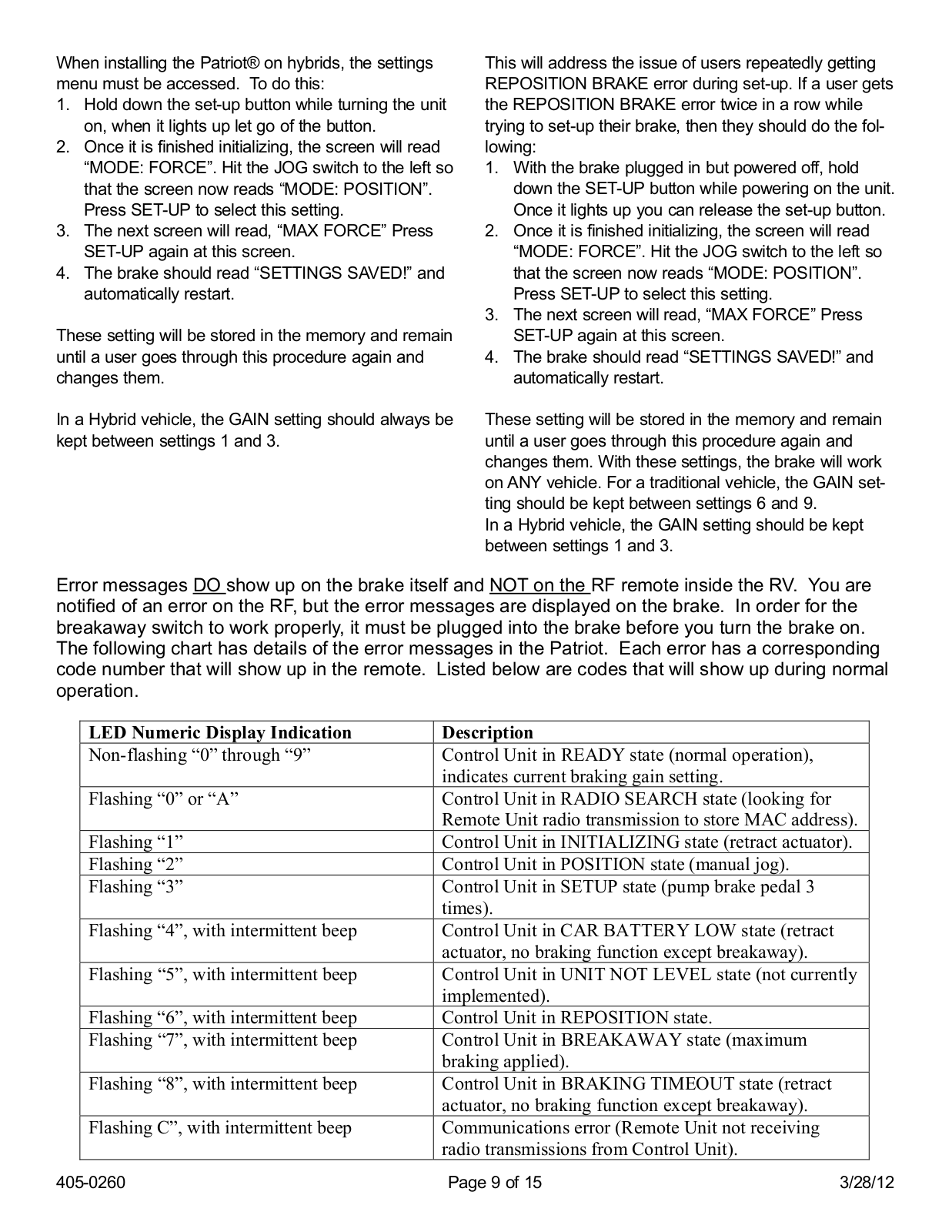

Error Messages

Pages 11

Breakaway System

Pages 12

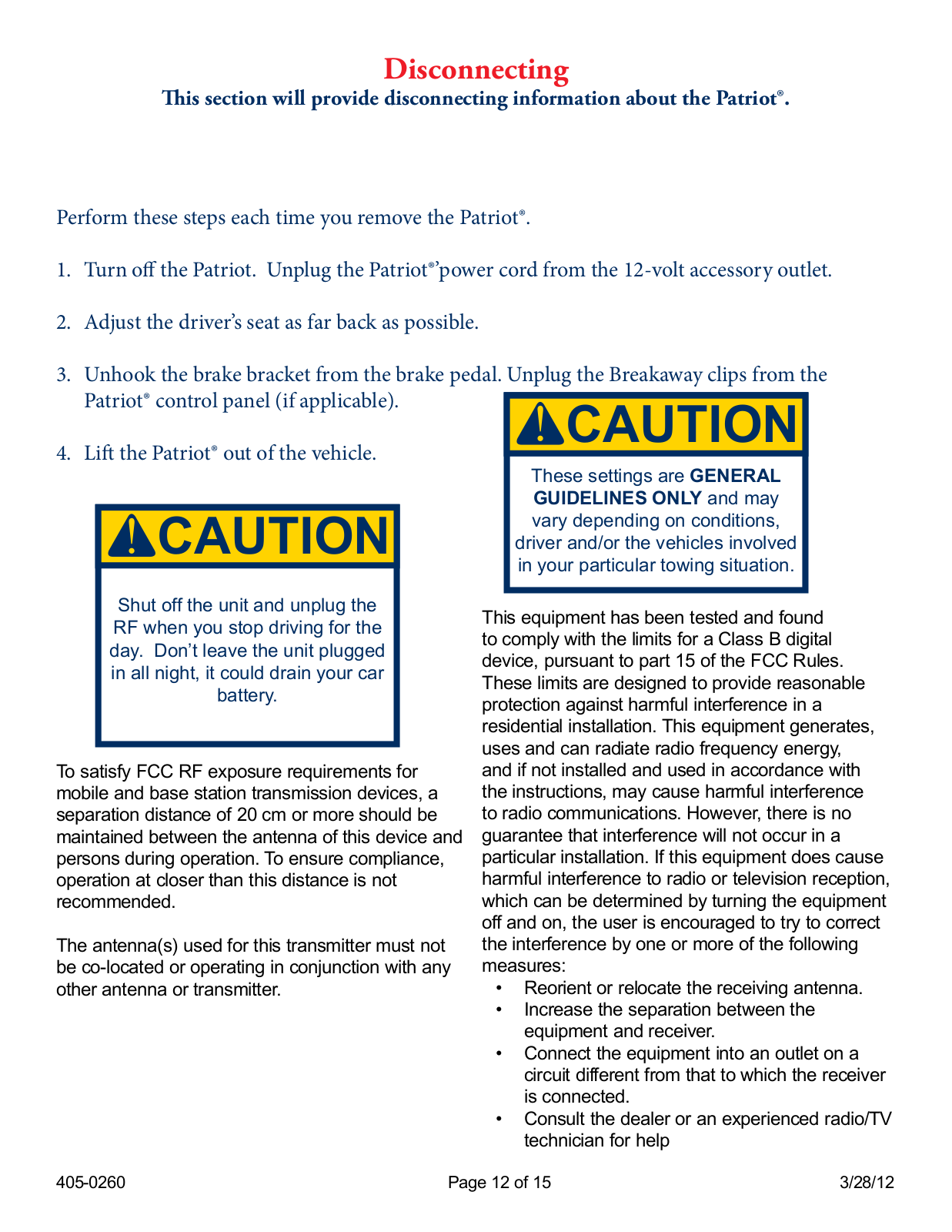

Disconnecting

Pages 13

Accessories

DEALERS AND DISTRIBUTORS:

PLEASE give the instructions to the customer so they fully understand the set-up, operation, and safety precautions of this braking system.

405-0260

Page 3 of 15

3/28/12

Welcome to the Blue Ox® Experience

Congratulations! You are now the proud owner of a Patriot® braking system.

Welcome to the Blue Ox® Family. The braking system that you have purchased combines quality components with the latest in technology and style. We are confident that these design features will provide you with the conveniences you expect during your travels. After you understand how to properly and safely operate and care for your Patriot®, expect years of trouble-free operation and service backed by a two year limited warranty.

In this manual, you will find installation instructions. Please read all of the technical documents, warnings, cautions, tips, and notes in this manual before attempting to operate your Patriot® for the first time. Improper installation, use or maintenance may result in malfunction causing personal injury or property damage. Finally, don’t forget to fill out and return your warranty card or registering via our web site at www.blueox.com within ten days of delivery date and upon the original serial number being visible on the product and unaltered. For future reference, your serial number is located on the outside of the manual packaging and is also located on the bottom of your Patriot® unit.

! WARNING

Do NOT modify your Patriot® in any way NOT authorized by Blue Ox®, as it will void the warranty.

- REMINDER -

Proper installation and use of this product is the sole responsibility of the purchaser.

Care & Maintenance

Care and Maintenance of your Patriot® Braking System

Your Patriot® unit requires a minimal amount of care and maintenance. If you do not feel confident in your ability to perform the occasional maintenance, consult your Blue Ox® Dealer or Professional Installer, or see a Blue Ox representative at a rally or race that you plan to attend. The following will inform you of the areas of your Patriot® that will need periodic inspection and/or care and maintenance.

!WARNING

-USE ONLY GENUINE FACTORY REPLACEMENT PARTS -

Do NOT substitute homemade or non-typical parts. This may cause your brake to fail and result in injury or death. If repair parts or components are needed, you may order them through your nearest Blue Ox® Dealer or Distributor, or call our Customer Care Team

at [phone].

Care

Do NOT use any type of solvent or spray cleaner n the Patriot® braking system. The recommended cleaning procedures for the Patriot® are to wipe down the exterior with a damp cloth. Wipe down with a dry cloth.

Store in a clean, dry place.

Maintenance

It may be necessary to occasionally lubricate the brake bracket with silicone spray.

New units need approximately 8 hours of charge time over a 3 month period. The car does not need to be on during this time. Also, the unit can be left plugged in for any period of time without causing damage.

- REMINDER -

The maximum current that can be drawn on the Patriot® is 2 amps.

405-0260

Page 4 of 15

3/28/12

Unpacking your Patriot®

Remove the Patriot® and accessories from the shipping carton, review parts list and diagram below. Make sure that you have the appropriate items shown below. If NOT, please contact a Blue Ox® Dealer or Distributor, or call a member of the Customer Care Team at [phone] to order replacement parts.

	Patriot® Braking System	Breakaway System
	The Patriot® brake system is comprised of the Patriot® (with brake
	bracket assembly).
	Patriot®	4
	1

2	5

3 6

Contents:

1	Patriot® assembly		4	Breakaway Switch
2	2-Way RF In-Coach Controller		5	Breakaway Lanyard
3	Brake Feet		6	Breakaway Cable
		Tools &
		Supplies
		Required		! WARNING
		Phillips Screwdriver
				Be sure the breakaway cable is
		Wire Ties
		Vise Grip		kept clear of the towbar, safety
				cables, electrical cord or any
		Rubber Grommet
				moving parts.
		Silicone Sealant
