Blodgett SB-6 Part Manual

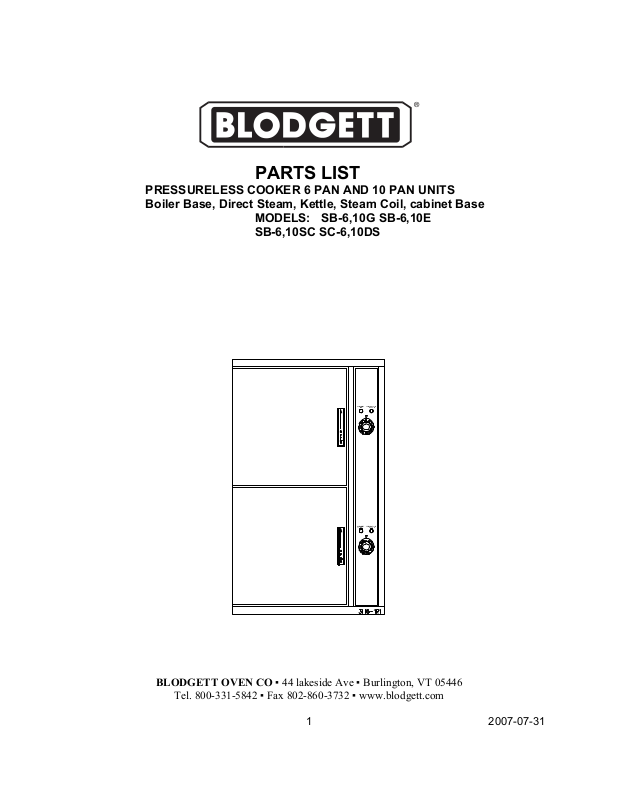

PARTS LIST
PRESSURELESS COOKER 6 PAN AND 10 PAN UNITS Boiler Base, Direct Steam, Kettle, Steam Coil, cabinet Base
MODELS: SB-6,10G SB-6,10E SB-6,10SC SC-6,10DS
BLODGETT OVEN CO 44 lakeside Ave Burlington, VT 05446
Tel. 800-331-5842 Fax 802-860-3732 www.blodgett.com
1 2007-07-31
1 2007-07-31
ITEM
1 43516 Hinge Rod 1
2 42137 Door Switch 2 2
3 41631 Striker 2 2
PART NO.
41715 Hinge Rod 1
42285 Actuator Pin Complete With Clip 2 2
41632 Washer 2 2
DESCRIPTION QUANTITY
SB-6 SB-10
40112 Lock Washer 2 2
40114 Nut 2 2
4 43517 Control Decal 1
42577 Control Decal 1
5 40945 Pilot Light, Green 2 2
6 40950 Pilot Light, Red 2 2
7 41633 Perforated Trough 1 1
