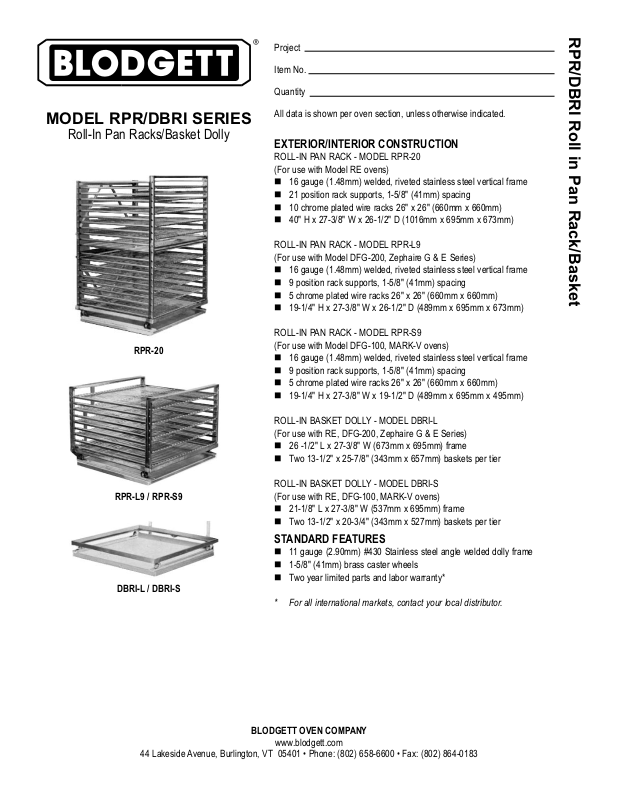

Blodgett RPR, DBRI General Manual
BLODGETT OVEN COMPANY
www.blodgett.com
44 Lakeside Avenue, Burlington, VT 05401 • Phone: (802) 658-6600 • Fax: (802) 864-0183
EXTERIOR/INTERIOR CONSTRUCTION
ROLL-IN PAN RACK - MODEL RPR-20
(For use with Model RE ovens)
16 gauge (1.48mm) welded, riveted stainless steel vertical frame
21 position rack supports, 1-5/8" (41mm) spacing
10 chrome plated wire racks 26" x 26" (660mm x 660mm)
40" H x 27-3/8" W x 26-1/2" D (1016mm x 695mm x 673mm)
ROLL-IN PAN RACK - MODEL RPR-L9
(For use with Model DFG-200, Zephaire G & E Series)
16 gauge (1.48mm) welded, riveted stainless steel vertical frame
9 position rack supports, 1-5/8" (41mm) spacing
5 chrome plated wire racks 26" x 26" (660mm x 660mm)
19-1/4" H x 27-3/8" W x 26-1/2" D (489mm x 695mm x 673mm)
ROLL-IN PAN RACK - MODEL RPR-S9
(For use with Model DFG-100, MARK-V ovens)
16 gauge (1.48mm) welded, riveted stainless steel vertical frame
9 position rack supports, 1-5/8" (41mm) spacing
5 chrome plated wire racks 26" x 26" (660mm x 660mm)
19-1/4" H x 27-3/8" W x 19-1/2" D (489mm x 695mm x 495mm)
ROLL-IN BASKET DOLLY - MODEL DBRI-L
(For use with RE, DFG-200, Zephaire G & E Series)
26 -1/2" L x 27-3/8" W (673mm x 695mm) frame
Two 13-1/2" x 25-7/8" (343mm x 657mm) baskets per tier
ROLL-IN BASKET DOLLY - MODEL DBRI-S
(For use with RE, DFG-100, MARK-V ovens)
21-1/8" L x 27-3/8" W (537mm x 695mm) frame
Two 13-1/2" x 20-3/4" (343mm x 527mm) baskets per tier
STANDARD FEATURES
11 gauge (2.90mm) #430 Stainless steel angle welded dolly frame
1-5/8" (41mm) brass caster wheels
Two year limited parts and labor warranty*
* For all international markets, contact your local distributor.
MODEL RPR/DBRI SERIES
Roll-In Pan Racks/Basket Dolly
RPR/DBRI Roll in Pan Rack/Basket
RPR-20
RPR-L9 / RPR-S9
DBRI-L / DBRI-S
Project
Item No.
Quantity
All data is shown per oven section, unless otherwise indicated.
BLODGETT OVEN COMPANY
www.blodgett.com
44 Lakeside Avenue, Burlington, VT 05401 • Phone: (802) 658-6600 • Fax: (802) 864-0183
SHORT FORM SPECIFICATIONS
Frame constructed of .125 (3.18mm) formed aluminum sheet. Dolly channels of 1 1/2" x 1/2" x 1/8" x 24" (38mm x 12.7mm x 3.18mm x 610mm) aluminum extrusion.Handle to be 7/8"
(22mm) O.D. tubing. To have docking and locking assembly with alignment pin. Four 5"(127mm) diameter swivel type casters (two with brakes), hard rubber ball bearing type, NSF
approved.
Printed in U.S.A. NOTE: FOR COMMERCIAL USE ONLY
NOTE: The company reserves the right to make substitutions of components without prior notice
APPROVAL/STAMP
P/N 35047 Rev C (6/01)
TOP VIEW
3-11/16”
(94mm)
20”
(508mm)
27-5/8”
(702mm)
33-1/8” (841mm)
16-5/8”
(422mm)
27-3/8”
(695mm)
5-3/8”
(137mm)
TOP VIEW
30-1/4” (768mm)
16-5/8”
(422mm)
27-3/8”
(695mm)
7/16” (11mm)
5-3/8”
(137mm)
SIDE VIEW
CART CTRG
38-1/4”
(972mm)
5-1/2”
(140mm)
15-11/16”
(398mm)
+1/2
-0
+13
-0
6-9/16”
(167mm)
TOP OF TRACK
TOP OF TRACK
SIDE VIEW
TOP OF TRACK
15-11/16”
(398mm)
+1/2
-0
+13
-0
6-9/16”
(167mm)
49-9/16” 1/2
(1259mm 13)++
47-13/16” 1/2
(1214mm 13)++
CART CTRG-2
CART CTRE-2
TOP OF TRACK
TOP OF TRACK
43-3/16” 1/2
(12097mm 13)++
6-9/16”
(167mm)
12-3/8”
(314mm)
+1/2
-0
+13
-0
41-17/16” 1/2
(1053mm 13)++
CART CTRE
TOP OF TRACK
12-3/8”
(314mm)
+1/2
-0
+13
-0
6-9/16”
(167mm)
38-1/4”
(972mm)
5-1/2”
(140mm)
CART MODELS
CTRE-2, CTRG, CTRG-2
