CTB XCEL & CTBR XCEL
ELECTRIC CONVECTION OVENS
REPLACEMENT PARTS LIST
EFFECTIVE OCTOBER 13, 2013
The Company reserves the right to make substitution in the event that items specied are not available.
ERRORS: Descriptive and/or typographic errors are subject to correction.
44 Lakeside Avenue, Burlington, Vermont 05401 USA Telephone: (802) 658-6600 Fax: (802) 860-3732
Superseding All Previous Parts Lists.
BLODGETT OVEN COMPANY
www.blodgett.com
P/N 56684 Rev C
Page 2
SERIAL NUMBER LOCATION / KEY:
IMPORTANT: When ordering parts, please provide the model,
gas type and serial number of the oven. The identication plate
is located behind the controls and, also, above the control panel
under the ledge.
SERIAL NUMBER IDENTIFICATION CODE:
BX - CTB XCEL
SERIAL NUMBER EXAMPLES
010713BX001T
01/07/13 = DATE
BX = LETTER CODE FOR MODEL NAME
001 = FACTORY SEQUENCE
TO OBTAIN LITERATURE:
Email: literature@blodgett.com
or visit
www.blodgett.com
OCTOBER 13, 2014 2 CTB XCEL
Page 3
TABLE OF CONTENTS
SMART TOUCH CONTROLS ...................................................................................................... 4
IQ CONTROL ............................................................................................................................... 5
MISC ELECTRICAL ..................................................................................................................... 6
DOOR COMPONENTS ............................................................................................................... 7
INTERIOR/EXTERIOR PARTS .................................................................................................... 8
STANDS, LEGS & CASTERS ..................................................................................................... 9
OCTOBER 13, 2014 3 CTB XCEL
Page 4

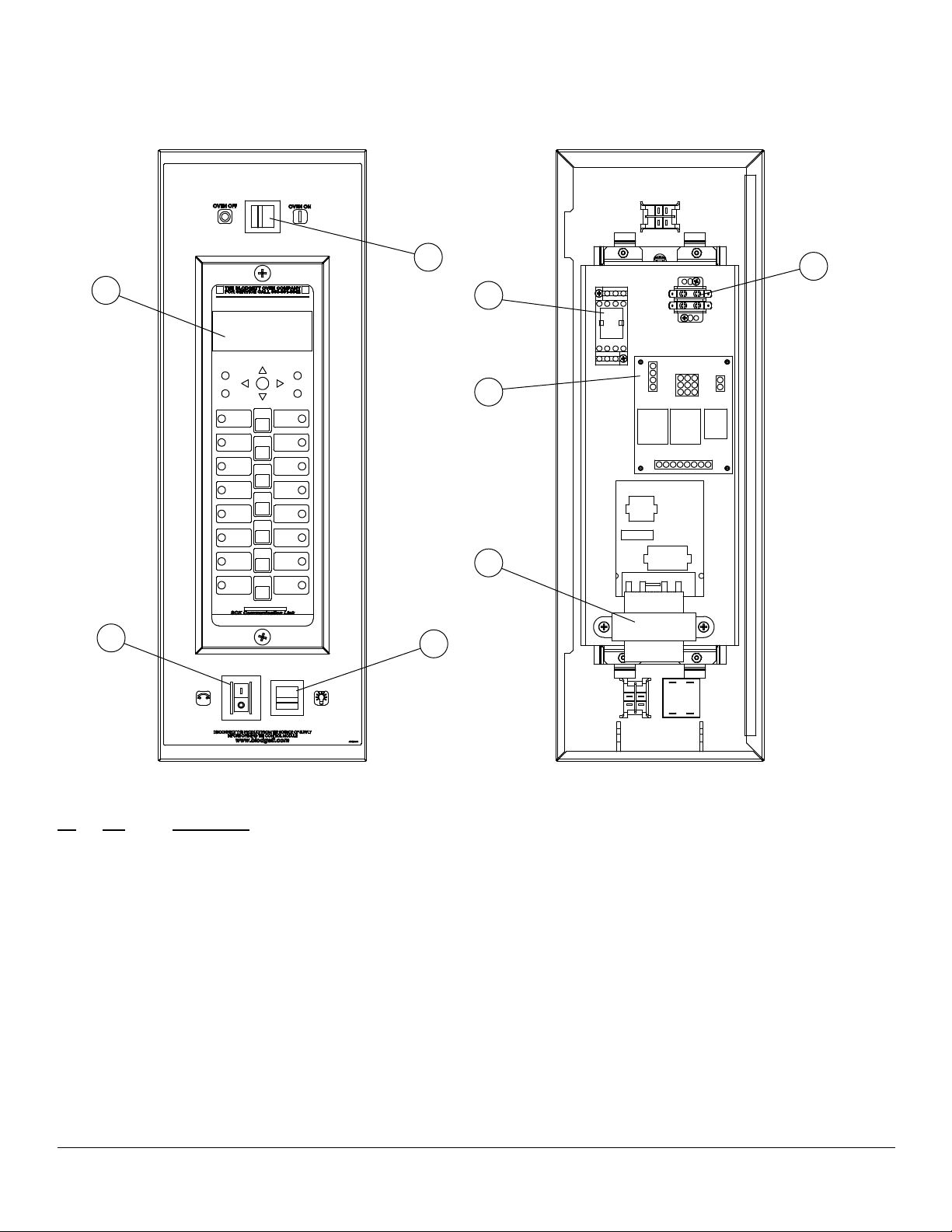

SMART TOUCH CONTROLS
6
1
7
5
4
2
Ref. Part
No. No. Description
1 55969 Smart Touch Control, CTB XCEL, before 11/8/13
57740 Smart Touch Control, CTB XCEL, after 11/8/13
2 52161 USB Port Cover
3 39688 Circuit Breaker, 20A
4 52948 Transformer, 208/240 - 24V
5 53219 Speaker
6 54604 Power Supply, 15W, 24V
7 53206 Relay Board, before 11/8/13
57727 Relay Board, after 11/8/13
8 36755 Thermal Switch
9 38604 Relay, DPDT, 24VDC
10 52647 USB Cable
52926 USB Flash Drive
34473 Cabity Probe, RTD 1000 OHM
3
10
9
8
4 Places
OCTOBER 13, 2014 4 CTB XCEL
Page 5
IQ CONTROL
(EXCLUSIVE FOR WENDYS)
3
1
4
7
5
6
2
3
Ref. Part
No. No. Description
1 54928 Control, Wendy's w/Black Decal (English)
56982 Control, Wendy's w/Black Decal (French)
2 39688 Circuit Breaker, 20A
3 19619 Rocker Switch, DPST
4 33902 Logic Relay
33922 Relay Socket
5 33073 Relay Board
6 24356 Transformer, 208-24 VAC
7 M0593 Terminal Block
33074 Cavity Probe, RTD, 1000 OHM
39055 Gasket, Control Bezel
OCTOBER 13, 2014 5 CTB XCEL
Page 6
MISC. ELECTRICAL
1
5
Ref. Part
No. No. Description
2
3
7
8
6
4
1 34450 Motor, 2 Speed w/Switch
10944 Shaft Key
2 33946 Door Switch Assembly
3 23034 Fan, 4", 230V
M0572 Fan Cord
4 R11087 Contactor, 40A, 3 Pole, 240V
5 11204 Terminal Block
6 19118 Element, 208V, 5 kW
19284 Element, 208V, 7.5 kW
8595 Element, 240V, 5 kW
16603 Element, 240V, 7.5 kW
37227 Element Harness, 5.0 kW (2 element)
16647 Element Harness, 7.5 kW (3 element)
7 6138 Blower Wheel w/Key
8 57058 Halogen Lamp Assy. (includes Lens & Bulb)
D0128 Halogen Bulb, 12V, 20W, type G4 .16" between pins, oven manufactured before 6/1/13
57075 Halogen bulb, 12V, 20W, type G5.3 .21" between pins, oven manufactured before 6/1/13
57075 Halogen bulb, 12V, 20W, type G5.3 .21" between pins, oven manufactured after 6/1/13
OCTOBER 13, 2014 6 CTB XCEL
Page 7
DOOR COMPONENTS
1
2
11
10
3
8
5
6
7
9
3
4
1
Ref. Part
No. No. Description
1 90004 Door Bushing (Set of 2)
2 4743 Door Washer
3 8594 Door Pin & Hardware
4 15933 Door Washer
5 55040 Glass Door Front
6 54570 Door Handle
55523 Door Handle Grommet
7 17946 Roller Catch
8 17865 Door Latch
9 34524 Door Switch Activator
10 54580 Inner Glass Assembly
55695 Inner Glass Gasket (Between Door and Inner Glass)
11 54849 Door Gasket Set
OCTOBER 13, 2014 7 CTB XCEL
Page 8
INTERIOR/EXTERIOR PARTS
1
Ref. Part
No. No. Description
2
4
5
3
1 35972 Bafe w/Mounting Brackets
2 34935 Bafe Brackets (Set of 2)
3 55717 Bodyside, RH
55261 Bodyside, LH
4 22637 Wire Rack
5 31311 Rack Support (Set of 2)
8585 Steam Vent, Single
90092 Steam Vent, Double
OCTOBER 13, 2014 8 CTB XCEL
Page 9
STANDS, LEGS & CASTERS
Ref. Part
No. No. Description
11993 Stand, 5-3/4" Stainless w/ Feet
10857 Stand, 7" Stainless w/ Feet
18479 Stand, 16" Stainless w/ Shelf
10856 Stand, 19" Stainless w/ Shelf
10855 Stand, 24" Stainless w/ Shelf
10854 Stand, 33" Stainless w/ Shelf
18482 Stand, 16" Stainless w/ Shelf & Casters
11437 Stand, 19" Stainless w/ Shelf & Casters
15151 Stand, 24" Stainless w/ Shelf & Casters
15153 Stand, 33" Stainless w/ Shelf & Casters
30028 Stand, 33" Stainless w/Feet and Rack
36601 33" Stand with Casters and Rack Guides
20435 Legs, 4" w/ Bolts,S/S (Set of 4)
20497 Shelf for Stand, S/S w/hardware
16002 Casters (Set of 4)
36874 24" Open Stand w/Rack Supports and feet
36875 24" Open Stand w/Rack Supports and Casters
25126 Stand, 7" Stainless w/ Casters
OCTOBER 13, 2014 9 CTB XCEL
