1. GETTING STARTED

What’s In The Box?

• 1 x ProPar™ Z19 RGBW LED Par Fixture

• An Ever-So-Handy Power Cord

• This Lovely User Manual

Optional Accessories (sold separately)

The following accessories are available for this xture. But the lone wolves that they are, they must

be purchased separately. Contact your authorized Blizzard Lighting dealer for pricing!

• BARNDOOR PROPAR Z19 (B): Barndoor attachment (Black)

• BARNDOOR PROPAR Z19 (W): Barndoor attachment (White)

Getting It Out Of The Box

Congratulations on purchasing the totally awesome ProPar™ Z19 LED par xture. It’s so cool your

friends are going to be like, BRUH, and then you’ll be like yeah BRUH! Now that you’ve got your ProPar™ Z19 (or hopefully, Z19s!), you should carefully unpack the box and check the contents to ensure that all parts are present and in good condition. If anything looks as if it has been damaged in transit, notify the shipper immediately and keep the packing material for inspection. Again,

please save the carton and all packing materials. If a xture must be returned to the factory, it is important that the xture be returned in the original factory box and packing.

Powering Up!

All xtures must be powered directly off a switched circuit and cannot be run off a rheostat (variable resistor) or dimmer circuit, even if the rheostat or dimmer channel is used solely for a 0% to 100% switch.

AC Voltage Switch - Not all xtures have a voltage select switch, so please verify that the xture you receive is suitable for your local power supply. See the label on the xture or refer to the xture’s specications chart for more information. A xture’s listed current rating is its average current draw under normal conditions. Check the xture or device carefully to make sure that if a

voltage selection switch exists that it is set to the correct line voltage you will use.

Warning! Verify that the voltage select switch on your unit matches the line voltage

applied. Damage to your xture may result if the line voltage applied does not match the voltage indicated on the voltage selector switch. All xtures must be connected to circuits with a suitable Ground (Earthing).

Getting A Hold Of Us

If something happens goes wrong, please visit www.blizzardlighting.com/support and open a support ticket. We’ll be happy to help, honest.

Blizzard Lighting N24 W23750 Watertown Rd. Suite B Waukesha, WI 53188 USA www.blizzardlighting.com

Disclaimer: The information and specications contained in this document are subject to change

without notice. Blizzard Lighting™ assumes no responsibility or liability for any errors or omissions that may appear in this user manual. Blizzard Lighting™ reserves the right to update the existing document or to create a new document to correct any errors or omissions at any time. You can

download the latest version of this document from www.blizzardlighting.com.

Author: Date: Last Edited: Date:

J. Thomas 12/21/2015 J. Thomas 12/23/2015

Page 3

Page 4

SAFETY INSTRUCTIONS

• Please keep this User Guide for future use. If you sell the unit to someone else, be sure that they also receive this User Guide.

• ALWAYS make sure that you are connecting to the proper voltage, and that the line voltage you are connecting to is not higher than that stated on the de-

cal or rear panel of the xture.

• This product is intended for indoor use only.

• To prevent risk of re or shock, do not expose xture to rain or moisture.

• Make sure there are no ammable materials close to the unit while operating.

• The unit must be installed in a location with adequate ventilation, at least 20in (50cm) from adjacent surfaces. Be sure that no ventilation slots are blocked.

• ALWAYS disconnect from the power source before servicing or replacing fuse and be sure to replace with same fuse size and type.

• ALWAYS secure xture using a safety chain. NEVER carry the xture by its

cord. Use its carrying handles.

• DO NOT operate at ambient temperatures higher than 104°F (40°C).

• In the event of a serious operating problem, stop using the unit immediately. NEVER try to repair the unit by yourself. Repairs carried out by unskilled people can lead to damage or malfunction. Please contact the nearest authorized technical assistance center. Always use the same type spare parts.

• NEVER connect the device to a dimmer pack.

• Make sure the power cord is never crimped or damaged.

• Never disconnect the power cord by pulling or tugging on the cord.

• Avoid direct eye exposure to the light source while it is on.

Caution! There are no user serviceable parts inside the unit. Do not open the housing or attempt any repairs yourself. In the unlikely event your unit may require service, please contact Blizzard Lighting at www. blizzardlighting.com/support.

Page 4

Page 5

2. MEET THE PROPAR™ Z19 LED PAR CAN

MAIN FEATURES

• RGBW color mixing via 19x 15W 4-in-1 OSRAM LEDs

• 5°-60° degree zoomable beam angle

• Variable electronic dimming & strobe

• Built-in color & chase + zoom macros via DMX

• Built-in automated programs via master/slave

• Built-in sound active programs

• RGBW color mixing ability in standalone mode

• 5/7 or 9-channel DMX control modes

ADDITIONAL FEATURES

• Easy-to-use 4-button LED control panel menu display

• Dual mounting brackets for positioning exibility

• Rugged and well-built (It hits the gym regularly)

• 3-pin male & female DMX input/output

• PowerCon™ compatible AC power In/Out connectors

DMX Quick Reference: 9/7-Channel Mode

Channel 9-Channel 7-Channel

1 Dimmer Dimmer

2 Red Intensity Red Intensity

3 Green Intensity Green Intensity

4 Blue Intensity Blue Intensity

5 White Intensity White Intensity

6 Strobe Strobe

7 Zoom Zoom

8 Built-in Programs ---

9 Program Speed ---

DMX Quick Reference: 5-Channel Mode

Channel 5-Channel

1 Red Intensity

2 Green Intensity

3 Blue Intensity

4 White Intensity

5 Zoom

Page 5

Page 6

Figure 1: The ProPar™ Z19 Pin-Up Picture

Dual Mounting

Brackets with

Locking Knobs

19x 15W OSRAM

4-in-1 RGBW LEDs

Durable Black or White Housing with Optional Barndoors

(sold separately)

Figure 2: The Rear Connections

Control

LED Display

Fuse Holder

Power In

DMX Input

Page 6

Panel Menu

Buttons

Power Out

DMX Output

Page 7

3. SETUP

Fuse Replacement

With a at head screwdriver, wedge the fuse holder out of its housing.

Remove the damaged fuse from its holder and replace with exact same type fuse. Insert the fuse holder back in its place and reconnect power.

Connecting A Bunch of ProPar™ Z19 Fixtures

You will need a serial data link to run light shows using a DMX-512 controller or to run shows on two or more xtures set to sync in master/slave operating mode. The combined number of channels required by all the xtures on a serial data link determines the number of xtures the data link can support.

Fixtures on a serial data link must be daisy chained in one single line.

Also, connecting more than 32 xtures on one serial data link without

the use of a DMX optically-isolated splitter may result in deterioration of the digital DMX signal. The maximum recommended cable-run distance is 500 meters (1640 ft). The maximum recommended number of

xtures on a serial data link is 32 xtures.

Data/DMX Cabling

To link xtures together you’ll need data cables. You should use data-

grade cables that can carry a high quality signal and are less prone to electromagnetic interference.

For instance, Belden© 9841 meets the specications for EIA RS-485

applications. Standard microphone cables will “probably” be OK, but note that they cannot transmit DMX data as reliably over long distances. In any event, the cable should have the following characteristics:

2-conductor twisted pair plus a shield

Maximum capacitance between conductors – 30 pF/ft. Maximum capacitance between conductor & shield – 55 pF/ft. Maximum resistance of 20 ohms / 1000 ft. Nominal impedance 100 – 140 ohms

Page 7

Page 8

Cable Connectors

Cables must have a male XLR connector on one end and a female XLR connector on the other end. (Duh!)

CAUTION: Do not allow contact between the common and the x- ture’s chassis ground. Grounding the common can cause a ground

loop, and your xture may perform erratically. Test cables with an

ohm meter to verify correct polarity and to make sure the pins are not grounded or shorted to the shield or each other.

3-Pin??? 5-Pin??? Huh?!?

If you use a controller with a 5 pin DMX output connector, you will need to use a 5 pin to 3-pin adapter. They are widely available over the internet and from specialty retailers If you’d like to build your own, the chart below details a proper cable conversion:

Conductor 3-Pin Female

(Output)

5-Pin Male (Input)

Ground/Shield Pin 1 Pin 1

DMX Data (-) Pin 2 Pin 2

DMX Data (+) Pin 3 Pin 3

Not Used. No Connection. No Connection.

Take It To The Next Level: Setting Up DMX Control

Step 1: Connect the male connector of the

DMX cable to the female connector (output) on the controller.

Step 2: Connect the female connector of the DMX cable to the rst xture’s male connector (input). Note: It doesn’t matter which

xture address is the rst one connected. We recommend connecting the xtures in

terms of their proximity to the controller,

rather than connecting the lowest xture number rst, and so on.

Step 3: Connect other xtures in the chain

from output to input as above. Place a DMX

terminator on the output of the nal xture

to ensure best communication.

Page 8

Page 9

Fixture Linking (Master/Slave Mode)

1. Connect the (male) 3-pin connector side of the DMX cable to the output (female) 3-pin connector of

the rst xture.

2. Connect the end of the cable coming from the

rst xture which will have a (female) 3-pin connector to the input connector of the next xture con-

sisting of a (male) 3-pin connector. Then, proceed to connect from the output as stated above to the

input of the following xture and so on.

A quick note: Often, the setup for MasterSlave and Standalone operation requires that

the rst xture in the

chain be initialized for this purpose via either settings in the control panel or DIP-switches.

Secondarily, the xtures

that follow may also require a slave setting.

Check the “Operating Adjustments” section in this manual for com-

plete instructions for this type of setup and conguration.

Mounting & Rigging

This xture may be mounted in any SAFE position provided there is

enough room for ventilation.

It is important never to obstruct the fan or vents pathway. Mount the

xture using a suitable “C” or “O” type clamp. The clamp should be rated to hold at least 10x the xture’s weight to ensure structural sta-

bility. Do not mount to surfaces with unknown strength, and ensure

properly “rated” rigging is used when mounting xutres overhead.

Adjust the angle of the xture by loosening both knobs and tilting the xture. After nding the desired position, retighten both knobs.

• When selecting installation location, take into consideration lamp replacement access (if applicable) and routine maintenance.

• Safety cables MUST ALWAYS be used.

• Never mount in places where the xture will be exposed to rain,

high humidity, extreme temperature changes or restricted ventilation.

Page 9

Page 10

4. OPERATING ADJUSTMENTS

The Control Panel

All the goodies and different modes possible with the ProPar™ Z19 are accessed

by using the control panel on the rear of the xture. There are 4 control

buttons below the LED display which allow you to navigate through the various control panel menus.

<MENU>

Is used to navigate to the previous higher-level menu item.

<UP>

Scrolls through menu items and numbers in ascending order.

<DOWN>

Scrolls through menu items and numbers in descending order.

<ENTER>

Is used to select and conrm/store the current selection.

The control panel LED display shows the menu items you select from the menu map on page #11. When a menu function is selected, the display will show

immediately the rst available option for the selected menu function.

Use the <UP/DOWN> buttons to navigate the main menu options. Press the <ENTER> button to select any menu function currently displayed, then use

the <UP/DOWN> buttons to scroll through any submenu options. You can the press <ENTER> to save any changes made, or press the <MENU> button to exit without saving.

Page 10

Page 11

Control Panel Menu Structure

d.001 001-511 5-channel DMX mode, address from 001-511

A.001 001-511 7-channel DMX mode, address from 001-511

P.001 001-511 9-channel DMX mode, address from 001-511

Auto <ENTER> Auto run mode

Soun <ENTER> Sound active mode

2ooN 2ooN - 2oFF Zoom Adjustment On/Off (see p.12)

NAno NAno - NAnF Manual Control On/Off

F.000

r.255 000-255 Red Intensity (0% <--> 100%)

g.255 000-255 Green Intensity (0% <--> 100%)

b.255 000-255 Blue Intensity (0% <--> 100%)

E.255 000-255 White Intensity (0% <--> 100%)

2.000 000-255 Zoom Level (narrow <--> wide)

*Note: Setting “NAno” to “NAnF” (manual control off), disables/removes the strobe, plus all of the individual color intensity options from the menu.

000-255 Strobe (slow <--> fast)

Page 11

Page 12

DMX Mode

Allows the unit to be controlled by any universal DMX controller.

Select the Channel Mode

1.) To select the working channel mode, press the <MENU> button until you

reach either d.000 (5-channel mode), A.000 (7-channel mode), or P.000

(9-channel mode), and press the <ENTER> button.

Select the Starting DMX Address

1.) After selecting the channel mode as described above, use the <UP/DOWN>

buttons to choose a starting DMX address ranging from 001-511, and press the

<ENTER> button to conrm your choice.

Slave Mode

1.) Connect xtures together via DMX.

2.) The rst xture in the DMX chain is the master xture, and the following

xtures will follow the master.

Auto, Stand-Alone, Sound Active Modes:

Allows single or M/S units to run factory installed programs at user selectable speeds.

Auto Mode

1.) Press the <MENU> button until you reach Auto, and press <ENTER>.

Sound Active Mode

1.) Press the <MENU> button until you reach Sond, and press <ENTER>.

Zoom Adjustment

1.) Press the <MENU> button until you reach 2ooN, and press <ENTER>.

2.) Use the <UP/DOWN> buttons to choose either 2ooN (on), or 2oFF (off).

3.) Press <ENTER> to conrm. 2oFF restricts the zoom in level slightly for a

sharper narrow beam.

Enable/Disable Manual Adjustments

1.) Press the <MENU> button until you reach NAno, and press <ENTER>.

2.) Use the <UP/DOWN> buttons to choose either NAno (on), or NAnF (off).

3.) Press <ENTER> to conrm. This setting enables or disables the individual

color and strobe adjustment settings from appearing in the top level menu.

Manual Adjustments

1.) Make sure that manual adjustments are enabled as described above.

2.) Press the <UP/DOWN> buttons to highlight F.--- (strobe), r.--- (red), 9.---

(green), b.--- (blue), or E.--- (white) and press <ENTER>.

3.) You can now use the <UP/DOWN> buttons to adjust these from 000-255.

4.) Press <ENTER> to conrm your choice.

Page 12

Page 13

DMX Values In-Depth (9-Channel Mode)

Channel Value What It Does

1 000 <--> 255 Dimmer (0% <--> 100%)

2 000 <--> 255 Red Intensity (0% <--> 100%)

3 000 <--> 255 Green Intensity (0% <--> 100%)

4 000 <--> 255 Blue Intensity (0% <--> 100%)

5 000 <--> 255 White Intensity (0% <--> 100%)

000 <--> 003 004 <--> 127 128 <--> 131 132 <--> 255

7 000 <--> 255 Zoom (wide <--> narrow)

000 <--> 015 016 <--> 023 024 <--> 031 032 <--> 039 040 <--> 047 048 <--> 055 056 <--> 063 064 <--> 071 072 <--> 079 080 <--> 087 088 <--> 095 096 <--> 103 104 <--> 111 112 <--> 119 120 <--> 127 128 <--> 135 136 <--> 143 144 <--> 152 153 <--> 159 160 <--> 167 168 <--> 176 177 <--> 183 184 <--> 191 192 <--> 199 200 <--> 207 208 <--> 215 216 <--> 223 224 <--> 231 232 <--> 239 240 <--> 247 248 <--> 251 252 <--> 255

9 000 <--> 255

Strobe

No Function Strobe (slow <--> fast) No function Random Strobe (slow <--> fast)

Built-In Programs

Macro 1 Macro 2 Macro 3 Macro 4 Macro 5 Macro 6 Macro 7 Macro 8 Macro 9 Macro 10 Macro 11 Macro 12 Macro 13 Macro 14 Macro 15 No Function Macro 16 Macro 17 Macro 18 Macro 19 Macro 20 Macro 21 Macro 22 Macro 23 Macro 24 Macro 25 Macro 26 Macro 27 Macro 28 Macro 29 Macro 30 Macro 31

Program Speed

Page 13

Page 14

DMX Values In-Depth (7-Channel Mode)

Channel Value What It Does

1 000 <--> 255 Dimmer (0% <--> 100%)

2 000 <--> 255 Red Intensity (0% <--> 100%)

3 000 <--> 255 Green Intensity (0% <--> 100%)

4 000 <--> 255 Blue Intensity (0% <--> 100%)

5 000 <--> 255 White Intensity (0% <--> 100%)

000 <--> 003 004 <--> 127 128 <--> 131 132 <--> 255

7 000 <--> 255 Zoom (wide <--> narrow)

Strobe

No Function Strobe (slow <--> fast) No function Random Strobe (slow <--> fast)

DMX Values In-Depth (5-Channel Mode)

Channel Value What It Does

1 000 <--> 255 Red Intensity (0% <--> 100%)

2 000 <--> 255 Green Intensity (0% <--> 100%)

3 000 <--> 255 Blue Intensity (0% <--> 100%)

4 000 <--> 255 White Intensity (0% <--> 100%)

5 000 <--> 255 Zoom (wide <--> narrow)

Troubleshooting

Symptom Solution

Fixture Auto-Shut Off

Beam is Dim Check optical system and clean excess dust/grime.

No Light Output Check to ensure xture is operating under correct mode, IE sound

Chase Speed Too Fast/Slow

No Power Check fuse, AC cord and circuit for malfunction.

Blown Fuse Check AC cord and circuit for damage, verify that moving parts are

No Response to Audio

Fixture Not Responding / Responding Erratically

If your problem persists or isn’t listed, visit www.blizzardlighting.com/support.

Check the fan in the xture. If it is stopped or moving slower than

normal, the unit may have shut itself off due to high heat. This is to

protect the xture from overheating. Clear the fan of obstructions,

or return the unit for service.

active/auto/DMX/Etc., if applicable.

Check to ensure proper setup of speed adjustment.

not restricted and that unit’s ventilation is not obstructed

Verify that the xture is in “Sound Active” mode.

Make sure all connectors are seated properly and securely. Use Only DMX Cables and/or check cables for defects Install a Terminator.

Reset xture(s).

Page 14

Page 15

5. APPENDIX

A Quick Lesson On DMX

DMX (aka DMX-512) was created in 1986 by the United States Institute for Theatre Technology (USITT) as a standardized method for connecting lighting consoles to lighting

dimmer modules. It was revised in 1990 and again in 2000 to allow more exibility. The

Entertainment Services and Technology Association (ESTA) has since assumed control over the DMX512 standard. It has also been approved and recognized for ANSI standard clas-

sication.

DMX covers (and is an abbreviation for) Digital MultipleXed signals. It is the most common communications standard used by lighting and related stage equipment.

DMX provides up to 512 control “channels” per data link. Each of these channels was originally intended to control lamp dimmer levels. You can think of it as 512 faders on a lighting console, connected to 512 light bulbs. Each slider’s position is sent over the data link as an 8-bit number having a value between 0 and 255. The value 0 corresponds to the light bulb being completely off while 255 corresponds to the light bulb being fully on.

DMX data is transmitted at 250,000 bits per second using the RS-485 transmission standard over two wires. As with microphone cables, a grounded cable shield is used to prevent interference with other signals.

There are ve pins on a DMX connector: a wire for ground (cable shield), two wires for

“Primary” communication which goes from a DMX source to a DMX receiver, and two wires for a “Secondary” communication which goes from a DMX receiver back to a DMX source. Generally, the “Secondary” channel is not used so data ows only from sources to receivers. Hence, most of us are most familiar with DMX-512 as being employer over typical

3-pin “mic cables,” although this does not conform to the dened standard.

DMX is connected using a daisy-chain conguration where the source connects to the input of the rst device, the output of the rst device connects to the input of the next device,

and so on. The standard allows for up to 32 devices on a single DMX link.

Each receiving device typically has a means for setting the “starting channel number” that

it will respond to. For example, if two 6-channel xtures are used, the rst xture might

be set to start at channel 1 so it would respond to DMX channels 1 through 6, and the next

xture would be set to start at channel 7 so it would respond to channels 7 through 12.

The greatest strength of the DMX communications protocol is that it is very simple and robust. It involves transmitting a reset condition (indicating the start of a new “packet”), a start code, and up to 512 bytes of data. Data packets are transmitted continuously. As

soon as one packet is nished, another can begin with no delay if desired (usually another

follows within 1 ms). If nothing is changing (i.e. no lamp levels change) the same data will be sent out over and over again. This is a great feature of DMX -- if for some reason the

data is not interpreted the rst time around, it will be re-sent shortly.

Not all 512 channels need to be output per packet, and in fact, it is very uncommon to nd

all 512 used. The fewer channels are used, the higher the “refresh” rate. It is possible to get DMX refreshes at around 1000 times per second if only 24 channels are being transmitted. If all 512 channels are being transmitted, the refresh rate is around 44 times per second.

In summary, since its design and evolution in the 1980’s DMX has become the standard

for lighting control. It is exible, robust, and scalable, and its ability to control everything

from dimmer packs to moving lights to foggers to lasers makes it an indispensable tool for any lighting designer or lighting performer.

Page 15

Page 16

Keeping Your ProPar™ Z19 As Good As New

The xture you’ve received is a rugged, tough piece of pro lighting equipment, and as long as you take care of it, it will take care of you. That said, like anything, you’ll need to take care of it if you want it to operate as designed.

You should absolutely keep the xture clean, especially if you are using it in an

environment with a lot of dust, fog, haze, wild animals, wild teenagers or spilled drinks.

Cleaning the optics routinely with a suitable glass cleaner will greatly improve the quality of light output. Keeping the fans free of dust and debris will keep

the xture running cool and prevent damage from overheating.

In transit, keep the xtures in cases. You wouldn’t throw a prized guitar,

drumset, or other piece of expensive gear into a gear trailer without a case, and similarly, you shouldn’t even think about doing it with your shiny new light

xtures.

Common sense and taking care of your xtures will be the single biggest thing

you can do to keep them running at peak performance and let you worry about designing a great light show, putting on a great concert, or maximizing your client’s satisfaction and “wow factor.” That’s what it’s all about, after all!

Returns (Gasp!)

We’ve taken a lot of precautions to make sure you never even have to worry about sending a defective unit back, or sending a unit in for service. But, like any complex piece of equipment designed and built by humans, once in a while,

something doesn’t go as planned. If you nd yourself with a xture that isn’t behaving like a good little xture should, you’ll need to obtain a Return Authori-

zation (RA).

Don’t worry, this is easy. Just visit www.blizzardlighting.com/support and open a support ticket, and we’ll issue you an RA. Then, you’ll need to send the unit to us using a trackable, pre-paid freight method. We suggest using USPS Priority or UPS. Make sure you carefully pack the xture for transit, and whenever possible, use the original box & packing for shipping.

When returning your xture for service, be sure to include the following:

1.) Your contact information (Name, Address, Phone Number, Email address).

2.) The RA# issued to you

3.) A brief description of the problem/symptoms.

We will, at our discretion, repair or replace the xture. Please remember that

any shipping damage which occurs in transit to us is the customer’s responsibility, so pack it well!

Shipping Issues

Damage incurred in shipping is the responsibility of the shipper, and must be reported to the carrier immediately upon receipt of the items. Claims must be made within seven (7) days of receipt.

Page 16

Page 17

Tech Specs!

Weight & Dimensions

Width 10.5 inches (268 mm)

Depth 8.1 inches (206 mm)

Height 10.6 in. (270 mm), 13.7 in. (348 mm) w/brackets

Weight 11.5 lbs (5.2 kg)

Power

Operating Voltage 90-250VAC, 50-603HZ

Power Consumption 305W, 2.55A, PF: .96

Light Source

LED 19x 15W 4-in-1 RGBW LEDs

Optical

Beam Angle 5°-60°

Luminous Intensity 15,229 Lux @ 2M (narrow)

Thermal

Max. Operating Temp. 104 degrees F (40 degrees C) ambient

3,009 Lux @ 5M (narrow) 2,743 Lux @ 2M (wide)

Control

Protocol USITT DMX-512

DMX Channels 5/7 or 9-channel

Input 3-pin XLR Male

Output 3-pin XLR Female

Standalone, Master/Slave, Sound Active, Color

Other Operating Modes

Preset

Other Information

4 out of 1 dentists have multiple personality disorder.

2-year limited warranty, does not cover malfunc-

Warranty

DISCLAIMER:

The power connector tted to the xture and xture cord are designed for compatibility

with products manufactured by Neutrik AG, Neutrik USA and their related entities, howev-

er they are not manufactured by, afliated with or endorsed by Neutrik AG, Neutrik USA,

or any related entity. Neutrik® and powerCON® are registered trademarks of Neutrik AG.

tion caused by damage to LEDs.

Page 17

Page 18

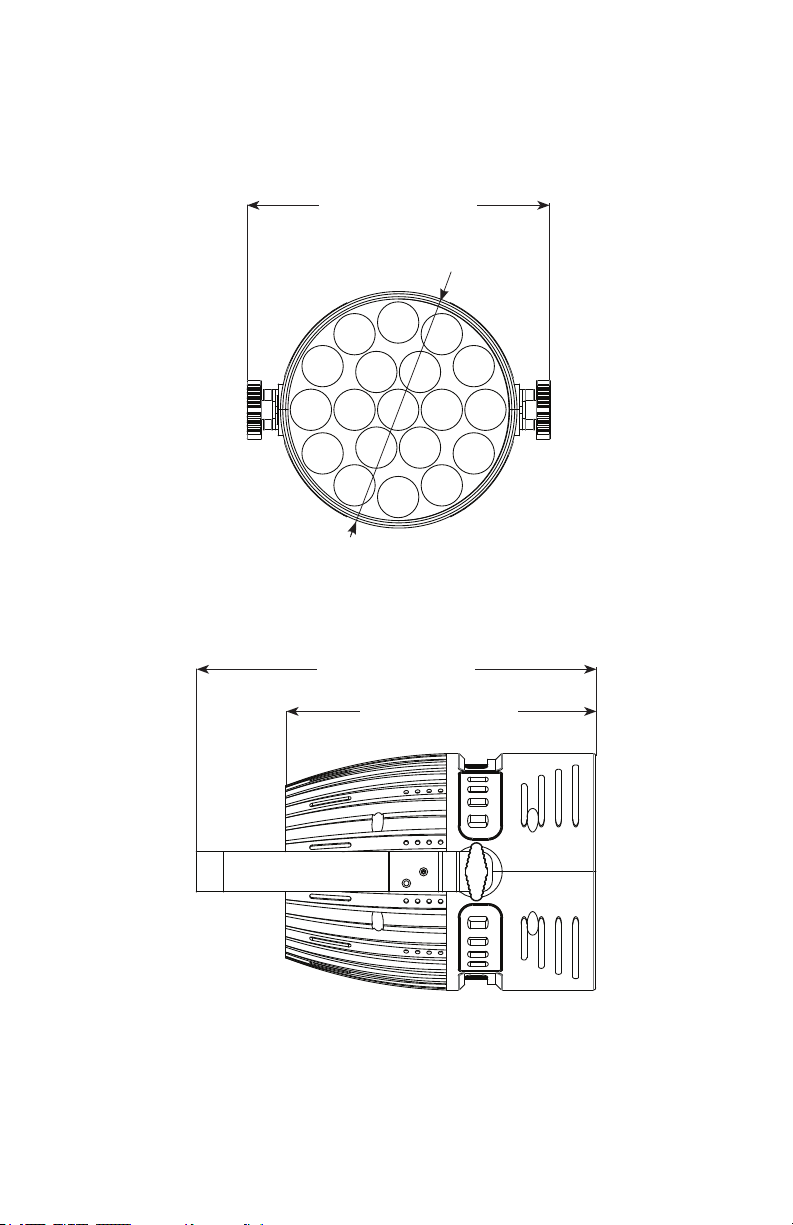

Dimensional Drawings

10.5 in (268 mm)

8.1 inches (206 mm)

13.7 in. (348 mm)

10.6 in. (270 mm)

Page 18

Page 19

This page has been intentionally left blank.

Page 19

Page 20

Enjoy your product!

Our sincerest thanks for your purchase!

--The team @ Blizzard Lighting

Blizzard ProPar Z19 RGBW Users Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
