Blizzard Short Extension Leg Datasheet

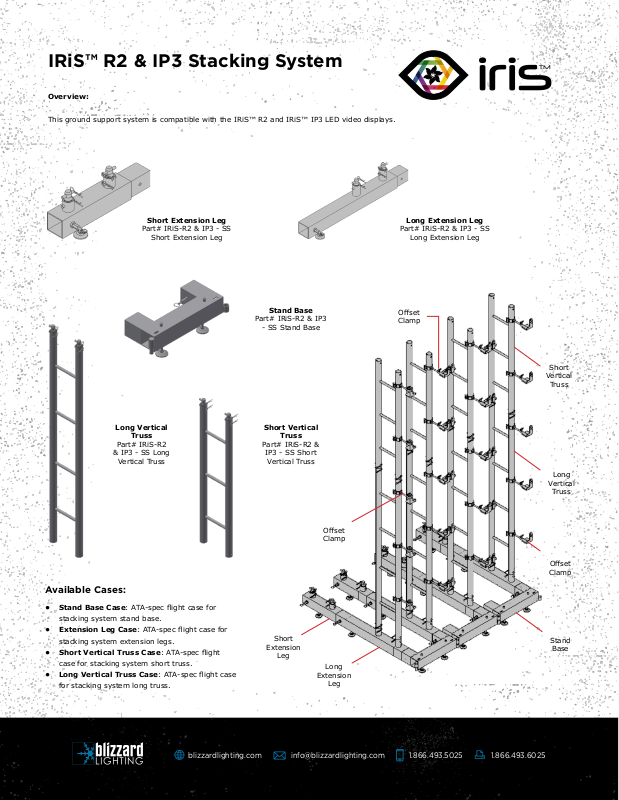

IRiS™ R2 & IP3 Stacking System

Overview:

This ground support system is compatible with the IRiS™ R2 and IRiS™ IP3 LED video displays.

Short Extension Leg

Part# IRiS-R2 & IP3 - SS

Short Extension Leg

Long Vertical

Truss

Part# IRiS-R2

& IP3 - SS Long

Vertical Truss

Stand Base

Part# IRiS-R2 & IP3

- SS Stand Base

Short Vertical

Truss

Part# IRiS-R2 &

IP3 - SS Short

Vertical Truss

Long Extension Leg

Part# IRiS-R2 & IP3 - SS

Long Extension Leg

Oset

Clamp

Short

Vertical

Truss

Long

Vertical

Truss

Available Cases:

• Stand Base Case: ATA-spec ight case for

stacking system stand base.

• Extension Leg Case: ATA-spec ight case for

stacking system extension legs.

• Short Vertical Truss Case: ATA-spec ight

case for stacking system short truss.

• Long Vertical Truss Case: ATA-spec ight case

for stacking system long truss.

blizzardlighting.com

Oset

Clamp

Short

Extension

Leg

Long

Extension

Leg

[email protected] 1.866.493.6025

1.866.493.5025

Oset

Clamp

Stand

Base

IRiS™ R2 & IP3 Stacking System

a.) Stand Base

Stand base for the IRiS R2 & IP3 stacking system.

Plunger for locking
extension leg

Alignment pin for
panels

Alignment pin
between bases

Leveling feet

Adjustable between
20-80 mm

blizzardlighting.com

[email protected] 1.866.493.6025

1.866.493.5025

IRiS™ R2 & IP3 Stacking System

b.) Long Extension Leg

Long extension leg for the IRiS R2 & IP3 stacking system.

Vertical truss
connector

Plunger for locking
extension leg

Leveling feet

blizzardlighting.com

[email protected] 1.866.493.6025

1.866.493.5025

IRiS™ R2 & IP3 Stacking System

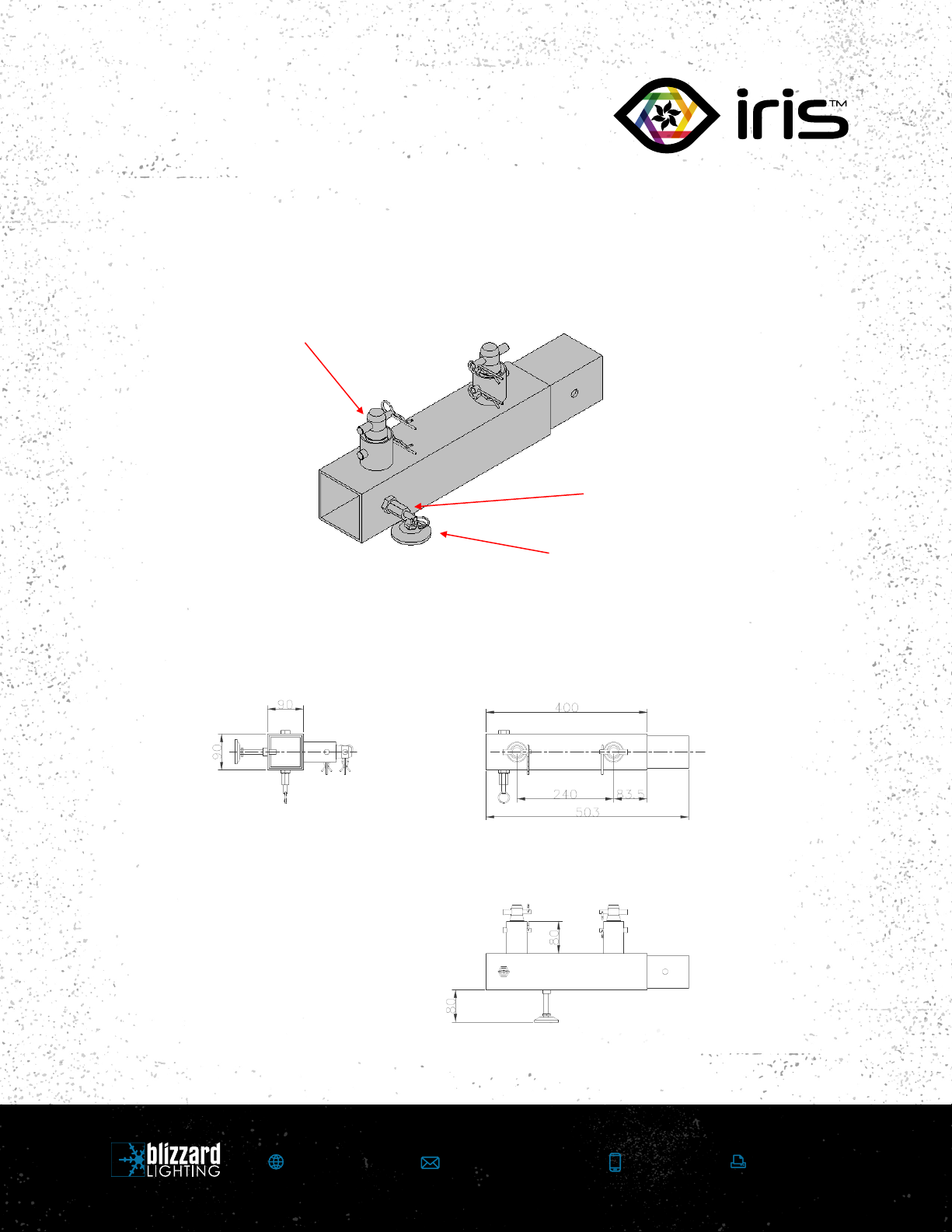

c.) Short Extension Leg

Short extension leg for the IRiS R2 & IP3 stacking system.

Vertical truss
connector

Plunger for locking
extension leg

Leveling feet

blizzardlighting.com

[email protected] 1.866.493.6025

1.866.493.5025

IRiS™ R2 & IP3 Stacking System

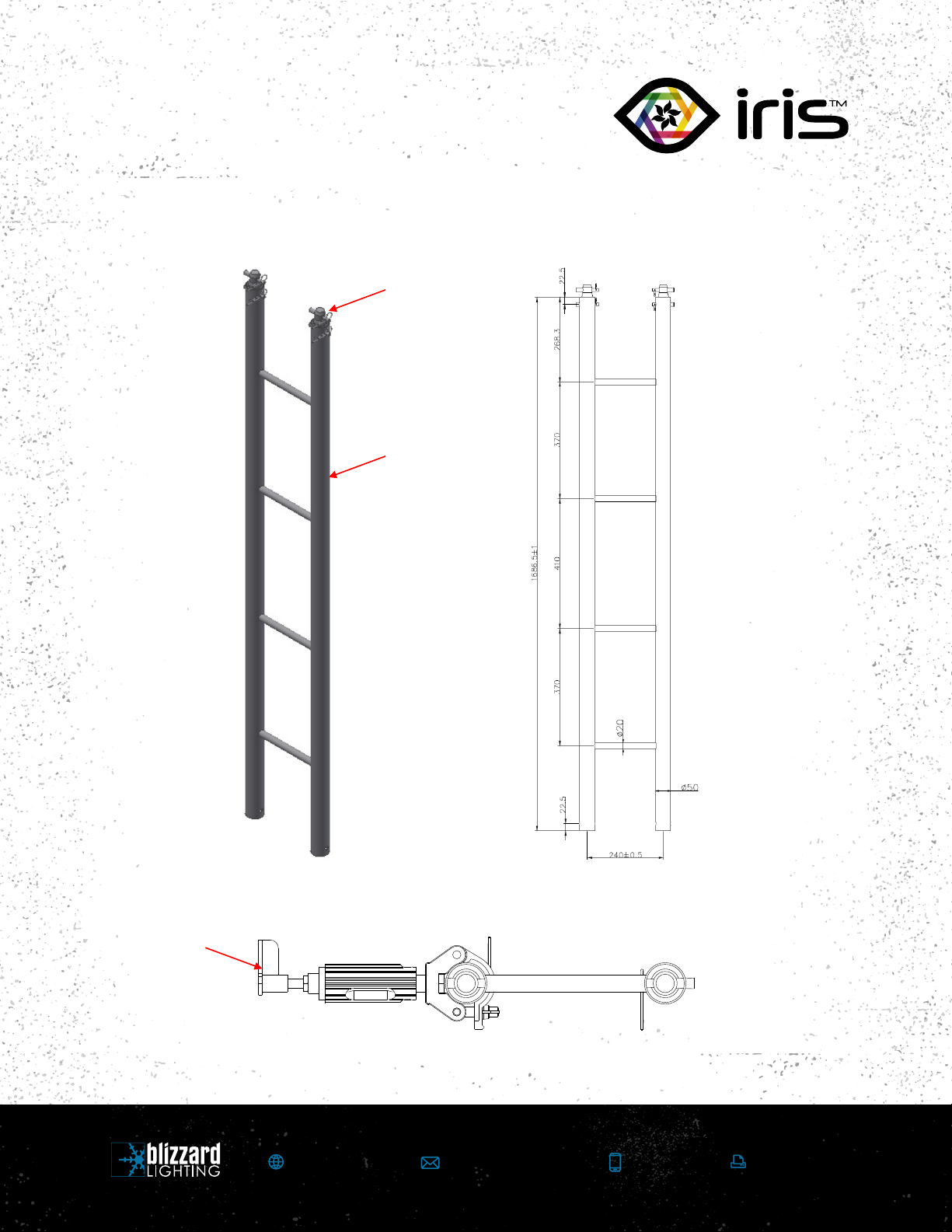

d.) Long Vertical Truss (1686 mm)

Each long vertical truss segment comes with 3x oset clamps to secure the panels.

Vertical truss
connector

2 in (50 mm)
aluminum tube

Oset Clamp (x3)

blizzardlighting.com

[email protected] 1.866.493.6025

1.866.493.5025

IRiS™ R2 & IP3 Stacking System

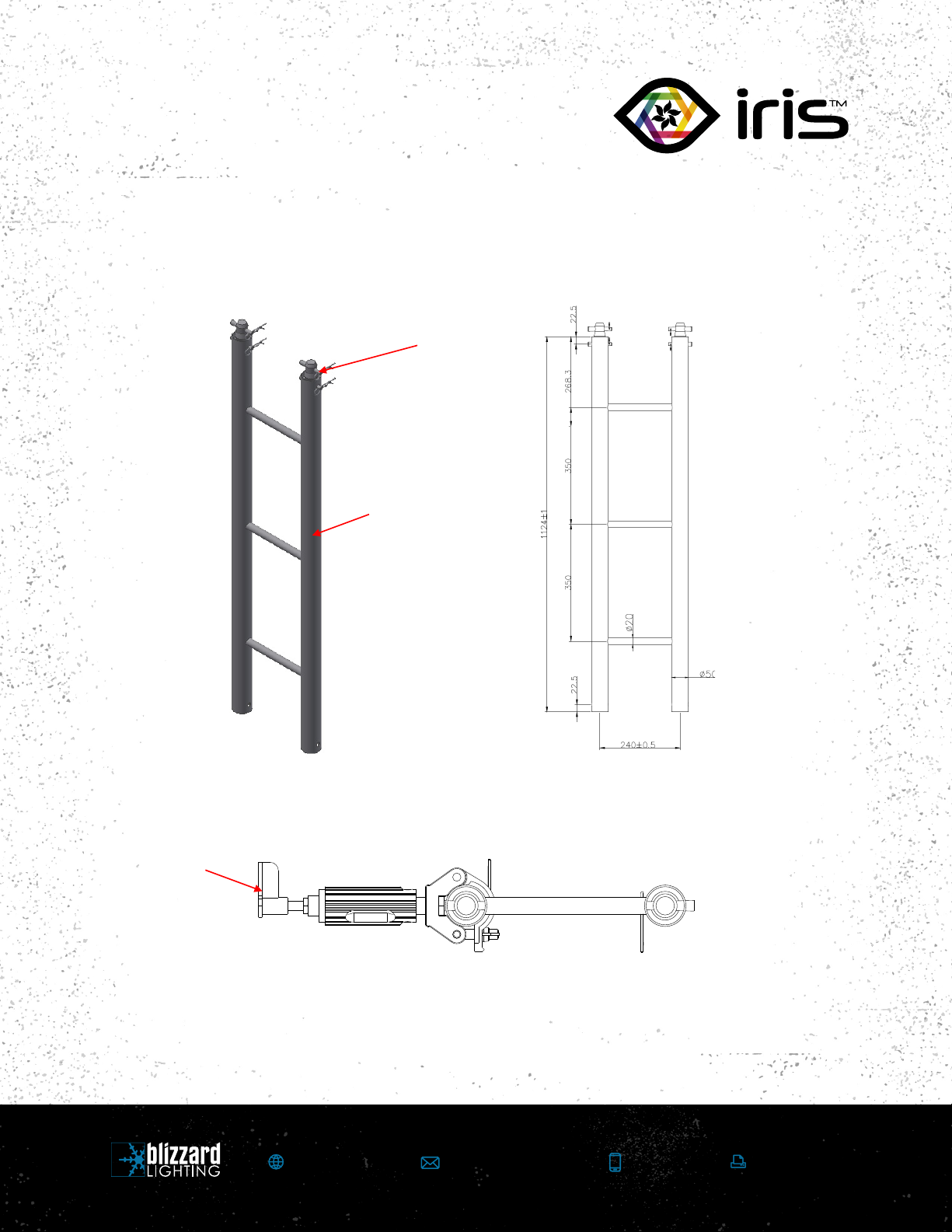

e.) Short Vertical Truss (1124 mm)

Each short vertical truss segment comes with 2x oset clamps to secure the panels.

Vercal truss
connector

2 in (50 mm)
aluminum tube

Oset Clamp (x2)

blizzardlighting.com

[email protected] 1.866.493.6025

1.866.493.5025

IRiS™ R2 & IP3 Stacking System

Setup Instructions

a.) Assemble the Bases

Based on the screen size, lay the bases on the oor. Then connect the extension legs in behind. Choose the extension legs
based on the height of the screen. Adjust the leveling feet to make sure the top of the base is leveled.

To connect the extension leg with the base, pull the plunger rst then insert the extension leg, then release the plunger to
lock the extension leg in place.

Height Extension Legs

1-3 panels Short extension leg

4-6 panels Long extension leg

6-10 panels Short extension leg and long extension leg

blizzardlighting.com

[email protected] 1.866.493.6025

1.866.493.5025

IRiS™ R2 & IP3 Stacking System

Setup Instructions

b.) Build the First Row of Screen

Install the rst row of vertical truss and connect the panels with trusses by bolt the stand os on the panel. Adjust the level­ing feet and panels carefully to make sure the rst row of screen is leveled.

Connect the vertical truss with the base by truss connectors. Take o the clevis pin then put the truss on the connector. Insert
the clevis pin and the clip to lock the truss.

blizzardlighting.com

[email protected] 1.866.493.6025

1.866.493.5025

IRiS™ R2 & IP3 Stacking System

Setup Instructions

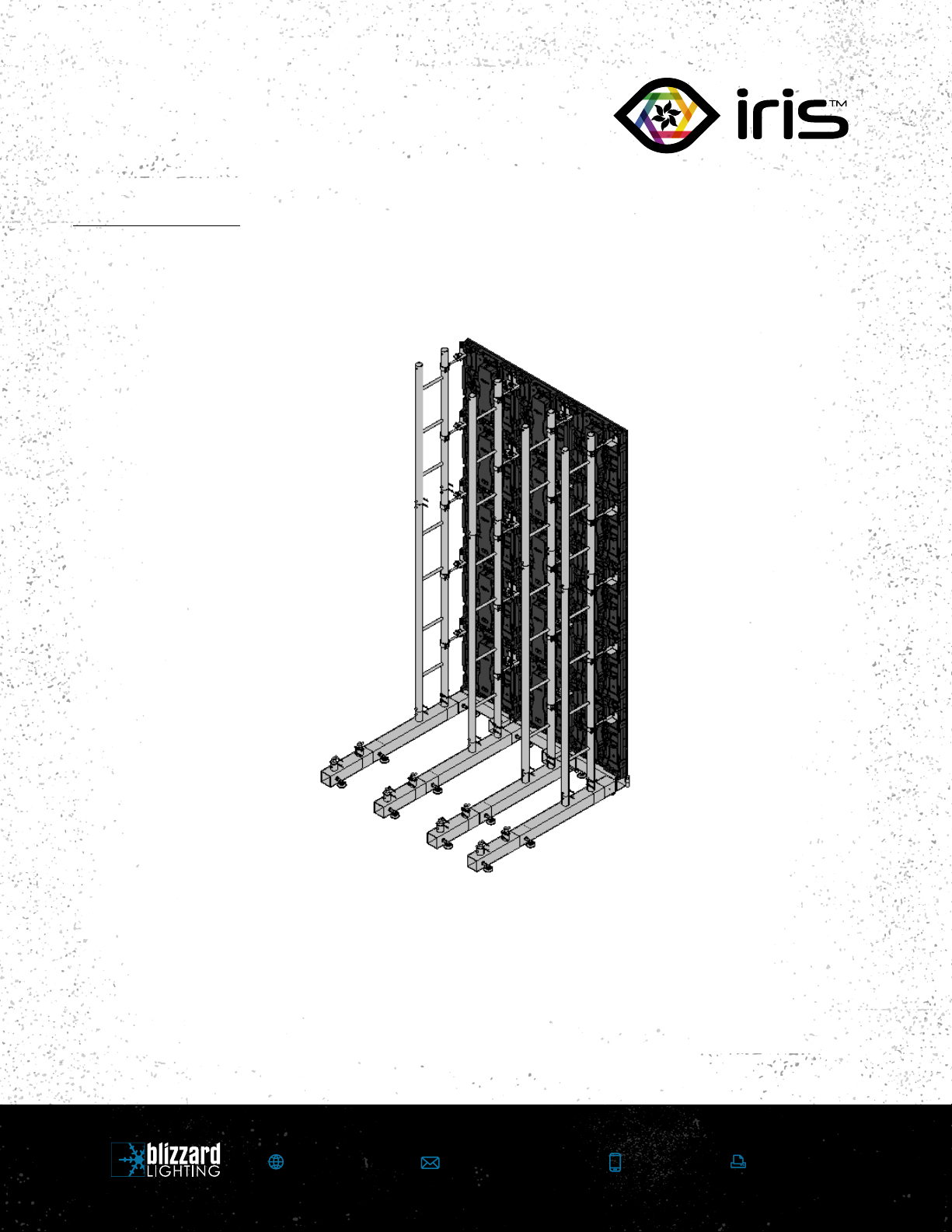

c.) Build the Whole Screen

After the rst row is built, then build the whole screen upon it by adding panels and vertical trusses.

Safety

a.) Environment: This ground support system is designed for indoor use only. If you want to use it outdoor
please get approval from a certied engineer.
b.) Height: No more than 10 panels high is allowed.
c.) Counter balance weight: Counter balance weight is required for the system. The counter balance weight
should be equal or greater than the weight of the panels itself.
