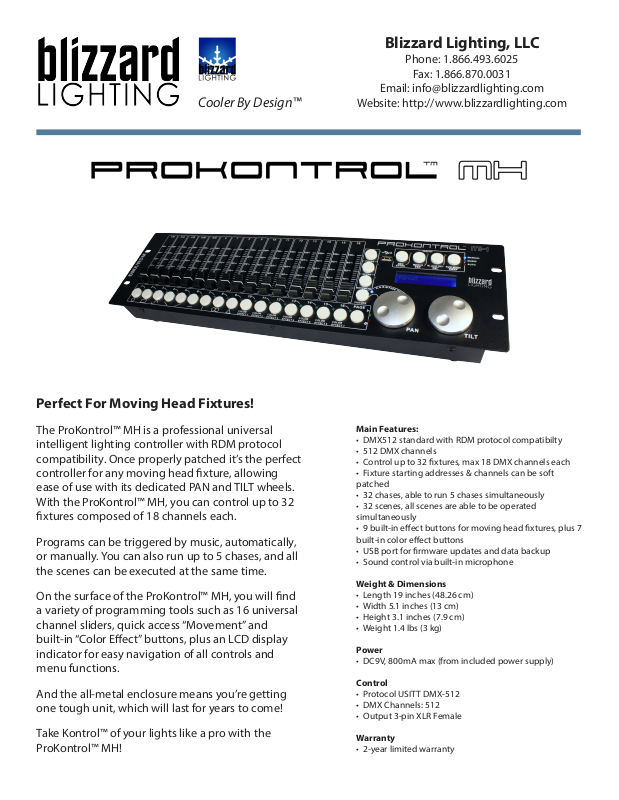

Blizzard ProKontrol MH Datasheet

Cooler By Design™

Blizzard Lighting, LLC

Phone: [phone]

Fax: [phone]

Email: [e-mail]

Website: http://www.blizzardlighting.com

Perfect For Moving Head Fixtures!

The ProKontrol™ MH is a professional universal
intelligent lighting controller with RDM protocol
compatibility. Once properly patched it’s the perfect
controller for any moving head xture, allowing
ease of use with its dedicated PAN and TILT wheels.
With the ProKontrol™ MH, you can control up to 32
xtures composed of 18 channels each.

Programs can be triggered by music, automatically,
or manually. You can also run up to 5 chases, and all
the scenes can be executed at the same time.

On the surface of the ProKontrol™ MH, you will nd
a variety of programming tools such as 16 universal
channel sliders, quick access “Movement” and
built-in “Color Eect” buttons, plus an LCD display
indicator for easy navigation of all controls and
menu functions.

And the all-metal enclosure means you’re getting
one tough unit, which will last for years to come!

Main Features:

• DMX512 standard with RDM protocol compatibilty

• 512 DMX channels

• Control up to 32 xtures, max 18 DMX channels each

• Fixture starting addresses & channels can be soft
patched

• 32 chases, able to run 5 chases simultaneously

• 32 scenes, all scenes are able to be operated
simultaneously

• 9 built-in eect buttons for moving head xtures, plus 7
built-in color eect buttons

• USB port for rmware updates and data backup

• Sound control via built-in microphone

Weight & Dimensions

• Length 19 inches (48.26 cm)

• Width 5.1 inches (13 cm)

• Height 3.1 inches (7.9 cm)

• Weight 1.4 lbs (3 kg)

Power

• DC9V, 800mA max (from included power supply)

Control

• Protocol USITT DMX-512

• DMX Channels: 512

• Output 3-pin XLR Female

Take Kontrol™ of your lights like a pro with the
ProKontrol™ MH!

Warranty

• 2-year limited warranty
