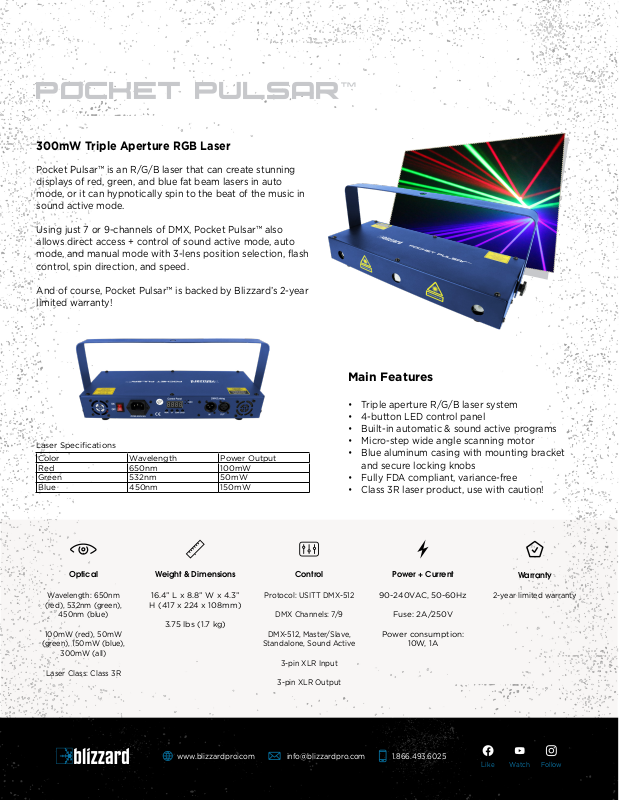

Blizzard Pocket Pulsar Datasheet
POCKET PULSAR
300mW Triple Aperture RGB Laser
Pocket Pulsar™ is an R/G/B laser that can create stunning
displays of red, green, and blue fat beam lasers in auto
mode, or it can hypnotically spin to the beat of the music in
sound active mode.
Using just 7 or 9-channels of DMX, Pocket Pulsar™ also
allows direct access + control of sound active mode, auto
mode, and manual mode with 3-lens position selection, flash
control, spin direction, and speed.
And of course, Pocket Pulsar™ is backed by Blizzard’s 2-year
limited warranty!
Main Features
Laser Specifications
Color Wavelength Power Output
Red 650nm 100mW
Green 532nm 50mW
Blue 450nm 150mW
Optical
Wavelength: 650nm
(red), 532nm (green),
450nm (blue)
100mW (red), 50mW
(green), 150mW (blue),
300mW (all)
Laser Class: Class 3R
Weight & Dimensions
16.4” L x 8.8” W x 4.3”
H (417 x 224 x 108mm)
3.75 lbs (1.7 kg)
Standalone, Sound Active
Control
Protocol: USITT DMX-512
DMX Channels: 7/9
DMX-512, Master/Slave,
3-pin XLR Input
3-pin XLR Output
• Triple aperture R/G/B laser system
• 4-button LED control panel
• Built-in automatic & sound active programs
• Micro-step wide angle scanning motor
• Blue aluminum casing with mounting bracket
and secure locking knobs
• Fully FDA compliant, variance-free
• Class 3R laser product, use with caution!
Power + Current
90-240VAC, 50-60Hz
Fuse: 2A/250V
Power consumption:
10W, 1A
Warranty
2-year limited warranty
