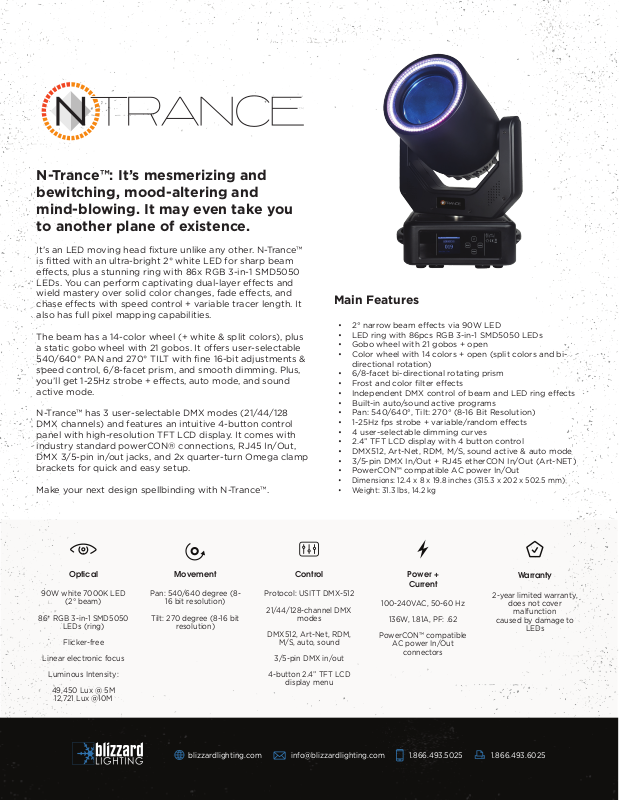

Blizzard N-Trance Datasheet

N-Trance™: It’s mesmerizing and
bewitching, mood-altering and
mind-blowing. It may even take you
to another plane of existence.

It’s an LED moving head fixture unlike any other. N-Trance™
is fitted with an ultra-bright 2° white LED for sharp beam
effects, plus a stunning ring with 86x RGB 3-in-1 SMD5050
LEDs. You can perform captivating dual-layer effects and
wield mastery over solid color changes, fade effects, and
chase effects with speed control + variable tracer length. It
also has full pixel mapping capabilities.

The beam has a 14-color wheel (+ white & split colors), plus
a static gobo wheel with 21 gobos. It offers user-selectable
540/640° PAN and 270° TILT with fine 16-bit adjustments &
speed control, 6/8-facet prism, and smooth dimming. Plus,
you’ll get 1-25Hz strobe + effects, auto mode, and sound
active mode.

N-Trance™ has 3 user-selectable DMX modes (21/44/128
DMX channels) and features an intuitive 4-button control
panel with high-resolution TFT LCD display. It comes with
industry standard powerCON® connections, RJ45 In/Out,
DMX 3/5-pin in/out jacks, and 2x quarter-turn Omega clamp
brackets for quick and easy setup.

Make your next design spellbinding with N-Trance™.

Main Features

• 2° narrow beam effects via 90W LED

• LED ring with 86pcs RGB 3-in-1 SMD5050 LEDs

• Gobo wheel with 21 gobos + open

• Color wheel with 14 colors + open (split colors and bi­directional rotation)

• 6/8-facet bi-directional rotating prism

• Frost and color filter effects

• Independent DMX control of beam and LED ring effects

• Built-in auto/sound active programs

• Pan: 540/640°, Tilt: 270° (8-16 Bit Resolution)

• 1-25Hz fps strobe + variable/random effects

• 4 user-selectable dimming curves

• 2.4” TFT LCD display with 4 button control

• DMX512, Art-Net, RDM, M/S, sound active & auto mode

• 3/5-pin DMX In/Out + RJ45 etherCON In/Out (Art-NET)

• PowerCON™ compatible AC power In/Out

• Dimensions: 12.4 x 8 x 19.8 inches (315.3 x 202 x 502.5 mm)

• Weight: 31.3 lbs, 14.2 kg

Optical

90W white 7000K LED

(2° beam)

86* RGB 3-in-1 SMD5050

LEDs (ring)

Flicker-free

Linear electronic focus

Luminous Intensity:

49,450 Lux @ 5M

12,721 Lux @10M

Movement

Pan: 540/640 degree (8-

16 bit resolution)

Tilt: 270 degree (8-16 bit

resolution)

blizzardlighting.com

Control

Protocol: USITT DMX-512

21/44/128-channel DMX

modes

DMX512, Art-Net, RDM,

M/S, auto, sound

3/5-pin DMX in/out

4-button 2.4” TFT LCD

display menu

[e-mail] 1.866.493.6025

Power +

Current

100-240VAC, 50-60 Hz

136W, 1.81A, PF: .62

PowerCON™ compatible

AC power In/Out

connectors

1.866.493.5025

Warranty

2-year limited warranty,

does not cover

malfunction

caused by damage to

LEDs
