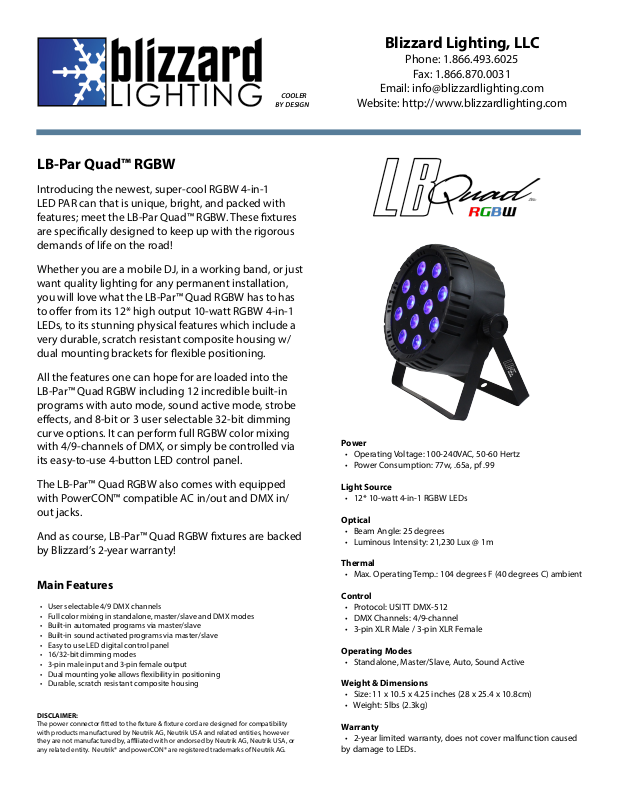

Blizzard LB PAR Quad RGBW Datasheet

COOLER

BY DESIGN

LB-Par Quad™ RGBW

Introducing the newest, super-cool RGBW 4-in-1
LED PAR can that is unique, bright, and packed with
features; meet the LB-Par Quad™ RGBW. These xtures
are specically designed to keep up with the rigorous
demands of life on the road!

Whether you are a mobile DJ, in a working band, or just
want quality lighting for any permanent installation,
you will love what the LB-Par™ Quad RGBW has to has
to oer from its 12* high output 10-watt RGBW 4-in-1
LEDs, to its stunning physical features which include a
very durable, scratch resistant composite housing w/
dual mounting brackets for exible positioning.

Blizzard Lighting, LLC

Phone: [phone]

Fax: [phone]

Email: [e-mail]

Website: http://www.blizzardlighting.com

All the features one can hope for are loaded into the
LB-Par™ Quad RGBW including 12 incredible built-in
programs with auto mode, sound active mode, strobe
eects, and 8-bit or 3 user selectable 32-bit dimming
curve options. It can perform full RGBW color mixing
with 4/9-channels of DMX, or simply be controlled via
its easy-to-use 4-button LED control panel.

The LB-Par™ Quad RGBW also comes with equipped
with PowerCON™ compatible AC in/out and DMX in/
out jacks.

And as course, LB-Par™ Quad RGBW xtures are backed
by Blizzard’s 2-year warranty!

Main Features

• User selectable 4/9 DMX channels

• Full color mixing in standalone, master/slave and DMX modes

• Built-in automated programs via master/slave

• Built-in sound activated programs via master/slave

• Easy to use LED digital control panel

• 16/32-bit dimming modes

• 3-pin male input and 3-pin female output

• Dual mounting yoke allows exibility in positioning

• Durable, scratch resistant composite housing

DISCLAIMER:

The power connector tted to the xture & xture cord are designed for compatibility
with products manufactured by Neutrik AG, Neutrik USA and related entities, however
they are not manufactured by, aliated with or endorsed by Neutrik AG, Neutrik USA, or
any related entity. Neutrik® and powerCON® are registered trademarks of Neutrik AG.

Power

• Operating Voltage: 100-240VAC, 50-60 Hertz

• Power Consumption: 77w, .65a, pf .99

Light Source

• 12* 10-watt 4-in-1 RGBW LEDs

Optical

• Beam Angle: 25 degrees

• Luminous Intensity: 21,230 Lux @ 1m

Thermal

• Max. Operating Temp.: 104 degrees F (40 degrees C) ambient

Control

• Protocol: USITT DMX-512

• DMX Channels:4/9-channel

• 3-pin XLR Male / 3-pin XLR Female

Operating Modes

• Standalone, Master/Slave, Auto, Sound Active

Weight & Dimensions

• Size: 11 x 10.5 x 4.25 inches (28 x 25.4 x 10.8cm)

• Weight: 5lbs (2.3kg)

Warranty

• 2-year limited warranty, does not cover malfunction caused
by damage to LEDs.
