BLAUPUNKT RCI-4B User Manual

0 (0)

Interfaces

Lenkrad-Fernbedienungs-Interface RCI-4B Steering Wheel Remote Control Interface RCI-4B RCI-4B pour la t l commande sur le volant

Rattfj rrstyrning - gränssnitt RCI-4B

7 607 587 511

für / for





Alfa Romeo

Lancia

Rover

Audi

Mazda

Saab

BMW

Nissan

Seat

Citroën

Opel

Skoda

Daewoo

Peugeot

Toyota

Fiat

Renault

VW

Ford





Einbauanleitung

Installation instructions

Instructions de montage

Istruzioni di montaggio

Inbouwinstructies

Monteringsanvisning

Instrucciones de montaje

Instruções de montagem

Monteringsvejledning

nicht für / not for / pas pour / non per / niet geschikt voor / ej för / no para / não serve para / ikke til

Bremen RCM 127



New York RDM 127



Valencia CM 127



Travel Pilot DX-V/DX-N

http://www.blaupunkt.com

BLAUPUNKT RCI-4B User Manual

5A

36 pin - AG

Interface

X

Amsterdam TCM 127, Helsinki RTM 127,Gemini GPS 148, Monte Carlo TCM 169, Antares T60

7 607 610 093

5A

Interface

Changer

X

Amplifier

5A

26 pin - AG

7 607 896 093

Interface

Changer

X

Fahrzeugspezifisches Adapterkabel

Car specific adaptor cables

Câbles adaptateurs spécifiques aux véhicules

Xadattamento specofico per il vostro modello d'auto bilspecifik adapterkabel

cable adaptador especifico del vehículo cabo de adaptação especifico do automóvel

2

D Allgemeines

Vielen Dank, dass Sie sich für ein Blaupunkt Produkt entschieden haben. Wir wünschen Ihnen viel Freude an Ihrem neuen Gerät.

Lesen Sie bitte vor der ersten Benutzung diese Bedienungsanleitung.

Für unsere innerhalb der Europäischen Union gekauften Produkte, geben wir eine Herstellergarantie. Die Garantiebedingungen können Sie unter www.blaupunkt.de abrufen oder direkt anfordern bei:

Blaupunkt GmbH

Hotline

Robert Bosch Str. 200

D-31139 Hildesheim

Funktion

Alle Funktionen die das jeweilige Autoradio unterstützt, können fernbedient werden.

Sicherheitshinweise

Bevor Sie Ihr Interface anschließen, lesen Sie bitte sorgfältig die folgenden Hinweise.

Für die Dauer der Montage und des Anschlusses ist der Minuspol der Batterie abzuklemmen.

Hierbei sind die Sicherheitshinweise des Kraft- fahrzeug-Herstellers (Airbag, Alarmanlagen, Bordcomputer, Wegfahrsperren) zu beachten.

Einbauhinweise

Anschlussreihenfolge unbedingt beachten!

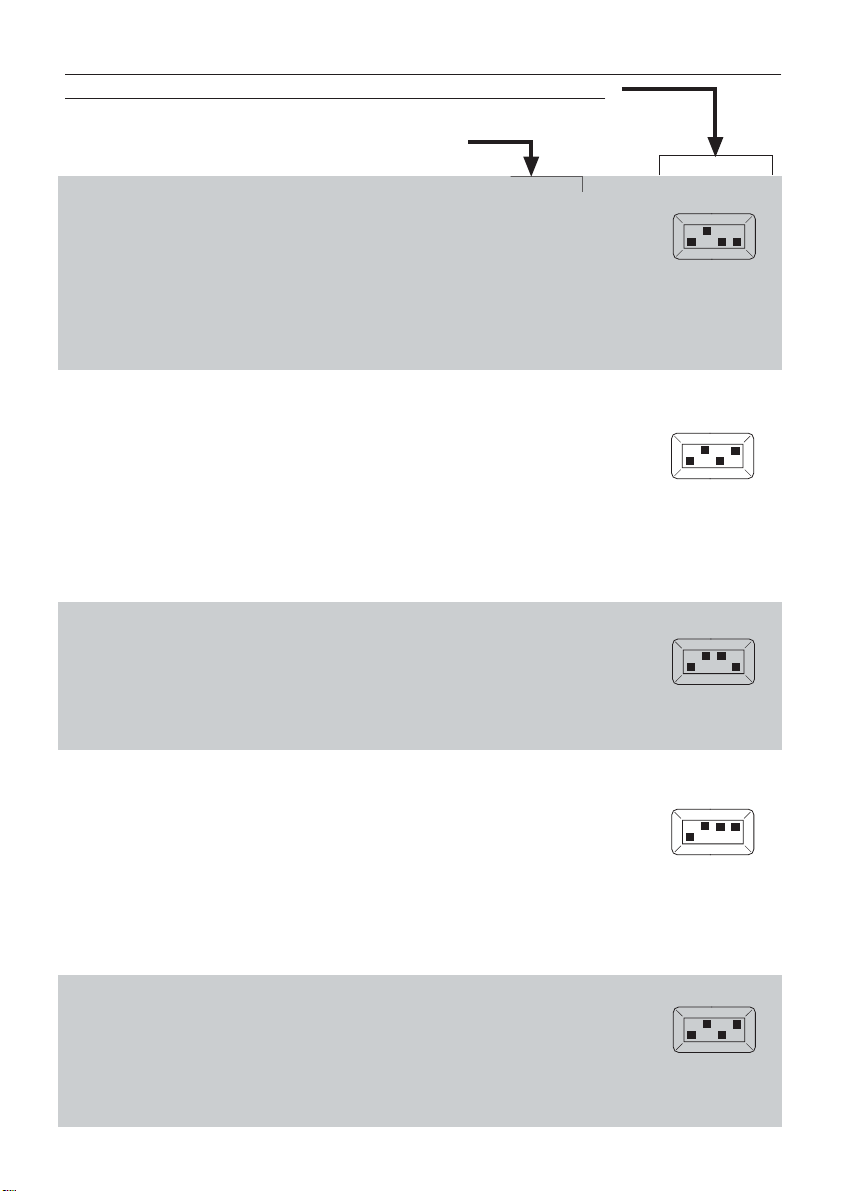

1.Schalter gemäß der Übersicht einstellen (siehe Tabelle Seite 12).

2.Interface am Radio oder Navi (RNS) an klemmen.

3.Interface fahrzeugseitig anklemmen.

Hinweise:

On/Off Schalter dürfen nur bei stromlosen Komponenten (Radio/Interface/ Changer...) geschaltet werden!

Die Kontaktbelegung vor dem Einbau anhand der Radio oder Navigations-Einbauanleitung prüfen .

Leitungen falls erforderlich einstecken oder umstecken.

Für Fehler infolge unzureichender Prüfung der Anschlusstechnik und Kontaktbelegungen übernimmt Blaupunkt keine Haftung.

Verkehrssicherheit

Die Verkehrssicherheit ist oberstes Gebot.

Benutzen Sie daher Ihre Autoradioanlage immer so, daß Sie stets der aktuellen Verkehrssituation gewachsen sind.

Bedenken Sie, daß Sie bei einer Geschwindigkeit von 50 km/h in einer Sekunde 14 m fahren.

In kritischen Situationen raten wir von einer Bedienung ab.

Die Warnsignale z. B. von Polizei und Feuerwehr müssen im Fahrzeug rechtzeitig und sicher wahrgenommen werden können.

Hören Sie deshalb während der Fahrt Ihr Programm nur in angemessener Lautstärke.

Um die Verkehrssicherheit Ihres Fahrzeugesauch nach den Ein-und Umbauten sicherzustellen, überprüfen Sie, ob

alle Tasten und Schalter am Lenkrad und an der Lenksäule, die nicht für die Radio und Navigationsbedienung vorgesehen sind, ihre Funktion gemäß Ihrer Fahrzeugbedienungsanleitung noch erfüllen

alle Tasten und Schalter am Lenkrad und an der Lenksäule, die für die Radio und Navigationsbedienung vorgesehen sind, ihre Funktion gemäß dieser Bedienungsanleitung erfüllen und insbesondere keine unerwarteten Funktionen auslösen.

Änderungen vorbehalten!

3

GB General

Thank you for choosing a Blaupunkt product. We hope that you will enjoy your new equipment.

Please read these instructions before you use the equipment for the first time.

We offer a manufacturer’s guarantee for those of our products that are sold within the European Union. You can see the guarantee conditions at www.blaupunkt.de, or you can request them directly from:

Blaupunkt GmbH, Hotline,

Robert Bosch Str. 200, D-31139 Hildesheim

Germany

Function

All the functions that are supported by the particular car radio can be controlled remotely.

Safety notices

Please read the following notes carefully before connecting your interface.

The battery’s negative terminal must be disconnected while the assembly and connecting work is being carried out.

The vehicle manufacturer’s safety notes (regarding the airbag, alarm equipment, on-board computer, immobilizer and so forth) must be observed.

Installation note

Make absolutely certain to make the connections in the order given below!

1.The switches in accordance with the overview (see table on page 12).

2.Connect the interface to the radio or navigation system (RNS).

3.Connect the interface to the vehicle’s connections.

Notes:

On/Off switches may only be connected when components are current-free.

Use the radio’s or navigation system’s installation instructions to check how the contacts are assigned before installing.

If necessary, plug in cables or reconnect them elsewhere as needed.

Blaupunkt can accept no liability for faults resulting from inadequate examination of the connection method or pin assignment.

Road safety

Road safety has utmost priority.

You should therefore always use your car radio equipment in such a way that you remain alert to the current traffic situation.

Remember that if you are moving at 50 km/h, then you will cover 14 m in one second.

We advise against making any adjustments in critical situations.

It must be possible to hear warning signals from, for instance, police or fire service vehicles promptly from within the vehicle.

You must therefore only listen at a suitable volume when travelling.

To ensure that your vehicle remains fit for the road after fitting or modification, check that

all the buttons or switches on the steering wheel and on the steering column that serve purposes other than operating the radio or navigation device still fulfil their function in accordance with the vehicle’s instructions for use, and that

all the buttons or switches on the steering wheel and on the steering column whose purpose is to operate the radio or navigation device do fulfil their function in accordance with these instructions, and in particular that they do not have any unexpected effects.

Subject to changes!

4

F Généralités

Nous vous remercions d’avoir opté pour un produit Blaupunkt et nous vous souhaitons beaucoup de plaisir avec votre nouvel appareil.

Lisez ce guide d’utilisation avant la première utilisation.

Nous offrons une garantie constructeur sur les produits achetés dans l’Union Européenne. Pour consulter ou obtenir les conditions de garantie, visitez notre site à l’adresse : www.blaupunkt.de ou adressez-vous directement à :

Blaupunkt GmbH, Hotline

Robert Bosch Str. 200, D-31139 Hildesheim

Fonctionnement

Toutes les fonctions offertes pour l’autoradio en question sont télécommandables.

Consignes de sécurité

Avant de raccorder l’interface, lisez attentivement les consignes suivantes.

Débrancher impérativement le pôle (-) de la batterie pour la durée du montage et du branchement.

Respectez ce faisant les consignes de sécurité du constructeur automobile (air bags, alarmes, ordinateurs de bord, systèmes anti-dé- marrage).

Consignes de montage

Prière de respecter l’ordre de connexion !

1.Régler l’interrupteur en fonction de la liste (cf. tableau à la page 12).

2.Connecter l’interface à l’autoradio ou à la navi (RNS).

3.Connecter l’interface sur le véhicle.

Note :

Les boutons On / Off ne doivent être commutés que lorsque les composants sont sans courant.

Vérifier l’affectation des contacts avant le montage en consultant le guide de montage de l’autoradio ou du système de navigation.

Brancher ou permuter les câbles si nécessaire.

Blaupunkt déclinera toute responsabilité en cas de contrôle insuffisant de la connexion

et de l’affectation des contacts.

Sécurité routière

La sécurité routière est impérative !

Utilisez par conséquent votre autoradio en restant toujours maître de votre véhicule.

Soyez conscient que vous parcourez à une vitesse de 50 km/h 14 m à la seconde.

Nous vous conseillons de ne pas utiliser l’appareil dans des situations criê!ques. Les signaux d’avertissement comme ceux de la police et des sapeurs-pompiers doivent pouvoir être bien perçus à temps à l’intérieur du véhicule.

Soyez toujours à l’écoute de l’appareil à un volume modéré pendant vos déplacements.

Pour garantir la sécurité routière de votre véhicule même après l’installation et les modifications, vérifiez si

si toutes les touches et commutateurs sur le volant et sur la colonne de direction non prévus pour la radio et la navigation, fonctionnent encore conformément au manuel d’emploi du véhicule et

si toutes les touches et commutateurs sur le volant et sur la colonne de direction non prévus pour la radio et la navigation, fonctionnent encore conformément au présent guide d’utilisation et ne déclenchent notamment aucune fonction inattendue.

Sous réserve de modifications !

5
