Page 1
CAR MULTIMEDIA
MONTEVIDEO 4020
Operating and Installation Instructions
Page 2
Car radio must be used in a way that compliments
safety of the user when driving the vehicle. It is
recommended for the user to at an appropriate
location when operating the car radio. While
driving, user is not recommended to use
applications that can be prone to distraction e.g.
streaming to videos, entering destination etc.
User is recommended to proceed with proposed
driving routes only if it does not violate any trac
regulations. Local trac signs and regulations
always prevail over the routes proposed.
User is advised to keep the volume of the car radio
to a moderate level for the protection of the ears
and to increase the ability to hear any emergency
warning signals (e.g. police and ambulance sirens).
Do not increase the car radio volume while the car
radio is muted as it is not audible. The car radio
volume can be too loud when the car radio is
unmuted.
This car radio is intended for installation and
operation in a vehicle with 12V vehicle system
outage, hence the radio unit must be installed in a
DIN slot. Observe the output limits of the car radio.
Do not dismantle or modify the car radio.
Installation and repairs, if necessary, should be
performed by a specialist. We are not liable for any
loss or damage caused or resulting from
unauthorized disassembly or modication to the
product.
CAUTIONS
Safety Notes
This car radio has been manufactured according to
established safety guidelines. However, dangers may still
occur if the safety notes in this manual is not observed.
This manual is intended to familiarize the user with the
car radio’s important functions. Read this carefully, prior
to using the car radio. Keep this manual in an easily
accessible location. In addition, do observe the
instructions of the devices used in conjunction with this
car radio.
Road Safety
Always observe the following notes for road safety:
•
•
•
General Safety Notes:
Observe the following for protection against injuries:
•
•
•
•
•
•
•
Road Safety
In no event shall Blaupunkt be liable for any direct,
indirect, punitive, incidental, special consequential
damages to property or life and whatsoever arising out
of or connected with the use or misuse of our products.
USA & CANADA: This product is not intended for sale in
the United States and Canada. If purchased in the U.S. or
Canada, this product is purchased on as-is basis. No
warranty, whether expressed or implied is provided in
the U.S. or Canada.
This car radio’s core components may result to
damage when the car is driven on bumpy roads for
a prolonged period of time or if it is used to play
non-standard or severely damaged discs.
Please do not operate the car radio under extreme
temperature conditions (extremely high
temperature or extremely low temperature); make
sure that temperature within the car ranges from
-20°C to 80°C before you connect the car radio to
the power supply
For abnormalities, please refer to the
“Troubleshooting” section. If the problem cannot be
resolved, please press the Reset button to recover
its factory settings. Otherwise, please contact
respective installer/seller directly for help.
As SD/USB le formats, codecs, bitrate, resolution
and other parameters available in the market are
not all the same, there is no guarantee that this car
radio can play all media le formats.
Dierent cars may have dierent congurations. It is
normal that some CAN-Bus functions cannot be
enabled because it is not supported by the user’s
car or this car radio.
Solvents, cleaning and scouring agents as well as
dashboard spray and plastics care products may
contain materials which can damage the surface
and screen of the car radio. Use only dry or slightly
moistened cloth to clean the car radio surface and
screen.
This manual may be updated from time to time
without any notice.
1
Page 3
1
2
3
4
5
6
Press once to turn on or press and hold to turn o
•
•
•
•
•
•
•
•
Microphone
DVD Slot
Turn knob left / right to increase / decrease volume
Radio mode : Press to select BAS-TRE-BAL-FAD-EQ
-LOUD-LOC-STEREO, turn knob to adjust
- BAS : Bass
- TRE : Treble
- BAL : Balance
- EQ (Equalizer) : Flat/Pop/Rock/Classic
- LOUD
- LOC : Switch between Local (reduce receiving
sensitivity when searching stations) or Remote
(receive weak stations signal) searching.
- STEREO : Switch between Stereo or Mono
Radio mode : Press to increase radio frequency
manually. Press and hold to increase radio
frequency automatically
Phone (BT) mode : Press to end call or press to skip
to next song
Playback mode : Press to skip to next track/chapter.
Press & hold to fast forward current track.
NUM/FILE/DIR : Y/Z/(SPACE)/9
Radio mode : Press to select radio band FM1-FM2FM3-AM1-AM2 . Press and hold for automatic radio
stations scan and save
Playback mode : Press to enter manual selection
NUM/FILE/DIR
7
8
9
10
11
12
13
14
15
LCD Display
Eject
RESET
USB
SD
AUX-IN
•
•
•
•
•
•
•
•
•
•
Radio mode : Use digit to select radio station or
press and hold to save the station
Playback mode : Press to skip to next 10th song or
press and hold to skip to the next folder
NUM/FILE/DIR : P/Q/R/6
Radio mode : Use digit to select radio station or
press and hold to save the station
Playback mode : Press to skip to previous 10th song
or press and hold to skip to the previous folder
NUM/FILE/DIR : M/N/O/5
Radio mode : Use digit to select radio station or
press and hold to save the station
Playback mode : Press to turn on or o shue play
NUM/FILE/DIR : J/K/L/4
External screen : Repeat press and hold step, to
shift from one folder to another
KEY FUNCTIONS
2
31
10
2 4 5 6 7 8 9
11
12
13
141516171819202122
Page 4
1
2
4
6
8
10
12
14
29
27
25
23
21
19
17
16
3
5
7
9
11
13
15
30
28
26
24
22
20
18
Press to switch between MODE : Radio - USB CARD - AVIN - DVD
Press to turn on or press and hold to turn o
Up button
Radio mode : Press to select radio band
FM1 - FM2 - FM3 - AM1 - AM2
Press to Enter to select the preferred option
Left button
Down button
Stop/return
Radio & DVD mode : Press to switch between
Stereo and Mono
•
•
•
Radio mode : Press to automatically search and
save scanned radio station
Playback mode : Press to repeat 1/All
Playback mode : Press to skip to previous
track/chapter. Press and hold to rewind current
track.
1
2
3
4
5
6
7
8
9
10
11
16
17
18
19
20
21
22
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Press to return to home page
•
•
•
•
Mute
Radio mode : Use digit to select radio station or
press and hold to save the station
Playback mode : Press to repeat 1/All
NUM/FILE/DIR : G/H/I/3
External screen : Repeat press and hold step, to
shift from one folder to another
Radio mode : Use digit to select radio station or
press and hold to save the station
Playback mode : Press to play the rst 10 sec of
each track
NUM/FILE/DIR : D/E/F/2
External screen : Repeat press and hold step, to
move the selection downwards
Radio mode : Use digit to select radio station or
press and hold to save the station
Playback/BT mode : Pause/Play
NUM/FILE/DIR : A/B/C/1
External screen : Repeat press and hold step, to
move the selection upwards
Press to switch between media RADIO-PHONEDISC-USB-SD-AUXIN
Press and hold for clock setting
NUM/FILE/DIR : S/T/U/7
Radio mode : Press to decrease radio frequency
manually. Press and hold to decrease radio
frequency automatically
Phone (BT) mode : Press to accept call or press to
skip to previous song
Playback mode : Press to skip to previous track/
chapter. Press & hold to fast reverse current track.
NUM/FILE/DIR : V/W/X/8

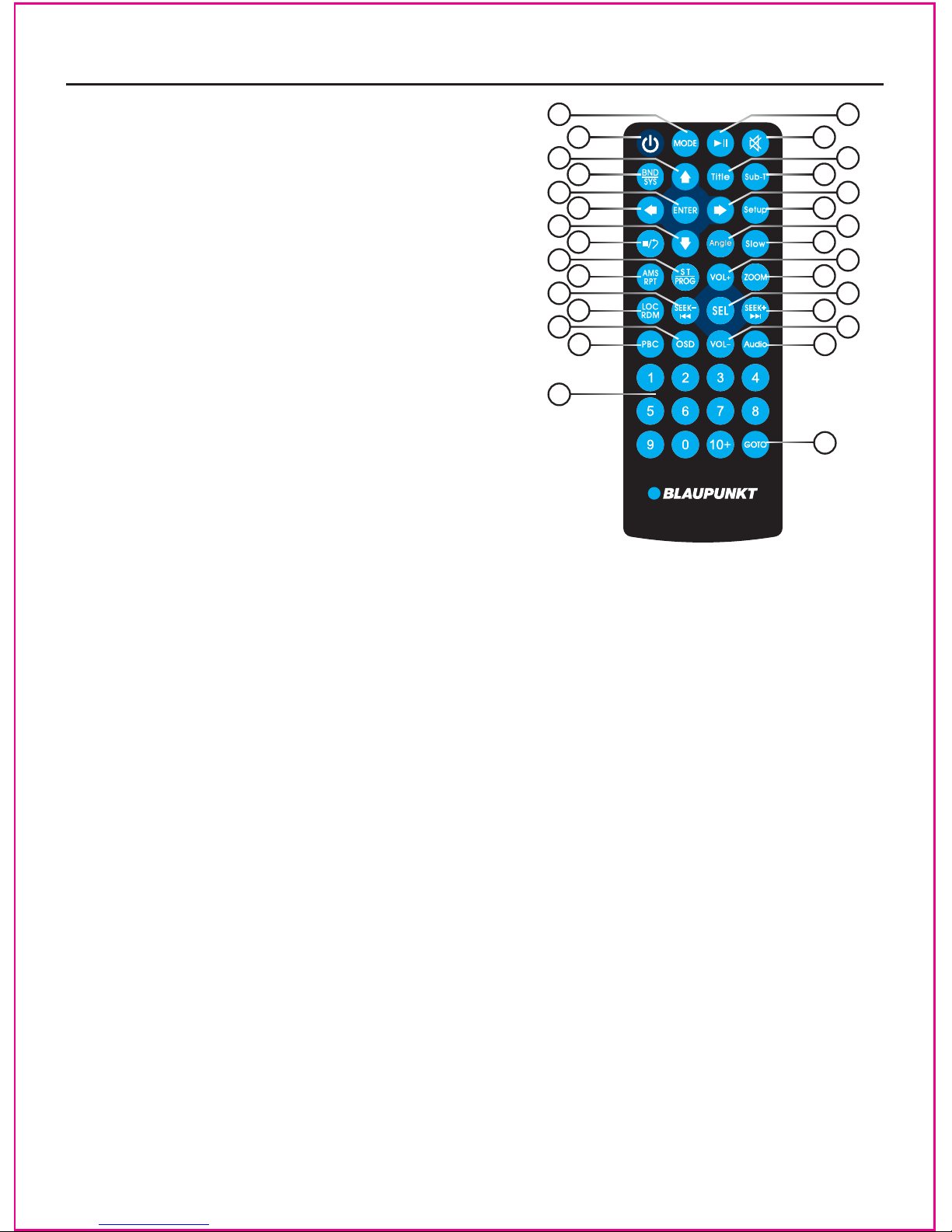

KEY FUNCTIONS REMOTE CONTROL
3
Page 5
.........................................................10.8~16V DC
................................................. max. 8 A
............... 4 x 45W channels (max)
.................................. 160 x 178 x 50mm
................................................................................... 1.15kg
............................................. -20° ~ 60°
................................................. 87.7 - 108MHz
.......................................................... 18
................................................. 522 - 1620 MHz
........................................................... 12
.............................................. ????
.............................Audio : MP3/WAV/WMA
Video : DIVX/MP4/MPG
Image : JPEG, JPG
........................................................................... 3.5mm jack
GENERAL
Power supply
Current consumption
Maximum power output
Dimension (WxDxH)
Weight
Operation temperature
FM Stereo Radio
Frequency range
Preset memory stations
AM/MW Radio
Frequency range
Preset memory stations
Audio Specication
Frequency response
Input
USB 2.0 / microSD
Aux-in
Car sound system
Operating / installation instructions
Remote control (include battery)
Connecting cable
Support frame
Installation keys
Trim ring
Mounting bar
Scope of Delivery
The scope of delivery includes:
•
•
•
•
•
•
•
•
•
•
•
Press to display durations of media playback
Press to go to main menu (subject to media le’s
setting)
•
•
Press to manually key in the desired digit
Press to adjust Audio setting
Decrease volume
•
•
Press to select the preferred option
Press to zoom in/out
Increase volume
Press to Slow down video playback
Press to select Angle (subject to media le’s setting)
Press to go to setting
Left button
Press to select subtitle (subject to media le’s setting)
Press to go to title (subject to media le’s setting)
Mute
Pause/play
Radio mode : Press to decrease radio
frequency manually. Press and hold to decrease
radio frequency automatically
Radio mode : Press to switch between Local (reduce
receiving sensitivity when searching stations) or
Remote (receive weak stations signal) searching.
Playback mode : Press to enable or disable shue
play
Radio mode : Use digit button to select the desired
station
Playback mode : Use the digit button to select track
Playback mode : Press to skip to next track/chapter.
Press and hold to forward current track.
Radio mode : Press to increase radio
frequency manually. Press and hold to increase
radio frequency automatically
REMOTE CONTROL
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
4
Page 6
TROUBLESHOOTING
9
If any of the following problem occur, please resort to Troubleshooting for the possible solutions. Consult Blaupunkt
authorized dealer if problem persist.
Problems
Unable to start up
No sound
Dim screen or
black-&-white screen
while playing video
Slow in SD card
reading
No rear-view reverse
Unable to search
radio stations
Unable to play the Disc
Possible Causes
The car key is not inserted into the
ignition; ignition is o
Power Cable is not inserted into the
main body.
Burnt power fuse .
Drained car battery.
Audio cables are not properly
connected to the unit.
Mute setting is on.
Low volume.
No sound from front, rear, left & right
speakers due to Fade-Balance settings.
Brightness, contrast ratio and color
values are excessively adjusted.
The pixel of the picture le exceeds
this system’s capacity.
SD card may contain corrupted les or
virus.
The rear camera is not appropriately
connected with power supply.
Camera’s signal line not plugged in.
Radio’s antenna is not well inserted.
The Disc is not inserted properly.
The Disc is scratched, distorted or
stained.
Unable to read les.
Solutions
Insert the car key and turn on the ignition.
Insert the power cable.
Replace it with a new fuse.
Charge or replace the car battery.
Ensure proper connection of the audio cables.
Unmute the volume.
Adjust the volume.
Select Equalizer from Home Page to adjust setting.
Ensure brightness, color and contrast ratio values
are in normal range.
Replace it with a new audio/video SD card with
compatible le formats.
Examine the camera’s power supply connectivity.
Insert the camera’s signal line into the interface
port of this unit.
Ensure radio antenna is properly installed.
Re-insert the Disc and ensure orientation is correct.
Replace it with a functioning disc.
Ensure media les are supported by this unit.
Page 7
WIRING DIAGRAM
9
No.
1
2
3
4
5
6
7
8
D
-
-
B+
ANT
ILL
ACC
GND
Wire
-
-
YELLOW
BLUE
ORANGE
RED
BLACK
No.
1
2
3
4
5
6
7
8
C
REAR RIGHT +
REAR RIGHT FRONT RIGHT +
FRONT RIGHT FRONT LEFT +
FRONT LEFT FRONT LEFT +
REAR LEFT -
No.
1
AWire
Radio antenna
No.
1
2
3
4
5
6
B
L
R
L
R
V
V
Wire
OUT
OUT
RCA
RCA
OUT
OUT
5
6
3
4
1
2
A1
B
C
D
1
2
1
2
3
4
3
4
5
6
5
6
7
8
7
8
Page 8
SAFETY
•
•
•
CAUTION
•
•
•
•
•
•
When installing amplier, rst connect the
device ground connections before connecting
the plugs for the line-out jacks.
Ground connection of external devices may
not be connected to ground of car sound
system (housing).
Supplied mounting hardware
INSTALLATION INSTRUCTION
5
Assign a mounting location that will not
obstruct driver in any circumstances. Or
cause injuries to drivers and passengers in
case emergency brake or accidents.
Ensure all wires are connected properly, and
that the unit is functioning well before tting
the unit into the mount.
Any unauthorized installation and
modication may cause malfunction to the
unit. Always use the parts that are included
with the units only.
Disconnect the negative terminal of the
battery (Refer to vehicle manufacturer’s
safety instructions).
Be wary to not damage vehicle components
when drilling holes.
Make sure you do not damage vehicle
components when drilling any holes.
The cross sections of the positive and negative
cables must not be less than 1.5 mm2.
Do not connect the vehicle’s plug connectors
to the radio!
Your vehicle may dier from the description
provided here. Blaupunkt is not liable in case
any damage caused by incorrect installation
or connection.
Please contact Blaupunkt dealers or vehicle’s
manufacturer if information provided here
does not t your specic installation
requirement.
Page 9
INSTALLATION INSTRUCTION
6
1. 4.
2.
3.
Page 10
DISMANTLE INSTRUCTION
7
1. 4.
2.
2.
3.
Page 11
Designed and engineered by Blaupunkt
R1
1 103 18 004 19 01
Loading...
