In Car Video
IVSC-5501
Operating and installation instructions
http://www.blaupunkt.com
General .................................. 12
Accessories............................ 12
Installation and
safety notices ......................... 12
Supplied equipment .............. 13
Installation.............................. 13
Connection diagram .............. 17
Features ................................. 19
Specifications ........................ 19
CONTENTS
DEUTSCH
ENGLISH
FRANÇAIS
ITALIANO
NEDERLANDS
SVENSKAESPAÑOL
11
PORTUGUÊS
DANSK
SAFETY INFORMATION
General
Thank you for deciding to use a Blaupunkt product. We hope you enjoy using this new piece of equipment.
Please read these operating instructions before using the equipment for
the first time.
The Blaupunkt editors are constantly
working on making the operating instructions clearer and easier to understand. However, if you still have any
questions on how to operate the equipment, please contact your dealer or the
telephone hotline for your country . You
will find the telephone numbers printed
at the back of this booklet.
We provide a manufacturer guarantee
for our products bought within the European Union. You can view the guarantee conditions at www.blaupunkt.de
or ask for them directly at:
Blaupunkt GmbH
Hotline CM/PSS 6
Robert Bosch Str. 200
D-31 139 Hildesheim
Installation and safety notices
Before connecting your signal converter, please read the following information carefully .
The battery’s negative terminal must
remain disconnected whilst you are
installing and connecting the unit.
Whilst doing so, you must observe the
vehicle manufacturer’s safety notices
(airbags, alarm systems, trip computers,
immobilizers).
Before drilling any holes, you must make
sure that no installed cables or vehicle
components can be damaged.
When installing the signal converter, select a location in the vehicle that allows
you to attach it firmly into place using
screws. The installation location should
be such that the signal converter does
not get in the way of the driver and cannot endanger the occupants in the event
of the vehicle suddenly coming to a halt,
for instance, during an emergency stop.
Accessories
We recommend you use accessories
that have been approved by Blaupunkt.
12
SUPPLIED EQUIPMENT INSTALLATION
Supplied equipment
The signal converter is supplied with all
the parts listed below. Please check that
the range of parts supplied with your device is complete. If one of the listed parts
is missing, please contact your dealer
immediately.
● Signal Converter
● Connecting cable
● RGB adapter
● Installation and operating instruc-
tions
Signal Converter
7 607 003 550
Connecting cable
RGB adapter
Installation
Note:
• Before connecting the monitors to
your signal converter, check that
the +/- and the switched positive
are connected properly . After connecting the +/- and the switched
positive, the red LED on the signal converter must light up!
Positive connection
Connect the fuse holder (5A fuse) to protect the positive cable (3) (see Fig. 1).
The fuse holder must be connected to
the positive terminal at a distance of
max. 30 cm from the vehicle battery (if
necessary, drill a hole in the bulkhead
use the appropriate cable grommets).
Switched positive
Connect the switched positive cable (4)
(see Fig. 1) to the switched positive output (
) of the main system unit (e.g.
car radio or navigation unit). If connecting to the vehicle’s terminal 15, you must
connect a fuse holder (1A fuse) to protect the switched positive cable (4) (see
Fig. 1). The fuse holder must be connected to the positive terminal at a distance of max. 30 cm from the vehicle
battery (if necessary, drill a hole in the
bulkhead and use the appropriate cable grommets).
Negative (earth) connection
Attach the negative cable (1) (see Fig. 1)
directly to the vehicle body using a screw.
Scratch the surface down to the bare
metal at the point at which the earth contact is made and apply graphite grease
(important for a good earth connection).
13
DEUTSCH
ENGLISH
FRANÇAIS
ITALIANO
NEDERLANDS
SVENSKAESPAÑOL
PORTUGUÊS
DANSK
INSTALLATION
• If the installation requires holes to be
drilled or any other changes to the
vehicle to be made, please contact
a specialist workshop in your area.
Note:
You cannot display PAL video on the
wide vision TV monitor using the RGB
input.
In this case, the P AL video signal must
be connected directly to the AV input of
the wide vision TV monitor.
14
INSTALLATION
DEUTSCH
ENGLISH
Earth/GND
(1)
(3)
+12V Permanent
Fig. 1
12V
+12V
(4)
DC 12V IN
RGB IN
Monitor
Audio in
1
R1 L1
FRANÇAIS
ITALIANO
NEDERLANDS
SVENSKAESPAÑOL
PORTUGUÊS
DANSK
15
INSTALLATION
Video in
RGB in
DC 12V IN
RGB IN
Fuse ( 4 A)
S
U
F
RGB out
Monitor
Audio in
R1 R2 R3 R4L1 L2 L3 L4
4132
Audio in
E
OUTPUT
RGB OUT
321 4
Monitors
16
CONNECTION DIAGRAM
DEUTSCH
TravelPilot DX
RGB adapter
7 607 001 601 / 1,5 m
7 607 001 602 / 4 m
7 607 001 600
Signal converter
7 607 001 601 / 1,5 m
7 607 001 602 / 4 m
12V
ENGLISH
FRANÇAIS
ITALIANO
NEDERLANDS
SVENSKAESPAÑOL
17
PORTUGUÊS
DANSK

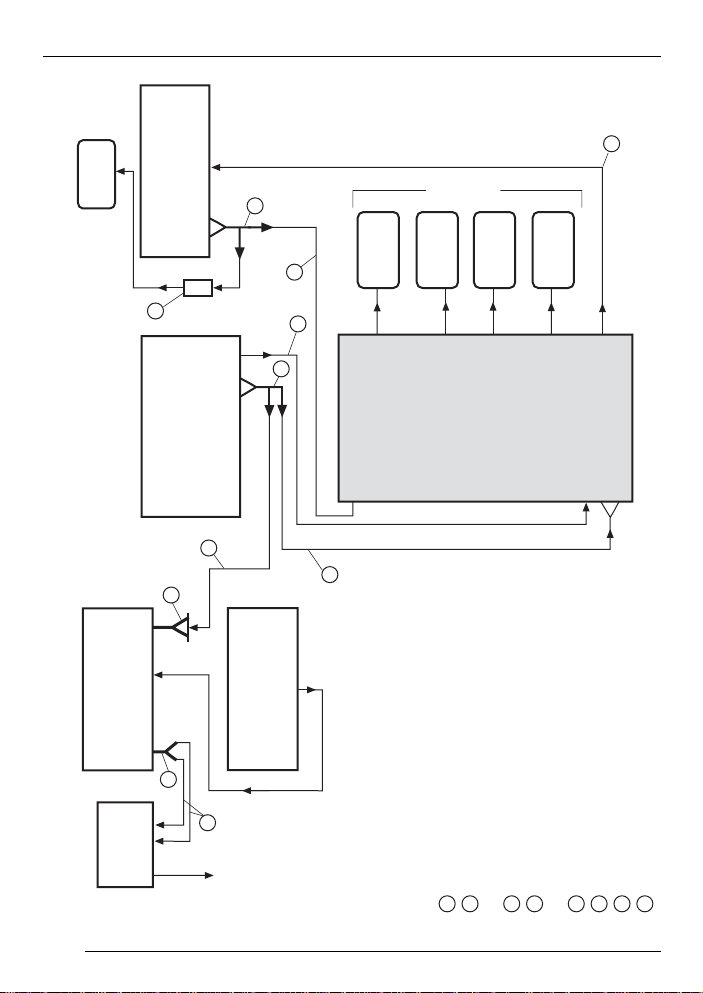

CONNECTION DIAGRAM
Rear
Monitor
Rear
Monitor
Rear
Monitor
Rear
Monitor
CDC-A08
IDC-A09
CDC
out
Speakers
DVD - Player (IVDP-01)
Video out
AV
in
Digital
out
Audio L out
Audio R out
RGB in
Video 4
Audio L 4
Audio R 4
Video 3
Audio L 3
Audio R 3
Video 2
Audio L 2
Audio R 2
Video 1
Audio L 1
Audio R 1
Signal Converter (IVSC-5501)
M 1
M 2
M 3
M 4
RGB
out
IVMS/R
DX-N
RGB
out
Video
in
Preamp
out
CDC
in
Car Radio
2x Aux-in
DX-N
Monitor
Amplifier
Anschlußkabel/Additional Cables:
1
RGB-Y-Cable 7 607 001 600
2
RGB-Cable 7 607 001 601 (1,5)
7 607 001 602 (4m)
3
RCA-Y-Cable 7 607 001 507
4
RCA-Cable 7 607 885 093 (1,3m)
7 607 886 093 (5m)
5
ISO-RCA 7 607 893 093
6
AUX 2-in 7 607 001 508
7
C1-4x Cinch 7 607 893 093 (0,35m)
8
RGB-Adapter
2
1
3
2
4
4
Aux
in
4
6
7
4
8
Various components connected as an example
18
SPECIFICATIONS
Features
4 audio/video inputs:
Cinch jacks
1 RGB input:
15-pin Sub-D socket
4 monitor outputs:
CCVS 50Hz, 8-pin jack, with power,
earth, switched positive
1 RGB output:
15-pin Sub-D plug-type connector
Conversion:
RGB (NTSC) 60 Hz in CCVS 50Hz
CCVS 50Hz in RGB (NTSC) 60 Hz
Power input:
4-pin plug-type connector
Metal housing
Specifications
Video input:
Composite Video, 0.7 ~ 2.0 Vpp,
75 Ohm
Audio input:
0 ~ 0.3 Vrms, 10-20 kHz
RGB input (video signal, internal resistance 100 ohm):
min –1.0 / max 1.0 Vdc
typical 0.7 / max 2.0 Vpp
RGB input (composite-sync, internal
resistance 100 ohm):
min –1.0 / max 1.0 Vdc
min 0.7 / typical 1.0 / max 2.0 Vpp
Video output:
Composite Video, 0.7 ~ 2.0 Vp-p,
75 Ohm
Audio output:
0 ~ 0.3 Vrms, 10-20 kHz
RGB output (video signal, internal resistance 100 ohm):
min –1.0 / max 1.0 Vdc
typical 0.7 / max 2.0 Vpp
RGB output (composite sync, internal resistance 100 ohm):
min –1.0 / max 1.0 Vdc
min 0.7 / typical 1.0 / max 2.0 Vpp
Power supply:
DC 12V, +/- 10%, max. 5A
DEUTSCH
ENGLISH
FRANÇAIS
ITALIANO
NEDERLANDS
SVENSKAESPAÑOL
PORTUGUÊS
19
DANSK
Service-Nummern / Service numbers / Numéros du service aprèsvente / Numeri del servizio di assistenza / Servicenummers /
Telefonnummer för service / Números de servicio / Números de
serviço / Servicenumre
Country: Phone: Fax: WWW:
Germany (D) 0180-5000225 05121-49 4002 http://www.blaupunkt.com
Austria (A) 01-610 390 01-610 393 91
Belgium (B) 02-525 5454 02-525 5263
Denmark (DK) 44 898 360 44-898 644
Finland (FIN) 09-435 991 09-435 99236
France (F) 01-4010 7007 01-4010 7320
Great Britain (GB) 01-89583 8880 01-89583 8394
Greece (GR) 0800-550 6550 01-576 9473
Ireland (IRL) 01-4149400 01-4598830
Italy (I) 02-369 6331 02-369 6464
Luxembourg (L) 40 4078 40 2085
Netherland (NL) 023-565 6348 023-565 6331
Norway (N) 66-817 000 66-817 157
Portugal (P) 01-2185 00144 01-2185 11111
Spain (E) 902-120234 916-467952
Sweden (S) 08-7501500 08-7501810
Switzerland (CH) 01-8471644 01-8471650
Czech. Rep. (CZ) 02-6130 0441 02-6130 0514
Hungary (H) 01-333 9575 01-324 8756
Poland (PL) 0800-118922 022-8771260
Turkey (TR) 0212-3350677 0212-3460040
USA (USA) 800-2662528 708-6817188
Brasil
(Mercosur) (BR) +55-19 3745 2769 +55-19 3745 2773
Malaysia
(Asia Pacific) (MAL) +604-6382 474 +604-6413 640
Blaupunkt GmbH
05/02 CM/PSS - 8 622 403 178
