Black & Decker PI800BB User Manual

• Do not make any electrical connections or disconnections in areas designated as IGNITION PROTECTED. This includes DC cigarette lighter type plug connection or airplane adapter. This unit is NOT approved for ignition protected areas.

• NEVER immerse the unit in water or any other liquid, or use when wet.

• Do not insert foreign objects into the AC outlet.

WARNING: TO REDUCE THE RISK OF FIRE:

• Do not operate near flammable materials, fumes or gases.

• DO NOT expose to extreme heat or flames.

CAUTION: TO REDUCE THE RISK OF INJURY OR PROPERTY DAMAGE:

• Remove appliance plug from outlet before working on the appliance.

• DO NOT attempt to connect or set up the unit or its components while operating your vehicle. Not paying attention to the road may result in a serious accident.

• Always use the inverter where there is adequate ventilation. Do not block ventilation slots.

• ALWAYS turn the inverter OFF by disconnecting it from the DC source when not in use.

• Make sure the nominal powering voltage is 12 volts DC.

• When using this unit in a vehicle, check the vehicle ownerʼs manual for maximum power rating and recommended output. Do not install in engine compartment — install in a well ventilated area.

• Do not use with positive ground electrical systems.* Reverse polarity connection will result in a blown fuse and may cause permanent damage to the inverter and will void warranty. *The majority of modern automobiles, RVs and trucks are negative ground.

• Keep in mind that this inverter will not operate high wattage appliances or equipment that produce heat, such as hair dryers, microwave ovens and toasters.

• Do not open the inverter — there are no user-serviceable parts inside.

• Do not use this inverter with medical devices. It is not tested for medical applications.

• Keep away from children.This is not a toy!

• Install and operate unit only as described in this Instruction Manual.

• Do not use this inverter on a watercraft. It is not qualified for marine applications.

• Check unit periodically for wear and tear. Take to a qualified technician for replacement of worn or defective parts immediately.

• Read And Understand This Instruction Manual Before Using This Unit.

SAVE THESE INSTRUCTIONS

WARNING: TO REDUCE THE RISK OF INJURY:

Follow these instructions and those published by battery manfacturer and the manufacturer of any equipment you intend to use with this unit. Review cautionary markings on these products and on engine.

INTRODUCTION

Thank you for purchasing the PI800BB 800 Watt Power Inverter. This inverter can be used to recharge 110/120 volt AC devices that have an appropriate recharging adapter with a standard North American two- or three-prong plug. Please read this Instruction Manual carefully before use to ensure optimum performance and to avoid damage to this product.

FEATURES

The unit has 2 LED indicators, 1 to show input conditions and 1 to show output conditions. The input LED is located beside the power button and the output LED is located on the top of the unit between the 2 AC outlets. A green LED indicates normal operation, a red LED indicates a fault condition (refer to Troubleshooting Section of this manual.) and an amber LED indicates low input voltage from the DC source. The AC outlets are ready to use if you have a green output LED.

The Power Pushbutton turns the inverter ON and OFF. It can also be used to force reset of inverter circuits by pressing it OFF (no LEDs are lit), then back ON again.

AC power is supplied through two standard North American three-prong type outlets. The outlets can accommodate either two- or three-pin AC plugs.

Controls and Functions

HOW THIS INVERTER WORKS

This inverter is an electronic device that converts low voltage DC (direct current) electricity from a battery to 115 volt AC (alternating current) household power. In designing this inverter, Black & Decker has incorporated design techniques previously employed in computer power supplies. The result of these design innovations is a smaller, lighter and easier-to-use power inverter.

Power Inverter Output Waveform

NOTICE: THE OUTPUT OF THIS DEVICE IS NOT SINUSOIDAL. IT HAS A TOTAL HARMONIC DISTORTION OF 35 PER CENT AND MAXIMUM SINGLE HARMONIC OF 28 PER CENT AT 100% RATED LOAD.

IMPORTANT: This inverter output is not pure-sinusoidal. Therefore this is not suitable for use to power the following devices:

. Microwave Ovens;

. Transformerless Battery Chargers Doing so, may cause the device to run warmer or overheat. The AC output waveform of this inverter is known as a modified sine wave. It is a stepped waveform that

has characteristics similar to the sine wave shape of utility power. This type of waveform is suitable for most AC loads, including linear and switching power supplies used in electronic equipment, transformers, and small motors.

The modified sine wave produced by this inverter has an RMS (root mean square) voltage of 115 volts. Most AC voltmeters (both digital and analog) are sensitive to the average value of the waveform rather than the RMS value. They are calibrated for RMS voltage under the assumption that the waveform measured will be a pure sine wave. These meters will not correctly read the RMS voltage of a modified sine wave. Non-TRUE RMS meters will read about 20 to 30 volts low when measuring the output of this inverter. For accurate measurement of the output voltage of this unit, use a TRUE RMS reading voltmeter such as a Fluke 87, Fluke 8080A, Beckman 4410 or Triplett 4200.

115 Volt AC Output

CAUTION – Rechargeable Devices

• Certain rechargeable devices are designed to be charged by plugging them directly into an AC

receptacle. These devices may damage the inverter or the charging circuit.

• When using a rechargeable device, monitor its temperature for the initial ten minutes of use to

determine if it produces excessive heat.

• If excessive heat is produced, this indicates the device should not be used with this inverter.

• This problem does not occur with most battery-operated equipment. Most of these devices use a

separate charger or transformer that is plugged into an AC receptacle.

• The inverter is capable of running most chargers and transformers.

OPERATING INSTRUCTIONS

The Power Inverter must be connected only to batteries with a nominal output voltage of 12 volts. The unit will not operate from a 6 volt battery and will sustain permanent damage if connected to a 24 volt battery.

Always connect the PI800BB to the 12 volt DC power source before plugging any devices into the unit. The standard North American 115 volt AC outlets allow simultaneous operation of multiple devices.

Simply plug the equipment into the unit and operate normally. Ensure that the wattage of all

equipment simultaneously plugged into the PI800BB does not exceed 800 watts continuous.

SAFETY GUIDELINES / DEFINITIONS

DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or

serious injury.

WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or

serious injury.

CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or

moderate injury. CAUTION: Used without the safety alert symbol indicates potentially hazardous situation which, if not

avoided, may result in property damage. RISK OF UNSAFE OPERATION. When using tools or equipment, basic safety precautions should

always be followed to reduce the risk of personal injury. Improper operation, maintenance or modification of tools or equipment could result in serious injury and property damage. There are certain applications for which tools and equipment are designed. Black & Decker strongly recommends that this product NOT be modified and/or used for any application other than for which it was designed. Read and understand all warnings and operating instructions before using any tool or equipment.

IMPORTANT SAFETY INSTRUCTIONS

GENERAL SAFETY WARNINGS AND INSTRUCTIONS FOR ALL APPLIANCES

READ ALL INSTRUCTIONS

WARNING: Read all instructions before operating product. Failure to follow all instructions listed

below may result in electric shock, fire and/or serious injury.

• AVOID DANGEROUS ENVIRONMENTS. Donʼt use appliances in damp or wet locations. Donʼt use

appliances in the rain.

• STORE IDLE APPLIANCES INDOORS. When not in use, appliances should be stored indoors in dry,

and high or locked-up place – out of reach of children.

• DONʼT FORCE APPLIANCE. It will do the job better and with less likelihood of a risk of injury at the

rate for which it was designed.

• USE RIGHT APPLIANCE. Do not use the appliance for any job except that for which it is intended.

• DISCONNECT APPLIANCES. Disconnect the appliance from the power supply when not in use,

before servicing, and when changing accessories such as blades and the like.

• PROPER COOLING IS ESSENTIAL WHEN OPERATING THE INVERTER. Do not place the unit

near the vehicleʼs heat vent or in direct sunlight.

• USE OF ACCESSORIES AND ATTACHMENTS. The use of any accessory or attachment not recommended for use with this appliance could be hazardous. Note: Refer to the accessory section of this manual for further details.

• CHECK DAMAGED PARTS.A part that is damaged should be properly repaired or replaced by an authorized service center.

• OUTDOOR USE EXTENSION CORDS. When an appliance plugged into this unit is used outdoors, use only extension cords intended for use outdoors and so marked. NOTE THAT THIS INVERTER IS NOT INTENDED TO BE USED OUTDOORS.

• EXTENSION CORDS. Make sure your extension cord is in good condition. When using an extension cord, be sure to use one heavy enough to carry the current your product will draw. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating. The following table shows the correct size to use depending on cord length and nameplate ampere rating. If in doubt, use the next heavier gauge. The smaller the gauge number, the heavier the cord.

WARNING: This product or its power cord contains lead, a chemical known to the State of California

to cause cancer and birth defect or other reproductive harm. Wash hands after handling.

WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK:

• Do not connect to AC distribution wiring.

Minimum Gauge for Cord Sets

Volts Total Length of Cord in Feet

120V 0-25 26-50 51-100 101-150

(0-7.6m) (7.6-15.2m) (15.2-30.4m) (30.4-45.7m)

240V 0-50 51-100 101-200 201-300

(0-15.2m) (15.2-30.4m) (30.4-60.9m) (60.9-91.4m)

Ampere Rating

More Not more American Wire Gage Than Than 0 - 6 18 16 16 14 6 - 10 18 16 14 12 10 - 12 16 16 14 12 12 - 16 14 12 Not Recommended

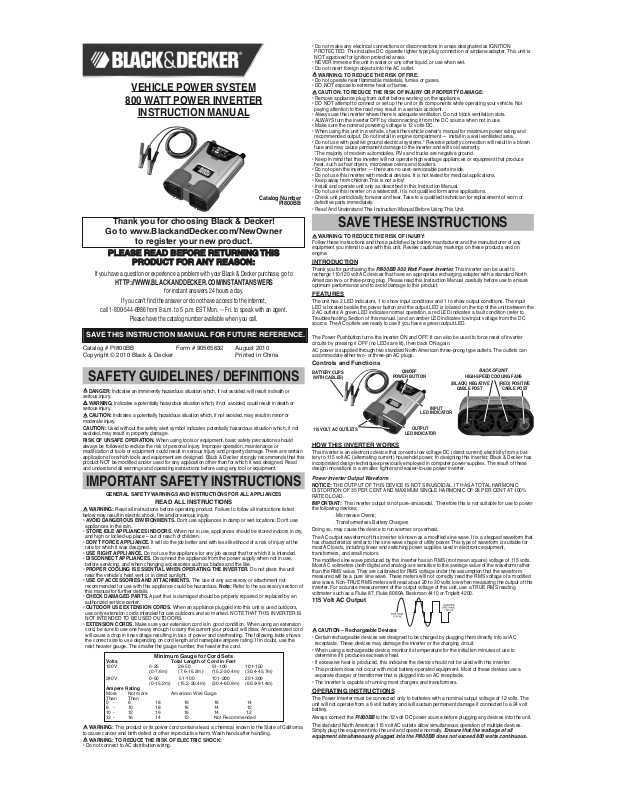

VEHICLE POWER SYSTEM

800 WATT POWER INVERTER

INSTRUCTION MANUAL

Catalog Number

PI800BB

Thank you for choosing Black & Decker!

Go to www.BlackandDecker.com/NewOwner

to register your new product.

PLEASE READ BEFORE RETURNING THIS

PRODUCT FOR ANY REASON:

If you have a question or experience a problem with your Black & Decker purchase, go to

HTTP://WWW.BLACKANDDECKER.COM/INSTANTANSWERS

If you can’t find the answer or do not have access to the internet,

call 1-800-544-6986 from 8 a.m. to 5 p.m. EST Mon. -- Fri. to speak with an agent.

Please have the catalog number available when you call.

for instant answers 24 hours a day.

SAVE THIS INSTRUCTION MANUAL FOR FUTURE REFERENCE.

HIGH-SPEED COOLING FANS

BACK OF UNIT

(BLACK) NEGATIVE

CABLE POST

(RED) POSITIVE

CABLE POST

115 VOLT AC OUTLETS

BATTERY CLIPS (WITH CABLES)

OUTPUT

LED INDICATOR

ON/OFF

POWER BUTTON

INPUT

LED INDICATOR

Connection to Power Source

The Power Inverter comes equipped with Battery Clips for connection to a power source.

Connecting to a Power Source Using the Provided Battery Clips

Use the provided Battery Clips (with cables) to connect the Power Inverter directly to the 12 volt power source as follows:

1. Check to make sure the inverterʼs Power Pushbutton has been pressed OFF (no LEDs are lit) and

that no flammable fumes are present in the installation area.

2. Connect the RED cable to the RED post on the back of the inverter . Connect the RED Battery Clip

to the POSITIVE terminal of the battery.

3. Connect the BLACK cable to the BLACK post on the back of the inverter. Connect the Black Battery

Clip to the NEGATIVE terminal of the battery.

4. Make sure that all connections between cables and terminals are secure.

5. Once properly connected to a 12 volt power source and switched on, the green power LED indicator

lights indicating that the inverter is functioning properly.

CAUTIONS

• Do not use with positive ground electrical systems.

• Reverse polarity connection will result in a blown fuse and may cause permanent damage to the inverter.

Note:The majority of modern automobiles, RVs and trucks are negative ground.

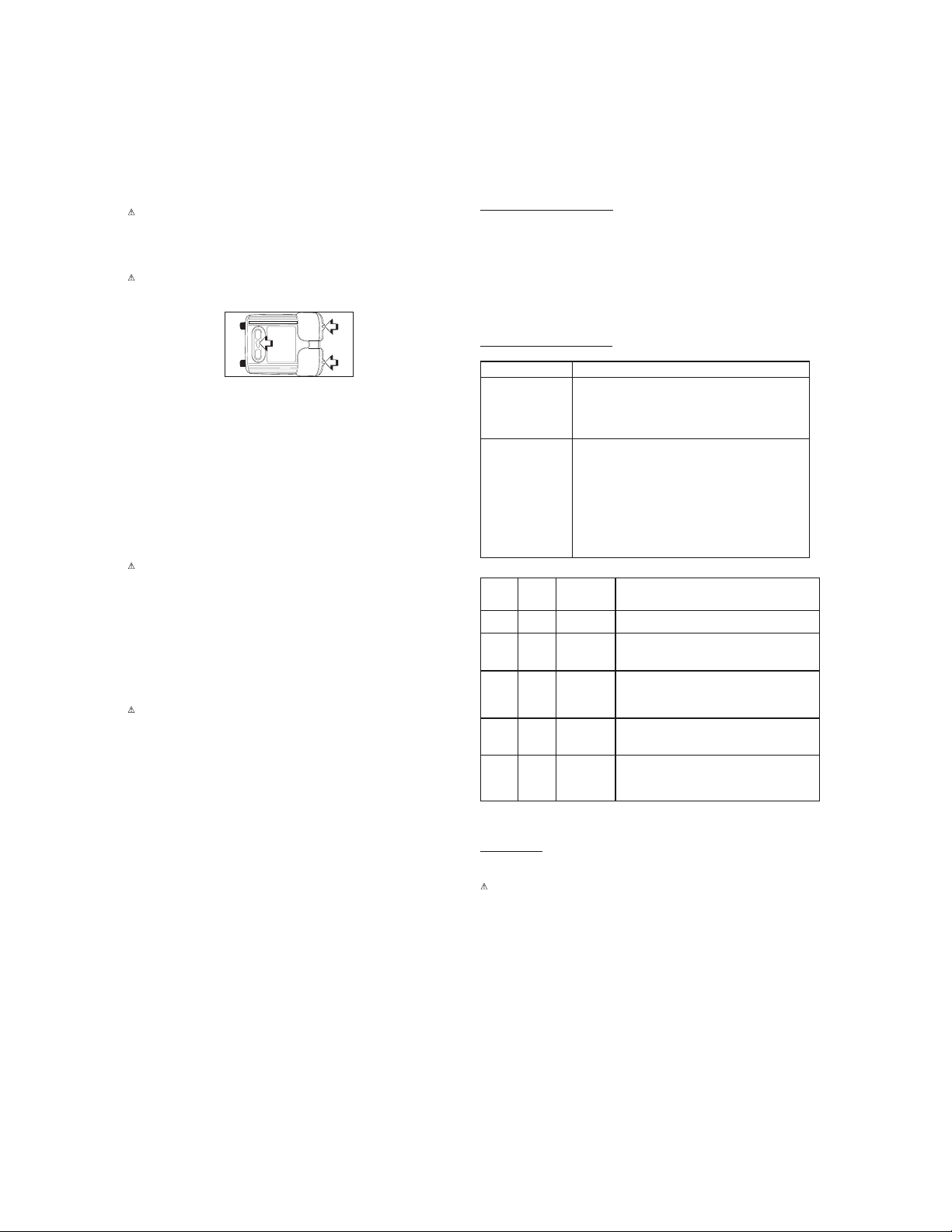

Direct Hardwiring to Power Source (optional connection method; hardware not included)

WARNING: It is not recommended to install with cables longer than 10ft as this can adversely

effect the operation of your inverter. As this unit can be directly hard wired it has wall mount features built in to secure it in the desired

location. The diagram below shows you how to do this:

Use #4 AWG wire if the inverter to power source connection is 6 feet or less. For cable lengths up to 10ft use #2AWG wire. In either case, protect the positive (+) wire from shorts by installing a 125 ANL fuse or circuit breaker close to the DC power source (battery) terminal.

1. Check to make sure the inverterʼs Power Pushbutton has been pressed OFF (no LEDs are lit) and

that no flammable fumes are present in the installation area.

2. Identify the POSITIVE (+) and NEGATIVE (–) DC power source (battery) terminals.

3. Install a fuse holder or breaker close to the POSITIVE (+) terminal of the DC source (battery).

4. Connect a length of wire on one side of the fuse holder or circuit breaker. Connect the other end of

the wire to the POSITIVE (+) terminal of the inverter.

5. Connect a length of wire between the inverterʼs NEGATIVE (–) terminal and the DC power source

NEGATIVE (–) terminal.

6. Connect a short length of wire to the other terminal of the fuse holder or circuit breaker. Mark it

“POSITIVE” or “+”.

7. Connect the free end of the fuse or breaker wire to the POSITIVE (+) terminal of the DC power

source (battery).

8. Insert a fuse appropriate to the inverter in the fuse holder.

9. Test the inverter by turning it on and plugging in a 100 watt lamp or equipment.

10. If the inverter is not properly operating, then refer to the Troubleshooting section of this manual.

CAUTION

•

The cable and fuse sizes given here are a general recommendation. You should always consult your National Electrical Code prior to beginning each specific installation.

• Loose connectors may cause overheated wires and melted insulation.

• Check to make sure you have not reversed the polarity. Damage due to reversed polarity is

not covered by our warranty.

• Loose connectors may cause overheated wires and melted insulation.

Connection To Load

The Power Inverter is equipped with dual standard North American three-prong type outlets. Plug the cord from the equipment you wish to operate into the AC receptacle(s). Make sure the combined load requirement of your equipment does not exceed maximum continuous power.

The Power Inverter is engineered to be connected directly to standard electrical and electronic equipment in the manner described above. Do not connect the Power Inverter to household or RV AC distribution wiring. Do not connect the Power Inverter to any AC load circuit in which the neutral conductor is connected to ground (earth) or to the negative of the DC (battery) source.

WARNING: Do not connect to AC distribution wiring!

Rated Versus Actual Current Draw of Equipment

Most electrical tools, appliances, electronic devices and audio/visual equipment have labels that indicate the power consumption in amps or watts. Be sure that the power consumption of the item to be operated is below 800 watts. If the power consumption is rated in amps AC, simply multiply by the AC volts (115) to determine the wattage.

Resistive loads are the easiest for the inverter to run; however, it will not run larger resistive loads (such as electric stoves and heaters), which require far more wattage than the inverter can deliver. Inductive loads (such as TVs and stereos) require more current to operate than do resistive loads of the same wattage rating.

For safety reasons, the unit will simply shut down if it is overloaded. To restart the unit, simply unplug all devices plugged into the unit; disconnect the unit from any 12 volt DC power source; then reconnect the unit BEFORE plugging the appliance back in.

Inductive loads, i.e. power tools.

Some motors used in power tools, refrigerators and pumps require a very high surge current to start. This inverter can handle a surge twice it's rated power but some motors require more than this when started. The inverter will not be harmed if you try to start such a product it will simply shutdown on overload.

Operation of the 115 Volt AC Outlets

1. Connect the inverter to a functioning 12 volt DC power source as described in this Instruction

Manual. Make sure there is adequate space for proper ventilation of the inverter.

2. Press the Power Pushbutton to turn the unit ON.

3. The green Power LED Indicator will light, indicating a proper connection. If either the yellow amber

low input voltage LED Indicator or red Fault LED Indicator lights, indicating a fault condition exists, refer to the “Troubleshooting” section of this Instruction Manual.

4. Plug the (110/120 volt AC) appliance into one of the Inverterʼs three-prong AC outlets and operate

normally.

Note:The Inverter will not operate appliances and equipment that generate heat, such as hair dryers,

electric blankets, microwave ovens and toasters. Remember to disconnect the inverter from any power source when not in use.

Protective Features

The inverter monitors the following conditions: Low Battery Voltage — This condition is not harmful to the inverter, but could damage the power source,

so the inverter will automatically shut down when input voltage drops below 10.5 ± 0.3 volts DC. Input Voltage Too High — The inverter will automatically shut down when DC input voltage exceeds

15.5 ± 0.5 volts, as this can harm the unit.

Thermal Shutdown Protection — The inverter will automatically shut down when the unit becomes overheated.

Overload/Short Circuit Protection — The inverter will automatically shut down when a short circuit occurs.

Operating Tips

The inverter should only be operated in locations that are: DRY — Do not allow water or other liquids to come into contact with the inverter. COOL — Surrounding air temperature should ideally be 10-20°C (50-68°F). Keep the inverter away

from direct sunlight, when possible. WELL-VENTILATED — Keep the area surrounding the inverter clear to ensure free air circulation

around the unit. Do not place items on or over the inverter during operation. The unit will shut down if the internal temperature gets too hot. The inverter will auto-reset after it cools down.

SAFE — Do not use the inverter near flammable materials or in any locations that may accumulate flammable fumes or gases. This is an electrical appliance that can briefly spark when electrical connections are made or broken.

Problem Explanation/Recommendation

Buzzing sound in audio systems

Some inexpensive stereo systems and boom boxes make a buzzing sound when operated from the inverter, because the power supply in the electronic device does not properly filter the modified sine wave produced by the inverter. The only solution to this problem is to use a sound system that has a higher quality power supply.

Problem: Television Interference

The inverter is shielded to minimize interference with TV signals. However, in some instances, some interference may still be visible, especially when the TV signal is weak. Try the following to improve the picture:

1.Move the Inverter as far away as possible from the TV set, the antenna, and the antenna cables. Use a short AC extension cord, if necessary.

2.Adjust the orientation of the antenna cables, and the TV power cord to minimize interference.

3.Make sure that the antenna feeding the TV provides an adequate (snow-free) signal and that high quality, shielded antenna cable is used.

See ‘Tools-Elec-

tric’

– Yellow Pages –

for Service &

Sales

Imported by

Black & Decker (U.S.) Inc.,

701 E. Joppa Rd.

Towson, MD 21286 U.S.A.

Input LED Color

Output LED Color

Possible Cause Recommendation

Yellow Low input voltage Start Engine

Red Battery voltage below

10.5 volts

Recharge battery or check DC power supply.

Red Equipment being oper-

ated draws too much power

• Reduce load to maximum 800 watts.

Red

Inverter in thermal shutdown condition

Allow inverter to cool down. Ensure there is adequate ventilation around the load is no more than 800 watts for continuous operation.

Red

AC output is shorted Unplug the AC appliance. Disconnect the unit from any 12

volt DC power source. Check the appliance cord. Refer to the Service Information section that follows to contact a Black & Decker Service Center.

CARE AND MAINTENANCE Storage

1. Ideal storage temperature range is 0-40°C (32-104°F).

2. Store and use the PI800BB in a cool, dry place with adequate ventilation for all-around air circulation.

3. Avoid locations that are exposed to heating units, radiators, direct sunlight, or excessive humidity or dampness.

Fuse Replacement

This inverter is equipped with multiple internal fuses. Normally, these fuses will not “blow” unless there is a serious problem inside the unit. Internal fuses are replaceable; however, only trained personnel should attempt fuse replacement. If the unit is damaged during fuse replacement, the warranty may be voided.

TROUBLESHOOTING Common Audio/Visual Problems

FAULT CONDITIONS

Red or Yellow Fault LED Indicator Lights

The red Fault LED indicates inverter shutdown from input fault, over temperature fault or overload / short circuit fault and the yellow Fault LED indicates an input or over-temperature fault.

ACCESSORIES

Recommended accessories for use with your tool are available from your local dealer or authorized service center. If you need assistance regarding accessories, please call: 1-800-544-6986.

WARNING: The use of any accessory not recommended for use with this tool could be hazardous.

SERVICE INFORMATION

All Black & Decker Service Centers are staffed with trained personnel to provide customers with efficient and reliable power tool service. Whether you need technical advice, repair, or genuine factory replacement parts, contact the Black & Decker location nearest you. To find your local service location, refer to the yellow page directory under "Tools—Electric" or call:

1-800-544-6986 or visit www.blackanddecker.com

FULL TWO-YEAR HOME USE WARRANTY

Black & Decker (U.S.) Inc. warrants this product for two years against any defects in material or workmanship. The defective product will be replaced or repaired at no charge in either of two ways. The first, which will result in exchanges only, is to return the product to the retailer from whom it was purchased (provided that the store is a participating retailer). Returns should be made within the time period of the retailerʼs policy for exchanges (usually 30 to 90 days after the sale). Proof of purchase may be required. Please check with the retailer for their specific return policy regarding returns that are beyond the time set for exchanges. The second option is to take or send the product (prepaid) to a Black & Decker owned or authorized Service Center for repair or replacement at our option. Proof of purchase may be required.Black & Decker owned and authorized Service Centers are listed under "Tools-Electric" in the yellow pages of the phone directory. This warranty does not apply to accessories. This warranty gives you specific legal rights and you may have other rights which vary from state to state or province to province. Should you have any questions, contact the manager of your nearest Black & Decker Service Center. This product is not intended for commercial use. FREE WARNING LABEL REPLACEMENT: If your warning labels become illegible or are missing, call 1-800-544-6986 for a free replacement. LATIN AMERICA: This warranty does not apply to products sold in Latin America. For products sold in Latin America, check country specific warranty information contained in the packaging, call the local company or see the website for warranty information.

SPECIFICATIONS

Maximum Continuous Power: 800 watts Surge Capacity: 1600 watts Input Voltage: 12.8 volts Output Voltage: Approx. 115 volt AC RMS 60 Hz Low Voltage Alarm: < 11.0 volts DC Low Voltage Shutdown: 10.5 ± 0.3 volts DC Thermal Shutdown: Automatic Wave Form: Modified Sine Wave (MSW) Output Connection: North American Standard Receptacles Fuses: Internal Input Cables: Battery clip cables Operating Temperature: 10-20°C (50-68°F) Storage Temperature: 0-40°C (32-104°F) Operating/Relative Humidity: 5-95% non-condensing

NORMAS DE SEGURIDAD:

DEFINICIONES

PELIGRO: Indica una situación de peligro inminente que, si no se evita, provocará la muerte o

lesiones graves.

ADVERTENCIA: Indica una situación de peligro potencial que, si no se evita, podría provocar la

muerte o lesiones graves.

PRECAUCIÓN: Indica una situación de peligro potencial que, si no se evita, provocará lesiones leves

o moderadas. PRECAUCIÓN: Cuando se utiliza sin el símbolo de alerta de seguridad indica una situación de peligro

potencial que, si no se evita, puede provocar daños a la propiedad. RIESGO DE OPERACIÓN INSEGURA. Cuando se utilizan herramientas o equipos, siempre se deben

respetar las precauciones de seguridad para reducir el riesgo de lesiones personales. La operación, el mantenimiento o la modificación incorrectos de herramientas o equipos pueden provocar lesiones graves y daños a la propiedad. Las herramientas y los equipos están diseñados para determinados usos. Black & Decker recomienda enfáticamente que NO se modifique este producto y que NO se utilice para ningún otro uso que aquél para el que fue diseñado. Lea y comprenda todas las instrucciones operativas y las advertencias antes de utilizar cualquier herramienta o equipo.

INSTRUCCIONES IMPORTANTES

SOBRE SEGURIDAD

ADVERTENCIAS E INSTRUCCIONES DE SEGURIDAD GENERALES PARA TODAS LAS

HERRAMIENTAS

LEA TODAS LAS INSTRUCCIONES

ADVERTENCIA: : Lea todas las instrucciones antes de operar el producto. El incumplimiento de

todas las instrucciones enumeradas a continuación puede provocar una descarga eléctrica, un incendio o lesiones graves.

• EVITE LAS CONDICIONES AMBIENTALES PELIGROSAS. NO utilice artefactos en zonas húmedas

o mojadas. No utilice artefactos bajo la lluvia.

• GUARDE LOS ARTEFACTOS QUE NO UTILICE EN EL INTERIOR. Cuando no los utilice, los

artefactos deben guardarse en el interior en un lugar seco, alto o bajo llave, lejos del alcance de los niños.

• NO FUERCE EL APARATO. Trabajará mejor y con menos probabilidad de riesgo de daños si se opera

a la velocidad para la que fue diseñado.

• UTILICE EL APARATO ADECUADO. Nunca utilice el aparato para otra tarea que no sea aquella para

la que fue creada.

• DESCONECTE LOS APARATOS. Desconecte el aparato de la fuente de energía cuando no lo utiliza,

antes de realizar un mantenimiento y al cambiar accesorios como hojas y elementos semejantes.

• EL ENFRIAMIENTO CORRECTO ES FUNDAMENTAL AL OPERAR EL CONVERSOR. No coloque

la unidad cerca de los orificios de ventilación del vehículo ni la exponga a la luz solar directa.

• USO DE SUPLEMENTOS Y ACCESORIOS. El uso de accesorios o dispositivos no recomendados para este aparato puede resultar peligroso. Nota: Consulte la sección "Accesorios" de este manual para obtener detalles adicionales.

• VERIFIQUE QUE NO HAYA PIEZAS DAÑADAS. Una pieza se daña que se debe reparar o substituir correctamente por un centro de servicio autorizado.

• EN ESPACIOS ABIERTOS, USE CABLES PROLONGADORES. Cuando una aplicación tapada en esta unidad se utiliza al aire libre, utilice solamente las cuerdas de la extensión previstas para el uso al aire libre y así que marcado. OBSERVE QUE ESTE INVERSOR NO ESTÁ PENSADO PARA SER UTILIZADO AL AIRE LIBRE.

• CABLES PROLONGADORES. Asegúrese de que el cable prolongador esté en buenas condiciones. Cuando utilice un cable prolongador, cerciórese de que tenga la capacidad para conducir la corriente que su producto exige. Un cable de menor capacidad provocará una disminución en el voltaje de la línea, lo cual producirá una pérdida de potencia y sobrecalentamiento. La siguiente tabla muestra la medida correcta que debe utilizar según la longitud del cable y la capacidad nominal en amperios indicada en la placa. En caso de duda, utilice el calibre inmediatamente superior. Cuanto menor es el número de calibre, más grueso es el cable.

ADVERTENCIA: Este producto o su cable de alimentación contiene plomo, una sustancia química

reconocida por el Estado de California como causante de cáncer, defectos de nacimiento u otros problemas reproductivos. Lávese las manos después de utilizarlo.

ADVERTENCIA: PARA REDUCIR EL RIESGO DE DESCARGA ELÉCTRICA:

• No conecte al cableado de distribución de CA.

• No realice conexiones o desconexiones eléctricas en áreas designadas como PROTEGIDAS CONTRA IGNICIÓN. Esto incluye el adaptador para aviones o el enchufe tipo encendedor de cigarrillos de CC. Esta unidad NO está aprobada para áreas protegidas contra ignición.

• NUNCA sumerja la unidad en el agua ni en ningún otro líquido, ni la utilice cuando esté húmeda.

• No introduzca objetos extraños en el tomacorriente de CA.

ADVERTENCIA: PARA REDUCIR EL RIESGO DE INCENDIO:

• No opere cerca de materiales, vapores o gases inflamables.

• NO lo exponga al calor extremo o a las llamas.

PRECAUCIÓN: PARA REDUCIR EL RIESGO DE LESIONES O DAÑO A LA PROPIEDAD:

• Quite el enchufe de la aplicación del enchufe antes de trabajar en la aplicación.

• NO intente conectar o configurar la unidad o sus componentes mientras maneja su vehículo. El hecho de no prestar atención a la carretera puede tener como consecuencia un accidente grave.

• Siempre utilice el conversor en lugares adecuadamente ventilados. No bloquee las ranuras de ventilación.

Calibre mínimo para los juegos de cables

Voltios Longitud total del cable en pies

120V 0-25 26-50 51-100 101-150

(0-7,6m) (7,6-15,2m) (15,2-30,4m) (30,4-45,7m)

240V 0-50 51-100 101-200 201-300

(0-15,2m) (15,2-30,4m) (30,4-60,9m) (60,9-91,4m)

Capacidad nominal en amperios

Más No mas Medida de conductor estadounidense que que 0 - 6 18 16 16 14 6 - 10 18 16 14 12 10 -121616 14 12 12 - 16 14 12 No recomendado

• SIEMPRE apague el conversor desconectándolo de la fuente de CC cuando no esté en uso.

• Asegúrese de que el voltaje nominal de encendido sea CC de 12 voltios, conexión central positivo (+).

• Al utilizar esta unidad en un vehículo, revise el manual del usuario del vehículo para ver el máximo rango de potencia y la salida recomendada. No lo instale en el compartimiento del motor. Instálelo en un área bien ventilada.

• No lo utilice con sistemas eléctricos con positivo a tierra*. La conexión de polaridad inversa hará que un fusible se queme y puede causar un daño permanente al conversor y anulará la garantía.

*La mayoría de los automóviles, vehículos recreativos y camiones modernos posee un negativo a tierra.

• Tenga en cuenta que este conversor no funcionará con aparatos o equipos de alta potencia en vatios que produzcan calor, como secadores de cabello, hornos de microondas y tostadores.

• No abra el conversor: no hay piezas que el usuario pueda reparar en su interior.

• No utilice este conversor con dispositivos médicos. No se ha comprobado su funcionamiento en aplicaciones médicas.

• Mantenga fuera del alcance de los niños. ¡Esto no es un juguete!

• Instale y opere la unidad solamente como se describe en este manual de instrucciones.

• No utilice este inversor en un watercraft. No se califica para los usos marinas.

• Controle el desgaste de la unidad periódicamente. Lleve la unidad a un técnico calificado para reemplazar las piezas desgastadas o defectuosas de inmediato.

• Lea Y Entienda Este Manual De Instrucción Antes De Usar Esta Unidad.

CONSERVE ESTAS INSTRUCCIONES

ADVERTENCIA: PARA REDUCIR EL RIESGO DE LESIONES:

Siga estas instrucciones y las publicadas por el fabricante de la batería y de cualquier equipo que tenga la intención de utilizar con esta unidad. Revise las indicaciones sobre precauciones en estos productos y en el motor.

INTRODUCCIÓN

Gracias por comprar el conversor eléctrico de 800 vatios PI800BB. Este conversor también puede utilizarse para recargar dispositivos de CA de 110/120 voltios que tengan un adaptador de recarga adecuado con un enchufe estadounidense estándar de dos o tres clavijas. Lea este manual de instrucciones detenidamente antes del uso para asegurar un rendimiento óptimo y para evitar dañar el producto.

CARACTERÍSTICAS

La unidad posee dos luces indicadoras LED, una para mostrar las condiciones de entrada y otra para mostrar las condiciones de salida. La luz LED de entrada se encuentra junto al botón de energía y la luz LED de salida se encuentra en la parte superior de la unidad entre los dos tomacorrientes de CA. La luz LED verde indica un funcionamiento normal, la luz LED roja indica una condición de falla (consulte la sección Detección de problemas de este manual) y una luz LED ámbar indica bajo voltaje de entrada proveniente de la fuente de CC. Los tomacorrientes de CA están listos para su uso si la luz LED de salida está verde.

El botón de energía enciende y apaga el conversor. Éste también puede utilizarse para forzar el reinicio de los circuitos del conversor si se oprime para apagarlo (ninguna luz LED encendida) y luego nuevamente encenderlo.

La energía de CA se suministra a través de dos tomacorrientes estadounidenses estándar de tres clavijas. En los tomacorrientes se pueden conectar enchufes de CA de dos o tres clavijas.

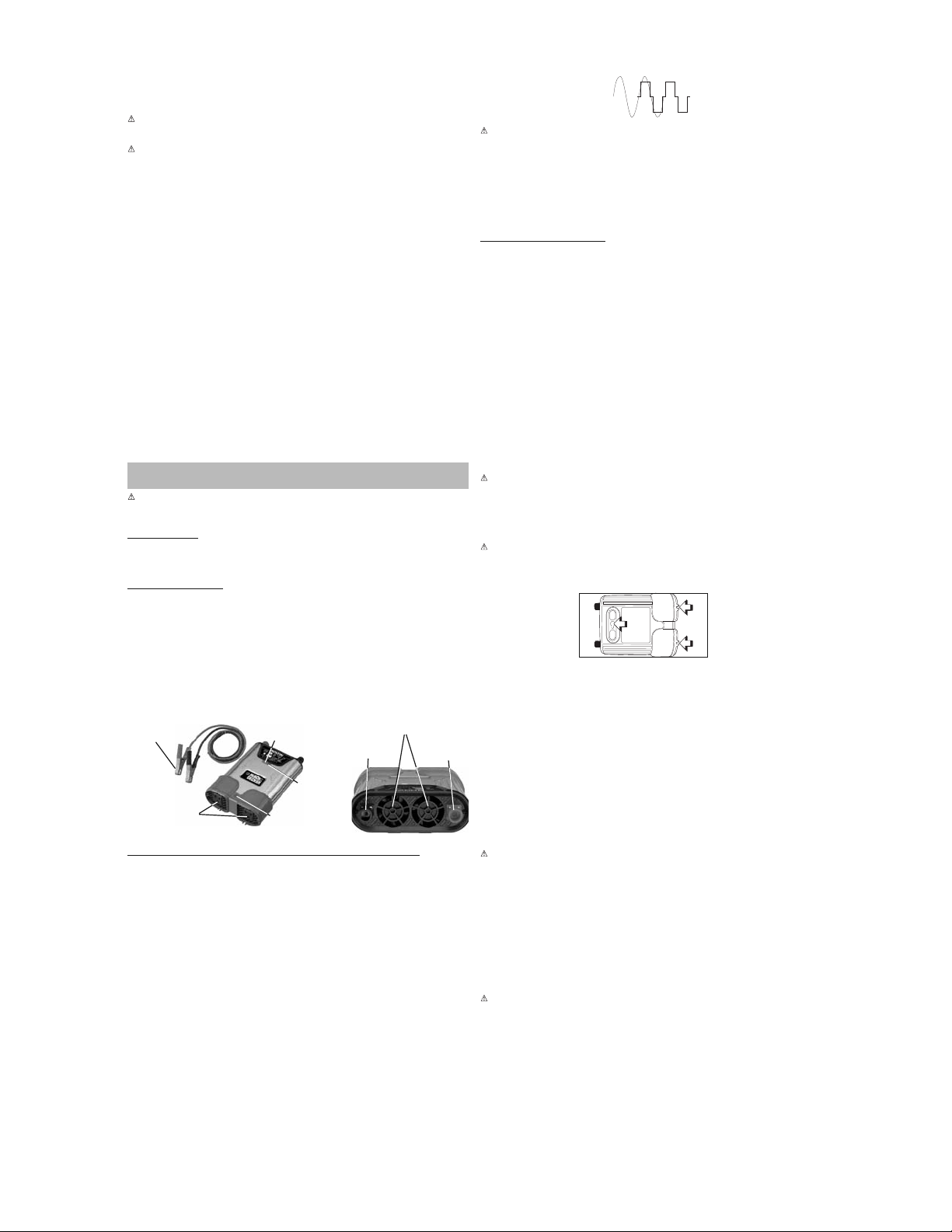

Controles y funciones

FUNCIONAMIENTO DEL CONVERSOR

El conversor es un dispositivo electrónico que convierte electricidad de CC (corriente continua) de bajo voltaje de una batería a energía para uso doméstico de CA (corriente alterna) de 115 voltios. Durante el diseño de este conversor, Black & Decker incorporó técnicas de diseño utilizadas anteriormente en fuentes de energía para computadoras. El resultado de estas innovaciones en el diseño es un conversor eléctrico más pequeño, más liviano y más fácil de utilizar.

La forma de onda de salida del conversor eléctrico

AVISO: LA SALIDA DE ESTE DISPOSITIVO NO ES SINUSOIDAL. TIENE UNA DISTORSIÓN

ARMÓNICA TOTAL DE 35% Y UN ARMÓNICO ÚNICO MÁXIMO DE 28% A 100% DE LA CARGA NOMINAL.

IMPORTANTE: La salida de este conversor no es únicamente sinusoidal. Por lo tanto, su uso no es apto para energizar los dispositivos siguientes:

. Hornos de microondas, y . Cargadores de baterías sin transformador

Su utilización en estos casos, podría hacer los dispositivos funcionar a mayor temperatura o sobrecalentarse.

La forma de onda de la salida de CA de este conversor se conoce como una onda senoidal modificada. Es una forma de onda escalonada que posee características similares a la forma de onda senoidal de la electricidad. Este tipo de forma de onda es adecuado para la mayoría de las cargas de CA, incluidas las fuentes de energía por conmutación y lineales utilizadas en equipos electrónicos, transformadores y motores pequeños.

La onda senoidal modificada producida por este conversor posee un voltaje RMS (raíz cuadrada media) de 115 voltios. La mayoría de los voltímetros de CA (digitales y análogos) son sensibles al valor promedio de la forma de onda en lugar de al valor RMS. Están calibrados para el voltaje RMS suponiendo que la forma de onda medida será una onda senoidal pura. Estos medidores no leerán correctamente el voltaje RMS de una onda senoidal modificada. Un medidor RMS no VERDADERO leerá aproximadamente 20 a 30 voltios mínimo cuando mida la salida de este conversor. Para realizar una medición adecuada del voltaje de salida de esta unidad, utilice un voltímetro de lectura RMS VERDADERO como un Fluke 87, Fluke 8060A, Beckman 4410 o Triplett 4200.

Salida de CA de 115 voltios

PRECAUCIÓN: Dispositivos recargables

• Algunos dispositivos recargables están diseñados para cargarse al ser enchufados directamente en un tomacorriente de CA. Estos dispositivos pueden dañar el conversor o el circuito que se está cargando.

• Al utilizar un dispositivo recargable, supervise la temperatura durante los primeros 10 minutos de uso para determinar si genera calor en exceso.

• Si produce calor en exceso, esto indica que el dispositivo no debe utilizarse con este conversor.

• Este problema no se presenta con la mayoría de los equipos operados con batería. La mayoría de estos dispositivos utiliza un cargador o transformador por separado que está enchufado en un tomacorriente de CA.

• El conversor puede funcionar con la mayoría de los cargadores y transformadores.

INSTRUCCIONES DE OPERACIÓN

El Conversor eléctrico debe estar conectado solamente a baterías con un voltaje de salida nominal de 12 voltios. La unidad no funcionará si se coloca una batería de 6 voltios y ocasionará un daño permanente si se conecta a una batería de 24 voltios.

Siempre conecte el PI800BB a la fuente de energía de CC de 12 voltios antes de enchufar cualquier dispositivo en la unidad.

Los tomacorrientes estadounidenses estándar de CA de 115 voltios permiten el funcionamiento simultáneo de múltiples dispositivos. Simplemente enchufe el equipo en la unidad y hágalo funcionar normalmente. Asegúrese de que la potencia en vatios de todos los equipos enchufados

simultáneamente en el PI800BB no exceda los 800 vatios continuos.

SISTEMA DE ENERGÍA DEL VEHÍCULO

CONVERSOR ELÉCTRICO DE 800 VATIOS

MANUAL DE INSTRUCCIONES

Número de catálogo PI800BB

CONSERVE ESTE MANUAL PARA FUTURAS CONSULTAS.

LEA EL MANUAL ANTES DE DEVOLVER

ESTE PRODUCTO POR CUALQUIER MOTIVO:

Si tiene una consulta o algún inconveniente con su producto Black & Decker, visite

HTTP://WWW.BLACKANDDECKER.COM/INSTANTANSWERS

Si no encuentra la respuesta o no tiene acceso a Internet, llame al 1-800-544-6986 de

lunes a viernes de 8 a.m. a 5 p.m. hora del Este para hablar con un agente.

Cuando llame, tenga a mano el número de catálogo.

para obtener respuestas instantáneas las 24 horas del día.

Gracias por elegir Black & Decker!

Visite www.BlackandDecker.com/NewOwner

para registrar su nuevo producto.

VENTILADORES DE ENFRIAMIENTO

DE ALTA VELOCIDAD

DETRÁS DE LA UNIDAD

CONEXIÓN ELÉC-

TRICA DE

CC DEL NEGATIVO (–)

CONEXIÓN ELÉCTRICA DE CC DEL POSITIVO

TOMACORRIENTE DE

CA DE 115 VOLTIOS

CLIPS DE LA BATERÍA (CON LOS CABLES)

INDICADOR LED

DE LA SALIDA

ENCENDIDO / APAGADO

DEL BOTÓN DE

ENCENDIDO

INDICADOR LED

DE LA

ENTRADA

+ 4 hidden pages
