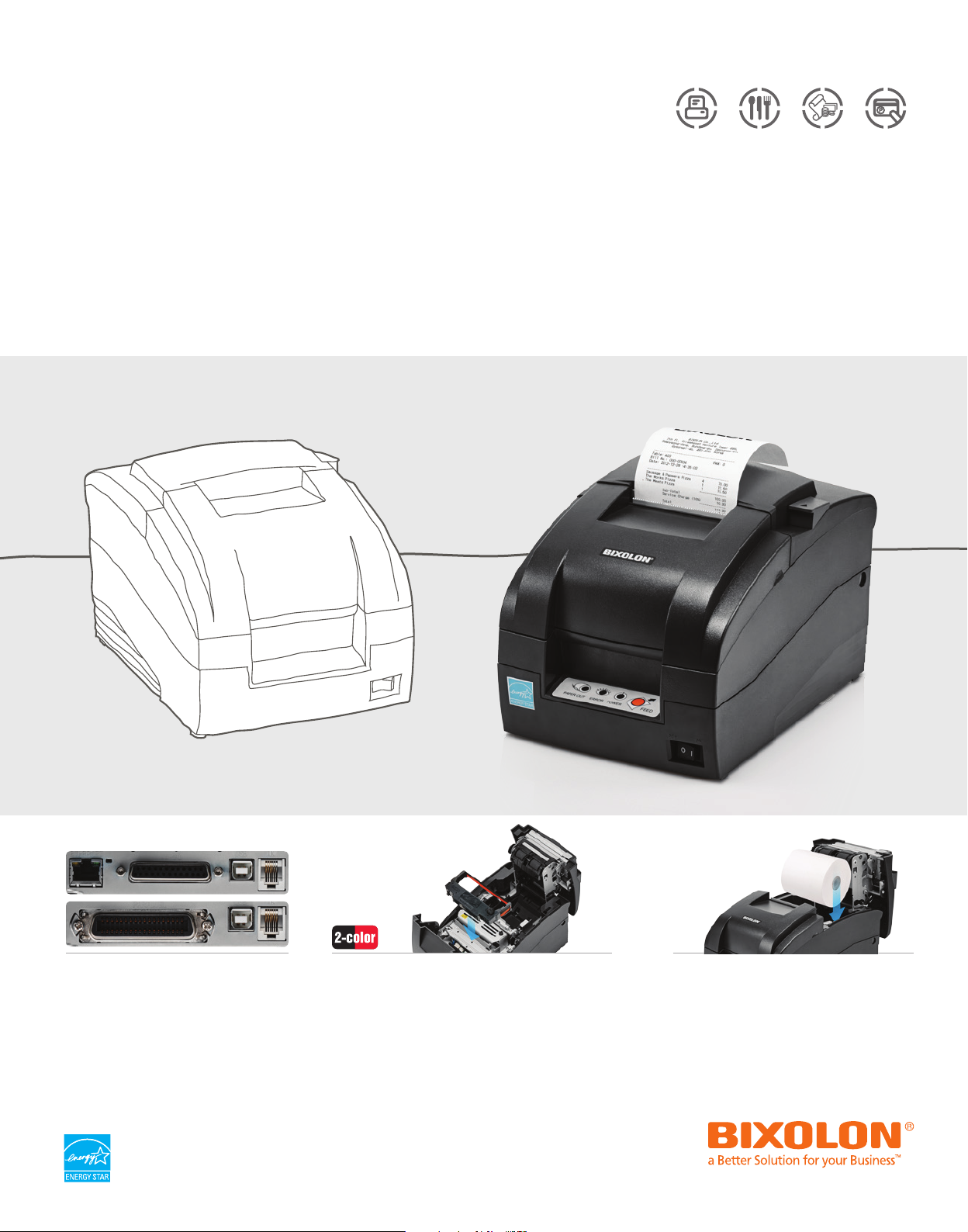

SRP-275III
3 inch Impact Dot POS Printer
Simply Drop-in
English
Hospitality TicketingRetail
Banking
Built-In Interface
- USB V2.0 FS + Serial + Ethernet*
- USB V2.0 FS + Parallel
- USB V2.0 FS + Serial
* DHCP enabled
Powerful Printing Performance
- Fast printing speed up to 5.1 lps (at 40 columns) 8.5%
faster than competitive models
- High reliability mechanism (18 million lines)
- Two-color printing, quality printing of fonts, graphics
User-Friendly Design
- Anti-jam technology
- Internal kitchen buzzer & built - in SMPS
- Simply drop-in paper loading
- Stand-alone and wall-mount options
SRP-275III
3 inch Impact Dot POS Printer
Specifications
Print Characteristics
Print Method
9 Pin
Serial Dot Matrix
Print Speed
5.1 lps (at 40 colums)
Print Resolution
80 dpi (Horizontal)
144 dpi (Vertical)
Print Width
Up to 63.5 mm
Sensor
Paper End, Paper Near End, Wall Mounting Paper
Near End, Rear Cover Open, Black Mark
Media Characteristics
Media Type
Receipt
Media Width
76.5 mm
Media Roll Diameter
Up to 83 mm
Media Thickness
0.06 ~ 0.085 mm
Supply Method
Easy Paper Loading
Physical Characteristics
Dimensions (WxLxD)
160 x 239 x 157 mm
(6.29 x 9.40 x 6.18 inch)
Weight
A: 2.4 kg (5.29 lbs.)
C: 2.5 kg (5.51 lbs.)
Power
EnergyStar Certified,
External Power Adaptor 100-240V AV, 50/60Hz
Drawer Port
2 ports (via y-type adaptor)
Performance Characteristics
Memory
64 Mbit SDRAM, 16 Mbit FlashROM
NV Image Memory
256 Kbytes (mono)
Receive Buer
64 Kbytes
User Dene Buer
64 Kbytes
Interface
Max. Triple Interface
USB V2.0 FS + Serial + Ethernet*
USB V2.0 FS + Parallel
USB V2.0 FS + Serial
* DHCP enabled
Environment Characteristics
Temperature
Operating: 0 ~ 40℃ (32 ~ 104℉)
Storage: -20 ~ 60℃ (-4 ~ 140℉)
Humidity
Operating: 10 ~ 80% RH
Storage: 10 ~ 90% RH
Reliability
Thermal Print Head (TPH)
300 Million Dots/Wire
Auto Cutter
1.5 Million Cuts
Software
Emulation
BXL / POS
Driver / Utility
Windows Driver, OPOS Driver, JPOS Driver,
Linux / Mac CUPS Driver,
Virtual COM USB/Ethernet Driver, Utility Program
SDK
iOS SDK, Android SDK
Fonts / Graphics / Symbologies
Character Size
Font A: 9 x 9 Font B: 7 x 9 KOR: 17 x 9 CHN: 16 x 16
Characters Per Line
Font A: 35 Font B: 40 KOR: 20 CHN: 22
Character Sets
Alphanumeric: 95
Extended Graphics:128 × 27 page
International: 48
Graphics
Supporting user-defined fonts, graphics, formats,
and logos
Accessories
Optional
Wall Mount, Splash Proof Cover, Ribbon Catrridge,
B-Melodist, External Buzzer
BR-SRP-275III-EN-MAY16-V1
Copyright © BIXOLON Co., Ltd. All rights reserved. Features and specifications are subject to change without prior notice.
BIXOLON Co.,Ltd.
+82 (0) 31 218 5500
sales@bixolon.com
www.Bixolon.com www.BixolonUSA.com
BIXOLON America Inc.
+1 858 764 4580
sales@bixolonusa.com
BIXOLON Europe GmbH
+49 211 68 78 54 0
sales@bixolon.de
www.BixolonEU.com
