CHAPTER 1: INTRODUCTION

TA770 A2+ SE

1.1 B

EFORE YOU START

Thank you for choosing our product. Before you start installing the motherboard, please make sure you follow the instructions below:

 Prepare a dry and stable working environment with

sufficient lighting.

 Always disconnect the computer from power outlet

before operation.

 Before you take the motherboard out from anti-static

bag, ground yourself properly by touching any safely grounded appliance, or use grounded wrist strap to remove the static charge.

 Avoid touching the components on motherboard or the

rear side of the board unless necessary. Hold the board on the edge, do not try to bend or flex the board.

 Do not leave any unfastened small parts inside the

case after installation. Loose parts will cause short circuits which may damage the equipment.

 Keep the computer from dangerous area, such as heat

source, humid air and water.

1.2 PACKAGE CHECKLIST

HDD Cable X 1 Serial ATA Cable X 2 Serial ATA Power Cable X 1 Rear I/O Panel for ATX Case X 1 User’s Manual X 1 Fully Setup Driver CD X 1 FDD Cable X 1 (optional) USB 2.0 Cable X1 (optional) S/PDIF out Cable X 1 (optional)

Note: The package contents may differ by area or your motherboard version.

Motherboard Manual

1.3 MOTHERBOARD FEATURES

Socket AM2 / AM2+

CPU

FSB

Chipset

Super I/O

Main

Memory

IDE Integr ated IDE Co ntr o l ler

SATA II AMD SB700

LAN Realtek RTL 8111C

Sound ALC662

Slots

On Board

Connector

AMD Athlon 64 / Athlon 64 FX

/ Sempron / Ph eno m proces sors

Support HyperTransport 3.0

Supports up to 5.2 GT/s Bandwidth

AMD 770

AMD SB700

ITE 8718F

Prov ides the most common ly used legacy

Super I/O functionality.

Low Pin Count Interface

DIMM Slots x 4

Each DIMM supports 512MB/1GB/2GB/4GB

DDR2

Max Memory Capicity 16GB

PCI slot x3 Supports PCI expansion cards

PCI Express Gen2 x16 slot x1 Supports PCI-E Gen2 x16 expansion cards

PCI Express x1 slot x2 Supports PCI-E x1 expansion cards

Floppy connector x1 Each connector supports 2 Floppy drives

Printer Port co nne ctor x1 Each connector s upports 1 Printer port

IDE Connector x1 Each connector s upport s 2 IDE device

SATA Connector x6 Each connector s upports 1 SATA devices

Front Panel Connector x1 Supports front panel facilit ies

Athlon 64 X2

SPEC

AMD 64 Architecture enables 32 and 64 b it

computing

Supports Hyper Transport 3.0 and PowerNow

En viro nm en t Co ntrol in it iatives,

H/W Mon ito r

Fan Sp eed Contro ller

ITE's "S mart Guard ian " funct ion

Dual Channel Mode DDR2 memory mo du le

Supports DDR2 533 / 667 / 800

Supports DDR2 1066 (by AM2+ CPU)

Ultra DMA 33 / 66 / 100 / 133 Bus Master Mode

supports PIO Mode 0~4,

Data transfer rates up to 3 Gb/s.

SATA Vers io n 2 .0 spe c if ic at ion co mp liant.

RAID 0,1,1+0 support

10 / 100 Mb/s / 1Gb/s auto negotiation

Half / Full duplex capability

5.1channels audio out

Supports HD Audio

SPEC

Front Audio Connector x1 Supports front panel audio function

CD-in Connector x1 Supports CD audio-in function

S/PDIF out connector x1 Supports digital audio out function

CPU Fan header x1 CPU Fan power supply (with Smart Fan function)

System Fan h eader x2 System Fan Po wer supply

CMOS clear header x1 Restore CMOS data to factory default

USB connector x3 Each connector supports 2 front panel USB ports

Serial port Connector x1 Connects to RS-232 Port

Power Connector (24pin) x1 Connects to Power supply

Power Connector (4pin) x2 Connects to Power supply

PS/2 Keyboard x1

Back Panel

I/O

Board Size 220 mm (W) x 307 mm (L) ATX

OS Support Windows XP / VISTA

PS/2 Mous e x1

LAN port x1

USB Port x6

Audio Jack x3

Connects to PS/2 Keyboard

Connects to PS/2 Mouse

Connect t o RJ-45 ethe rnet cab le

Connect to USB devices

Provide Audio-In/Out and microphone connection

Biostar Reserves the right to add or remove support

for any OS With or without notice.

TA770 A2+ SE

1.4 REAR PANEL CONNECTORS

PS/2 Mouse

PS/2 Keyboar d

USBX2

LAN

USBX2

Line In/ Surroun d

Line Out

Mic I n 1/ Bass/ Center

Motherboard Manual

1.5 MOTHERBOARD LAYOUT

JATXPW R3

JUSBV1

JKBMS1

JUSB2

JUSB1

JUSBLAN1

JAUDI O1

LAN

JAUDIOF1

JATXPWR1

PE X1_ 1

PEX1_2

JCFAN1

JNFAN1

PEX16_1

BAT1

AMD

770

Socket AM2+

DIMMA1

DIMMB1

DIMMB2

DIMMA2

IDE1

JATXPWR2

BIOS

PWRSW1

AMD

LED_ D1

LED_ D2

SB700

RSTSW1

Codec

JSPDIF_OUT1

JC DI N1

Note: represents the 1■

JPRNT1

PCI1

PCI2

PCI3

JCOM1

pin.

JCMOS1

JUSBV2

JUSB5

Super I/O

JUSB3

JUSB4

SATA1

SATA2

SATA3

JSFAN1

SATA4

SATA5

SATA6

JPANEL1

FDD1

CHAPTER 2: HARDWARE INSTALLATION

TA770 A2+ SE

2.1 I

NSTALLING CENTRAL PROCESSING UNIT (CPU)

Step 1: Remove the socket protection cap.

Step 2: Pull the lever toward direction A from the socket and then raise the

lever up to a 90-degree angle.

Step 3: Look for the white triangle on socket, and the gold triangle on

CPU should point towards this white triangle. The CPU will fit only in the correct orientation.

Motherboard Manual

Step 4: Hold the CPU down firmly, and then close the lever toward direct

B to complete the installation.

Step 5: Put the CPU Fan on the CPU and buckle it. Connect the CPU

FAN power cable to the JCFAN1. This completes the installation.

Note: Please update the BIOS to the latest version while using AM2+ CPUs. Due to the latest CPU

transition, you may encounter the situation that the new system failed to boot while using new AM2+ CPUs. In this case, please install one standard AM2 CPU to boot your system, and update the latest BIOS from our website for AM2+ CPUs support.

TA770 A2+ SE

2.2 FAN HEADERS

These fan headers support cooling-fans built in the computer. The fan cable and connector may be different according to the fan manufacturer. Connect the fan cable to the connector while matching the black wire to pin#1.

JCFAN1: CPU Fan Header

JCFAN1

JNFAN1: NorthBridge Fan Header

JSFAN1: System Fan Header

JNFAN1

Assignment

1 Ground 2 +12V 3

FAN RPM r at e sense

4 Smart Fan

Control (By Fan)

Pin Assignment

1 Ground 2 +12V 3

FAN RPM rate sense

JSFAN1

Note:

The JCFAN1, JNFAN1, and JSFAN1 support 4-pin and 3-pin head connectors. When connecting with wires onto connectors, please note that the red wire is the positive and should be co nnected to pin#2, and the black wire is Ground and should be connected to GND.

Motherboard Manual

2.3 INSTALLING SYSTEM MEMORY

A. DDR2 Modules

DIMMA1

DIMMB1

DIMMA2

DIMMB2

1. Unlock a DIMM slot by pressing the retaining clips outward. Align a DIMM on the slot such that the notch on the DIMM matches the break on the Slot.

2. Insert the DIMM vertically and firmly into the slot until the retaining chip snap back in place and the DIMM is properly seated.

TA770 A2+ SE

B. Memory Capacity

DIMM Socket

Location

DIMMA1 512MB/1GB/2GB/4GB

DIMMB1 512MB/1GB/2GB/4GB

DIMMA2 512MB/1GB/2GB/4GB

DIMMB2 512MB/1GB/2GB/4GB

DDR2 Module

Total Memory Size

Max is 16GB.

C. Dual Channel Memory installation

To trigger the Dual Channel function of the motherboard, the memory module must meet the following requirements:

Install memory module of the same density in pairs, shown in the following table.

Dual Channel Status

Enabled O O X X

Enabled X X O O

Enabled O O O O

(O means memory installed, X means memory not installed.)

The DRAM bus width of the memory module must be the same (x8 or x16)

DIMMA1

DIMMB1 DIMMA2 DIMMB2

Motherboard Manual

2.4 CONNECTORS AND SLOTS

FDD1: Floppy Disk Connector

The motherboard provides a standard floppy disk connector that supports 360K, 720K, 1.2M, 1.44M and 2.88M floppy disk types. This connector supports the provided floppy drive ribbon cables.

IDE1: Hard Disk Connector

The motherboard has a 32-bit Enhanced IDE Controller that provides PIO Mode 0~4, Bus Master, and Ultra DMA 33/66/100/133 functionality.

The IDE connector can connect a master and a slave drive, so you can connect up to two hard disk drives.

TA770 A2+ SE

PEX16_1: PCI-Express Gen2 x16 Slot

- PCI-Express 2.0 compliant.

- Maximum theoretical realized bandwidth of 8GB/s simultaneously per

direction, for an aggregate of 16GB/s totally.

- PCI-Express Gen2 supports a raw bit-rate of 5.0Gb/s on the data pins.

- 2X bandwidth over the PCI-Express 1.1 architecture.

PEX1_1/PEX1_2: PCI-Express x1 Slots

- PCI-Express 1.1 compliant.

- Data transfer bandwidth up to 250MB/s per direction; 500MB/s in total.

- PCI-Express supports a raw bit-rate of 2.5Gb/s on the data pins.

- 2X bandwidth over the PCI architecture.

PE X1_1

PE X16_1

PE X1_2

PCI1~PCI3: Peripheral Component Interconnect Slots

This motherboard is equipped with 3 standard PCI slots. PCI stands for Peripheral Component Interconnect, and it is a bus standard for expansion cards. This PCI slot is designated as 32 bits.

PCI1

PCI2

PCI3

Motherboard Manual

CHAPTER 3: HEADERS & JUMPERS SETUP

3.1 H

OW TO SETUP JUMPERS

The illustration shows how to set up jumpers. When the jumper cap is placed on pins, the jumper is “close”, if not, that means the jumper is “open”.

Pin opened Pin closed Pin1-2 closed

3.2 DETAIL SETTINGS

JPANEL1: Front Panel Header

This 16-pin connector includes Power-on, Reset, HDD LED, Power LED, and speaker connection. It allows user to connect the PC case’s front panel switch functions.

916 1

Pin Assignment Function Pin Assignment Function

1 +5V 9 N/A 2 N/A 10 N/A 3 N/ A 11 N/A N/A 4 Speaker 5 HDD LED (+) 13 Power LED (+) 6 HDD LED (-) 7 Ground 15 Power button 8 Reset control

Speaker Connector

Hard drive LED

Reset button

12 Power LED (+)

14 Power LED (-)

16 Ground

N/A

Power LED

Power-on button

TA770 A2+ SE

JATXPWR2: ATX Power Source Connector

This connector allows user to connect 24-pin power connector on the ATX power supply.

Pin Assignment Pin Assignment

13 +3.3V 1 +3.3V 14 -12V 2 +3.3V 15 Ground 3 Ground 16 PS_ON 4 +5V 17 Ground 5 Ground 18 Ground 6 +5V 19 Ground 7 Ground 20 NC 8 PW_OK 21 +5V 9 Standby Voltage+5V 22 +5V 10 +12V 23 +5V 11 +12V 24 Ground 12 +3.3V

JATXPWR3: ATX Power Source Connector

By connecting this connector, it will provide +12V to CPU power circuit.

Pin Assignment

1 +12V 2 +12V 3 Ground 4 Ground

Note:

Before power on the system, please make sure that both JATXPWR2 and JATXPWR3 connectors have been plugged-in.

Motherboard Manual

JATXPWR1: Auxiliary Power for Graphics

This connector is an auxiliary power connection for graphics cards. Exclusive power for the graphics card provides better graphics performance.

JCMOS1: Clear CMOS Header

By placing the jumper on pin2-3, it allows user to restore the BIOS safe setting and the CMOS data, please carefully follow the procedures to avoid damaging the motherboard.

1 +12V 2 Ground 3 Ground 4 VCC

Pin 1-2 Close:

Normal Operation (default).

Assignment

Pin 2-3 Close:

Clear CMOS data.

※ Clear CMOS Procedures:

1. Remove AC power line.

2. Set the jumper to “Pin 2-3 close”.

3. Wait for five seconds.

4. Set the jumper to “Pin 1-2 close”.

5. Power on the AC.

6. Reset your desired password or clear the CMOS data.

TA770 A2+ SE

SATA1~SATA6: Serial ATA Connectors

The motherboard has a PCI to SATA Controller with 6 channels SATA interface, it satisfies the SATA 2.0 spec and with transfer rate of 3.0Gb/s.

Assignment

1 Ground 2 TX+

SATA1 SATA4 SATA2 SATA5 SATA3 SATA6

3 TX4 Ground 5 RX6 RX+ 7 Ground

JUSB3~JUSB5: Headers for USB 2.0 Ports at Front Panel

This header allows user to connect additional USB cable on the PC front panel, and also can be connected with internal USB devices, like USB card reader.

Assignment

1 +5V (fused) 2 +5V (fused) 3 USB4 USB5 USB+

JUSB5

JUSB3

JUSB4

6 USB+ 7 Ground 8 Ground 9 Key

10 NC

Motherboard Manual

JAUDIOF1: Front Panel Audio Header

This header allows user to connect the front audio output cable with the PC front panel. This header allows only HD audio front panel connector; AC’97 connector is not acceptable.

JSPDIF_OUT1: Digital Audio-out Connector

This connector allows user to connect the PCI bracket SPDIF output header.

Pin Assignment

1 Mic Left in 2 Ground

910

3 Mic Right in 4 GPIO 5 Right line in 6 Jack Sense 7 Front Sense 8 Key 9 Left line in

10 Jack Sense

Assignment

1 +5V 2 SPDIF_OUT 3 Ground

JCDIN1: CD-ROM Audio-in Connector

This connector allows user to connect the audio source from the variaty devices, like CD-ROM, DVD-ROM, PCI sound card, PCI TV turner card etc.

Assignment

1 Left Channel Input 2 Ground 3 Ground 4 Right Channel Input

JPRNT1: Printer Port Connector

This header allows you to connector printer on the PC.

TA770 A2+ SE

Pin Assignment Pin Assignment

1 -Strobe 14 Ground

2 -ALF 15 Data 6

3 Data 0 16 Ground

4 -Error 17 Data 7

5 Data 1 18 Ground

6 -Init 19 -ACK

7 Data 2 20 Ground

8 -Scltin 21 Busy

9 Data 3 22 Ground

10 Ground 23 PE

11 Data 4 24 Ground

12 Ground 25 SCLT

13 Data 5 26 Key

JCOM1: Serial port Connector

The motherboard has a Serial Port Connector for connecting RS-232 Port.

Pin Assignment

1 Carrier detect 2 Received data 3 Transmitted data 4 Data terminal ready 5 Signal ground 6 Data set ready 7 Request to send 8 Clear to send 9 Ring indicator

10 NC

Motherboard Manual

On-Board LED Indicators

There are 2 LED indicators on the motherboard to show system status.

LED_D1 and LED_D2:

These 2 LED indicate system power on diagnostics. Please refer to the table below for different messages:

LED_D2 LED_D1 Message

OFF OFF Abnormal: CPU / Chipset error. OFF ON Memory Error

ON OFF VGA Error ON ON Norma l

LED_D2

LED_D1

On-Board Buttons

There are 2 on-board buttons.

PWRSW1:

This is an on-board Power Switch button.

RSTSW1:

This is an on-board Reset button.

PWRSW1

RSTSW1

JUSBV1/JUSBV2: Power Source Headers for USB Ports

Pin 1-2 Close:

JUSBV1: +5V for USB ports at JUSB1/JUSB2/JUSBLAN1. JUSBV2: +5V for USB ports at JUSB3/JUSB4/JUSB5.

Pin 2-3 Close:

JUSBV1: +5V STB for USB ports at JUSB1/JUSB2/JUSBLAN1. JUSBV2: +5V STB for USB ports at JUSB3/JUSB4/JUSB5.

JUSBV1

JUSBV2

TA770 A2+ SE

Pin 1-2 close

Pin 2-3 close

Motherboard Manual

CHAPTER 4: RAID FUNCTIONS

4.1 O

Supports Windows XP Home/Professional Edition and Windows VISTA.

PERATION SYSTEM

4.2 RAID ARRAYS

RAID supports the following types of RAID arrays:

RAID 0: RAID 0 defines a disk striping scheme that improves disk read and write times for

many applications.

RAID 1: RAID 1 defines techniques for mirroring data.

RAID 1+0: RAID 1+0 combines the techniques used in R AID 0 and RAID 1.

4.3 HOW RAID WORKS

RAID 0:

The controller “stripes” data across multiple drives in a RAID 0 array system. It breaks up a lar ge file into s ma ller block s a nd perform s d isk reads a nd w rites acros s multip le drives in parallel. The size of each block is determined by the stripe size parameter, which you set during the creation of the RAID set based on the system environment. This technique reduces overall disk access time and offers high bandwidth.

Features and Benefits

 Drives: Minimum 2, and maximum is up to 6 or 8. Depending on the

platform.

 Uses: Intended for non-critical data requiring high data throughput, or any

environment that does not require fault tolerance.

 Benefits: provides increased data throughput, especially for large files. No

capacity loss penalty for parity.

 Drawbacks: Does not deliver any fault tolerance. If any drive in the array

fails, all data is lost.

 Fault Tolerance: No.

Block 1 Blo ck 3 Blo ck 5

Block 2 Blo ck 4 Blo ck 6

TA770 A2+ SE

RAID 1:

Every read and write is actually carried out in parallel across 2 disk drives in a RAID 1 array system. The mirrored (backup) copy of the data can reside on the same disk or on a second redundant drive in the array. RAID 1 provides a hot-standby copy of data if the active volume or drive is corrupted or becomes unavailable because of a hardware failure.

RAID techniques can be applied for high-availability solutions, or as a form of automatic backup that eliminates tedious manual backups to more expensive and less reliab le media.

Features and Benefits

 Drives: Minimum 2, and maximum is 2.  Uses: RAID 1 is ideal for small databases or any other application that

requires fault tolerance and minimal capacity.

 Benefits: Provides 100% data redundancy. Should one drive fail, the

controller switches to the other drive.

 Drawbacks: Requires 2 drives for the storage space of one drive.

Performance is impaired during drive rebuilds.

 Fault Tolerance: Yes.

Block 1 Block 2 Block 3

Motherboard Manual

RAID 1+0:

RAID 1 drives can be stripped using RAID 0 techniques. Resulting in a RAID 1+0 solution for improved resiliency, performance and rebuild performance.

Features and Benefits

 Drives: Minimum 4, and maximum is 6 or 8, depending on the platform.  Benefits: Optimizes for both fault tolerance and performance, allowing for

automatic redundancy. May be simultaneously used with other RAID levels in an array, and allows for spare disks.

 Drawbacks: Requires twice the available disk space for data redundancy,

the same as RAID level 1.

 Fault Tolerance: Yes.

Block 1 Block 3 Block 5

Block 2 Block 4 Block 6

TA770 A2+ SE

CHAPTER 5: T-SERIES BIOS & SOFTWARE

5.1 T-S

ERIES BIOS

T-Series BIOS Features

Overclocking Navigator Engine (O.N.E.)

Memory Integration Test (M.I.T., under Overclock Navigator Engine)

BIO-Flasher: Update BIOS file from USB Flash Drive or FDD

Self Recovery System (S.R.S)

Smart Fan Function

CMOS Reloading Program

!! WARNING !!

For better system performance, the BIOS firmware is being continuously updated. The BIOS information described below in this manual is for your reference only and the actual BIOS information and settings on board may be different from this manual. For further information of setting up the BIOS, please refer to the BIOS Manual in the Setup CD.

A. Overclocking Navigator Engine (O.N.E.)

ONE provides two powerful overclocking engines: MOS and AOS for both Elite and Casual overclockers.

Main Advanced

T-Series Settings

WARNING: Setting wrong values in below sections may cause system to malfunction.

OverClock Navigator [Normal]

=========== Automate OverClock System ===========

Auto OverClock System [V6-Tech Engine]

============ Manual OverClock System ============

CPU Over Voltage [StartUp] Memory Over Voltage [1.95V] Chipset Over Voltage [1.15V] HT Over Voltage [1.20V] CPU Frequency [200] > CPU FID/VID Control > DRAM Timing Configuration > Hyper Transport Configuration > Memory Configuration

Integrated Memory Test [Disabled]

PCIPnP Boot

BIOS SETUP UTILITY

Chipset T-Series

Exit

Options

Normal Automate OverClock Manual OverClock

Select Screen Select Item Change Option

General Help

Save and Exit

F10

Exit

ESC

Motherboard Manual

Manual Overclock System (M.O.S.)

MOS is designed for experienced overclock users. It allows users to customize personal overclock settings.

Main Advan ced P CIPnP Boot Chipset T-Ser ies

T-Ser ies Settings

WARNI NG: Set ting wrong va lues in be low sec tions may cause system to malfun ction.

OverC lock Na vigator [Norma l]

===== ====== Automa te OverClock System ==== =======

Auto OverClo ck System [V6-Te ch Engi ne]

===== ======= Manual OverC lock Syste m ===== =======

CPU O ver Vol tage [Start Up] Memor y Over Voltage [1.95V ] Chips et Over Voltage [1.15V ] HT Ov er Volt age [1.20V ] CPU F requenc y [200] > CPU FID/VI D Control > DRA M Timin g Configurati on > Hyp er Tran sport Configu ration > Mem ory Con figuration

Integ rated M emory Test [Disab led]

Main Advan ced PCIPnP Boot Chipset T-Ser ies

T-Ser ies Settings

WARNI NG: Set ting wrong va lues in be low sec tions may cause system to malfun ction.

OverC lock Na vigator [Manua l OverC lock]

===== ====== Automa te OverClock System ==== =======

Auto OverClo ck System [V6-Te ch Engi ne]

===== ======= Manual OverC lock Syste m ===== =======

CPU O ver Vol tage [Start Up] Memor y Over Voltage [1.95V ] Chips et Over Voltage [1.15V ] HT Ov er Volt age [1.20V ] CPU F requenc y [200] > CPU FID/VI D Control > DRA M Timin g Configurati on > Hyp er Tran sport Configu ration > Mem ory Con figuration Integ rated M emory Test [Disab led]

CPU Overvoltage

This function will increase CPU stability when overclocking. However, the CPU temperature will increase when CPU voltage is increased.

Memory Overvoltage

This function will increase memory stability when overclocking.

Chipset Overvoltage

This function will increase Northbridge and Southbridge chipset stability when overclocking.

HT Overvoltage

This function will increase CPU stability when overclocking the HT ratio.

BIOS SE TUP UTILI TY

Op tions Normal Automat e OverClo ck

Manual OverC lock

vxx.xx (C )Copyri ght 1985-200x , America n Megatr ends, Inc .

Exit

Op tions

Normal Automate Ove rClock Manual Ov erClock

Select Sc reen Select It em Change Op tion

General H elp

Save and Exit

F10

Exit

ESC

↓

BIOS SE TUP UTILI TY

vxx.xx (C )Copyri ght 1985-200x , America n Megatr ends, Inc .

Exit

Op tions

Normal Automate Ove rClock Manual Ov erClock

Select Sc reen Select It em

Change Op tion

General H elp

F10

Save and Exit

ESC

Exit

TA770 A2+ SE

CPU Frequency

CPU Frequency is directly in proportion to system performance. To maintain the system stability, CPU voltage needs to be increased also when raising CPU frequency.

CPU FID/VID Cont rol

Enter this function for more advanced CPU settings.

DRAM Timing Co nfiguration

Enter this function for more advanced DRAM clock settings.

Hyper Transport Co nfiguration

Enter this function for more advanced Hyper Transport settings.

Memory Co nfiguration

Enter this function for more advanced memory settings.

NOTE

Overclock is an optional process, but not a “must-do” process; it is not recommended for inexperienced users. Therefore, we will not be responsible for any hardware damage which may be caused by overclocking. We also would not guarantee any overclocking performance.

Automatic Overclock System (A.O.S.)

For beginners in overclock field, BET had developed an easy, fast, and powerful feature to increase the system performance, named A.O.S.

Based on many tests and experiments, A.O.S. provides 3 ideal overclock configurations that are able to raise the system performance in a single step.

Main Advan ced PCIPnP Boot Chipset T-Ser ies

T-Ser ies Settings

WARNI NG: Set ting wrong va lues in be low sec tions may cause system to malfun ction.

OverC lock Na vigator [Norma l]

===== ====== Automa te OverClock System ==== =======

Auto OverClo ck System [V6-Te ch Engi ne]

===== ======= Manual OverC lock Syste m ===== =======

CPU O ver Vol tage [Start Up] Memor y Over Voltage [1.95V ] Chips et Over Voltage [1.15V ] HT Ov er Volt age [1.20V ] CPU F requenc y [200] > CPU FID/VI D Control > DRA M Timin g Configurati on > Hyp er Tran sport Configu ration > Mem ory Con figuration

Integ rated M emory Test [Disab led]

vxx.xx (C )Copyri ght 1985-200x , America n Megatr ends, Inc .

BIOS SE TUP UTILI TY

Op tions Normal

Automat e OverClo ck

Manual OverC lock

Op tions

Normal Automate Ove rClock Manual Ov erClock

+F1 F10 ESC

Exit

Select Sc reen Select It em Change Op tion General H elp Save and Exit Exit

Motherboard Manual

V6 Tech Engine

This engine will make a good over-clock performance.

Main Advan ced PCIPnP Boot Chipset T-Ser ies

T-Ser ies Settings

WARNI NG: Set ting wrong va lues in be low sec tions may cause system to malfun ction.

OverC lock Na vigator [Autom ate Ove rClock]

===== ====== Automa te OverClock System ==== =======

Auto OverClo ck System [V6-Te ch Engi ne]

===== ======= Manual OverC lock Syste m ===== =======

CPU O ver Vol tage [Start Up] Memor y Over Voltage [1.95V ] Chips et Over Voltage [1.15V ] HT Ov er Volt age [1.20V ] CPU F requenc y [200] > CPU FID/VI D Control > DRA M Timin g Configurati on > Hyp er Tran sport Configu ration > Mem ory Con figuration

Integ rated M emory Test [Disab led]

V8 Tech Engine

This engine will make a better over-clock performance.

Main Advan ced PCIPnP Boot Chipset T-Ser ies

T-Ser ies Settings

WARNI NG: Set ting wrong va lues in be low sec tions may cause system to malfun ction.

OverC lock Na vigator [Autom ate Ove rClock]

===== ====== Automa te OverClock System ==== =======

Auto OverClo ck System [V8-Te ch Engi ne]

===== ======= Manual OverC lock Syste m ===== =======

CPU O ver Vol tage [Start Up] Memor y Over Voltage [1.95V ] Chips et Over Voltage [1.15V ] HT Ov er Volt age [1.20V ] CPU F requenc y [200] > CPU FID/VI D Control > DRA M Timin g Configurati on > Hyp er Tran sport Configu ration > Mem ory Con figuration

Integ rated M emory Test [Disab led]

V12 Tech Engine

This engine will make a best over-clock performance.

Main Advan ced PCIPnP Boot Chipset T-Ser ies

T-Ser ies Settings

WARNI NG: Set ting wrong va lues in be low sec tions may cause system to malfun ction.

OverC lock Na vigator [Autom ate Ove rClock]

===== ====== Automa te OverClock System ==== =======

Auto OverClo ck System [V12-T ech Eng ine]

===== ======= Manual OverC lock Syste m ===== =======

CPU O ver Vol tage [Start Up] Memor y Over Voltage [1.95V ] Chips et Over Voltage [1.15V ] HT Ov er Volt age [1.20V ] CPU F requenc y [200] > CPU FID/VI D Control > DRA M Timin g Configurati on > Hyp er Tran sport Configu ration > Mem ory Con figuration

Integ rated M emory Test [Disab led]

BIOS SE TUP UTILI TY

vxx.xx (C )Copyri ght 1985-200x , America n Megatr ends, Inc .

BIOS SE TUP UTILI TY

vxx.xx (C )Copyri ght 1985-200x , America n Megatr ends, Inc .

BIOS SE TUP UTILI TY

vxx.xx (C )Copyri ght 1985-200x , America n Megatr ends, Inc .

Exit

Op tions

V6-Tech E ngine V8-Tech E ngine V12-Tech Eng ine

Select Sc reen Select It em

Change Op tion

General H elp

F10

Save and Exit

ESC

Exit

Op tions

V6-Tech E ngine V8-Tech E ngine V12-Tech Eng ine

Select Sc reen Select It em

Change Op tion

General H elp

F10

Save and Exit

ESC

Exit

Op tions

V6-Tech E ngine V8-Tech E ngine V12-Tech Eng ine

Select Sc reen Select It em

Change Op tion

General H elp

F10

Save and Exit

ESC

Exit

TA770 A2+ SE

Notices:

1. Not all types of AMD CPU perform above overclock setting ideally; the difference will be based on the selected CPU model.

B. Memory Integration Test (M.I.T.)

This function is under “Overclocking Navigator Engine” item. MIT allows users to test memory compatibilities, and no extra devices or

software are needed.

Step 1

The default setting under this item is “Disabled”; the condition parameter should be changed to “Enable” to proceed this test.

Main Advan ced PCIPnP Boot Chipset T-Ser ies

T-Ser ies Settings

WARNI NG: Set ting wrong va lues in be low sec tions may cause system to malfun ction.

OverC lock Na vigator [Norma l]

===== ====== Automa te OverClock System ==== =======

Auto OverClo ck System [V6-Te ch Engi ne]

===== ======= Manual OverC lock Syste m ===== =======

CPU O ver Vol tage [Start Up] Memor y Over Voltage [1.95V ] Chips et Over Voltage [1.15V ] HT Ov er Volt age [1.20V ] CPU F requenc y [200] > CPU FID/VI D Control > DRA M Timin g Configurati on > Hyp er Tran sport Configu ration > Mem ory Con figuration

Integ rated M emory Test [Disab led]

vxx.xx (C )Copyri ght 1985-200x , America n Megatr ends, Inc .

Main Advan ced PCIPnP Boot Chipset T-Ser ies

T-Ser ies Settings

WARNI NG: Set ting wrong va lues in be low sec tions may cause system to malfun ction.

OverC lock Na vigator [Norma l]

===== ====== Automa te OverClock System ==== =======

Auto OverClo ck System [V6-Te ch Engi ne]

===== ======= Manual OverC lock Syste m ===== =======

CPU O ver Vol tage [Start Up] Memor y Over Voltage [1.95V ] Chips et Over Voltage [1.15V ] HT Ov er Volt age [1.20V ] CPU F requenc y [200] > CPU FID/VI D Control > DRA M Timin g Configurati on > Hyp er Tran sport Configu ration > Mem ory Con figuration

Integ rated M emory Test [Enabl ed]

vxx.xx (C )Copyri ght 1985-200x , America n Megatr ends, Inc .

Step 2

Save and Exit from CMOS setup and reboot the system to activate this test. Run this test for 5 minutes (minimum) to ensure the memory stability.

Step 3

When the process is done, change the setting back from “Enable” to “Disable” to complete the test.

BIOS SE TUP UTILI TY

↓

BIOS SE TUP UTILI TY

Exit

Op tions

Enabled Disabled

Select Sc reen Select It em

Change Op tion

General H elp

F10

Save and Exit

ESC

Exit

Op tions

Enabled Disabled

Select Sc reen Select It em

Change Op tion

General H elp

F10

Save and Exit

ESC

Exit

Motherboard Manual

C. BIO-Flasher

BIO-Flasher is a BIOS flashing utility providing you an easy and simple way to update your BIOS via USB pen drive or floppy disk.

The BIO-Flasher is built in the BIOS chip. To enter the utility, press <F12> during the Power-On Self Tests (POST) procedure while booting up.

Updating BIOS with BIO-Flasher

1. Go to the website to download the latest BIOS file for the motherboard.

2. Then, save the BIOS file into a USB pen drive or a floppy disk.

3. Insert the USB pen drive or the floppy disk that contains the BIOS file to the USB port or the floppy disk drive.

4. Power on or reset the computer and then press <F12> during the POST process. A select dialog as the picture on the right appears. Select the device contains the BIOS file and press <Enter> to enter the utility.

5. The utility will show the BIOS files and their respective information. Select the proper BIOS file and press <Enter> then <Y> to perform the BIOS update process.

6. After the update process, the utility will ask you to reboot the system. Press <Y> to proceed. BIOS update completes.

z This utility only allows storage device with FAT32/16 format and single

parti tion.

z Shutting down or resetting the system while updating the B IOS will lead to

system boot failure.

TA770 A2+ SE

D. Self Recovery System (S.R.S.)

This function can’t be seen under BIOS setup; and is always on whenever the system starts up.

However, it can prevent system hang-up due to inappropriate overclock actions.

When the system hangs up, S.R.S. will automatically log in the default BIOS setting, and all overclock settings will be re-configured.

E. Smart Fan Function

Smart Fan Function is under “Smart Fan Configuration” in “Advanced Menu”. This is a brilliant feature to control CPU/System Temperature vs. Fan speed. When enabling Smart Fan function, Fan speed is controlled automatically by CPU/System temperature. This function will protect CPU/System from overheat problem and maintain the system temperature at a safe level.

Main Advanced

Advanced Settings

WARNING: Setting wrong values in below sections may cause system to malfunction.

> CPU Configuration > SuperIO Configuration

> Smart Fan Configuration

> Hardware Health Configuration > Power Configuration > USB Configuration

PCIPnP Boot

BIOS SETUP UTILITY

Chipset T-Series

Exit

Select Screen Select Item Go to Sub Screen

Enter

General Help

Save and Exit

F10

Exit

ESC

↓

Advanced

Smart Fan Configuration

CPU Smart Fan [Disabled]

Smart Fan Calibration Control Mode Fan Ctrl OFF( C)

Fan Ctrl On( C) Fan Ctrl Start value Fan Ctrl Sensitive

BIOS SETUP UTILITY

When you choice [Auto] ,[3Pin] or [4Pin], please run the calibration to define the Fan parameters for Smart Fan control

Select Screen Select Item Change Option

General Help

Save and Exit

F10

Exit

ESC

Motherboard Manual

Smart Fan Calibration

Choose this item and then the BIOS will automatically test and detect the CPU/System fan functions and show CPU/System fan speed.

Control Mode

This item provides several operation modes of the fan.

Fan Ctrl OFF(℃)

If the CPU/System temperature is lower than the set value, the CPU/ System fan will turn off. The range is from 0~127, with an interval of 1.

Fan Ctrl On(℃)

The CPU/System fan starts to work when CPU/System temperature arrives to this set value. The range is from 0~127, with an interval of 1.

Fan Ctrl Start Value

When CPU/System temperature arrives to the set value, the CPU/System fan will work under Smart Fan Function mode. The range is from 0~127, with an interval of 1.

Fan Ctrl Sensitive

Increasing the value of slope PWM will raise the speed of CPU/System fan. The range is from 1~127, with an interval of 1.

F. CMOS Reloading Program

It allows users to save different CMOS settings into BIOS-ROM. Users are able to reload any saved CMOS setting for customizing system configurations. Moreover, users are able to save an ideal overclock setting during overclock operation. There are 10 sets of record addresses in total, and users are able to name the

CMOS data according to personal preference.

Main Advanced

Exit Options

Save Changes and Exit Discard Changes and Exit Discard Changes

Load Optimal Defaults

ReloadCMOS Settings

CMOS Backup Function

Security Settings

> Security

PCIPnP Boot

BIOS SETUP UTILITY

CMOS Backup Func

CMOS Data Reload

CMOS Data

Chipset T-Series

Save

Exit

Select Screen Select Item Go to Sub Screen

Enter

General Help

Save and Exit

F10

Exit

ESC

TA770 A2+ SE

5.2 T-SERIES SOFTWARE

Installing T-Series Software

1. Insert the Setup CD to the optical drive. The drivers installation program would appear if the Auto-run function has been enabled.

2. Select Software Installatio n, and then click on the respective software title.

3. Follow the on-screen instructions to complete the installation.

Launching T-Series Software

After the installation process, you will see the software icon “T-Utility OverClock III” / “HW Monitor” / “eHOT Line” / “Tseries BIOS Update” appears on the desktop. Double-click the icon to launch T-Series utility.

OverClock 3

OverClock 3 is equipped with friendly interface and solid over-clock features, and it will help you easily do over-clocking under windows environment.

Double-click the desktop ico n, OverClock 3 will be launched; the first window you will see is Main Panel. In this panel you will see current CPU Speed and

CPU/Memory/PCI-E/PCI Clock.

Open

Over Clock

Panel

Ope n a s aved se tt i ng / Save current settings

Open

Ab ou t Pane

Open

Open Over Voltage

Over Voltage Panel

Panel

ON/OFF

Motherboard Manual

Over Clock Panel

Restore Default Settings

AUTO Over-Clock

Manual Adjust CPU Clock

Test & Apply Manual Settings

V3/V6/V9 Eng i ne Real-time Over-clock

AUTO

User can click t his button and the utility will set the best and stable performance and frequency automatically. A warning dialog as below will show up to notify you that the system may become unstable, click on “OK” to continue.

TA770 A2+ SE

Then the utility will execute a series of testing until system fail. Then system will do fail-safe reboot by using Watchdog function. After reboot, launch the utility again and the utility will load the previously verified best and stable frequency.

V3 / V6 / V9

Provide user the ability to do real-time over-clock adjustment. For beginners in over-clock field, this is a powerful feature to increase system performance.

 V3 Engine

This engine will make a good over-clock performance.

 V6 Engine

This engine will make a better over-clock performance.

 V9 Engine

This engine will make a best over-clock performance.

TEST

You can also manually adjust CPU clock by pressing +/- button or moving the level bar. After manually adjust the CPU clock, you should click

TEST button and the utility will proceed a testing for current frequency. If the testing is ok, then the curre nt frequency will be saved into system registry. If the testing fails, system will do a fail-safe rebooting. After reboot, the utility will restore to the hardware default setting.

Warning

Manually over-clock is potentially dangerous, especially when the over-clocking percentage is over 110 %. We strongly recommend you test every speed you over-clock by click the TEST button. Or, you can just click AUTO over-clock button and let the Utility automatically get the best result for you.

RESET

Click t his button and the utility will restore all values to the hardware default setting.

Motherboard Manual

Over Voltage Panel

Manual Adjust CPU/Memory/Chipset/FSB Voltage

CPU Voltage

This function allows user to adjust CPU voltage. Click on “+” to increase or “-“ to decrease the CPU voltage.

Memory Voltage

This function allows user to adjust Memory voltage. Click on “+” to increase or “-“ to decrease the Memory voltage.

Chip Voltage

This function allows user to adjust Chipset voltage. Click on “+” to increase or “-“ to decrease the Chipset voltage.

FSB Voltage

This function allows user to adjust FSB voltage. Click on “+” to increase or “-“ to decrease the FSB voltage.

TA770 A2+ SE

About Panel

In this panel, you can get model name and other system information that may related to over-clocking. You can also get the version number of this software.

Note

Because the Over Clock and Over Voltage features are controlled by several separate chipset, the utility divides these features to separate panels. If one chipset is not on board, the correlative button in Main panel will be disabled, but it will not interfere with other panels’ functions. This property can make the utility more robust.

Hardware Monitor

HW Monitor is a monitor utility that helps you to maintain the health of the PC. It provides real-time information of CPU/GPU/System temperat ure, fan speed, and voltage.

Thi s area sh ows vol t age in for mat ion

Vol tag e Pa nel Fan Pa nel

Thi s area sh ows CPU in fo rma tion

Thi s area s hows CPU/ Syst em t emper atur e

Tu rn t o Fa n Pa nel

Thi s area sh ows CPU/ Syst em f an spee d

Turn to Voltage Panel

Motherboard Manual

eHot-Line (Optional)

eHot-Line is a convenient utility that helps you to contact with our Tech-Support system. This utility will collect the system information which is useful for analyzing the problem you may have encountered, and then send these information to our tech-support department to help you fix the problem.

Before you use this uti lity, please set Outlook Express as your default e-mail client application program.

rep resents import ant

information that you must provi de. Withou t this informat ion, you may not be able to send ou t the mail.

This block will show the infor mation which would be collect ed in the mail.

Send the mail ou t.

Describe co ndition

of your syst em.

Save these information to a .txt fil

Exit this dialog.

Select your area or

the area clos e to yo u.

Provid e the e-mail addres s that you woul d like to send the copy to.

Provide t he name of

the memory module manufactu rer.

Provid e the name of the power supply manufac turer and the model no .

After filling up this information, click “Send” to send the mail out. A warning dialog would appear asking for your confirmation; click “Send” to confirm or “Do Not Send” to cancel.

If you want to save this information to a .txt file, click “Save As…” and then you will see a saving dialo g appears asking you to enter file name.

Enter the file name and then click “Save”. Your system information

will be saved to a .txt file.

We will not share customer’s data with any other third parties, so please feel free to provide your system information while using eHot-Line service.

TA770 A2+ SE

Open the saved .txt file, you will see your system information including motherboard/BIOS/CPU/video/ device/OS information. This information is also concluded in the sent mail.

If you are not using Outlook Express as your default e-mail client application, you may need to save the system information to a .txt file and send the file to our tech support with other e-mail application. Go to the following web

http://www.biostar.com.tw/app/en-us/about/contact.php for getting

our contact information.

Motherboard Manual

BIOS Update

BIOS Update is a convenient utility which allows you to update your motherboard BIOS under Windows system.

AWARD BIOS AMI BIOS

Clear CMOS function

(Only for AWARD BIOS)

Show current BIOS information

Save cur rent BIOS

to a .bin file

Update BIOS

with a BIOS file

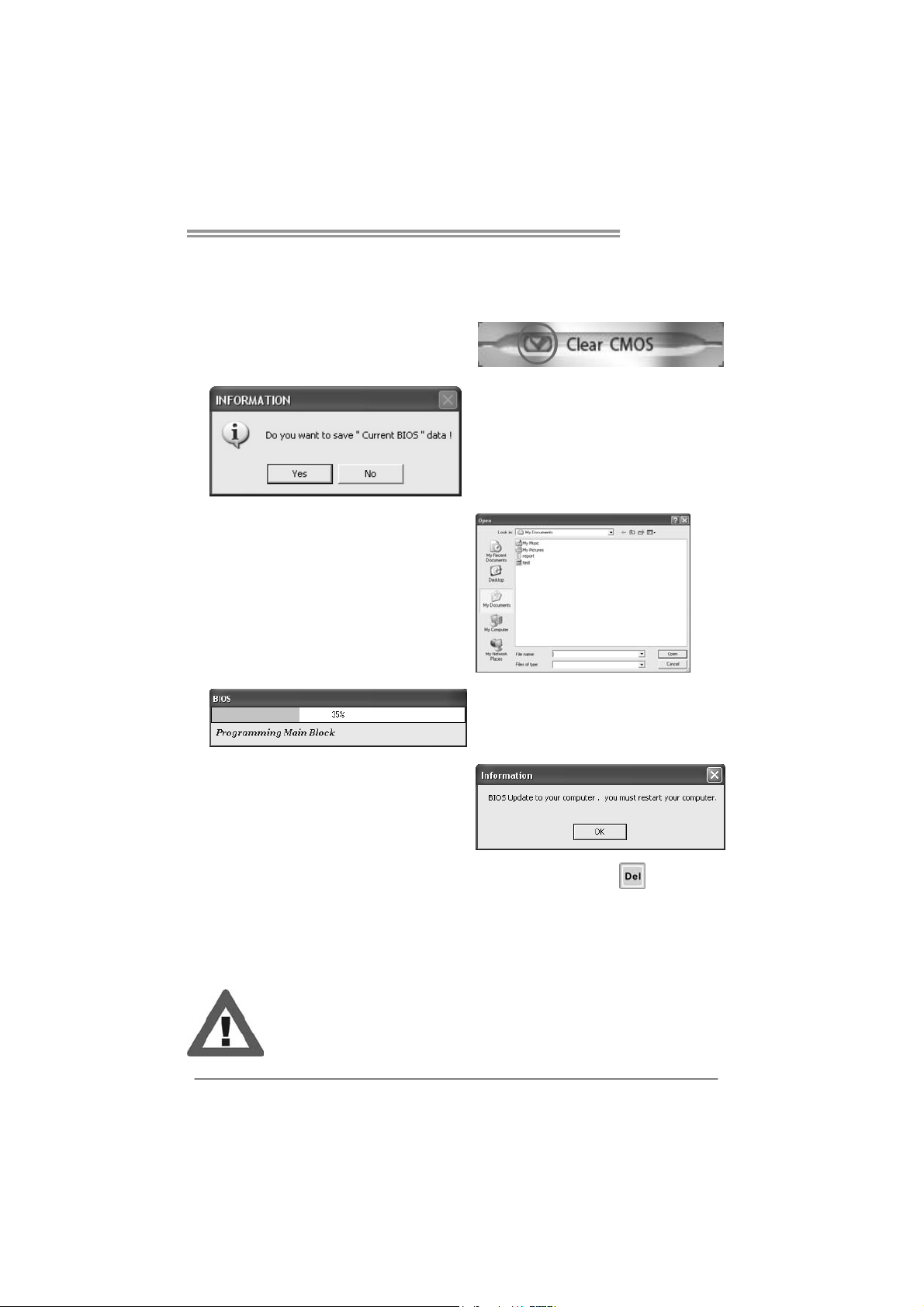

Once click on this button, the saving dialog will show. Choose the position to save file and enter file name. (We recommend that the file name should be English/number and no longer than 7 characters.) Then click Save.

After the saving process, finish dialog will show. Click on OK to

complete the BIOS Backup procedure.

TA770 A2+ SE

Before doing this, please download the proper BIOS file from the website.

For AWARD BIOS, update BIOS procedure should be run with Clear CMOS function, so please check on Clear CMOS first.

Then click Update BIOS button, a dialog will show for asking you backup current BIOS. Click Yes for BIOS backup and refer to the Backup BIOS procedure; or click No to skip this procedure.

After the BIOS Backup procedure, the open dialog will show for requesting the BIOS file which is going to be updated. Please choose the proper BIOS file for updating, then click on Open.

The utility will update BIOS with the proper BIOS file, and this process may take minutes. Please do not open any other applications during this process.

After the BIOS Update process, click on OK to restart the system.

While the system boots up and the full screen logo shows, press <Delete> key to enter BIOS setup.

In the BIOS setup, use the Load Optimized Defaults function and then Save and Exit Setup to exit BIOS setup. BIOS Update is completed.

All the information and content above about the T-Series software are subject to be changed without notice. For better performance, the software is being continuously updated. The information and pictures described above are for your reference only. The actual i nformation and settings on board may be slightly different from this manual.

Motherboard Manual

CHAPTER 6: USEFUL HELP

6.1 D

RIVER INSTALLATION NOTE

After you installed your operating system, please insert the Fully Setup Driver CD into your optical drive and install the driver for better system performance.

You will see the following window after you insert the CD

The setup guide will auto detect your motherboard and operating system.

Note:

If this window didn’t show up after you insert the Driver CD, please use file browser to locate and execute the file SETUP.EXE under your optical drive.

A. Driver Installation

To install the driver, please click on the Driver icon. The setup guide will list the compatible driver for your motherboard and operating system. Click on each device driver to launch the installation program.

B. Software Installation

To install the software, please click on the Software icon. The setup guide will list the software available for your system, click on each software title to launch the installation program.

C. Manual

Aside from the paperback manual, we also provide manual in the Driver CD. Click on the Manual icon to browse for available manual.

Note:

You will need Acrobat Reader to open the manual file. Please download the latest version of Acrobat Reader so ftware from http://www.adobe.com/products/acrobat/readstep2.html

6.2 EXTRA INFORMATION

CPU Overheated

If the system shutdown automatically after power on system for seconds, that means the CPU protection function has been activated.

When the CPU is over heated, the motherboard will shutdown automatically to avoid a damage of the CPU, and the system may not power on again.

In this case, please double check:

1. The CPU cooler surface is placed evenly with the CPU surface.

2. CPU fan is rotated normally.

3. CPU fan speed is fulfilling with the CPU speed.

After confirmed, please follow steps below to relief the CPU protection function.

1. Remove the power cord from power supply for seconds.

2. Wait for seconds.

3. Plug in the power cord and boot up the system.

Or you can:

1. Clear the CMOS data. (See “Close CMOS Header: JCMOS1” section)

2. Wait for seconds.

3. Power on the system again.

TA770 A2+ SE

Motherboard Manual

6.3 AMI BIOS BEEP CODE

Boot Block Beep Codes

Number of Beeps Description

1 No media present. (Insert diskette in floppy drive A:)

3 Insert next diskette if multiple diskettes are used for recovery 4 Flash Programming successful 5 File read error

7 No Flash EPROM detected 10 Flash Erase error 11 Flash Program error 12 “AMIBOOT.ROM” file size error

POST BIOS Beep Codes

Number of Beeps Description

1 Memory refresh timer error

3 Base memory read/write test error

6 Keyboard controller BAT command failed

7 General exception error (processor exception interrupt error)

8 Display memory error (system video adapter)

“AMIBOOT.ROM” file not found in root directory of diskette in A:

BIOS ROM image mismatch (file layout does not match image present in flash device)

Troubleshooting POST BIOS Beep Codes

Number of Beeps Troubleshooting Action

1, 3 Reseat the memory, or replace with known good modules.

Fatal error indicating a serious problem with the system. Consult your system manufacturer. Before declaring the motherboard beyond all hope, eliminate the possibility of interference by a malfunctioning add-in card. Remove all expansion cards except the video adapter.

6, 7

z If beep codes are generated when all other expansion

cards are absent, consult your system manufacturer’s technical support.

z If beep codes are not generated when all other expansion

cards are absent, one of the add-in cards is causing the malfunction. Insert the cards back into the system one at a time until the problem happens again. This will reveal the malfunctioning card.

If the system video adapter is an add-in card, replace or reseat the video adapter. If the video adapter is an integrated part of the system board, the board may be faulty.

6.4 TROUBLESHOOTING

Probable Solution

1. No power to the system at all Power light don’t illuminate, fan inside power supply does not turn on.

2. Indicator light on keyboard does not turn on.

System inoperative. Keyboard lights are on, power indicator lights are lit, and hard drive is spinning.

System does not boot from hard disk drive, can be booted from optical drive.

System only boots from optical drive. Hard disk can be read and applications can be used but booting from hard disk is impossible.

Screen message says “Invalid Configuration” or “CMOS Failure.”

Cannot boot system after installing second hard drive.

TA770 A2+ SE

1. Make sure power cable is securely plugged in.

2. Replace cable.

3. Contact technical support.

Using even pressure on both ends of the DIMM, press down firmly until the module snaps into place.

1. Check cable running from disk to disk controller board. Make sure both ends are securely plugged in; check the drive type in the standard CMOS setup.

2. Backing up the hard drive is extremely important. All hard disks are capable of breaking down at any time.

1. Back up data and applications files.

2. Reformat the hard drive. Re-install applications and data using backup disks.

Review system’s equipment. Make sure correct information is in setup.

1. Set master/slave jumpers correctly.

2. Run SETUP program and select correct drive types. Call the drive manufacturers for compatibility with other drives.

Motherboard Manual

APPENDENCIES: SPEC IN OTHER LANGUAGE

ERMAN

Sp ezif ika tio nen

Sockel AM2 / AM2+

CPU

FSB

Chipsatz

Super E/A

Arbeitsspeich

IDE Int egriert er IDE -Co ntr olle r

SATA II AMD SB700

LAN Realtek RTL 8111C

Audio-Codec ALC662

Steckplätze

Onboard-Ans

chluss

AMD Athlon 64 / Athlon 64 FX / Athlon 64

X2 / S empron / Ph enom Prozessoren

Unterstützt HyperTransport 3.0 mit einer

Bandbreite von bis zu 5.2 GT/s

AMD 770

AMD SB700

ITE 8718F

Biet et die häufig ver wend eten alten Sup er

E/A-Funktionen.

Low Pin Count-Schnittstelle

DDR2 DIMM-Steckplätze x 4

Jeder DIMM unterstützt

512MB/1GB/2GB/4GB DDR2.

Max. 16GB Arbeitsspeicher

PCI Stec kp latz x 3

PCI Express Gen2 x16 Steckplatz x1

PCI Express x1 Steckplatz x2

Diskettenlaufwerkanschluss x1 Jeder Anschluss unterstützt 2 Diskettenlaufwerke

Druckeranschluss Anschluss x1 Jeder Anschluss unterstützt 1 Druckeranschluss

IDE-Anschluss x1 Jeder Anschluss unterstützt 2 IDE-Laufwerke

Die AMD 64-Architektur unterstützt eine 32-Bit- und

64-Bit-Datenverarbeitung

Unterstützt Hyper Transport 3.0 und PowerNow

Umgebungskontrolle,

Hardware-Überwachung

Lüfterdrehzah l-Co ntroller

"Smart Guardian"-Funktion von ITE

Dual-Kanal DDR2 Speichermodul

Unterstützt DDR2 533 / 667 / 800

Unterstützt DDR2 1066 (by AM2+ CPU)

registrierte DIMMs. ECC DIMMs werden nicht

unterstützt.

Ultra DMA 33 / 66 / 100 / 133 Bus Master- Modus

Unterstützt PIO-Modus 0~4,

Datentransferrate b is zu 3Gb/s

Konform mit der SATA-Spezifikation Version 2.0.

Unterstützt RAID 0,1,1+0

10 / 100 / 1000 Mb/s Auto-Negotiation

Halb-/ Vollduplex-Funktion

5.1-Kanal-Audioausgabe

Unterstützt High-Definition Audio

Sp ezif ika tio nen

SATA-Anschluss x6 Jeder Anschluss unterstützt 1 SATA-Laufwerk

Fronttafelanschluss x1 Unterstützt die Fronttafelfunktionen

Front-Audioanschluss x1 Unterstützt die Fronttafel-Audioanschlussfunktion

CD-IN-Anschluss x1 Unterstützt die CD Audio-In-Funktion

S/PDIF- Ausgangsanschluss x1 Unterstützt die digitale Audioausgabefunktion

CPU-Lüfter-Sockel x1

System-Lüfter-Sockel x2 System-Lüfter-Stromversorgungsanschluss

"CMOS lös chen "- So ckel x1

USB-Anschluss x3

Serieller Anschluss x1

Stromanschluss (24-polig) x1

St romans ch luss (4- polig ) x 2

PS/2-Tastatur x1

Rückseiten-E

Platinengröße 220 mm (B) X 307 mm (L)

OS-Unterstüt

zung

PS/2-Maus x1

LAN-Anschluss x1

USB-Anschluss x6

Audioanschluss x3

Windows XP / VISTA

TA770 A2+ SE

CPU-Lüfterstromversorgungsanschluss (mit Smart

Fan -F un ktion )

Jeder Anschluss unterstützt 2

Fronttafel-USB-Anschlüsse

Biostar behält sich das Recht vor, ohne Ankündigung

die Unterstützung für ein Betriebssystem

hinzuzufügen oder zu entfernen.

Motherboard Manual

FRANCE

Socket AM2 / AM2+

Bus frontal

Chipset

Super E/S

Mémoire

principale

IDE Contrôleur IDE intégré

SATA II

LAN Realtek RTL 8111C

Codec audio ALC662

Fentes

Connecteur

embarqué

Processeurs AMD Athlon 64 / Athlon 64 FX /

Athlon 64 X2 / Sempron / Phenom

Prend en charge Hyp er Transport 3.0

une bande passante de 5.2 GT/s

AMD 770

AMD SB700

ITE 8718F

Fournit la fonctionnalité de Super E/S

patrimoniales la plus utilisée.

Int e rf ace à f a ib le co mpte de b roches

Fentes DDR2 DIMM x 4

Chaque DIMM prend en charge des DDR2 de

512 Mo/1 Go/2 Go/4 Go

Capac ité mémoire max ima le de 16 Go

AMD SB700

Fente PCI x3

Fente PCI Express Gen2 x16 x1

Fente PCI Express x1 x2

Connecteur de disquette x1

Connecteur de Port d'imprimante x1

Connecteur IDE x1

SPEC

L'architecture AMD 64 permet le calcul 32 et 64 bits

Prend en charge Hyp er Transport 3.0 et PowerNo w

usqu'à

Initiatives de contrôle environnementales,

Mon iteur d e mat ériel

Contrôleur de vitesse de ventilateur

Fonction "Gardien intelligent" de l'ITE

Module de mémo ire DDR2 à mod e à d oub le vo ie

Prend en charge la DDR2 533 / 667 / 800

Prend en charge la DDR2 1066 (by AM2+ CPU)

Les DIMM à registres et DIMM avec code correcteurs

d'erreurs ne sont pas prises en charge

Mode principale de Bus Ultra DMA 33 / 66 / 100 /

133

Prend en charge le mode PIO 0~4,

Taux de transfert jusqu'à 3 Go/s.

Co nfo rme à la spécif icat ion SATA Vers ion 2.0

Prise en charge RAID 0,1,1+0

10 / 100 / 1000 Mb /s négociation auto matique

Half / Full duplex capability

Sortie aud io à 5 .1 voies

Prise en charge de l' aud io haut e déf inition

Chaque conne ctor prend en charge 2 lecteu rs de

disquettes

Chaque connector prend en charge 1 Port

d'imprimante

Chaque connecteur prend en charge 2 périphériques

IDE

Connecteur SATA x6

Connecteur du panneau avant x1 Prend en charge les équipements du panneau avant

Connecteur Aud io du panne au avant x1 Prend en ch arge la fonction audio du panneau avant

Connecteur d' ent rée CD x1 Prend en charge la fonct ion d'entrée aud io de CD

Connecteur de sortie S/PDIF x1

Embase de ventilateur UC x1

Embase de ventilateur système x2 Alimentation électrique du ventilateur système

Embase d'effacement CMOS x1

Connecteur USB x3

Port série x1

Connecteur d' aliment at ion x 1

(24 broches)

Connecteur d' aliment at ion x2

(4 broch es)

Clavier PS/2 x1

E/S du

panneau

arrière

Dimensions

de la carte

Support SE Windows XP / VISTA

Souris PS/2 x1

Port LA N x1

Port USB x6

Fiche aud io x3

220 mm (l) X 307 mm (H)

TA770 A2+ SE

SPEC

Chaque co nne cteur pr end en ch arge 1 périp hér iqu e

SATA

Prend en charge la fonction de sortie audio

numérique

Alimentation électrique du ventilateur UC (avec

fonction de ventilateur intelligent)

Chaque connecteur prend en charge 2 ports USB de

panneau avant

Biostar se réserve le droit d'ajouter ou de supprimer

le support de SE avec ou sans préavis.

Motherboard Manual

ITALIAN

Socket AM2 / AM2+

CPU

FSB

Chipset

Super I/O

Memoria

principale

IDE Controller IDE integrato

SATA II AMD SB700

LAN Realtek RTL 8111C

Codec

audio

Allo ggi

Connettori

su scheda

Processori AMD Athlon 64 / Athlon 64

FX / Athlon 64 X2 / Sempro n /

Pheno m

Supporto di HyperTransport 3.0 fino a

5.2 GT/s di larghezza di banda

AMD 770

AMD SB700

ITE 8718F

Fo rn isce le funz ionalit à legacy Super

I/O usate più comunemente.

Interfaccia LPC (Low Pin Count)

Alloggi DIMM DDR2 x 4

Ciascun DIMM supporta DDR2

512MB/1GB/ 2GB/4GB

Capacità massima della memoria

16GB

ALC662

Allo ggio PC I x3

Alloggio PCI Express Gen2 x16 x1

Alloggio PCI Express x1 x2

Connettore floppy x1 Ciascun connettore supporta 2 unità Floppy

Connettore Porta stampante x1 Ciascun connettore supporta 1 Porta stampante

Connettore IDE x1 Ciascun connettore supporta 2 unità IDE

Connettore SATA x6 Ciascun connettore supporta 1 unità SATA

SPECIFICA

L’arch itettu ra AMD 64 abilit a la co mputaz ione 3 2

e 64 bit

Supporto di Hyper Transport 3.0 e PowerNow

Funzioni di controllo dell’ambiente:

Monitoraggio hardware

Co ntro ller velocit à vento lina

Funzione "Smart Guardian" di ITE

Modulo di memoria DDR2 a canale doppio

Supporto di DDR2 533 / 667 / 800

Supporto di DDR2 1066 (by AM2+ CPU)

DIMM registrati e DIMM ECC non sono supportati

Modalità Bus Master Ultra DMA 33 / 66 / 100 /

133

Supporto modalità PIO Mode 0-4

Velocità di trasferimento dei dati fino a 3 Gb/s.

Co mpatibi le s pecifi che SATA Versio ne 2. 0.

Supporto RAID 0,1,1+0

Negoziazione automatica 10 / 100 / 1000 Mb/s

Capacità Half / Full Duplex

Uscita audio 5.1 canali

Supporto audio High-Definition (HD)

I/O

pannello

posteriore

Dimension

i scheda

Sistemi

oper ativi

supportati

TA770 A2+ SE

SPECIFICA

Co nnetto re pannello fron tale x 1 Supporta i servizi de l panne llo fro nt ale

Connettore audio frontale x1 Supporta la funzione audio pannello frontale

Connettore CD-in x1 Supporta la funzione input audio CD

Connettore output SPDIF x1 Supporta la funzione d’output audio digitale

Co llet tore vent o lina CPU x1

Co llet tore vent o lina sist em a x2 Alimentazione vent o lina d i s is t ema

Co llet tore cancellaz ione C MOS x1

Connettore USB x3

Porta seriale x1

Connettore alimentazione x1

(24 pin)

Connetto re alimentazione x2

(4 pin)

Tas t ier a PS /2 x 1

Mou se PS /2 x1

Porta LAN x1

Porta USB x6

Connettore audio x3

220 mm (larghezza) x 307 mm

(altez za)

Windows XP / VISTA

Alimentazione ventolina CPU (con funzione Smart

Fan)

Ciascun connettore supporta 2 porte USB

pannello frontale

Biostar si riserva il dir itto di aggiungere o

rimuovere il supporto di qualsiasi sistema

operativo senza preavviso.

Motherboard Manual

SPANISH

Conector AM2 / AM2+

CPU

FSB

Conjunto de

chips

Súper E/S

Memoria

principal

IDE Controlador IDE integrado

SATA II AMD SB700

Red Local Realtek RTL 8111C

Códecs de

sonido

Ranuras

Conectores

en p laca

Procesadores AMD Athlon 64 / Athlon 64

FX / Athlon 64 X 2 / Sempron / Pheno m

Admite HyperTransport 3.0 con un ancho

de banda de hasta 5.2 GT/s

AMD 770

AMD SB700

ITE 8718F

Le ofrece las funcionalidades heredadas de

us o más comú n Súper E/S.

Interfaz de cuenta Low Pin

Ranuras DIMM DDR2 x 4

Cada DIMM admite DDR de

512MB/1GB/2GB/ 4GB

Capacidad máxima de memoria de 16GB

ALC662

Ranura PCI X3

Ranura PCI Express Gen2 x16 X1

Ranura PCI express x1 X2

Conector disco flexible X1 Cada conector soporta 2 unidades de disco flexible

Conector Puerto de impresora X1 Cada conector soporta 1 Puerto de impresora

Conector IDE X1 Cada conector soporta 2 dispositivos IDE

Especificación

La arquitectura AMD 64 permite el procesado de 32 y

64 bits

Soporta las tecnologías Hyper Transport 3.0 y

Power Now

In ic iativas de co ntr ol de en tor no ,

Monitor hardware

Controlador de velocidad de ventilador

Función "Guardia inteligente" de ITE

Módulo de memoria DDR2 de canal Doble

Admite DDR2 de 533 / 667 / 800

Admite DDR2 de 1066 (by AM2+ CPU)

No admite DIMM registrados o DIMM compatibles con

ECC

Modo bus maestro Ultra DMA 33 / 66 / 100 / 133

Soporte los Modos PIO 0~4,

Tasas de transferencia de hasta 3 Gb/s.

Co mpat ible co n la ve rsión SATA 2 .0 .

Admite RAID 0,1,1+0

Negociación de 10 / 100 / 1000 Mb/s

Funciones Half / Full dúplex

Salida de sonido de 5.1 canales

Soporte de sonido de Alta Definición

Panel

trasero de

E/S

Ta mañ o de

la placa

Soporte de

sistema

operativo

TA770 A2+ SE

Especificación

Conector SATA X6 Cada conector soporta 1 dispositivos SATA

Co nect or de p an el f ro nta l X1 Sop ort a insta la cion es en el p ane l f ro nta l

Conector de sonido frontal X1 Soporta funciones de sonido en el panel frontal

Conector de entrada de CD X1 Soporta función de entrada de sonido de CD

Conector de salida S/PDIF X1 Soporta función de salida de sonido digital

Cabecera de ventilador de CPU X1 Fuente de alimentación de ventilador de CPU (con

función Smart Fan)

Cabecera de ventilador de sistema X2 Fuente de alimentación de ventilador de sistema

Cabecera de borrado de CMOS X1

Conector USB X3 Cada conector soport a 2 puertos USB frontales

Puert o s er ie X1

Conector de alimentación X1

(24 patillas)

Conector de alimentación X2

(4 patillas)

Tec lad o P S /2 X 1

Ratón PS/2 X1

Puerto de red local X1

Puert o USB X6

Conector de sonido X3

220 mm. (A) X 307 mm. (H)

Windows XP / VISTA

Biostar se reserva el derecho de añadir o retirar el

soporte de cualquier SO con o sin aviso previo.

Motherboard Manual

PORTUGUESE

Socket AM2 / AM2+

CPU

FSB

Chipset

Especificaçã

o Super I/O

Memória

principal

IDE Controlador IDE integrado

SATA II AMD SB700

LAN Realtek RTL 8111C

Codec de

som

Ranhuras

Conectores

na placa

Processadores AMD Athlon 64 / Athlon 64

FX / Athlon 64 X 2 / Sempron / Pheno m

Suporta a tecnologia HyperTransport 3.0

com u ma largura d e banda até 5.2 GT/s

AMD 770

AMD SB700

ITE 8718F

Proporciona as funcionalidades mais

utilizadas em termos da especificação

Super I/O.

Interface LPC (Low Pin Count).

Ranhuras DIMM DDR2 x 4

Cada módulo DIMM suporta uma

memória DDR2 de 512 MB/1GB/2GB/4GB

Capac idade máx ima de me mória: 16GB

ALC662

Ranhura PCI x3

Ranhura PCI Express Gen2 x16 x1

Ranhura PCI Express x1 x2

Conector da unidade de disquetes x1 Cada conector suporta 2 unidades de d isquetes

Conector da para impressora x1 Cada conector suporta 1 Porta para impressora

Conector IDE x1 Cada conector suporta 2 disposit ivos IDE

Conector SATA x6 Cada conector suporta 1 dispositivo SATA

ESPECIFICAÇÕES

A arq uite ctura AMD 64 p ermit e uma computaç ão d e 32

e 64 bits

Suporta as tecnologias Hyper Transport 3.0 e

Power Now

In ic iativas par a cont ro lo d o ambiente

Monitorização do hardware

Controlador da velocidade da ventoinha

Função "Smart Guardian" d a ITE

Módulo de memória DDR2 de canal duplo

Suporta módulos DDR2 533 / 667 / 800

Suporta módulos DDR2 1066 (by AM2+ CPU)

Os módulos DIMM registados e os DIMM ECC não são

suportados

Modo Bus master U ltra DMA 33 / 66 / 100 / 133

Suporta o modo PIO 0~4,

Velocidades de transmissão de dados até 3 Gb/s.

Compat ibilidad e co m a espe cificação SATA ve rsão 2.0.

Suporta as funções RA ID 0,1,1+0

Auto negociação de 10 / 100 / 1000 Mb/s

Capacidade semi/full-duplex

Saída de áudio de 5.1 canais

Suporta a especificação High-Definition Audio

Entradas /S

aídas no

painel

traseiro

Tamanho

da placa

Sistemas

operativos

suportados

TA770 A2+ SE

ESPECIFICAÇÕES

Conector do painel frontal x1 Para suporte de várias funções no painel frontal

Conector de áudio fronta l x 1 Suporta a função de áudio no painel front al

Conecto r para entr ada d e CDs x1 Supo rta a entr ada de áud io a p art ir de CDs

Conector de sa ída S/PDIF x1 Supo rta a saída d e áudio d igital

Conector da ventoinha da CPU x1

Conector da ventoinha do s istema x2 Alimentação da ventoinha do sistema

Conector para limpeza do CMOS x1

Conector USB x3 Cada conector suporta 2 portas USB no painel frontal

Porta série x 1

Conector de alimentação x1

(24 pinos)

Conector de alimentação x2

(4 p inos )

Tec lad o P S /2 x 1

Rato PS/2 x1

Porta LAN x1

Porta USB x6

Tomada de áudio x3

220 mm (L) X 307 mm (A)

Windows XP / VISTA

Aliment ação d a ventoinha d a CPU (co m a função Smart

Fan )

A Biostar reserva-se o direito de adicionar ou remover

suporte para qualquer sistema operativo com ou sem

av iso p révio.

Motherboard Manual

POLISH

Socket AM2 / AM2+

Procesor

FSB

Chipset

Pamięć

główna

Super I/O

IDE Zintegrowany kontroler IDE

SATA II AMD SB700

LAN Realtek RTL 8111C

Kodek

dźwiękowy

Gniazda

Złącza

wbud owan e

AMD Athlon 64 / Athlon 64 FX / Athlon 64 X2 /

Sempron / Phenom Proceso ry

Obsługa HyperTransport 3.0 o szerokości pasma

do 5.2 GT/s

AMD 770

AMD SB700

Gniazda DDR2 DIMM x 4

Każde gniazdo DIMM obs ługuje moduły

512MB/1GB/2GB/4GB DDR2

Maks. wielkość pamięci 16GB

ITE 8718F

Zapewnia najbardziej powszechne funkcje Super

I/O.

Interfejs Low Pin Count

ALC662

Gniazdo PCI x3

Gniazdo PCI Express Gen2 x16 x1

Gniazdo PCI Express x1 x2

Złącze napędu dyskietek x1 Każde złącze obsługuje 2 napędy dyskietek

Złącze Port drukarki x1 Każde złącze obs ługuje 1 Port drukarki

Złącze IDE x1 Każde złącze obs ługuje 2 urządzenia IDE

Złącze SATA x6 Każde złącze obs ługuje 1 urządzenie SATA

SPEC

Architektura AMD 64 umożliwia przetwarzanie

32 i 64 bitowe

Obsługa Hyper Transport 3.0 oraz PowerNow

Mod uł pamięci DDR2 z trybem podwójnego

kana łu

Obsługa DDR2 533 / 667 / 800

Obsługa DDR2 1066 (by AM2+ CPU)

Brak obsług i Registered DIMM oraz ECC D IMM

Funkcje kontroli warunków pracy,

Mon itor H /W

Kontroler prędkości wentylatora

Funkcja ITE "Smart Guardian"

Ultra DMA 33 / 66 / 100 / 133 Tryb Bus Master

obsługa PIO tryb 0~4,

Transfer danych do 3 Gb/s.

Zgodność ze specyfikacją SATA w wersji 2.0.

Obsługa RAID 0,1,1+0

10 / 100 / 1000 Mb/s z automatyczn ą nego cjacją

szybkości

Działanie w trybie połowicznego/pełnego

dupleksu

5.1 kanałowe wyjście audio

Obsługa H igh- Defin ition A ud io

Back Panel

I/O

Wymiary

płyty

Obsluga

systemu

operacyjne

TA770 A2+ SE

SPEC

Złącze panela przedniego x1 Obsługa elementów panela przedniego

Przedn ie z łącze aud io x 1 Obsługa funkcji audio na panelu przednim

Złącze wejścia CD x1 Obsługa funkcji wejścia aud io CD

Złącze wyjścia S/PDIF x1 Obsługa funkcji cyfrowego wyjścia audio

Złącze głó wko we wenty latora

procesora x1

Złącze głó wkowe wentylatora systemowego x2 Zasilanie wentylatora systemowego

Złącze głó wkowe kasowan ia

CMOS x1

Złącze USB x3

Port sz erego wy x1

Złącze zasilania (24 pinowe) x1

Złącze zas ilania (4 p ino we) x2

Klawiatura PS/2 x1

Mys z PS /2 x1

Port LA N x1

Port USB x6

Gniazdo audio x3

220 mm (S) X 307 mm (W)

Windows XP / VISTA

Zasilanie wentylatora procesora (z funkcją Smart

Fan )

Każde złącze obs ługuje 2 porty USB na panelu

przednim

Biostar zastrzega sobie prawo dodawania lub

odwoływ ania obsług i dowo lneg o systemu

operacyjnego b ez powiado mienia.

Motherboard Manual

RUSSIAN

CPU (центральн

ый процессор)

FSB

Набо р микросхем

Основная память

Super I/O

IDE

SATA II AMD SB700

Локальна я сеть

Звуко вой кодек

Слоты

Встроенны й разъём

Гнездо AM2 / AM2+ Процессоры AMD Athlon 64 / Athlon 64 FX

Athlon 64 X2 / Sempron / Phenom

Поддержка HyperTransport 3.0 с пропускной способностью до 5.2 GT/s

AMD 770 AMD SB700

Слоты DDR2 DIMM x 4 Каждый модуль DIMM поддерживает 512МБ /1 ГБ /2 ГБ/4 ГБ DDR2 Максимальная ёмкость памяти 16ГБ

ITE 8718F

Обеспечивает наиболее используемые действующие фун кц и онал ьные возможно сти Super I/O. Интерфейс с низ ким количест вом выводов

Встроенное устройс тво управл ени я встроенными интерфейсами устро йств

Realtek RTL 8111C

ALC662

Слот PCI x3 Слот PCI Express Gen2 x16 x1 Слот PCI Express x1 x2

Разъ ём НГМД x1

Разъ ём Порт подклю чения принтера x1

Разъ ём IDE x 1

Разъ ём SATA x6 Каждый разъём поддерживает 1 устройство SATA Разъ ём на лицевой панели x1 Поддержка устройс тв на лицевой панели

СПЕЦ

Арх итектура A MD 64 разрешать обработка данных на 32 и 64 бит Поддержка Hyper Transport 3.0 и PowerNo w

Мод ул ь памяти с двухкан альн ым режимом DDR2 Поддержка DDR2 533 / 667 / 800 Поддержка DDR2 1066 (b y AM2+ CPU) Не поддерживает зарегистрированные модули

DIMM and ECC DIMM

Инициативы по охран е окружающей среды, Аппаратный монитор Регул ятор скорости Функция ITE "S mart Guard ian" (Интеллектуальная защита) Режим "хозяина" шины U ltra D MA 3 3 / 6 6 / 100 /

133

Поддержка режима PIO 0~4, скорость передачи данных до 3 гигабит/с. Соответствие специ фикации SATA версия 2.0. Поддержка RAID 0,1,1+0 Автоматическо е согласо вани е 10 / 100 / 1000 Мб/с Частичная / полна я дуплексная способность Звуко вая поддержка High-Def in ition

5.1канальный звуковой выхо д

Каждый разъём поддерживает 2 накопителя на гибких магнитных дисках Каждый разъём поддерживает 1 По рт подключения принтера Каждый разъём поддерживает 2 встроенных интерфейса накопителей

Задняя панель средств ввода-выв ода

Разм ер панели

Поддержка

TA770 A2+ SE

СПЕЦ

Входной звуковой разъём x1

Разъ ём ввода для CD x1 Поддержка функции ввода для CD Разъ ём вывода для S/PDIF x1 Поддержка выво да цифровой звуковой фун кц ии

Контактирующее приспособление вентил ятора центрального процессора x1

Контактирующее приспособление вентил ятора системы x2 Открытое контактирующе е приспособление CMOS x1

USB- разъём x3

Последо вательны й порт x1 Разъ ем питания (24 вывод) x1 Разъ ем питания (4 вывод) x2 Клавиатура PS/2 x1 Мышь PS /2 x1 Пор т LAN x1 USB- порт x6 Гнездо для подключени я наушников x3

220 мм (Ш) X 307 мм (В)

Windows XP / VISTA

Поддержка звуко вых функций на лицевой панели

Источник питания для вентилято р а центрального процессора (с функц ией интеллектуального вентил ятора )

Источник пит ания для вентилятор а системы

Каждый разъём поддерживает 2 USB-порта на лицевой панели

Biostar сохраняет за собой право добавлять или удаля ть средства обеспечения для OS с или без предварительного уведомления.

Motherboard Manual

ARABIC

ﺔﻴﻨﻘﺗ ﻦﻜﻤﺗAMD 64 ﺔﻋﺮﺴﺏ ﺔﻴﺏﻮﺳﺎﺤﻟا تﺎﻴﻠﻤﻌﻟا ءاﺮﺝإ 32 و64 ﺖﺏ

ﺔﻴﻨﻘ ﺗ ﻢﻋﺪﺗHyper Trans po rt و 3.0 Pow erNow

ﻢﻋﺪﺗ ةﺮآاﺬﻟا ﻦﻡ عﻮﻥ DDR2 تﺎﻌﺳ 800/667/533 ﻡﺎﺠﻴ ﺖﻳﺎﺏ

ﻢﻋﺪﺗ ةﺮآاﺬﻟا ﻦﻡ عﻮﻥ DDR2 تﺎﻌﺳ 1066(By AM2+ CPU)

ﻻ ﻢﻋﺪﺗ ﻖﺋﺎﻗر ةﺮآاﺬﻟا DIMM ﻚﻠﺗو ﻲﺘﻟا ﻻ ﻖﻓاﻮﺘﺗ ﻊﻡ ECC

ﺔﻔﻴﻇو"S mart Gu ardian" ﻦﻡ ITE

ﺔﻴﻨﻘ ﺘﺏ ﻞﻗﺎﻥUltra DMA 33 / 66 / 100 / 133

ﻊﺿو ﻢﻋدPIO Mode 0~4

ﻰﻟإ ﻞﺼﺗ تﺎﻋﺮﺴﺏ تﺎ ﻥﺎﻴﺒﻟا ﻞﻘﻥ3 ﺖﺏﺎﺠﻴﺝ/ﺔﻴﻥﺎ ﺙ.

تﺎﻔﺹاﻮﻤﻟ ﺔﻘﺏﺎﻄﻡSATA راﺪﺹﻹا 2.0.

ﺔﻴﻨﻘ ﺗ ﻢﻋﺪﺗRAID 0,1,1+0

ﻦﻡ ﻒﻳﺮﻌﺘﻟا ﻲﻟ ﺎﻋ تﻮﺼﻟا ﺔﻴﻨﻘ ﺗ ﻢﻋﺪﺗ

ةﺪﺣو ةﺮآاذ DDR2 ﺔﺝودﺰﻡ ةﺎﻨﻘﻟا

ﺔﺌﻴﺒﻟا ﻲﻓ ﻢﻜﺤﺘﻟا ﻞﺋﺎﺳو:

ﻟﺎﺣ ﺔﻓﺮﻌﻤﻟ ﺐﻗاﺮﻡةﺰﻬﺝﻷا ﺔ

ﺔﺣوﺮﻤﻟا ﺔﻋﺮﺳ ﻲﻓ ﺐﻗاﺮﻡ

ﻲﺴﻴﺋر ﻊﺿو

تﺎﻔﺻاﻮﻤﻟا

ﺲﺒﻘﻡAM2 / AM2+

تﺎﺠﻟﺎﻌﻡAMD Athlon 64 / Athlon 64 FX / Athlon 64

X2 / S empron / Ph enom

ﺔﻴﻨﻘ ﺗ ﻢﻋﺪﺗHyperTransport ﻰﻟإ ﻞﺼﻳ ددﺮﺘﺏ 3.0 5.2 GT/s

AMD SB700

DIMM ﻢﻋﺪﺗ ةﺮآاذ ﻦﻡ عﻮﻥ DDR2 ﺔﻌﺳ

ﺔﺤﺘﻓ ﻞآ ﻢﻋﺪﺗDIMM عﻮﻥ ﻦﻡ ةﺮآاذ ﻢﻋﺪﺗ DDR2 ﺔﻌﺳ 512 ﺖﻳﺎﺏ ﺎﺠﻴﻡ

ﺎﺠﻴﻡ ﺖﻳﺎﺏ

ﺔﻔﻴﻇ و ﺮﻓﻮﺗSuper I/O ًﺎ ﻡ ا ﺪ ﺨﺘﺳ ا ﺮﺜآﻷا .

ﺗﻢﻋﺪ ﺔﻴ ﻨﻘﺗ Low Pin Co unt Interface

ضوﺎﻔﺗ ﻲﺋﺎﻘﻠﺗ 10/100 ﺎﺠﻴﻡ ﺖﻳﺎﺏ /ﺔﻴﻥﺎﺙ و1ﺎﺠﻴﺝ ﺖﺏ/ﺔﻴﻥﺎﺙ

ﺔﻴﻥﺎﻜﻡإ ﻞﻘﻨﻟا جودﺰﻤﻟا ﻞﻡﺎﻜ ﻟا/ﻲﻔﺼﻨﻟا

5.1 تﻮﺼﻟا جﺮﺨﻟ تاﻮﻨﻗ

Realtek RTL 8111C

ﺔﻥﺮﻡ صاﺮﻗأ كﺮﺤﻡ ﺬﻔﻨﻡ دﺪﻋ1 ﺔﻥﺮﻤﻟا صاﺮﻗﻸﻟ ﻦﻴآﺮﺤﻡ ﻢﻋﺪﻳ

ﻲﺒﻥﺎﺠﻟا ﻲﻡﺎﻡﻷا ﻞﻗﺎﻨﻟا

AMD 770

ﺔﺤﺘﻓ DDR2 DIMM دﺪﻋ4

و1/و 2/و 4 ﺎﺠﻴﺝﺖﻳﺎﺏ ﺔﻌﺳ ةﺮآاذ ىﻮﺼﻗ 16 ﺎﺠﻴﺝ ﺖﻳﺎﺏ

ITE 8718F

ﻢﻜﺤﺘﻡIDE ﻞﻡﺎﻜﺘﻡ

AMD SB700

ALC662

ﺔﺤﺘﻓPCI ﺪﻋ3

ﺔﺤﺘﻓ Gen2 x16 PCI Express دﺪﻋ1

ﺔﺤﺘﻓPCI Express x1 دﺪﻋ2

ﺔﻌﺏﺎﻃ ﺬﻔﻨﻡ دﺪﻋ1

ﺔﺠﻟﺎﻌﻤﻟا ةﺪﺣو

ﺔﻳﺰآﺮﻤﻟا

ﺢﺋاﺮﺸﻟا ﺔﻋﻮﻤﺠﻡ

ﺔﻴﺴﻴ ﺋﺮﻟا ةﺮآاﺬﻟا

Super I/O

ﺬﻔﻨﻡIDE

SATA II

ﺔﻴﻠﺥاد ﺔﻜﺒﺵ

تﻮﺼﻟا ﻚﻳدﻮآ

تﺎﺤﺘﻔﻟا

ﺢﻄﺳ ﻰﻠﻋ ﺬﻓﺎﻨﻤﻟا

ﺔﺣﻮﻠﻟا

ﻆﻔﺘﺤﺗBiostar وأ رﺎﻄﺥﺈﺏ ﻞﻴﻐﺸﺗ مﺎﻈﻥ يﻷ ﻢﻋﺪﻟا ﺔﻟازإ وأ ﺔﻓﺎﺿإ ﻲﻓ ﺎﻬﻘﺤﺏ

رﺎﻄﺥإ نوﺪﺏ.

TA770 A2+ SE

تﺎﻔﺻاﻮﻤﻟا

ﺬﻔﻨﻡIDE دﺪﻋ1 ةﺰﻬﺝأ ﻦﻡ ﻦﻴﻨﺙا ﺬﻔﻨﻡ ﻞآ ﻢﻋﺪﻳIDE

ﺬﻔﻨﻡSATA دﺪﻋ6 ةﺰﻬﺝأ ﻦﻡ ﺪﺣاو ﺬﻔﻨﻡ ﻞآ ﻢﻋﺪﻳSATA

ﺔﻴﻡﺎﻡﻷا ﺔﺣﻮﻠﻟا ﺬﻔﻨﻡ دﺪﻋ1 ﺔﻴﻡﺎﻡﻷا ﺔﺣﻮﻠﻟا تاﺰﻴﻬﺠﺗ ﻢﻋﺪﻳ

ﻲﻡﺎﻡﻷا تﻮﺼﻟا ﺬﻔﻨﻡ دﺪﻋ1 ﺔﻴﻡﺎﻡﻷا ﺔﺣﻮﻠﻟ ﺎﺏ تﻮﺼﻟا ﺔﻔﻴﻇ و ﻢﻋﺪﻳ

ﺬﻔﻨﻡCD-IN دﺪﻋ1 ﺞﻡﺪﻤﻟا صﺮﻘﻟا تﻮﺹ ﻞﺥد ﺔﻔﻴﻇو ﻢﻋﺪﻳ

جﺮﺥ ﺬﻔﻨﻡS/PDIF دﺪﻋ1 ﻲﻤﻗﺮﻟا تﻮﺼﻟا جﺮﺥ ﺔﻔﻴﻇ و ﻢﻋﺪﻳ

ﺔﻳﺰآﺮﻤﻟا ﺔﺠﻟﺎﻌﻤﻟا ةﺪﺣو ﺔﺣوﺮﻡ ﺔﻠﺹو دﺪﻋ1 ﺔﻔﻴﻇو ﻊﻡ ﺔﺠﻟﺎﻌﻤﻟا ةﺪﺣو ﺔﺣوﺮﻤﻟ ﺔﻗﺎﻄﻟا ﻞﻴﺹﻮﺘﻟSmart Fan

مﺎﻈﻨﻟا ﺔﺣوﺮﻡ ﺔﻠﺹو ﺪﻋ2 مﺎﻈﻨﻟا ﺔﺣوﺮﻤﻟ ﺔﻗﺎﻄﻟا ﻞﻴﺹﻮﺘﻟ

ﺢﺴﻡ ﺔﻠﺹوCMOS دﺪﻋ1

ﺬﻔﻨﻡUS B دﺪﻋ3 ﻲﺘﺤﺘﻓ ﺬﻔﻨﻡ ﻞآ ﻢﻋﺪﻳUSBﺔﻴﻡﺎﻡﻷا ﺔﺣﻮﻠﻟﺎﺏ

ﻲﻠﺴﻠﺴﺗ ﺬﻔ ﻨﻡ دﺪﻋ1

ﺔﻗﺎﻄﻟا ﻞﻴﺹﻮﺗ ﺬﻔﻨﻡ)24سﻮﺏد( دﺪﻋ1

ﺬﻔﻨﻡ ﺔﻗﺎﻄﻟا ﻞﻴﺹﻮﺗ)4ﺲﻴﺏﺎﺏد( دﺪﻋ2

ﺢﻴﺗﺎﻔﻡ ﺔﺣﻮﻟPS/2 دﺪﻋ1

سوﺎﻡ PS/2 دﺪﻋ1

ﺔﻴﻠﺤﻡ لﺎﺼﺗا ﺔﻜﺒﺵ ﺬﻔﻨﻡ ﺪﻋ1

ﺬﻓﺎﻨﻡUSB دﺪﻋ6

تﻮﺹ ﺲﺒﻘﻡ دﺪﻋ3

220 ﻢﻡ)ضﺮﻋ (X 307 ﻢﻡ)عﺎﻔﺗرا(

Windows XP / VISTA

ﻞﺥد ﺬﻓﺎﻨﻡ/ جﺮﺥ

ﺔﻴﻔﻠﺨﻟا ﺔﺣﻮﻠﻟا

ﺔﺣﻮﻠﻟا ﻢﺠﺣ

ﻞﻴﻐﺸﺘﻟا ﺔﻤﻈﻥأ ﻢﻋد

Motherboard Manual

JAPANESE

Socket AM2 / AM2+

CPU

FSB

チップセット

メインメモリ

Super I/O

IDE 統合 ID Eコントローラ

SATA II AMD SB700

LAN Realtek RTL 8111C

サウンド

Codec

オンボードコ

ネクタ

AMD Athlon 64 / Athlon 64 FX / Athlon 64 X2

/ Sempron / Ph eno m プロセッサ

5.2 GT/sのバンド幅までハイパートランスポート

3.0をサポートします

AMD 770

AMD SB700

DDR2 DIMMスロット x 4

各DIMMは 512MB/1GB/2GB/4GB DDR2をサ

ポート

最大メモリ容量16GB

ITE 8718F

もっとも一般に使用されるレガシーSuper I/O機

能を採用しています。

低ピンカウントインターフェイス

ALC662

PCIスロット x3

PCI Express Gen2 x16スロット x1 スロット

PCI Express x1スロット x2

フロッピーコネクタ x1 各コネクタは 2つのフロッピードライブをサポートします

プリンタポートコネクタ x1 各コネクタは 1つのプリンタポートをサポートします

IDE コネクタ x1 各コネクタは 2つのIDE デバイスをサポートします

SATAコネクタ x6 各コネクタは1つのSATAデバイスをサポートします

仕様

AMD 64アーキテクチャでは、32ビットと64ビット計算が

可能です

ハイパートランスポート3.0とクールアンドクワイアット

をサポートします

デュアルチャンネルモードDDR2メモリモジュール

DDR2 533 / 667 / 800をサポート

DDR2 1066をサポート (by AM2+ CP U)

登録済みDIMMとECC DIMMはサポートされません

環境コントロールイニシアチブ、

H/Wモニター

ファン速度コントローラ/ モニター

ITE の「スマートガーディアン」機能

Ultra DMA 33 / 66 / 100 / 133バスマスタモード

PIO Mode 0~4のサポート、

最高3 Gb/秒のデータ転送速度

SATAバージョン2.0仕様に準拠。

RAID 0,1,1+0のサポート

10 / 100 / 1000 Mb/秒のオートネゴシエーション

半/全二重機能

ハイデフィニションオーディオのサポート

5.1 チャンネルオーディオアウト

仕様

フロントパネルコネクタ x1 フロントパネル機能をサポートします

フロントオーディオコネクタ x1 フロントパネルオーディオ機能をサポートします

CDインコネクタ x1 CDオーディオイン機能をサポートします

S/PDIFアウトコネクタ x1 デジタルオーディオアウト機能をサポートします

CPUファンヘッダ x1 CPUファン電源装置(スマートファン機能を搭載 )

システムファンヘッダ x2 システムファン電源装置

CMOSクリアヘッダ x1

USBコネクタ x3

シリアルポート x1

電源コネクタ (24 ピン) x1

電源コネクタ (4ピン) x2

PS/2キーボード x1

背面パネル

I/O

ボードサイズ 220 mm (幅) X 307 mm (高さ)

OSサポート Windows XP / VISTA

PS/2マウス x1

LANポート x1

USBポート x6

オーディオジャック x3

各コネクタは 2つのフロントパネル USBポートをサポート

します

Biostarは事前のサポートなしにOSサポートを追加または

削除する権利を留保します。

TA770 A2+ SE

2008/04/03

Biostar TA770 A2+ SE Owner's Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
