Biostar A780L3C2 Setup Manual

Page 1

A780L3C2 Setup Manual

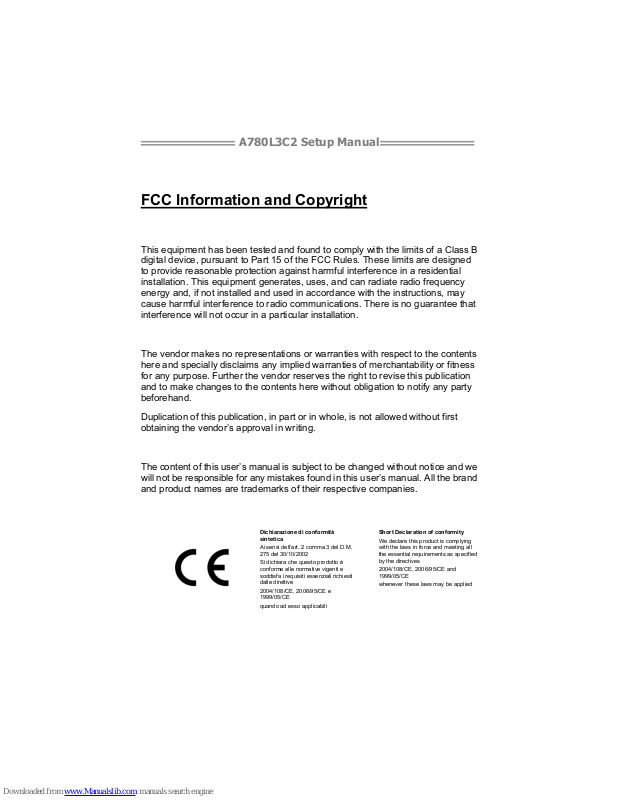

FCC Information and Copyright

This equipment has been tested and found to comply with the limits of a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. There is no guarantee that interference will not occur in a particular installation.

The vendor makes no representations or warranties with respect to the contents here and specially disclaims any implied warranties of merchantability or fitness for any purpose. Further the vendor reserves the right to revise this publication and to make changes to the contents here without obligation to notify any party beforehand.

Duplication of this publication, in part or in whole, is not allowed without first obtaining the vendor’s approval in writing.

The content of this user’s manual is subject to be changed without notice and we will not be responsible for any mistakes found in this user’s manual. All the brand and product names are trademarks of their respective companies.

Dichiarazione di conformità sintetica

Ai sensi dell’art. 2 comma 3 del D.M. 275 del 30/10/2002

Si dichiara che questo prodotto è conforme alle normative vigenti e soddisfa i requisiti essenziali richiesti dalle direttive

2004/108/CE, 2006/95/CE e 1999/05/CE

quando ad esso applicabili

Short Declaration of conformity

We declare this product is complying with the laws in force and meeting all the essential requirements as specified by the directives

2004/108/CE, 2006/95/CE and 1999/05/CE

whenever these laws may be applied

Page 2

Table of Contents

Chapter 1: Introduction .......................................... 3

1.1 Before You Start ................................................................................ 3

1.2 Package Checklist ............................................................................ 3

1.3 Motherboard Specifications ............................................................. 4

1.4 Rear Panel Connectors .................................................................... 5

1.5 Motherboard Layout .......................................................................... 6

Chapter 2: Hardware Installation ........................... 7

2.1 Install Central Processing Unit (CPU) ............................................ 7

2.2 Install a Heatsink ............................................................................... 8

2.3 Connect Cooling Fans ...................................................................... 9

2.4 Installing System Memory .............................................................. 10

2.5 Expansion Slots ............................................................................... 11

2.6 Jumper Setting ................................................................................ 12

2.7 Headers & Connectors ................................................................... 13

Chapter 3: BIOS & Software ................................. 17

3.1 BIOS Setup ...................................................................................... 17

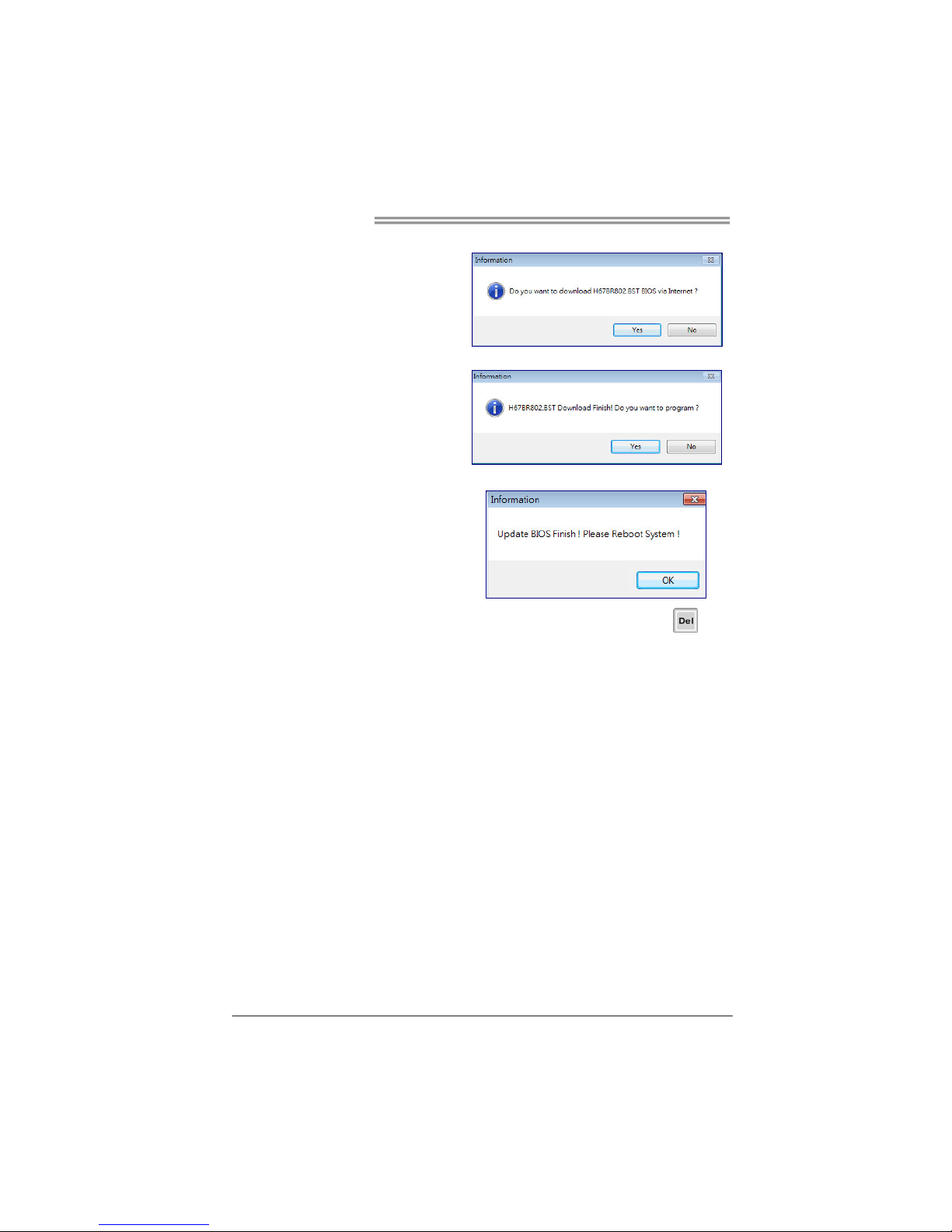

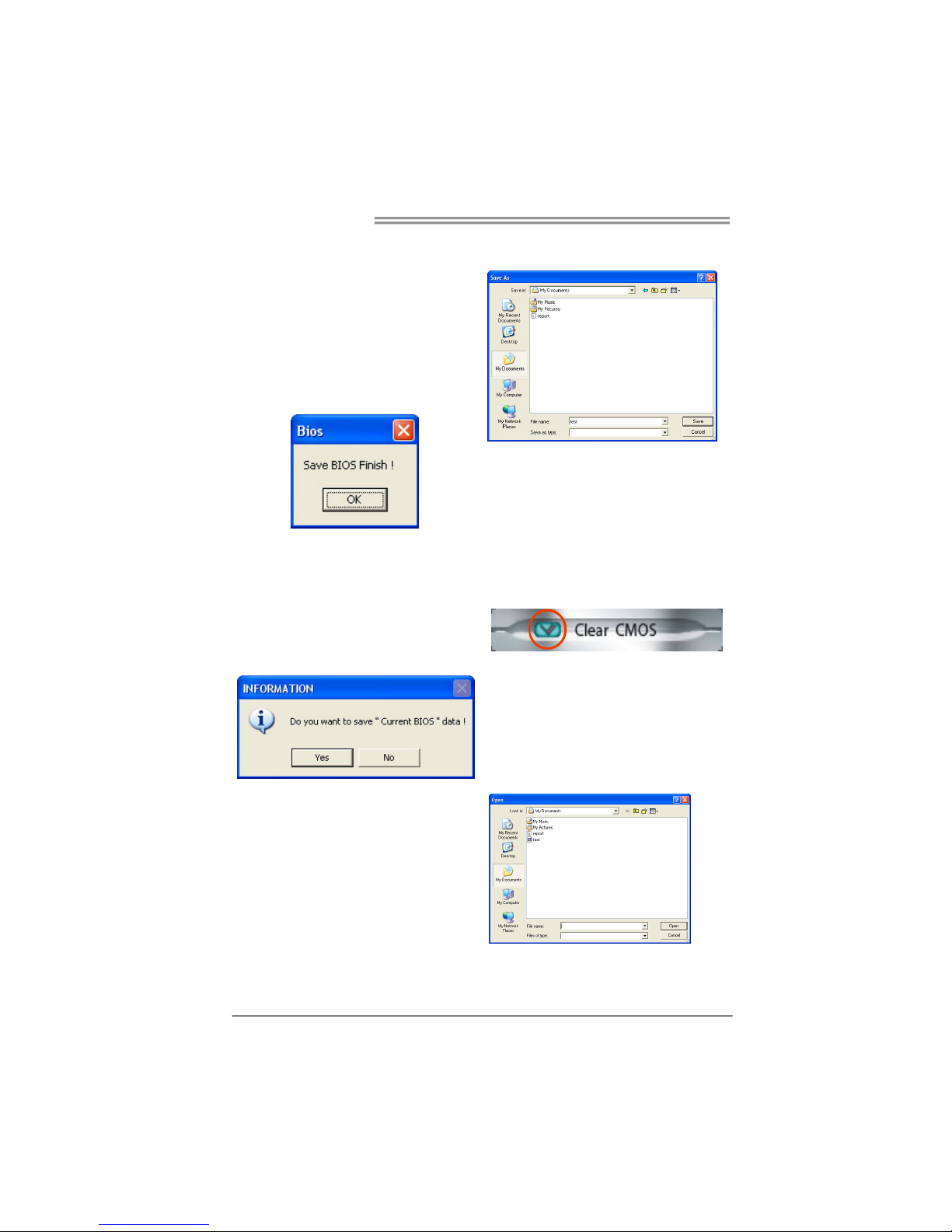

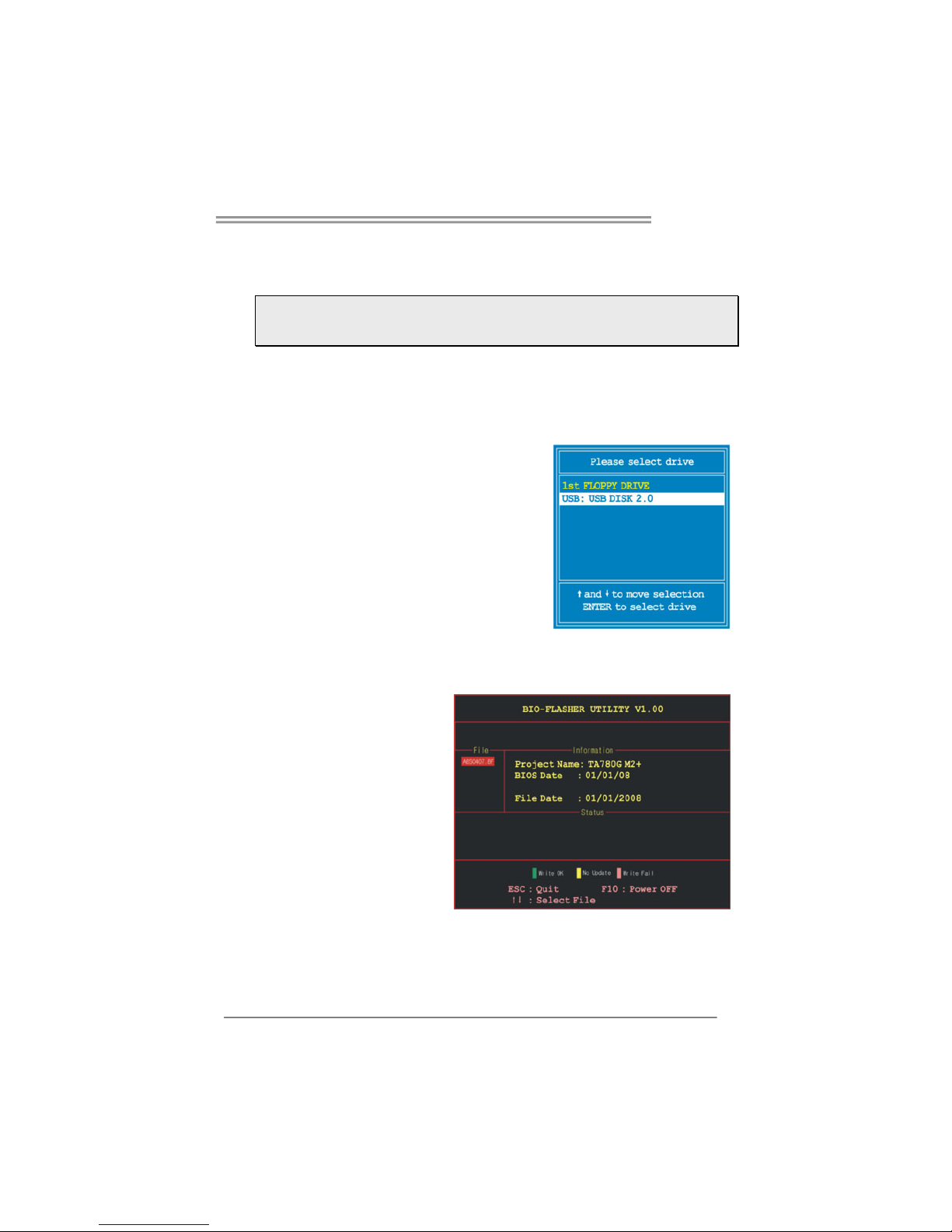

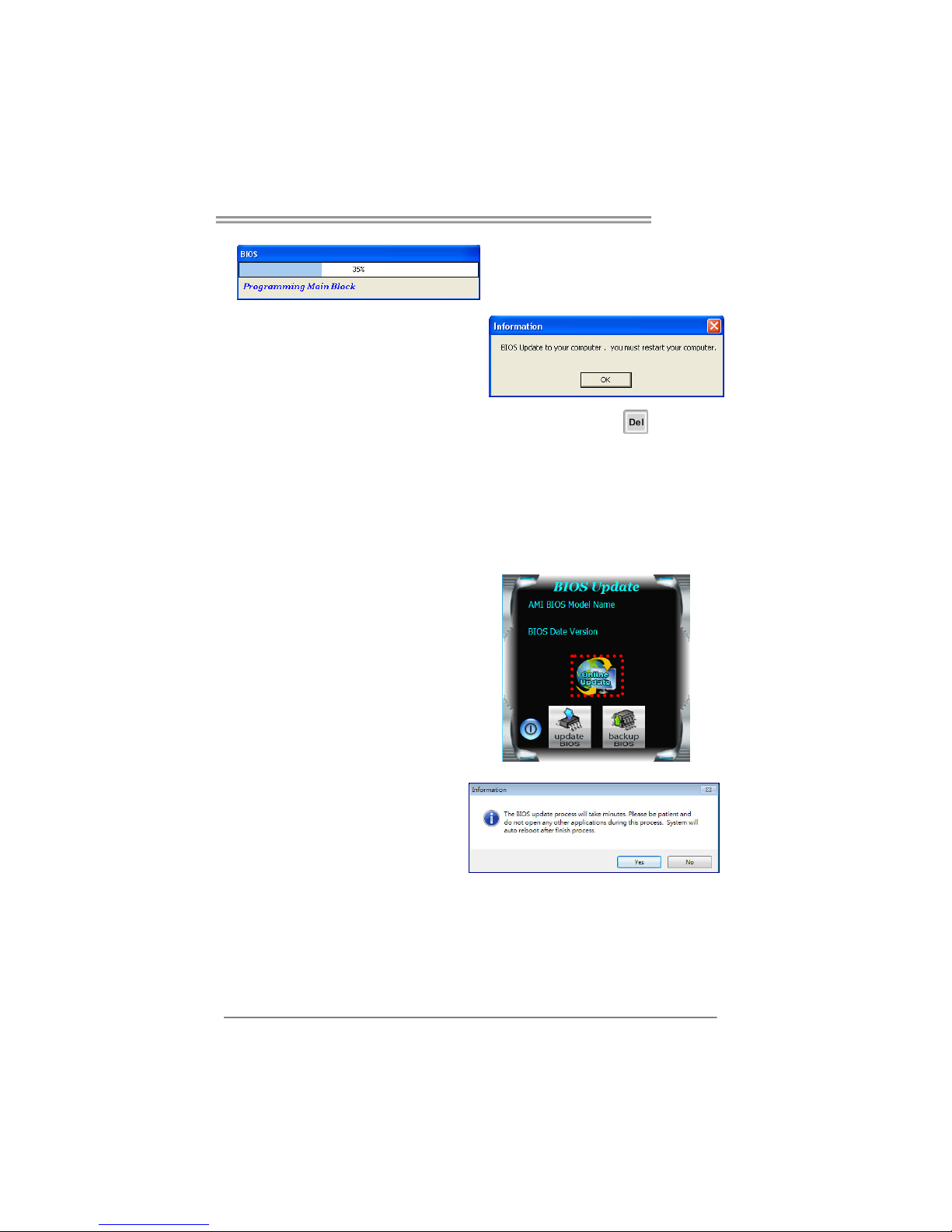

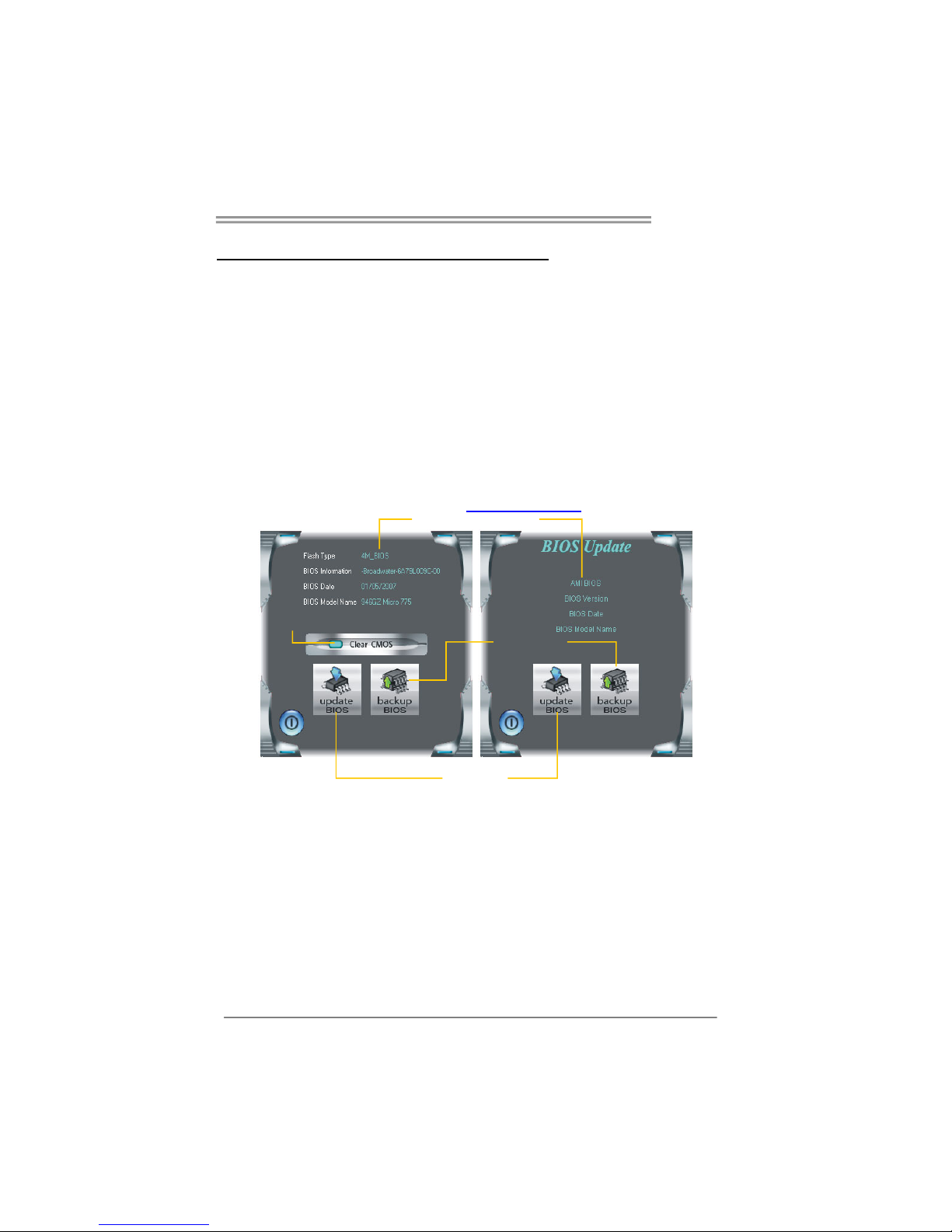

3.2 BIOS Update .................................................................................... 17

3.3 Software ............................................................................................ 22

Chapter 4: Useful Help ......................................... 25

4.1 Driver Installation ............................................................................. 25

4.2 Troubleshooting ............................................................................... 26

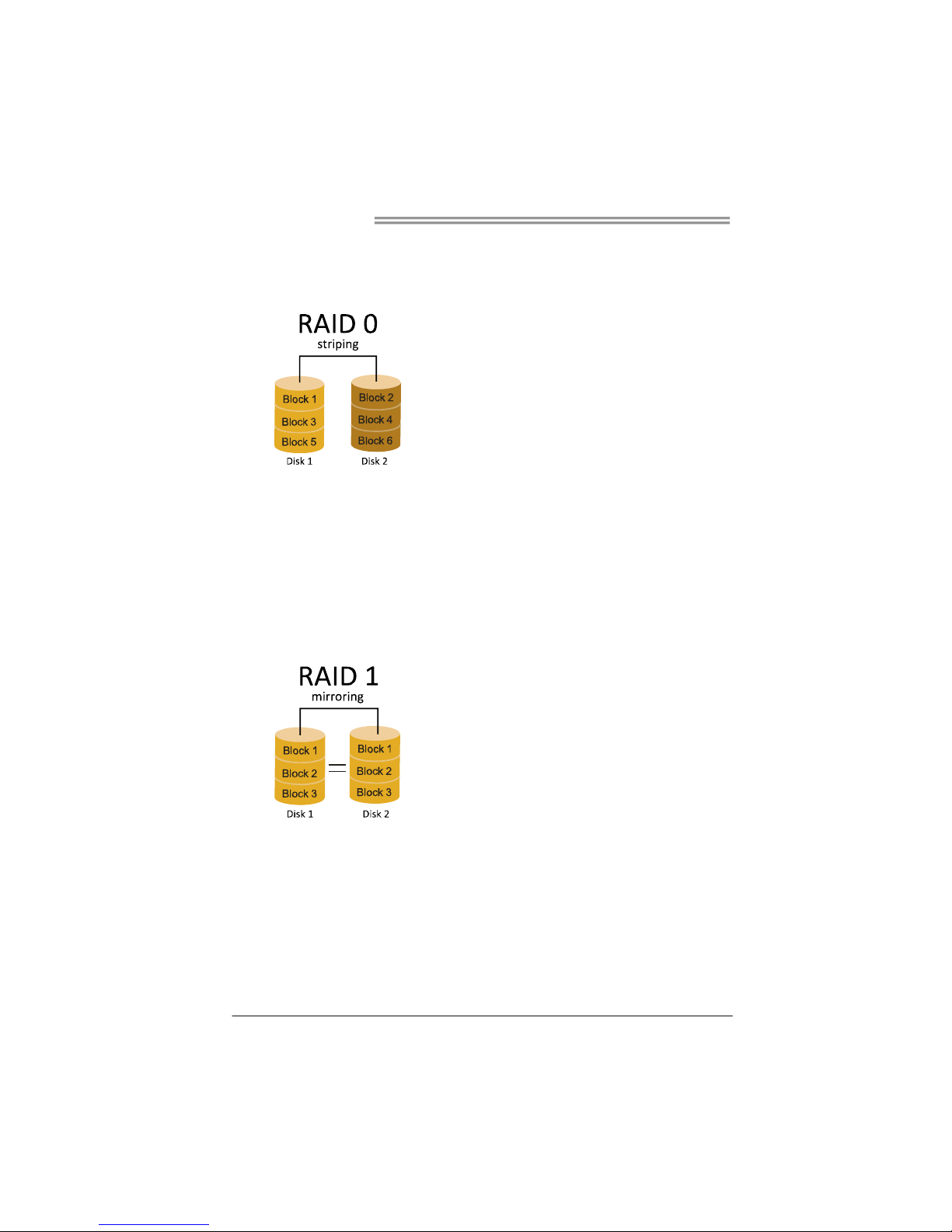

4.3 RAID Functions ............................................................................... 28

Appendix: Specifications In Other Languages ...... 30

German ................................................................................................................. 30

French ................................................................................................................... 32

Italian ..................................................................................................................... 34

Spanish .................................................................................................................. 36

Portuguese ........................................................................................................... 38

Polish ..................................................................................................................... 40

Russian ................................................................................................................. 42

Arabic ..................................................................................................................... 44

Japanese ............................................................................................................... 46

Page 3

A780L3C2

CHAPTER 1: INTRODUCTION

1.1 Before You Start

Thank you for choosing our product. Before you start installing the motherboard, please make sure you follow the instructions below:

 Prepare a dry and stable working environment with sufficient

lighting.

 Always disconnect the computer from power outlet before

operation.

 Before you take the motherboard out from anti-static bag,

ground yourself properly by touching any safely grounded appliance, or use grounded wrist strap to remove the static charge.

 Avoid touching the components on motherboard or the rear

side of the board unless necessary. Hold the board on the edge, do not try to bend or flex the board.

 Do not leave any unfastened small parts inside the case after

installation. Loose parts will cause short circuits which may damage the equipment.

 Keep the computer from dangerous area, such as heat

source, humid air and water.

 The operating temperatures of the computer should be 0 to

45 degrees Celsius.

 To avoid injury, be careful of:

Sharp pins on headers and connectors Rough edges and sharp corners on the chassis Damage to wires that could cause a short circuit

1.2 Package Checklist

 Serial ATA Cable x2  Rear I/O Panel for ATX Case x1  Installation Guide x1  Fully Setup Driver CD x1

Note: The package contents may be different due to the sales region or models in which it was sold. For more information about the standard package in your region, please contact your dealer or sales representative.

Page 4

Motherboard Manual

1.3 Motherboard Specifications

SPEC

CPU

Socket AM3

AMD Sempron / Phenom II / Athlon II

processors (Maximum Watt: 95W)

AMD 64 Architecture enables 32 and 64 bit

computing

Supports Hyper Transport 2.0

FSB

Support Hyper Transport 3.0

Supports up to 3.2 GT/s Bandwidth

Chipset

AMD 890GX

AMD SB710

Super I/O

ITE 8728F-BX

Provides the most commonly used legacy

Super I/O functionality

Low Pin Count Interface

Environment Control initiatives

H/W Monitor

ITE's "Smart Guardian" function

Main

Memory

DDR3 DIMM Slots x 2

Max Memory Capacity 16GB

Each DIMM supports 512MB/1GB/

2GB/4GB/8GB DDR3

Dual Channel Mode DDR3 memory module

Supports DDR3 800/1066/1333/1600(OC)

Registered DIMM and ECC DIMM is not supported

Graphics

Integrated in AMD 890GX Chipset HD4290, Max Shared Video Memory is 1024MB

SATA II

Integrated Serial ATA Controller

Data transfer rates up to 3 Gb/s

SATA Version 2.0 specification compliant

LAN

Realtek RTL 8106E 10 / 100 Mb/s auto negotiation

Sound

ALC662

5.1 channels audio out

High Definition Audio

Slots

PCI Express X16 slot x1 Supports PCI-E X16 expansion card

PCI slot x1 Supports PCI expansion cards

On Board

Connectors

SATA Connector x4 Each connector supports 1 SATA device

IDE Connector x1 Each connector supports 2 IDE device

Front Panel Connector x1 Supports front panel facilities

Front Audio Connector x1 Supports front panel audio function

CPU Fan Header x1 CPU Fan power supply (with Smart Fan function)

Page 5

A780L3C2

SPEC

System Fan Header x1 System Fan Power supply

CMOS Clear Jumper x1 Restore CMOS data to factory default setting

USB Connector x2 Each connector supports 2 front panel USB ports

Power Connector (24pin) x1 Connects to Power supply

Power Connector (4pin) x1 Connects to Power supply

Printer Port Connector x1 Each connector supports 1 Printer port

Back Panel

I/O

PS/2 Keyboard x1

PS/2 Mouse x1

VGA port x1

LAN port x1

USB Port x4

Audio Jack x3

Connects to PS/2 Keyboard

Connects to PS/2 Mouse

Connect to D-SUB monitor

Connect to RJ-45 Ethernet cable

Connect to USB devices

Provide Audio-In/Out and microphone connection

Board Size

182 mm(W) x 225 mm(L)

Special

Features

RAID 0 / 1 / 10 support

Support

Windows XP / Vista / 7

Biostar reserves the right to add or remove support

for any OS With or without notice.

1.4 Rear Panel Connectors

Page 6

Motherboard Manual

1.5 Motherboard Layout

Note: ■ represents the 1st pin.

Page 7

A780L3C2

CHAPTER 2: HARDWARE INSTALLATION

2.1 Install Central Processing Unit (CPU)

Step 1: Locate the CPU socket on the motherboard

Step 2: Pull the socket locking out from the socket and then raise the lever up to a

90-degree angel.

Step 3: Look for the white triangle on socket, and the gold triangle on CPU should

point towards this white triangle. The CPU will fit only in the correct orientation.

Note: The CPU fits only in one correct orientation. Do not force the CPU into the socket to prevent damaging the CPU.

Page 8

Motherboard Manual

Step 4: Hold the CPU down firmly, and then close the lever to locked the position

2.2 Install a Heatsink

Step 1: Place the heatsink and fan assembly onto the retention frame. Match the

heatsink clip with the socket mounting-lug. Hook the spring clip to the mounting-lug.

Step 2: On the other side, push the retention clip straight down to lock into the

plastic lug on the retention frame, and then press down the locker until it stops.

Note1: Do not forget to connect the CPU fan connector. Note2: For proper installation, please kindly refer to the installation manual of your CPU heatsink.

Page 9

A780L3C2

2.3 Connect Cooling Fans

These fan headers support cooling-fans built in the computer. The fan cable and connector may be different according to the fan manufacturer. Connect the fan cable to the connector while matching the black wire to pin#1.

CPU_FAN1: CPU Fan Header

Pin Assignment

1 Ground 2 +12V 3

FAN RPM rate sense

4 Smart Fan Control (By Fan)

SYS_FAN1: System Fan Header

Pin Assignment

1 Ground 2 +12V 3 FAN RPM rate sense

Note: CPU_FAN1, SYS_FAN1 support 4-pin and 3-pin head connectors. When connecting with wires onto connectors, please note that the red wire is the positive and should be connected to pin#2, and the black wire is Ground and should be connected to GND.

Page 10

Motherboard Manual

2.4 Installing System Memory

A. DDR3 Memory Modules

Step 1: Unlock a DIMM slot by pressing the retaining clips outward. Align a DIMM

on the slot such that the notch on the DIMM matches the break on the slot.

Step 2: Insert the DIMM vertically and firmly into the slot until the retaining clips

snap back in place and the DIMM is properly seated.

Note: If the DIMM does not go in smoothly, do not force it. Pull it all the way out and try again.

Page 11

A780L3C2

B. Memory Capacity

DIMM Socket

Location

DDR3 Module

Total Memory

Size

DDR3_A1 512MB/1GB/2GB/4GB/8GB

Max is 16GB.

DDR3_B1 512MB/1GB/2GB/4GB/8GB

C. Dual Channel Memory installation

Please refer to the following requirements to activate Dual Channel function: Install memory module of the same density in pairs, shown in the table.

Dual Channel Status

DDR3_A1

DDR3_B1

Disabled O X Disabled X O

Enabled O O

(O means memory installed, X means memory not installed.)

Note: When installing more than one memory module, we recommend to use the same brand and capacity memory on this motherboard.

2.5 Expansion Slots

PEX16_1: PCI-Express X16 Slot

- PCI-Express 2.0 compliant.

- Maximum theoretical realized bandwidth of 4GB/s simultaneously per

direction, for an aggregate of 8GB/s totally.

- PCI-Express supports a raw bit-rate of 2.5Gb/s on the data pins.

PCI1: Peripheral Component Interconnect Slot

- This motherboard is equipped with 1 standard PCI slot. PCI stands for Peripheral Component Interconnect, and it is a bus standard for expansion cards. This PCI slot is designated as 32 bits.

Page 12

Motherboard Manual

2.6 Jumper Setting

The illustration shows how to set up jumpers. When the jumper cap is placed on pins, the jumper is “close”, if not, that means the jumper is “open”.

Pin opened Pin closed Pin1-2 closed

JCMOS1: Clear CMOS Jumper

Placing the jumper on pin2-3 allows user to restore BIOS safe setting and CMOS data. Pease carefully follow the procedures to avoid damaging the motherboard.

Pin 1-2 Close:

Normal Operation

(default).

Pin 2-3 Close:

Clear CMOS data.

※

Clear CMOS Procedures:

1. Remove AC power line.

2. Set the jumper to “Pin 2-3 close”.

3. Wait for five seconds.

4. Set the jumper to “Pin 1-2 close”.

5. Power on the AC.

6. Load Optimal Defaults and save settings in CMOS.

Page 13

A780L3C2

2.7 Headers & Connectors

ATXPWR1: ATX Power Source Connector

This connector allows user to connect 24-pin power connector on the ATX power supply.

Pin Assignment Pin Assignment

13 +3.3V 1 +3.3V 14 -12V 2 +3.3V 15 Ground 3 Ground 16 PS_ON 4 +5V 17 Ground 5 Ground 18 Ground 6 +5V 19 Ground 7 Ground 20 NC 8 PW_OK 21 +5V 9 Standby Voltage+5V 22 +5V 10 +12V 23 +5V 11 +12V 24 Ground 12 +3.3V

ATXPWR2: ATX Power Source Connector

This connector provides +12V to CPU power circuit.

Pin Assignment

1 +12V 2 +12V 3 Ground 4 Ground

Note1: Before you power on the system, please make sure that both ATXPWR1 and ATXPWR2 connectors have been plugged-in. Note2: Insufficient power supplied to the system may result in instability or the peripherals not functioning properly. Use of a PSU with a higher power output is recommended when configuring a system with more power-consuming devices.

Page 14

Motherboard Manual

PANEL1: Front Panel Header

This 16-pin connector includes Power-on, Reset, HDD LED, Power LED, and speaker connection. It allows user to connect the PC case’s front panel switch functions.

Pin Assignment Function Pin Assignment Function

1+5V

Speaker Connector

9 N/A

N/A

2N/A 10N/A 3 N/A 11 N/A N/A 4 Speaker 12 Power LED (+)

Power LED

5 HDD LED (+)

Hard drive LED

13 Power LED (+) 6 HDD LED (-) 14 Power LED (-) 7 Ground

Reset button

15 Power button

Power-on button

8 Reset control 16 Ground

SATA1~SATA4: Serial ATA Connectors

These connectors connect to SATA hard disk drives via SATA cables. It satisfies the SATA 2.0 spec and with transfer rate of 3Gb/s.

Pin Assignment

1 Ground 2 TX+ 3 TX4 Ground 5 RX6 RX+ 7 Ground

Page 15

A780L3C2

IDE1: Hard Disk Connector

The motherboard has a 32-bit Enhanced IDE Controller that provides PIO Mode 0~4, Bus Master, Multi-word DMA, and Ultra DMA 33/66/100/133 functionality.

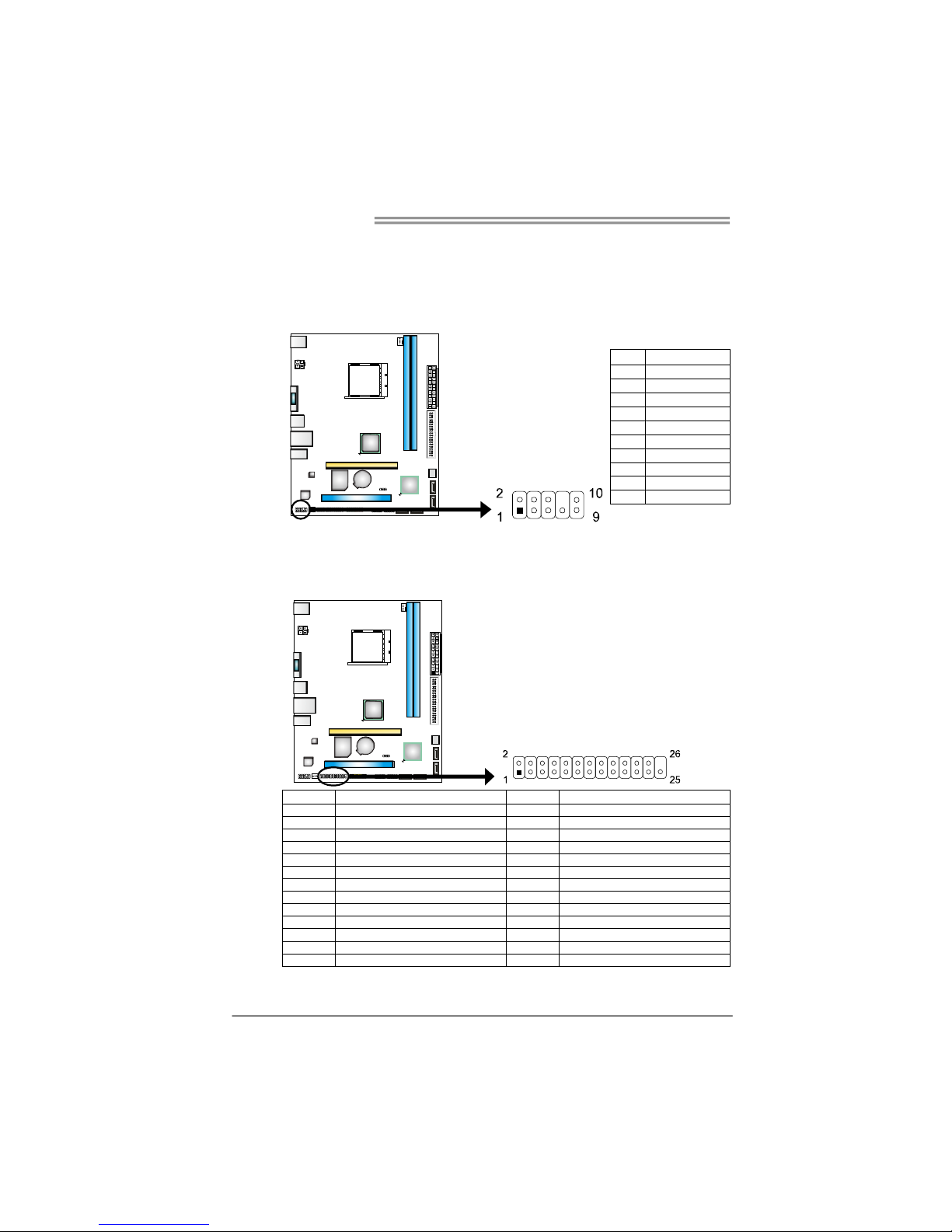

F_USB1/F_USB2: Headers for USB 2.0 Ports at Front Panel

These headers allow user to connect additional USB cable on the PC front panel, and also can be connected with internal USB devices, like USB card reader.

Pin Assignment

1 +5V (fused) 2 +5V (fused) 3 USB4 USB5 USB+ 6 USB+ 7 Ground 8 Ground 9 NC

10 Key

Page 16

Motherboard Manual

F_AUDIO1: Front Panel Audio Header

This header allows user to connect the front audio output cable with the PC front panel. This header allows only HD audio front panel connector; AC’97 connector is not acceptable.

Pin Assignment

1 Mic Left in 2 Ground 3 Mic Right in 4 GPIO 5 Right line in 6 Jack Sense 7 Front Sense 8 Key 9 Left line in

10 Jack Sense

J_PRINT1: Printer Port Connector

This header allows you to connector printer on the PC.

Pin Assignment Pin Assignment

1 -Strobe 14 Ground 2 -ALF 15 Data 6 3 Data 0 16 Ground 4 -Error 17 Data 7 5 Data 1 18 Ground 6 -Init 19 -ACK 7 Data 2 20 Ground 8 -Scltin 21 Busy

9 Data 3 22 Ground 10 Ground 23 PE 11 Data 4 24 Ground 12 Ground 25 SCLT 13 Data 5 26 Key

Page 17

A780L3C2

CHAPTER 3: BIOS & SOFTWARE

3.1 BIOS Setup

 For better system performance, the BIOS firmware is being continuously

updated. The BIOS information described below in this manual is for your reference only and the actual BIOS information and settings on board may be different from this manual

 For further information of setting up the BIOS, please refer to the BIOS

Manual in the Setup DVD.

3.2 BIOS Update

There are three ways to update the BIOS: BIOS Update Utility, BIOS Online Update Utility and BIOS Flasher.

1. BIOS Update Utility

1. Installing BIOS Update Utility from the DVD Driver.

2. Download the proper BIOS from www.biostar.com.tw

Update BIOS

with a BIOS file

Clear CMOS functi on

(Only for AWARD BIOS)

Show current BIOS information

Save current BIOS

to a .bin file

AWARD BIOS AMI BIOS

Page 18

Motherboard Manual

Once click on this button, the saving dialog will show. Choose the position to save file and enter file name. (We recommend that the file name should be English/number and no longer than 7 characters.) Then click Save.

After the saving process, finish dialog will show. Click on OK to complete the BIOS Backup procedure.

Before doing this, please download the proper BIOS file from the website.

For AWARD BIOS, update BIOS procedure should be run with Clear CMOS function, so please check on Clear CMOS first.

Then click Update BIOS button, a dialog will show for asking you backup current BIOS. Click Yes for BIOS backup and refer to the Backup BIOS procedure; or click No to skip this procedure.

After the BIOS Backup procedure, the open dialog will show for requesting the BIOS file which is going to be updated. Please choose the proper BIOS file for updating, then click on Open.

Page 19

A780L3C2

The utility will update BIOS with the proper BIOS file, and this process may take minutes. Please do not open any other applications during this process.

After the BIOS Update process, click on OK to restart the system.

While the system boots up and the full screen logo shows, press

key to enter BIOS setup.

In the BIOS setup, use the Load Optimized Defaults function and then Save and

Exit Setup to exit BIOS setup. BIOS Update is completed.

2. Online Update Utility

1. Installing BIOS Update Utility from the DVD Driver.

2. Please make sure the system is connected to the internet before using this function.

3. Open BIOS Update Utility and

click the Online Update button on the main screen.

4. An open dialog will show up to

request your agreement to start the BIOS update. Click Yes to start the online update procedure.

Page 20

Motherboard Manual

5. If there is a new BIOS version,

the utility will ask you to download it. Click Yes to proceed.

6. After the download is

completed, you will be asked to program (update) the BIOS or not. Click Yes to proceed.

7. After the updating process is

finished, you will be asked you to reboot the system. Click OK to reboot.

8. While the system boots up and the full screen logo shows up, press <Delete> key to enter BIOS setup.

After entering the BIOS setup, please go to the Save & Exit, using the Restore

Defaults function to load Optimized Defaults, and select Save Changes and Reset to restart the computer. Then, the BIOS Update is completed.

Page 21

A780L3C2

3. BIOSTAR BIOS Flasher

BIOSTAR BIOS Flasher is a BIOS flashing utility providing you an easy and simple way to update your BIOS via USB pen drive.

Note1: This utility only allows storage device with FAT32/16 format and single partition. Note2: Shutting down or resetting the system while updating the BIOS will lead to system

boot failure.

The BIOSTAR BIOS Flasher is built in the BIOS ROM. To enter the utility, press

<F12> during the Power-On Self Tests (POST) procedure while booting up.

Updating BIOS with BIOSTAR BIOS Flasher

1. Go to the website to download the latest BIOS file for the motherboard.

2. Then, save the BIOS file into a USB pen drive or a floppy disk.

3. Insert the USB pen drive or the floppy disk that contains the BIOS file to the USB port or the floppy disk drive.

4. Power on or reset the computer and then press <F12> during the POST process. A select dialog as the picture on the right appears. Select the device contains the BIOS file and press <Enter> to enter the utility.

5. The utility will show the BIOS files and their respective information. Select the proper BIOS file and press <Enter> then <Y> to perform the BIOS update process.

6. After the update process, the utility will ask you to reboot the system. Press <Y> to proceed. BIOS update completes.

Page 22

Motherboard Manual

3.3 Software

Installing Software

1. Insert the Setup CD to the optical drive. The drivers installation program would appear if the Autorun function has been enabled.

2. Select Software Installation, and then click on the respective software title.

3. Follow the on-screen instructions to complete the installation.

Note1: All the information and content about following software are subject to be changed without notice. For better performance, the software is being continuously updated. Note2: The information and pictures described below are for your reference only. The actual information and settings on board may be slightly different from this manual.

Launching Software

After the installation process, you will see the software icon “eHOT Line” / “BIOS Update” appears on the desktop. Double-click the icon to launch the utility.

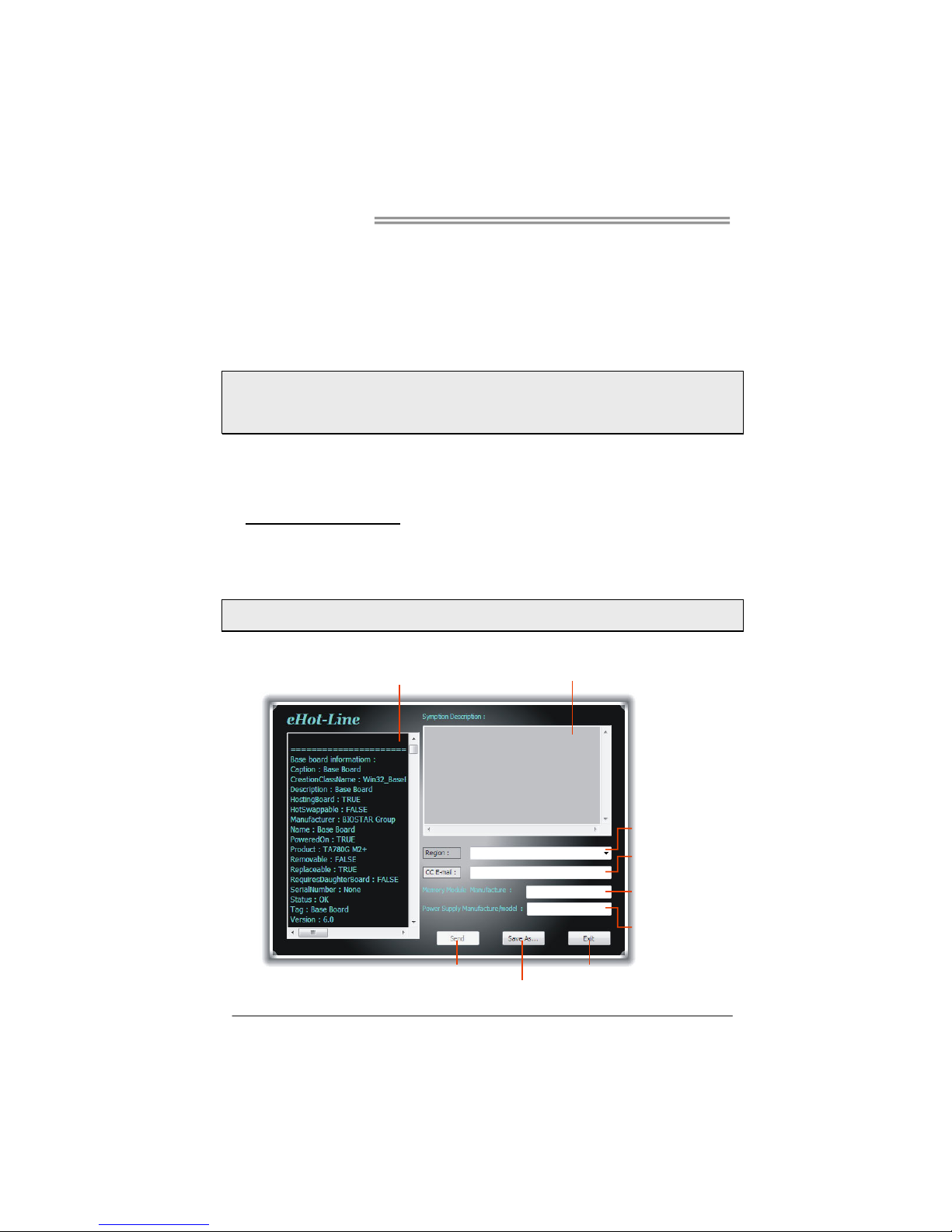

eHot-Line (Optional)

eHot-Line is a convenient utility that helps you to contact with our Tech-Support system. This utility will collect the system information which is useful for analyzing the problem you may have encountered, and then send these information to our tech-support department to help you fix the problem.

Note: Before you use this utility, please set Outlook Express as your default e-mail client application program.

This block will show th e info rmat ion wh ich wou ld be co llec ted i n the mail.

Pro vide t he e- mail address that you would like to send the copy to.

Pro vide the na me of the power supply manufacturer and the model no.

Send the mail out.

Sav e thes e info rmat ion t o a .txt file

Exit this dialog .

Select your area or the area close to you.

Pro vid e th e name of the memory module manufacturer.

Describe condition of your system.

represent s important in forma tion t hat y ou must provide. Without this information, you may not be able to send out the mail.

Page 23

A780L3C2

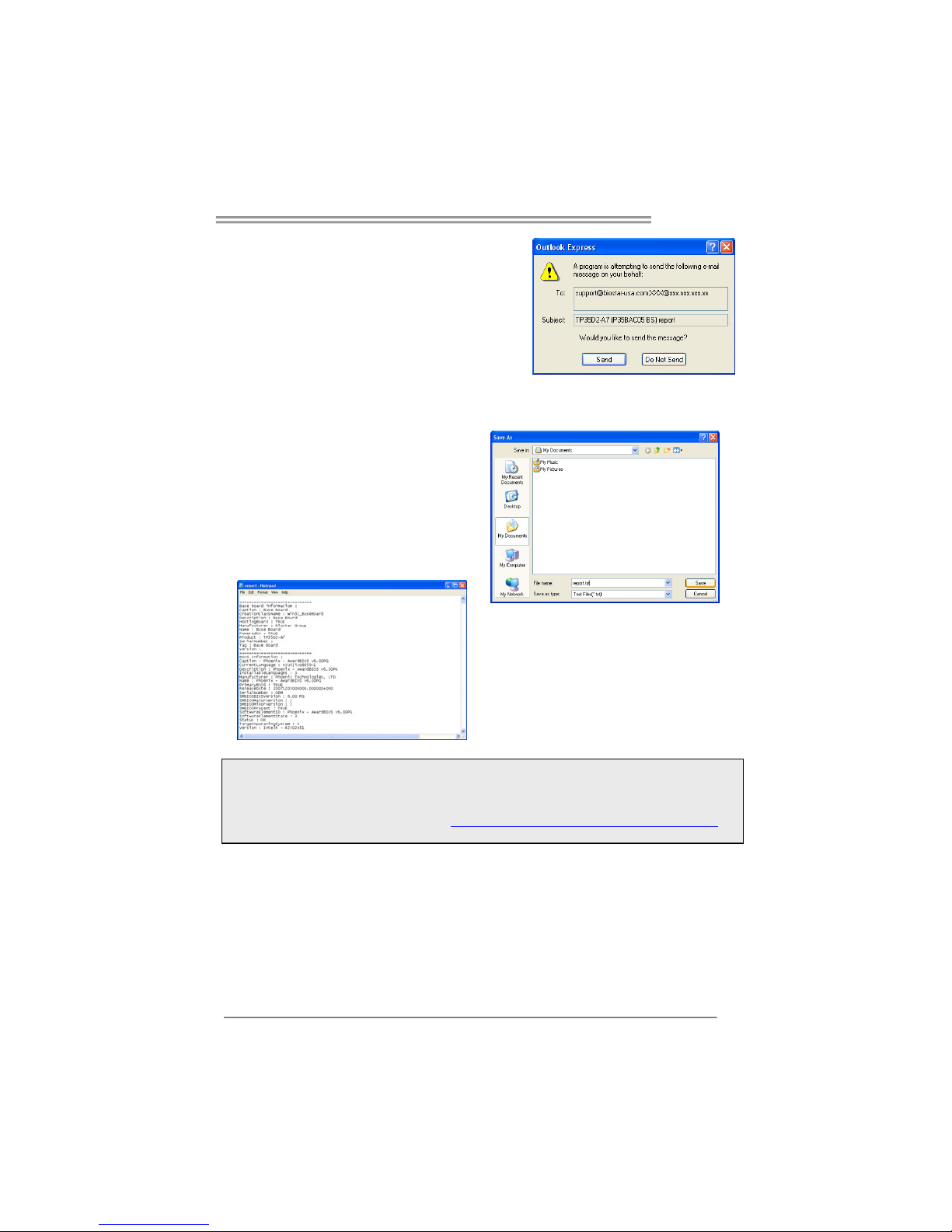

After filling up this information, click “Send” to send the mail out. A warning dialog would appear asking for your confirmation; click “Send” to confirm or “Do Not Send” to cancel.

If you want to save this information to a .txt file, click “Save As…” and then you will see a saving dialog appears asking you to enter file name.

Enter the file name and then click “Save”. Your system information will be saved to a .txt file.

Open the saved .txt file, you will see your system information including motherboard/BIOS/CPU/video/ device/OS information. This information is also concluded in the sent mail.

Note1: We will not share customer’s data with any other third parties, so please feel free to provide your system information while using eHot-Line service. Note2: If you are not using Outlook Express as your default e-mail client application, you may need to save the system information to a .txt file and send the file to our tech support with other e-mail application. Go to the following web http://www.biostar.com.tw/app/en/about/contact.php for getting our contact information.

Page 24

Motherboard Manual

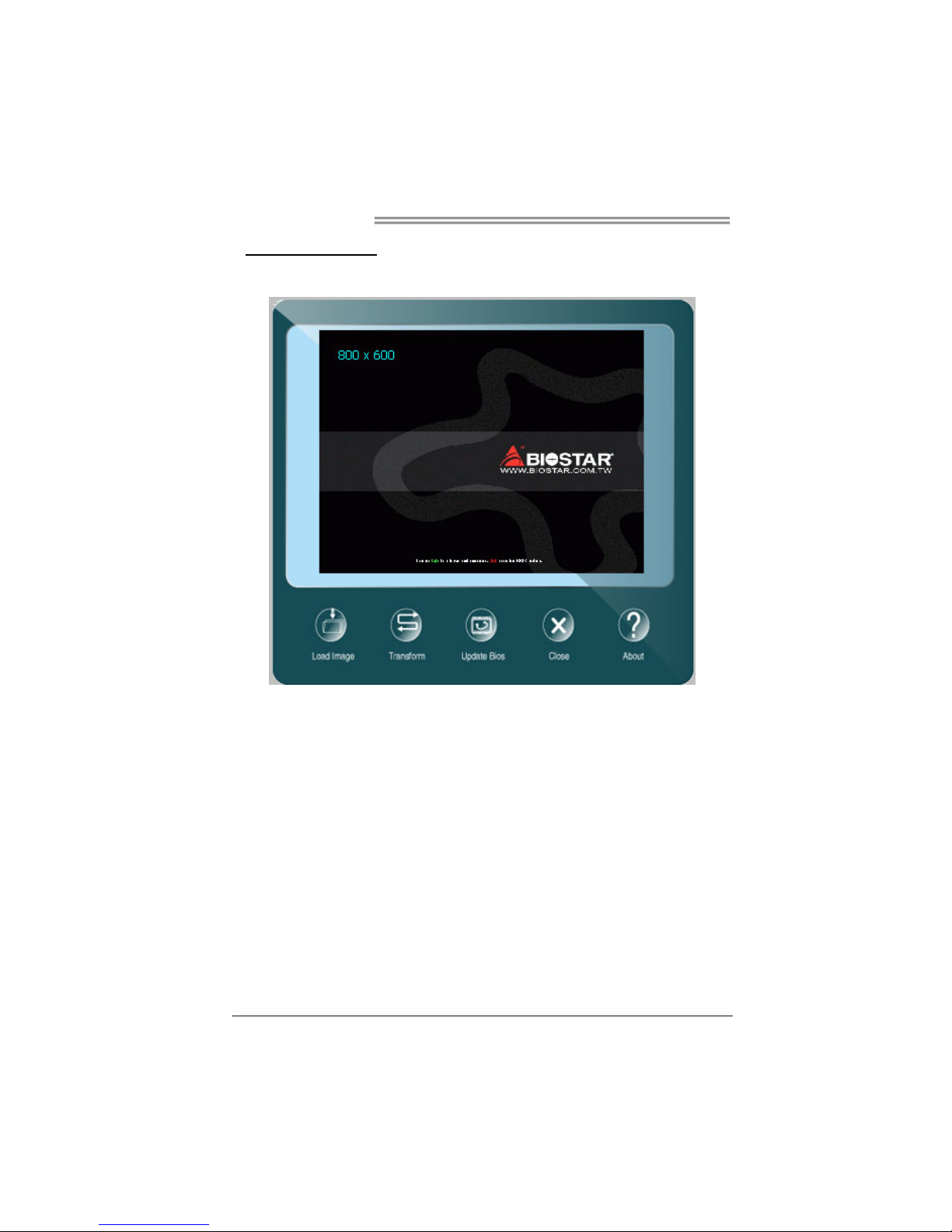

BIOScreen Utility

This utility allows you to personalize your boot logo easily. You can choose BMP as your boot logo so as to customize your computer.

Please follow the following instructions to update boot logo:

1. Load Image：Choose the picture as the boot logo.

2. Transform：Transform the picture for BIOS and preview the result.

3. Update Bios：Write the picture to BIOS Memory to complete the update.

Page 25

A780L3C2

CHAPTER 4: USEFUL HELP

4.1 Driver Installation

After you installed your operating system, please insert the Fully Setup Driver DVD into your optical drive and install the driver for better system performance.

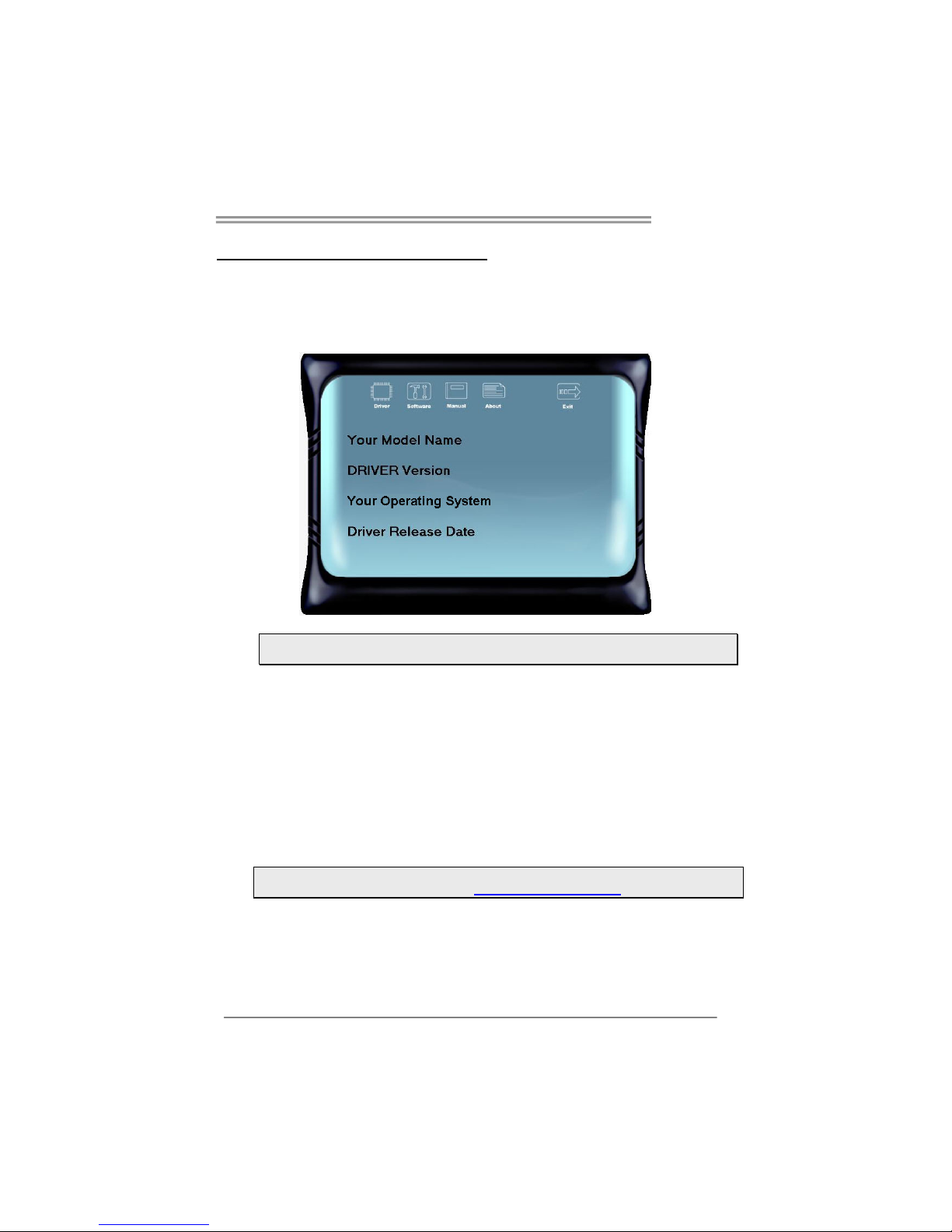

You will see the following window after you insert the DVD

The setup guide will auto detect your motherboard and operating system.

Note: If this window didn’t show up after you insert the Driver DVD, please use file browser to locate and execute the file SETUP.EXE under your optical drive.

A. Driver Installation

To install the driver, please click on the Driver icon. The setup guide will list the compatible driver for your motherboard and operating system. Click on each device driver to launch the installation program.

B. Software Installation

To install the software, please click on the Software icon. The setup guide will list the software available for your system, click on each software title to launch the installation program.

C. Manual

Aside from the paperback manual, we also provide manual in the Driver DVD. Click on the Manual icon to browse for available manual.

Note: You will need Acrobat Reader to open the manual file. Please download the latest version of Acrobat Reader software from http://get.adobe.com/reader/

Page 26

Motherboard Manual

4.2 Troubleshooting

Probable Solution

1. There is no power in the system. Power LED does not shine; the fan of the power supply does not work

2. Indicator light on keyboard does not shine.

1. Make sure power cable is securely plugged in.

2. Replace cable.

3. Contact technical support.

System is inoperative. Keyboard lights are on, power indicator lights are lit, and hard drives are running.

Using even pressure on both ends of the DIMM, press down firmly until the module snaps into place.

System does not boot from a hard disk drive, but can be booted from optical drive.

1. Check cable running from disk to disk controller board. Make sure both ends are securely plugged in; check the drive type in the standard CMOS setup.

2. Backing up the hard drive is extremely important. All hard disks are capable of breaking down at any time.

System only boots from an optical drive. Hard disks can be read, applications can be used, but system fails to boot from a hard disk.

1. Back up data and applications files.

2. Reformat the hard drive. Re-install applications and data using backup disks.

Screen message shows “Invalid Configuration” or “CMOS Failure.”

Review system’s equipment. Make sure correct information is in setup.

System cannot boot after user installs a second hard drive.

1. Set master/slave jumpers correctly.

2. Run SETUP program and select correct drive types. Call the drive manufacturers for compatibility with other drives.

Page 27

A780L3C2

CPU Overheated

If the system shutdown automatically after power on system for seconds, that means the CPU protection function has been activated.

When the CPU is over heated, the motherboard will shutdown automatically to avoid a damage of the CPU, and the system may not power on again.

In this case, please double check:

1. The CPU cooler surface is placed evenly with the CPU surface.

2. CPU fan is rotated normally.

3. CPU fan speed is fulfilling with the CPU speed.

After confirmed, please follow steps below to relief the CPU protection function.

1. Remove the power cord from power supply for seconds.

2. Wait for seconds.

3. Plug in the power cord and boot up the system.

Or you can:

1. Clear the CMOS data. (See “Close CMOS Header: JCMOS1” section)

2. Wait for seconds.

3. Power on the system again.

Page 28

Motherboard Manual

4.3 RAID Functions

RAID Definitions

RAID 0:

In a RAID 0 system data are split up in blocks that get written across all the drives in the array. By using multiple disks (at least 2) at the same time, this offers superior I/O performance. This performance can be enhanced further by using multiple controllers, ideally one controller per disk.

Features and Benefits

 Drives: Minimum 2, and maximum is up to 6 or 8. Depending on the platform.  Uses: Intended for non-critical data requiring high data throughput, or any

environment that does not require fault tolerance.

 Benefits: provides increased data throughput, especially for large files. No capacity

loss penalty for parity.

 Drawbacks: Does not deliver any fault tolerance. If any drive in the array fails, all data

is lost.

 Fault Tolerance: No.  Total Capacity: (Minimal. HDD Capacity) x (Connected HDDs Amount)

RAID 1:

Data are stored twice by writing them to both the data disk(or set of data disks) and a mirror disk (or set of disks). If a disk fails, the controller uses either the data drive or the mirror drive for data recovery and continues operation. You need at least 2 disks for a RAID 1 array.

Features and Benefits

 Drives: Minimum 2, and maximum is 2.  Uses: RAID 1 is ideal for small databases or any other application that requires fault

tolerance and minimal capacity.

 Benefits: Provides 100% data redundancy. Should one drive fail, the controller

switches to the other drive.

 Drawbacks: Requires 2 drives for the storage space of one drive. Performance is

impaired during drive rebuilds.

 Fault Tolerance: Yes .

Page 29

A780L3C2

RAID 10:

RAID 10 combines the advantages (and disadvantages) of RAID 0 and RAID 1 in one single system. It provides security by mirroring all data on a secondary set of disks (disk 3 and 4 in the drawing below) while using striping across each set of disks to speed up data transfers.

Features and Benefits

 Drives: Minimum 4, and maximum is 6 or 8, depending on the platform.  Benefits: Optimizes for both fault tolerance and performance, allowing for automatic

redundancy. May be simultaneously used with other RAID levels in an array, and allows for spare disks.

 Drawbacks: Requires twice the available disk space for data redundancy, the same

as RAID level 1.



Fault Tolerance: Yes .

Page 30

Motherboard Manual

APPENDIX: Specifications In Other Languages

German

Spezifikationen

CPU

Sockel AM3

AMD Sempron / Phenom II / Athlon II

Prozessoren (Maximales Watt: 95W)

Die AMD 64-Architektur unterstützt eine 32-Bit- und

64-Bit-Datenverarbeitung

Unterstützt Hyper Transport 2.0

FSB

Unterstützt Hyper Transport 3.0 mit einer

Bandbreite von bis zu 3.2 GT/s

Chipsatz

AMD 890GX

AMD SB710

Super E/A

ITE8728F-BX

Bietet die häufig verwendeten alten Super

E/A-Funktionen.

Low Pin Count-Schnittstelle

Umgebungskontrolle,

Hardware-Überwachung

"Smart Guardian"-Funktion von ITE

Arbeitsspeic

her

DDR3 DIMM-Steckplätze x 2

Max. 16GB Arbeitsspeicher

Jeder DIMM unterstützt 512MB/1GB/

2GB/4GB/8GB DDR3.

Dual-Kanal DDR3 Speichermodul

Unterstützt DDR3 800/1066/1333/1600(OC)

registrierte DIMMs. ECC DIMMs werden nicht

unterstützt.

Grafik

Integrierter AMD 890GX-Chipsatz

HD4290, Max. 1024MB gemeinsam benutzter

Videospeicher

SATA

Integrierter Serial ATA-Controller

Datentransferrate bis zu 3 Gb/s

Konform mit der SATA-Spezifikation Version 2.0.

LAN

Realtek RTL 8106E 10 / 100 Mb/s Auto-Negotiation

Audio-Unters

tützung

ALC662

5.1-Kanal-Audioausgabe

Unterstützt High-Definition Audio

Steckplätz e

PCI Express X16 Steckplatz x1

PCI-Steckplatz x1

Onboard-Ans

chluss

SATA-Anschluss x4 Jeder Anschluss unterstützt 1 SATA-Laufwerk

IDE-Anschluss x1 Jeder Anschluss unterstützt 2 IDE-Laufwerke

Page 31

A780L3C2

Spezifikationen

Fronttafelanschluss x1 Unterstützt die Fronttafelfunktionen

Front-Audioanschluss x1 Unterstützt die Fronttafel-Audioanschlussfunktion

CPU-Lüfter-Sockel x1

CPU-Lüfterstromversorgungsanschluss (mit Smart

Fan-Funktion)

System-Lüfter-Sockel x1 System-Lüfter-Stromversorgungsanschluss

"CMOS löschen"-Sockel x1

USB-Anschluss x2

Jeder Anschluss unterstützt 2

Fronttafel-USB-Anschlüsse

Stromanschluss (24-polig) x1

Stromanschluss (4-polig) x1

Druckeranschluss Anschluss x1 Jeder Anschluss unterstützt 1 Druckeranschluss

Rückseiten-E

PS/2-Tastatur x1

PS/2-Maus x1

VGA-Anschluss x1

LAN-Anschluss x1

USB-Anschluss x4

Audioanschluss x3

Platinengröß

182 mm (B) X 225 mm (L)

Sonderfunkti

onen

Unterstützt RAID 0 / 1 / 10

OS-Unterstüt

zung

Windows XP / Vista / 7

Biostar behält sich das Recht vor, ohne

Ankündigung die Unterstützung für ein

Betriebssystem hinzuzufügen oder zu entfernen.

Page 32

Motherboard Manual

French

SPEC

Socket AM3

Processeurs AMD Sempron / Phenom II /

Athlon II (Watt maximum : 95W)

L'architecture AMD 64 permet le calcul 32 et 64 bits

Prend en charge Hyper Transport 2.0

Bus frontal

Prend en charge Hyper Transport 3.0

jusqu'à une bande passante de 3.2 GT/s

Chipset

AMD 890GX

AMD SB710

Super E/S

ITE 8728F-BX

Fournit la fonctionnalité de Super E/S

patrimoniales la plus utilisée.

Interface à faible compte de broches

Initiatives de contrôle environnementales,

Moniteur de matériel

Fonction "Gardien intelligent" de l'ITE

Mémoire

principale

Fentes DDR3 DIMM x 2

Capacité mémoire maximale de 16Go

Chaque DIMM prend en charge des

DDR3 de 512Mo/1Go/2Go/4Go/8Go

Module de mémoire DDR3 à mode à double voie

Prend en charge la DDR3 800/1066/1333/1600(OC)

Les DIMM à registres et DIMM avec code correcteurs

d'erreurs ne sont pas prises en charge

Graphiques

Integré dans la chipset AMD 890GX

HD4290, Mémoire vidéo partagée maximale de 1024

SATA

Contrôleur Serial ATA intégré

Taux de transfert jusqu'à 3 Go/s.

Conforme à la spécification SATA Version 2.0

LAN

Realtek RTL 8106E 10 / 100 Mb/s négociation automatique

Prise en

charge

audio HD

ALC662

Sortie audio à 5.1 voies

Prise en charge de l'audio haute définition

Fentes

Fente PCI Express X16 x1

Fente PCI x1

Connecteur

embarqué

Connecteur SATA x4

Chaque connecteur prend en charge 1 périphérique

SATA

Connecteur IDE x1

Chaque connecteur prend en charge 2 périphériques

IDE

Page 33

A780L3C2

SPEC

Connecteur du panneau avant x1 Prend en charge les équipements du panneau avant

Connecteur Audio du panneau avant x1 Prend en charge la fonction audio du panneau avant

Embase de ventilateur UC x1

Alimentation électrique du ventilateur UC (avec

fonction de ventilateur intelligent)

Embase de ventilateur système x1 Alimentation électrique du ventilateur système

Embase d'effacement CMOS x1

Connecteur USB x2

Chaque connecteur prend en charge 2 ports USB de

panneau avant

Connecteur d'alimentation x1

(24 broches)

Connecteur d'alimentation x1

(4 broches)

Connecteur de Port d'imprimante x1

Chaque connector prend en charge 1 Port

d'imprimante

E/S du

panneau

arrière

Clavier PS/2 x1

Souris PS/2 x1

Port VGA x1

Port LAN x1

Port USB x4

Fiche audio x3

Dimensions

de la carte

182 mm (l) X 225 mm (H)

Fonctionnal

ités

spéciales

Prise en charge RAID 0 / 1 / 10

Support SE

Windows XP / Vista / 7

Biostar se réserve le droit d'ajouter ou de supprimer le

support de SE avec ou sans préavis.

Page 34

Motherboard Manual

Italian

SPECIFICA

CPU

Socket AM3

Processori AMD Sempron / Phenom II /

Athlon II (Watt massimo: 95W)

L’architettura AMD 64 abilita la computazione 32 e 64

bit

Supporto di Hyper Transport 2.0

FSB

Supporto di HyperTransport 3.0 fino a 3.2

GT/s di larghezza di banda

Chipset

AMD 890GX

AMD SB710

Super I/O

ITE 8728F-BX

Fornisce le funzionalità legacy Super I/O

usate più comunemente.

Interfaccia LPC (Low Pin Count)

Funzioni di controllo dell’ambiente:

Monitoraggio hardware

Funzione "Smart Guardian" di ITE

Memoria

principale

Alloggi DIMM DDR3 x 2

Capacità massima della memoria 16GB

Ciascun DIMM supporta DDR3

512MB/1GB/2GB/4GB/8GB

Modulo di memoria DDR3 a canale doppio

Supporto di DDR3 800/1066/1333/1600(OC)

DIMM registrati e DIMM ECC non sono supportati

Grafica

Integrata nel Chipset AMD 890GX

HD4290, La memoria video condivisa massima è di

1024 MB

SATA

Controller Serial ATA integrato

Velocità di trasferimento dei dati fino a 3 Gb/s.

Compatibile specifiche SATA Versione 2.0.

LAN

Realtek RTL 8106E Negoziazione automatica 10 / 100 Mb/s

Supporto

audio HD

ALC662

Uscita audio 5.1 canali

Supporto audio High-Definition (HD)

Alloggi

Alloggio PCI Express X16 x1

Alloggio PCI x1

Connettori

su scheda

Connettore SATA x4 Ciascun connettore supporta 1 unità SATA

Connettore IDE x1 Ciascun connettore supporta 2 unità IDE

Connettore pannello frontale x1 Supporta i servizi del pannello frontale

Connettore audio frontale x1 Supporta la funzione audio pannello frontale

Page 35

A780L3C2

SPECIFICA

Collettore ventolina CPU x1 Alimentazione ventolina CPU (con funzione Smart Fan)

Collettore ventolina sistema x1 Alimentazione ventolina di sistema

Collettore cancellazione CMOS x1

Connettore USB x2

Ciascun connettore supporta 2 porte USB pannello

frontale

Connettore alimentazione x1

(24 pin)

Connettore alimentazione x1

(4 pin)

Connettore Porta stampante x1 Ciascun connettore supporta 1 Porta stampante

I/O pannello

posteriore

Tastiera PS/2 x1

Mouse PS/2 x1

Porta VGA x1

Porta LAN x1

Porta USB x4

Connettore audio x3

Dimensioni

scheda

182 mm (larghezza) x 225 mm (altezza)

Caratteristic

he speciali

Supporto RAID 0 / 1 / 10

Sistemi

operativi

supportati

Windows XP / Vista / 7

Biostar si riserva il diritto di aggiungere o rimuovere il

supporto di qualsiasi sistema operativo senza

preavviso.

Page 36

Motherboard Manual

Spanish

Especificación

CPU

Conector AM3

Procesadores AMD Sempron / Phenom II

/ Athlon II (Vatio máximo: 95W)

La arquitectura AMD 64 permite el procesado de 32 y

64 bits

Soporta las tecnologías Hyper Transport 2.0

FSB

Admite HyperTransport 3.0 con un ancho

de banda de hasta 3.2 GT/s

Conjunto

de chips

AMD 890GX

AMD SB710

Súper E/S

ITE 8728F-BX

Le ofrece las funcionalidades heredadas

de uso más común Súper E/S.

Interfaz de cuenta Low Pin

Iniciativas de control de entorno,

Monitor hardware

Función "Guardia inteligente" de ITE

Memoria

principal

Ranuras DIMM DDR3 x 2

Capacidad máxima de memoria de 16GB

Cada DIMM admite DDR de

512MB/1GB/2GB/4GB/8GB

Módulo de memoria DDR3 de canal Doble

Admite DDR3 de 800/1066/1333/1600(OC)

No admite DIMM registrados o DIMM compatibles con

ECC

Gráficos

Integrados en el conjunto de chips AMD

890GX

HD4290, Memoria máxima de vídeo compartida de

1024 MB

SATA

Controlador ATA Serie Integrado

Tasas de transferencia de hasta 3 Gb/s.

Compatible con la versión SATA 2.0.

Red Local

Realtek RTL 8106E Negociación de 10 / 100 Mb/s

Soporte de

sonido HD

ALC662

Salida de sonido de 5.1 canales

Soporte de sonido Alta Definición

Ranuras

Ranura PCI Express X16 X1

Ranura PCI X1

Conectores

en placa

Conector SATA X4 Cada conector soporta 1 dispositivos SATA

Conector IDE X1 Cada conector soporta 2 dispositivos IDE

Conector de panel frontal X1 Soporta instalaciones en el panel frontal

Conector de sonido frontal X1 Soporta funciones de sonido en el panel frontal

Page 37

A780L3C2

Especificación

Cabecera de ventilador de CPU X1 Fuente de alimentación de ventilador de CPU (con

función Smart Fan)

Cabecera de ventilador de sistema X1 Fuente de alimentación de ventilador de sistema

Cabecera de borrado de CMOS X1

Conector USB X2 Cada conector soporta 2 puertos USB frontales

Conector de alimentación X1

(24 patillas)

Conector de alimentación X1

(4 patillas)

Conector Puerto de impresora X1 Cada conector soporta 1 Puerto de impresora

Panel

trasero de

E/S

Teclado PS/2 X1

Ratón PS/2 X1

Puerto VGA X1

Puerto de red local X1

Puerto USB X4

Conector de sonido X3

Tamaño de

la placa

182 mm. (A) X 225 Mm. (H)

Funciones

especiales

Admite RAID 0 / 1 / 10

Soporte de

sistema

operativo

Windows XP / Vista / 7

Biostar se reserva el derecho de añadir o retirar el

soporte de cualquier SO con o sin aviso previo.

Page 38

Motherboard Manual

Portuguese

ESPECIFICAÇÕES

CPU

Socket AM3

Processadores AMD Sempron / Phenom

II / Athlon II (Watt máximo: 95W)

A arquitectura AMD 64 permite uma computação de 32

e 64 bits

Suporta as tecnologias Hyper Transport 2.0

FSB

Suporta a tecnologia HyperTransport 2.0

com uma largura de banda até 3.2 GT/s

Chipset

AMD 890GX

AMD SB710

Especificaç

ão Super

I/O

ITE 8728F-BX

Proporciona as funcionalidades mais

utilizadas em termos da especificação

Super I/O.

Interface LPC (Low Pin Count).

Iniciativas para controlo do ambiente

Monitorização do hardware

Função "Smart Guardian" da ITE

Memória

principal

Ranhuras DIMM DDR3 x 2

Capacidade máxima de memória: 16GB

Cada módulo DIMM suporta uma

memória DDR3 de 512MB/1GB/

2GB/4GB/8GB

Módulo de memória DDR3 de canal duplo

Suporta módulos DDR3 800/1066/1333/1600(OC)

Os módulos DIMM registados e os DIMM ECC não são

suportados

Placa

gráfica

Integrada no chipset AMD 890GX

HD4290, Memória de vídeo máxima partilhada: 1024

SATA

Controlador Serial ATA integrado

Velocidades de transmissão de dados até 3 Gb/s.

Compatibilidade com a especificação SATA versão 2.0.

LAN

Realtek RTL 8106E Auto negociação de 10 / 100 Mb/s

Suporte

para áudio

de alta

definição

ALC662

Saída de áudio de 5.1 canais

Suporta a especificação High-Definition Audio

Ranhuras

Ranhura PCI Express X16 x1

Ranhura PCI x1

Conectores

na placa

Conector SATA x4 Cada conector suporta 1 dispositivo SATA

Conector IDE x1 Cada conector suporta 2 dispositivos IDE

Page 39

A780L3C2

ESPECIFICAÇÕES

Conector do painel frontal x1 Para suporte de várias funções no painel frontal

Conector de áudio frontal x1 Suporta a função de áudio no painel frontal

Conector da ventoinha da CPU x1

Alimentação da ventoinha da CPU (com a função

Smart Fan)

Conector da ventoinha do sistema x1 Alimentação da ventoinha do sistema

Conector para limpeza do CMOS x1

Conector USB x2 Cada conector suporta 2 portas USB no painel frontal

Conector de alimentação x1

(24 pinos)

Conector de alimentação x1

(4 pinos)

Conector da para impressora x1 Cada conector suporta 1 Porta para impressora

Entradas/S

aídas no

painel

traseiro

Teclado PS/2 x1

Rato PS/2 x1

Porta VGA x1

Porta LAN x1

Porta USB x4

Tomada de áudio x3

Tamanho

da placa

182 mm (L) X 225 mm (A)

Característi

cas

especiais

Suporta as funções RAID 0 / 1 / 10

Sistemas

operativos

suportados

Windows XP / Vista / 7

A Biostar reserva-se o direito de adicionar ou remover

suporte para qualquer sistema operativo com ou sem

aviso prévio.

Page 40

Motherboard Manual

Polish

SPEC

Procesor

Socket AM3

AMD Sempron / Phenom II / Athlon II

Procesory (Maksymalny Watt: 95W)

Architektura AMD 64 umożliwia przetwarzanie 32 i 64

bitowe

Obsługa Hyper Transport 2.0

FSB

Obsługa HyperTransport 3.0 o szerokości

pasma do 3.2 GT/s

Chipset

AMD 890GX

AMD SB710

Pamięć

główna

Gniazda DDR3 DIMM x 2

Maks. wielkość pamięci 16GB

Każde gniazdo DIMM obsługuje moduły

512MB/1GB/2GB/4GB/8GB DDR3

Moduł pamięci DDR3 z trybem podwójnego kanału

Obsługa DDR3 800/1066/1333/1600(OC)

Brak obsługi Registered DIMM oraz ECC DIMM

Super I/O

ITE 8728F-BX

Zapewnia najbardziej powszechne funkcje

Super I/O.

Interfejs Low Pin Count

Funkcje kontroli warunków pracy,

Monitor H/W

Funkcja ITE "Smart Guardian"

Grafika

Zintegrowana w chipsecie AMD 890GX

HD4290, Maks. wielkość współdzielonej pamięci video

wynosi 1024 MB

SATA

Zintegrowany kontroler Serial ATA

Transfer danych do 3 Gb/s.

Zgodność ze specyfikacją SATA w wersji 2.0.

LAN

Realtek RTL 8106E 10 / 100 Mb/s z automatyczną negocjacją szybkości

Obsługa

audio HD

ALC662

5.1 kanałowe wyjście audio

Obsługa High-Definition Audio

Gniazda

Gniazdo PCI Express X16 x1

Gniazdo PCI x1

Złącza

wbudowan

Złącze SATA x4 Każde złącze obsługuje 1 urządzenie SATA

Złącze IDE x1 Każde złącze obsługuje 2 urządzenia IDE

Złącze panela przedniego x1 Obsługa elementów panela przedniego

Przednie złącze audio x1 Obsługa funkcji audio na panelu przednim

Page 41

A780L3C2

SPEC

Złącze główkowe wentylatora procesora

Zasilanie wentylatora procesora (z funkcją Smart Fan)

Złącze główkowe wentylatora

systemowego x1

Zasilanie wentylatora systemowego

Złącze główkowe kasowania CMOS x1

Złącze USB x2

Każde złącze obsługuje 2 porty USB na panelu

przednim

Złącze zasilania (24 pinowe) x1

Złącze zasilania (4 pinowe) x1

Złącze Port drukarki x1 Każde złącze obsługuje 1 Port drukarki

Back Panel

I/O

Klawiatura PS/2 x1

Mysz PS/2 x1

Port VGA x1

Port LAN x1

Port USB x4

Gniazdo audio x3

Wymiary

płyty

182 mm (S) X 225 mm (W)

Funkcje

specjalne

Obsługa RAID 0 / 1 / 10

Obsluga

systemu

operacyjne

Windows XP / Vista / 7

Biostar zastrzega sobie prawo dodawania lub

odwoływania obsługi dowolnego systemu

operacyjnego bez powiadomienia.

Page 42

Motherboard Manual

Russian

СПЕЦ

CPU

(централь

ный

процессор)

Гнездо AM3

Процессоры AMD Sempron / Phenom II /

Athlon II (Максимальный ватт: 95W)

Архитектура AMD 64 разрешать обработка данных

на 32 и 64 бит

Поддержка Hyper Transport 2.0

FSB

Поддержка HyperTransport 3.0 с

пропускной способностью до 3.2 GT/s

Набор

микросхем

AMD 890GX

AMD SB710

Основная

память

Слоты DDR3 DIMM x 2

Максимальная ёмкость памяти 16ГБ

Каждый модуль DIMM поддерживает

512МБ/1ГБ/2ГБ/4ГБ/8ГБ DDR3

Модуль памяти с двухканальным режимом DDR3

Поддержка DDR3 800/1066/1333/1600(OC)

Не поддерживает зарегистрированные модули

DIMM and ECC DIMM

Super I/O

ITE 8728F-BX

Обеспечивает наиболее используемые

действующие функциональные

возможности Super I/O.

Интерфейс с низким количеством выводов

Инициативы по охране окружающей среды,

Аппаратный монитор

Функция ITE "Smart Guardian" (Интеллектуальная

защита)

Графика

Встроенная в набор микросхем AMD

890GX

HD4290, Максимальная совместно используемая

видео память составляет 1024 МБ

SATA

Встроенное последовательное

устройство управления ATA

скорость передачи данных до 3 гигабит/с.

Соответствие спецификации SATA версия 2.0.

Локальная

сеть

Realtek RTL 8106E Автоматическое согласование 10 / 100 Мб/с

Звуковая

поддержка

жесткого

диска

ALC662

Звуковая поддержка High-Definition

5.1канальный звуковой выход

Слоты

Слот PCI Express X16 x1

Слот PCI x1

Встроенны

й разъём

Разъём SATA x4 Каждый разъём поддерживает 1 устройство SATA

Разъём IDE x1

Каждый разъём поддерживает 2 встроенных

интерфейса накопителей

Разъём на лицевой панели x1 Поддержка устройств на лицевой панели

Входной звуковой разъём x1 Поддержка звуковых функций на лицевой панели

Page 43

A780L3C2

СПЕЦ

Контактирующее приспособление

вентилятора центрального

процессора x1

Источник питания для вентилятора центрального

процессора (с функцией интеллектуального

вентилятора)

Контактирующее приспособление

вентилятора системы x1

Источник питания для вентилятора системы

Открытое контактирующее

приспособление CMOS x1

USB-разъём x2

Каждый разъём поддерживает 2 USB-порта на

лицевой панели

Разъем питания (24 вывод) x1

Разъем питания (4 вывод) x1

Разъём Порт подключения

принтера x1

Каждый разъём поддерживает 1 Порт подключения

принтера

Задняя

панель

средств

ввода-выв

ода

Клавиатура PS/2 x1

Мышь PS/2 x1

Порт VGA x1

Порт LAN x1

USB-порт x4

Гнездо для подключения

наушников x3

Размер

панели

182 мм (Ш) X 225 мм (В)

Специальн

ые

технически

характерис

тики

Поддержка RAID 0 / 1 / 10

Поддержка

Windows XP / Vista / 7

Biostar сохраняет за собой право добавлять или

удалять средства обеспечения для OS с или без

предварительного уведомления.

Page 44

Motherboard Manual

Arabic

تﺎﻔﺻاﻮﻤﻟا

ﺔﻴﻨﻘﺗ ﻦﻜﻤﺗAMD 64 ﺔﻋﺮﺴﺑ ﺔﻴﺑﻮﺳﺎﺤﻟا تﺎﻴﻠﻤﻌﻟا ءاﺮﺟإ32 و64

ﺖﺑ

ﺔﻴﻨﻘﺗ ﻢﻋﺪﺗHyper Transport و2.0

ﺲﺒﻘﻣAM3

تﺎﺠﻟﺎﻌﻣAMD Sempron / Phenom II / Athlon II

(طاو ىﻮﺼﻗ: 95و)

ﺔﺠﻟﺎﻌﻤﻟا ةﺪﺣو

ﺔﻳﺰآﺮﻤﻟا

ﺔﻴﻨﻘﺗ ﻢﻋﺪﺗHyperTransport ﻰﻟإ ﻞﺼﻳ ددﺮﺘﺑ3.0 3.2 GT/s

ﻲﻣﺎﻣﻷا ﻞﻗﺎﻨﻟا

ﻲﺒﻧﺎﺠﻟا

AMD 890GX

AMD SB710

ﺢﺋاﺮﺸﻟا ﺔﻋﻮﻤﺠﻣ

ﺔﻴﻨﻘﺗ ﻢﻋﺪﺗLow Pin Count Interface

ﺔﺌﻴﺒﻟا ﻲﻓ ﻢﻜﺤﺘﻟا ﻞﺋﺎﺳو:

ﻟ ﺐﻗاﺮﻣةﺰﻬﺟﻷا ﺔﻟﺎﺣ ﺔﻓﺮﻌﻤ

ﺔﻔﻴﻇو"Smart Guardian" ﻦﻣ ITE

ITE 8728F-BX

ﺔﻔﻴﻇو ﺮﻓﻮﺗSuper I/O ًﺎ ﻣ ا ﺪ ﺨ ﺘ ﺳ ا ﺮﺜآﻷا.

Super I/O

ةﺮآاذ ةﺪﺣوDDR3 ةﺎﻨﻘﻟا ﺔﺟودﺰﻣ

عﻮﻧ ﻦﻣ ةﺮآاﺬﻟا ﻢﻋﺪﺗDDR3 تﺎﻌﺳ

800/1066/1333/1600)OC( ﺖﻳﺎﺑ ﺎﺠﻴﻣ

ةﺮآاﺬﻟا ﻖﺋﺎﻗر ﻢﻋﺪﺗ ﻻDIMM ﻖﻓاﻮﺘﺗ ﻻ ﻲﺘﻟا ﻚﻠﺗو ﻊﻣ ECC

ﺔﺤﺘﻓDDR3 DIMM دﺪﻋ2

ىﻮﺼﻗ ةﺮآاذ ﺔﻌﺳ16 ﺖﻳﺎﺑ ﺎﺠﻴﺟ

ﺔﺤﺘﻓ ﻞآ ﻢﻋﺪﺗDIMM عﻮﻧ ﻦﻣ ةﺮآاذ ﻢﻋﺪﺗ DDR3 ﺔﻌﺳ

/512

و ﺖﻳﺎﺑ ﺎﺠﻴﻣ1/ و2/ و4/ و8 ﺖﻳﺎﺑ ﺎﺠﻴﺟ

ﺔﻴﺴﻴﺋﺮﻟا ةﺮآاﺬﻟا

HD4290, ﺔآﺮﺘﺸﻤﻟا ﻮﻳﺪﻴﻔﻟا ةﺮآاﺬﻟ ﺔﻌﺳ ﻰﺼﻗأ1024 ﺖﻳﺎﺑ ﺎﺠﻴﻣ ﻖﺋﺎﻗر ﻲﻓ ﺔﺠﻣﺪﻣ AMD 890GX

تﺎﻣﻮﺳﺮﻟا ﺔﻗﺎﻄﺑ

ﻰﻟإ ﻞﺼﺗ تﺎﻋﺮﺴﺑ تﺎﻧﺎﻴﺒﻟا ﻞﻘﻧ3 ﺖﺑﺎﺠﻴﺟ/ﺔﻴﻧﺎﺛ.

تﺎﻔﺻاﻮﻤﻟ ﺔﻘﺑﺎﻄﻣSATA راﺪﺻﻹا 2.0.

ﻢﻜﺤﺘﻣSerial ATA ﻞﻣﺎﻜﺘﻣ

SATA

ﻲﺋﺎﻘﻠﺗ ضوﺎﻔﺗ10/100 ﺖﻳﺎﺑ ﺎﺠﻴﻣ /ﺔﻴﻧﺎﺛ Realtek RTL 8106E

ﺔﻴﻠﺧاد ﺔﻜﺒﺷ

5.1 تﻮﺼﻟا جﺮﺨﻟ تاﻮﻨﻗ

ﻦﻣ ﻒﻳﺮﻌﺘﻟا ﻲﻟﺎﻋ تﻮﺼﻟا ﺔﻴﻨﻘﺗ ﻢﻋﺪﺗ

ALC662

ﻲﻟﺎﻋ تﻮﺼﻟا ﻢﻋد

ﻒﻳﺮﻌﺘﻟا

ﺔﺤﺘﻓx16 PCI Express دﺪﻋ1

تﺎﺤﺘﻔﻟا

ﺔﺤﺘﻓPCI دﺪﻋ1

ةﺰﻬﺟأ ﻦﻣ ﺪﺣاو ﺬﻔﻨﻣ ﻞآ ﻢﻋﺪﻳSATA ﺬﻔﻨﻣSATA دﺪﻋ4

ﺢﻄﺳ ﻰﻠﻋ ﺬﻓﺎﻨﻤﻟا

ﺔﺣﻮﻠﻟا

ةﺰﻬﺟأ ﻦﻣ ﻦﻴﻨﺛا ﺬﻔﻨﻣ ﻞآ ﻢﻋﺪﻳIDE

ﺬﻔﻨﻣIDE دﺪﻋ1

ﺔﻴﻣﺎﻣﻷا ﺔﺣﻮﻠﻟا تاﺰﻴﻬﺠﺗ ﻢﻋﺪﻳ ﺔﻴﻣﺎﻣﻷا ﺔﺣﻮﻠﻟا ﺬﻔﻨﻣ دﺪﻋ1

ﺼﻟا ﺔﻔﻴﻇو ﻢﻋﺪﻳﺔﻴﻣﺎﻣﻷا ﺔﺣﻮﻠﻟﺎﺑ تﻮ ﻲﻣﺎﻣﻷا تﻮﺼﻟا ﺬﻔﻨﻣ دﺪﻋ1

Page 45

A780L3C2

تﺎﻔﺻاﻮﻤﻟا

ﺔﻔﻴﻇو ﻊﻣ ﺔﺠﻟﺎﻌﻤﻟا ةﺪﺣو ﺔﺣوﺮﻤﻟ ﺔﻗﺎﻄﻟا ﻞﻴﺻﻮﺘﻟSmart Fan ﺔﻳﺰآﺮﻤﻟا ﺔﺠﻟﺎﻌﻤﻟا ةﺪﺣو ﺔﺣوﺮﻣ ﺔﻠﺻو دﺪﻋ1

مﺎﻈﻨﻟا ﺔﺣوﺮﻤﻟ ﺔﻗﺎﻄﻟا ﻞﻴﺻﻮﺘﻟ مﺎﻈﻨﻟا ﺔﺣوﺮﻣ ﺔﻠﺻو دﺪﻋ1

ﺢﺴﻣ ﺔﻠﺻوCMOS دﺪﻋ1

ﻲﺘﺤﺘﻓ ﺬﻔﻨﻣ ﻞآ ﻢﻋﺪﻳUSB ﺎﻣﻷا ﺔﺣﻮﻠﻟﺎﺑﺔﻴﻣ ﺬﻔﻨﻣUSB دﺪﻋ2

ﺔﻗﺎﻄﻟا ﻞﻴﺻﻮﺗ ﺬﻔﻨﻣ)24سﻮﺑد( دﺪﻋ1

ﺔﻗﺎﻄﻟا ﻞﻴﺻﻮﺗ ﺬﻔﻨﻣ)4سﻮﺑد( دﺪﻋ1

ﺔﻌﺑﺎﻃ ﺬﻔﻨﻣ دﺪﻋ1

ﺢﻴﺗﺎﻔﻣ ﺔﺣﻮﻟPS/2 دﺪﻋ1

سوﺎﻣ PS/2 دﺪﻋ1

ﺬﻔﻨﻣVGA دﺪﻋ1

ﺔﻴﻠﺤﻣ لﺎﺼﺗا ﺔﻜﺒﺷ ﺬﻔﻨﻣ دﺪﻋ1

ﺬﻓﺎﻨﻣUSB دﺪﻋ4

تﻮﺻ ﺲﺒﻘﻣ ﺪﻋ3

ﻞﺧد ﺬﻓﺎﻨﻣ/ جﺮﺧ

ﺔﻴﻔﻠﺨﻟا ﺔﺣﻮﻠﻟا

182 ﻢﻣ)ضﺮﻋ (X 225 ﻢﻣ)عﺎﻔﺗرا(

ﺔﺣﻮﻠﻟا ﻢﺠﺣ

ﺔﻴﻨﻘﺗ ﻢﻋﺪﺗRAID 0 / 1 / 10

ﺔﺻﺎﺧ ﺎﻳاﺰﻣ

ﻆﻔﺘﺤﺗBiostar ﻞﻴﻐﺸﺗ مﺎﻈﻧ يﻷ ﻢﻋﺪﻟا ﺔﻟازإ وأ ﺔﻓﺎﺿإ ﻲﻓ ﺎﻬﻘﺤﺑ

رﺎﻄﺧإ نوﺪﺑ وأ رﺎﻄﺧﺈﺑ.

Windows XP / Vista / 7

ﺔﻤﻈﻧأ ﻢﻋد

ﻞﻴﻐﺸﺘﻟا

Page 46

Motherboard Manual

Japanese

仕様

CPU

Socket AM3

AMD Sempron / Phenom II / Athlon II プ

ロセッサ (最高のワット: 95W)

AMD 64アーキテクチャでは、32ビットと64ビット計算

が可能です

ハイパートランスポート2.0とクールアンドクワイア

ットをサポートします

FSB

3.2 GT/sのバンド幅までハイパートラン

スポート3.0をサポートします

チップセッ

ト

AMD 890GX

AMD SB710

メインメモ

リ

DDR3 DIMMスロット x 2

最大メモリ容量16GB

各DIMMは 512MB/1GB/2GB/4GB/8GB

DDR3をサポート

デュアルチャンネルモードDDR3メモリモジュール

DDR3 800/1066/1333/1600(OC) をサポート

登録済みDIMMとECC DIMMはサポートされません

Super I/O

ITE 8728F-BX

もっとも一般に使用されるレガシー

Super I/O機能を採用しています。

低ピンカウントインターフェイス

環境コントロールイニシアチブ、

H/Wモニター

ITEの「スマートガーディアン」機能

グラフィッ

クス

AMD 890GXチップセットに統合 HD4290, 最大の共有ビデオメモリは1024MBです

SATA

統合シリアルATAコントローラ

最高3Gb/秒のデータ転送速度

SATAバージョン2.0仕様に準拠。

LAN

Realtek RTL 8106E 10 / 100 Mb/秒のオートネゴシエーション

HDオーデ

ィオのサポ

ート

ALC662

5.1チャンネルオーディオアウト

ハイデフィニションオーディオのサポート

スロット

PCI Express X16スロット x1

PCIスロット x1

オンボード

コネクタ

SATAコネクタ x4 各コネクタは1つのSATAデバイスをサポートします

IDEコネクタ x1 各コネクタは2つのIDEデバイスをサポートします

フロントパネルコネクタ x1 フロントパネル機能をサポートします

Page 47

A780L3C2

仕様

フロントオーディオコネクタ x1 フロントパネルオーディオ機能をサポートします

CPUファンヘッダ x1 CPUファン電源装置(スマートファン機能を搭載)

システムファンヘッダ x1 システムファン電源装置

CMOSクリアヘッダ x1

USBコネクタ x2

各コネクタは2つのフロントパネルUSBポートをサポ

ートします

電源コネクタ(24ピン) x1

電源コネクタ(4ピン) x1

プリンタポートコネクタ x1 各コネクタは1つのプリンタポートをサポートします

背面パネル

I/O

PS/2キーボード x1

PS/2マウス x1

VGAポート x1

LANポート x1

USBポート x4

オーディオジャック x3

ボードサイ

ズ

182 mm (幅) X 225 mm (高さ)

特殊機能

RAID 0 / 1 / 10 のサポート

OSサポー

ト

Windows XP / Vista / 7

Biostarは事前のサポートなしにOSサポートを追加ま

たは削除する権利を留保します。

2015/01/16
