945G Micro 775SE & 945GZ Micro 775
Setup Manual

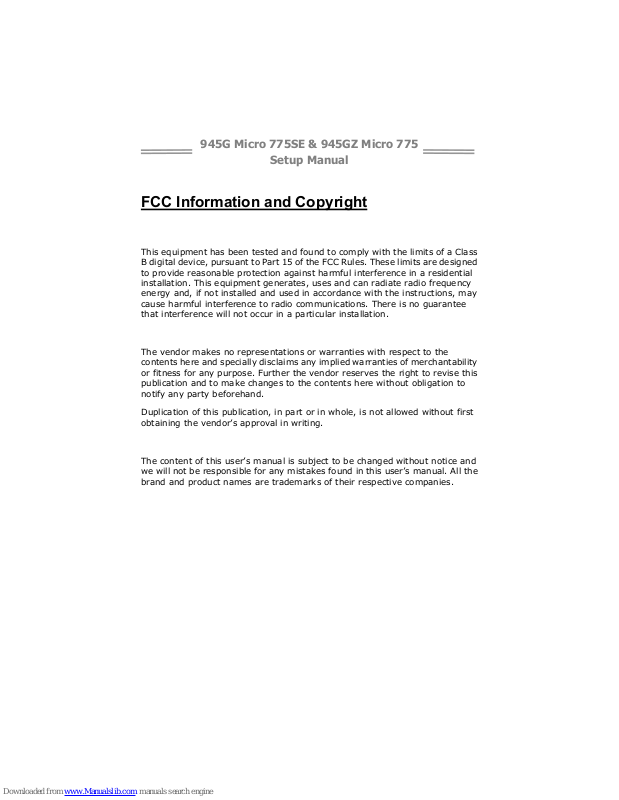

FCC Information and Copyright
This equipment has been tested and found to comply with the limits of a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. There is no guarantee
that interference will not occur in a particular installation.
The vendor makes no representations or warranties with respect to the
contents here and specially disclaims any implied warranties of merchantability
or fitness for any purpose. Further the vendor reserves the right to revise this
publication and to make changes to the contents here without obligation to
notify any party beforehand.
Duplication of this publication, in part or in whole, is not allowed without first
obtaining the vendor’s approval in writing.
The content of this user’s manual is subject to be changed without notice and
we will not be responsible for any mistakes found in this user’s manual. All the
brand and product names are trademarks of their respective companies.
Table of Contents
Chapter 1: Introduction.......................................... 1
1.1 Before You Start.....................................................................................1
1.2 Package Checklist ..................................................................................1
1.3 Motherboard Features............................................................................2
1.4 Rear Panel Connectors............................................................................3
1.5 Motherboard Layout (945G Micro 775) ...................................................4
1.6 Motherboard Layout (945GZ Micro 775)..................................................5
Chapter 2: Hardware Installation............................ 6
2.1 Installing Central Processing Unit (CPU)..................................................6
2.2 FAN Headers.......................................................................................... 8
2.3 Installing System Memory......................................................................9
2.4 Connectors and Slots ............................................................................10
Chapter 3: Headers & Jumpers Setup.................... 13
3.1 How to Setup Jumpers..........................................................................13
3.2 Detail Settings .....................................................................................13
Chapter 4: Useful Help .......................................... 20
4.1 Driver Installation Note........................................................................20
4.2 Award BIOS Beep Code.........................................................................21
4.3 Extra Information ................................................................................21
4.4 Troubleshooting ................................................................................... 23
Chapter 5: WarpSpeeder™.................................... 24
5.1 Introduction.........................................................................................24
5.2 System Requirement.............................................................................24
5.3 Installation.......................................................................................... 25
5.4 WarpSpeeder™ ...................................................................................26
Appendencies: SPEC In Other Language............... 32
German....................................................................................................................32
France ...................................................................................................................... 34
Italian...................................................................................................................... 36
Spanish....................................................................................................................38
Portuguese...............................................................................................................40
Polish.......................................................................................................................42
RUSSIAN ..................................................................................................................44
ARABIC.....................................................................................................................46
JAPANESE .................................................................................................................48
945G Micro 775SE & 945GZ Micro 775
1
CHAPTER 1: INTRODUCTION
1.1 B
EFORE YOU START
Thank you for choosing our product. Before you start installing the
motherboard, please make sure you follow the instructions below:
Prepare a dry and stable working environment with
sufficient lighting.
Always disconnect the computer from power outlet
before operation.
Before you take the motherboard out from anti-static
bag, ground yourself properly by touching any safely
grounded appliance, or use grounded wrist strap to
remove the static charge.
Avoid touching the components on motherboard or the
rear side of the board unless necessary. Hold the board
on the edge, do not try to bend or flex the board.
Do not leave any unfastened small parts inside the
case after installation. Loose parts will cause short
circuits which may damage the equipment.
Keep the computer from dangerous area, such as heat
source, humid air and water.
1.2 PACKAGE CHECKLIST
FDD Cable X 1
HDD Cable X 1
Rear I/O Panel for ATX Case X 1
User’s Manual X 1
Fully Setup Driver CD X 1
Serial ATA Cable X 1
Serial ATA Power Cable X 1 (optional)
USB 2.0 Cable X1 (optional)
S/PDIF out Cable X 1 (optional)
Motherboard Manual
2
1.3 MOTHERBOARD FEATURES
945G Micro 775 945GZ Micro 775
CPU
LGA 775
Intel Core2Duo / Pentium 4 / Pentium D /
Celeron D processor up to 3.8 GHz
Supports Hyper-Threading
Execute Disable Bit
Enhanced Intel SpeedStep
Extended Memory 64 Technology
LGA 775
Intel Core2Duo / Pentium 4 / Pentium D /
Celeron D processor up to 3.8 GHz
Supports Hyper-Threading
Execute Disable Bit
Enhanced Intel SpeedStep
Extended Memory 64 Technology
FSB
533 / 800 / 1066 MHz 533 / 800 MHz
Chipset
Intel 945G
Intel ICH7
Intel 945GZ
Intel ICH7
Graphics
Intel GMA 950 Intel GMA 950
Super I/O
ITE IT8712F
H/W Monitor
Fan Speed Controller
ITE's "Smart Guardian" function
ITE IT8712F
H/W Monitor
Fan Speed Controller
ITE's "Smart Guardian" function
Main
Memory
DIMM Slots x 2
Each DIMM supports 256/512MB & 1GB DDR2
Max Memory Capicity 2GB
Dual Channel Mode DDR2 memory module
Supports DDR2 400 / 533 / 667
DIMM Slots x 2
Each DIMM supports 256/512MB & 1GB DDR2
Max Memory Capicity 2GB
Dual Channel Mode DDR2 memory module
Supports DDR2 400 / 533
IDE
Integrated IDE Controller
Ultra DMA 33~100 Bus Master Mode
supports PIO Mode 0~4,
Integrated IDE Controller
Ultra DMA 33~100 Bus Master Mode
supports PIO Mode 0~4,
SATA
Integrated Serial ATA Controller
Data transfer rates up to 3.0 Gb/s.
SATA Version 2.0 specification compliant.
Integrated Serial ATA Controller
Data transfer rates up to 3.0 Gb/s.
SATA Version 2.0 specification compliant.
10/100 LAN
Realtek 8100C
10 / 100 Mb/s auto negotiation
Half / Full duplex capability
Realtek 8100C
10 / 100 Mb/s auto negotiation
Half / Full duplex capability
Sound
Codec
ALC655
6 channels audio out
AC’97 Version 2.3
ALC655
6 channels audio out
AC’97 Version 2.3
PCI Express x16 slot x1 PCI Express x16 slot x1
PCI Express x1 slot x1 PCI slot x3 Slots
PCI slot x2
Floppy connector x1 Floppy connector x1
On Board
Connector
IDE Connector x1 IDE Connector x1
945G Micro 775SE & 945GZ Micro 775
3
945G Micro 775 945GZ Micro 775
Printer Port Connector x1 Printer Port Connector x1
SATA Connector x4 SATA Connector x4
Front Panel Connector x1 Front Panel Connector x1
Front Audio Connector x1 Front Audio Connector x1
CD-in Connector x1 CD-in Connector x1
SPDIF in connector (optional) x1 SPDIF in connector (optional) x1
S/PDIF out connector x1 S/PDIF out connector x1
CPU Fan header x1 CPU Fan header x1
System Fan header x1 System Fan header x1
Chassis open header (optional) x1 Chassis open header (optional) x1
Clear CMOS header x1 Clear CMOS header x1
USB connector x2 USB connector x2
Power Connector (24pin) x1 Power Connector (24pin) x1
Power Connector (4pin) x1 Power Connector (4pin) x1
Back Panel
I/O
PS/2 Keyboard x1
PS/2 Mouse x1
Serial Port x1
VGA port x1
LAN port x1
USB Port x4
Audio Jack x3
PS/2 Keyboard x1
PS/2 Mouse x1
Serial Port x1
VGA port x1
LAN port x1
USB Port x4
Audio Jack x3
Board Size
190 (W) x 244 (L) mm 190 (W) x 244 (L) mm
OS Support
Windows 2000 / XP
Biostar Reserves the right to add or remove
support for any OS with or without notice.
Windows 2000 / XP
Biostar Reserves the right to add or remove
support for any OS with or without notice.
1.4 REAR PANEL CONNECTORS
VGA1
PS/2
Mouse
PS/ 2
Keyboard
COM1 USBX2USBX2
LAN
Line In/
Surround
Line Out
Mic In 1/
Bass/ Center
Motherboard Manual
4
1.5 MOTHERBOARD LAYOUT (945G MICRO 775)
DDR2_A 1
DDR2_B 1
FDD1
PCI-EX 1_1
PCI-EX16
PCI1
PCI2
JPAN EL1
JUSB4
JUSB3
JATXPWR1
JCFAN1
JATXPWR2
JCI1
(optio nal)
SATA1
SATA3
SATA2SATA4
Codec
JCDIN1
JSFAN1
LAN
BAT1
BIOS
Intel
ICH7
LGA775
CPU1
Intel
945G
JAUDIO2
Super
I/O
JKBMS1
JUSB2
JRJ45USB1
C
O
M
1
J
C
O
M
1
JVGA1
JAUDIO1
JSPDIF_OUT1
JSPDIF_IN (optional )
IDE1
JCMOS1
IR (optional)
Note: ■ represents the 1
st
pin.
945G Micro 775SE & 945GZ Micro 775
5
1.6 MOTHERBOARD LAYOUT (945GZ MICRO 775)
PCI1
DDR2_A1
DDR2_B1
FDD1
PCI -EX
PCI2
PCI3
JPANEL1
JUSB4
JUSB3
JATXPWR1
JCFAN1
JATXPWR2
JCI1
(optional )
SATA1
SATA3
SATA2SATA4
Codec
JCDIN1
JSFAN1
LAN
BAT1
BIOS
Intel
ICH7
LGA775
CPU1
Intel
945GZ
JAUDI O2
Super
I/O
JKBMS1
JUSB2
JRJ45USB1
C
O
M
1
J
C
O
M
1
JVGA1
JAUDIO1
JSPDIF_OUT1
JSPDIF_IN1 (opti onal)
IDE1
JCMOS1
IR (optional)
JPRNT1
Note: ■ represents the 1
st
pin.
Motherboard Manual
6
CHAPTER 2: HARDWARE INSTALLATION
2.1 I
NSTALLING CENTRAL PROCESSING UNIT (CPU)
Special Notice:
Remove Pin Cap before installation, and make good preservation
for future use. When the CPU is removed, cover the Pin Cap on the
empty socket to ensure pin legs won’t be damaged.
Pin-Cap
Step 1: Pull the socket locking lever out from the socket and then raise
the lever up to a 90-degree angle.
945G Micro 775SE & 945GZ Micro 775
7
Step 2: Look for the triangular cut edge on socket, and the golden dot on
CPU should point forwards this triangular cut edge. The CPU will
fit only in the correct orientation.
Step 2-1:
Step 2-2:
Step 3: Hold the CPU down firmly, and then lower the lever to locked
position to complete the installation.
Step 4: Put the CPU Fan and heatsink assembly on the CPU and buckle it
on the retention frame. Connect the CPU FAN power cable into
the JCFAN1. This completes the installation.
Motherboard Manual
8
2.2 FAN HEADERS
These fan headers support cooling-fans built in the computer. The fan
cable and connector may be different according to the fan manufacturer.
Connect the fan cable to the connector while matching the black wire to
pin#1.

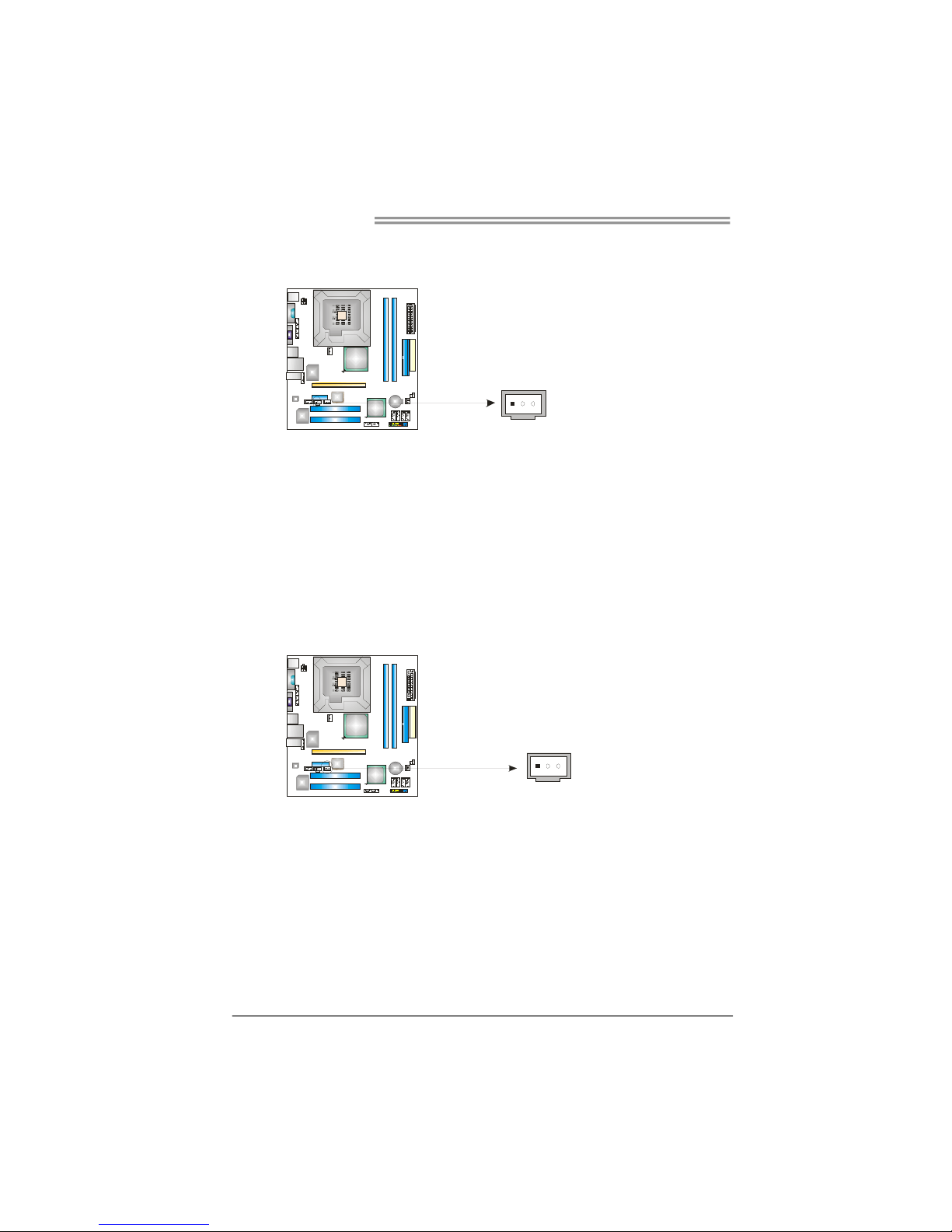

JCFAN1: CPU Fan Header
Pin
Assignment
1 Ground
2 Power
3 FAN RPM rate
sense
1
4
JCFAN1
4 Smart Fan
Control
JSFAN1: System Fan Header
Pin
Assignment
1 Ground
2 +12V
1
3
JSFAN1
3FAN RPM rate
sense
Note:
The JCFAN1 and JSFAN1 support 4-pin and 3-pin head connector. When connecting
with wires onto connectors, please note that the red wire is the positive and should be
connected to pin#2, and the black wire is Ground and should be connected to GND.
945G Micro 775SE & 945GZ Micro 775
9
2.3 INSTALLING SYSTEM MEMORY
A. DDR2 module
DDR2_A1 DDR2_B
1
1. Unlock a DIMM slot by pressing the retaining clips outward. Align a
DIMM on the slot such that the notch on the DIMM matches the
break on the Slot.
2. Insert the DIMM vertically and firmly into the slot until the retaining
chip snap back in place and the DIMM is properly seated.
B. Memory Capacity
DIMM Socket
Location
DDR2 Module Total Memory Size
DDR2_A1 256MB/512MB/1GB *1
DDR2_B1 256MB/512MB/1GB *1
Max memory 2GB.
Motherboard Manual
10
2.4 CONNECTORS AND SLOTS
FDD1: Floppy Disk Connector
The motherboard provides a standard floppy disk connector that supports 360K,
720K, 1.2M, 1.44M and 2.88M floppy disk types. This connector supports the
provided floppy drive ribbon cables.
1
2
34
33
IDE1: Hard Disk Connectors
The motherboard has a 32-bit Enhanced PCI IDE Controller that provides PIO
Mode 0~4, Bus Master, and Ultra DMA 33/66/100/133 functionality.
The IDE connectors can connect a master and a slave drive, so you can connect
up to four hard disk drives. The first hard drive should always be connected to
IDE1.
IDE
1
40
2
1
39
945G Micro 775SE & 945GZ Micro 775
11
PCI-Ex16: PCI-Express x16 Slot
- PCI-Express 1.0a compliant.
- Maximum theoretical realized bandwidth of 4GB/s simultaneously per
direction, for an aggregate of 8GB/s totally.
PCI-Ex1_1: PCI-Express x1 slots (945G Micro 775 only)
- PCI-Express 1.0a compliant.
- Data transfer bandwidth up to 250MB/s per direction; 500MB/s in total.
- PCI-Express supports a raw bit-rate of 2.5Gb/s on the data pins.
- 2X bandwidth over the traditional PCI architecture.
945G Micro 775
945GZ Micro 775
Motherboard Manual
12
PCI1~PCI3: Peripheral Component Interconnect Slots
945G Micro 775 is equipped with 2 standard PCI slots, and 945GZ Micro 775 is
equipped with 3 PCI standard PCI Slots. PCI stands for Peripheral Component
Interconnect, and it is a bus standard for expansion cards. This PCI slot is
designated as 32 bits.
945G Micro 775
945GZ Micro 775
945G Micro 775SE & 945GZ Micro 775
13
CHAPTER 3: HEADERS & JUMPERS SETUP
3.1 H
OW TO SETUP JUMPERS
The illustration shows how to set up jumpers. When the jumper cap is
placed on pins, the jumper is “close”, if not, that means the jumper is
“open”.
Pin opened Pin closed Pin1-2 closed
3.2 DETAIL SETTINGS

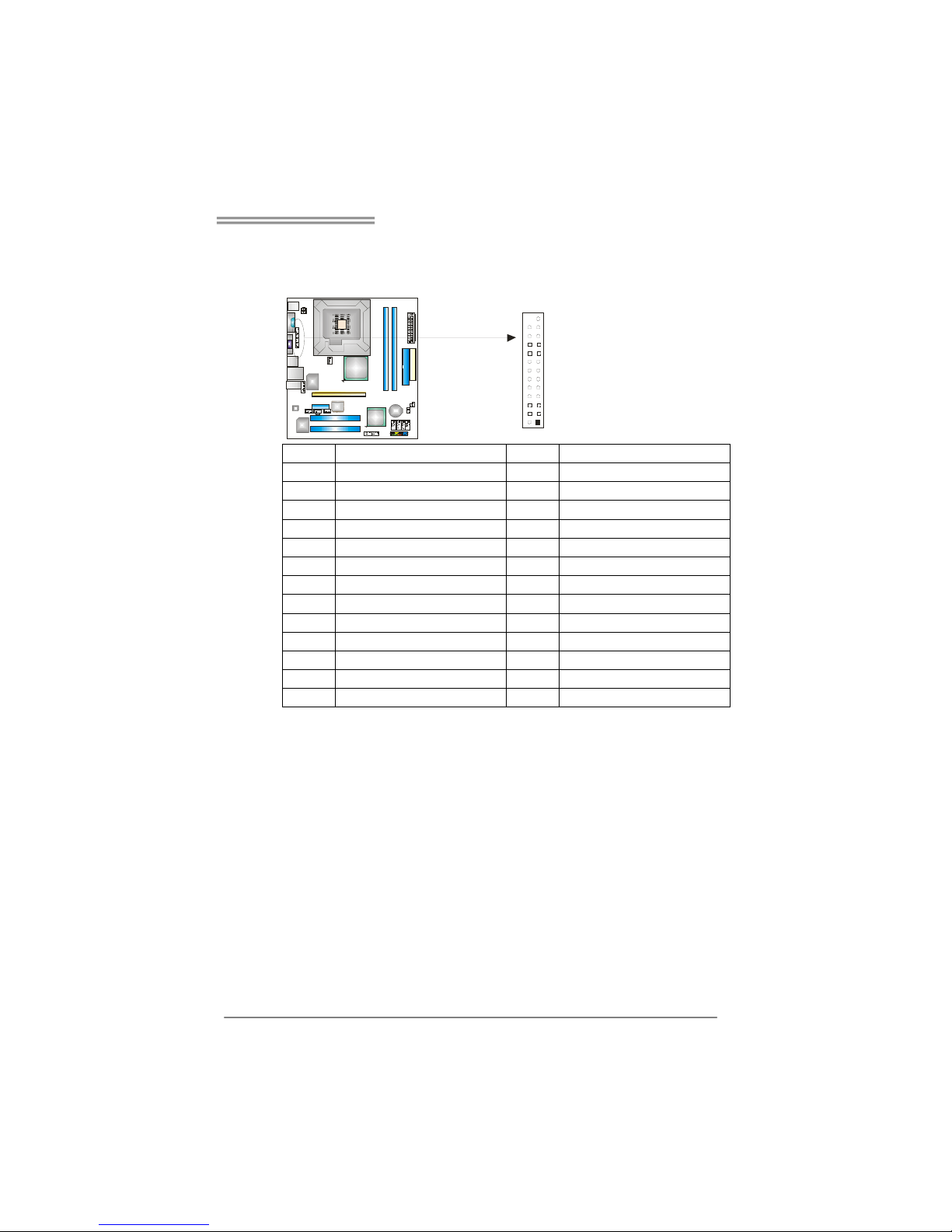

JPANEL1: Front Panel Header
This 24-pin connector includes Power-on, Reset, HDD LED, Power LED, Sleep
button, speaker and IrDA Connection. It allows user to connect the PC case’s
front panel switch functions.
1
23
24
SL P
PWR_ LED
On/Off
IR ( optiona l)
RST
HLED
SP K
++
+
2
-
-
Pin Assignment Function Pin Assignment Function
1 +5V 2 Sleep control
3 N/A 4 Ground
Sleep button
5 N/A 6 N/A N/A
7 Speaker
Speaker
Connector
8 Power LED (+)
9 HDD LED (+) 10 Power LED (+)
11 HDD LED (-)
Hard drive
LED
12 Power LED (-)
Power LED
13 Ground 14 Power button
15 Reset control
Reset button
16 Ground
Power-on button
17 N/A 18 Key
19 N/A 20 Key
21 +5V 22 Ground
23 IRTX
IrDA
Connector
24 IRRX
IrDA Connector
Motherboard Manual
14
JATXPWR1: ATX Power Source Connector
This connector allows user to connect 24-pin power connector on the ATX
power supply.
Pin Assignment
1 +3.3V
2 +3.3V
3 Ground
4 +5V
5 Ground
6 +5V
7 Ground
8 PW_OK
9 Standby
Voltage +5V
10 +12V
11 +12V
12 2 x 12
Detect
13 +3.3V
14 -12V
15 Ground
16 PS_ON
17 Ground
18 Ground
19 Ground
20 -5V
21 +5V
22 +5V
23 +5V
1
12
13
24
24 Ground
JATXPWR2: ATX Power Source Connector
By connecting this connector, it will provide +12V to CPU power circuit.
Pin
Assignment
1 +12V
2 +12V
3 Ground
1
2
3
4
4 Ground
945G Micro 775SE & 945GZ Micro 775
15
JUSB3/JUSB4: Headers for USB 2.0 Ports at Front Panel
This motherboard provides 2 USB 2.0 headers, which allows user to connect
additional USB cable on the PC front panel, and also can be connected with
internal USB devices, like USB card reader.
Pin
Assignment
1 +5V (fused)
2 +5V (fused)
3 USB4 USB5 USB+
6 USB+
7 Ground
8 Ground
9 Key
1
9
2
10
JUSB4JUSB3
10 NC
JAUDIO2: Front Panel Audio Header
This header allows user to connect the front audio output cable with the PC front
panel. It will disable the output on back panel audio connectors.
Pin Assignment
1 Mic in/center
2 Ground
3 Mic power/Bass
4 Audio power
5
Right line out/
Speaker out Right
6
Right line out/
Speaker out Right
7 Reserved
8 Key
9
Left line out/
Speaker out Left
10
Left line out/
Speaker out Left
11
Right line in/
Rear speaker Right
12
Right line in/
Rear speaker Right
13
Left line in/
Rear speaker Left
1
2
14 13
14
Left line in/
Rear speaker Left
Motherboard Manual
16

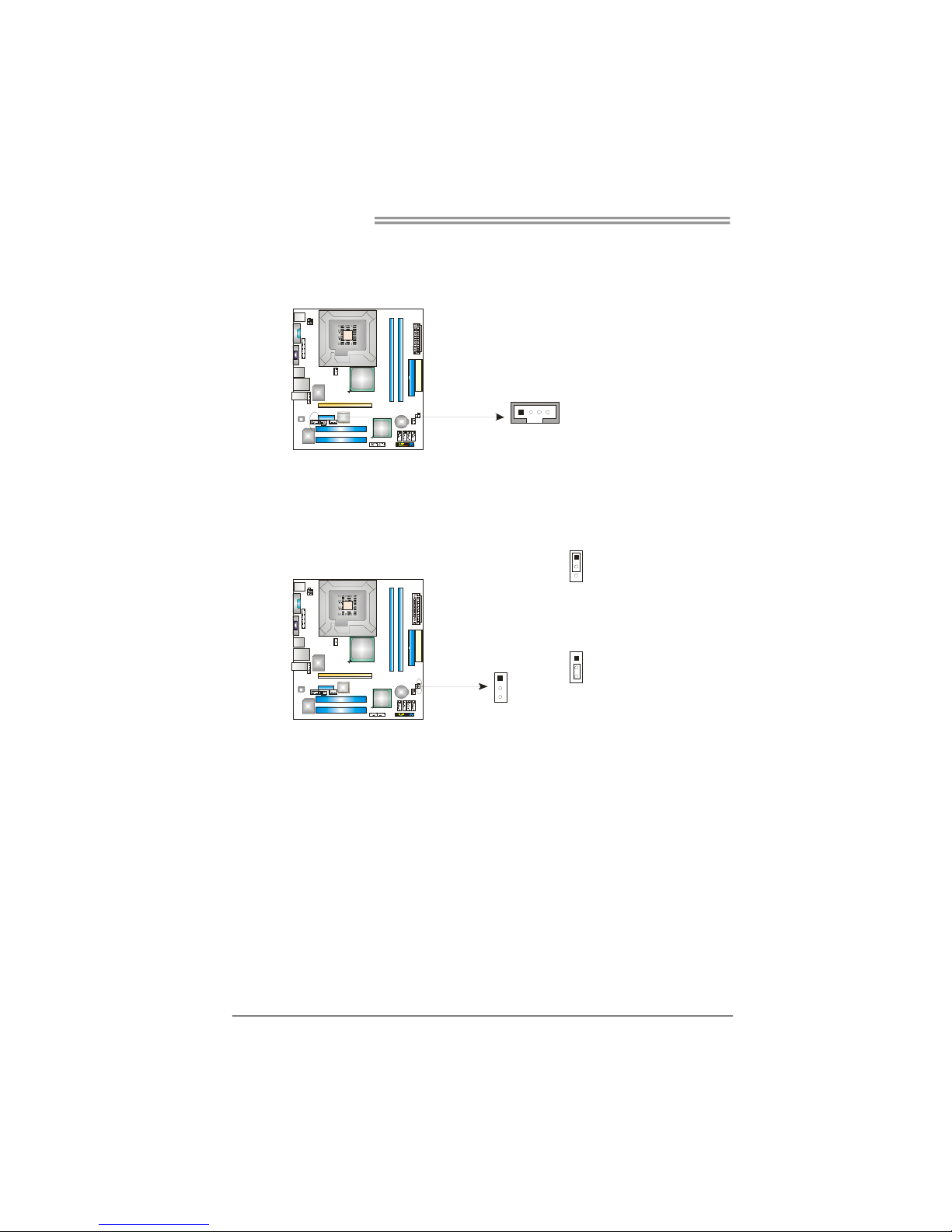

JCDIN1: CD-ROM Audio-in Connector
This connector allows user to connect the audio source from the variaty devices,
like CD-ROM, DVD-ROM, PCI sound card, PCI TV turner card etc..
Pin
Assignment
1 Left Channel
Input
2 Ground
3 Ground
14
4 Right
Channel
Input

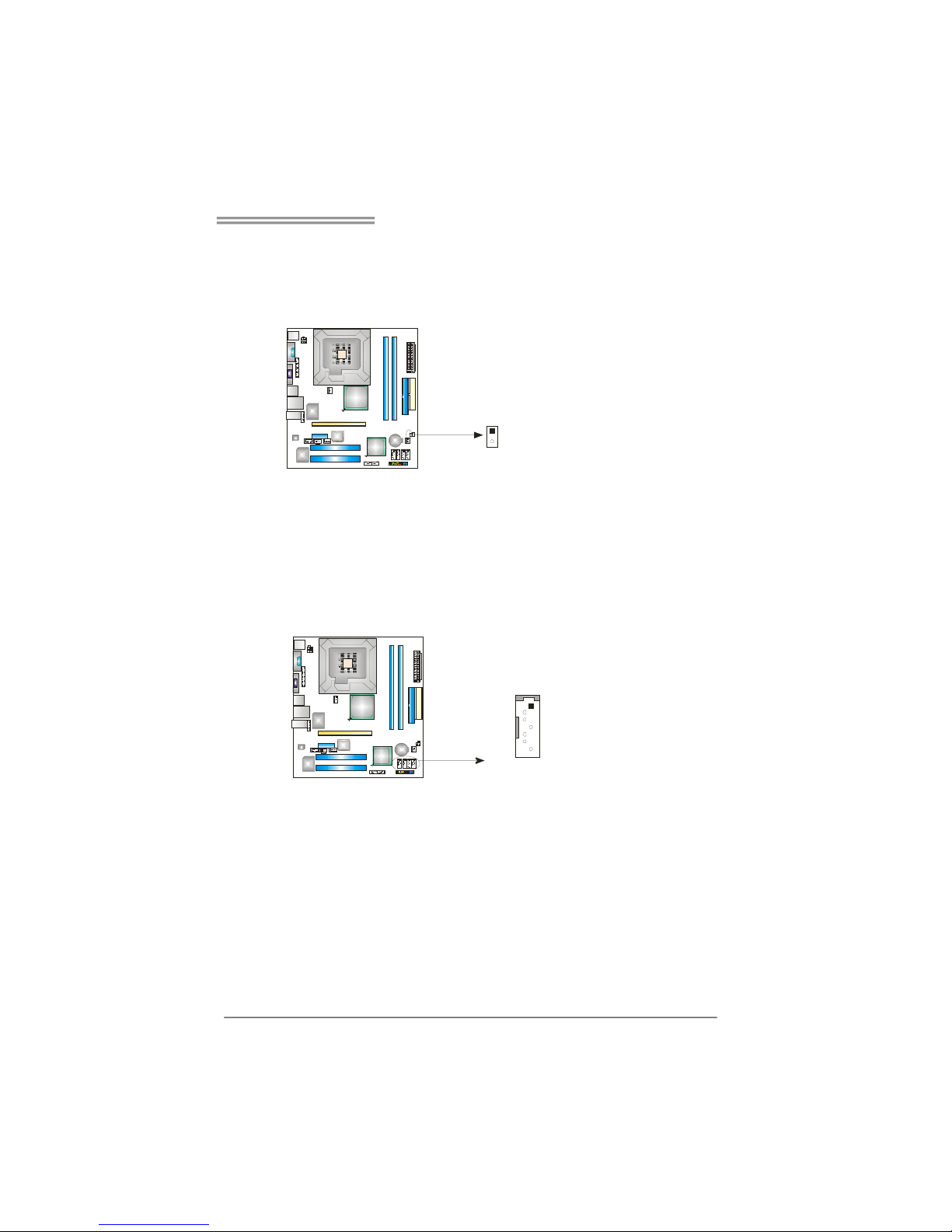

JCMOS1: Clear CMOS Header
By placing the jumper on pin2-3, it allows user to restore the BIOS safe setting
and the CMOS data, please carefully follow the procedures to avoid damaging
the motherboard.
1
3
Pin 1-2 Close:
Normal Operation (Default).
1
3
1
3
Pin 2-3 Close:
Clear CMOS data.
※ Clear CMOS Procedures:
1. Remove AC power line.
2. Set the jumper to “Pin 2-3 close”.
3. Wait for five seconds.
4. Set the jumper to “Pin 1-2 close”.
5. Power on the AC.
6. Reset your desired password or clear the CMOS data.
945G Micro 775SE & 945GZ Micro 775
17

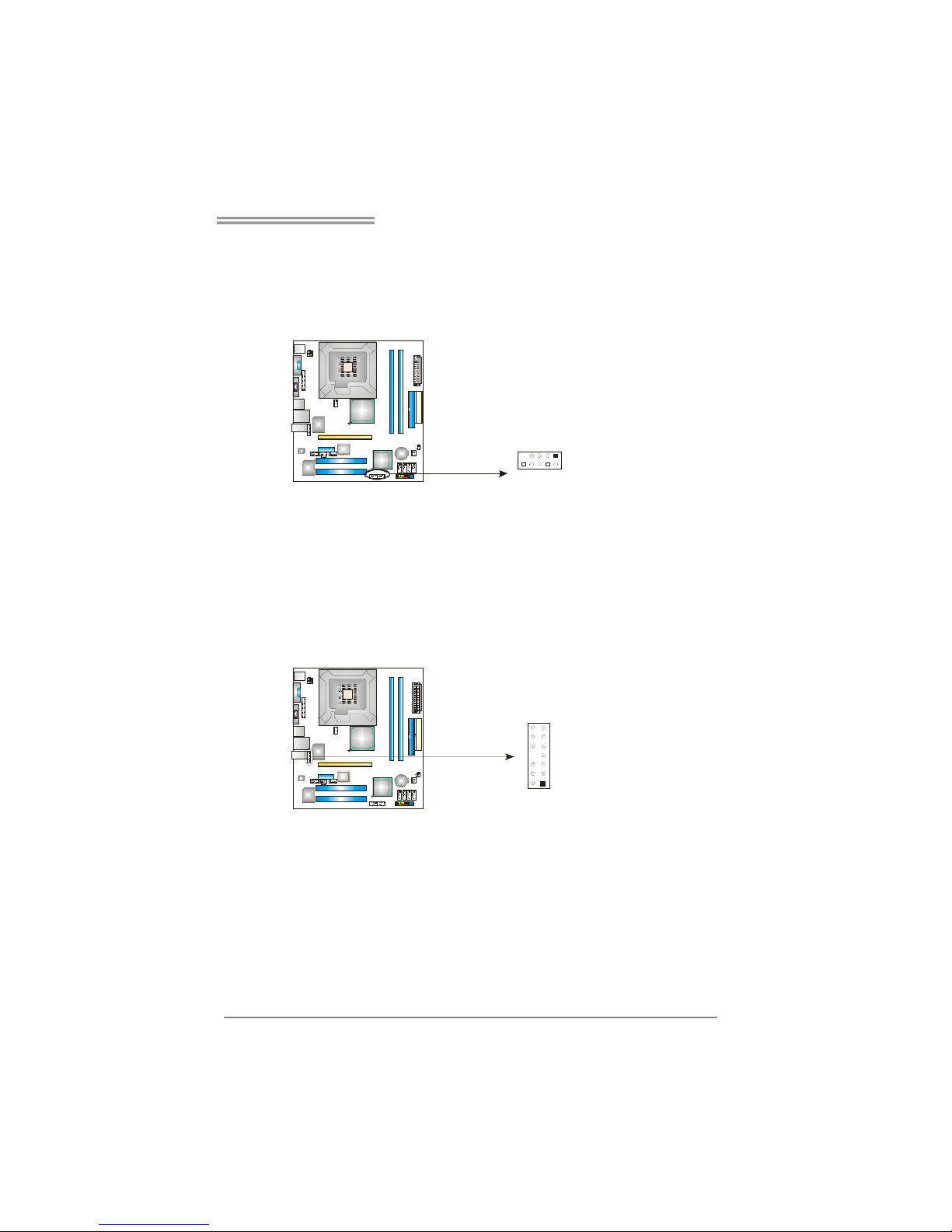

JCI1: Chassis Open Header
This connector allows system to monitor PC case open status. If the signal has
been triggered, it will record to the CMOS and show the message on next
boot-up.
Pin
Assignment
1 Case open
signal
1
2
2 Ground
JSATA1~JSATA4: Serial ATA Connectors
The motherboard has a PCI to SATA Controller with 4channels SATA interface, it
satisfies the SATA 2.0 spec and with transfer rate of 3GB/s.
Pin
Assignment
1 Ground
2 TX+
3 TX-
4 Ground
5 RX-
6 RX+
1
4
7
SATA1 SATA3
SATA2 SATA4
7 Ground
Motherboard Manual
18
JSPDIF_OUT1: Digital Audio out Connectors
This connector allows user to connect the PCI bracket SPDIF output header.
Pin
Assignment
1+5V
2 SPDIF_OUT1
13
3 Ground
JSPDI_IN1: Digital Audio in Connectors (optional)
This connector allows user to connect the PCI bracket SPDIF input header.
Pin
Assignment
1+5V
2 SPDIF_IN1
1
3
3 Ground
945G Micro 775SE & 945GZ Micro 775
19
JPRNT1: Printer Port Connector
This header allows you to connector printer on the PC.
1
25
2
Pin Assignment Pin Assignment
1 -Strobe 14 Ground
2 -ALF 15 Data 6
3 Data 0 16 Ground
4 -Error 17 Data 7
5 Data 1 18 Ground
6 -Init 19 -ACK
7 Data 2 20 Ground
8 -Scltin 21 Busy
9 Data 3 22 Ground
10 Ground 23 PE
11 Data 4 24 Ground
12 Ground 25 SCLT
13 Data 5
Motherboard Manual
20
CHAPTER 4: USEFUL HELP
4.1 D
RIVER INSTALLATION NOTE
After you installed your operating system, please insert the Fully Setup
Driver CD into your optical drive and install the driver for better system
performance.

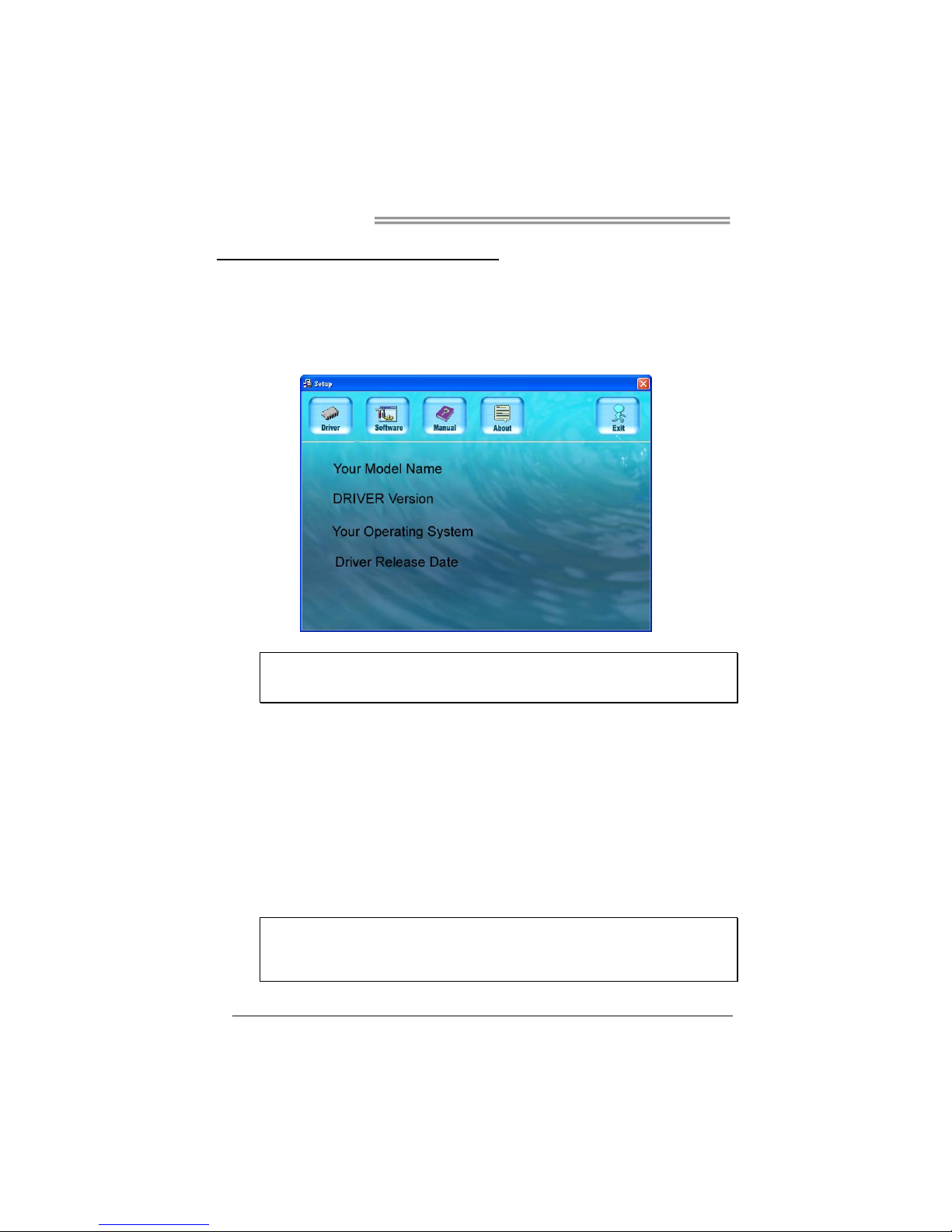

You will see the following window after you insert the CD
The setup guide will auto detect your motherboard and operating system.
Note:
If this window didn’t show up after you insert the Driver CD, please use file browser to
locate and execute the file SETUP.EXE under your optical drive.
A. Driver Installation
To install the driver, please click on the Driver icon. The setup guide will
list the compatible driver for your motherboard and operating system.
Click on each device driver to launch the installation program.
B. Software Installation
To install the software, please click on the Software icon. The setup guide
will list the software available for your system, click on each software title
to launch the installation program.
C. Manual
Aside from the paperback manual, we also provide manual in the Driver
CD. Click on the Manual icon to browse for available manual.
Note:
You will need Acrobat Reader to open the manual file. Please download the latest version
of Acrobat Reader software from
http://www.adobe.com/products/acrobat/readstep2.html
945G Micro 775SE & 945GZ Micro 775
21
4.2 AWARD BIOS BEEP CODE
Beep Sound Meaning
One long beep followed by two short
beeps
Video card not found or video card
memory bad
High-low siren sound CPU overheated
System will shut down automatically
One Short beep when system boot-up No error found during POST
Long beeps every other second No DRAM detected or install
4.3 EXTRA INFORMATION

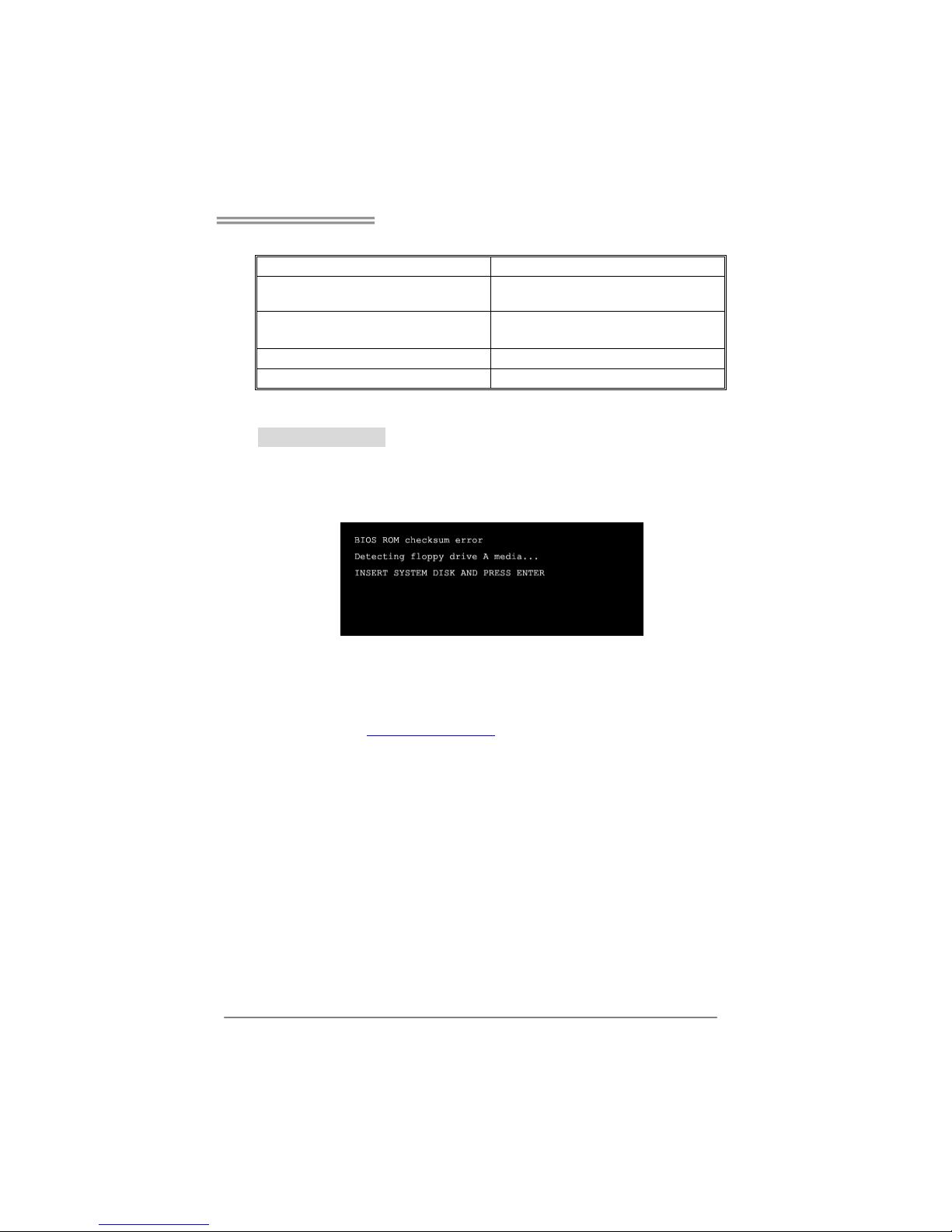

A. BIOS Update
After you fail to update BIOS or BIOS is invaded by virus, the
Boot-Block function will help to restore BIOS. If the following message
is shown after boot-up the system, it means the BIOS contents are
corrupted.
In this Case, please follow the procedure below to restore the BIOS:
1. Make a bootable floppy disk.
2. Download the Flash Utility “AWDFLASH.exe” from the Biostar
website: www.biostar.com.tw
3. Confirm motherboard model and download the respectively BIOS
from Biostar website.
4. Copy “AWDFLASH.exe” and respectively BIOS into floppy disk.
5. Insert the bootable disk into floppy drive and press Enter.
6. System will boot-up to DOS prompt.
7. Type “Awdflash xxxx.bf/sn/py/r” in DOS prompt.
(xxxx means BIOS name.)
8. System will update BIOS automatically and restart.
9. The BIOS has been recovered and will work properly.
Motherboard Manual
22
B. CPU Overheated
If the system shutdown automatically after power on system for
seconds, that means the CPU protection function has been activated.
When the CPU is over heated, the motherboard will shutdown
automatically to avoid a damage of the CPU, and the system may not
power on again.
In this case, please double check:
1. The CPU cooler surface is placed evenly with the CPU surface.
2. CPU fan is rotated normally.
3. CPU fan speed is fulfilling with the CPU speed.
After confirmed, please follow steps below to relief the CPU
0protection function.
1. Remove the power cord from power supply for seconds.
2. Wait for seconds.
3. Plug in the power cord and boot up the system.
Or you can:
1. Clear the CMOS data.
(See “Close CMOS Header: JCMOS1” section)
2. Wait for seconds.
3. Power on the system again.
945G Micro 775SE & 945GZ Micro 775
23
4.4 TROUBLESHOOTING
Probable Solution
1. No power to the system at all
Power light don’t illuminate, fan
inside power supply does not turn
on.
2. Indicator light on keyboard does
not turn on.
1. Make sure power cable is
securely plugged in.
2. Replace cable.
3. Contact technical support.
System inoperative. Keyboard lights
are on, power indicator lights are lit,
and hard drive is spinning.
Using even pressure on both ends of
the DIMM, press down firmly until the
module snaps into place.
System does not boot from hard disk
drive, can be booted from optical drive.
1. Check cable running from disk to
disk controller board. Make sure
both ends are securely plugged
in; check the drive type in the
standard CMOS setup.
2. Backing up the hard drive is
extremely important. All hard
disks are capable of breaking
down at any time.
System only boots from optical drive.
Hard disk can be read and applications
can be used but booting from hard disk
is impossible.
1. Back up data and applications
files.
2. Reformat the hard drive.
Re-install applications and data
using backup disks.
Screen message says “Invalid
Configuration” or “CMOS Failure.”
Review system’s equipment. Make sure
correct information is in setup.
Cannot boot system after installing
second hard drive.
1. Set master/slave jumpers
correctly.
2. Run SETUP program and select
correct drive types. Call the drive
manufacturers for compatibility
with other drives.
Motherboard Manual
24
CHAPTER 5: WARPSPEEDER™
5.1 INTRODUCTION
[WarpSpeeder™], a new powerful control utility, features three
user-friendly functions including Overclock Manager, Overvoltage
Manager, and Hardware Monitor.
With the Overclock Manager, users can easily adjust the frequency they
prefer or they can get the best CPU performance with just one click. The
Overvoltage Manager, on the other hand, helps to power up CPU core
voltage and Memory voltage. The cool Hardware Monitor smartly indicates
the temperatures, voltage and CPU fan speed as well as the chipset
information. Also, in the About panel, you can get detail descriptions about
BIOS model and chipsets. In addition, the frequency status of CPU,
memory, AGP and PCI along with the CPU speed are synchronically
shown on our main panel.
Moreover, to protect users' computer systems if the setting is not
appropriate when testing and results in system fail or hang,
[WarpSpeeder™] technology assures the system stability by automatically
rebooting the computer and then restart to a speed that is either the
original system speed or a suitable one.
5.2 SYSTEM REQUIREMENT
OS Support: Windows 98 SE, Windows Me, Windows 2000, Windows XP
DirectX: DirectX 8.1 or above. (The Windows XP operating system
includes DirectX 8.1. If you use Windows XP, you do not need to install
DirectX 8.1.)
945G Micro 775SE & 945GZ Micro 775
25
5.3 INSTALLATION

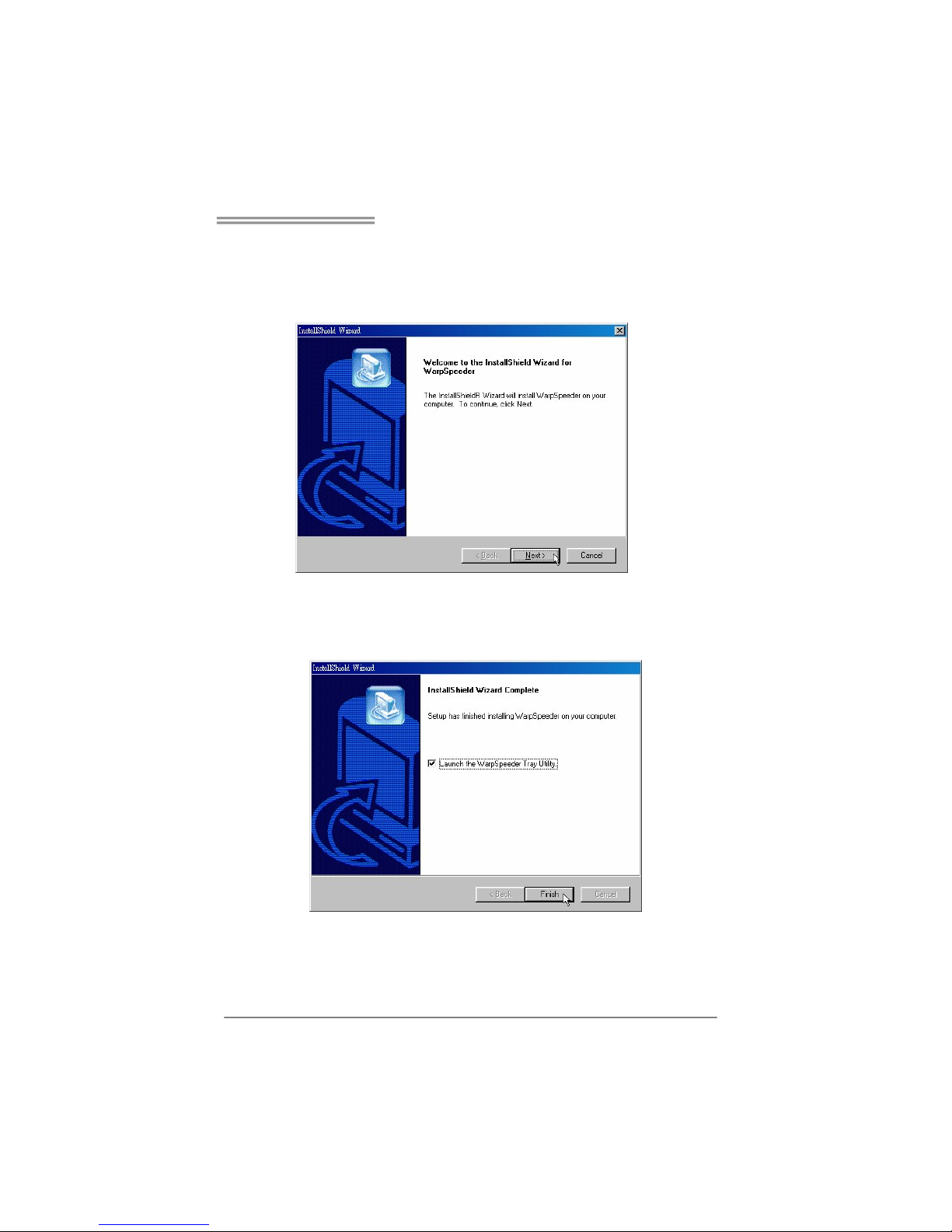

1. Execute the setup execution file, and then the following dialog will pop
up. Please click “Next” button and follow the default procedure to
install.
2. When you see the following dialog in setup procedure, it means setup
is completed. If the “Launch the WarpSpeeder Tray Utility” checkbox
is checked, the Tray Icon utility and [WarpSpeeder™] utility will be
automatically and immediately launched after you click “Finish”
button.
Usage:
The following figures are just only for reference, the screen printed in
this user manual will change according to your motherboard on hand.
Motherboard Manual
26
5.4 WARPSPEEDER™
1. Tray Icon:

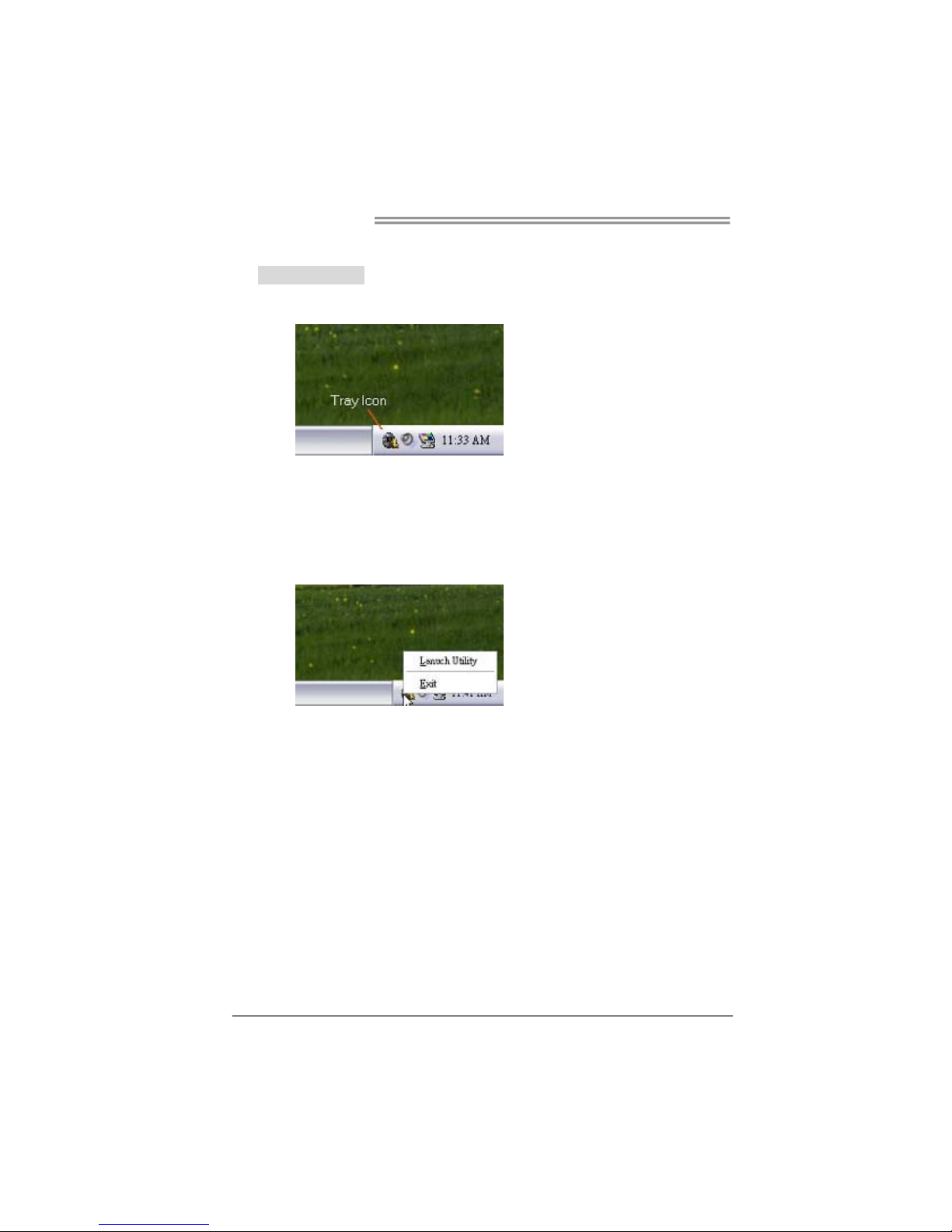

Whenever the Tray Icon utility is launched, it will display a little tray
icon on the right side of Windows Taskbar.
This utility is responsible for conveniently invoking [WarpSpeeder™]
Utility. You can use the mouse by clicking the left button in order to
invoke [WarpSpeeder™] directly from the little tray icon or you can
right-click the little tray icon to pop up a popup menu as following
figure. The “Launch Utility” item in the popup menu has the same
function as mouse left-click on tray icon and “Exit” item will close
Tray Icon utility if selected.
945G Micro 775SE & 945GZ Micro 775
27
2. Main Panel

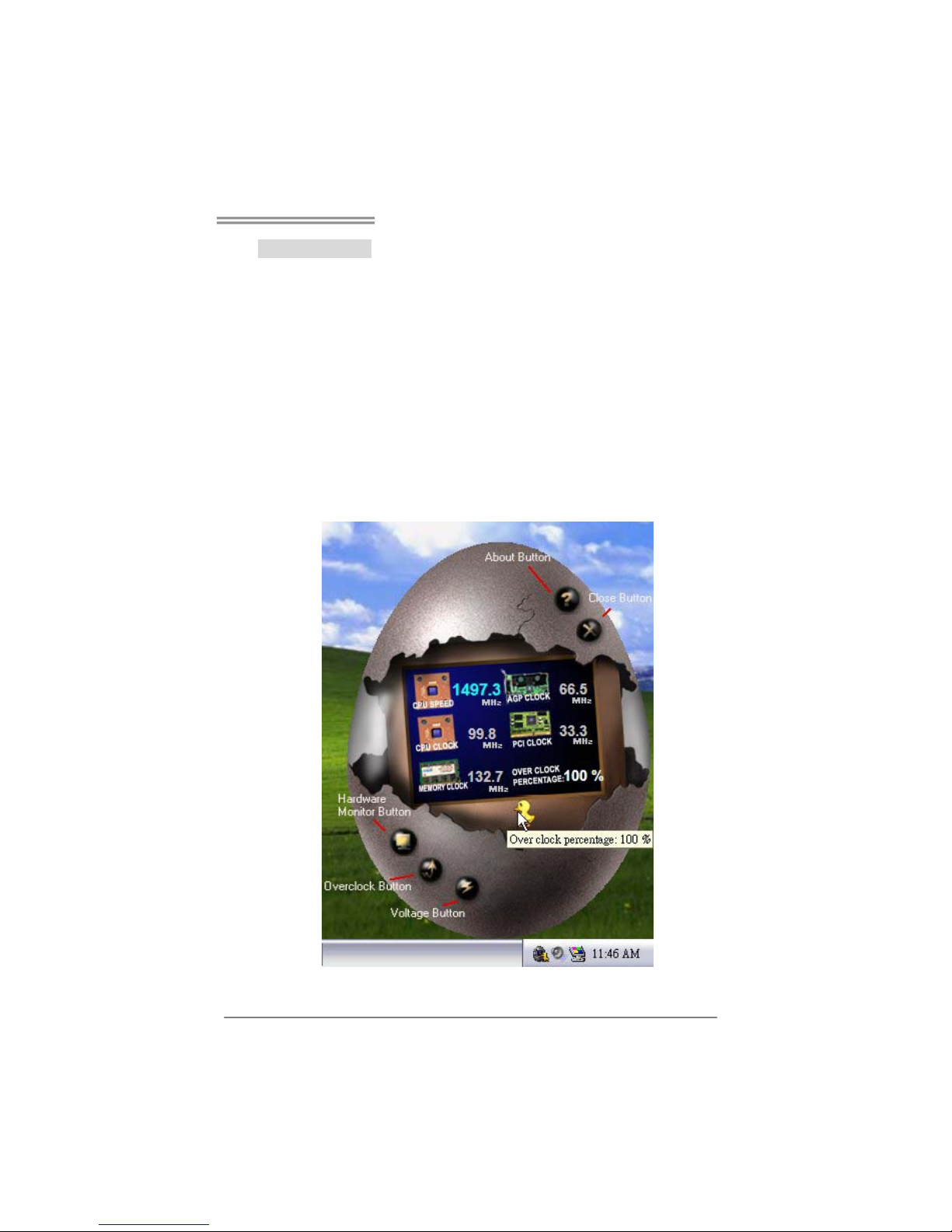

If you click the tray icon, [WarpSpeeder™] utility will be invoked.
Please refer to the following figure; the utility’s first window you will
see is Main Panel.
Main Panel contains features as follows:
a. Display the CPU Speed, CPU external clock, Memory clock, AGP clock,
and PCI clock information.
b. Contains About, Voltage, Overclock, and Hardware Monitor Buttons for
invoking respective panels.
c. With a user-friendly Status Animation, it can represent 3 overclock
percentage stages:
Man walking→overclock percentage from 100% ~ 110 %
Panther running→overclock percentage from 110% ~ 120%
Car racing→overclock percentage from 120% ~ above
Motherboard Manual
28

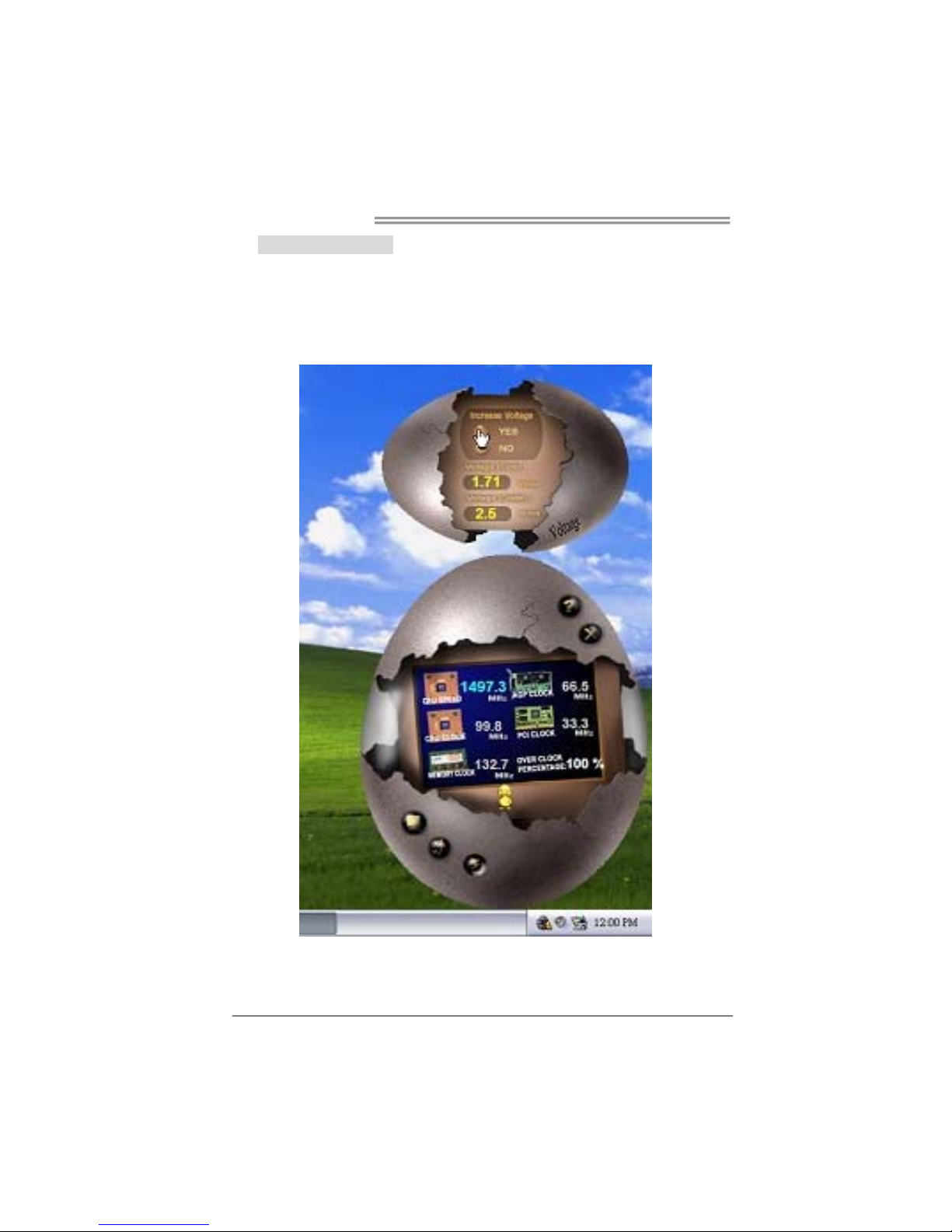

3. Voltage Panel
Click the Voltage button in Main Panel, the button will be highlighted
and the Voltage Panel will slide out to up as the following figure.
In this panel, you can decide to increase CPU core voltage and
Memory voltage or not. The default setting is “No”. If you want to get
the best performance of overclocking, we recommend you click the
option “Yes”.
945G Micro 775SE & 945GZ Micro 775
29
4. Overclock Panel
Click the Overclock button in Main Panel, the button will be
highlighted and the Overclock Panel will slide out to left as the
following figure.
Overclock Panel contains the these features:
a. “–3MHz button”, “-1MHz button”, “+1MHz button”, and “+3MHz button”:
provide user the ability to do real-time overclock adjustment.
Warning:
Manually overclock is potentially dangerous, especially when the
overclocking percentage is over 110 %. We strongly recommend you
verify every speed you overclock by click the Verify button. Or, you can
just click Auto overclock button and let [WarpSpeeder™] automatically
gets the best result for you.

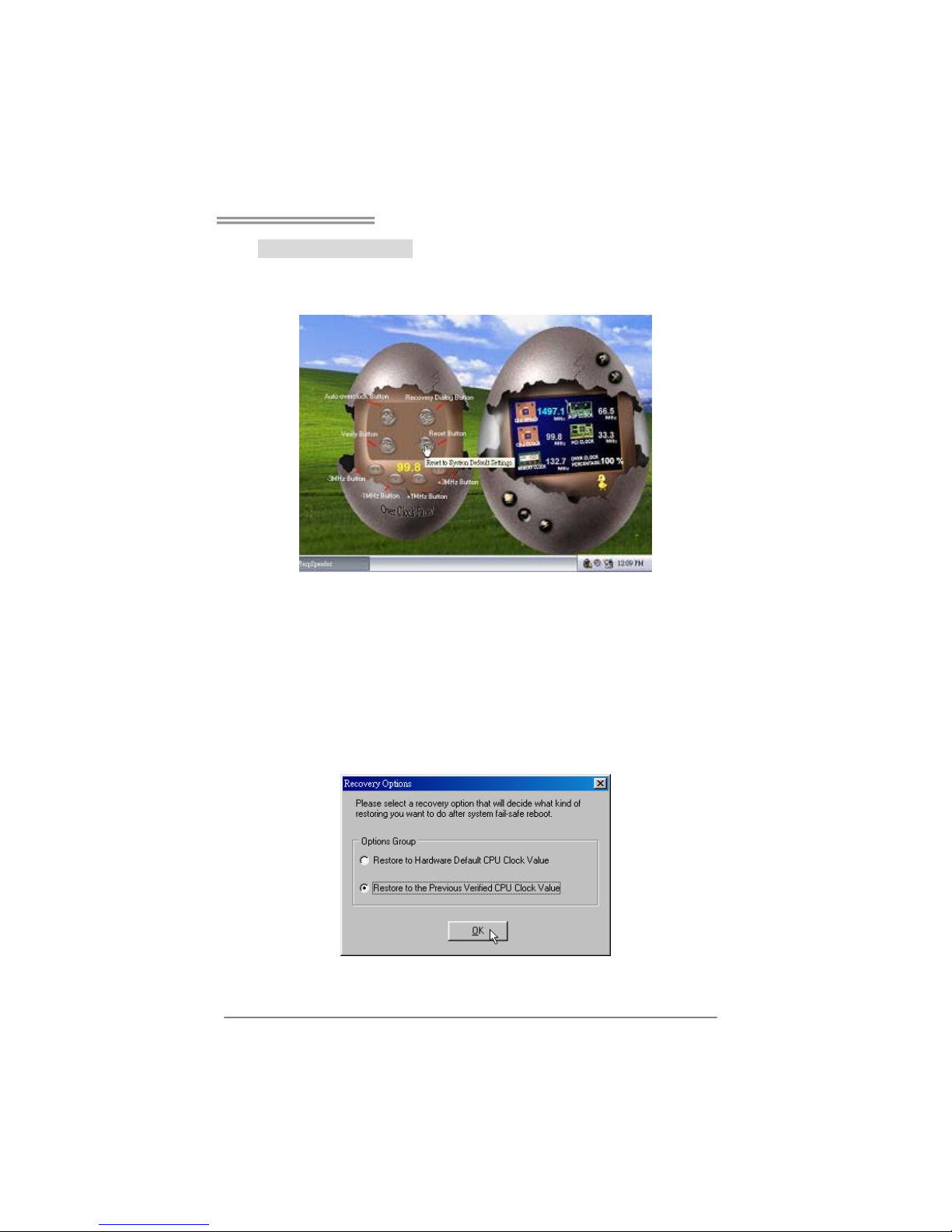

b. “Recovery Dialog button”: Pop up the following dialog. Let user select
a restoring way if system need to do a fail-safe reboot.
Motherboard Manual
30
c. “Auto-overclock button”: User can click this button and
[WarpSpeeder™] will set the best and stable performance and
frequency automatically. [WarpSpeeder™] utility will execute a
series of testing until system fail. Then system will do fail-safe
reboot by using Watchdog function. After reboot, the
[WarpSpeeder™] utility will restore to the hardware default
setting or load the verified best and stable frequency according
to the Recovery Dialog’s setting.
d. “Verify button”: User can click this button and [WarpSpeeder™]
will proceed a testing for current frequency. If the testing is ok,
then the current frequency will be saved into system registry. If
the testing fail, system will do a fail-safe rebooting. After reboot,
the [WarpSpeeder™] utility will restore to the hardware default
setting or load the verified best and stable frequency according
to the Recovery Dialog’s setting.
Note:
Because the testing programs, invoked in Auto-overclock and Verify,
include DirectDraw, Direct3D and DirectShow tests, the DirectX 8.1 or
newer runtime library is required. And please make sure your display
card’s color depth is High color (16 bit) or True color( 24/32 bit ) that is
required for Direct3D rendering.
5. Hardware Monitor Panel

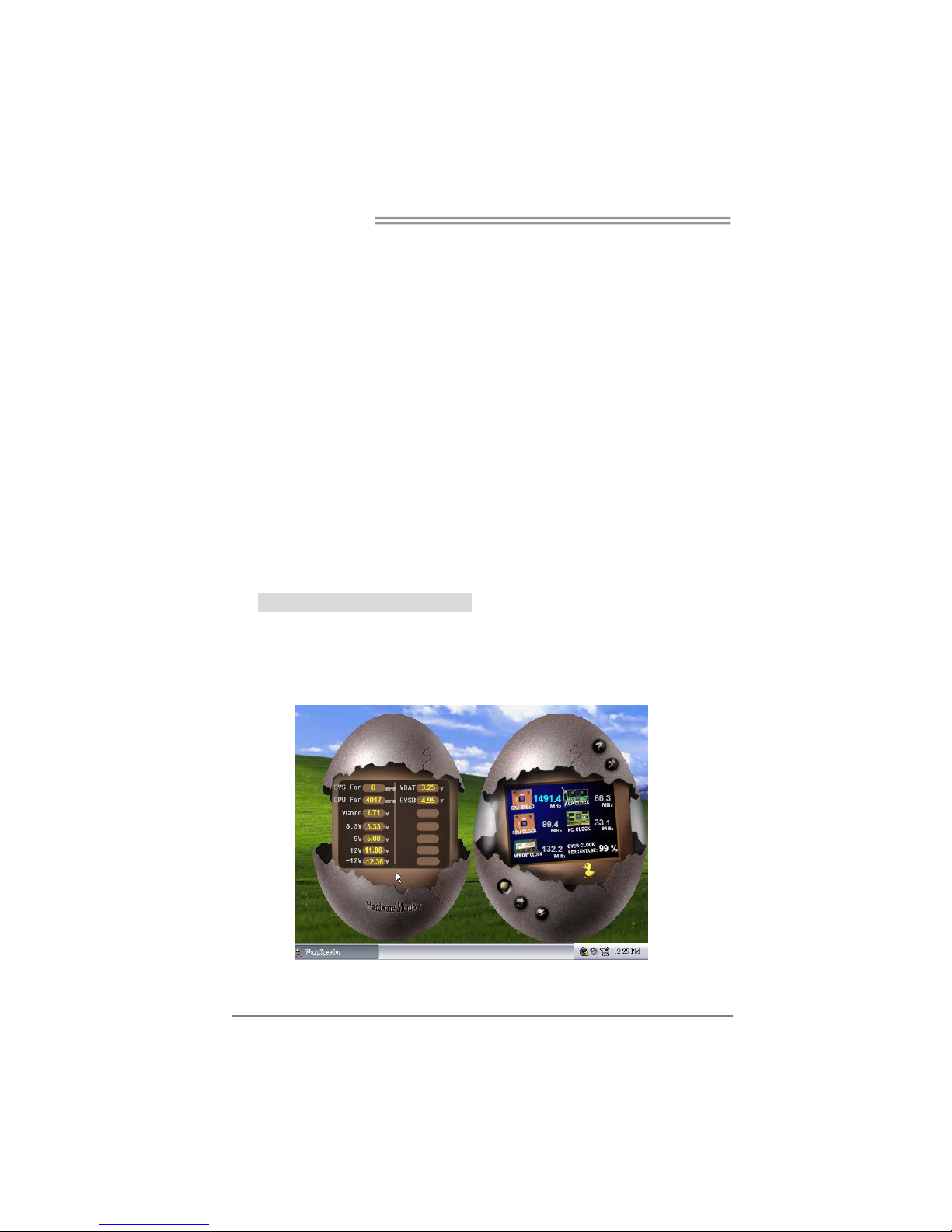

Click the Hardware Monitor button in Main Panel, the button will be
highlighted and the Hardware Monitor panel will slide out to left as
the following figure.
In this panel, you can get the real-time status information of your
system. The information will be refreshed every 1 second.
945G Micro 775SE & 945GZ Micro 775
31
6. About Panel

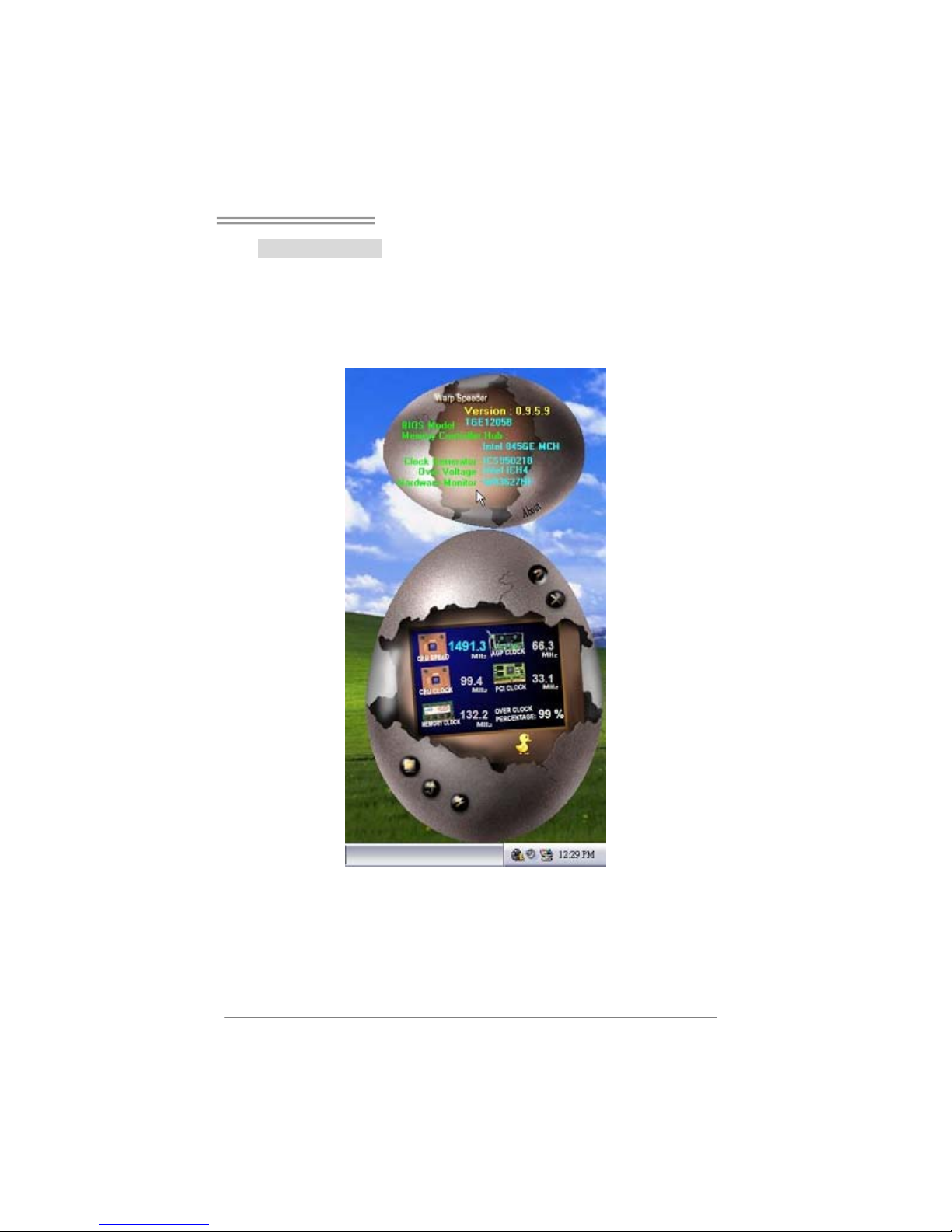

Click the “about” button in Main Panel, the button will be highlighted
and the About Panel will slide out to up as the following figure.
In this panel, you can get model name and detail information in hints
of all the chipset that are related to overclocking. You can also get
the mainboard’s BIOS model and the Version number of
[WarpSpeeder™] utility.
Note:
Because the overclock, overvoltage, and hardware monitor features
are controlled by several separate chipset, [WarpSpeeder™] divide
these features to separate panels. If one chipset is not on board, the
correlative button in Main panel will be disabled, but will not interfere
other panels’ functions. This property can make [WarpSpeeder™]
utility more robust.
Motherboard Manual
32
APPENDENCIES: SPEC IN OTHER LANGUAGE
G
ERMAN
945G Micro 775 945GZ Micro 775
CPU
LGA 775
Intel Core2Duo / Pentium 4 / Pentium D /
Celeron D Prozessoren mit bis zu 3,8 GHz
Unterstützt Hyper-Threading
Execute Disable Bit
Enhanced Intel SpeedStep®
Extended Memory 64 Technology
LGA 775
Intel Core2Duo / Pentium 4 / Pentium D /
Celeron D Prozessoren mit bis zu 3,8 GHz
Unterstützt Hyper-Threading
Execute Disable Bit
Enhanced Intel SpeedStep®
Extended Memory 64 Technology
FSB 533 / 800 / 1066 MHz 533 / 800 MHz
Chipsatz
Intel 945G
Intel ICH7
Intel 945GZ
Intel ICH7
Grafik Intel GMA 950 Intel GMA 950
Super E/A
ITE 8712F
Hardware-Überwachung
Lüfterdrehzahl-Controller
"Smart Guardian"-Funktion von ITE
ITE 8712F
Hardware-Überwachung
Lüfterdrehzahl-Controller
"Smart Guardian"-Funktion von ITE
Arbeitsspeich
er
DDR2 DIMM-Steckplätze x 2
Jeder DIMM unterstützt 256/512MB & 1GB DDR
Max. 2GB Arbeitsspeicher
Dual-Kanal DDR2 Speichermodul
Unterstützt DDR2 400 / 533 / 667
DDR2 DIMM-Steckplätze x 2
Jeder DIMM unterstützt 256/512MB & 1GB
DDR2
Max. 2GB Arbeitsspeicher
Dual-Kanal DDR2 Speichermodul
Unterstützt DDR2 400 / 533
IDE
Integrierter IDE-Controller
Ultra DMA 33 / 66 / 100 Bus Master-Modus
Unterstützt PIO-Modus 0~4
Integrierter IDE-Controller
Ultra DMA 33 / 66 / 100 Bus Master-Modus
Unterstützt PIO-Modus 0~4
SATA
Integrierter Serial ATA-Controller
Datentransferrate bis zu 3Gb/s
Konform mit der SATA-Spezifikation Version 2.0
Integrierter Serial ATA-Controller
Datentransferrate bis zu 3Gb/s
Konform mit der SATA-Spezifikation Version 2.0
LAN
Realtek 8100C
10 / 100 Mb/s Auto-Negotiation
Halb-/ Vollduplex-Funktion
Realtek 8100C
10 / 100 Mb/s Auto-Negotiation
Halb-/ Vollduplex-Funktion
Audio-Codec
ALC 655
6-Kanal-Audioausgabe
AC’97 Version 2.3
ALC 655
6-Kanal-Audioausgabe
AC’97 Version 2.3
945G Micro 775SE & 945GZ Micro 775
33
945G Micro 775 945GZ Micro 775
PCI Express x16 Steckplatz x1 PCI Express x16 Steckplatz x1
PCI Express x 1-Steckplatz x1
Steckplätze
PCI-Steckplatz x2 PCI-Steckplatz x3
Diskettenlaufwerkanschluss x1 Diskettenlaufwerkanschluss x1
IDE-Anschluss x1 IDE-Anschluss x2
Druckeranschluss Anschluss x1 Druckeranschluss Anschluss x1
SATA-Anschluss x4 SATA-Anschluss x4
Fronttafelanschluss x1 Fronttafelanschluss x1
Front-Audioanschluss x1 Front-Audioanschluss x1
CD-IN-Anschluss x1 CD-IN-Anschluss x1
S/PDIF-Ausgangsanschluss(optional) x1 S/PDIF-Ausgangsanschluss(optional) x1
S/PDIF Eingangsanschluss x1 S/PDIF Eingangsanschluss x1
CPU-Lüfter-Sockel x1 CPU-Lüfter-Sockel x1
System-Lüfter-Sockel x1 System-Lüfter-Sockel x1
"Gehäuse offen"-Sockel (optional) x1 "Gehäuse offen"-Sockel (optional) x1
"CMOS löschen"-Sockel x1 "CMOS löschen"-Sockel x1
USB-Anschluss x2 USB-Anschluss x2
Stromanschluss (24-polig) x1 Stromanschluss (24-polig) x1
Onboard-Ans
chluss
Stromanschluss (4-polig) x1 Stromanschluss (4-polig) x1
Rückseiten-E
/A
PS/2-Tastatur x1
PS/2-Maus x1
Serieller Anschluss x1
VGA-Anschluss x1
LAN-Anschluss x1
USB-Anschluss x4
Audioanschluss x3
PS/2-Tastatur x1
PS/2-Maus x1
Serieller Anschluss x1
VGA-Anschluss x1
LAN-Anschluss x1
USB-Anschluss x4
Audioanschluss x3
Platinengröße
.
190 mm (B) X 244 mm (L) 190 mm (B) X 244 mm (L)
OS-Unterstüt
zung
Windows 2000 / XP
Biostar behält sich das Recht vor, ohne
Ankündigung die Unterstützung für ein
Betriebssystem hinzuzufügen oder zu
entfernen.
Windows 2000 / XP
Biostar behält sich das Recht vor, ohne
Ankündigung die Unterstützung für ein
Betriebssystem hinzuzufügen oder zu
entfernen.
Motherboard Manual
34
FRANCE
945G Micro 775 945GZ Micro 775
UC
LGA 775
Processeurs Intel Core2Duo / Pentium 4 /
Pentium D / Celeron D jusqu'à 3,4 GHz
Prend en charge les technologies
Hyper-Threading
d'exécution de bit de désactivation
Intel SpeedStep® optimisée
de mémoire étendue 64
LGA 775
Processeurs Intel Core2Duo / Pentium 4 /
Pentium D / Celeron D jusqu'à 3,4 GHz
Prend en charge les technologies
Hyper-Threading
d'exécution de bit de désactivation
Intel SpeedStep® optimisée
de mémoire étendue 64
Bus frontal 533 / 800 / 1066 MHz 533 / 800 MHz
Chipset
Intel 945G
Intel ICH7
Intel 945GZ
Intel ICH7
Graphiques Intel GMA 950 Intel GMA 950
Super E/S
ITE 8712F
Moniteur de matériel
Contrôleur de vitesse de ventilateur
Fonction "Gardien intelligent" de l'ITE
ITE 8712F
Moniteur de matériel
Contrôleur de vitesse de ventilateur
Fonction "Gardien intelligent" de l'ITE
Mémoire
principale
Fentes DDR2 DIMM x 2
Chaque DIMM prend en charge des DDR2 de
256/512 Mo et 1Go
Capacité mémoire maximale de 2 Go
Module de mémoire DDR2 à mode à double voie
Prend en charge la DDR2 400 / 533 / 667
Fentes DDR2 DIMM x 2
Chaque DIMM prend en charge des DDR2 de
256/512 Mo et 1Go
Capacité mémoire maximale de 2 Go
Module de mémoire DDR2 à mode à double voie
Prend en charge la DDR2 400 / 533
IDE
Contrôleur IDE intégré
Mode principale de Bus Ultra DMA 33 / 66 / 100
Prend en charge le mode PIO 0~4,
Contrôleur IDE intégré
Mode principale de Bus Ultra DMA 33 / 66 / 100
Prend en charge le mode PIO 0~4,
SATA
Contrôleur Serial ATA intégré :
Taux de transfert jusqu'à 3 Go/s.
Conforme à la spécification SATA Version 2.0
Contrôleur Serial ATA intégré :
Taux de transfert jusqu'à 3 Go/s.
Conforme à la spécification SATA Version 2.0
LAN
Realtek 8100C
10 / 100 Mb/s négociation automatique
Half / Full duplex capability
Realtek 8100C
10 / 100 Mb/s négociation automatique
Half / Full duplex capability
Codec audio
ALC 655
Sortie audio à 6 voies
AC’97 Version 2.3
ALC 655 / ALC658
Sortie audio à 6 voies
AC’97 Version 2.3
945G Micro 775SE & 945GZ Micro 775
35
945G Micro 775 945GZ Micro 775
PCI Express x16 Steckplatz x1 PCI Express x16 Steckplatz x1
PCI Express x1 Steckplatz x1
Fentes
Fente PCI x2 Fente PCI x3
Connecteur de disquette x1 Connecteur de disquette x1
Connecteur IDE x1 Connecteur IDE x1
Connecteur de Port d'imprimante x1 Connecteur de Port d'imprimante x1
Connecteur SATA x4 Connecteur SATA x4
Connecteur du panneau avant x1 Connecteur du panneau avant x1
Connecteur Audio du panneau avant x1 Connecteur Audio du panneau avant x1
Connecteur d'entrée CD x1 Connecteur d'entrée CD x1
Connecteur d'entrée S/PDIF (en option) x1 Connecteur d'entrée S/PDIF (en option) x1
Connecteur de sortie S/PDIF x1 Connecteur de sortie S/PDIF x1
Embase de ventilateur UC x1 Embase de ventilateur UC x1
Embase de ventilateur système x1 Embase de ventilateur système x1
Embase d'ouverture de châssis x1
(optional)
Embase d'ouverture de châssis x1
(optional)
Embase d'effacement CMOS x1 Embase d'effacement CMOS x1
Connecteur USB x2 Connecteur USB x2
Connecteur d'alimentation (24 broches) x1 Connecteur d'alimentation (24 broches) x1
Connecteur
embarqué
Connecteur d'alimentation (4 broches) x1 Connecteur d'alimentation (4 broches) x1
E/S du
panneau
arrière
Clavier PS/2 x1
Souris PS/2 x1
Port série x1
Port VGA x1
Port LAN x1
Port USB x4
Fiche audio x3
Clavier PS/2 x1
Souris PS/2 x1
Port série x1
Port VGA x1
Port LAN x1
Port USB x4
Fiche audio x3
Dimensions
de la carte
190mm (l) X 244 mm (H) 190mm (l) X 244 mm (H)
Support SE
Windows 2000 / XP
Biostar se réserve le droit d'ajouter ou de
supprimer le support de SE avec ou sans préavis.
Windows 2000 / XP
Biostar se réserve le droit d'ajouter ou de
supprimer le support de SE avec ou sans préavis.
Motherboard Manual
36
ITALIAN
945G Micro 775 945GZ Micro 775
CPU
LGA 775
Processore Intel Core2Duo / Pentium 4 /
Pentium D / Celeron D fino a 3.8 GHz
Supporto di Hyper-Threading
Execute Disable Bit
Enhanced Intel SpeedStep®
Tecno l o g i a Exten d e d M e mory 6 4
LGA 775
Processore Intel Core2Duo / Pentium 4 /
Pentium D / Celeron D fino a 3.8 GHz
Supporto di Hyper-Threading
Execute Disable Bit
Enhanced Intel SpeedStep®
Tecno l o g i a Exten d e d M e mory 6 4
FSB 533 / 800 / 1066 MHz 533 / 800 MHz
Chipset
Intel 945G
Intel ICH7
Intel 945GZ
Intel ICH7
Grafica
Intel GMA 950 Intel GMA 950
Super I/O
ITE 8712F
Monitoraggio hardware
Controller velocità ventolina
Funzione "Smart Guardian" di ITE
ITE 8712F
Monitoraggio hardware
Controller velocità ventolina
Funzione "Smart Guardian" di ITE
Memoria
principale
Alloggi DIMM DDR2 x 2
Ciascun DIMM supporta DDR2 256/512MB e
1GB
Capacità massima della memoria 2GB
Modulo di memoria DDR2 a canale doppio
Supporto di DDR2 400 / 533 / 667
Alloggi DIMM DDR2 x 2
Ciascun DIMM supporta DDR2 256/512MB e
1GB
Capacità massima della memoria 2GB
Modulo di memoria DDR2 a canale doppio
Supporto di DDR2 400 / 533
IDE
Controller IDE integrato
Modalità Bus Master Ultra DMA 33 / 66 /
100
Supporto modalità PIO Mode 0-4
Controller IDE integrato
Modalità Bus Master Ultra DMA 33 / 66 /
100
Supporto modalità PIO Mode 0-4
SATA
Controller Serial ATA integrato
Velocità di trasferimento dei dati fino a 3
Gb/s.
Compatibile specifiche SATA Versione 2.0.
Controller Serial ATA integrato
Velocità di trasferimento dei dati fino a 3
Gb/s.
Compatibile specifiche SATA Versione 2.0.
LAN
Realtek 8100C
Negoziazione automatica 10 / 100 Mb/s
Capacità Half / Full Duplex
Realtek 8100C
Negoziazione automatica 10 / 100 Mb/s
Capacità Half / Full Duplex
Codec
audio
ALC 655
Uscita audio 6 canali
AC’97 Versione 2.3
ALC 655
Uscita audio 6 canali
AC’97 Versione 2.3
945G Micro 775SE & 945GZ Micro 775
37
945G Micro 775 945GZ Micro 775
Fente PCI Express x16 x1 Fente PCI Express x16 x1
Fente PCI Express x1 x1
Alloggi
Alloggio PCI x2 Alloggio PCI x3
Connettore floppy x1 Connettore floppy x1
Connettore IDE x1 Connettore IDE x1
Connettore Porta stampante x1 Connettore Porta stampante x1
Connettore SATA x4 Connettore SATA x4
Connettore pannello frontale x1 Connettore pannello frontale x1
Connettore audio frontale x1 Connettore audio frontale x1
Connettore CD-in x1 Connettore CD-in x1
Connettore input S/PDIF (optional) x1 Connettore input S/PDIF (optional) x1
Connettore output SPDIF x1 Connettore output SPDIF x1
Collettore ventolina CPU x1 Collettore ventolina CPU x1
Collettore ventolina sistema x1 Collettore ventolina sistema x1
Collettore apertura telaio (optional) x1 Collettore apertura telaio (optional) x1
Collettore cancellazione CMOS x1 Collettore cancellazione CMOS x1
Connettore USB x2 Connettore USB x2
Connettore alimentazione (24 pin) x1 Connettore alimentazione (24 pin) x1
Connettori
su scheda
Connettore alimentazione (4 pin) x1 Connettore alimentazione (4 pin) x1
I/O
pannello
posteriore
Tastiera PS/2 x1
Mouse PS/2 x1
Porta seriale x1
Porta VGA x1
Porta LAN x1
Porta USB x4
Connettore audio x3
Tastiera PS/2 x1
Mouse PS/2 x1
Porta seriale x1
Porta VGA x1
Porta LAN x1
Porta USB x4
Connettore audio x3
Dimension
i scheda
190 mm (larghezza) x 244 mm (altezza) 190 mm (larghezza) x 244 mm (altezza)
Sistemi
operativi
supportati
Windows 2000 / XP
Biostar si riserva il diritto di aggiungere o
rimuovere il supporto di qualsiasi sistema
operativo senza preavviso.
Windows 2000 / XP
Biostar si riserva il diritto di aggiungere o
rimuovere il supporto di qualsiasi sistema
operativo senza preavviso.
Motherboard Manual
38
SPANISH
945G Micro 775 945GZ Micro 775
CPU
LGA 775
Procesador Intel Core2Duo / Pentium 4 /
Pentium D / Celeron D hasta 3,8 GHz
Admite Hyper-Threading
Bit de deshabilitación de ejecución
Intel SpeedStep® Mejorado
Tecnología Extended Memory 64
LGA 775
Procesador Intel Core2Duo / Pentium 4 /
Pentium D / Celeron D hasta 3,8 GHz
Admite Hyper-Threading
Bit de deshabilitación de ejecución
Intel SpeedStep® Mejorado
Tecnología Extended Memory 64
FSB 533 / 800 / 1066 MHz 533 / 800 MHz
Conjunto de
chips
Intel 945G
Intel ICH7
Intel 945GZ
Intel ICH7
Gráficos
Intel GMA 950 Intel GMA 950
Súper E/S
ITE 8712F
Monitor hardware
Controlador de velocidad de ventilador
Función "Guardia inteligente" de ITE
ITE 8712F
Monitor hardware
Controlador de velocidad de ventilador
Función "Guardia inteligente" de ITE
Memoria
principal
Ranuras DIMM DDR2 x 2
Cada DIMM admite DDR2 de 256/512MB y 1GB
Capacidad máxima de memoria de 2GB
Módulo de memoria DDR2 de canal Doble
Admite DDR2 de 400 / 533 / 667
Ranuras DIMM DDR2 x 2
Cada DIMM admite DDR2 de 256/512MB y 1GB
Capacidad máxima de memoria de 2GB
Módulo de memoria DDR2 de canal Doble
Admite DDR2 de 400 / 533
IDE
Controlador IDE integrado
Modo bus maestro Ultra DMA 33 / 66 / 100
Soporte los Modos PIO 0~4.
Controlador IDE integrado
Modo bus maestro Ultra DMA 33 / 66 / 100
Soporte los Modos PIO 0~4.
SATA
Controlador ATA Serie Integrado
Tasas de transferencia de hasta 3 Gb/s.
Compatible con la versión SATA 2.0.
Controlador ATA Serie Integrado
Tasas de transferencia de hasta 3 Gb/s.
Compatible con la versión SATA 2.0.
Red Local
Realtek 8100C
Negociación de 10 / 100 Mb/s
Funciones Half / Full dúplex
Realtek 8100C
Negociación de 10 / 100 Mb/s
Funciones Half / Full dúplex
Códecs de
sonido
ALC 655
Salida de sonido de 6 canales
AC’97 Versión 2.3
ALC 655
Salida de sonido de 6 canales
AC’97 Versión 2.3
Ranura PCI Express x16 X1 Ranura PCI Express x16 X1
Ranura PCI Express x1 X1
Ranuras
Ranura PCI X2 Ranura PCI X3
945G Micro 775SE & 945GZ Micro 775
39
945G Micro 775 945GZ Micro 775
Conector disco flexible X1 Conector disco flexible X1
Conector IDE X1 Conector IDE X1
Conector Puerto de impresora X1 Conector Puerto de impresora X1
Conector SATA X4 Conector SATA X4
Conector de panel frontal X1 Conector de panel frontal X1
Conector de sonido frontal X1 Conector de sonido frontal X1
Conector de entrada de CD X1 Conector de entrada de CD X1
Conector de entrada S/PDIF x1
(opcional)
Conector de entrada S/PDIF x1
(opcional)
Conector de salida S/PDIF X1 Conector de salida S/PDIF X1
Cabecera de ventilador de CPU X1 Cabecera de ventilador de CPU X1
Cabecera de ventilador de sistema X1 Cabecera de ventilador de sistema X1
Cabecera de chasis abierto(opcional) X1 Cabecera de chasis abierto(opcional) X1
Cabecera de borrado de CMOS X1 Cabecera de borrado de CMOS X1
Conector USB X2 Conector USB X2
Conector de alimentación X1
(24 patillas)
Conector de alimentación X1
(24 patillas)
Conectores
en placa
Conector de alimentación X1
(4 patillas)
Conector de alimentación X1
(4 patillas)
Panel
trasero de
E/S
Teclad o PS/2 X1
Ratón PS/2 X1
Puerto serie X1
Puerto VGA X1
Puerto de red local X1
Puerto USB X4
Conector de sonido X3
Teclad o PS/2 X1
Ratón PS/2 X1
Puerto serie X1
Puerto VGA X1
Puerto de red local X1
Puerto USB X4
Conector de sonido X3
Tamaño de
la placa
190 mm. (A) X 244 mm. (H) 190 mm. (A) X 244 mm. (H)
Soporte de
sistema
operativo
Windows 2000 / XP
Biostar se reserva el derecho de añadir o retirar
el soporte de cualquier SO con o sin aviso previo.
Windows 2000 / XP
Biostar se reserva el derecho de añadir o retirar
el soporte de cualquier SO con o sin aviso previo.
Motherboard Manual
40
PORTUGUESE
945G Micro 775 945GZ Micro 775
CPU
LGA 775
Processador Intel Core2Duo / Pentium 4 /
Pentium D / Celeron D até 3,8 GHz
Suporta as tecnologias Hyper-Threading
Execute Disable Bit
Enhanced Intel SpeedStep®
Extended Memory 64
LGA 775
Processador Intel Core2Duo / Pentium 4 /
Pentium D / Celeron D até 3,8 GHz
Suporta as tecnologias Hyper-Threading
Execute Disable Bit
Enhanced Intel SpeedStep®
Extended Memory 64
FSB 533 / 800 / 1066 MHz 533 / 800 MHz
Chipset
Intel 945G
Intel ICH7
Intel 945GZ
Intel ICH7
Placa
gráfica
Intel GMA 950 Intel GMA 950
Especificaçã
o Super I/O
ITE 8712F
Monitorização do hardware
Controlador da velocidade da ventoinha
Função "Smart Guardian" da ITE
ITE 8712F
Monitorização do hardware
Controlador da velocidade da ventoinha
Função "Smart Guardian" da ITE
Memória
principal
Ranhuras DIMM DDR2 x2
Cada módulo DIMM suporta uma memória
DDR2 de 256/512 MB & 1 GB
Capacidade máxima de memória: 2 GB
Módulo de memória DDR2 de canal duplo
Suporta módulos DDR2 400 / 533 / 667
Ranhuras DIMM DDR2 x2
Cada módulo DIMM suporta uma memória
DDR2 de 256/512 MB & 1 GB
Capacidade máxima de memória: 2 GB
Módulo de memória DDR2 de canal duplo
Suporta módulos DDR2 400 / 533
IDE
Controlador IDE integrado
Modo Bus master Ultra DMA 33 / 66 / 100
Suporta o modo PIO 0~4.
Controlador IDE integrado
Modo Bus master Ultra DMA 33 / 66 / 100
Suporta o modo PIO 0~4.
SATA
Controlador Serial ATA integrado
Velocidades de transmissão de dados até 3 Gb/s.
Compatibilidade com a especificação SATA
versão 2.0.
Controlador Serial ATA integrado
Velocidades de transmissão de dados até 3 Gb/s.
Compatibilidade com a especificação SATA
versão 2.0.
LAN
Realtek 8100C
Auto negociação de 10 / 100 Mb/s
Capacidade semi/full-duplex
Realtek 8100C
Auto negociação de 10 / 100 Mb/s
Capacidade semi/full-duplex
Codec de
som
ALC 655
Saída de áudio de 6 canais
AC’97 Versão 2.3
ALC 655
Saída de áudio de 6 canais
AC’97 Versão 2.3
945G Micro 775SE & 945GZ Micro 775
41
945G Micro 775 945GZ Micro 775
Ranhura PCI Express x16 x1 Ranhura PCI Express x16 x1
Ranhura PCI Express x1 x1
Ranhuras
Ranhura PCI x2 Ranhura PCI x3
Conector da unidade de disquetes x1 Conector da unidade de disquetes x1
Conector IDE x1 Conector IDE x1
Conector da para impressora x1 Conector da para impressora x1
Conector SATA x4 Conector SATA x4
Conector do painel frontal x1 Conector do painel frontal x1
Conector de áudio frontal x1 Conector de áudio frontal x1
Conector para entrada de CDs x1 Conector para entrada de CDs x1
Conector de entrada S/PDIF (opcional) x1 Conector de entrada S/PDIF (opcional) x1
Conector de saída S/PDIF x1 Conector de saída S/PDIF x1
Conector da ventoinha da CPU x1 Conector da ventoinha da CPU x1
Conector da ventoinha do sistema x1 Conector da ventoinha do sistema x1
Conector para detecção da
abertura do chassis (opcional) x1
Conector para detecção da
abertura do chassis (opcional) x1
Conector para limpeza do CMOS x1 Conector para limpeza do CMOS x1
Conector USB x2 Conector USB x2
Conector de alimentação (24 pinos) x1 Conector de alimentação (24 pinos) x1
Conectores
na placa
Conector de alimentação (4 pinos) x1 Conector de alimentação (4 pinos) x1
Entradas/S
aídas no
painel
traseiro
Teclad o PS/2 x 1
Rato PS/2 x1
Porta série x1
Porta VGA x1
Porta LAN x1
Porta USB x4
Tomada de áudio x3
Teclad o PS/2 x 1
Rato PS/2 x1
Porta série x1
Porta VGA x1
Porta LAN x1
Porta USB x4
Tomada de áudio x3
Ta ma n ho
da placa
190 mm (L) X 244 mm (A) 190 mm (L) X 244 mm (A)
Sistemas
operativos
suportados
Windows 2000 / XP
A Biostar reserva-se o direito de adicionar ou
remover suporte para qualquer sistema
operativo com ou sem aviso prévio.
Windows 2000 / XP
A Biostar reserva-se o direito de adicionar ou
remover suporte para qualquer sistema
operativo com ou sem aviso prévio.
Motherboard Manual
42
POLISH
945G Micro 775 945GZ Micro 775
Procesor
LGA 775
Procesor Intel Core2Duo / Pentium 4 / Pentium D
/ Celeron D do 3,4 GHz
Obsługa Hyper-Threading
Execute Disable Bit
Enhanced Intel SpeedStep®
Extended Memory 64 Technology
LGA 775
Procesor Intel Core2Duo / Pentium 4 / Pentium D
/ Celeron D do 3,4 GHz
Obsługa Hyper-Threading
Execute Disable Bit
Enhanced Intel SpeedStep®
Extended Memory 64 Technology
FSB 533 / 800 / 1066 MHz 533 / 800 MHz
Chipset
Intel 945G
Intel ICH7
Intel 945GZ
Intel ICH7
Grafika
Intel GMA 950 Intel GMA 950
Pamięć
główna
Gniazda DDR2 DIMM x 2
Każde gniazdo DIMM obsługuje moduły
256/512MB oraz 1GB DDR2
Maks. wielkość pamięci 2GB
Moduł pamięci DDR2 z trybem podwójnego
kanału
Obsługa DDR2 400 / 533 / 667
Gniazda DDR2 DIMM x 2
Każde gniazdo DIMM obsługuje moduły
256/512MB oraz 1GB DDR2
Maks. wielkość pamięci 2GB
Moduł pamięci DDR2 z trybem podwójnego
kanału
Obsługa DDR2 400 / 533
Super I/O
ITE 8712F
Monitor H/W
Kontroler prędkości wentylatora
Funkcja ITE "Smart Guardian"
ITE 8712F
Monitor H/W
Kontroler prędkości wentylatora
Funkcja ITE "Smart Guardian"
IDE
Zintegrowany kontroler IDE
Ultra DMA 33 / 66 / 100 Tryb Bus Master
obsługa PIO tryb 0~4
Zintegrowany kontroler IDE
Ultra DMA 33 / 66 / 100 Tryb Bus Master
obsługa PIO tryb 0~4
SATA
Zintegrowany kontroler Serial ATA
Transfer danych do 3 Gb/s.
Zgodność ze specyfikacją SATA w wersji 2.0.
Zintegrowany kontroler Serial ATA
Transfer danych do 3 Gb/s.
Zgodność ze specyfikacją SATA w wersji 2.0.
LAN
Realtek 8100C
10 / 100 Mb/s z automatyczną negocjacją
szybkości
Działanie w trybie połowicznego / pełnego
dupleksu
Realtek 8100C
10 / 100 Mb/s z automatyczną negocjacją
szybkości
Działanie w trybie połowicznego / pełnego
dupleksu
Kodek
dźwiękowy
ALC 655
6 kanałowe wyjście audio
AC’97 w wersji 2.3
ALC 655
6 kanałowe wyjście audio
AC’97 w wersji 2.3
945G Micro 775SE & 945GZ Micro 775
43
945G Micro 775 945GZ Micro 775
Gniazdo PCI Express x16 x1 Gniazdo PCI Express x16 x1
Gniazdo PCI Express x1 x1
Gniazda
Gniazdo PCI x2 Gniazdo PCI x3
Złącze napędu dyskietek x1 Złącze napędu dyskietek x1
Złącze IDE x1 Złącze IDE x1
Złącze Port drukarki x1 Złącze Port drukarki x1
Złącze SATA x4 Złącze SATA x4
Złącze panela przedniego x1 Złącze panela przedniego x1
Przednie złącze audio x1 Przednie złącze audio x1
Złącze wejścia CD x1 Złącze wejścia CD x1
Złącze wejścia S/PDIF (opcja) x1 Złącze wejścia S/PDIF (opcja) x1
Złącze wyjścia S/PDIF x1 Złącze wyjścia S/PDIF x1
Złącze główkowe wentylatora procesora x1 Złącze główkowe wentylatora procesora x1
Złącze główkowe wentylatora
systemowego x1
Złącze główkowe wentylatora
systemowego x1
Złącze główkowe otwarcia
obudowy (opcja) x1
Złącze główkowe otwarcia
obudowy (opcja) x1
Złącze główkowe kasowania CMOS x1 Złącze główkowe kasowania CMOS x1
Złącze USB x2 Złącze USB x2
Złącze zasilania (24 pinowe) x1 Złącze zasilania (24 pinowe) x1
Złącza
wbudowane
Złącze zasilania (4 pinowe) x1 Złącze zasilania (4 pinowe) x1
Back Panel
I/O
Klawiatura PS/2 x1
Mysz PS/2 x1
Port szeregowy x1
Port VGA x1
Port LAN x1
Port USB x4
Gniazdo audio x3
Klawiatura PS/2 x1
Mysz PS/2 x1
Port szeregowy x1
Port VGA x1
Port LAN x1
Port USB x4
Gniazdo audio x3
Wymiary
płyty
190 mm (S) X 244 mm (W) 190 mm (S) X 244 mm (W)
Obsluga
systemu
operacyjne
go
Windows 2000 / XP
Biostar zastrzega sobie prawo dodawania lub
odwoływania obsługi dowolnego systemu
operacyjnego bez powiadomienia.
Windows 2000 / XP
Biostar zastrzega sobie prawo dodawania lub
odwoływania obsługi dowolnego systemu
operacyjnego bez powiadomienia.
Motherboard Manual
44
RUSSIAN
945G Micro 775 945GZ Micro 775
CPU
(центральн
ый
процессор)
LGA 775
Процессор Intel Core2Duo / Pentium 4 /
Pentium D / Celeron D до 3.8 ГГц
Поддержка технологий Hyper-Threading
Execute Disable Bit
Enhanced Intel SpeedStep®
Extended Memory 64 Technology
LGA 775
Процессор Intel Core2Duo / Pentium 4 /
Pentium D / Celeron D до 3.8 ГГц
Поддержка технологий Hyper-Threading
Execute Disable Bit
Enhanced Intel SpeedStep®
Extended Memory 64 Technology
FSB 533 / 800 / 1066 МГц 533 / 800 МГц
Набор
микросхем
Intel 945G
Intel ICH7
Intel 945GZ
Intel ICH7
Графика
Intel GMA 950 Intel GMA 950
Основная
память
Слоты DDR2 DIMM x 2
Каждый модуль DIMM поддерживает
256/512МБ & 1ГБ DDR2
Максимальная ёмкость памяти 2 ГБ
Модуль памяти с двухканальным режимом
DDR2
Поддержка DDR2 400 / 533 / 667
Слоты DDR2 DIMM x 2
Каждый модуль DIMM поддерживает
256/512МБ & 1ГБ DDR2
Максимальная ёмкость памяти 2 ГБ
Модуль памяти с двухканальным режимом
DDR2
Поддержка DDR2 400 / 533
Super I/O
ITE 8712F
Аппаратный монитор
Регулятор скорости
Функция ITE "Smart Guardian"
(Интеллектуальная защита)
ITE 8712F
Аппаратный монитор
Регулятор скорости
Функция ITE "Smart Guardian"
(Интеллектуальная защита)
IDE
Встроенное устройство управления
встроенными интерфейсами устройств
Режим "хозяина" шины Ultra DMA 33 / 66 / 100
Поддержка режима PIO 0~4,
Встроенное устройство управления
встроенными интерфейсами устройств
Режим "хозяина" шины Ultra DMA 33 / 66 / 100
Поддержка режима PIO 0~4,
SATA
Встроенное последовательное устройство
управления ATA
скорость передачи данных до 3 гигабит/с.
Соответствие спецификации SATA версия 2.0.
Встроенное последовательное устройство
управления ATA
скорость передачи данных до 3 гигабит/с.
Соответствие спецификации SATA версия 2.0.
Локальная
сеть
Realtek 8100C
Автоматическое согласование 10 / 100 Мб/с
Частичная / полная дуплексная способность
Realtek 8100C
Автоматическое согласование 10 / 100 Мб/с
Частичная / полная дуплексная способность
Звуковой
кодек
ALC 655
Шестиканальный звуковой выход
AC’97 Версия 2.3
ALC 655
Шестиканальный звуковой выход
AC’97 Версия 2.3
945G Micro 775SE & 945GZ Micro 775
45
945G Micro 775 945GZ Micro 775
Слот PCI Express x16 x1 Слот PCI Express x16 x1
Слот PCI Express x1 x1
Слоты
Слот PCI x2 Слот PCI x3
Разъём НГМД x1 Разъём НГМД x1
Разъём IDE x1 Разъём IDE x1
Разъём Порт подключения принтера x1 Разъём Порт подключения принтера x1
Разъём SATA x4 Разъём SATA x4
Разъём на лицевой панели x1 Разъём на лицевой панели x1
Входной звуковой разъём x1 Входной звуковой разъём x1
Разъём ввода для CD x1 Разъём ввода для CD x1
Разъём ввода для S/PDIF
(дополнительно) x1
Разъём ввода для S/PDIF
(дополнительно) x1
Разъём вывода для S/PDIF x1 Разъём вывода для S/PDIF x1
Контактирующее приспособление
вентилятора центрального процессора x1
Контактирующее приспособление
вентилятора центрального процессора x1
Контактирующее приспособление
вентилятора системы x1
Контактирующее приспособление
вентилятора системы x1
Шасси открытого контактирующего
приспособления (дополнительно) x1
Шасси открытого контактирующего
приспособления (дополнительно) x1
Открытое контактирующее приспособление
CMOS x1
Открытое контактирующее приспособление
CMOS x1
USB-разъём x2 USB-разъём x2
Разъем питания (24 вывод) x1 Разъем питания (24 вывод) x1
Встроенны
й разъём
Разъем питания (4 вывод) x1 Разъем питания (4 вывод) x1
Задняя
панель
средств
ввода-выв
ода
Клавиатура PS/2 x1
Мышь PS/2 x1
Последовательный порт x1
Порт VGA x1
Порт LAN x1
USB-порт x4
Гнездо для подключения
наушников x3
Клавиатура PS/2 x1
Мышь PS/2 x1
Последовательный порт x1
Порт VGA x1
Порт LAN x1
USB-порт x4
Гнездо для подключения
наушников x3
Размер
панели
190 мм (Ш) X 244 мм (В) 190 мм (Ш) X 244 мм (В)
Поддержка
OS
Windows 2000 / XP
Biostar сохраняет за собой право добавлять
или удалять средства обеспечения для OS с
или без предварительного уведомления.
Windows 2000 / XP
Biostar сохраняет за собой право добавлять
или удалять средства обеспечения для OS с
или без предварительного уведомления.
Motherboard Manual
46
ARABIC
945G Micro 775 945GZ Micro 775
ﺔﺠﻟﺎﻌﻤﻟا ةﺪﺣو
ﺔﻳﺰآﺮﻤﻟا
LGA 775
تﺎﺠﻟﺎﻌﻡIntel Core2Duo / Pentium 4 / Pentium D /
Celeron D ﺑ ددﺮﺘ ﻳ ﻰﻟإ ﻞﺼ3.8 ﺰﺕﺮه ﺎﺠﻴﺝ
تﺎﻴﻨﻘﺕ ﻢﻋﺪﺕHyper-Threading
Execute Disable Bit
Enhanced Intel SpeedStep®
Extended Memory 64 Technology
LGA 775
تﺎﺠﻟﺎﻌﻡIntel Core2Duo / Pentium 4 / Pentium D /
Celeron D ﺑ ددﺮﺘ ﻳ ﻰﻟإ ﻞﺼ3.8 ﺰﺕﺮه ﺎﺠﻴﺝ
تﺎﻴﻨﻘﺕ ﻢﻋﺪﺕHyper-Threading
Execute Disable Bit
Enhanced Intel SpeedStep®
Extended Memory 64 Technology
ﻞﻗﺎﻨﻟا ﻲﻡﺎﻡﻷا ﻲﺒﻥﺎﺠﻟا
ددﺮﺕ 533 / 800 / 1066 ﺰﺕﺮه ﺎﺠﻴﻡ
ﺮﺕدد 533 / 800 ﺰﺕﺮه ﺎﺠﻴﻡ
ﺢﺋاﺮﺸﻟا ﺔﻋﻮﻤﺠﻡ
Intel 945G
Intel ICH7
Intel 945GZ
Intel ICH7
تﺎﻡﻮﺳﺮﻟا ﺔﻗﺎﻄﺑ
Intel GMA 950
Intel GMA 950
ﺔﻴﺴﻴﺋﺮﻟا ةﺮآاﺬﻟا
ﺔﺤﺘﻓDDR2 DIMMدﺪﻋ2
ﺔﺤﺘﻓ ﻞآ ﻢﻋﺪﺕDIMM عﻮﻥ ﻦﻡ ةﺮآاذ ﻢﻋﺪﺕ DDR2 ﺔﻌﺳ 256/512 ﺎﺠﻴﻡ
و ﺖﻳﺎﺑ1 ﺎﺠﻴﺝﺖﻳﺎﺑ
ﺼﻗ ةﺮآاذ ﺔﻌﺳ ىﻮ2 ﺖﻳﺎﺑ ﺎﺠﻴﺝ
ةﺮآاذ ةﺪﺣوDDR2 ﺔﻳدﺎﺣأ/ةﺎﻨﻘﻟا ﺔﺝودﺰﻡ
عﻮﻥ ﻦﻡ ةﺮآاﺬﻟا ﻢﻋﺪﺕDDR2 تﺎﻌﺳ 400 / 533 / 667ﺖﻳﺎﺑ ﺎﺠﻴﻡ
ﺔﺤﺘﻓDDR2 DIMMدﺪﻋ2
ﺔﺤﺘﻓ ﻞآ ﻢﻋﺪﺕDIMM عﻮﻥ ﻦﻡ ةﺮآاذ ﻢﻋﺪﺕ DDR2 ﺔﻌﺳ 256/512 ﺎﺠﻴﻡ
و ﺖﻳﺎﺑ1 ﺎﺠﻴﺝﺖﻳﺎﺑ
ىﻮﺼﻗ ةﺮآاذ ﺔﻌﺳ2 ﺖﻳﺎﺑ ﺎﺠﻴﺝ
ةﺮآاذ ةﺪﺣوDDR2 ﺔﻳدﺎﺣأ/ﺰﻡةﺎﻨﻘﻟا ﺔﺝود
عﻮﻥ ﻦﻡ ةﺮآاﺬﻟا ﻢﻋﺪﺕDDR2 تﺎﻌﺳ 400 / 533 ﺖﻳﺎﺑ ﺎﺠﻴﻡ
Super I/O
ITE 8712F
ةﺰﻬﺝﻷا ﺔﻟﺎﺣ ﺔﻓﺮﻌﻤﻟ ﺐﻗاﺮﻡ
ﺔﺣوﺮﻤﻟا ﺔﻋﺮﺳ ﻲﻓ ﺐﻗاﺮﻡ
ﺔﻔﻴﻇو"Smart Guardian" ﻦﻡ ITE
ITE 8712F
ةﺰﻬﺝﻷا ﺔﻟﺎﺣ ﺔﻓﺮﻌﻤﻟ ﺐﻗاﺮﻡ
ﺔﺣوﺮﻤﻟا ﺔﻋﺮﺳ ﻲﻓ ﺐﻗاﺮﻡ
ﺔﻔﻴﻇو"Smart Guardian" ﻦﻡ ITE
ﺬﻔﻨﻡ IDE
ﻢﻜﺤﺘﻡIDEﻞﻡﺎﻜﺘﻡ
ﺔﻴﻨﻘﺘﺑ ﻞﻗﺎﻥUltra DMA 33 / 66 / 100
ﻲﺴﻴﺋر ﻊﺿو
ﻊﺿو ﻢﻋدPIO Mode 0~4
ﻢﻜﺤﺘﻡIDEﻞﻡﺎﻜﺘﻡ
ﺔﻴﻨﻘﺘﺑ ﻞﻗﺎﻥUltra DMA 33 / 66 / 100
ﻲﺴﻴﺋر ﻊﺿو
ﻊﺿو ﻢﻋدPIO Mode 0~4
SATA
ﻢﻜﺤﺘﻡSerial ATAﻞﻡﺎﻜﺘﻡ
ﻰﻟإ ﻞﺼﺕ تﺎﻋﺮﺴﺑ تﺎﻥﺎﻴﺒﻟا ﻞﻘﻥ3 ﺖﺑﺎﺠﻴﺝ/ﺔﻴﻥﺎﺛ.
ﺔﻘﺑﺎﻄﻡ تﺎﻔﺹاﻮﻤﻟ SATA راﺪﺹﻹا 2.0.
ﻢﻜﺤﺘﻡSerial ATAﻞﻡﺎﻜﺘﻡ
ﻰﻟإ ﻞﺼﺕ تﺎﻋﺮﺴﺑ تﺎﻥﺎﻴﺒﻟا ﻞﻘﻥ3 ﺖﺑﺎﺠﻴﺝ/ﺔﻴﻥﺎﺛ.
تﺎﻔﺹاﻮﻤﻟ ﺔﻘﺑﺎﻄﻡSATA راﺪﺹﻹا 2.0.
ﺔﻴﻠﺧاد ﺔﻜﺒﺵ
10/100
Realtek 8100C
ﻲﺋﺎﻘﻠﺕ ضوﺎﻔﺕ10/100 ﺖﻳﺎﺑ ﺎﺠﻴﻡ /ﺔﻴﻥﺎﺛ
ﻞﻡﺎﻜﻟا جودﺰﻤﻟا ﻞﻘﻨﻟا ﺔﻴﻥﺎﻜﻡإ/ﻲﻔﺼﻨﻟا
Realtek 8100C
ﺕ ﻲﺋﺎﻘﻠﺕ ضوﺎﻔ10/100 ﺖﻳﺎﺑ ﺎﺠﻴﻡ /ﺔﻴﻥﺎﺛ
ﻞﻡﺎﻜﻟا جودﺰﻤﻟا ﻞﻘﻨﻟا ﺔﻴﻥﺎﻜﻡإ/ﻲﻔﺼﻨﻟا
تﻮﺼﻟا ﻚﻳدﻮآ
ALC655
6تﻮﺼﻟا جﺮﺨﻟ تاﻮﻨﻗ
راﺪﺹﻹا2.3 ﻦﻡ AC’97
ALC655
6تﻮﺼﻟا جﺮﺨﻟ تاﻮﻨﻗ
راﺪﺹﻹا2.3 ﻦﻡ AC’97
ﺔﺤﺘﻓx16 PCI Express دﺪﻋ1 ﺔﺤﺘﻓx16 PCI Express دﺪﻋ1
ﺔﺤﺘﻓx1 PCI Express دﺪﻋ1
تﺎﺤﺘﻔﻟا
ﺔﺤﺘﻓPCI دﺪﻋ2 ﺔﺤﺘﻓPCI دﺪﻋ3
945G Micro 775SE & 945GZ Micro 775
47
945G Micro 775 945GZ Micro 775
ﺔﻥﺮﻡ صاﺮﻗأ كﺮﺤﻡ ﺬﻔﻨﻡ دﺪﻋ1 ﺔﻥﺮﻡ صاﺮﻗأ كﺮﺤﻡ ﺬﻔﻨﻡ دﺪﻋ1
ﺬﻔﻨﻡIDE دﺪﻋ1 ﺬﻔﻨﻡIDE دﺪﻋ1
ﺔﻌﺑﺎﻃ ﺬﻔﻨﻡ دﺪﻋ1 ﺔﻌﺑﺎﻃ ﺬﻔﻨﻡ دﺪﻋ1
ﺬﻔﻨﻡSATA دﺪﻋ4 ﺬﻔﻨﻡSATA دﺪﻋ4
ﺔﻴﻡﺎﻡﻷا ﺔﺣﻮﻠﻟا ﺬﻔﻨﻡ دﺪﻋ1 ﺔﻴﻡﺎﻡﻷا ﺔﺣﻮﻠﻟا ﺬﻔﻨﻡ دﺪﻋ1
ﻲﻡﺎﻡﻷا تﻮﺼﻟا ﺬﻔﻨﻡ دﺪﻋ1 ﻲﻡﺎﻡﻷا تﻮﺼﻟا ﺬﻔﻨﻡ دﺪﻋ1
ﺬﻔﻨﻡCD-IN دﺪﻋ1 ﺬﻔﻨﻡCD-IN دﺪﻋ1
ﻞﺧد ﺬﻔﻨﻡS/PDIF) يرﺎﻴﺘﺧا( دﺪﻋ1 ﻞﺧد ﺬﻔﻨﻡS/PDIF) يرﺎﻴﺘﺧا( دﺪﻋ1
جﺮﺧ ﺬﻔﻨﻡS/PDIF دﺪﻋ1 جﺮﺧ ﺬﻔﻨﻡS/PDIF دﺪﻋ1
ﺠﻟﺎﻌﻤﻟا ةﺪﺣو ﺔﺣوﺮﻡ ﺔﻠﺹو ﺔ
ﺔﻳﺰآﺮﻤﻟا دﺪﻋ1
ﺔﺠﻟﺎﻌﻤﻟا ةﺪﺣو ﺔﺣوﺮﻡ ﺔﻠﺹو
ﺔﻳﺰآﺮﻤﻟا دﺪﻋ1
مﺎﻈﻨﻟا ﺔﺣوﺮﻡ ﺔﻠﺹو دﺪﻋ1 مﺎﻈﻨﻟا ﺔﺣوﺮﻡ ﺔﻠﺹو دﺪﻋ1
ﻞﻜﻴﻬﻟا ﺢﺘﻓ ﺔﻠﺹو)يرﺎﻴﺘﺧا( دﺪﻋ1 ﻞﻜﻴﻬﻟا ﺢﺘﻓ ﺔﻠﺹو)يرﺎﻴﺘﺧا( دﺪﻋ1
ﺢﺴﻡ ﺔﻠﺹوCMOS دﺪﻋ1 ﺢﺴﻡ ﺔﻠﺹوCMOS دﺪﻋ1
ﺬﻔﻨﻡUSB دﺪﻋ2 ﺬﻔﻨﻡUSB دﺪﻋ2
ﻴﺹﻮﺕ ﺬﻔﻨﻡ ﺔﻗﺎﻄﻟا ﻞ)24سﻮﺑد( دﺪﻋ1 ﺔﻗﺎﻄﻟا ﻞﻴﺹﻮﺕ ﺬﻔﻨﻡ)24سﻮﺑد( دﺪﻋ1
ﺢﻄﺳ ﻰﻠﻋ ﺬﻓﺎﻨﻤﻟا
ﺔﺣﻮﻠﻟا
ﺔﻗﺎﻄﻟا ﻞﻴﺹﻮﺕ ﺬﻔﻨﻡ)4ﺲﻴﺑﺎﺑد( دﺪﻋ1 ﺔﻗﺎﻄﻟا ﻞﻴﺹﻮﺕ ﺬﻔﻨﻡ)4ﺲﻴﺑﺎﺑد( دﺪﻋ1
ﻞﺧد ﺬﻓﺎﻨﻡ/ جﺮﺧ
ﺔﻴﻔﻠﺨﻟا ﺔﺣﻮﻠﻟا
ﺢﻴﺕﺎﻔﻡ ﺔﺣﻮﻟPS/2 دﺪﻋ1
سوﺎﻡ PS/2 دﺪﻋ1
ﻲﻠﺴﻠﺴﺕ ﺬﻔﻨﻡ دﺪﻋ1
ﺬﻔﻨﻡVGA دﺪﻋ1
ﺔﻴﻠﺤﻡ لﺎﺼﺕا ﺔﻜﺒﺵ ﺬﻔﻨﻡ دﺪﻋ1
ﺬﻓﺎﻨﻡUSB دﺪﻋ4
تﻮﺹ ﺲﺒﻘﻡ دﺪﻋ3
ﺢﻴﺕﺎﻔﻡ ﺔﺣﻮﻟPS/2 دﺪﻋ1
سوﺎﻡ PS/2 دﺪﻋ1
ﻲﻠﺴﻠﺴﺕ ﺬﻔﻨﻡ دﺪﻋ1
ﺬﻔﻨﻡVGA دﺪﻋ1
ﺔﻴﻠﺤﻡ لﺎﺼﺕا ﺔﻜﺒﺵ ﺬﻔﻨﻡ دﺪﻋ1
ﺬﻓﺎﻨﻡUSB دﺪﻋ4
تﻮﺹ ﺲﺒﻘﻡ دﺪﻋ3
ﺔﺣﻮﻠﻟا ﻢﺠﺣ
190 ﻢﻡ)ضﺮﻋ (X 244 ﻢﻡ
)عﺎﻔﺕرا(
190 ﻢﻡ)ضﺮﻋ (X 244 ﻢﻡ
)عﺎﻔﺕرا(
ﺔﻤﻈﻥأ ﻢﻋدﻞﻴﻐﺸﺘﻟا
Windows 2000 / XP
ﻆﻔﺘﺤﺕBiostar وأ رﺎﻄﺧﺈﺑ ﻞﻴﻐﺸﺕ مﺎﻈﻥ يﻷ ﻢﻋﺪﻟا ﺔﻟازإ وأ ﺔﻓﺎﺿإ ﻲﻓ ﺎﻬﻘﺤﺑ
رﺎﻄﺧإ نوﺪﺑ.
Windows 2000 / XP
ﻆﻔﺘﺤﺕBiostar وأ رﺎﻄﺧﺈﺑ ﻞﻴﻐﺸﺕ مﺎﻈﻥ يﻷ ﻢﻋﺪﻟا ﺔﻟازإ وأ ﺔﻓﺎﺿإ ﻲﻓ ﺎﻬﻘﺤﺑ
رﺎﻄﺧإ نوﺪﺑ.
Motherboard Manual
48
JAPANESE
945G Micro 775 945GZ Micro 775
CPU
LGA 775
Intel Core2Duo / Pentium 4 / Pentium D /
Celeron D processor up to 3.8 GHz
Hyper-Threading
Execute Disable Bit
Enhanced Intel SpeedStep®
Extended Memory 64 Technology
LGA 775
Intel Core2Duo / Pentium 4 / Pentium D /
Celeron D processor up to 3.8 GHz
Hyper-Threading
Execute Disable Bit
Enhanced Intel SpeedStep®
Extended Memory 64 Technology
FSB 533 / 800 / 1066 MHz 533 / 800 MHz
チップセット
Intel 945G
Intel ICH7
Intel 945GZ
Intel ICH7
グラフィック
ス
Intel GMA 950 Intel GMA 950
メインメモリ
DDR2 DIMMスロット x 2
各DIMMは256/512MB & 1GB DDR2をサポート
最大メモリ容量2GB
デュアル チャンネルモードDDR2メモリモジュール
DDR2 400 / 533 / 667 をサポート
DDR2 DIMMスロット x 2
各DIMMは256/512MB & 1GB DDR2をサポート
最大メモリ容量2GB
デュアル チャンネルモードDDR2メモリモジュール
DDR2 400 / 533 をサポート
Super I/O
ITE 8712F
H/Wモニター
ファン速度コントローラ/ モニター
ITEの「スマートガーディアン」機能
ITE 8712F
H/Wモニター
ファン速度コントローラ/ モニター
ITEの「スマートガーディアン」機能
IDE
統合IDEコントローラ
Ultra DMA 33 / 66 / 100バスマスタモード
PIO Mode 0~4のサポート
統合IDEコントローラ
Ultra DMA 33 / 66 / 100バスマスタモード
PIO Mode 0~4のサポート
SATA
統合シリアルATAコントローラ
最高3 Gb/秒のデータ転送速度
SATAバージョン2.0仕様に準拠。
統合シリアルATAコントローラ
最高3 Gb/秒のデータ転送速度
SATAバージョン2.0仕様に準拠。
10/100 LAN
Realtek 8100C
10 / 100 Mb/sオートネゴシエーション
半/全二重機能
Realtek 8100C
10 / 100 Mb/sオートネゴシエーション
半/全二重機能
サウンド
Codec
ALC 655
6チャンネルオーディオアウト
AC’97バージョン2.3
ALC 655
6チャンネルオーディオアウト
AC’97バージョン2.3
945G Micro 775SE & 945GZ Micro 775
49
945G Micro 775 945GZ Micro 775
PCI Express x16スロット x1 PCI Express x16スロット x1
PCI Express x1スロット x1
スロット
PCIスロット x2 PCIスロット x3
フロッピーコネクタ x1 フロッピーコネクタ x1
IDEコネクタ x1 IDEコネクタ x1
プリンタポートコネクタ x1 プリンタポートコネクタ x1
SATAコネクタ x4 SATAコネクタ x4
フロントパネルコネクタ x1 フロントパネルコネクタ x1
フロントオーディオコネクタ x1 フロントオーディオコネクタ x1
CDインコネクタ x1 CDインコネクタ x1
S/PDIFインコネクタ (オプション) x1 S/PDIFインコネクタ (オプション) x1
S/PDIFアウトコネクタ x1 S/PDIFアウトコネクタ x1
CPUファンヘッダ x1 CPUファンヘッダ x1
システムファンヘッダ x1 システムファンヘッダ x1
シャーシオープンヘッダ(オプション) x1 シャーシオープンヘッダ(オプション) x1
CMOSクリアヘッダ x1 CMOSクリアヘッダ x1
USBコネクタ x2 USBコネクタ x2
電源コネクタ(24ピン) x1 電源コネクタ(24ピン) x1
オンボードコ
ネクタ
電源コネクタ(4ピン) x1 電源コネクタ(4ピン) x1
背面パネル
I/O
PS/2キーボード x1
PS/2マウス x1
シリアルポート x1
VGAポート x1
LANポート x1
USBポート x4
オーディオジャック x3
PS/2キーボード x1
PS/2マウス x1
シリアルポート x1
VGAポート x1
LANポート x1
USBポート x4
オーディオジャック x3
ボードサイズ 190 mm (幅) X 244 mm (高さ) 190 mm (幅) X 244 mm (高さ)
OSサポート
Windows 2000 / XP
Biostarは事前のサポートなしにOSサポートを追加ま
たは削除する権利を留保します。
Windows 2000 / XP
Biostarは事前のサポートなしにOSサポートを追加ま
たは削除する権利を留保します。
2006/07/13
Loading...
