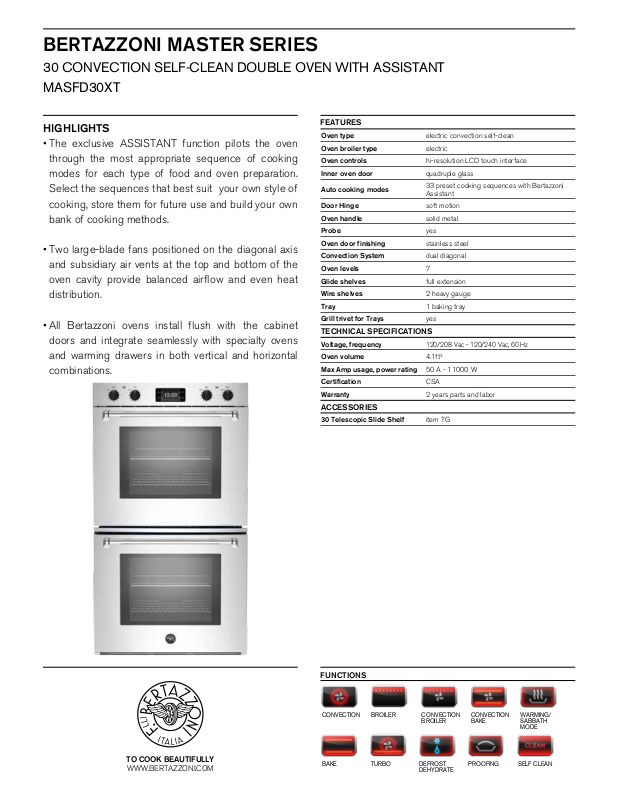

BERTAZZONI MASTER SERIES
30 CONVECTION SELF-CLEAN DOUBLE OVEN WITH ASSISTANT
MASFD30XT
HIGHLIGHTS
• The exclusive ASSISTANT function pilots the oven
through the most appropriate sequence of cooking
modes for each type of food and oven preparation.
Select the sequences that best suit your own style of
cooking, store them for future use and build your own
bank of cooking methods.
• Two large-blade fans positioned on the diagonal axis
and subsidiary air vents at the top and bottom of the
oven cavity provide balanced airflow and even heat
distribution.
• All Bertazzoni ovens install flush with the cabinet
doors and integrate seamlessly with specialty ovens
and warming drawers in both vertical and horizontal
combinations.
FEATURES
Oven type electric convection self-clean
Oven broiler type electric
Oven controls hi-resolution LCD touch interface
Inner oven door quadruple glass
Auto cooking modes
Door Hinge soft motion
Oven handle solid metal
Probe yes
Oven door finishing stainless steel
Convection System dual diagonal
Oven levels 7
Glide shelves full extension
Wire shelves 2 heavy gauge
Tray 1 baking tray
Grill trivet for Trays yes
TECHNICAL SPECIFICATIONS
Voltage, frequency
Oven volume 4.1ft
Max Amp usage, power rating 50 A - 11000 W
Certification CSA
Warranty 2 years parts and labor
ACCESSORIES
30 Telescopic Slide Shelf item TG
33 preset cooking sequences with Bertazzoni
Assistant
120/208 Vac - 120/240 Vac, 60 Hz
3
TO COOK BEAUTIFULLY
WWW.BERTAZZONI.COM
FUNCTIONS
CONVECTION
BAKE SELF CLEANTURBO
BROILER
CONVECTION
BROILER
DEFROST
DEHYDRATE
CONVECTION
BAKE
PROOFING
WARMING/
SABBATH
MODE
4"
4
5⁄8"
1"
53"
28"
1
⁄8
29"
3
⁄4
23"
1
⁄16
22"
1
⁄16
52"
5
⁄8
53"
1
⁄4
23" 1⁄4
23" 1⁄4
4" 3⁄4
INSTALLATION INSTRUCTIONS
MASFD30XT
16"
28"
1
⁄8
1"
16"
5
23"
⁄8
Air intake opening clearance
Cut out for power cord
4"
28"
53"
4" 3⁄4
23" 1⁄4
53" 1⁄
52"
5
⁄8
23" 1⁄4
1
⁄4
3"
1"
1
⁄2
23"
22"
1
⁄16
1
⁄16
29"
3
⁄4
7
⁄16"
22"
The minimum gap between the kichen cabinet upper or lower panel and the appliance is 1/8. This dimension must be added to the height listed in the drawings
For any combinations of built-in models, please see related installation drawings
Bertazzoni recommends to operate the appliance after it has been
installed in a cabinet. The kitchen cabinets shall be made of materials
capable of withstanding temperatures at least 117°F (65°C) above
room temperature in order to avoid possible damage to the cabinets
during oven usage. The appliance must be installed into cabinetry
and be supported from underneath. The air intake opening at the
bottom of the door must be left unobstructed. For a flush mount
installation the surrounding cabinets doors should have the same
thickness as the oven control panel.
Disclaimer: while every effort has been made to insure the accuracy of the information contained in
this brochure, Fratelli Bertazzoni reserves the right to change any part of the information at any time
without notice.
Fratelli Bertazzoni, Bertazzoni and the winged wheel brand icon are registered trademarks of
Bertazzoni Spa.
