INSTALLATION, USE & CARE MANUAL
FREESTANDING GAS RANGES
DIMENSIONS: 48’’ (1220 mm)(W) x 253/16’’ (640 mm)(D) x36’’ (915 mm)(H)
Model MAS486GGASXT |
[MTYKQPA7X5AUA] |
310829
1
BERTAZZONI SpA
Via Palazzina 8
42016 Guastalla RE
ITALY
WWW.BERTAZZONI ITALIA.COM
From the desk of the President
Dear new owner of a Bertazzoni product,
I want to thank you for choosing one of our beautiful PRO ranges. We know that you have many brands and products to choose from and we are thrilled that you have decided to take onw of your products into your home.
We take as much pride in making our ranges as we hope you will in owning them. My family started manufacturing cooking appliances in 1882. Each of our products is a blend of Italian design finess and superior appliance technology. While we can not replace your unique talent at cooking delicious recipes for yourself, your family and your friends, we try our best to make cooking easier, more effective and more fun.
Our appliances are designed according to the strictest safety and performance standard for the European and the North American market. We follow the most advanced manufacturing philosophy. Each appliance leaves the factory after thorough quality inspection and testing. Our distributors and our service partners are ready to answer any questions you may have regarding how to install, use and care for your Bertazzoni product.
This manual will help you learn to use the product in the safest and most effective manner and care for it so that it may give you the highest satisfaction for years to come.
The manual also includes directions for the professional installer that will install the product in your home. We recommend using factory trained professionals for the delicate task of installing and testing appliances in your home. Please call Customer Service at (800) if you need help locating a factory trained professional installer in your area.
Please keep this manual for future use. Grazie!
2
TABLE OF CONTENTS
WARRANTY AND SERVICE ............................................................................................................ |
4 |
CUSTOMER SERVICE....................................................................................................................................................... |
4 |
REPLACEMENT PARTS .................................................................................................................................................... |
4 |
IMPORTANT SAFETY INFORMATION ............................................................................................ |
5 |
PRODUCT SPECIFICATIONS ........................................................................................................... |
6 |
INSTALLING THE LEGS................................................................................................................... |
8 |
INSTALLING THE WORKTOP FRONTGUARD .................................................................................. |
8 |
INSTALLING THE BACKGUARD ...................................................................................................... |
9 |
INSTALLING THE ANTI TIP STABILLTY DEVICE ............................................................................. |
10 |
INSTALLATION REQUIREMENTS.................................................................................................. |
10 |
ELECTRICAL .................................................................................................................................................................. |
10 |
GAS............................................................................................................................................................................... |
10 |
INSTALLATION ADJACENT TO KITCHEN CABINETS ...................................................................... |
11 |
EXHAUST HOOD INSTALLATION ................................................................................................. |
11 |

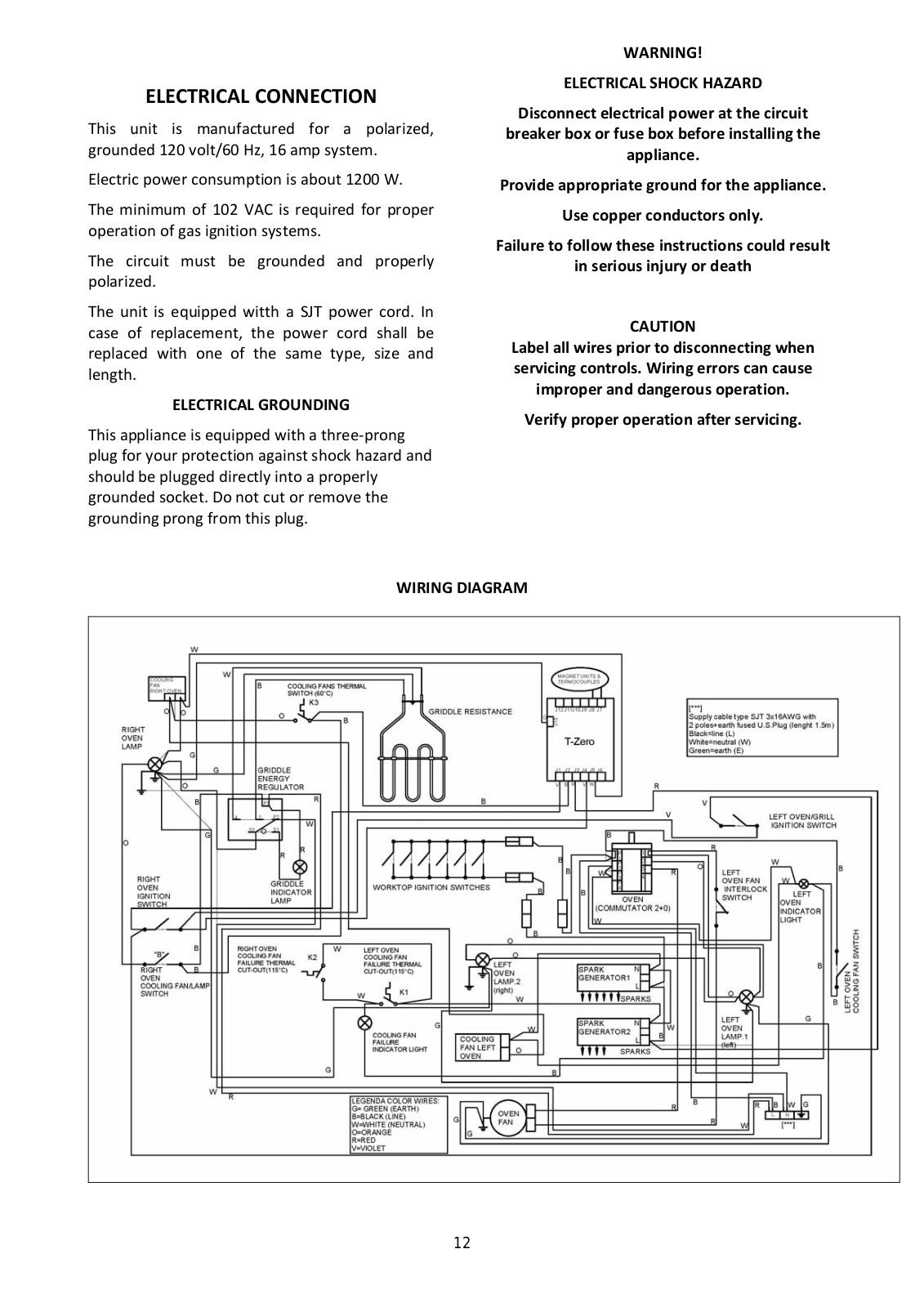

ELECTRICAL CONNECTION .......................................................................................................... |
12 |
WIRING DIAGRAM........................................................................................................................................................ |
12 |
GAS CONNECTION ...................................................................................................................... |
13 |
GAS CONNECTION ...................................................................................................................... |
13 |
PRESSURE REGULATOR ................................................................................................................................................ |
14 |
GAS CONVERSION ...................................................................................................................... |
15 |
STEP 1: PRESSURE REGULATOR.................................................................................................................................... |
15 |
STEP 2: SURFACE BURNERS .......................................................................................................................................... |
16 |
STEP 3: MAIN OVEN BURNER ....................................................................................................................................... |
16 |
STEP 4: BROILER BURNER ............................................................................................................................................. |
18 |
STEP 5: VISUAL CHECKS ................................................................................................................................................ |
18 |
STEP 6: MINIMUM FLAME ADJUSTMENT..................................................................................................................... |
19 |
OVEN BURNER.............................................................................................................................................................. |
19 |
INSTALLATION CHECKLLST.......................................................................................................... |
21 |
INSTALLATION CHECKLLST.......................................................................................................... |
21 |
FINAL PREPARATION .................................................................................................................. |
21 |
USER MANUAL ........................................................................................................................... |
22 |
ROOM VENTILATION .................................................................................................................. |
22 |

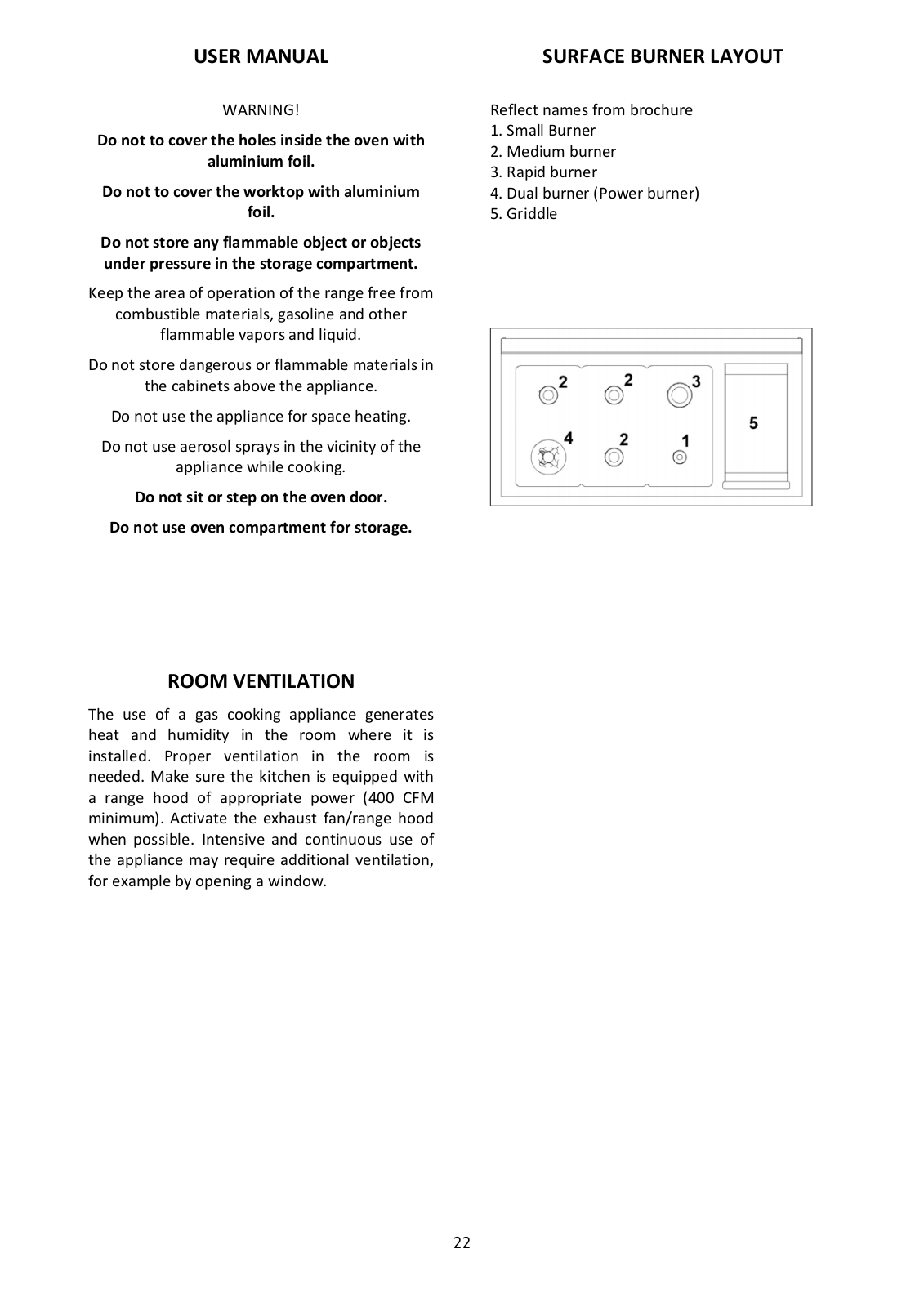

SURFACE BURNER LAYOUT......................................................................................................... |
22 |

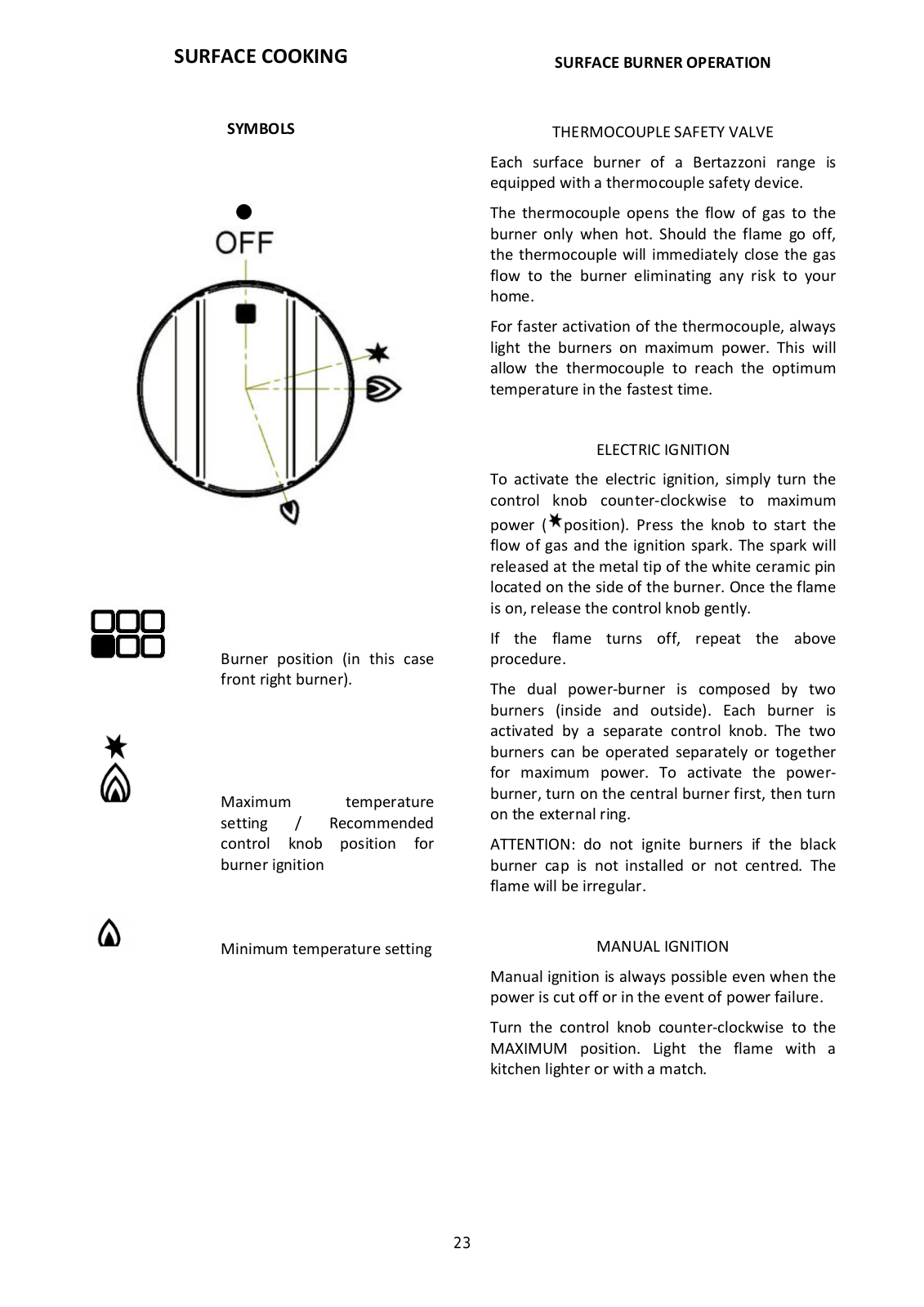

SURFACE COOKING .................................................................................................................... |
23 |
SYMBOLS...................................................................................................................................................................... |
23 |
SURFACE BURNER OPERATION .................................................................................................................................... |
23 |
TIPS FOR USING BURNERS CORRECTLY ........................................................................................................................ |
24 |
TIPS FOR USING PANS CORRECTLY ............................................................................................................................... |
24 |
TIPS FOR USING ELECTRIC GRIDDLE ................................................................................................ |
25 |
OVEN COOKING.......................................................................................................................... |
26 |
SYMBOLS (LEFT OVEN) ................................................................................................................................................. |
26 |
SYMBOLS (RIGHT OVEN) .............................................................................................................................................. |
26 |
OVEN SHELVES ............................................................................................................................................................. |
26 |
GAS OVEN OPERATION................................................................................................................................................. |
27 |
CONVECTION COOKING ............................................................................................................................................... |
28 |
COOKING WITH THE GAS BROILER............................................................................................................................... |
28 |
USING THE THERMOMETER........................................................................................................ |
28 |
MAINTAINING YOUR RANGE ...................................................................................................... |
29 |
REPLACING THE OVEN LIGHT BULB .............................................................................................................................. |
29 |
COOLING FAN FAILURE................................................................................................................................................. |
29 |
CLEANING YOUR RANGE............................................................................................................. |
29 |
IMPORTANT APPLIANCE INFORMATION .................................................................................... |
31 |
3 |
|
WARRANTY AND SERVICE
All Bertazzoni products carry a 2 year parts and labor warranty.
Service on all Bertazzoni products shall be carried out by factory trained professionals only. For warranty service please contact Customer Service at the numbers indicated below.
CUSTOMER SERVICE
English/spanish hotline |
(866) 905 0010 |
French |
(800) 561 7625 |
Fax |
(714) 428 0040 |
|
BERTAZZONIHELP@SERVICEPOWER.COM
Mailing address
SERVICEPOWER 1503 South Coast drive Suite 320
Costa Mesa CA 92626
REPLACEMENT PARTS
Only Bertazzoni replacement parts may be used in performing service on the appliance. Replacement parts are available from factory authorized parts distributors.
AP Wagner |
PHONE 716 961 7131 |
FAX |
716 856 4779 |
Reliable Parts |
PHONE 206 5758818 |
FAX |
206 5750910 |
Coast |
PHONE 800 821 0244 |
FAX 604 321 6646 |
|
4
IMPORTANT SAFETY INFORMATION
PLEASE READ AND FOLLOW THESE IMPORTANT INSTRUCTIONS FOR THE SAFETY OF YOUR HOME AND OF THE PEOPLE LIVING IN IT.
Save this Manual for local electrical inspector’s use.
Read and save these instructions for future reference.
Observe all governing codes, ordinances and regulations.
WARNING!
If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury or death.
Do not store or use gasoline or other flammable substances in the vicinity of this or any other appliance.
Installation and service must be performed by a qualified installer, service agency or the gas supplier.
In Massachusetts: All gas products must be installed by a "Massachusetts" licensed plumber or gasfitter. A "T" handle type manual gas valve must be installed in the gas line connected to this appliance.
WHAT TO DO IF YOU SMELL GAS
Do not light any appliance.
Do not touch any electrical switch.
Do not use any phone in your building.
Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.
If you cannot reach your gas suppliers, call the fire department.
Warning! |
|
|
This range can tip. Injury to persons could result. |
5 |
|
Install anti-tip device shipped with range. See |
||
|
||
Installation Instructions. |
|
WARNING!
Read this instruction booklet before installing and using the appliance.
The manufacturer will not be responsible for any damage to property or to persons caused by incorrect installation or improper use of the appliance.
The manufacturer reserves the right to make changes to its products when considered necessary and useful, without affecting the essential safety and operating characteristics.
This appliance has been designed for non professional, domestic use only.
Do not use this appliance to heat a room.
Do not place any pot or pan on the open oven door. The door is made of glass and it can break if loaded with a weight.
Before beginning installation, please read these instructions completely and carefully.
Do not remove permanently affixed labels, warnings, or plates from the product. This may void the warranty. Please observe all local and national codes and ordinances.
Please ensure the range is properly grounded.
The installer should leave these instructions with the consumer who should retain for local inspector's use and for future reference.
The plug should always be accessible.
Installation must conform with local codes or in the absence of codes, the National Fuel Gas Code NSIZ223.1 latest edition. Electrical installation must be in accordance with the National Electrical Code, ANIS/NFPA70 latest edition and/or local codes. IN CANADA: Installation must be in accordance with the current CAN/CGA B149.1 National Gas Installation Code or CAN/CGA B 149.2, Propane Installation Code and/or local codes. Electrical installation must be in accordance with the current CSA C22.1 Canadian Electrical Codes Part 1 and/or local codes.
Installation of any gas fired equipment should be made by a licensed plumber. A manual gas shut off valve must be installed in the gas supply line ahead of the oven in the gas flow for safety and ease of service.
PRODUCT SPECIFICATIONS
Dimensions (insert drawings front, side and back
Weight
Burner power
|
Natural gas |
LP gas |
|
|
|
Auxiliary |
3750 BTU/h |
3750 BTU/h |
|
|
|
Semi rapid |
6000 BTU/h |
6300 BTU/h |
|
|
|
Rapid |
10400 BTU/h |
11400 BTU/h |
|
|
|
Dual burner (inner) |
2730 BTU/h |
2900 BTU/h |
|
|
|
Dual burner ( outer) |
15000 BTU/h |
16400 BTU/h |
|
|
|
Oven (left cavity) |
14500 BTU/h |
14500 BTU/h |
|
|
|
Broiler (left cavity) |
12000 BTU/h |
12000 BTU/h |
|
|
|
Oven (right cavity) |
7000 BTU/h |
7000 BTU/h |
|
|
|
6
BEFORE INSTALLATION
This appliance shall only be installed by an authorized professional.
This appliance shall be installed in accordance with the manufacturer’s installation instructions.
This appliance must be installed in accordance with the norms & standards of the country where it will be installed. The installation of this appliance must conform to local codes and ordinances. In the absence of local codes, Installations must conforms to American National Standards, National Fuel Gas Code ANSI Z223.1 – latest edition** or B149.1.
The appliance, when installed, must be electrically grounded in accordance with local codes or, in the absence of local codes, with the
National Electrical Code, ANSI/NFPA 70.
If local codes permit, a flexible metal appliance connection with the new AGA or CGA certified design, max. 5 feet (1,5 m) long, ½” I.D. is recommended for connecting this appliance to the gas supply line. Do not bend or damage the flexible connector when moving the appliance.
This appliance must be used with the pressure regulator provided. The regulator shall be properly installed in order to be accessible when the appliance is installed in its final location. The pressure regulator must be set for the type of gas to be used. The pressure regulator has ½” female pipe thread. The appropriate fitting must be determined based on the size of your gas supply line, the flexible metal connector and the shutoff valve.
The appliance must be isolated from the gas supply piping system by closing its individual manual shutoff valve during any pressure testing of the gas supply piping system at test pressures equal to or less than ½ psi (3.5 kPa).
All opening and holes in the wall and floor, back and under the appliance shall be sealed before installation of the appliance.
A manual valve shall be installed in an accessible location in the gas line external to the appliance for the purpose of turning on or shutting off gas to the appliance
WARNING!
Do not use aerosol sprays in the vicinity of this appliance while it is in operation
ROOM VENTILATION: An exhaust fan may be used with the appliance; in each case it shall be installed in conformity with the appropriate national and local standards. Exhaust hood operation may affect other vented appliances; in each case it shall be installed in conformity with the appropriate national and local standards.
TYPE OF GAS
This appliance is shipped from the factory for use with natural gas. For use with propane lp gas please follow the conversion procedure described on pg. 17. A step by step conversion procedure is also included with each set of lp gas nozzles.
GAS PRESSURE
The maximum inlet gas supply pressure incoming to the gas appliance pressure regulator is 20’’ water column (5 kPa) .
The minimum gas supply pressure for checking the regulator setting shall be at least 1“ w.c. (249 Pa) above the inlet specified manifold pressure to the appliance (this operating pressure is 4” w.c. (1.00 kPa) for Natural Gas and 11” w.c. (2.75 kPa for LP Gas).
7
INSTALLING THE LEGS
Bertazzoni ranges must be used only with the legs properly installed.
Four height adjustable legs are shipped with the range in the polysterene container situated over the appliance.
Before installing the legs, position the appliance near its final location as the legs are not suitable for moving the appliance over long distances.
After unpacking the range, raise it enough to insert the legs in the appropriate receptacles situated on the lower part of the appliance. Lower the range gently to keep any undue strain from legs and mounting hardware. If possible use a pallet or lift jack instead of tilting the unit.
Adjust leg height to the desired level by twisting the inside portion of the leg assembly until the proper height is reached. Check with a level that the cooktop is perfectly level.
INSTALLING THE WORKTOP
FRONTGUARD
To increase the clearance between the front edge of the worktop and the burners it is possible to install the worktop frontguard shipped with the appliance.
To install the front guard, hold it with the pointed edges looking up. Align the edges of the frontguard with the appropriate receptacles in the bottom of the worktop and press firmly until the frontguard is securely attached to the worktop.
ATTENTION: once installed the frontguard may only be removed by disassembling the worktop. Attempting to remove the frontguard without disassembling the worktop will result in permanent damage to the worktop.
8
INSTALLING THE BACKGUARD
The backguard must be installed prior to operation of the appliance for appropriate ventilation of the oven compartment.
The supplied backguard is a 2 part assembly. The box also contains a set of metal screws for securing the backguard to the worktop.
Disassemble the backguard and position the front part on the worktop. Align the screw holes with the corresponding holes at the back of the worktop.
If the holes are not aligned, partially loosen the brackets att the back of the worktop as shown below.
Install the front part of the backguard by tightening the 2 central screws from the top and 2 lateral screws from the bottom.
Position the back part of the backguard and secure it to the worktop tightening 4 screws from the bottom.
Connect the back and front part of the upstand. Check for tight assembly.
9
INSTALLING THE ANTI TIP STABILlTY
DEVICE
The anti tip bracket shipped with the range must be properly secured to the rear wall as shown in the pircture below.
The height of the bracket from the floor must be determined after the range legs have been adjusted to the desired height and after the range has been leveled.
Measure the distance from the floor to the bottom of the anti tip bracket receptacle on the back of the appliance.
Position the two anti tip brackets on the wall at the desired height plus 1/8" (0.32 cm). The brackets must be placed at 2”5/16 (6,0 cm) from the side of the range. The distance between the two bracket is 43”1/4 (109.8 cm).
Secure the brackets to the wall with appropriate hardware.
Slide the range against the wall until the brackets are fully inserted into their receptacles on the back of the range.
INSTALLATION REQUIREMENTS
ELECTRICAL
A properly grounded horizontally mounted electrical receptacle should be installed no higher than 3" (7.6 cm) above the floor, no less than 2” (5 cm) and no more than 8” (20,3 cm) from the right side (facing product).
Check all local code requirements.
GAS
An agency approved, properly sized manual shut off valve should be installed no higher than 3" (7.6 cm) above the floor and no less than 2” (5 cm) and no more than 8” (20.3 cm) from the left side (facing product).
To connect gas between shut off valve and regulator, use agency approved, properly sized flexible or rigid pipe. Check all local code requirements.
10
