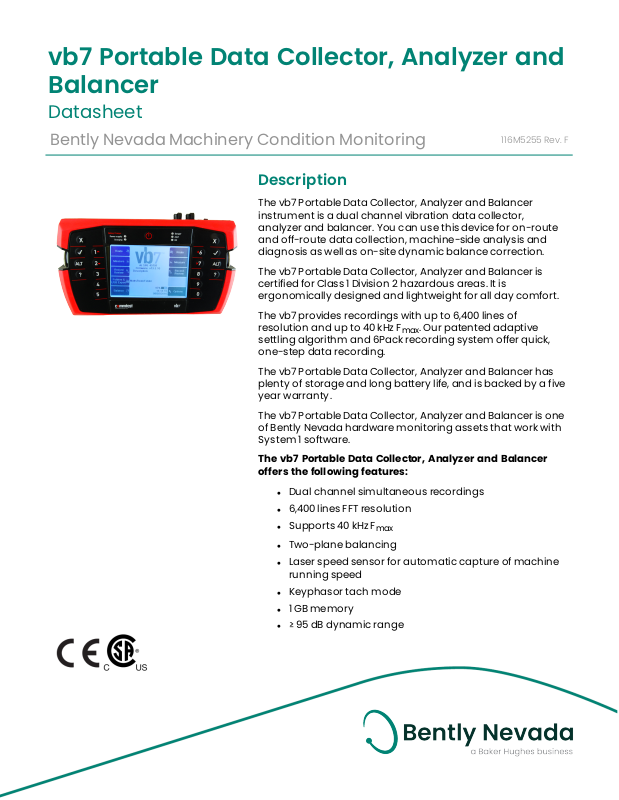

Bently Nevada vb7 Portable Data sheet

vb7 Portable Data Collector, Analyzer and
Balancer

Datasheet

Bently Nevada Machinery Condition Monitoring

Description

The vb7 Portable Data Collector, Analyzer and Balancer
instrument is a dual channel vibration data collector,
analyzer and balancer. You can use this device for on-route
and off-route data collection, machine-sideanalysis and
diagnosis as well as on-site dynamic balance correction.

The vb7 Portable Data Collector, Analyzer and Balancer is
certified for Class 1Division 2 hazardous areas. It is
ergonomically designed and lightweight for all day comfort.

The vb7 provides recordings with up to 6,400 lines of
resolution and up to 40 kHz F
settling algorithm and 6Pack recording system offer quick,
one-step data recording.

The vb7 Portable Data Collector, Analyzer and Balancer has
plenty of storage and long battery life, and is backed by a five
year warranty.

The vb7 Portable Data Collector, Analyzer and Balancer is one
of Bently Nevada hardware monitoring assets that work with
System 1 software.

max

116M5255 Rev. F

. Our patented adaptive

The vb7 Portable Data Collector, Analyzer and Balancer
offers the following features:

l Dual channel simultaneous recordings
l 6,400lines FFTresolution
l Supports 40 kHz F

l Two-plane balancing
l Laser speed sensor for automatic capture of machine

running speed

l Keyphasor tach mode
l 1 GB memory
l ≥ 95 dB dynamic range

max

vb7 Portable Data Collector, Analyzerand Balancer
Datasheet 116M5255 Rev. F

l Spectrum and waveform recordings
l Demodulation for early detection of

rotating machinery problems such as
bearing faults

l Unique 6Pack recording system
l Full analysis capabilities such as time

synchronous averaging, coastdown and
runup, bump test, cross-channel phase,
orbit plot, and long time waveform

l DC-coupled sensor support
l Numeric parameter input via keypad with

trend and alarm capability

l Sensor cable self-test feature
l Option to add flex features such as modal

analysis and Remote Comms

l USB host port for data transfer to external

USB drive

l Upgradable Proflash system and free

firmware updates for 5 years

l Five-year warranty on the instrument

hardware

2/9

vb7 Portable Data Collector, Analyzer and Balancer
Datasheet 116M5255 Rev. F

Specifications

Sensors

Sensor Input

Compatible
Sensor Types

AC Coupled
Range

DC Coupled
Ranges

Connectors

Analog to
Digital
Conversion

Sensor
Excitation
Current

Sensor
Detection

Tachometer Sensor

Sensor Type

Laser Sensor
Range

Tachometer Input

Supported
Sensor Types

Power Supply
to Sensor

TTL Pulse
Rating

Keyphasor
Thresholds

Speed Range

Accuracy ± 0.1 %
Output to

Two channels simultaneous
sampling

Accelerometer, velocity,
displacement, current

16 V peak-peak Allows for ± 8 V
sensor output swing (± 80 g)

0 V to 20 V, -10 V to 10 V, -20 V to 0 V

E.g. For reading prox-probe gap
2 x BNC (CH1/CH2)

Safety feature:Break-free inline
connector

24-bit ADC

0 mA or 2.2 mA (configurable), 24 V
maximum

2.2 mA required power for IEPE/ICP
type accelerometer

Warns if short circuit or not
connected

Laser sensor with reflective tape
Sensor triggers on beam reflection

10 cm to 2 m nominal Range
depends on size of reflective tape

Laser Tach, Contact, TTL Pulse,
Keyphasor Instrument has optically
isolated input

5 V, 50 mA

3.5 V (4 mA) min 28 V (5 mA) max
Off-state 0.8 V

7.7 ± 0.5 V, 13.2 ± 0.8 V, 18.5 ± 1 V

Nominally 8 V, 13 V, 18 V
10 RPM to 300,000 RPM (0.2 Hz to 5

kHz)

Pulse width at least 0.1 ms

Up to 140 Hz (8400 CPM)

Drive Strobe

Typical Depends on strobe type
Special cable required

Parameter Indication

> 1000 g (10,000 m/s2) > 1000 in/sec

Maximum
Levels (peak)

Dynamic
Signal Range

Harmonic
Distortion

Units

Magnitude
and Cursors

Base
Accuracy

High
Frequency
Attenuation

AC Coupling
Attenuation

Attenuation
Due to
Integration
(normal
mode)

Attenuation
Due to
Integration
(low
frequency
mode)

(25,000 mm/s) > 20 in (500 mm) >
10,000 amps

Effective limit is sensor sensitivity and
output voltage.

> 95 dB

typical at 400 line resolution
Less than -70 dB typical

Other distortions and noise are lower
g or m/s2 or adB in/s or mm/s or vdB

mil or mm or µm adB, vdB, amps, user
defined

0-peak, peak-peak or RMS Auto­scale by 1000x when required

US and SI options for adB and vdB
Overall RMS value Waveform True

pk-pk Dual cursors Harmonics

Digital readouts on chart
± 1% of readings approximately 0.1 dB

For AC signal: % of reading For DC
signal: % of full scale

≤ 0.1 dB 100 Hz to 10 kHz ≤ 3 dB >10 kHz
to 40 kHz

Attenuation tolerances are in
addition to base accuracy.

≤ 0.1 dB 10 Hz to <100 Hz ≤ 3 dB 1 Hz to
<10 Hz

≤ 0.1 dB 10 Hz to <100 Hz ≤ 1.5 dB 1 Hz to
<10 Hz

Values apply to single integration.
(Acceleration to velocity)

Double the values for double
integration (Acceleration to
displacement)

≤ 0.1 dB 1 Hz to <100 Hz
≤ 1.5 dB 0.2 Hz to <1 Hz

Applies when coupling = DC and
F

≤ 100 Hz

max

3/9

vb7 Portable Data Collector, Analyzer and Balancer
Datasheet 116M5255 Rev. F

Spectrum Display

25, 50, 100, 125, 150, 200, 300, 400,
500, 600, 800, 1000, 1200, 1600, 2000,

F

Ranges

max

F

Possible

min

Range

Resolution 400, 800, 1600, 3200, 6400 lines
Frequency

Scale

Amplitude
Scale

Window
Shapes

Overlap

Number of
Averages

Averaging
Types

Demodulation
Bandwidths

6Pack

Order Tracking

Order Tracking

- Distortion

2500, 3000, 4000, 5000, 6000, 8000,
10,000, 15,000, 20,000, 30,000,
40,000 Hz Or equivalent CPM values
Or orders-based from 1X to 999X

0 to F

max

Instrument zeroes all spectral lines
below Fmin.

Hz, CPM, Orders Linear scale with
zooming

Acceleration, velocity, displacement,
current, voltage Linear or log scales,
auto or manual scaling

Hanning Rectangular

(0, 12.5, 25, 37.5, 50, 62.5, 75, 87.5) %

Depends on Fmax and number of
lines

1, 2, 4, 8, 16, 32, 64, 128 Increases
sampling time proportionally

Linear,exponential, peak hold,
synchronous

23 bandwidth options From 125 Hz to
1250 Hz Up to 16 kHz to 20 kHz

Up to 40 kHz and 3200 lines (1
channel) Up to 20 kHz and 1600 lines
(2 channels) Spectrum and
waveform for low-frequency, high­frequency and demodulation

Up to 6 kHz Fmax Orders-based

Tachometerrequired Mounted on
high-speed shaft

< -65 dB

Within 50% to 200% speed variation
during recording

Waveform Display

Long Time
Waveform F

Long Time
Waveform
Duration

max

25 Hz to 40 kHz

20 kHz dual channel

14.7 million samples (total over
channels)

E.g. for F
kHz and Duration = 1.6 hrs

1 kHz, Fsample = 2.56

max

Logging and Analysis

Output Formats

Data Storage

Data Storage
Structure

Max Folder Size 10,000 measurement locations

Instrument screen, transfer to
Ascent or System 1, XML

Dual 1 GB non-volatile flash
memories Database mirror copy
on second flash memory

Folders/machines/
points/locations/routes

No limits are applied 50
characternames

Balancing

Planes Up to 2 planes 2 sensors
Speed Range 30 to 60 000 RPM
Measurement

Type

Weight Modes

Remove Trial
Weights

Manual Data
Entry

Storageof
balancing jobs

Acceleration Velocity
Displacement

Angle 0° to 360° Fixed position
Circumference arc

E.g. Weights on fan blades, linear
dist. around circumference

Leave or remove trial weights for
final balance

Automatic recalculation
Yes

Allows re-entry of previous
balance jobs

In the data structure where
machine vibration readings are
stored

No limits applied

Number of
Samples

TimeScale

Time
Synchronous
Averages

1024, 2048, 4096, 8192, 16,384

10 ms to 256 seconds or orders
based from 1 to 999 revs

1, 2, 4, 8, 16, 32, 64, 128

Only available when tachometer
triggered

4/9

vb7 Portable Data Collector, Analyzer and Balancer
Datasheet 116M5255 Rev. F

Display and Communication

Display

Resolution and
Size

Supported
Languages

Communication
with PC

USB Host Port

Graphic Grayscale LCD LED
Backlight

480 x 320 (HVGA), 5.5” (140 mm)

Readable in direct sunlight
English, Chinese, French, German,

Japanese, Portuguese, Russian
and Spanish

USB and Ethernet

Use PROFLASH to upgrade
instrument firmware

USB 2.0, supplying 5V, 250mA
Save folders to USB flash drive

Battery and Charger

Battery Type

Operating Time

Charger Type

Charge Rate

Custom Lithium Ion pack, 7.4 V, 5
Ah

10 hours Backlight on — 60
second timeout

Internal charging, automatic
control External power pack 12 V
DC, 3 A output

3 A nominal 3 hours for complete
charge

Mechanical

Size

Weight

9.9" W x 5.8" L x 2.4" H (252 x 148 x
60 mm)

2.7 lb (1.2 kg) Including battery
and strap

Environmental Limits

Operating
Temperature

Storage
Temperature and
Humidity

Ruggedness

14 °F to 122 °F (-10 to 50 °C)

-4 °F to 140 °F (-20 to 60 °C),
95% RH

Up to 95 F (35 C), 85% RH if
storage exceeds 1 month

IP65 sealed 4’ (1.2 m) drop onto
concrete Procedure: 26 drops
following MIL-STD-810F-516.5-IV

5/9

vb7 Portable Data Collector, Analyzer and Balancer
Datasheet 116M5255 Rev. F

Hazardous Area Approvals

Compliance and Certifications

FCC

This device complies with part 15 of the
FCC Rules. Operation is subject to the
following two conditions:

l This device may not cause harmful

interference.

l This device must accept any

interference received, including
interference that may cause
undesired operation.

EMC

EN 61326-1: 2012

EN 61326-2-3: 2012

EMC Directive 2014/30/EU

Electrical Safety

For the detailed listing of country and product
specific approvals, refer to the Approvals Quick
Reference Guide (108M1756) available from

Bently.com.

CSA/NRTL/C (Approval
Option 01)

Class I, Division 2, Groups
A, B, C, D

EN 62133: 2002

LV Directive 2014/35/EU

RoHS

RoHS Directive 2011/65/EU

6/9

vb7 Portable Data Collector, Analyzer and Balancer
Datasheet 116M5255 Rev. F

Part Number Description Quantity

Ordering Information

For the detailed listing of country and product
specific approvals, refer to the Approvals Quick
Reference Guide (108M1756) available from

Bently.com.

VB7-AA

A: Agency Approval
01 CSA / NRTL / C (Class 1, Division 2)

Basic Kit

PLEU0229

CBVB0552 vbx instrument carry bag 1
109M2384-02Neck strap with Sensor

108M4044 AC power adapter 1
DCCA0041 DC car adapter 1

108M3536

MVBX0250 Instrument Referenceguide 1

Accessory Kits

Category C Power plug,
Europe

Keeper

SCOUT100 Series and
vbSeries Quick Start Guide

1

1

1

We offer the vb7 Portable Data Collector,
Analyzer and Balancer instrument in a basic kit

Balancing Kit - 108M4050-02

with the option to purchase System 1 or Ascent
software and license separately.

* Kit items below with multiple part
numbers listed have limited regional
availability due to certification
requirements.

Part Number Description Quantity

vb7Portable Data Collector,
Analyzer and Balancer
single channel portable
data collector

ACCL0547 or
200350 *

ACCL0561 or
200350 *

138M7748

MAGF0104

CABB0560 BNC to BNC cable, 1m 2
CABU0213 USB data transfer cable 1

110M8172-012

PLUS0230

PLSA0241

PLAU0228

PLHK0245

Straight accelerometer 1

Right-angled
accelerometer or straight
accelerometer

Transducer cable, 4 ft.
straight

Accelerometer magnetic
base

LEMO-BNC TTL
Tach/Keyphasor cable

Category A power plug, USA
/ Canada

Category D power plug,
South Africa / India

Category M power plug,
Australia / New Zealand /
China

Category G power plug,
Hong Kong / UK

1

1

2

2

1

1

1

1

1

Part Number Description Qty

113M5529-01 Reflective tape One roll, 60 cm 1
LASA0315 Laser Tach Kit Zone 2 rated 1
CBL50216 Laser cable Five meters 1
MAGA0063 Lasermagnetic stand 1

CB5G0024

CB5R0025 Sensor Cable Five meters, red 1
CBBL0026 Carrying case for the kit 1

Sensor Cable Five meters,
green

Zone 2 Laser Tach Kit - LASA0315

Part Number Description Qty

108M4064 LaserTacho Holder 1
108M4066 Circlips - 20Mm Stainless 1
108M4067 Arp115 Oring 2
108M4069 LaserTach Zone 2 rated 1

1

7/9

vb7 Portable Data Collector, Analyzer and Balancer
Datasheet 116M5255 Rev. F

Additional Accessories

Software

Part Number Description

108M4051 ASCENT Level 1
108M4052 ASCENT Level 2
3071/01 System1

Miscellaneous Parts

Part Number Description

MAGM0064

KEY70258

VBMR0222 Stainless safety rings (1 pair)
100M5828 The vbSeries hard case
DTC70262 The vbSeries dust cover

BATT0575

Accelerometer magnetic base
Male connection

Keyphasor cable
BNC to LEMO

Replacement battery pack, Li-Ion 7.4
V 5 Ah

All accessories included in the basic kit,
balancing kit and Laser Tach kit may
also be ordered separately.

8/9

vb7 Portable Data Collector, Analyzer and Balancer
Datasheet 116M5255 Rev. F

Copyright 2020 Baker Hughes Company. All rights reserved.

Bently Nevada, vb Series, System 1, Keyphasor and Orbit Logo are registered trademarks of Bently Nevada, a Baker
Hughes Business, in the United States and other countries. The Baker Hughes logo is a trademark of Baker Hughes
Company. All other product and company names are trademarks of their respective holders. Use of the trademarks
does not imply any affiliation with or endorsement by the respective holders.

Baker Hughes provides this information on an “as is” basis for general information purposes. Baker Hughes does
not make any representation as to the accuracy or completeness of the information and makes no warranties of
any kind, specific, implied or oral, to the fullest extent permissible by law, including those of merchantability and
fitness for a particular purpose or use. Baker Hughes hereby disclaims any and all liability for any direct, indirect,
consequential or special damages, claims for lost profits, or third party claims arising from the use of the
information, whether a claim is asserted in contract, tort, or otherwise. Baker Hughes reserves the right to make
changes in specifications and features shown herein, or discontinue the product described at any time without
notice or obligation. Contact your Baker Hughes representative for the most current information.

The information contained in this document is the property of BakerHughes and its affiliates; and is subject to
change without prior notice. It is being supplied as a service to our customers and may not be altered or its content
repackaged without the express written consent of Baker Hughes. This product or associated products may be
covered by one or more patents. See Bently.com/legal.

1631 Bently Parkway South, Minden, Nevada USA 89423

Phone: [phone] or 1.800.227.5514 (US only)

Bently.com

9/9
