System 1 v. 19.2
System 1 represents the Bently Nevada flagship condition monitoring solution, which seamlessly
integrates with our industry leading products including online and portable devices. System 1 provides
scalability by adapting to the condition monitoring requirements at your facility, as well as flexibility
by connecting to any Bently Nevada field devices. Our products are designed for diverse applications
and equipment failure modes at industrial facilities. We offer flexible packages ranging from portable
to comprehensive plant-wide condition monitoring. We recommend understanding your equipment
and defining your operation and maintenance goals first. Then, choose the software package and field
devices that help you achieve those goals.
A successful condition monitoring program
requires equipment knowledge including an
understanding of failure modes and
operational criticality, together with a cross
functional team, process rigor, and enabling
technologies. Bently Nevada offers flexible
solutions ranging from product delivery and
deployment services to supporting service
agreements through which we partner with you
to manage your condition monitoring
program.
Document: 108M5214
Rev. V
System 1 Software
Datasheet
System 1 Package Ordering (Perpetual License)
Premium [Highly Critical]
3071/10 System 1 Software Premium
Package
3071/10-AA-BB-CC-DD
A: Software Package
01
02 Premium+ Package
B: Quantity of Display Clients
01 Single Client Package
05
10
15
C: Quantity of Server Licenses
##
D: Database Management Option
01 Postgre (Recommended)
02 Proficy Historian
Advanced [Critical]
Premium Package
Small Package [6 Clients]
Medium Package [11 Clients]
Unlimited Clients
Numeric Entry [1→n]
05
10
15
C: Quantity of Server Licenses
##
D: Database Management Option
01 Postgre (Recommended)
02 Proficy Historian
Small Package [6 Clients]
Medium Package [11 Clients]
Unlimited Clients
Numeric Entry [1→n]
Fundamental [Less Critical]
3071/01 System 1 Software
Fundamental Package
3071/01-AA-BB-CC
A: Quantity of Display Clients
01 Single Client Package
05
10
15
B: Quantity of Server Licenses
##
C: Database Management Option
01 Postgre (Recommended)
02 Proficy Historian
Small Package [6 Clients]
Medium Package [11 Clients]
Unlimited Clients
Numeric Entry [1→n]
3071/05 System 1 Software
Advanced Package
3071/05-AA-BB-CC-DD
A: Software Package
01
02 Advanced+ Package
B: Quantity of Display Clients
01 Single Client Package
Advanced Package
2/23 108M5214 Rev. V
System 1 Software
Datasheet
Additional Details

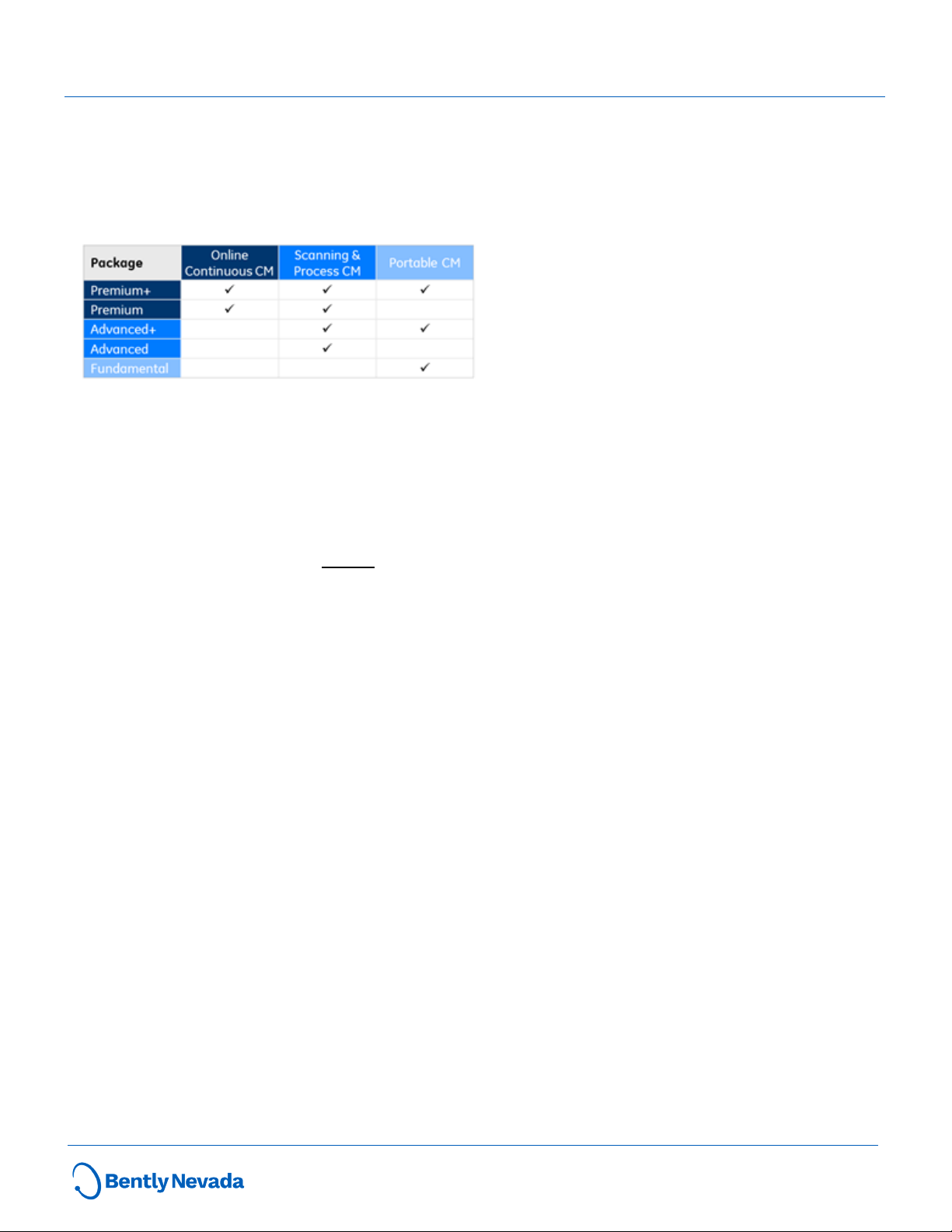

What are + packages?
Order the System 1 Premium+ and Advanced+
packages so that you can use portable data
collectors in addition to the online devices.
What is a System 1 Display Client?
A System 1 Display Client can connect to the
System 1 Server residing locally on the same
computer or remotely via network access. Local
clients can have full access to the condition
monitoring database. Remote clients can
connect to a condition monitoring database
only when direct or networked access to the
server is available.
What is a System 1 Server?
3071/25 System 1 Expansion
3071/25-AA-BB-CC
A: Package Expansion
00
01
02 Fundamental →Premium+
03 Advanced →Advanced+
04 Advanced →Premium
05 Advanced →Premium+
06 Advanced+→Premium+
07
B: Client Expansion
00 None
05 +5 Clients
10 +10 Clients
15
C: Server License Expansion
00 None
01
05 +Advanced Server License
10 +Premium Server License
None
Fundamental →Advanced+
Premium → Premium+
+Unlimited Clients
+Fundamental Server License
A System 1 Server may contain one or more
condition monitoring databases accessible from
one or more Display Clients. Historical data and
configuration structure reside on the server.
Hence, the databases are always available.
Online data collection is restricted to a single
database at a time.
3/23 108M5214 Rev. V
System 1 Software
Datasheet
Language Packs
3071/91 System 1 Non-English
Languages
3071/91-AA
A: S1 Evolution Language Options
01 German v18.2
02 Simplified Chinese v19.1
03 Russian v19.1
04 Spanish v 19.1
05 Brazilian Portuguese v18.2
06 Japanese v18.2
07 French v16.2
What is a language option? System 1
supports multiple languages. The user interface
appears in the chosen language. Newer versions
of the software may include some English text.
We release Language Packs following the
release of the System 1 software application.
Please contact your Bently Nevada sales team
for availability.
4/23 108M5214 Rev. V
System 1 Software
Datasheet
Device Ordering (Perpetual License)
3500 Device Series
3071/11-AA-BB-CC-DD 3500 Series
Device Import
Quantity (Qty) is the number of racks.
A: 3500 Devices - Turbomachinery
Qty # 0 → n
Monitor turbomachinery. Also monitor
general purpose machines when slots
available in device.
B: 3500 Devices - General Machines
Qty # 0 → n
Monitor general purpose machines.
Also monitor turbomachinery or
reciprocating compressors when SUSD
data not required.
C: 3500 Devices - Recip Machines
Qty # 0 → n
Monitor reciprocating compressors.
Also monitor turbomachinery and
general purpose machines when slots
available in device.
TDI Secure Devices [/42E /45E /PV]
D:
Qty #
0 → n
Recommended for monitoring machines
that cannot be natively connected to
System 1 via standard devices (3rd party
HW, Cyber, etc.)
l 24Vib + 24 Process points + 4 Tachs
Table 1: (A-C Options) 3500 “Full” and
“Mini” Racks
Distributed Device Series
3071/12-AA Distributed Device Import
A: ADAPT 3701 /40 /44 /46
Qty # 1 → n
l 12 simultaneous monitoring points
+ 2 Tachs
l 1 sec trend / 10 min waveform data
capture
l High res alarm and SUSD data
capture
System 1 Classic Connector
3071/60-AA System 1 Classic
Connector
A: System 1 Classic Connector
Qty #
1 → n
Connect to legacy Bently Nevada Devices,
including Trendmaster, TDXNet, 1701
FMIM
5/23 108M5214 Rev. V
System 1 Software
Datasheet
Condition Monitoring & Basic
Protection
3071/13-AA-BB-CC-DD CM & Basic
Protection Device
A: vbOnline Pro Monitoring Device
Qty #
B: 2300 Monitoring Device
Qty #
C: Ranger Pro Device
Qty #
D: Trendmaster DSM and TIMs
Qty #
0 → n
l 12 simultaneous monitoring
points + 2 tachs
l 30 sec trend / 10 min waveform
data capture
l Simultaneous Alarm Snapshot (1
per 30 sec)
0 → n
l 2 simultaneous monitoring
points + 1 tach
l 1 sec trend / 10 min waveform
data capture
0 → n
l Single axis: 1 accel point + 1
temperature
l Triaxial: 3 accel points + 1
temperature point
l 10 min trend / 6 hour waveform
data capture
0 → n
Network Cards
l 149776-01 10/100 base T
l 149776-02 Fiber Optic
Signal Processing Adapter (SPA) Card
l FlexiTIM
l Accel to Velocity FlexiTIM
l 100 Ohm Platinum RTD
FlexiTIM
l J TC FlexiTIM
l K TC FlexiTIM
Process Data
3071/14-AA Process Data Import
A:OPC DA Server Import
Qty #
1 → n
l Includes up to 12000 tags for a S1
Server
l Supports setpoints imported as OPC
tags (Up to 48000 tags)
l 1 sec trend data capture
3071/15-AA-BB Process Data Export
A:OPC DA Server Export
Qty #
B: OPCUA Server Export (Waveforms and
Spectrums only)
Qty #
1 → n
l Export static data via OPC DA
protocol for online tags for a S1
server.
l Export rates configurable by client.
1 → n
l 10 minute intervals or at device rate
interval
(1 per server)
l ProTIM (Programmable
Transducer Interface Module)
l Accel to Velocity Point
l Low Frequency Accel to
Velocity Point
l Rack Buffer Output ProTIM
l Temperature Point: 2-3 wire
Platinum RTD
l Temperature Point: TC K
Type
l Speed Input: Keyphasor
6/23 108M5214 Rev. V
System 1 Software
Datasheet
Database Replication
3071/16-AA-BB-CC System 1
Replication
A: Tx Server(s) (License Value of Tx Server
## Numeric entry (in local currency)
l Conduit to move data to the
business network
l Contains config info and
connection to devices
B: Rx Server(s)
Qty #
C: Database Management Option
01 Postgre (Recommended)
02 Proficy Historian
1 → n
l Database mirroring S1 server on
Plant Network
l Supports 80-90% of condition
monitoring tasks
Performance Monitoring
3071/17-AA-BB-CC-DD System 1
Performance
Decision Support
3071/51 AA-BB-CC System 1
Decision Support
Available to order, but will ship in August
2020.
A: Core Package (n = max. number of packages)
Qty #
B: Unlimited Package
Qty #
C: Upgrade from Decision Support Core Package
to Decision Support Unlimited Package
Qty #
0 → n
Includes up to 40 rule results for a single
System 1 database.
Includes one Decision Support engine and rule
writing capability for a single System 1
database.
0 → n
Unlimited rule results for a single System 1
database
Includes one Decision Support engine and rule
writing capability for a single System 1
database.
0 → n
A: Simple Machines
Qty #
B: Complex Machines
Qty #
C: S1 Servers with Performance
Qty #
D: Predictive Emissions Monitoring System
(PEMS)
Qty #
0 → n
l Pump, Compressor, Steam
Turbine, Fan, Expander,
Generator, Heat Exchanger
0 → n
l Expander Recompressor, Gas
Turbine,
Side Stream Compressor
l Counts per stage/casing
0 → n
0 → n
7/23 108M5214 Rev. V
System 1 Software
Datasheet
System 1 Package Ordering (Subscription License)
We offer subscription licenses that include
support for and updates to System 1. Software
functionality is identical for perpetual and
subscription licenses. Key structural differences
exist between these license types.
Subscription License
l Smaller upfront investment
(flat year-over-year OPEX)
l Subscription license fee includes support
and updates.
l Software stops working if subscription is
cancelled.
Perpetual License
01 Premium Package
02 Premium + Package
D: Quantity of Display Clients
01 Single Client Package
05
10 Medium Package [11 Clients]
15 Unlimited Clients
E: Quantity of Server Licenses
##
F: Database Management Option
01 Postgre (Recommended)
02 Proficy Historian
Small Package [6 Clients]
Numeric Entry [1→n]
Advanced [Critical]
3072/05 System 1 Software
Advanced Package
l Larger upfront investment (One-time
CAPEX)
l Must purchase support and updates
(M&S) separately (Lower OPEX than
Subscription)
l Software license does not expire.
Support and updates cease if M&S
cancelled.
Premium [Highly Critical]
3072/10 System 1 Software Premium
Package
3072/10-AA-BB-CC-DD-EE-FF
A: Purchase Type
01
02 Renewal
B: Term (Subscription Term in Years)
## Numeric Entry (1 → 20 years)
C: Software Package
New (First Type Purchase)
3072/05-AA-BB-CC-DD-EE-FF
A: Purchase Type
01 New (First Type Purchase)
02 Renewal
B: Term (Subscription Term in Years)
## Numeric Entry (1 →20 years)
C: Software Package
01 Advanced Package
02 Advanced+ Package
D: Quantity of Display Clients
01 Single Client Package
05 Small Package [6 Clients]
10 Medium Package [11 Clients]
15 Unlimited Clients
E: Quantity of Server Licenses
##
F: Database Management Option
01 Postgre (Recommended)
02 Proficy Historian
Numeric Entry [1→n]
8/23 108M5214 Rev. V
System 1 Software
Datasheet
Fundamental [Less Critical]
3072/01 System 1 Software
Fundamental Package
3072/01-AA-BB-CC-DD-EE
A: Purchase Type
01 New (First Type Purchase)
02
B: Term (Subscription Term in Years)
## Numeric Entry (1 → 20 years)
C: Quantity of Display Clients
01 Single Client Package
05 Small Package [6 Clients]
10
15
D: Quantity of Server License
## Numeric Entry [1→ n]
E: Database Management Option
01 Postgre (Recommended)
02 Proficy Historian
Renewal
Medium Package [11 Clients]
Unlimited Clients
3072/25 System 1 Expansion Subscription
3072/25-AA-BB-CC-DD-EE
A: Purchase Type
01 New (First Type Purchase)
02
B: Term (Subscription Term in Years)
## Numeric Entry (1 → 20 years)
C: Package Expansion
00 None
01 Fundamental→Advanced+
02 Fundamental→Premium+
03 Advanced→Advanced+
04 Advanced→Premium
05 Advanced→Premium+
06 Advanced+→Premium+
07 Premium → Premium+
D: Client Expansion
00 None
05 Small Package [6 Clients]
10
15
E: Server License Expansion
Renewal
Medium Package [11 Clients]
Unlimited Clients
00 None
01 Fundamental Server License
05 Advanced Server License
10 Premium Server License
Language Packs
See part 3071/91 under "Perpetual" for ordering
options
9/23 108M5214 Rev. V
System 1 Software
Datasheet
3500 Device Series
3072/11-AA-BB-CC-DD-EE-FF 3500 Series
Device Import
Quantity (Qty) is the number of racks.
A: Purchase Type
01 New (First time purchase)
02 Renewal
B: Term (subscription term in years)
## Numeric Entry (1 → 20 years)
C: 3500 Devices - Turbomachinery
## (Qty # 0→ n)
D: 3500 Devices - General Machines
## (Qty # 0→ n)
E: 3500 Devices - Recip Machines
## (Qty # 0→ n)
F: TDI Secure Devices
## (Qty # 0→ n)
System 1 Classic Connector
3072/60-AA-BB-CC System 1 Classic
Connector
A: Purchase Type
01 New (First time purchase)
02
B: Term (Subscription term in years)
##
C: System 1 Classic Connector
## (Qty # 1→ n)
Renewal
Numeric Entry (1 → 20 years)
Connect to legacy Bently Nevada Devices,
including TrendMaster, TDXNet, 1701
FMIM
Condition Monitoring & Basic Protection
3072/13-AA-BB-CC-DD-EE-FF CM & Basic
Protection Device
Distributed Device Series
3072/12-AA-BB-CC Distributed Device
Import
A: Purchase Type
01 New (First time purchase)
02 Renewal
B: Term (subscription term in years)
##
C: ADAPTMonitoring Devices
## (Qty # 1→ n)
Numeric Entry (1 →20 years)
A: Purchase Type
01
02
B: Term (Subscription term in years)
##
C: vbOnline Pro Devices
## (Qty #0→ n)
D: 2300 Series Monitoring Devices
## (Qty #0→ n)
E: Ranger Pro Devices
## (Qty #0→ n)
F: Trendmaster DSM and TIMs
Qty #
New (First time purchase)
Renewal
Numeric Entry (1 → 20 years)
0 → n
10/23 108M5214 Rev. V
System 1 Software
Datasheet
3072/14-AA-BB-CC Process Data Import
A: Purchase Type
01
02
B: Term (Subscription term in years)
##
C: OPC DA Server Import
## (Qty #1→ n)
New (First time purchase)
Renewal
Numeric Entry (1 → 20 years)
3072/15-AA-BB-CC-DD Process Data Export
A: Purchase Type
01
02
B: Term (Subscription in Years)
##
C: OPC DA Server Export
## (Qty #1→ n)
D: OPC UA Server Export
## (Qty #1→ n)
New (First time purchase)
Renewal
Numeric Entry (1 → 20 years)
Database Replication
3072/16-AA-BB-CC-DD-EE System 1
Replication
A: Purchase Type
01
02
B: Term (Subscription term in years)
##
C: License Value of Tx Server(s)
##
D: Quantity of Rx Server Licenses
##
E: Database Management Option
01 Postgre (Recommended)
02 Proficy Historian
New (First time purchase)
Renewal
Numeric Entry (1 → 20 years)
(Qty # 1→n)
(Qty # 1→n)
11/23 108M5214 Rev. V
System 1 Software
Datasheet
Performance Monitoring
3072/17-AA-BB-CC-DD-EE-FF System 1
Performance
A: Purchase Type
01
02
B: Term (Subscription term in years)
##
C: Simple Machines
## (Qty # 0→ n)
D: Complex Machines
##
E: S1 Servers with Performance
##
F: Predictive Emissions Monitoring System (PEMS)
Qty #
New (First time purchase)
Renewal
Numeric Entry (1 → 20 years)
Pump, Compressor, Steam Turbine, Fan,
Expander, Generator, Heat Exchanger
(Qty # 0→ n)
Expander Recompressor, Gas Turbine, Side
Stream Compressor
Counts per stage/casing
(Qty # 0→ n)
0 → n
Decision Support
3072/51 AA-BB-CC-DD-EE System 1
Decision Support
Available to order, but will ship August 2020.
A: Purchase Type
01 New (First time purchase)
02
B: Terms (Years)
## Numeric Entry (1 → 20 years)
C: Core Package (n = max. number of packages)
Qty #
D: Unlimited Package
Qty #
Renewal
0 → n
Includes up to 40 rule results for a single
System 1 database.
Includes one Decision Support engine
and rule writing capability for a single
System 1 database.
0 → n
Unlimited rule results for a single System
1 database
Includes one Decision Support engine
and rule writing capability for a single
System 1 database.
Cyber Asset Protection
3072/40- AA-BB-CC System 1 Cyber Asset
Protection
A: Antivirus Product
01
02
B: CAP Servers
Qty #
C: Term (Subscription term in years)
##
Symantec
McAfee
1 → n
Numeric Entry (1 → 20 years)
E: Upgrade from Decision Support Core Package to
Decision Support Unlimited Package
Qty #
0 → n
12/23 108M5214 Rev. V
System 1 Software
Datasheet
Industrial Packages
Package Ordering (Perpetual License)
Industrial/Power Gen Packages Include:
l Premium+ licenses (equals 3071/10-02)
l Unrestricted device import (equals 3071/11-AA-BB-CC-DD, 3071/12-AA, 3071/13-AA-BB-CC, 3071/60-AA)
l Unrestricted process data import (OPC DA - equals 3071/14-AA)
l Unrestricted process data export (OPC DA - equals 3071/15-AA)
l Unlimited Display Clients
Industrial/Power Gen Packages Do Not Include:
l Database Replication
l Performance Monitoring
13/23 108M5214 Rev. V
System 1 Software
Datasheet
Power Generation Perpetual
General Industrial Perpetual
Package
3071/70 System 1 for Industrials Perpetual
3071/70-AA-BB-CC-DD
A:Industry Type
01 Pulp and Paper
02 Air Separation
03 Sugar Production
04 Wastewater
05 Drilling Rigs
06 Steel Production
07 Food & Beverage
08 Manufacturing
09 Pharmaceuticals
10 Marine Vessel *
*Navy, Container Ship, LNG Transport, FSRU, etc. NOT
applicable for FPSO, FSO, or FLNG vessels.
B: Package Size
Package
3071/80 System 1 for Power Generation -
Perpetual
3071/80-AA-BB-CC-DD
A: Package Option
01 New Order
02 Expansion Order
B: Plant Output (MW)
## Numeric Entry [1 →30,000 MW]
C: Quantity of Server Licenses
##
D: Database Management Option
01 Postgre (Recommended)
02 Proficy Historian
Numeric Entry [1 →25]
01 Small Database
02 Medium Database
03 Large Database
04 Extra Large Database
C: Quantity of Server Licenses
##
D: Database Management Option
01 Postgre (Recommended)
02 Proficy Historian
Numberic Entry [1 →25]
14/23 108M5214 Rev. V
System 1 Software
Datasheet
Package Ordering
(Subscription License)
We offer subscription licenses that include
support for and updates to System 1. Software
functionality is identical for perpetual and
subscription licenses. Key structural differences
exist between these license types:
Subscription License
l Smaller upfront investment (flat year-
over-year OPEX)
l Subscription license fee includes support
and updates.
l Software stops working if subscription is
cancelled.
Perpetual License
02 Air Separation
03 Sugar Production
04 Wastewater
05 Drilling Rigs
06 Steel Production
07 Food & Beverage
08 Manufacturing
09 Pharmaceuticals
10 Marine Vessel *
*Navy, Container Ship, LNG Transport, FSRU, etc.
NOT applicable for FPSO, FSO, or FLNG vessels
D: Package Size
01 Small Database
02 Medium Database
03 Large Database
04 Extra Large Database
E: Quantity of Server Licenses
##
Numeric Entry [1 →25]
l Larger upfront investment (one-time
CAPEX)
l Must purchase support and updates
(M&S) separately (lower OPEX than
subscription)
l Software license does not expire. Support
and updates cease if M&S is cancelled
General Industrial Subscription Package
3072/70 System 1 for Industrials
3072/70-AA-BB-CC-DD-EE
A: Purchase Type
01 New (First time purchase)
02 Renewal
B: Term (Subscription Term)
##
C:Industry Type
01 Pulp and Paper
Numeric Entry [1→20 years]
Power Generation Subscription
Package
3072/80 System 1 for Power Generation
3072/80-AA-BB-CC-DD-EE
A: Purchase Type
01 New (First time purchase)
02 Renewal
B: Term (Subscription term)
## Numeric Entry [1→ 20 years ]
C: Package Option
01
02
D: Plant Output (MW)
## Numeric Entry [1→30,000 MW]
E: Quantity of Server Licenses
## Numeric Entry [1→25]
New Order
Expansion Order
15/23 108M5214 Rev. V
System 1 Software
Datasheet
System 1 Wind Subscription Package
3072/84 System 1 for Wind
3072/84-AA-BB-CC-DD
A: Purchase Type
01 New (First time purchase)
02 Renewal
B: Term (Subscription term in years)
## Numeric Entry [1, 2, 3, 4 or 5 ]
C: MW Output of Wind Farm
## Numeric Entry [7→1000 MW ]
D: Quantity of Server Licenses
## Numeric Entry [1→25 ]
Refer to System 1 Software Package
Datasheet, document number 108M5214, for
additional information, including specifications,
product capabilities, server options, and
language packs.
16/23 108M5214 Rev. V
System 1 Software
Datasheet
Software Maintenance and Support (M&S)
System 1 Maintenance and Support (M&S) provides access to the latest platform upgrades through a
simplified web portal interface.
l 24/7 technical support (regional specialists)
l Access to the latest software releases
oOperating system updates
oCyber security patches
oUser-driven feature additions
System 1 version 6.x and Ascent customers with active M&S qualify for an upgrade to the latest
System 1 platform at no additional cost. To receive an upgrade, include product 3071/65.
17/23 108M5214 Rev. V
System 1 Software
Datasheet
Maintenance and Support
3071/20 System 1 Maintenance &
Support
3071/20-AA-BB-CC-DD-EE-FF-GG-HH-I I
A: M&S Support Level
Basic Support
00
Essential Support
01
02 Premier Support
Anti-virus Option (only in Premier Support)
01
B: M&S Term
##
C: System 1 Products Covered under M&S Agreement
01
02
03 Enterprise Impact
04 ADRE
D: Total System 1 Software License Price
Software value at customer site to be covered by M&S
Agreement
## Numeric Entry [In Local Currency]
E: Customer Agreement Number (CAN)
## Text Entry (Ex: CAN1631)
F: Software Contact First Name
## Text Entry (Ex. John)
G: Software Contact Last Name
##
H: Software Contact Email Address
## Text Entry (Ex. John.smith@bently.com)
I: M&S Order Type
01 New [New Customer]
02 Renewal [Returning M&S Customer]
03 Expansion [Pre-Existing M&S Customer adding
Symantec
02
McAfee
Numeric Entry (1 → 20 years)
System 1 (3071)
System 1(3060)
Text Entry(Ex: Smith)
additional software]
System 1 Software Platform
Upgrade
3071/65-AA-BB-CC-DD-EE-FF-GG-HH-I I-JJ-
KK-LL-MM-NN-OO-PP-QQ-RR-SS-TT-UU
A:Customer Agreement Number (CAN)
##
B: Software Package Upgrade
01 System 1 v6.x
02 Ascent 2015
03 ADAPT.Wind
C: Package Expansion
01 Premium+
02 Premium
03 Advanced+
04 Advanced
05 Fundamental
06 Power Generation
07
D: Quantity of Display Clients
01 Single client
05 Small package (6 clients)
10 Medium package (11 clients)
15
E: Quantity of Server Licenses (DAQs)
## Numeric entry [1→n]
F: Historical Data Migration
01 Yes [System 1 v6.81+ and Ascent v2015]
02 No
G: Qty of 3500 Devices - Turbomachinery
## Numeric entry [0→n]
H: Qty of 3500 Devices - General Machines
## Numeric entry [0→n]
I: Qty of 3500 Devices - Recip Machines
## Numeric entry [0→n]
J: Qty of TDI Secure Devices
## Numeric entry [0→n]
Text entry [CAN######]
Wind
Unlimited Clients
18/23 108M5214 Rev. V
System 1 Software
Datasheet
K: Qty of OPC DA Import Licenses (1 per server)
## Numeric entry [0→n]
L: Qty of OPC DA Export Licenses (1 per server)
## Numeric entry [0→n]
M: Qty of ADAPT 3071/40, /44, /46 (equals 3071/12-AA)
## Numeric entry [0→n]
N: Qty of vbOnline Pro Monitoring Devices (equals
3071/13-AA)
## Numeric entry [0→n]
O: Qty of 2300 Monitoring Devices (equals 3071/13-BB)
## Numeric entry [0→n]
P: Qty of Ranger Pro Devices (equals 3071/13-CC)
## Numeric entry [0→n]
Q: Qty of Simple Machines (equals 3071/17-AA)
## Numeric entry [0→n]
R: Qty of Complex Machines (equals 3071/17-BB)
## Numeric entry [0→n]
S: Qty of Predictive Emissions Monitoring Systems
(PEMS)(equals 3071/17-CC)
## Numeric entry [0→n]
T: Total Plant/ Wind Farm Output (Power Gen and Wind
Only)
## Numeric entry [1→n]
U: Database Management Option
01 Postgre (Recommended)
02 Proficy Historian
19/23 108M5214 Rev. V
System 1 Software
Datasheet
Servers
System Ordering of Servers and
Accessories
3071/30 - Servers and Accessories
3071/30 - AA-BB-CC-DD-EE-FF-GG-HH-I I
A: Computers
00 None
## Refer to table below
B: Keyboards for Rack Servers
00 None
01 Compact KB with touchpad
03 Integrated keyboard drawer
C: Monitors
00 None
03
04
05
D: Printers
00
01 HP Printer 110V B/W
02 HP Printer 110V Color
03 HP Printer 220V B/W
04 HP Printer 220v Color
E: Time Synch
22” Flat Panel
24” Flat Panel
27” Flat Panel
None
1
2
G: Backup Devices
00 None
01 HP LTO Tape Drive
02 DELL LTO Tape Drive
H: Remote Access
00 None
02
I: RDS 5 CAL Packs (needed with Parallels)
##
Parallels Remote App Server, 15 users +
5 years support
Numeric Entry [1→n]
1
International Power Cord Part Numbers:
l 100M2829 Australia
l 285300 Brazil
l 100M2830 China/Argentina
l 288688 Europe
l 100M2831 India/South Africa
l 323596 UK/Saudi Arabia/Hong Kong
2 Some of the synch options have
different export control than the servers, so
must be ordered separately.
For option 10, order 3071/30-EE-01 (Client SW)
and parts 165764 (GPS Network Time Server)
and 123M4605 (antenna).
For option 20, order part 167114 (PCI IRIG Time
Receiver).
00 None
01 Client Software (one license)
10 Client SW & NTP Time Server
20 IRIG-B Time Card
F: Uninterruptable Power Supply
00 None
01
02
03 220V Tower
110V Rack Mount
110V Tower
2
2
20/23 108M5214 Rev. V
System 1 Software
Datasheet
System Information Table
Type Catalog
Standard
Server [Rack]
Standard
Server
[Tower]
Number
3071/30A-01
3071/30A-02
3071/30A-03
3071/30A-04
3071/30A-05
3071/30A-10
3071/30A-11
3071/30A-12
OEM Model Processor RAID 1
Disk Space
[GB]
HP DL380
G10
Dell R540 4110 2.1
4110 2.1
GHz
300 2.4 64 128M3395
300 2.4 64 128M3396
GHz
HP DL380
G10
HP DL380
G10
HP DL380
G10
HP ML350
G10
HP ML350
G10
HP ML350
G10
4110 2.1
GHz
4110 2.1
GHz
4110 2.1
GHz
4110 2.1
GHz
4110 2.1
GHz
4110 2.1
GHz
300 3.6 64 110M2199
300 6.0 64 110M2200
300 10.8 64 110M2201
300 2.4 64 128M3394
300 3.6 64 110M2203
300 6.0 64 110M2206
RAID 5
Disk Space
[TB]
RAM
[GB]
BN Part #
3071/30A-13
Light Server
[Rack]
Light Server
[Tower]
3071/30A-20
3071/30A-21
Workstation 3071/30-
A-22
Laptop 3071/30-
A-23
Recommendations:
Standard Server
Light Server
Workstation
Laptop
HP ML350
G10
HP DL380
G10
HP ML110
G10
HP HP
Z4G4
HP ZBOOK 15i7-7700
4110 2.1
GHz
3106 1.7
GHz
4110 2.1
GHz
W-2123
3.6 GHz
300 10.8 64 110M2207
300 1.2 16 110M2198
300 1.2 16 110M2202
1000 - 16 02200478
1000 - 16 169849
2.8 GHz
Medium, large, or x-large Premium/ Advanced databases
Fundamental installation or small Premium/ Advanced database
Fundamental installation or Premium/ Advanced Client machine
Fundamental installation
21/23 108M5214 Rev. V
System 1 Software
Datasheet
Specifications
System Specifications
Standard Server
Light Server Single Intel Xeon 4110 8-Core, 2.1 GHz Processor - 8 cores total, 16 logical processors
Workstation Intel Xeon W-2123 (3.6 GHz Processor)
Laptop i7 – 7700HQ (2.8 GHz Processor)
Dual Intel Xeon 4110 8-Core, 2.1 GHz Processors -16 cores total, 32 logical processors
64 GB RAM or above
Operating System Hard Disk: RAID 1 & 300 GB – 10000 RPM
Historian Hard Disk: RAID 5 – 10,000 RPM
DVD-RW
16 GB RAM or above
Operating System Hard Disk: RAID 1 & 300 GB – 10,000 RPM
Historian Hard Disk: RAID 5 & 1.2 TB– 10,000 RPM
DVD-RW
16 GB RAM or above
1 GB Graphics Card
1 TB Hard Drive – 7200 RPM
DVD-RW
16 GB RAM or above
HD Graphics Card
1 TB Hard Drive – 7200 RPM
DVD-RW
Virtualized Systems Refer to Virtualized Systems Technical White Paper, document number 125M6425.
Network specification Minimum 100 Mbps recommended
Supported Operating
Systems
Microsoft Windows 2019 Server Standard Edition 64 bit
Microsoft Windows 2016 Server Standard Edition 64 bit
Microsoft Windows 2012 Server R2 Standard Edition 64 bit
Microsoft Windows 2008 Server R2 Standard Edition 64 bit
Microsoft Windows 7 SP1 64 bit †
Microsoft Windows 8.1 Professional 64 bit †
Microsoft Windows 10 Professional 64 bit (1803, 1809, 1903 )†
† Recommended for Client †
22/23 108M5214 Rev. V
System 1 Software
Datasheet
Copyright 2019 Baker Hughes, a GE company, LLC ("BHGE") All rights reserved.
Bently Nevada, System 1, Trendmaster, ADAPT, vbSeries, Ranger Pro, ADRE, and Orbit Logo are
registered trademarks of BHGE in the United States and other countries. All product and company
names are trademarks of their respective holders. Use of the trademarks does not imply any affiliation
with or endorsement by the respective holders.
The information contained in this document is subject to change without prior notice.
1631 Bently Parkway South, Minden, Nevada USA 89423
Phone: 1.775.782.3611 Bently.com
23/23 108M5214 Rev. V
Loading...
