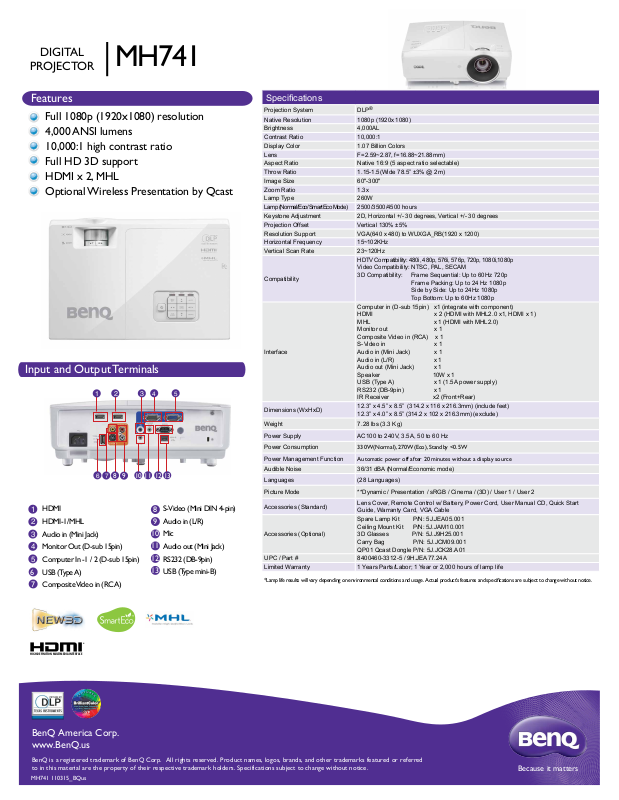

BenQ MH741 Product Sheet

HIGH-DEFINITION MULTIMEDIA INTERFACE

DIGITAL

PROJECTOR

MH741

Features

Full 1080p (1920x1080) resolution 4,000 ANSI lumens 10,000:1 high contrast ratio Full HD 3D support HDMI x 2, MHL Optional Wireless Presentation by Qcast

Input and Output Terminals

10 11 12 13

S-Video (Mini DIN 4-pin)

Audio in (L/R)

Mic

10 11

Audio out (Mini Jack)

RS232 (DB-9pin)

USB (Type mini-B)

HDMI

HDMI-1/MHL

Audio in (Mini Jack)

Monitor Out (D-sub 15pin)

Computer In -1 / 2 (D-sub 15pin)

USB (Type A)

Composite Video in (RCA)

Specications

Projection System

Native Resolution Brightness Contrast Ratio Display Color Lens Aspect Ratio Native 16:9 (5 aspect ratio selectable) Throw Ratio 1.15-1.5(Wide 78.5” ±3% @ 2m) Image Size 60"-300" Zoom Ratio Lamp Type Lamp (Normal/Eco/SmartEco Mode) Keystone Adjustment Projection Offset Resolution Support Horizontal Frequency Vertical Scan Rate

Compatibility

Interface

Dimensions (WxHxD)

Weight 7.28 lbs (3.3 Kg)

Power Supply AC100 to 240V, 3.5A, 50 to 60 Hz

Power Consumption

Power Management Function

Audible Noise

Languages (28 Languages)

Picture Mode **Dynamic / Presentation / sRGB / Cinema / (3D) / User 1 / User 2

Accessories (Standard)

Accessories (Optional)

UPC / Part # 8400460-3312-5 / 9H.JEA77.24A Limited Warranty 1 Years Parts/Labor; 1 Year or 2,000 hours of lamp life

*Lamp life results will vary depending on environmental conditions and usage. Actual product’s features and specications are subject to change without notice.

DLP

1080p (1920x 1080)

4,000AL 10,000:1

1.07 Billion Colors F=2.59~2.87, f=16.88~21.88mm)

1.3x 260W 2500/3500/4500 hours 2D, Horizontal +/- 30 degrees, Vertical +/- 30 degrees Vertical 130% ±5% VGA(640 x 480) to WUXGA_RB(1920 x 1200) 15~102KHz 23~120Hz HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i,1080p

Video Compatibility: NTSC, PAL, SECAM 3D Compatibility: Frame Packing: Up to 24 Hz 1080p Side by Side: Up to 24Hz 1080p Top Bottom: Up to 60Hz 1080p

Computer in (D-sub 15pin) x1 (integrate with component) HDMI x 2 (HDMI with MHL2.0 x1, HDMI x 1) MHL x 1 (HDMI with MHL2.0) Monitor out x 1 Composite Video in (RCA) x 1 S-Video in x 1 Audio in (Mini Jack) x 1 Audio in (L/R) x 1 Audio out (Mini Jack) x 1 Speaker 10W x 1 USB (Type A) x 1 (1.5A power supply) RS232 (DB-9pin) x 1 IR Receiver x2 (Front+Rear)

12.3” x 4.5” x 8.5” (314.2 x 116 x 216.3mm) (include feet)

12.3” x 4.0” x 8.5” (314.2 x 102 x 216.3mm) (exclude)

330W(Normal), 270W(Eco), Standby <0.5W

Automatic power off after 20 minutes without a display source

36/31 dBA (Normal/Economic mode)

Lens Cover, Remote Control w/ Battery, Power Cord, User Manual CD, Quick Start Guide, Warranty Card, VGA Cable

Spare Lamp Kit P/N: 5J.JEA05.001 Ceiling Mount Kit 3D Glasses P/N: 5J.J9H25.001 Carry Bag P/N: 5J.JCM09.001 QP01 Qcast Dongle P/N: 5J.JCK28.A01

Frame Sequential: Up to 60Hz 720p

P/N: 5J.JAM10.001

BenQ America Corp. www.BenQ.us

BenQ is a registered trademark of BenQ Corp. All rights reserved. Product names, logos, brands, and other trademarks featured or referred to in this material are the property of their respective trademark holders. Specifications subject to change without notice.

MH741 110315_BQus

Because it matters
