TABLE OF CONTENTS
Important Safeguards ............................................................................................................ 2
Additional Important Safeguards............................................................................................ 3
Notes on the Plug ................................................................................................................. 4
Notes on the Cord................................................................................................................. 4
Plasticizer Warning ................................................................................................................ 4
Electric Power ....................................................................................................................... 4
Carafe Safety Precautions ..................................................................................................... 4
Coffee Yield ........................................................................................................................... 4
Permanent Coffee Filter ........................................................................................................ 5
Getting to Know Your 12 Cup Coffee Maker ......................................................................... 5
Control Panel......................................................................................................................... 6
Before Using for the First Time .............................................................................................. 6
Brewing Coffee Instructions ...............................................................................................6-7
Pause and Serve ............................................................................................................... 7-8
Brewing a Second Carafe of Coffee ...................................................................................... 8
Hints for Great Tasting Coffee ........................................................................................... 8-9
User Maintenance Instructions .............................................................................................. 9
Care & Cleaning Instructions ................................................................................................. 9
Auto Clean .......................................................................................................................9-10
Descaling ............................................................................................................................ 10
Storing Instructions.............................................................................................................. 10
Warranty .............................................................................................................................. 11
ÍNDICE
Instrucciones de Seguridad Importantes ........................................................................12-13
Otras instrucciones de Seguridad Importantes ............................................................... 13-14
Notas sobre el enchufe ....................................................................................................... 14
Notas sobre el cable ........................................................................................................... 14
Advertencia sobre el plasticante ........................................................................................ 14
Energía eléctrica .................................................................................................................. 14
Precauciones de seguridad de la jarra ............................................................................14-15
Rendimiento de café ........................................................................................................... 15
Canasta del ltro de café permanente ................................................................................. 15
Descripción de la cafetera para 12 tazas ............................................................................. 16
Panel de control .................................................................................................................. 17
Antes de utilizar por primera vez ......................................................................................... 17
Instrucciones para elaborar el café ............................................................................17-18-19
Función de encendido automático ...................................................................................... 19
Elaboración de una segunda garrafa de café ...................................................................... 20
Consejos para lograr un café sumamente delicioso ............................................................. 21
Instrucciones de mantenimiento para el usuario .................................................................. 21
Instrucciones de cuidado y limpieza ................................................................................... 21
Descalcicación ................................................................................................................... 22
Instrucciones de almacenamiento ....................................................................................... 22
Garantía .............................................................................................................................. 23
IMPORTANT SAFEGUARDS
When using electrical appliances, basic safety precautions should always be
followed, including the following:
1. READ ALL INSTRUCTIONS.
2. Do not touch hot surface. Use handles or knobs only.
3. This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
4. Close supervision is necessary when any appliance is used by or near children.
5. In order to minimize the risk of property damage, never place the Coffee Maker
under cabinets. Make sure the area several feet above the Coffee Maker is clear
from all furniture or cabinetry.
6. Do not open top cover while coffee is brewing. Scalding may occur if the cover
is lifted or removed during the brewing cycle.
7. Do not use outdoors.
8. Unplug unit from outlet when not in use and before cleaning. Allow unit to cool
before putting on or taking off parts, and before cleaning.
9. To protect against electrical shock, do not immerse cord, plugs, or appliance in
water or other liquids.
10. Do not operate any appliance with a damaged cord or plug, or after the appliance
malfunctions, or has been damaged in any manner. Return appliance to the nearest
authorized service facility for examination, repair or adjustment.
NOTE: DO NOT ATTEMPT TO REPAIR THE UNIT YOURSELF.
THIS WILL VOID THE WARRANTY.
11. The use of accessory attachments not recommended by the appliance manufacturer
may result in fire, electric shock or injury to persons.
12. Never move the appliance by pulling the cord. Do not let the cord hang over
the edge of a table or counter or touch hot surfaces.
13. Stand the appliance on a table or flat surface.
14. Do not use a cracked glass carafe or a carafe having a loose or weakened handle.
15. Only use the glass carafe with this appliance. Handle with care as the glass
is very fragile.
16. Snap lid securely onto glass carafe before serving coffee.
17. Never use your Coffee Maker without water in it.
18. Do not place appliance on or near a hot gas or electric burner or in a heated oven.
19. The carafe is designed for use with this appliance. It must never be used on
a range top.
20. Do not set hot glass carafe on a wet or cold surface.
21. Do not clean glass carafe with cleaners, steel wool pads, or other abrasive material.
22. Press and hold the START button to turn the appliance OFF. Unplug the power cord
from the electrical outlet when the appliance is not in use, left unattended,
or when the carafe is empty.
23. Do not use this appliance for other than its intended use.
24. Scalding may occur if the lid is removed during the brewing cycles.
25. To reduce the risk of fire, do not place any heating or cooking appliance
beneath the appliance.
26. To reduce the risk of electric shock, do not mount over a sink.
27. To reduce the risk of fire, do not store anything directly on top of the appliance
surface when the appliance is in operation.
2
FOR HOUSEHOLD USE ONLY
SAVE THESE INSTRUCTIONS
ADDITIONAL
IMPORTANT SAFEGUARDS
WARNING: This appliance generates heat and escaping steam during use.
Proper precautions must be taken to prevent the risk of burns, fires, or other injury to
persons or damage to property.
1. All users of this appliance must read and understand this Instruction Manual before
operating or cleaning this appliance.
2. The cord to this appliance should be plugged into a 120V AC electrical outlet only.
3. Use water only in this appliance! Do not put any other liquids or food products in
this appliance. Do not mix or add anything to the water placed in this appliance,
except as instructed in the User Maintenance Instructions to clean the appliance.
4. DO NOT attempt to move an appliance containing hot liquids. Allow appliance
to cool completely before moving.
5. Keep appliance at least 4 inches away from walls or other objects during operation.
Do not place any objects on top of appliance while it is operating. Place the
appliance on a surface that is resistant to heat.
6. If this appliance begins to malfunction during use, immediately unplug the cord.
Do not use or attempt to repair the malfunctioning appliance.
7. If this appliance falls or accidentally becomes immersed in water or any other liquid,
unplug it immediately. Do not reach into the water! Do not use this appliance after
it has fallen into or has become immersed in water.
8. The appliance must be left to cool down sufficiently before adding more water
to avoid exposure to steam.
9. Always use fresh, cool water in your appliance. Warm water or other liquids,
except as listed in cleaning section, may cause damage to the appliance.
10. DO NOT put carafe into a microwave oven.
11. DO NOT leave empty carafe on warming plate when appliance is turned ON,
as the carafe may crack or become otherwise damaged.
12. The flow valve is located on the bottom of the removable filter holder and is
activated when the carafe is removed. This design makes it possible for you to
remove the carafe and pour a cup of coffee before the entire carafe is brewed.
13. CAUTION: To prevent injury when utilizing the auto pour and serve feature,
replace carafe within 30 seconds of removing during brewing process.
3
NOTES ON ThE COrD
The provided short power-supply cord (or detachable power-supply cord) should be
used to reduce the risk resulting from becoming entangled in or tripping over a longer
cord. Do not use an extension cord with this product. Always plug directly into a wall
outlet/receptacle.
NOTES ON ThE PLUG
This product has a polarized plug (one blade is wider than the other). To reduce the risk
of electric shock, this plug will t in a polarized outlet only one way. If the plug does
not t fully into the outlet, reverse the plug. If it still does not t, contact a qualied
electrician. Never use with an extension cord unless plug can be fully inserted.
Do not alter the plug.
PLASTICIZEr WArNING
CAUTION: To prevent Plasticizers from migrating to the nish of the counter top or
table top or other furniture, place NON-PLASTIC coasters or place mats between the
appliance and the nish of the counter top or table top. Failure to do so may cause the
nish to darken; permanent blemishes may occur or stains can appear.
ELECTrIC POWEr
If the electrical circuit is overloaded with other appliances, your appliance may not
operate properly. It should be operated on a separate electrical circuit from other
appliances.
CArAFE SAFETY PrECAUTIONS
1. Do not use a cracked carafe or any carafe with a loose or weakened handle.
2. This carafe is designed to be used only on the warming plate of your Coffee Maker.
Do not use in a conventional oven.
3. To avoid breakage, handle carafe with care. Avoid impact. Glass will break as
a result of impact. Use care when filling with water to avoid hitting faucet.
4. Do not place hot carafe on cool or wet surface. Allow carafe to cool before washing
or adding liquids.
5. Do not set empty carafe on a hot heating surface. Do not clean with steel wool
pads, abrasive cleanser, or any other materials that may scratch.
6. Do not bump or scratch the carafe. Remove carafe from the warming plate
to avoid burning or scorching. Never operate the Coffee Maker with a carafe
that has boiled dry.
7. Discard carafe if it is cracked, scratched, or heated while empty for an extended
period of time.
COFFEE YIELD
12 Cup Coffee Maker: 12 (5 oz.) cups
NOTE: A 5-oz.cup is the American industry standard and is used by most Coffee Maker
manufacturers. To fill your favorite over-sized mug, fill Coffee Maker reservoir with enough
water for 3 to 4 cups (15 to 20 ounces).
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,
DO NOT REMOVE THE BOTTOM COVER. NO USER-SERVICEABLE PARTS INSIDE.
REPAIR SHOULD BE DONE BY AUTHORIZED SERVICE PERSONNEL ONLY.
4
PErMANENT COFFEE FILTEr BASKET
The permanent coffee lter basket takes the place of disposable paper lters.
Simply place the permanent coffee lter basket into the removable lter basket holder.
Unfold and use handle to lift basket of used coffee grounds up and out of the Coffee
Maker; fold handle down to close the water reservoir lid.
GETTING TO KNOW YOUr 12 CUP COFFEE MAKEr
Product may vary slightly from illustrations.
Permanent Coffee Filter
Coffee Maker Lid
Water Reservoir
Water Level Indicator
(not shown)
Removable Filter Holder
Control Panel
Base
Pause and Serve
Flow Valve
(not shown)
Warming Plate
Carafe Handle
5
Cord Storage
(not shown)
Polarized Plug
Carafe
Carafe Lid

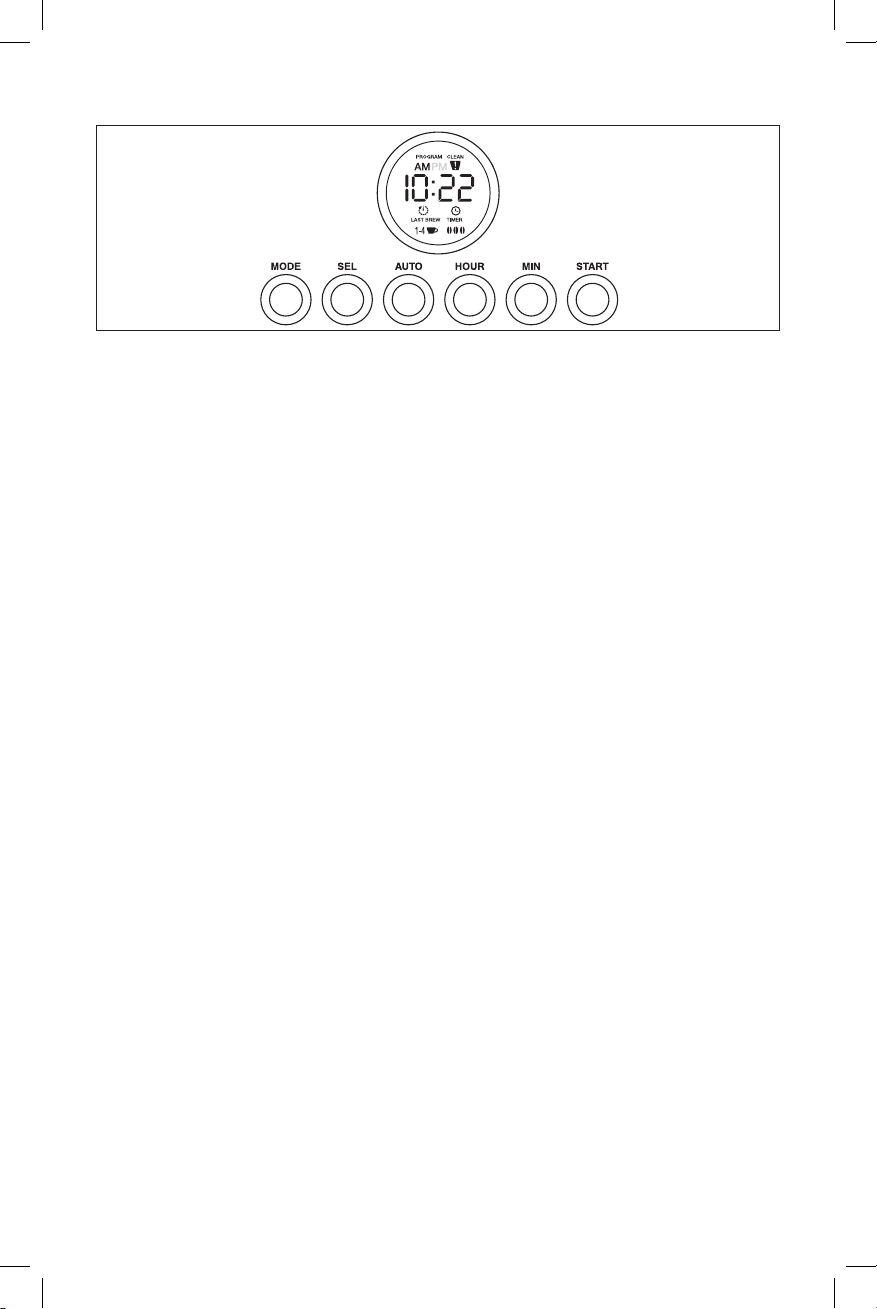

CONTrOL PANEL
BEFOrE USING FOr ThE FIrST TIME
CAUTION: To protect against electrical shock, do not immerse the Coffee Maker or allow
power cord to come into contact with water or other liquids.
1. Remove all packing material and labels from the inside and outside of the Coffee
Maker. Place the unit on a flat, clean surface.
2. Before preparing coffee, thoroughly clean the glass carafe with lid, removable filter
holder and permanent coffee filter in hot, sudsy water. Rinse and dry. Replace
disassembled parts. See Care & Cleaning Instructions for a detailed description.
3. Clean the inside of the Coffee Maker by brewing 2 full carafes of tap water
(see Brewing Coffee Instructions). Do not add the permanent coffee filter
or ground coffee for this initial cleaning.
NOTE: At the end of the first cycle, allow 15 minutes for the unit to cool.
4. Brew a second carafe of fresh water.
5. Wait an additional 15 minutes to allow the unit to cool before brewing your first
carafe of coffee.
BrEWING COFFEE INSTrUCTIONS
1. Lift to open the Coffee Maker lid. Fill carafe with cold tap water and pour into water
reservoir at the back of the unit. The stepped water level indicator can be easily
viewed inside unit.
IMPORTANT: Before brewing, always check to make sure water level is past
the MIN line and add water if needed. Never exceed the MAX fill line.
NOTE: The amount of brewed coffee will always be less than the amount of water
placed into the water reservoir; as much as 10% is absorbed by coffee grounds
and filter.
2. Place empty carafe on the warming plate.
3. Place the permanent filter in the removable filter holder. Measure 2 level tablespoons
of drip or regular grind coffee for each cup of coffee desired. For stronger or milder
coffee, adjust amount of coffee to suit your taste.
4. Lower the filter holder down into the housing. Close the lid.
5. Plug the power cord into 120V/60HZ power supply socket, the background indicator
will be illuminated, “AM 12:00” will flash, the backlight indicator will go into sleep
mode within 60 seconds if no further buttons are selected.
6. Set the clock
A. Press HR button to select the Hour. Press and hold HR to toggle quickly.
B. Press MIN button to select the minutes. Press and hold MIN to toggle quickly.
C. When the correct time is displayed press SEL. The coffee maker will make an
audible beep sound.
6
7. Functions:
!
CLEAN
!
CLEAN
!
CLEAN
Turn on the unit, the backlight indicator will be illuminated, “AM 12:00
”
will blink.
A. Regular strength coffee: press Mode button,
will flash, press SEL button for
regular coffee then press the START button. The unit will beep and begin to brew
regular coffee.
B. Gourmet strength coffee: press Mode button twice,
will flash, press SEL
button for gourmet coffee then press the START button. The unit will beep and
begin to brew gourmet strength coffee.
C. Bold strength coffee: press Mode button three times,
will flash, press SEL
button for Bold coffee then press the START button. The unit will beep and begin to
brew Bold strength coffee.
D. 1-4 CUP Mode: press Mode button four times,
for 1-4 CUP Mode then press the START button. The unit will beep and begin to
will flash, press SEL button
brew in 1-4 CUP Mode. * If 12 cups of water are poured into the water tank then
12 cups of coffee will brew. 1-4 Cup Mode is ideally used for making 1-4 cups of
coffee therefore 1-4 cups of water should be poured into the water tank.
E. Clean function: Fill water tank with clean water. Press the Mode button five times,
will flash, press SEL button then press the START button. The unit will beep and
begin the cleaning function.
F. Re-set the clock: press Mode button six times until
flashes, press SEL
button, the time will flash, follow clock setting method.
G. Automatic start brewing coffee: press and hold AUTO button until PROGRAM
flashes, it will display AM 12:00, follow clock setting method, press AUTO button.
The unit will beep and display current time, the LCD will display TIMER icon.
When the current time reaches the set time, the unit will start the brewing cycle.
8. Press the START button. The Coffee Maker will begin the brew cycle.
NOTE: To interrupt the brewing process at any time, press the START button;
then remove plug from wall outlet.
9. Turn off the unit: press and hold START button
10. Using the pause and serve feature: If you wish to serve a cup of coffee before the
brew cycle is completed, simply remove carafe from the warming plate. Dripping will
automatically cease. Return the carafe onto the warming plate; dripping will resume.
CAUTION: To prevent injury when utilizing pause and serve feature, replace carafe
within 30 seconds after removing during the brewing process.
11. Upon completion of the brew cycle, wait at least 1 minute until the dripping coffee
from the flow valve into the carafe has stopped. The carafe lid should be kept in
place to facilitate safe serving and help keep coffee at a proper serving temperature.
Tilt the carafe slightly and pour hot coffee very slowly, so that the flow of the brewed
coffee does not exceed the width of the spout.
12. Press and hold the START button to turn the Coffee Maker OFF when the carafe is
empty or when unit is not in use.
PAUSE AND SErvE
1. After approximately 2 cups of coffee have been brewed, the carafe may be slowly
removed and the coffee will stop dripping.
2. The flow valve is located on the bottom of the filter holder and is activated when
the carafe is removed. (See Figure 1.) This design makes it possible for you to
remove the carafe and pour a cup of coffee before the entire carafe is brewed.
IMPORTANT: When replacing the filter holder, the flow valve must be properly
inserted into the front hole of the machine, so that it can be seen as it sits on
the top of the carafe lid. (See Figure 1.)
7
Loading...
