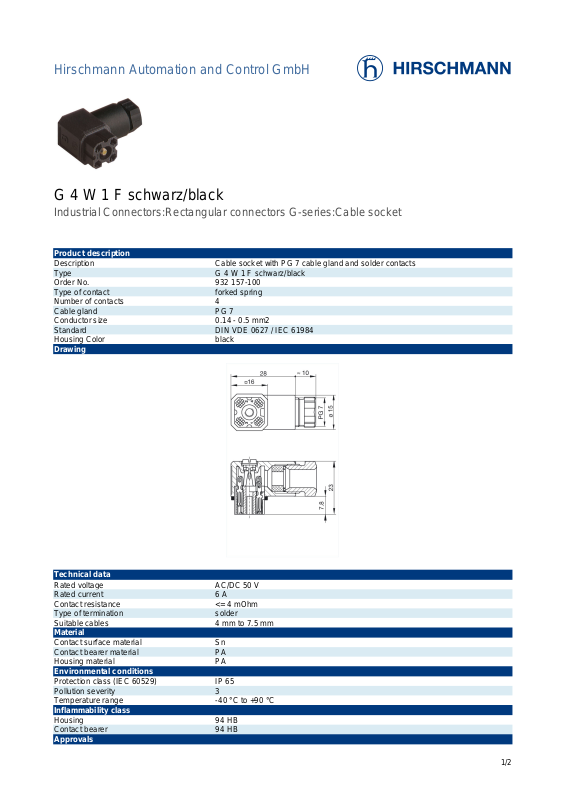

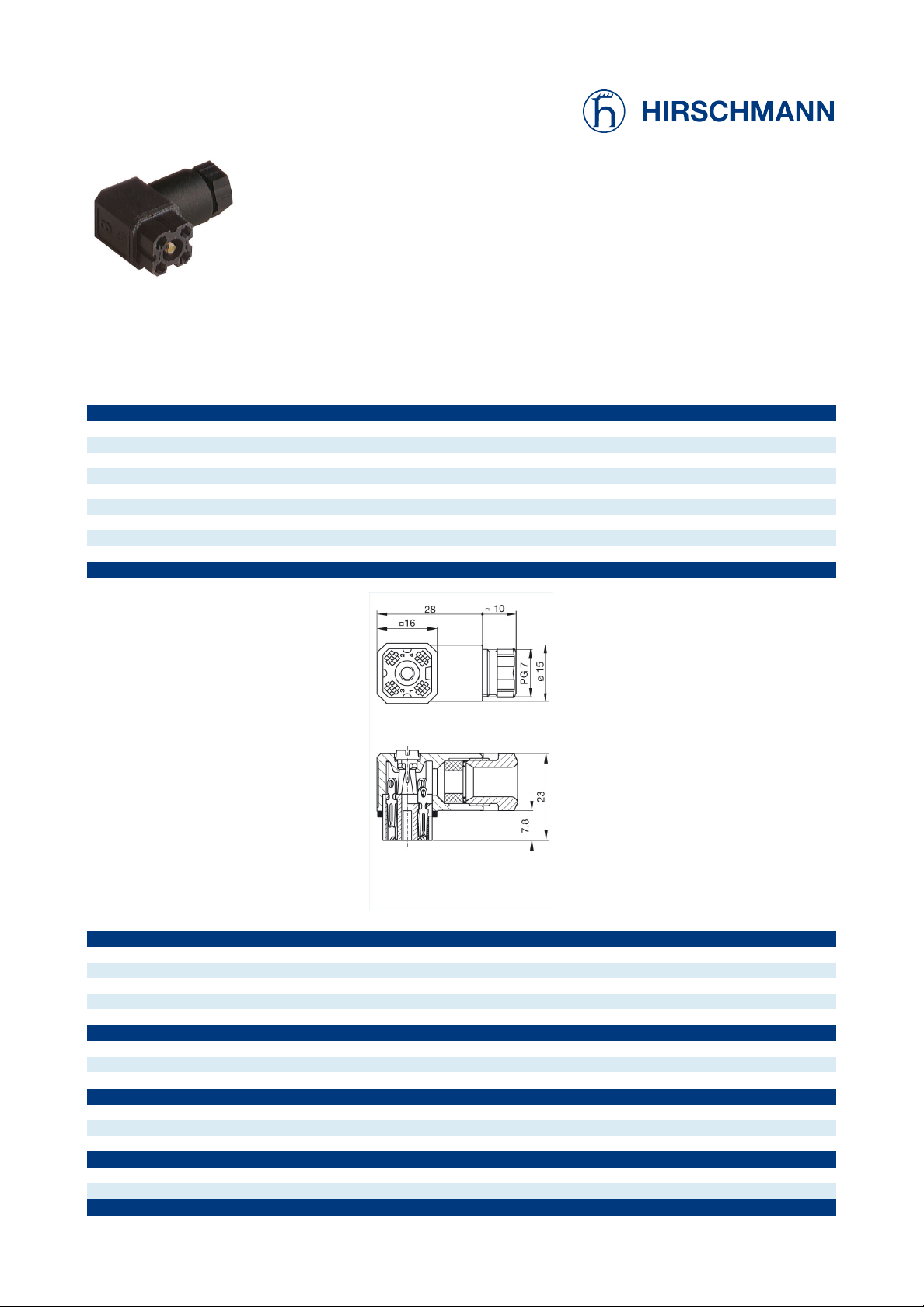

Page 1
Hirschmann Automation and Control GmbH
G 4 W 1 F schwarz/black
Industrial Connectors:Rectangular connectors G-series:Cable socket
Product description
Description Cable socket with PG 7 cable gland and solder contacts
Type G 4 W 1 F schwarz/black
Order No. 932 157-100
Type of contact forked spring
Number of contacts 4
Cable gland PG 7
Conductor size 0.14 - 0.5 mm2
Standard DIN VDE 0627 / IEC 61984
Housing Color black
Drawing
Technical data
Rated voltage AC/DC 50 V
Rated current 6 A
Contact resistance <= 4 mOhm
Type of termination solder
Suitable cables 4 mm to 7.5 mm
Material
Contact surface material Sn
Contact bearer material PA
Housing material PA
Environmental conditions
Protection class (IEC 60529) IP 65
Pollution severity 3
Temperature range -40 °C to +90 °C
Inflammability class
Housing 94 HB
Contact bearer 94 HB
Approvals
1/2
Page 2
VDE VDE
Packaging unit
Packaging unit 100 pieces
Scope of delivery and accessories
Scope of delivery 1 cable socket with PG 7 cable gland,
1 central screw M 3 x 20,
1 gasket,
in polythene bag
Accessories to order separately can be plugged into G 4 E 1 M grau/grey,
G 4 A 5 M schwarz/black, G 4 A 1 M
