Beko DIN48535 Quick user guide

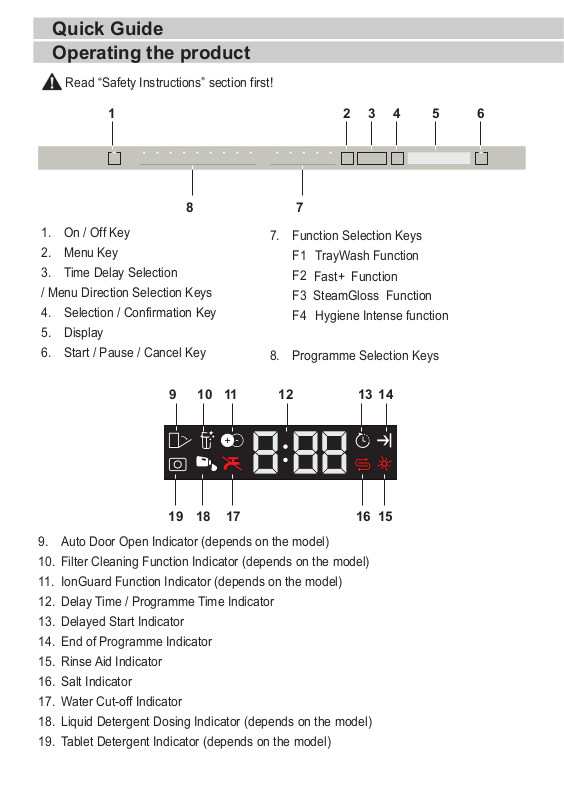

Quick Guide Operating the product

Read “Safety Instructions” section first!

1 2

1. On / Off Key

2. Menu Key

3. Time Delay Selection

/ Menu Direction Selection Keys

4. Selection / Confirmation Key

5. Display

6. Start / Pause / Cancel Key

9 10 11

3 4 5 6

7. Function Selection Keys

8. Programme Selection Keys

TrayWash Function

Fast+ Function

SteamGloss Function

Hygiene Intense function

12 13 14

9. Auto Door Open Indicator (depends on the model)

10. Filter Cleaning Function Indicator (depends on the model)

11. IonGuard Function Indicator (depends on the model)

12. Delay Time / Programme Time Indicator

13. Delayed Start Indicator

14. End of Programme Indicator

15. Rinse Aid Indicator

16. Salt Indicator

17. Water Cut-off Indicator

18. Liquid Detergent Dosing Indicator (depends on the model)

19. Tablet Detergent Indicator (depends on the model)

16171819

12345678

Auto AquaFlex Intensive Eco *** GlassCare Quick&Shine Mini Prewash

40-65 ºC - 70 ºC 50 ºC 40 ºC 60 ºC 35 ºC -

Determines the

soiling degree of the

dishes and sets the

temperature and

amount of the

washing water as

well as the washing

time automatically.

Suitable for all types

of dishes.

It is the most

suitable washing

programme for daily

mixed dishes

including plastic

items. While

delicate glass items

are washed in the

upper basket, pans

and trays can be

washed in the lower

basket.

Suitable for heavily

soiled dishes, pots

and pans.

Suitable for washing

dishes with normal

amount of soil. It is

the most efficient

program in terms of

combined power

and water

consumption. This

is used for

assessing the

compliance with

EU's eco-design

directive.

Special programme

for gentle cleaning

of delicate

glassware.

Daily washing

programme for

normally soiled

dishes in the fastest

way.

Suitable for lightly

soiled daily dishes

that are scraped or

pre-cleaned.

Suitable for

removing the

remnants on the

soiled dishes that

will be kept waiting

in the machine for a

few days, and thus,

for preventing the

bad odour buildup.

Medium to high Medium High Medium Low Medium Low -

+++++- -+

+++++++-

++++++- -

110-173 203 170 279 100 58 30 15

9,4-12,4 19 16,8 9,9 14,4 10,6 10,8 4

0,90-1,45 1,53 1,51 0,84* / 0,861** 0,92 1,18 0,80 -

Programme Data and Average Consumption Values Table

* : EN 60436:2016 ** : EN 60436:2020 The consumption values shown in the table were determined under standard conditions. Differences may th erefore occur under practical conditions. ***

Reference programme for testing institutes. The tests in accordance with EN 50242/60436 must be carried out with a full water softener salt dispenser and a full rinse aid reservoir, and using the

test programme. The values given for programmes other than Eco 50°C programme are indicative only.

Loading Capacity: 15

Programme number

Programme name

Cleaning temperature

Degree of Soiling

Energy (kWh)

Prewash

Wash

Dry

Duration (min)

Water (I)

Programme Table
