Beko CN160120, CN161220X User manual

Refrgerator Kühlschrank/ Gefrerschrank

Refrigerador Hladnjak Hladilnik

Холодильник Холодильники

CN160120

CN161220X

Please read this manual before using the product!

Dear Customer, We'd like you to make the best use of our product, which has been manufactured in modern facilities

with care and meticulous quality controls. Thus, we advice you to read the entire user manual before you use the product. In case the product

changes hands, do not forget to hand the guide to its new owner along with the product.

This guide will help you use the product quickly and safely.

Pleasereadtheuserguidecarefullybeforeinstallingandoperatingtheproduct.

•

• Alwaysobservetheapplicablesafetyinstructions.

• Keeptheuserguidewithineasyreachforfutureuse.

• Pleasereadanyotherdocumentsprovidedwiththeproduct.

Keep in mind that this user guide may apply to several product models. The guide clearly indicates any variations of different models.

Important information and use-

ful tips.

Risk of life and property.

Risk of electric shock.

The product’s packaging is made of recyclable materials, in accordance with the National Environment Legislation.

1 Safety and environment instructions 3

1.1. General safety . . . . . . . . . . . . . . . . . . . . . . 3

1.2. Intended use . . . . . . . . . . . . . . . . . . . . . . . 5

1.3. Child safety . . . . . . . . . . . . . . . . . . . . . . . . 6

1.4. Compliance with WEEE Directive and

Disposing of the Waste Product . . . . . . . . . 6

1.5. Compliance with RoHS Directive. . . . . . . . . 6

1.6. Package information . . . . . . . . . . . . . . . . . 6

2 Your appliance 7

3 Installation 8

3.1. Appropriate installation location . . . . . . . . . 8

3.2. Installing the plastic wedges. . . . . . . . . . . . 8

3.3. Electrical connection . . . . . . . . . . . . . . . . . 8

3.4. Adjusting the feet. . . . . . . . . . . . . . . . . . . . 9

3.5. Illumination lamp . . . . . . . . . . . . . . . . . . . . 9

3.6. Door open warning. . . . . . . . . . . . . . . . . . . 9

3.7. Transportation of the product . . . . . . . . . . . 9

4 Preparation 10

4.1. Things to be done for energy saving. . . . . 10

4.2. Recommendations on the fridge

compartment. . . . . . . . . . . . . . . . . . . . . . 10

4.3. Initial use. . . . . . . . . . . . . . . . . . . . . . . . . 11

5 Using your appliance 12

5.1. Indicator panel. . . . . . . . . . . . . . . . . . . . . 12

5.2. Dual cooling system . . . . . . . . . . . . . . . . 17

5.3. Freezing fresh food . . . . . . . . . . . . . . . . . 17

5.4. Recommendations for preserving the frozen

food . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

5.5. Placement of food . . . . . . . . . . . . . . . . . . 18

5.6. Deep-freeze information. . . . . . . . . . . . . . 18

5.7. Ice machine. . . . . . . . . . . . . . . . . . . . . . . 19

5.8. Icematic . . . . . . . . . . . . . . . . . . . . . . . . . 19

5.9. Ice container . . . . . . . . . . . . . . . . . . . . . . 20

5.10. Blue light. . . . . . . . . . . . . . . . . . . . . . . . . 20

5.11. Egg holder. . . . . . . . . . . . . . . . . . . . . . . . 20

5.12. Description and cleaning of odor filter . . . 21

5.13. Snack compartment . . . . . . . . . . . . . . . . 21

5.14. Sliding storage container. . . . . . . . . . . . . 22

5.15. Rotary storage container . . . . . . . . . . . . . 22

5.16. Crisper . . . . . . . . . . . . . . . . . . . . . . . . . . 23

5.17. Using the water dispenser . . . . . . . . . . . . 24

5.18. Filling the water dispenser's tank . . . . . . . 24

5.19. Cleaning the water tank . . . . . . . . . . . . . 25

5.20. Drip tray . . . . . . . . . . . . . . . . . . . . . . . . . 26

6 Maintenance and cleaning 27

6.1. Preventing malodour . . . . . . . . . . . . . . . . 27

6.2. Protecting plastic surfaces . . . . . . . . . . . . 27

7 Troubleshooting 28

2 /30EN

Refrigerator / User manual

Safety and environment instructions

This section provides the safety instructions necessary to prevent the risk of injury and material damage. Failure to observe these instructions will invalidate all types of product warranty.

1.1. General safety

• This product should not be

used by persons with physical, sensory and mental disabilities, without sufficient knowledge and experience or by children. The device can only be used by such persons under supervision and instruction of a person responsible for their safety. Children should not be allowed to play with this device.

• In case of malfunction, unplug

the device.

• After unplugging, wait at least

5 minutes before plugging in again.

• Unplug the product when not in

use.

• Do not touch the plug with wet

hands! Do not pull the cable to plug off, always hold the plug.

• Wipe the power plug’s tip with

a dry cloth before plugging in.

• Do not plug in the refrigerator if

the socket is loose.

• Unplug the product during

installation, maintenance, cleaning and repair.

• If the product will not be used

for a while, unplug the product and remove any food inside.

• Do not use the product when

the compartment with circuit cards located on the upper back part of the product (electrical card box cover) (1) is open.

Refrigerator / User manual

3 /30EN

Important instructions for safety and environment

• Do not use steam or

steamed cleaning materials for cleaning the refrigerator and melting the ice inside. Steam may contact the electrified areas and cause short circuit or electric shock!

• Do not wash the product by

spraying or pouring water on it! Danger of electric shock!

• In case of malfunction, do

not use the product, as it may cause electric shock. Contact the authorized service before doing anything.

• Plug the product into an

earthed socket. Earthing must be done by a qualified electrician.

• If the product has LED

type lighting, contact the authorized service for replacing or in case of any problem.

• Do not touch frozen food

with wet hands! It may adhere to your hands!

• Do not place liquids in

bottles and cans into the freezer compartment. They may burst out!

• Place liquids in upright

position after tightly closing the lid.

• Do not spray flammable

substances near the product, as it may burn or explode.

• Do not keep flammable

materials and products with flammable gas (sprays, etc.) in the refrigerator.

• Do not place containers

holding liquids on top of the product. Splashing water on an electrified part may cause electric shock and risk of fire.

• Exposing the product to rain,

snow, sunlight and wind will cause electrical danger. When relocating the product, do not pull by holding the door handle. The handle may come off.

• Take care to avoid trapping

any part of your hands or body in any of the moving parts inside the product.

• Do not step or lean on the

door, drawers and similar parts of the refrigerator. This will cause the product to fall down and cause damage to the parts.

4 /30EN

Refrigerator/ User manual

Important instructions for safety and environment

• Take care not to trap the

power cable.

pressure regulator must be used if the pressure in the water mains is higher than 5 bars. If the pressure in the mains is higher than 8 bars, the refrigerator must not be connected to the mains. If you are not sure about how to measure the

1.1.1 HC warning

If the product comprises a cooling system using R600a gas, take care to avoid damaging the cooling system and its pipe while using and moving the product. This gas is flammable. If the cooling system is damaged, keep the product away from sources of fire and ventilate the room immediately.

The label on the inner left side indicates the

type of gas used in the product.

1.1.2 For models with water fountain

• In order for the water system

water pressure, ask for professional help.

• Use drinking water only.

1.2. Intended use

• This product is designed for

home use. It is not intended for commercial use.

• The product should be used

to store food and beverages only.

• Do not keep sensitive

products requiring controlled temperatures (vaccines, heat sensitive medication, medical supplies, etc.) in the refrigerator.

• The manufacturer assumes

no responsibility for any damage due to misuse or mishandling.

inside the refrigerator to operate properly, pressure in the water mains must be between 1-8 bars. A

Refrigerator/ User manual

5 /30EN

Important instructions for safety and environment

• The product’s bench life is

10 years. The spare parts necessary for the product to function will be available for this period.

1.3. Child safety

• Keep packaging materials

out of children’s reach.

• Do not allow the children to

play with the product.

• If the product’s door

comprises a lock, keep the key out of children’s reach.

1.4. Compliance with WEEE Directive and Disposing of the Waste Product

This product complies with EU WEEE

Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

end of its service life. Take it to the collection center for the recycling of electrical and electronic equipment. Please consult your local authorities to learn about these collection centers.

1.5. Compliance with RoHS Directive

• This product complies with EU WEEE Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

1.6. Package information

• Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. Do not dispose of the waste product with normal domestic and other wastes at the

6 /30EN

Refrigerator/ User manual

10*11

*12

*14

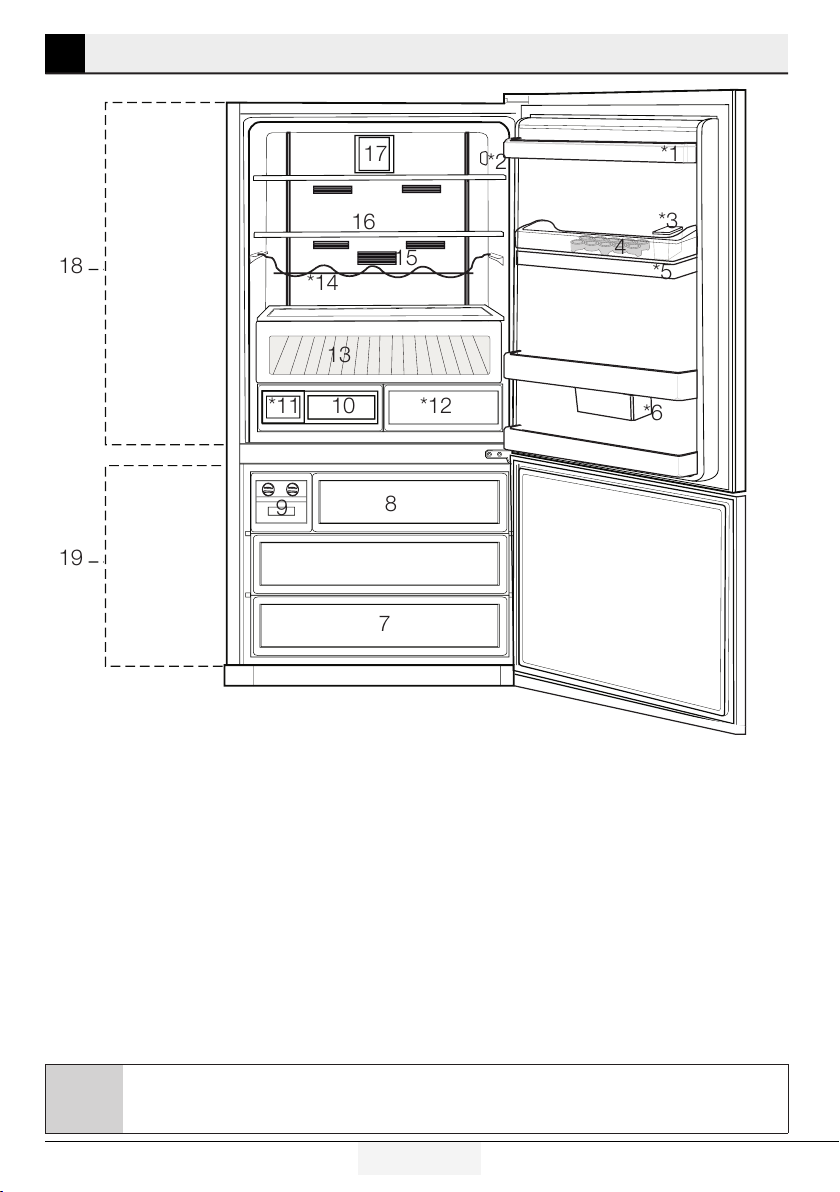

2 Your appliance

1. Door shelves of fridge compartment

2. Display

3. Water dispenser filling tank

4. Egg section

5. Water dispenser reservoir

6. Rotary storage container

7. Freezer compartment drawers

8. Icematic drawer

9. Icematic

10. Crisper

*optional:Figures in this user manual are given as an example and may not match the product

exactly. If the relevant parts are not available in the product you purchased, the figure applies to other

Refrigerator / User manual

models.

11. Water tank

12. Crisper

13. Chiller compartment

14. Bottle shelf

15. Odor filter

16. Glass shelves of fridge compartment

17. Fan

18. Glass shelves of fridge compartment

19. Freezer compartment

*optional

7 /30EN

3 Installation

Always have the installation and repairing procedures carried out by the Authorized Service Agent. Manufacturer shall not be held liable for damages that may arise from procedures carried out by unauthorized persons.

Refer to the nearest Authorized Service Agent for installation of the product. To make the product ready for use, make sure that the electricity installation is appropriate before calling the Authorized Service Agent. If not, call a qualified electrician to have any necessary arrangements carried out.

Preparation of the location and electrical installation at the place of installation is

C B

under customer's responsibility. Product must not be plugged in during

installation. Otherwise, there is the risk of death or serious injury!

WARNING: Installation and electrical

connections of the product must be carried out by the Authorised Service Agent. Manufacturer shall not be held liable for damages that may arise from procedures carried out by unauthorised persons.

WARNING: Prior to installation, visually

check if the product has any defects on it. If so, do not have it installed. Damaged products cause risks for your safety.

Make sure that the power cable is not pinched or crushed while pushing the product into its place after installation or cleaning procedures.

to direct sun light and kept in humid places after installation.

•Appropriateairventilationmustbeprovided

around your product in order to achieve an efficient operation. If the product is to be placed in a recess in the wall, pay attention to leave at least 5 cm distance with the ceiling and side walls.

•Donotplacetheproductonthematerialssuchas

rugs or carpets.

•Placetheproductonanevenfloorsurfaceto

prevent jolts.

•Donotinstalltheproductinplaceswherethe

temperature falls below 10°C.

If two coolers are to be installed side by side, there should be at least 8 cm

distance between them. Otherwise, adjacent side walls may get damp.

3.2. Installing the plastic wedges

Plastic wedges are used to create the distance for the air circulation between the product and the rear wall. Insert the 2 plastic wedges onto the rear ventilation cover as illustrated in the figure. To install the wedges, remove the screws on the product and use the screws given in the same pouch with the wedges.

3.1. Appropriate installation location

WARNING: If the door of the room where

the product will be placed is too small for the product to pass, then the product's

•Chooseaplaceatwhereyouwouldusethe

product comfortably.

•Installtheproductatleast30cmawayfrom

heat sources such as hobs, ovens, heater cores and stoves and at least 5 cm away from electrical ovens. Product must not be subjected

doors must be removed and the product must be turned aside to pass it through.

3.3. Electrical connection

Connect the product to a grounded outlet protected by a fuse complying with the values in the rating plate. Our company shall not be liable for any damages that will arise when the product is

8 /30EN

Refrigerator / User manual

Installation

used without grounding in accordance with the local regulations.

•Electricalconnectionmustcomplywith

national regulations.

•Powercableplugmustbewithineasyreach

after installation.

•Thevoltageandallowedfuseorbreaker

protection are specified in the Rating Plate which is affixed to interior of the product. If the current value of the fuse or breaker in the house does not comply with the value in the rating plate, have a qualified electrician install a suitable fuse.

•Thespecifiedvoltagemustbeequaltoyour

mains voltage.

•Donotmakeconnectionsviaextension

cables or multi-plugs.

WARNING: Damaged power cable

must be replaced by the Authorized

B B

Service Agent.

WARNING: If the product has a

failure, it should not be operated unless it is repaired by the Authorised Service Agent! There is the risk of electric shock!

Authorized Service Agent if the illumination lamps do not go on or are out of order.

The lamp(s) used in this appliance is not suitable for household room illumination. The intended purpose of this lamp is to assist the user to place foodstuffs in the refrigerator/ freezer in a safe and comfortable way.

3.6. Door open warning

(This feature is optional)

An audio warning signal will be given when the door of your product is left open for 1 minute. This warning will be muted when the door is closed or any of the display buttons (if any) are pressed.

3.7. Transportation of the product

3.4. Adjusting the feet

If the product stands unbalanced after installation adjust the feet. Taking help from someone to slightly lift the product will facilitate this process.

WARNING: First unplug the product.

Product must not be plugged in when

Turn the front feet to balance the product. The corner where the foot exists is lowered when you turn in the direction of arrow and raised when you turn it in the opposite direction.

adjusting the feet. There is the risk of electric shock!

3.5. Illumination lamp

Do not attempt to repair yourself but call the

Refrigerator/ User manual

9 /30EN

Unplug the product before transporting it.

Clean the interior of the product as recommended in the “Maintenance and cleaning” section.

Secure the shelves, accessories, crisper and etc. in the product by adhesive tape before repackaging it.

Packaging must be tied with thick tapes or strong ropes and the rules of

C C

transportation printed on the package must be followed.

Original packaging and foam materials should be kept for future transportations.

Packaging materials are dangerous for the children. Keep packaging materials in a safe place away from reach of the children.

4 Preparation

4.1. Things to be done for energy saving

Connecting the product to electric energy saving systems is risky as it may cause

• Do not leave the doors of your product open for

• Do not put hot food or drinks in your product.

• Do not overload the product. Cooling capacity

• Do not place the product in places subject to

• Store your food in product in closed containers.

• You can load maximum amount of food to

• Thawing frozen food in fridge compartment will

damage on the product.

a long time.

will fall when the air circulation inside is hindered.

direct sunlight. Install the product at least 30 cm away from heat sources such as hobs, ovens, heater cores and stoves and at least 5 cm away from electrical ovens.

the freezer compartment of the product by removing the freezer compartment shelf of drawer. Declared energy consumption value of the product was determined with the freezer compartment shelf or drawer removed and with maximum amount of food loaded. There is no risk in using a shelf or drawer suitable for the shapes and sizes of the foods to be frozen.

both provide energy saving and preserve the food quality.

The ambient temperature of the room where you install the product should at least be -5°C. Operating your product under cooler conditions than this is not recommended.

4.2. Recommendations on the fridge compartment

• Do not allow the food to touch the temperature sensor in fridge compartment. To allow the fridge compartment keep its ideal storage temperature, sensor must not be hindered by food.

• The baskets/drawers that are provided with the chill compartment must always be in use for low energy consumption and for better storage conditions.

• Food contact with the temperature sensor in the freezer compartment may increase energy consumption of the appliance. Thus any contact with the sensor(s) must be avoided.

• Do not put hot food and beverages inside the product.

C C

Inside of your product must be cleaned.

If two coolers are to be installed side by side, there should be at least 4 cm distance between them.

10 /30EN

Refrigerator / User manual

Preparation

4.3. Initial use

Before starting to use the product, check that all preparations are made in accordance with the instructions in sections "Important instructions for safety and environment" and "Installation".

• Clean the interior of the product as recommended in the “Maintenance and cleaning” section. Check that inside of it is dry before operating it.

• Plug the product into the grounded wall outlet. When the door is opened the interior illumination will turn on.

• Run the product without putting any food for 6 hours and do not open its door unless certainly required.

You will hear a noise when the compressor starts up. The liquids and gases sealed

C C

within the refrigeration system may also give rise to noise, even if the compressor is not running and this is quite normal.

Front edges of the product may feel warm. This is normal. These areas are designed to be warm to avoid condensation.

In some models, the instrument panel automatically turns off 5 minutes after the door has closed. It will be reactivated when the door has opened or pressed on any key.

Refrigerator / User manual

11 /30EN

5 Using your appliance

5.1. Indicator panel

Indicator panels may vary according to the product model. Audio – visual functions on the indicator panel helps you in using your product.

1. Fridge Compartment Indicator

2. Error status indicator

3. Temperature indicator

4. Vacation function button

5. Temperature setting button

6. Compartment selection button

7. Freezer compartment indicator

8. Economy mode indicator

9. Vacation function indicator

*optional

*Optional: Figures in this user manual are given as an example and may not match the product

exactly. If the relevant parts are not available in the product you purchased, the figure applies to other models.

12 /30EN

Refrigerator / User manual

5 Using your appliance

1. Fridge compartment indicator

Fridge compartment light is illuminated while the fridge compartment temperature is set.

2. Error status indicator

If your refrigerator does not perform enough cooling or in case of a sensor fault, this indicator is activated. When this indicator is activated, “E” is displayed on the freezer compartment temperature indicator, and numbers such as “1,2,3...” are displayed on the fridge compartment temperature indicator. These numbers on the indicator inform service personnel about the error.

3. Temperature indicator

Indicates freezer, fridge compartment temperature.

4. Vacation function button

Press on Vacation Button for 3 seconds to activate this function. When the vacation function is activated, “- -” is displayed on the fridge compartment temperature indicator and no active cooling is performed on the fridge compartment. It is not suitable to keep the food in the fridge compartment when this function is activated. Other compartments shall be continued to be cooled as per their set temperature.

To cancel this function press Vacation button again.

5. Temperature setting button

Changes the temperature of the relevant compartment between -24°C... -18°C and 8°C...1°C.

6. Compartment selection button

Selection button: Press compartment selection button to switch between fridge and freezer compartments.

7. Freezer compartment indicator

Fridge compartment light is illuminated while the freezer compartment temperature is set.

8. Economy mode indicator

Indicates that the refrigerator operates in energy saving mode. This display shall be activated if the freezer compartment temperature is set to -18°C.

9. Vacation function indicator

Indicates that vacation is activated.

Refrigerator / User manual

13 /30EN

5 Using your appliance

*optional

15 14

13 12

1. Fridge compartment temperature setting button

2. Key lock button

3. Freezer compartment temperature setting button

4. Error status indicator

5. Key lock indicator

6. Eco Extra Function Indicator

7. Eco Extra / Vacation Button

8. Vacation function indicator

4 5

9. Icematic Off Indicator

(*In some models)

10. Economic usage indicator

11. Quick freeze function indicator

12. Quick freeze function button/ Icematic on-off button

13. Freezer compartment temperature indicator

14. Quick cool function

15. Fridge Compartment Temperature indicator

16. Quick cooling function indicator

*Optional: Figures in this user manual are given as an example and may not match the product

exactly. If the relevant parts are not available in the product you purchased, the figure applies to other models.

14 /30EN

Refrigerator / User manual

Using your appliance

1. Fridge compartment temperature setting

button

Press this button to set the temperature of the fridge compartment to 8, 7,6, 5,4,3, 2, 8... respectively. Press this button to set the fridge compartment temperature to the desired value.

2. Key lock button

Pressing and holding this button for 3 seconds will activate the key lock function and the key lock indicator will turn on. Pressing and holding this button again for 3 seconds will deactivate the key lock function.

3. Freezer compartment temperature setting

button

Press this button to set the temperature of the freezer compartment to -18,-19,-20,-21, -22,

-23,-24, -18... respectively. Press this button

to set the freezer compartment temperature to the desired value.

4. Error status indicator

If your product does not perform enough cooling or in case of a sensor fault, this indicator is activated.

When this indicator is activated, “E” is displayed on the freezer compartment temperature indicator, and numbers such as “1,2,3...” are displayed on the fridge compartment temperature indicator. The numbers on the indicator inform service personnel about the error.

When you place hot food into the freezer compartment or if you leave

5. Key lock indicator

Use this function if you want to prevent

Refrigerator/ User manual

the door open for a long time, an exclamation mark can be displayed for some time. This is not a failure; this warning will disappear when the food cools down.

15 /30EN

changing of the temperature setting of the product. To activate it press and hold fridge compartment temperature setting button and freezer compartment temperature setting button simultaneously for 3 seconds.

6. Eco extra function ındicator

Indicates that the Eco Extra function is active. If this function is active, your product will

automatically detect the least usage periods and energy-efficient cooling will be performed during those times.

Economy indicator will be active while

C C

7. Eco extra / Vacation button

Pressing this button briefly will activate the Eco Extra function. Pressing and holding this button for 3 seconds will activate the Vacation function. Pressing this button again will deactivate the selected function.

8. Vacation function indicator

Indicates that the Vacation Function is active. When this function is active “- -“ appears on the Fridge Compartment Temperature indicator and no cooling is performed in the fridge compartment. Other compartments will be cooled in accordance with the temperature set for them.

9. Icematic off indicator

Indicates whether the icematic is on or off. If On, then the icematic is not operating. To operate the icematic again press and hold the On-Off button for 3 seconds.

energy-efficient cooling is performed.

Press the relevant button to disable the function.

Using your appliance

Water flow from water tank will stop when this function is selected. However,

ice made previously can be taken from the icematic.

This function is not recalled when power restores after a power failure.

10. Economic usage indicator

Indicates that the product is running in energy-efficient mode. This indicator will be active if the Freezer Compartment temperature is set to -18 or the energy efficient cooling is being performed due to Eco-Extra function.

Economic usage indicator is turned off when quick cooling or quick freeze

11. Quick freeze function indicator

Flashes in an animated style to indicate that the Quick Freeze function is enabled.

12. Quick freeze function button/ Icematic on-off button

Press this button to activate or deactivate the quick freezing function. When you activate the function, the freezer compartment will be cooled to a temperature lower than the set value.

To turn on and off the icematic press and hold it for 3 seconds.

functions are selected.

Use the quick freeze function when you want to quickly freeze the food placed in fridge compartment. If you want to freeze large amounts of fresh food, activate this function before putting the food into the product.

If you do not cancel it, Quick Freeze will cancel itself automatically after 4 hours or when the fridge compartment reaches to the required temperature.

13. Freezer compartment temperature indicator

Indicates the temperature set for freezer compartment.

14. Quick cool function

The button has two functions. To activate or deactivate the quick cool function press it briefly. Quick Cool indicator will turn off and the product will return to its normal settings.

Use quick cooling function when you want to quickly cool the food placed

15. Fridge compartment temperature indicator

Indicates the temperature set for Fridge compartment.

16. Quick cooling function indicator

Flashes in an animated style to indicate that the Quick Cooling function is enabled.

in the fridge compartment. If you want to cool large amounts of fresh food, activate this function before putting the food into the product.

If you do not cancel it, quick cooling will cancel itself automatically after 8 hours or when the fridge compartment reaches to the required temperature.

If you press the quick cooling button repeatedly with short intervals, the electronic circuit protection will be activated and the compressor will not start up immediately.

This function is not recalled when power restores after a power failure.

16 /30EN

Refrigerator/ User manual

Using your appliance

5.2. Dual cooling system

Your product is equipped with two separate cooling systems to cool the fresh food compartment and freezer compartment. Thus, air and odor in the fresh food compartment and frozen food compartment do not get mixed. Thanks to these two separate cooling systems, cooling speed is much higher then other refrigerators. Also additional power saving is provided since the defrosting is performed individually.

5.3. Freezing fresh food

• Place the food in the product wrapped or covered.

• Hot food must be cooled down to the room temperature before putting them in the product.

• The food that you want to freeze must be fresh and in good quality.

• Divided the food into portions according to your family’s daily or meal based consumption needs.

• Pack the food in an airtight manner to prevent them from drying even if they are going to be stored for a short time.

• Materials to be used for packaging must be tear-proof and resistant to cold, humidity, odor, oils and acids and they must also be airtight. Moreover, they must be well closed and they must be made from easyto-use materials that are suitable for deepfreezers.

• Frozen food must be used immediately after they are thawed and they should never be re-frozen.

• Do not freeze too large quantities of food at one time. The quality of the food is best preserved when it is frozen right through to the core as quickly as possible.

• Placing warm food into the freezer compartment causes the cooling system to operate continuously until the food is frozen solid.

• Take special care not to mix already frozen food and fresh food.

• If the product has a quick freeze function, activate the quick freeze function when you want to freeze the food.

Freezer

compartment setting

-18°C 4°C This is the normal recommended setting.

-20, -24 or -24°C 4°C

Quick freeze 4°C

-18°C or colder 2°C

-18°C or colder Quick fridge

Refrigerator/ User manual

Fridge

compartment setting

Remarks

These settings are recommended when the ambient temperature

exceeds 30°C.

Use when you wish to freeze your food in a short time. Your product

will return to its previous mode when the process is over.

Use these settings if you think that your fridge compartment is not

cold enough because of the hot ambient conditions or frequent opening and closing of the door.

Use this function when you place too much into the fridge

compartment or when you need to cool your food quickly. It is

recommended that you activate quick fridge function 4-8 hours before placing the food.

17 /30EN

Using your appliance

5.4. Recommendations for preserving the frozen food

•Frozenfoodthatyouhavepurchasedshould

be stored in accordance with the frozen food manufacturer's instructions for a frozen food storage compartment. Note the following to ensure that the high quality achieved by the frozen food manufacturer and the food retailer is maintained:

1. Put packages in the freezer as quickly as possible after purchase.

2. Ensure that contents are labeled and dated.

3. Do not exceed "Use By", "Best Before" dates on the packaging.

5.5. Placement of food

Freezer compartment

shelves

Egg section Eggs Refrigerator

compartment shelves

Door shelves

of fridge compartment

Crisper Vegetables and fruits

Freshzone

compartment

Various frozen food such

as meat, fish, ice cream, vegetables and etc.

Food in pans, covered

plates and closed containers

Small and packaged food

and beverage (such as milk, fruit juice, beer and etc.)

Delicatessen products

(cheese, butter, salami and etc.)

Divided the food into portions according to your family’s daily or meal based consumption needs.

Pack the food in an airtight manner to prevent them from drying even if they are going to be stored for a short time.

Materials necessary for packaging:

•Coldresistantadhesivetape

•Self-adhesivelabel

•Rubberrings

•Pen

Materials to be used for packaging the foodstuff must be tear-proof and resistant to cold, humidity, dour, oils and acids.

Foods to be frozen should not be allowed to come in contact with the previously frozen items to prevent them from getting thawed partially.

Frozen food must be used immediately after they are thawed and they should never be refrozen.

5.6. Deep-freeze information

Food must be frozen as rapidly as possible when they are put in a product refrigerator in order to keep them in good quality.

It is possible to preserve the food for a long time only at -18°C or lower temperatures.

You can keep the freshness of food for many months (at -18°C or lower temperatures in the deep freeze).

18 /30EN

Refrigerator/ User manual

Using your appliance

5.7. Ice machine

*optional

Icematic allows you to obtain ice from the product easily.

Using the icematic

1. Remove the water tank from the fridge compartment.

2. Fill water tank with water.

3. Replace the water tank. First ice cubes will be ready in approximately four hours in the icematic drawer located in the freezer compartment.

While the water tank is completely filled, you will be able to obtain

C C

approximately 60-70 ice cubes.

The water within the tank should be renewed in every 2-3 weeks.

5.8. Icematic

*optional

Icematic allows you to obtain ice from the product easily.

Using the icematic

1. Take out the icematic pulling it out carefully.

2. Fill the Icematic with water.

3. Place Icematic in place. About two hours later, the ice is ready.

4. To obtain ice, turn the knobs on the ice reservoirs clockwise by 90˚ degrees. Ice cubes in the reservoirs will fall down into the ice storage container below.

5. You may take out the ice storage container and serve the ice cubes.

Do not remove the Icematic from its

C C

seating to obtain ice.

If you wish, you may keep the ice cubes in the ice storage container. The ice storage container is just for accumulating ice cubes. Do not put water in it. Otherwise, it will break.

Refrigerator/ User manual

19 /30EN

Using your appliance

5.9. Ice container

*optional

Icematic allows you to obtain ice from the product easily.

Using the ice container

1. Remove the ice container from the freezer compartment.

2. Fill the ice container with water.

3. Place the ice container in the freezer compartment. About two hours later, the ice is ready.

4. Remove the ice container from the freezer compartment and bend it over the service plate. Ice cubes will easily fall down to the service plate.

5.10. Blue light

*optional Crispers of the product are illuminated with

blue light. Food stored in the crispers continue their photosynthesis by means of the wavelength effect of blue light and thus, preserve their freshness and increase their vitamin content.

5.11. Egg holder

You can install the egg holder to the desired door or body shelf. If it will be placed on body shelves than the lower cooler shelves are recommended.

Never place the egg holder in the

freezer compartment

20 /30EN

Make sure that eggs are not in direct contact with other food products.

Refrigerator/ User manual

Using your appliance

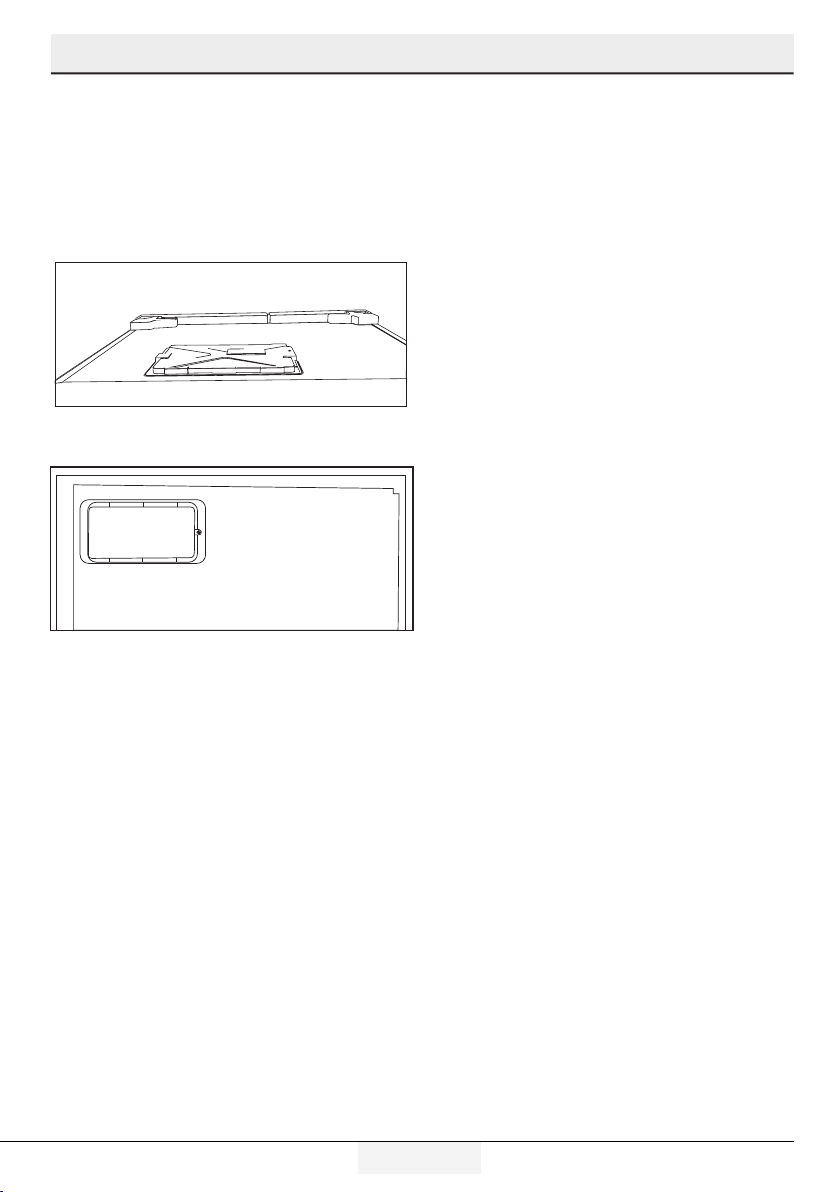

5.12. Description and cleaning of odor filter

Odor filter prevents unpleasant odor build-up in your product.

1. Pull the cover into which the odor filter is installed downwards from the front section and remove as illustrated.

2. Leave the filter under sunlight for one day. Filter will be cleaned during this time.

3. Install the filter back to its place.

Odor filter must be cleaned once in a

year.

5.13. Snack compartment

It is used for storing food such as fish, red meat, chicken meat, and dairy products such as cheese, yoghurt and milk that need to be kept a few degrees cooler than the fridge compartment.

It is not recommended to place fruit and vegetables in the snack

You can increase the inner volume of your product by removing the snack compartment:

1. Pull the compartment towards yourself until it rests and stops against the stopper.

2. Lift the front section and pull towards yourself to remove the compartment from its seating.

compartment. Especially tomatoes, eggplants, zucchinis, cucumbers and lemons are sensitive to the cold. They should not be stored in the snack compartment.

Refrigerator/ User manual

21 /30EN

Using your appliance

5.14. Sliding storage container

5.15. Rotary storage container

*optional

This accessory is designed to increase the usable volume of the door shelves. It allows you to easily place the tall bottles, jars and tins to the lower bottle shelf thanks to its ability to move right or left.

*optional

Rotary storage container can also be moved to right or left. In this way, long bottles, jars or boxes can be placed easily in the bottom shelf (Fig. 1).

You can reach the food that you have placed into the shelf by grabbing and turning it from its right edge (Fig.2).

When you want to load or remove it to clean, turn it by 90 degrees, raise it up and pull towards yourself (Fig. 3-4).

22 /30EN

Refrigerator/ User manual

Using your appliance

1 2

3 4

Refrigerator/ User manual

5.16. Crisper

Crisper of the product is designed specially to keep the vegetables fresh without loosing their humidity. For this purpose, cool air circulation is intensified around the crisper in general. Remove the door shelves that stand against the crisper before removing the crispers.

23 /30EN

Using your appliance

5.17. Using the water dispenser

*optional

It is normal for the first few glasses of water taken from the dispenser to be

C C

1. Push in the lever of the water dispenser with your glass. If you are using a soft plastic cup, pushing the lever with your hand will be easier.

2. After filling the cup up to the level you want, release the lever.

warm. If the water dispenser is not used for a

long period of time, dispose of first few glasses of water to obtain fresh water.

5.18. Filling the water dispenser's tank

Water tank filling reservoir is located inside the door rack.

1. Open the cover of the tank.

2. Fill the tank with fresh drinking water.

3. Close the cover.

Do not fill the water tank with any other liquid except for water such as

fruit juices, carbonated beverages or alcoholic drinks which are not suitable to use in the water dispenser. Water dispenser will be irreparably damaged if these kinds of liquids are used. Warranty does not cover such usages. Some chemical substances and additives contained in these kinds of drinks/liquids may damage the water tank.

Please note, how much water flows from the dispenser depends on how far you depress the lever. As the level of water in your cup / glass rises, gently reduce the amount of pressure on the lever to avoid overflow. If you slightly press the arm, the water will drip; this is quite normal and not a failure.

24 /30EN

Refrigerator/ User manual

Using your appliance

Use clean drinking water only.

Capacity of the water tank is 3 liters;

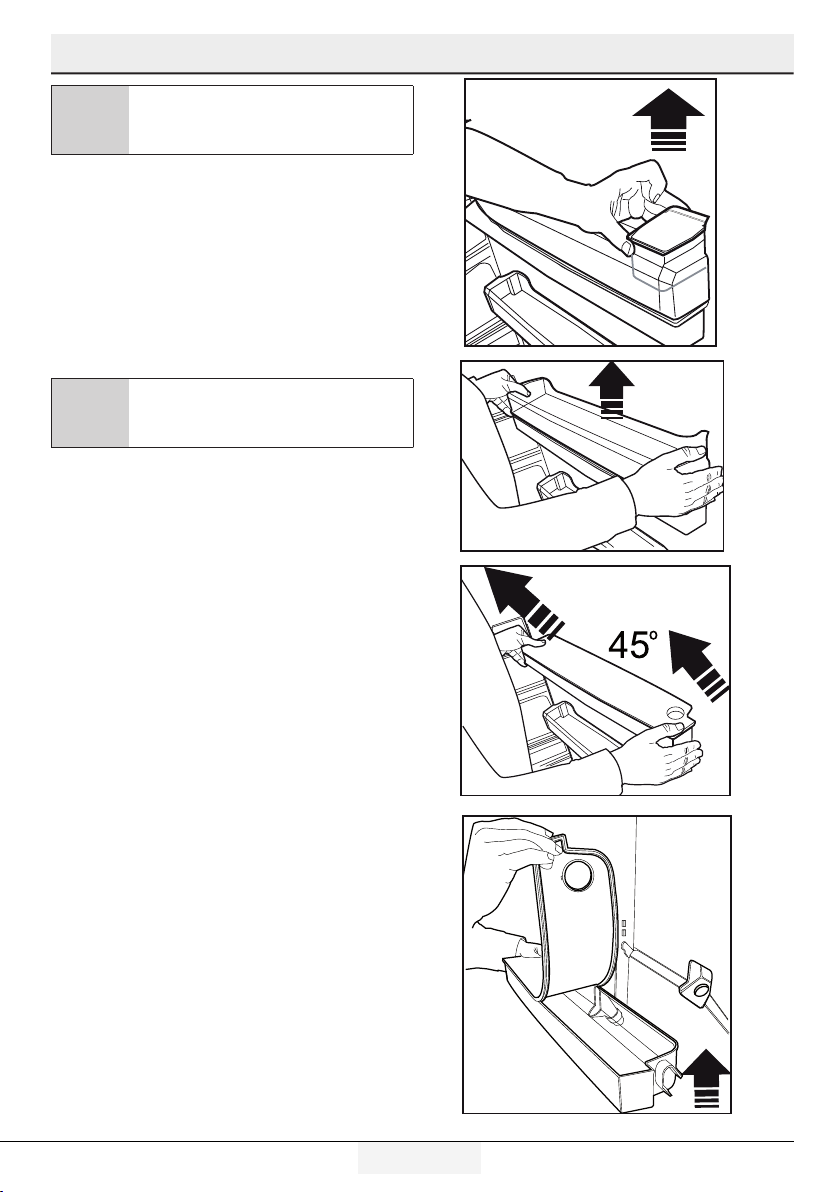

5.19. Cleaning the water tank

1. Remove the water filling reservoir inside the door rack.

2. Remove the door rack by holding from both sides.

3. Grab the water tank from both sides and remove it with an angle of 45°C.

4. Remove the cover of the water tank and clean the tank.

do not overfill.

Components of the water tank and water dispenser should not be washed in dishwasher.

Refrigerator/ User manual

25 /30EN

Using your appliance

5.20. Drip tray

Water that dripped while using the water dispenser accumulates in the spillage tray.

Remove the plastic filter as shown in the figure. With a clean and dry cloth, remove the water that

has accumulated.

26 /30EN

Refrigerator/ User manual

6 Maintenance and cleaning

Cleaning the product regularly will prolong its service life.

WARNING: Disconnect the power before

• Do not use sharp and abrasive tools, soap,

• Melt a teaspoonful of carbonate in the water.

• Take care to keep water away from the lamp’s

• Clean the door using a wet cloth. Remove all

• Do not use chloric water or cleaning products

• Do not use sharp, abrasive tools, soap,

cleaning the refrigerator.

house cleaning materials, detergents, gas, gasoline, varnish and similar substances for cleaning.

Moisten a piece of cloth in the water and wring out. Wipe the device with this cloth and dry off thoroughly.

cover and other electrical parts.

items inside to detach the door and chassis shelves. Lift the door shelves up to detach. Clean and dry the shelves, then attach back in place by sliding from above.

on the exterior surface and chrome-coated parts of the product. Chlorine will cause rust on such metallic surfaces.

household cleaning agents, detergents, kerosene, fuel oil, varnish etc. to prevent removal and deformation of the prints on the plastic part. Use lukewarm water and a soft cloth for cleaning and then wipe it dry.

6.1. Preventing malodour

The product is manufactured free of any odorous materials. However, keeping the food in inappropriate sections and improper cleaning of internal surfaces may lead to malodour.

To avoid this, clean the inside with carbonated water every 15 days.

• Keep the foods in sealed holders. Microorganisms may spread out of unsealed food items and cause malodour.

• Do not keep expired and spoilt foods in the refrigerator.

6.2. Protecting plastic surfaces

Oil spilled on plastic surfaces may damage the surface and must be cleaned immediately with warm water.

Refrigerator / User manual

27 /30EN

7 Troubleshooting

Please review this list before calling the service. It will save your time and money. This list includes frequent complaints that are not arising from defective workmanship or material usage. Some of the features described here may not exist in your product.

The refrigerator does not operate.

Theplugisnotinsertedintothesocketcorrectly.>>>Inserttheplugintothe

• socketsecurely.

• Thefuseofthesocketwhichyourrefrigeratorisconnectedtoorthemainfuse haveblownout.>>>Checkthefuse.

Condensation on the side wall of the fridge compartment (MULTIZONE, COOL CONTROL and FLEXI ZONE).

Ambientisverycold.>>>Donotinstalltherefrigeratorinplaceswherethe

• temperaturefallsbelow10°C.

• Doorhasbeenopenedfrequently.>>>Donotopenandclosethedoorof refrigeratorfrequently.

• Ambientisveryhumid.>>>Donotinstallyourrefrigeratorintohighlyhumid places.

• Foodcontainingliquidisstoredinopencontainers.>>>Donotstorefoodwith liquidcontentinopencontainers.

• Dooroftherefrigeratorisleftajar.>>>Closethedooroftherefrigerator.

• Thermostatissettoaverycoldlevel.>>>Setthethermostattoasuitablelevel.

• Compressorisnotrunning

• Protectivethermicofthecompressorwillblowoutduringsuddenpower failuresorplug-outplug-insastherefrigerantpressureinthecoolingsystem oftherefrigeratorhasnotbeenbalancedyet.Therefrigeratorwillstartrunning approximatelyafter6minutes.Pleasecalltheserviceiftherefrigeratordoesnot startupattheendofthisperiod.

• Thefridgeisindefrostcycle.>>>Thisisnormalforafull-automaticallydefrosting refrigerator.Defrostingcycleoccursperiodically.

• Therefrigeratorisnotpluggedintothesocket.>>>Makesurethattheplugisfit intothesocket.

• Temperaturesettingsarenotmadecorrectly.>>>Selectthesuitabletemperature value.

• Thereisapoweroutage.>>>Refrigeratorreturnstonormaloperationwhenthe powerrestores.

The operation noise increases when the refrigerator is running.

Theoperatingperformanceoftherefrigeratormaychangeduetothechangesin

• theambienttemperature.Itisnormalandnotafault.

The refrigerator is running frequently or for a long time.

28 /30EN

Refrigerator / User manual

Troubleshooting

• Newproductmaybewiderthanthepreviousone.Largerrefrigeratorsoperate foralongerperiodoftime.

• Theroomtemperaturemaybehigh.>>>Itisnormalthattheproductoperates forlongerperiodsinhotambient.

• Therefrigeratormightbepluggedinrecentlyormightbeloadedwithfood. >>>Whentherefrigeratorispluggedinorloadedwithfoodrecently,itwilltake longerforittoattainthesettemperature.Thisisnormal.

• Largeamountsofhotfoodmightbeputintherefrigeratorrecently.>>>Donot puthotfoodintotherefrigerator.

• Doorsmightbeopenedfrequentlyorleftajarforalongtime.>>>Thewarmair thathasenteredintotherefrigeratorcausestherefrigeratortorunforlonger periods.Donotopenthedoorsfrequently.

• Freezerorfridgecompartmentdoormightbeleftajar.>>>Checkifthedoorsare closedcompletely.

• Therefrigeratorisadjustedtoaverylowtemperature.>>>Adjusttherefrigerator temperaturetoawarmerdegreeandwaituntilthetemperatureisachieved.

• Doorsealofthefridgeorfreezermaybesoiled,wornout,brokenornot properlyseated.>>>Cleanorreplacetheseal.Damaged/brokensealcauses therefrigeratortorunforalongerperiodoftimeinordertomaintainthecurrent temperature.

Freezer temperature is very low while the fridge temperature is sufficient.

Thefreezertemperatureisadjustedtoaverylowvalue.>>>Adjustthefreezer

• temperaturetoawarmerdegreeandcheck.

Fridge temperature is very low while the freezer temperature is sufficient.

Thefridgetemperatureisadjustedtoaverylowvalue.>>>Adjustthefridge

• temperaturetoawarmerdegreeandcheck.

Food kept in the fridge compartment drawers is frozen.

• Thefridgetemperatureisadjustedtoaveryhighvalue.>>>Adjustthefridge temperaturetoalowervalueandcheck.

Temperature in the fridge or freezer is very high.

Thefridgetemperatureisadjustedtoaveryhighvalue.>>>Fridgecompartment

• temperaturesettinghasaneffectonthetemperatureofthefreezer.Changethe temperaturesofthefridgeorfreezerandwaituntiltherelevantcompartments attainasufficienttemperature.

• Doorsareopenedfrequentlyorleftajarforalongtime.>>>Donotopenthe doorsfrequently.

• Doorisajar.>>>Closethedoorcompletely.

• Therefrigeratorispluggedinorloadedwithfoodrecently.>>>Thisisnormal. Whentherefrigeratorispluggedinorloadedwithfoodrecently,itwilltakelonger forittoattainthesettemperature.

• Largeamountsofhotfoodmightbeputintherefrigeratorrecently.>>>Donot puthotfoodintotherefrigerator.

Refrigerator / User manual

29 /30EN

+ 209 hidden pages

Beko CN160120, CN161220X User manual

Specifications and Main Features

Frequently Asked Questions

User Manual
