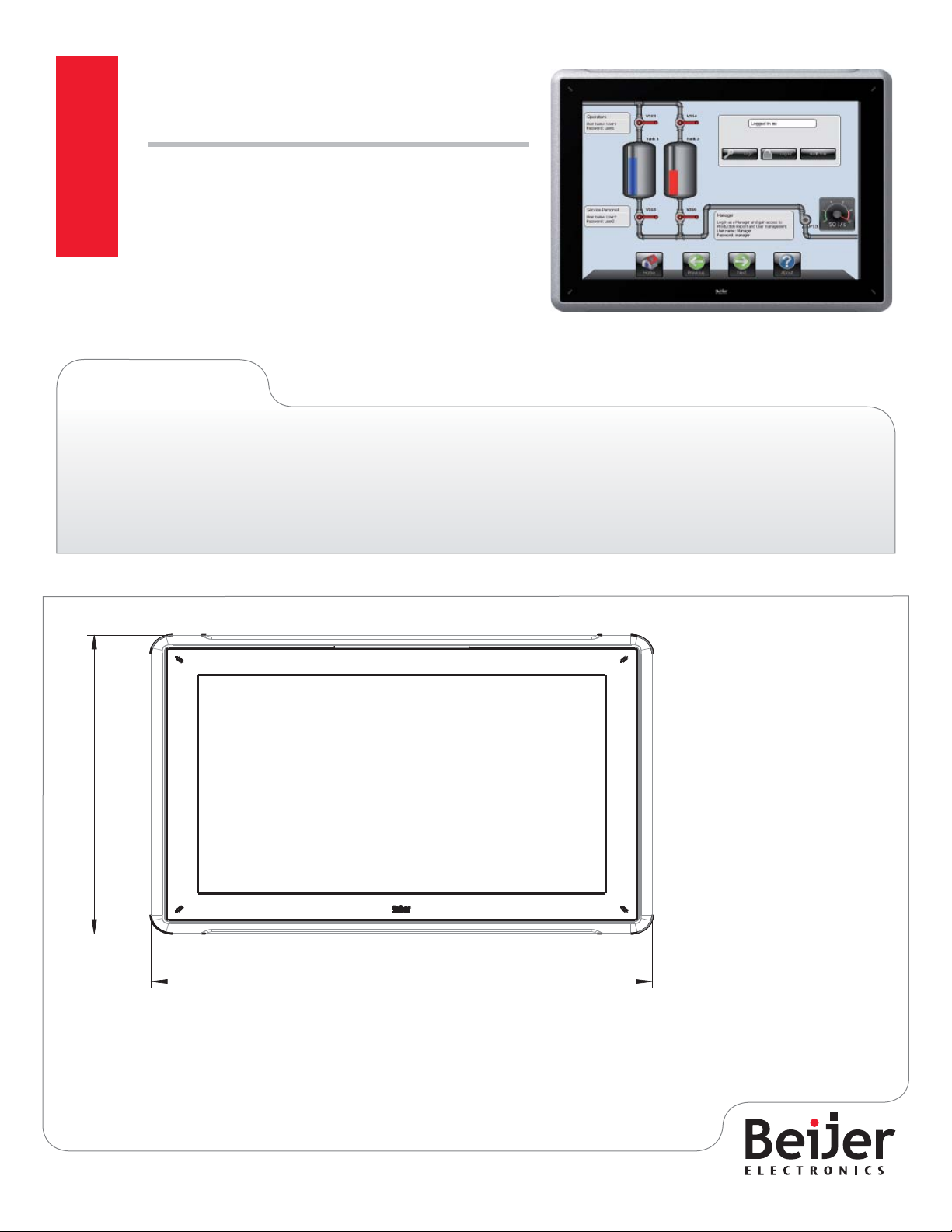

Data Sheet
iX Panel T15B
High-Performance HMI with 15.4” Display and Automation
Software
The high-performance iX Panel T15B features a bright 15.4” widescreen TFT display with touch screen, powerful processor and iX
software with universal connectivity.
Product Highlights
► 1280 x 800 pixel, 15.4” diagonal, LED lighted, TFT color LCD display with touch screen
► One 10/100Base-T and one 10/100/1000Base-T Ethernet ports
► Four serial ports (RS-232, -422/485)
► Powder-coated aluminum housing
► iX Software with protocols for most industrial automation controllers
286
410
Beijer Electronics • www.BeijerElectronicsInc.com • 801-466-8770
Dimensions shown in mm.
iX Panel T15B Specifi cations
Feature Detail Description
Display Type 1280 x 800, TFT Color LCD
Size 15.4”
Lighting White LED
Brightness 450 cd/m2
Touch Screen Type Analog-resistive
Interface Ethernet 10/100Base-T, 10/100/1000Base-T
Serial 2 x RS232, 2 x RS422/485
USB Three USB 2.0
Communication Modules CAN, MPI (pending)
Processor Type Intel® Atom (1.1 GHz)
Memory RAM 1 GB DDR2 MB
Flash 1.4 GB
External Storage Media One SD card (optional)
Realtime Clock Standard Battery-backed
Power Input Voltage +24 VDC (18-32 VDC)
Consumption 24 Watts
Mechanical Type Panel-mount and VESA 75 x 75
Size WxHxD 410 x 286 x 61 mm
Cut-out Dimensions WxHxD 394 x 270 x 54 mm
Mass 3.3 kg
Housing Material Powder-coated aluminum
Environmental Protection (front/rear) IP65 / IP20
Temperature Operating: -10 to 50 ºC; Storage: -20 to 70 ºC
Certifi cations UL UL 508 (pending), DNV (pending)
CE EN61000-6-4, EN61000-6-2
Software Development Environments iX Developer
Runtime Environments iX Software
US Offi ce
Beijer Electronics, Inc.
2212 South West Temple #50
Salt Lake City, Utah 84115-2648 USA
www.BeijerElectronicsInc.com / 801-466-8770
Headquarters
Beijer Electronics Products AB
P.O. Box 426
201 24 Malmö, Sweden
www.BeijerElectronics.com / +46 40 35 86 00
M01-078-00 REV 01
Copyright © 2012 Beijer Electronics. All rights reserved.
The information at hand is provided as available at the time of printing.
Beijer Electronics reserves the right to change any information without
updating this publication. Beijer Electronics does not assume any
responsibility for any errors or omissions in this publication.
10 APRIL 2012
