User Manual
EURODESK
SX2442FX/SX3242FX
Ultra-Low Noise Design 24/32-Input 4-Bus
Studio/Live Mixer with XENYX Mic Preamplifiers,
British EQs and Dual Multi-FX Processor
behringer.com
behringer.com
2 EURODESK SX2442FX/SX3242FX User Manual
Table of Contents
Thank you ....................................................................... 2
Important Safety Instructions ...................................... 3
Legal Disclaimer ............................................................. 3
Limited Warranty ........................................................... 3
1. Introduction ...............................................................5
1.1 Before you get started ...................................................... 5
1.2 The manual ........................................................................... 5
2. Control Elements and Connections ......................... 6
2.1 Mono input channels ........................................................ 6
2.2 Stereo channels ................................................................... 7
2.3 Stereo channels 21-24 (SX2442FX) or
29-32 (SX3242FX) ........................................................................ 8
2.4 Subgroups 1-4 ..................................................................... 8
2.5 Mono out section for subwoofer applications ........ 9
2.6 Main out section ................................................................. 9
2.7 CD/tape ................................................................................ 10
2.8 Master Aux Send 1 and 2 ............................................... 10
2.9 Graphic 9-band stereo equalizer ................................ 11
2.10 Effects section .................................................................. 11
2.11 Rear panel .......................................................................... 12
3. Digital Eects Processor ......................................... 12
4. Wiring Examples ...................................................... 13
4.1 Studio set-up ...................................................................... 13
4.2 Live set-up ........................................................................... 14
5. Audio Connectors .................................................... 15
6. Presets ...................................................................... 17
7. Specications ........................................................... 18
Thank you
Congratulations! With the EURODESK you have acquired a state-of-the-art mixing
console that sets new standards. Right from the very start it has been our goal to
design a revolutionary unit that can be used for a great variety of applications.
And indeed, this overwhelming mixing console gives you plenty of functionality
and a broad range of connection and expansion options.
BEHRINGER is a company with its roots in professional recording studio
technology. For many years now we have been successful in developing products
for studio and live use. These include microphones and studio gear of all kinds
(compressors, enhancers, noise gates, tube processors, headphone ampliers,
digital eects, DI boxes, etc.), monitor and P.A. speakers as well as professional
live and recording mixers. Our entire technical know-how has gone into your
EURODESK mixing console.
3 EURODESK SX2442FX/SX3242FX User Manual
behringer.com
Terminals marked with this symbol carry
electrical current of su cient magnitude to
constitute risk of electric shock. Use only
high-quality commercially-available speaker cables with
¼" TS plugs pre-installed. All other installation or
modi cation should be performed only by
quali ed personnel.
This symbol, wherever it appears, alerts you
to the presence of uninsulated dangerous
voltage inside the enclosure - voltage that
may be su cient to constitute a risk of shock.
This symbol, wherever it appears, alerts you
to important operating and maintenance
instructions in the accompanying literature.
Please read the manual.
Caution
To reduce the risk of electric shock, do not
remove the top cover (or the rear section).
No user serviceable parts inside. Refer servicing to
quali ed personnel.
Caution
To reduce the risk of re or electric shock,
do not expose this appliance to rain and
moisture. The apparatus shall not be exposed to dripping
or splashing liquids and no objects lled with liquids, such
as vases, shall be placed on the apparatus.
Caution
These service instructions are for use
by quali ed service personnel only.
To reduce the risk of electric shock do not perform any
servicing other than that contained in the operation
instructions. Repairs have to be performed by quali ed
service personnel.
Read these instructions.1.
Keep these instructions.2.
Heed all warnings.3.
Follow all instructions.4.
Do not use this apparatus near water.5.
Clean only with dry cloth.6.
Do not block any ventilation openings. Install in 7.
accordance with the manufacturer’s instructions.
Do not install near any heat sources such as 8.
radiators, heat registers, stoves, or other apparatus
(including ampli ers) that produce heat.
Do not defeat the safety purpose of the polarized 9.
or grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding-type plug
has two blades and a third grounding prong. The wide
blade or the third prong are provided for your safety. If the
provided plug does not t into your outlet, consult an
electrician for replacement of the obsolete outlet.
Protect the power cord from being walked on or 10.
pinched particularly at plugs, convenience receptacles,
and the point where they exit from the apparatus.
Use only attachments/accessories speci ed by 11.
the manufacturer.
Use only with the 12.
cart, stand, tripod, bracket,
or table speci ed by the
manufacturer, or sold with
the apparatus. When a cart
is used, use caution when
moving the cart/apparatus
combination to avoid
injury from tip-over.
Unplug this apparatus during lightning storms or 13.
when unused for long periods of time.
Refer all servicing to quali ed ser vice personnel. 14.
Servicing is required when the apparatus has been
damaged in any way, such as power supply cord or plug
is damaged, liquid has been spilled or objects have fallen
into the apparatus, the apparatus has been exposed
to rain or moisture, does not operate normally, or has
been dropped.
The apparatus shall be connected to a MAINS socket 15.
outlet with a protective earthing connection.
Where the MAINS plug or an appliance coupler is 16.
used as the disconnect device, the disconnect device shall
remain readily operable.
Technical speci cations and appearance are subject to change without
notice. The information contained herein is correct at the time of printing.
All trademarks are the property of their respective owners. MUSIC Group
accepts no liability for any loss which may be su ered by any person
who relies either wholly or in part upon any description, photograph or
statement contained herein. Colors and speci cations may vary slightly from
product. BEHRINGER products are sold through authorized dealers only.
Distributors and dealers are not agents of MUSIC Group and have absolutely
no authority to bind MUSIC Group by any express or implied undertaking
or representation. This manual is copyrighted. No part of this manual may
be reproduced or transmitted in any form or by any means, electronic or
mechanical, including photocopying and recording of any kind, for any
purpose, without the express written permission of Red Chip Company Ltd.
ALL RIGHTS RESERVED.
© 2010 Red Chip Company Ltd.
Trident Chambers, Wickhams Cay, P.O. Box 146,
Road Town, Tortola, British Virgin Islands
Warranty§ 1
This limited warranty is valid only if you purchased [1]
the product from a BEHRINGER authorized dealer in the
country of purchase. A list of authorized dealers can be
found on BEHRINGER’s website behringer. com under
“Where to Buy“, or you can contact the BEHRINGER o ce
closest to you.
MUSIC Group* warrants the mechanical and [2]
electronic components of this product to be free of defects
in material and workmanship if used under normal
operating conditions for a period of one (1) year from
the original date of purchase (see the Limited Warranty
terms in § 4 below), unless a longer minimum warranty
period is mandated by applicable local laws. If the product
shows any defects within the speci ed warranty period
and that defect is not excluded under § 4, MUSIC Group
shall, at its discretion, either replace or repair the product
using suitable new or reconditioned product or parts.
In case MUSIC Group decides to replace the entire product,
this limited warranty shall apply to the replacement
product for the remaining initial warranty period, i.e.,
one (1) year (or otherwise applicable minimum warranty
period) from the date of purchase of the original product.
Upon validation of the warranty claim, the repaired [3]
or replacement product will be returned to the user freight
prepaid by MUSIC Group.
Warranty claims other than those indicated above [4]
are expressly excluded.
PLEASE RETAIN YOUR SALES RECEIPT. IT IS YOUR PROOF
OF PURCHASE COVERING YOUR LIMITED WARRANTY.
THIS LIMITED WARRANTY IS VOID WITHOUT SUCH PROOF
OF PURCHASE.
Online registration§ 2
Please do remember to register your new BEHRINGER
equipment right after your purchase at behringer. com
under “Support” and kindly read the terms and conditions
of our limited warranty carefully. Registering your
purchase and equipment with us helps us process
your repair claims quicker and more e ciently.
Thank you for your cooperation!
Return materials authorization§ 3
To obtain warranty service, please contact the [1]
retailer from whom the equipment was purchased.
Should your BEHRINGER dealer not be located in your
vicinity, you may contact the BEHRINGER distributor for
your country listed under “Support” at behringer. com.
If your country is not listed, please check if your problem
can be dealt with by our “Online Support” which may
also be found under “Support” at behringer. com.
Alternatively, please submit an online warranty claim at
behringer. com BEFORE returning the product. All inquiries
must be accompanied by a description of the problem
and the serial number of the product. After verifying
the product’s warranty eligibility with the original sales
receipt, MUSIC Group will then issue a Return Materials
Authorization (“RMA”) number.
Legal Disclaimer
Limited Warranty
Important Safety Instructions
Legal Disclaimer
Limited Warranty
behringer.com
4 EURODESK SX2442FX/SX3242FX User Manual
Subsequently, the product must be returned in [2]
its original shipping carton, together with the return
authorization number to the address indicated by
MUSIC Group.
Shipments without freight prepaid will not [3]
be accepted.
Warranty Exclusions§ 4
This limited warranty does not cover consumable [1]
parts including, but not limited to, fuses and batteries.
Where applicable, MUSIC Group warrants the valves or
meters contained in the product to be free from defects in
material and workmanship for a period of ninety (90) days
from date of purchase.
This limited warranty does not cover the product [2]
if it has been electronically or mechanically modi ed
in any way. If the product needs to be modi ed or
adapted in order to comply with applicable technical
or safety standards on a national or local level, in any
country which is not the country for which the product
was originally developed and manufactured, this
modi cation/adaptation shall not be considered a defect
in materials or workmanship. This limited warranty does
not cover any such modi cation/adaptation, regardless
of whether it was carried out properly or not. Under the
terms of this limited warranty, MUSIC Group shall not
be held responsible for any cost resulting from such a
modi cation/adaptation.
This limited warranty covers only the product [3]
hardware. It does not cover technical assistance for
hardware or software usage and it does not cover
any software products whether or not contained in
the product. Any such software is provided “AS IS”
unless expressly provided for in any enclosed software
limited warranty.
This limited warranty is invalid if the factory-[4]
applied serial number has been altered or removed from
the product.
Free inspections and maintenance/repair work [5]
are expressly excluded from this limited warranty, in
particular, if caused by improper handling of the product
by the user. This also applies to defects caused by normal
wear and tear, in particular, of faders, crossfaders,
potentiometers, keys/buttons, guitar strings, illuminants
and similar parts.
Damage/defects caused by the following conditions [6]
are not covered by this limited warranty:
improper handling, neglect or failure to operate the •
unit in compliance with the instructions given in
BEHRINGER user or service manuals;
connection or operation of the unit in any way •
that does not comply with the technical or safety
regulations applicable in the country where the
product is used;
damage/defects caused by acts of God/Nature •
(accident, re, ood, etc) or any other condition that
is beyond the control of MUSIC Group.
Any repair or opening of the unit carried out by [7]
unauthorized personnel (user included) will void the
limited warranty.
If an inspection of the product by MUSIC Group [8]
shows that the defect in question is not covered by the
limited warranty, the inspection costs are payable by
the customer.
Products which do not meet the terms of this [9]
limited warranty will be repaired exclusively at the buyer’s
expense. MUSIC Group or its authorized service center will
inform the buyer of any such circumstance. If the buyer
fails to submit a written repair order within 6 weeks after
noti cation, MUSIC Group will return the unit C.O.D. with
a separate invoice for freight and packing. Such costs will
also be invoiced separately when the buyer has sent in a
written repair order.
Authorized BEHRINGER dealers do not sell new [10]
products directly in online auctions. Purchases made
through an online auction are on a “buyer beware” basis.
Online auction con rmations or sales receipts are not
accepted for warranty veri cation and MUSIC Group will
not repair or replace any product purchased through an
online auction.
Warranty transferability§ 5
This limited warranty is extended exclusively to the
original buyer (customer of authorized retail dealer) and
is not transferable to anyone who may subsequently
purchase this product. No other person (retail dealer, etc.)
shall be entitled to give any warranty promise on behalf
of MUSIC Group.
Claim for damage§ 6
Subject only to the operation of mandatory applicable
local laws, MUSIC Group shall have no liability to the buyer
under this warranty for any consequential or indirect
loss or damage of any kind. In no event shall the liability
of MUSIC Group under this limited warranty exceed the
invoiced value of the product.
Limitation of liability§ 7
This limited warranty is the complete and exclusive
warranty between you and MUSIC Group. It supersedes
all other written or oral communications related to this
product. MUSIC Group provides no other warranties for
this product.
Other warranty rights and § 8
national law
This limited warranty does not exclude or limit the [1]
buyer’s statutory rights as a consumer in any way.
The limited warranty regulations mentioned herein [2]
are applicable unless they constitute an infringement of
applicable mandatory local laws.
This warranty does not detract from the seller’s [3]
obligations in regard to any lack of conformity of the
product and any hidden defect.
Amendment§ 9
Warranty service conditions are subject to change without
notice. For the latest warranty terms and conditions
and additional information regarding MUSIC Group’s
limited warranty, please see complete details online at
behringer. com.
* MUSIC Group Macao Commercial Off shore Limited of
Rue de Pequim No. 202-A, Macau Finance Centre 9/J, Macau,
including all MUSIC Group companies
5 EURODESK SX2442FX/SX3242FX User Manual
behringer.com
Introduction1.
FBQ Feedback Detection System
One of the most outstanding features of this console is the
FBQ Feedback Detec tion System, which is part of the graphic
equalizer. This ingenious circuit makes it possible to detect and
subsequently eliminate feedback frequencies ver y quickly.
FBQ increases the brightness of the EQ fader LEDs for the frequency bands where
feedback is occurring. What used to be a tedious search for feedback frequencies
is now mere child’s play.
XENYX Mic Preamps
The microphone channels feature high-end XENYX Mic Preamps
that compare well with costly outboard preamps in terms of sound
quality and dynamics and boast the following features:
130 dB dynamic range for an incredible amount of headroom•
A bandwidth ranging from below 10 Hz to over 200 kHz for crystal-clear •
reproduction of even the nest nuances
The extremely low-noise and distortion-free circuitry guarantees absolutely •
natural and transparent signal reproduction
They are perfectly matched to every conceivable microphone with up to •
60 dB gain and +48 volt phantom power supply
They enable you to use the greatly extended dynamic range of your •
24-bit/192-kHz HD recorder to the full, thereby maintaining optimal
audio quality
“British EQ”
The equalizers used for the XENYX Series are based on the legendary circuitry of
top-notch consoles made in Britain, which are renowned throughout the world
for their incredibly warm and musical sound character. Even with extreme gain
settings these equalizers ensure outstanding audio properties.
What is more, the EURODESK comes with two eects processors
using 24-bit A/D and D/A converters and the eects algorithms of
our renowned 19" multi-eects device VIRTUALIZER PRO
DSP2024P. Each processor oers 99 presets with rst-class room
simulations, delay and modulation eects as well as compressor, tube distortion
and numerous other eects available—all with excellent audio quality!
The mixer is equipped with a state-of-the-art integrated
switch-mode power supply. Unlike conventional designs,
this supply automatically adapts to supply voltages between
100 and 240 V. With its considerably higher eciency, it is also
more economical in terms of power consumption than standard power supply units.
Before you get started1.1
Shipment1.1.1
Your product was carefully packed at the factory to ensure safe transport.
Nevertheless, if the box is damaged inspect the unit immediately for signs
of damage.
If the unit is damaged please do NOT return it to us, but notify your ◊
dealer and the shipping company immediately; otherwise, claims for
damage or replacement may not be granted.
We recommend that you use a flight case to give the unit optimum ◊
protection during use or transport.
Make sure that children cannot play unsupervised with the unit or ◊
its packaging.
Please ensure proper disposal of all packing materials.◊
Initial operation1.1.2
Ensure adequate air supply and to avoid overheating do not place the unit
near radiators etc.
Blown fuses must be replaced by fuses of the correct rating! ◊
Please refer to the “Specifications” section for the applicable rating.
For connection to the mains use the enclosed power cord with cold connector
which complies with the relevant safety regulations.
Please make sure that all devices are properly grounded. For your own ◊
safety, never remove or disable the ground conductors from the devices
or on the power cords. The unit must always be connected to the mains
outlet with a protective grounding connection.
We would like to point out that high volume levels may damage your ◊
hearing and/or your headphones/loudspeakers. To avoid switch-on/off
thumps from the console and any downstream devices, always make
sure that your power amp(s) or active speakers are the last components
that are switched on and the first to be switched off. Always make sure
that the appropriate volume is set.
Important notes concerning installation
The sound quality may diminish within the range of powerful ◊
broadcasting stations and high-frequency sources. Increase the
distance between the transmitter and the device and use shielded
cables for all connections.
Online registration1.1.3
Please register your new BEHRINGER equipment right after your purchase
by visiting http://behringer.com and read the terms and conditions of our
warranty carefully.
Should your BEHRINGER product malfunction, it is our intention to have it
repaired as quickly as possible. To arrange for warranty service, please contact
the BEHRINGER retailer from whom the equipment was purchased. Should your
BEHRINGER dealer not be located in your vicinity, you may directly contact
one of our subsidiaries. Corresponding contact information is included in the
original equipment packaging (Global Contact Information/European Contact
Information). Should your country not be listed, please contact the distributor
nearest you. A list of distributors can be found in the support area of our website
(http://behringer.com).
Registering your purchase and equipment with us helps us process your repair
claims more quickly and eciently.
Thank you for your cooperation!
The manual1.2
This manual is designed to give you an overview of all control elements and
at the same time inform you in detail about how to use them. To provide you
with a clear struc ture, we have grouped the control elements according to their
function. They can easily be found on the enclosed numbered illustrations.
If you need more detailed information on specic topics, please visit our web site
at behringer.com. The product-related information pages and the ULTRANETbased glossary explain the relevant audio engineering terminology in full detail.
Always use the original box to prevent damage during storage ◊
or transport.
behringer.com
6 EURODESK SX2442FX/SX3242FX User Manual
[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[11]
[10]
Control Elements and 2.
Connections
This chapter describes the various control elements of your mixing console.
All controls and connections are explained in full detail.
Mono input channels2.1
Microphone and line inputs2 .1.1
Fig. 2.1: Connectors and controls of the mic/line inputs
Each mono input channel is equipped with a balanced microphone input [1]
on an XLR connector, which provides +48 V phantom power for condenser
microphones at the touch of a button (see rear panel).
Be sure to switch off your audio system before you activate the ◊
phantom power supply to prevent audible switch-on thumps from
reaching your monitor speakers. Please also note the information given
in chapter 2.11 “Rear panel”.
Each mono input also has a balanced line input on ¼" TRS connectors. [2]
Of course, these inputs can also be used with unbalanced plugs
(¼" TS connector).
The [3] INSERT I/O connector is used to process a signal with dynamic
processors or equalizers. This insert point isprefader, pre-EQ and
pre-aux send.
Unlike reverb and other eects, which are usually added to the dry signal,
dynamic processors process the entire signal. So, aux send buses are not the
best solution here. Instead, dynamic processors and equalizers are inserted
into the signal path. Once processed, the signal then re-enters the mixing
console at the same point where it left. Signal interruption only occurs if
a plug is inserted into the corresponding jack (¼" stereo plug: tip = signal
output, ring = input). All mono input channels are equipped with insert
points. They can also be used as pre-EQ direct outputs, without signal
ow interruption. For this you need a cable with a ¼" TS connector on the
recorder/eects processor end, and a bridged stereo ¼" TRS connector on
the console end (tip and ring interconnected).
The second scale has a gain from +10 to -40 dBu for the line input.
For devices with a nomal line output level of-10 dBV or +4 dBu the setting
is as follows: with GAIN fully counter-clockwise connect the external device
and adjust the output level recommended by the manufacturer. If available,
the output level display of the external device should read 0 dB with signal
peaks. For +4 dBu increase GAIN, for -10 dBV increase it further. The netuning can be done with a music signal and the LEVEL SET LED, which will
illuminate when the optimum operating level has been set.
Mono channels are equipped with a high-slope [5] LOW CUT lter eliminating
unwanted low-frequency signals, such as oor rumble (18 dB/oct., -3 dB
at 80 Hz).
Equalizer2.1.2
All mono input channels are equipped with a 3-band equalizer. The maximum
boost/cut of the individual bands is 15 dB, in mid position the EQ is set to neutral.
Fig. 2.2: Equalizer section of input channels
The [6] HIGH control in the EQ sec tion controls the high frequency range of
the respective channel. It is a shelving-type lter which can boost or cut all
frequencies above a xed frequency (12 kHz).
The [7] MID control allows you to raise or lower the mid-range level. It is a semi-
parametric peak lter, which boosts or cuts the frequency range around a
variable mid-range frequency. Use the FREQ control to select the mid-range
frequency from 100 Hz to 8 kHz. Then use the MID control to boost or cut the
selected frequency range.
The [8] LOW control boosts or cuts the low-frequency range. Like the HIGH lter
it is a shelving-type lter, which raises or lowers the level of all frequencies
below a specic frequency (80 Hz).
Aux/FX send buses2.1.3
Aux sends enable you to take the signals from one or multiple channels and
collect them on one bus. This signal is then present at one of the aux send jacks,
from where it can be routed to an active monitor speaker or external eects
device, for example. The FX returns are subsequently used as a return bus for the
processed signal.
The [4] GAIN control adjusts the input gain. Be sure to set this control fully
counter-clockwise before you connect or disconnect a signal source to or
from one of the inputs.
GAIN has a dual scale: the rst scale has a gain from +1 0 to +60 dB for
the MIC input.
Fig. 2.3: AUX/FX send controls in the channel strips
7 EURODESK SX2442FX/SX3242FX User Manual
behringer.com
[12]
[18]
[13]
[14]
[15]
[16]
[17]
[19]
[20]
[21]
On each channel, the [9] AUX 1 and AUX 2 controls allow you to determine the
level of the aux signals sent from the channel. The main aux send signal
comprising the aux send signals from all channels can then be adjusted
with the corresponding master AUX SEND controls [51], and is present at the
AUX SEND outputs [52]. Both aux sends are mono, post-EQ, with a gain of up
to +15 dB.
Press the [10] PRE switch to set all aux sends to pre-fader. In this case,
the volume of the aux signals is no longer dependent on the fader position,
so you can create completely independent monitor mixes.
For most applications when controlling an external effects device from ◊
one of the aux buses, the aux sends must be set post-fader, so that
the effect volume in a channel depends on the position of the channel
fader. Otherwise, the effect signal would still be audible, even if the
channel was turned down completely. For this type of application it is
advisable to leave the PRE switch out (= not pressed).
FX 1[11] and FX 2 controls provide a direct route to the built-in eec ts processor.
Additionally, they can be used to control an external eects unit, via the
FX SEND 1 and 2 outputs (similar to the AUX SEND 1 and 2 jacks). To ensure
that the internal eects processor and the FX SEND outputs actually get a
signal, the corresponding FX control must not be set fully counter-clockwise
(-oo), and the master FX SEND (see [60]) must be turned up. The FX buses are
hard wired post-fader.
Please also read chapter 2.10 “Effects section” and ◊
3 “Digital effects processor”.
The [15] SOLO switch routes the channel signal to the solo bus (Solo In Place)
or the PFL bus (Pre Fader Listen). Thus, you can monitor a channel signal
without aecting the main output signal. The signal to be monitored is
taken either pre (PFL, mono) or post-panorama control (Solo, stereo) and
post-channel fader (depending on the position of the SOLO/PFL switch [40] ).
The [16] SUB switch routes the signal to the respective subgroups.
Your EURODESK features 4 subgroups (1-2 and 3-4). With the PAN control on
the input channel (see [12]) you can determine to which of the two groups the
signal is routed (hard left: sub 1 or 3, hard right: sub 2 or 4).
The [17] MAIN switch routes the signal to the main mix.
The channel fader governs the level of the channel signal as part of the main [18]
mix (or submix).
Stereo channels2.2
Channel inputs2.2.1
Mono channel fader and further control elements2.1.4
Fig. 2.4: Channel f ader, pan control, mute b utton, etc.
The [12] PAN control determines the position of the channel signal in the
stereo mix as well as the subgroup to which the channel signal is routed
(see chapter 2.4).
Use the [13] MUTE switch to mute the channel signal, so it is no longer part of
the main mix. At the same time, all aux buses set to post-fader are muted for
the respective channel, while the pre-fader monitor buses remain operative.
The MUTE LED is illuminated when the channel is muted.
The [14] CLIP LED illuminates when the channel overloads. In this case,
please reduce the input gain using the GAIN control. This LED also illuminates
when you activate the solo function with the SOLO switch below.
Fig. 2.5: Stereo c hannel inputs
Each stereo channel is equipped with two balanced line-level inputs on [19]
¼" TRS connectors for the left and right channels. The channels can also
process mono signal, as long as you use the “LEFT” jack only.
All stereo channel strips have a [20] GAIN control for gain adjustment. Its scale
ranges from +20 to -20 dB and allows you to adapt the input level to the
line inputs.
Stereo channel equalizer2.2.2
Fig. 2.6: Stere o channel equalizer
The stereo channels are equipped with a stereo equalizer. The lter types
and cuto frequencies for HIGH and LOW lters are the same as on the mono
channels. Instead of one semi-paramtric midrange band, the stereo channels
have two separate midrange bands [21](HIGH MID and LOW MID) with xed
mid-frequencies (3 kHz and 400 Hz). Stereo EQs are preferable for processing
the frequency response of stereo signals. With two mono equalizers you might
encounter problems with dierent settings between the left and right channels.
behringer.com
8 EURODESK SX2442FX/SX3242FX User Manual
[22]
[23]
[24]
[26]
[25]
[27]
[28]
Stereo channel aux/FX send buses2.2.3
Basically, the aux and FX buses on the stereo channels are the same as on the
mono channels. Since aux buses are always mono, the signal from a stereo
channel is rst mixed to mono before it is routed to the aux bus.
Stereo channel fader and other control elements2.2.4
Fig. 2.7: Channel f ader, balance control, m ute switch, etc.
The [22] BAL(ANCE) control has the same function as the PAN control on
the mono channels. It determines the relative volume of the left and
right input signals before they are routed to the stereo main mix bus
(or to two subgroups).
All other control elements of the stereo channels work in the same ways as their
counterparts on the mono channels (faders, MUTE switches, etc.).
Please note: When you route a stereo channel to the subgroups ◊
using the SUB switches, please be sure to set the BAL control to
its mid position, so that the signal is sent to two subgroups and
remains stereo.
Stereo channels 21-24 (SX2442FX) or 2.3
Subgroups 1 - 42.4
Fig. 2.9: Subgr oups 1 - 4
The EURODESK has 4 subgroups enabling you to create mono or stereo mixes
from multiple input signals. Subgroups are controlled from one (mono) or two
(stereo) subgroup faders. Additionally, it is possible to connect the subgroup
outputs as tape sends to a multi-track recorder.
The subgroup faders determine the volume of the subgroup signal at the [25]
subgroup output [28] . Depending on the position of the routing switch [27]
you can thus control the subgroup volume in the main mix.
The [26] SOLO switch routes the subgroup signal to the solo bus (Solo In Place)
or PFL bus (Pre Fader Listen), so that you can monitor the subgroup signal
without aecting the main or sub output signals. The signal to be monitored
is taken either pre (PFL, mono) or post-subgroup fader (Solo, stereo),
depending on the position of theSOLO/PFL switch [40]). The SOLO LED
illuminates when the SOLO switch is pressed.
Use the routing switches for the subgroups to send the subgroup signal to [27]
the main mix. You can route it to the left stereo side (=LEFT pressed), to the
right stereo side (=RIGHT pressed) or to both (=LEFT and RIGHT pressed).
For example, when you have created a stereo submix using subgroups
1 and 2, be sure to route group 1 to the left and group 2 to the right side
to maintain proper stereo positioning. If it is a mono submix with just one
subgroup, route it to the lef t and right sides of the main mix to make the
signal audible on both sides.
29-32 (SX3242FX)
Fig. 2.8: Auxi liary stereo c hannels
Your EURODESK has two stereo channels with an aux send section [23]
(AUX 1 and AUX 2) and one LEVEL control. [24]For these channels, the aux buses
are hard-wired to pre-fader and are therefore particularly useful for monitoring.
They have no routing switches and are always sent to the main mix. Like the
normal stereo channels they have two line-level inputs on ¼" TRS connectors
for the left and right channels, and a SOLO switch.
Similar to the CD/TAPE inputs (see [49]) the auxiliary stereo channels can
be connected to CD players, tape decks, etc., for example, to feed in
playback material.
Fig. 2.10: Subgroup ou tputs 1 - 4
These four [28] SUBGROUP OUT (puts) carry the signals of the individual
subgroups. For multi-tracking connect the outputs to the inputs of a
multi-track recorder (see chapter 4.1 “Studio set-up”).
9 EURODESK SX2442FX/SX3242FX User Manual
behringer.com
[31]
[30]
[29]
[32]
[33]
[34]
[35][36]
[37]
[40]
[39]
[38]
Mono out section for 2.5
subwoofer applications
Using this auxiliary mono output you can route the main mix signal to a separate
power amp. The tunable low-pass lter allows you to limit the signal content to
the low-frequency range to get a perfect subwoofer signal. This signal is mono
because very low frequencies disperse quickly, so there would be no benet to
position this signal in the stereo mix.
Use this high-precision
[33]
Fig. 2.14: XLR main out conne ctors
The [34] MAIN OUT(puts) are balanced XLR connectors with a nominal operating
level of +4 dBu and provide the main mix signal.
Fig. 2.15: Main out connec tors and main inser t
The [35] MAIN OUT ¼" TRS connectors outputs also provide the main mix signal.
MAIN fader to control the output level of the main mix.
Fig. 2.11: Mono out f ader and low-pass l ter
The [29] MONO fader controls the volume of the signal present at the
MONO OUT (see [32]).
The [30] FREQ control adjusts the cut-o frequency of the low-pass lter
(30 to 200 Hz). Frequencies above cut-o are ltered out when ac tivated.
Use the
[31]
g. 2.12: Mono out connec tor
LOW PASS FILTER switch to activate the lter function (LED illuminates).
The [32] MONO OUT connector provides the line-level mono signal for
connection to the inputs of a power amp or active speaker. You can also use
this output as a monitor bus, e.g. to connect a headphone amplier. In this
case, the signal should of course not be limited by the low-pass lter.
Main out section2.6
Fig. 2.13: Main out fader
Like the channel inserts, the [36] MAIN INSERT connectors can be used to
connect a dynamics processor or equalizer for further processing of the
mix signal. The MAIN INSERT refers to the Main Outs (XLR and ¼" TRS
connectors), the MONO OUT (see [32] ) and, if the MAIN switch in the
PHONES/CONTROL ROOM section is pressed, also to the PHONES/CTRL ROOM
output (see [46] ).
Fig. 2.16: Level meter
The red “[37] +48 V” LED illuminates when phantom power is on.
Phantom power is required for the operation of condenser microphones,
and can be switched on with the corresponding switch on the rear of
the console.
The [38] POWER LED is illuminated when the console is switched on.
The high-precision level meter accurately indicates the output signal level. [39]
For example, when you press the SOLO switch on one of the input channels,
its signal level will be displayed here, either pre-fader (PFL) or post-fader
(SOLO), depending on the position of the SOLO/ PFL switch (see [40]). In PFL
mode only the left display is active, because the PFL signals are mono.
behringer.com
10 EURODESK SX2442FX/SX3242FX User Manual
[42]
[41]
[43]
[44]
[43]
[46]
[44]
[48]
[50][49]
[51]
The [40] SOLO/PFL switch determines whether the monitored signal is pre
(PFL) or post-fader (SOLO) after pressing the SOLO/PFL switch (the LED
illuminates). The level meter indicates the corresponding signal (see [39]).
When you adjust a signal with the GAIN control, it is advisable to select PFL
mode, so that the level shown is independent of the channel fader position.
Talkback2.6.1
The talkback function of the EURODESK allows you to communicate with
the musicians in the recording room or on the stage. The talkback signal
is present at the AUX SEND outputs, which are particularly useful for
monitor/ headphone mixes.

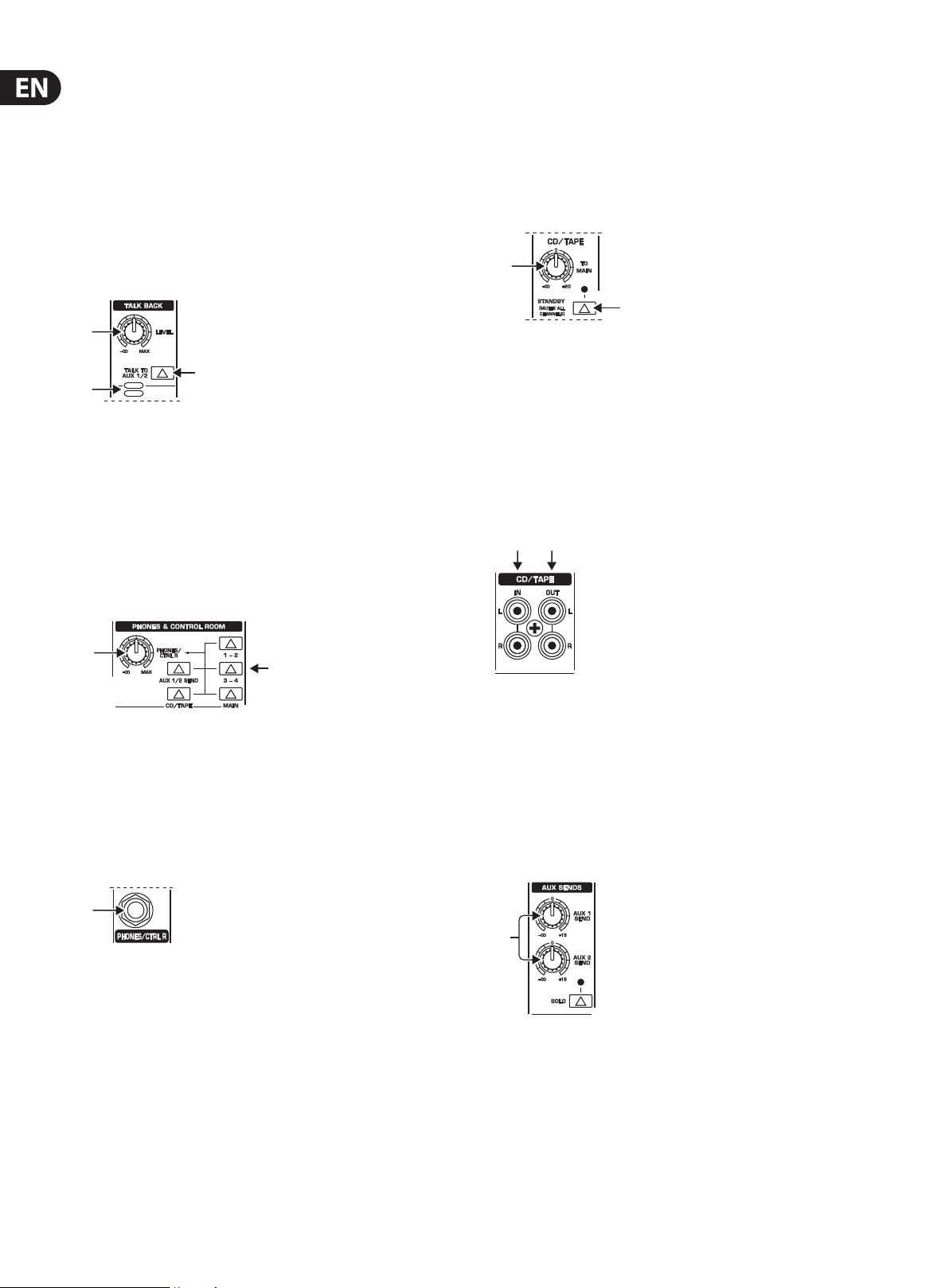

Fig. 2.17: Talkback s ection
The [41] LEVEL control determines the volume of the talkback signal at the
AUX 1/2 outputs.
Use the [42] TALK TO AUX 1/2 switch to activate the built-in talkback
microphone. Its signal is sent to the AUX SEND jacks 1 and 2. Keep the
switch pressed while you’re speaking.
IMPORTANT! High volume levels may damage your hearing and/or ◊
your headphones/loudspeakers. To avoid switch-on/off thumps from
the console and any downstream devices, always make sure that the
power amp(s) or active speaker(s) are the last components that are
switched on and the first to be switched off. Always make sure that the
appropriate volume is set.
CD/2.7 Tape
Fig. 2.20: CD/t ape
TO MAIN[47] controls the volume of, for example, a CD player connected to the
CD/tape input connectors (see [49]).
When the [48] STANDBY switch is pressed, all input channels are muted. Only the
CD/tape signal will be routed to the main mix. In this way, you can prevent
the microphones from pickung up unwanted sounds or noise that would
interfere with CD playback during a break. The main mix and channel faders
can remain in their normal positions while playing back music from CD
(using the CD/ TAPE INPUTs [49]), so you don’t lose your mix.
This is the built-in talkback microphone.[43]
Phones & control room2.6.2
Fig. 2.18: Phones/contro l room section
The [44] PHONES/CTRL R control adjusts the volume of the headphones
connected to the PHONES/ CTRL ROOM OUT jack (see [46]). If you have an
active monitor speaker or power amp connected here, you can also control
the monitor volume.
These switches select the signal sent to the PHONES/ CTRL ROOM jack. [45]
Available sources are: MAIN, CD/TAPE, AUX 1/2 and subgroups 1 - 2 and 3 - 4.
Fig. 2.19: Phones/contro l room output
Connect your headphones or monitor speaker to the PHONES/CTRL [46]
ROOM OUT ¼" TRS connector.
Fig. 2.21: CD/tape con nectors
The [49] CD/TAPE INPUT RCA connectors are for the connection of CD players,
tape decks or other line-level sources. The signal volume is adjusted with
the TO MAIN control.
The [50] CD/TAPE OUTPUT RCA connectors provide the stereo main mix signal to
a tape deck or DAT recorder to record your mix. The signal is taken pre-fader,
so that it will not be inuenced by the fader positions.
Master Aux Send 1 and 22.8
Fig. 2.22: Ma ster aux sends
11 EURODESK SX2442FX/SX3242FX User Manual
behringer.com
[52]
[53] [56]
[54]
[55]
[62] [64]
[60]
[65]
[61]
[63]
[57]
[58]
[59]
These are the master [51] AUX SEND controls 1 and 2 for adjusting the volume
level sent to the corresponding aux send connectors (see [52]). This way,
you can control the mix of all AUX 1 or AUX 2 signals of the input channels.
The AUX SEND section also has a SOLO switch.

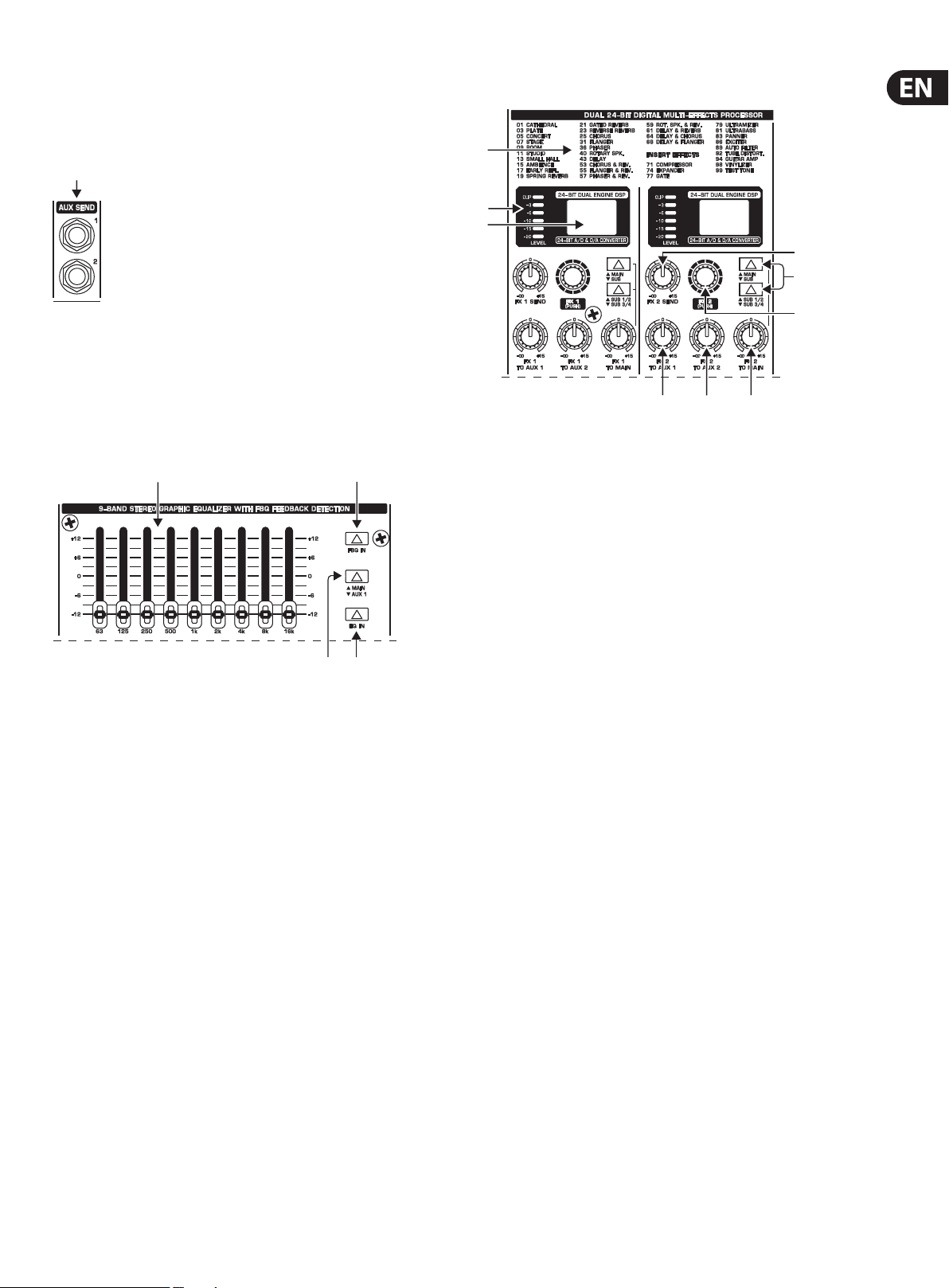

Fig. 2.23: Mas ter aux send outpu ts
Use the [52] AUX SEND outputs 1 and 2 to take the master AUX SEND
signals and route them to an external eects device or your monitor
speakers. Subsequently, you can return the eect signal, e.g. via the
STEREO FX RETURN inputs (see [67]) or specic input channels.
Graphic 9-band stereo equalizer2.9
Eects section2.10
Fig. 2.25: The d igital eect s processor
Here you will nd a list of all multi-eects presets (see also chapter 3 [57]
“Digital eects processor”).
The FX LED level meters show the eects processor’s input signal. [58]
Be sure that the clip LED only illuminates with signal peaks. If it is lit
all the time, the eects processor is overloading and hence producing
unpleasant distortion.
Fig. 2.24: The gra phic stereo equal izer
Your EURODESK is equipped with a graphic 9-band stereo equalizer [53]
processing either the main or the AUX 1 signal. Use the EQ to adapt the
sound to the room acoustics.
Use the [54] EQ IN switch to switch the equalizer on. In this case, the fader
LEDs illuminate.
With the [55] MAIN/AUX 1 switch you can determine the signal to be processed,
either main or AUX 1.
Press the [56] FBQ IN switch to activate the FBQ Feedback Detection System.
The frequencies causing feedback are indicated by the brightly lit fader
LEDs, while all other LEDs are darker. Simply lower the level of the brightly
lit faders until feedback disappears.
When the switch is in the “AUX 1” position (see ◊ [55]), the EQ fader
LEDs show both the MAIN and the AUX 1 signal simultaneously.
However, if feedback occurs in one of the signals, those signals without
feedback will be faded out to enable clear identification of where
feedback is occurring. If the MAIN signal happens to be the one carrying
feedback, put the switch [55] to “MAIN” and then use the 9-band EQ to
remove the feedback.
The [59] Eect displays show the currently selected presets.
This is the master [60] FX 1 (or 2) SEND control for adjusting the volume of all
FX send signals at the corresponding FX send jacks (see [66]) and at the
inputs of the built-in eects processor. Use it to control the master signal of
all FX 1/FX 2 signals from the input channels. When neither of the FX SEND
controls is turned up, the eects processor will not receive a signal.
Turn the [61] FX 1 (or FX 2) control to select an eects preset. Then, push it
briey to conrm your selection and activate the new eect.
The [62] FX 1 (or 2) TO AUX 1 controls allow you to add the eect signal from
the built-in eects processor (FX1 or FX2) to the AUX 1 monitor signal.
Naturally, the eects processor must be provided with an input signal
(i.e. the FX controls in the channel strips plus the FX SEND controls and the
channel faders must be turned up).
This is the [63] FX 1 (or 2) TO AUX 2 control adding the eect signal from the
eects processor to the AUX 2 monitor signal. See [62] for further details.
The [64] FX 1 (or 2) TO MAIN control routes the eect signal either to the main
mix or the subgroups 1 and 2 (or 3 and 4), depending on the position of the
selector switch (see [65]). When it is hard lef t, no eect signal will be audible.
Here, too, the FX controls in the channel strips plus the FX SEND controls and
the channel faders must be turned up.
behringer.com
12 EURODESK SX2442FX/SX3242FX User Manual
[67] [66]
[68]
[72] [71] [69] [70] [73]
These selector switches route the eect signal to the main mix or to the [65]
subgroups 1-2 or 3-4. If the MAIN/SUB switch is not pressed, the eect
signal is sent to the main mix and the SUB 1/2 / SUB 3/4 switch below
is inoperative. If the upper switch is pressed (SUB), however, the lower
switch determines whether the eect signal is routed to subgroups 1 and 2
(SUB 1/2) or 3 and 4 (SUB 3/4).
Fig. 2.26: FX s end and return conn ectors
The [66] FX SEND 1 and 2 connectors also provide the master FX send signals,
for example, to connect them to the inputs of an external eects device.
However, these are “dry” signals only with no “eect signals” from the
built-in eects processor!
The Stereo [67] FX RETURN inputs 1 and 2 return the eect signals from external
eects processors and add them to the main mix.
With the [70] PHANTOM switch you can activate the phantom power supply
for the XLR connectors of the mono channels for condenser microphones.
The +48 V-LED [37] illuminates when phantom power is on. In most cases,
dynamic microphones can still be used as long as they are connected in
a balanced conguration. If in doubt, please contact the manufacturer of
your microphone!
The mains connection is a standard IEC receptacle. An appropriate power [71]
cord is supplied with the unit.
FUSE HOLDER[72] . Before connecting the unit to the mains, ensure that
the voltage setting matches your local voltage. Blown fuses should only
be replaced by fuses of the same type and rating. Please also read the
information given in chapter 6 “Specications”.
SERIAL NUMBER[73] .
Digital Eects Processor3.
Fig. 3.1: List of all eec ts presets
Fig. 2.27: Foot switch connec tors
The [68] FOOTSW(ITCH) connector allows you to connect a standard dual
footswitch to separately enable/disable FX 1 or FX 2. The tip of the ¼" plug
controls FX 1, the ring controls FX 2.
Rear panel2.11
Fig. 2.28: The r ear panel of the EURODE SK
Use the [69] POWER switch to put the mixer into operation. This switch should
always be in the “O” position when you connect your unit to the mains.
Please note: The POWER switch does not fully disconnec t the unit from ◊
the mains. To disconnect the unit from the mains, pull out the main
cord plug or appliance coupler. When installing the product, ensure the
plug or appliance coupler is readily operable. Unplug the power cord
when the unit is not used for prolonged periods of time.
99 FIRST-CLASS PRESETS
Here is the list of all multi-eects presets. The built-in
eects processor oers you various standard eects such as
reverb, chorus, anger, delay and a variety of combination
eects from our renowned studio eects processor
VIRTUALIZER PRO DSP2024P. Use the FX control on the channels and the FX SEND
control to supply the eects processor with signals. A built-in digital stereo
eects processor has the benet of no external wiring, thus reducing the risk of
ground loops or level dierences. Handling is therefore much easier.
PARALLEL FX
The eects presets 1 to 70 provide classic “add-to-mix” eects. So, when you
turn up the FX 1 (or 2) TO MAIN control, you create a mix of the (dry) channel
signal and the eect signal. The balance between the two signals can be set
with the FX send and FX 1/2 TO MAIN controls.
This also applies to adding eect signals to the AUX 1 (or 2) monitor mix, with the
exception that the mix here is adjusted with the AUX 1 (or 2) control in the
channel strip and the FX TO AUX 1 (or 2) potentiometer. Of course, the eects
processor must receive a signal from the channel using the FX 1 (or 2) control.
Make sure that the PRE switch in the corresponding channel strip(s) is pressed.
Otherwise, the AUX buses will be set post-fader making the volume of the
AUX monitor signal dependent on the position of the channel fader(s).
INSERT FX (channel is muted)
Eects presets #71 and higher process the entire signal, unlike the “add-tomix” eects. When you use an insert preset, be sure to separate the respective
channel from all buses (SUB button and MAIN button not pressed) and only
route the eect signal to the main mix (FX 1/2 control, FX SEND 1/2 control and
FX TO MAIN 1/2 control).
The channel fader of the corresponding channel remains active and ◊
governs (in combination with the FX controls) the signal level sent to
the built-in effects processors.
13 EURODESK SX2442FX/SX3242FX User Manual
behringer.com
Multi-trackrecorder
EUROPOWER EP1500
HPS3000
TRUTH B2030P
Bass
Guitar
Vocals 1
Vocals 2
Tape Returns
Keyboard
Subgroups Outs
SUB 3-4 switch
pressed
SUB 3-4 switch
pressed
MAIN switch
pressed
SUB 1-2 switch
pressed
SUB/MAIN switches
not pressed
L R
Drums
K
I
C
K
D
R
U
M
S
N
A
R
E
O
V
E
R
H
E
A
D
L
O
V
E
R
H
E
A
D
R
Wiring Examples4.
Studio set-up4.1
The following wiring example shows a studio set-up for 4-track-recording:
the drums are mixed down to two subgroups and then routed via the subgroup
outputs to two tracks of the multi-track recorder. The remaining two subgroups
are used to record the guitar, keyboard (stereo channel) and two vocal signals
on the remaining two tracks. The four return paths from the recorder are
connected to four separate mono input channels on the EURODESK. The built-in
compressor is used only for the bass, which is why this input channel is separate
from all buses (SUB and MAIN switch not pressed). The bass signal is directly
routed from the built-in eects processor to the respective subgroups
(FX TO MAIN control). The MAIN/SUB switch in the FX1 section is pressed,
but NOT the SUB 1/2 SUB 3/4 button.
Fig. 4.1: Wiring the cons ole for studio ope ration
Please make sure that none of the subgroup routing switches ◊
(1-2 and 3-4) is pressed in the channels connected to the recorder
returns. Otherwise, a feedback loop will be created as soon as you
start recording. Only press the MAIN switch on these input channels,
so that the tape return signals are routed to the main outs and
Phones/CTRL room outputs of the console.
behringer.com
14 EURODESK SX2442FX/SX3242FX User Manual
EUROLIVE PROFESSIONAL
B1220 PRO
EUROPOWER EP1500
EUROPOWER EP1500
2 x EUROLIVE PROFESSIONAL
Stack (B1800X PRO & B1220 PRO)
K
I
C
K
D
R
U
M
S
N
A
R
E
O
V
E
R
H
E
A
D
L
O
V
E
R
H
E
A
D
R
L R
Bass
Guitar
Vocals 1
Vocals 2
Keyboard
L/R switch
pressed
MAIN switch
pressed
SUB 1-2 switch
pressed
SUB/MAIN switches
not pressed
Drums
Live set-up4.2
Fig. 4.2: Wir ing the console for l ive operation
This example shows a classic live set-up. As in the studio example, four drum
microphones, bass, keyboard (stereo channel), guitar and two vocal microphones
are connected. The four drum channels (kick drum, snare, overhead L, overhead R)
are mixed down to two subgroups and then routed to the main mix. This way,
it is possible to conveniently control the volume of the entire drums in the main
mix with the two subgroup faders. The built-in compressor insert eect is used
for the bass. The corresponding input channel is separate from all buses and the
bass signal is routed directly from the internal eects processor to the main mix
bus. The MAIN/SUB switch must not be pressed in this case and the position of the
SUB 1/2 SUB 3/4 switch is irrelevant.
15 EURODESK SX2442FX/SX3242FX User Manual
behringer.com
Strain relief clamp
Sleeve
Tip
Sleeve
(ground/shield)
Unbalanced ¼" TS connector
Tip
(signal)
strain relief clamp
sleeve
ring
tip
sleeve
ground/shield
For connection of balanced and unbalanced plugs,
ring and sleeve have to be bridged at the stereo plug.
Balanced ¼" TRS connector
ring
cold (-ve)
tip
hot (+ve)
shield
sleevesleeve
tip tip
output
For unbalanced use, pin 1 and pin 3 have to be bridged
1 = ground/shield
2 = hot (+ve)
3 = cold (-ve)
input
12
3
1
2
3
Balanced use with XLR connectors
strain relief clamp
sleeve
tip
sleeve
pole 1/ground
tip
pole 2
The footswitch connects both poles momentarily
¼" TS footswitch connector
Audio Connectors5.
The inputs and outputs of the BEHRINGER EURODESK are designed as unbalanced
¼" TS connectors—except for the balanced line inputs of the mono and stereo
channels and the main out connec tors. Of course, all inputs and outputs work
with both balanced and unbalanced connectors. The tape ins and outs are stereo
RCA connectors.
Please ensure that only qualified personnel install and operate the ◊
EURODESK. During installation and operation, the user must have
sufficient electrical contact to earth. Electrostatic charges might
affect the operation of the unit.
Fig. 5.3: RCA cab le
Fig. 5.1: ¼" TS connec tor
Fig. 5.2: ¼" TRS conne ctor
Fig. 5.4: XLR connec tors
Fig. 5.5: ¼" TRS foot switch connec tor
behringer.com
16 EURODESK SX2442FX/SX3242FX User Manual
strain relief clamp
sleeve
ring
tip
sleeve
ground/shield
¼" TRS headphones connector
ring
right signal
tip
left signal
strain relief clamp
sleeve
ring
tip
sleeve
ground/shield
Connect the insert send with the input and the
insert return with the output of the effects device.
Insert send return ¼" TRS connector
ring
return (in)
tip
send (out)
Fig. 5.6: ¼" TRS connec tor for headpho nes
Fig. 5.7: Insert s end and return ¼” TRS co nnector
17 EURODESK SX2442FX/SX3242FX User Manual
behringer.com
Presets6.
Eect Description Applic ation example s
PARALLEL EFFECTS
Cathedral Very dense and long reverberation of a large cathedral. Solo instruments/vocals in slow pieces.
Plate Simulates the sound of early plate reverberators. A classic for drums (snare) and vocals.
Concert Simulates a small theater or large concert hall. Creates an “atmosphere” (e.g. radioplay voices).
Stage Very dense reverb, especially for live applications. Dissipates the sound of keyboard pads, for example.
Room You can clearly hear the walls of the room. Reverb eect that isn’t directly noticeable.
Studio Adds spaciousness to the sound; signals sound natural, not “at”. Gives a sound source more “class” in the mix.
Small Hall Simulates a small, lively (strongly reecting) hall. Perfect for processing drums.
Ambience Reproduces a middle-sized room without late reections. Extremely versatile eect.
Early Reections Very dense reverb with pronounced early reections. Drums, percussion, slap bass
Spring Reverb Simulates a classic spring reverberation. Extremely versatile eect.
Gated Reverb Reverb that is synthetically cut o Produces a very “crisp” snare sound.
Reverse Reverb Reverb with reversed envelope, i.e. it slowly gets louder. Produces a very spaced out vocal sound.
Chorus Slight detuning of the original signal. Extremely versatile eect (guitar, vocals, bass, keyboards etc.).
Flanger A slightly delayed signal is added to the original signal, producing phase shifting of the signals. Extremely versatile eect (guitar, vocals, bass, keyboards etc.).
Phaser Another phase-shift eect. Extremely versatile eect (guitar, vocals, bass, keyboards etc.).
Rotary Speaker Simulation of a classic eect for electronic organ. Organ/keyboards.
Delay Delay of the input signal with several repetitions. Ex tremely versatile eect.
Chorus & Reverb Combination of chorus and reverb. A classic eect for vocals.
Flanger & Reverb Flanger combined with a reverb eect. All-purpose eect.
Phaser & Reverb Phaser combined with a reverb eect. All-purpose eect.
Rotary Speaker & Reverb Rotary Speaker eect combined with reverb. Organ/keyboards/electric guitar.
Delay & Reverb Delay combined with reverb. The most common combination for vocals, solo guitar, etc.
Delay & Chorus Widens the signals and produces interesting repetition eects. Makes vocals stand out in the mix. Good intelligibility is preserved.
Delay & Flanger Similar to Delay & Chorus, but with audible up/downward modulation. Ideal for creating a slightly spaced out sound.
INSERT EFFECTS
Compressor Soft or loud passages are raised or lowered in level respectively. Single signals, especially from microphones.
Expander
Gate A gate opens for a specic period of time to make a specic signal pass, and then closes abruptly. “Controls” feedback-prone microphones/eliminates interference.
Ultramizer Extremely ecient compression through automatic adaptation of compression parameters. Gives mix signals a constant output level.
Ultrabass Combines sub-harmonics processor, bass exciter and limiter.
Panner The signal “wanders” between the sides of the stereo basis. Special eect, e.g. for radioplay soundtracking.
Exciter Adds synthetic harmonics to the signal, resulting in increased presence and “loudness”. Both mix and single signals. Improves intelligibility of vocal signals.
Auto Filter Level-dependent boost of a specic frequency band, similar to auto-wah eect for electric guitars. DJ-ing/sound eects for live events/electric guitar or bass.
Tube Distortion Simulates the tube distortion of classic guitar ampliers. Electric guitar/vocals/keyboards.
Guitar Amp Guitar amp simulation. Electric guitar or bass.
Vinylizer Adds the clicks and noise of old vinyl records. DJ-ing/sound eects for live events.
Test Tone 1-kHz test tone. Makes P.A. level setting easier.
No dynamics limitation (see Compressor), but quite the opposite: interference
(noise, hum, etc.) is reduced in level.
Single signals, especially from microphones.
Gives keyboard sounds some special “class”/sound eect for
electric basses.
behringer.com
18 EURODESK SX2442FX/SX3242FX User Manual
Specications7.
Mono Input s
Microphone inputs (XENYX Mic preamp)
Type XLR connector, electronically
balanced, discrete input circuit
Mic E.I.N.1 (20 Hz - 20 kHz)
@ 0 Ω source resistance -134 dB / 135.7 dB A-weighted
@ 50 Ω source resistance -131 dB / 133.3 dB A-weighted
@ 150 Ω source resistance -129 dB / 130.5 dB A-weighted
Frequenc y Response
<10 Hz - 160 kHz -1 dB
<10 Hz - 200 kHz -3 dB
Gain range +10 dB to +60 dB
Max. input level +12 dBu @ +10 dB GAIN
Impedance approx. 2.6 kΩ balanced
Signal-to-noise ratio 110 dB / 112 dB A-weighted
(0 dBu In @ +22 dB GAIN)
Distortion (THD + N) 0.005 % / 0.004 % A-weighted
Line Input
Type ¼" TRS jack,
electronically balanced
Impedance approx. 20 kΩ balanced,
approx. 10 kΩ unbalanced
Gain range -10 dB to +40 dB
Max. input level +22 dBu @ 0 dB GAIN
Fade-out attenuation2 (Crosstalk attenuation)
Main fader closed 90 dB
Channel muted 84 dB
Channel fader muted 85 dB
CD/Tape In
Type RCA connector
Impedance approx. 10 kΩ
Max. input level +22 dBu
Equalizer
EQ mono channels
LOW 80 Hz / ±15 dB
MID 100 Hz to 8 kHz / ±15 dB
HIGH 12 kHz / ±15 dB
LOW CUT 80 Hz, 18 dB/oct.
EQ stereo channels
LOW 80 Hz / ±15 dB
LOW MID 500 Hz / ±15 dB
HIGH MID 3 kHz / ±15 dB
HIGH 12 kHz / ±15 dB
Channel Inserts
Type ¼" TRS jack, unbalanced
Max. input level +22 dBu
AUX/FX Send
Type ¼" mono jack, unbalanced
Impedance approx. 120 Ω
Max. output level +22 dBu
FX Returns
Type ¼" mono jack, unbalanced
Impedance approx. 10 kΩ
Max. input level +22 dBu
Frequency response (Mic In → Main Out)
<10 Hz - 90 kHz +0 dB / -1 dB
<10 Hz - 160 kHz +0 dB / -3 dB
Stereo Inputs
Type 2 x ¼" TRS jack, balanced
Impedance approx. 20 kΩ balanced,
approx. 10 kΩ unbalanced
Gain range -20 dB to +20 dB
Max. input level +22 dBu @ 0 dB GAIN
Subgroup Outputs
Type ¼" mono jack, unbalanced
Impedance approx. 120 Ω
Max. output level +22 dBu
Main Outputs (XLR)
Type XLR connector,
electronically balanced
Impedance approx. 240 Ω balanced,
approx. 120 Ω unbalanced
Max. output level +28 dBu
19 EURODESK SX2442FX/SX3242FX User Manual
behringer.com
Main Outputs (¼")
Type ¼" TRS jack, electronically balanced
Impedance approx. 240 Ω balanced,
approx. 120 Ω unbalanced
Max. output level +28 dBu
Main Inser ts
Type ¼" TRS jack, unbalanced
Max. input level +22 dBu
Mono Output
Type ¼" mono jack, unbalanced
Impedance approx. 120 Ω
Max. output level +22 dBu
Low pass variable, 30 Hz to 200 Hz, 18 dB/oct.
Phones/CTRL Room Output
Type ¼" TRS jack, unbalanced
Max. output level +19 dBu / 150 Ω (+25 dBm)
CD/Tape Out
Physical/Weight
SX2442FX
Dimensions (H x W x D) 3.9 x 26.9 x 16.1"
100 x 682 x 410 mm
Weight (net) 19 lbs / 8.6 kg
SX 3242FX
Dimensions (H x W x D) 3.9 x 35.3 x 16.1"
100 x 896 x 410 mm
Weight (net) 24.3 lbs / 11.0 kg
1
Equivalent In put Noise
2
Measuring conditions: 1 kHz rel. to 0 dBu; 20 Hz - 20 kHz; line input; main output; unity gain.
3
20 Hz - 20 kHz; measured at main output. Channels 1 - 4 unity gain; EQ flat; all channels on main mix;
channels 1/3 as far l eft as possib le; channels 2/4 as far right a s possible; refere nce = +6 dBu.
BEHRINGER is constantly striving to maintain the highest professional standards. As a result of these efforts,
modifications may be made from time to time to existing products without prior notice. Specifications and
appearance m ay differ from thos e listed or illustr ated.
Type RCA connector
Impedance approx. 1 kΩ
Max. output level +22 dBu
DSP
Type Texas Instruments
Converter 24-bit delta-sigma,
64/128-times oversampling
Sampling rate 46 kHz
Main Mix System Data3 (Noise)
Main mix @ -∞, channel fader @ -∞ -100 dB / -102.5 dB A-weighted
Main mix @ 0 dB, channel fader @ -∞ -82 dB / -85 dB A-weighted
Main mix @ 0 dB, channel fader @ 0 dB -72 dB / -75 dB A-weighted
Power Supply
Power consumption 50 W
Fuse (100 - 240 V~, 50/60 Hz) T 2,0 A H 250 V
Mains connector Standard IEC receptacle
20 EURODESK SX2442FX/SX3242FX User Manual
FEDERAL COMMUNICATIONS
COMMISSION COMPLIANCE
INFORMATION
EURODESK SX2442FX/SX3242FX
Responsible par ty name: MUSIC Group Services USA, Inc.
Address: 18912 North Creek Parkway,
Suite 200 Bothell, WA 98011,
USA
Phone/Fax No.: Phone: +1 425 672 0816
Fax: +1 425 673 7647
EURODESK SX2442FX/SX3242FX
complies with the FCC rules as mentioned in the following paragraph:
This equipment has been tested and found to comply with the limits for a Class B
digital device, pur suant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instruc tions, may cause
harmful inter ference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful inter ference to radio or television reception, which can be determined
by turning the equipment o and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.•
Increase the separation between the equipment and receiver.•
Connect the equipment into an outlet on a circuit dierent from that to which the •
receiver is connec ted.
Consult the dealer or an experienced radio/TV technician for help.•
This device complies with Part 15 of the FCC rules. Operation is subject to the
following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any inter ference received, including inter ference that may
cause undesired operation.
Important information:
Changes or modications to the equipment not expressly approved by MUSIC Group
can void the user ’s authority to use the equipment.
